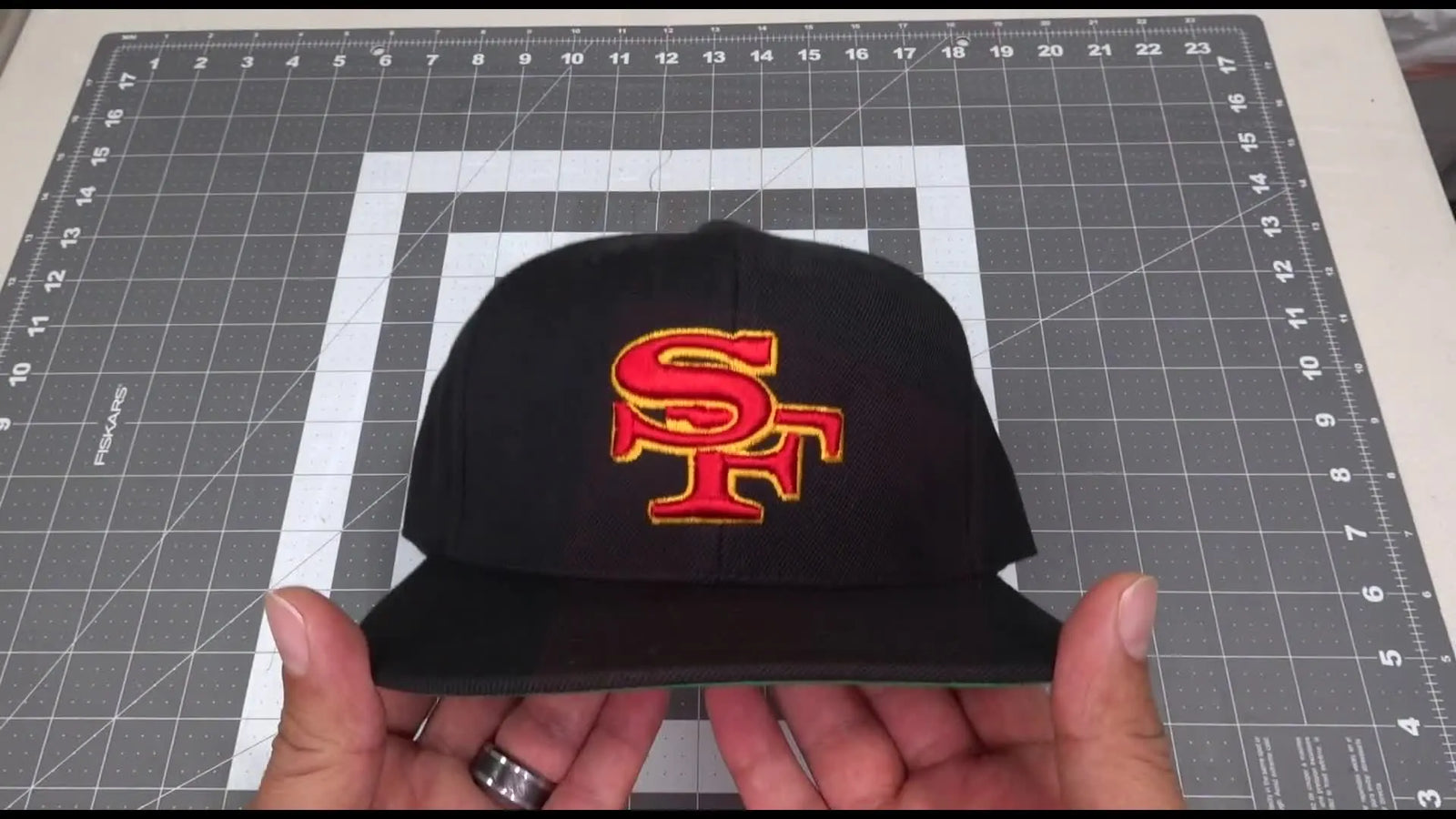

Clean 3D Puff SF Hat Embroidery in Wilcom: Magic Knife Borders, Fewer Trims, and a Cap Driver Setup That Won’t Fight You

If you’ve ever watched a cap stitch-out and felt your stomach drop—because one bad angle, one extra trim, or one foam tuft can ruin the whole front panel—you’re not alone. 3D puff on hats is one of those techniques that looks "simple" in a YouTube video until you try to repeat it cleanly, at speed, for real orders.

This post rebuilds the exact workflow shown in the tutorial: digitizing an SF-style logo in Wilcom EmbroideryStudio, using the Magic Knife tool to tame a complex border, sequencing run stitches to keep trims low, and finally stitching on a multi-needle machine with a cap driver.

We will focus on the sensory cues and safety margins that turn a risky gamble into a repeatable process.

1. Start With the Numbers: Size, Grid, and Why Caps Punish "Almost Right" Setup

The video begins in Wilcom with the design sized specifically for cap profiles: 115.15 mm wide x 71.93 mm tall, with a 10.00 mm grid spacing visible.

Those aren't just screen details. On a structured cap, the "safe zone" is strictly limited by the curve of the forehead and the sweatband. A cap front panel behaves differently than a flat tee:

• The Surface is Pre-Shaped: It fights the needle.
• The Curve is Tensor: Density changes cause more push-pull distortion here than anywhere else.
• The Stakes are Higher: You can't just "steam out" a mistake on a structured hat.

If you are running a commercial hat embroidery machine, treat your first sample not just as a design check, but as a calibration run for your machine's hoop alignment.

2. The Smooth-Curve Trick: Breaking the "S" to Save the Foam

In the video, the creator manually traces the "S" and "F," but he makes a crucial veteran move: he breaks the "S" into four or five separate segments.

Why? On 3D puff, stitch angle is structural, not just aesthetic.

• The Physics: The needle acts like a perforated cutter. If the satin stitches turn too sharply (imagine a car taking a turn at 90mph), the needle hits the same spot repeatedly, slicing the foam completely and causing it to fall out.
• The Goal: You want the needle to enter the foam at a perpendicular angle to the edge, creating a "ladder" that holds the foam down.

What to do (as shown):

1. Trace the letter shape.
2. Split the "S" into multiple segments at the tightest curves.
3. Adjust stitch angles segment-by-segment so they flow like water through a pipe, rather than crashing into the walls.

Sensory Check: In Wilcom, look at the stitch angle lines. They should fan out evenly. If they look crossed or bunched up, that is where your foam will poke out.

3. The "No-Unnecessary-Cuts" Mindset: Run Stitches Under Satin (Trim Count: 5)

The creator highlights a golden rule of production: Silence is expensive. Every time the machine stops to trim, you lose time, and you risk the cap shifting slightly.

In the video, he connects elements using run stitches placed underneath the final satin stitches. This allows the machine to travel from the "S" to the "F" without cutting the thread.

Logic for the Floor:

• Risk Reduction: Every trim creates a thread tail that might poke out of the foam.
• Speed: On caps, trims slow the momentum.
• Goal: The stitch-out shown ends up with just 5 cuts.

If you are running a multi needle embroidery machine, fewer trims usually mean fewer thread-handling errors and a smoother rhythm to the sounds of the machine.

4. The Magic Knife Border Move: Let Software Solve the Geometry

This is the "secret sauce" section. Borders that twist around letters create nightmare angle conflicts.

The workflow shown:

1. Trace a single line around the border shape.
2. Convert it to a fill stitch object.
3. Create a hole inside the fill to form the border.
4. The Key Move: Use Wilcom’s Magic Knife to slice the complex border.

Why this matters: The Magic Knife doesn't just cut the shape; it forces the software to recalculate stitch angles for each new section. Instead of one giant object trying to wrap around a curve (which causes gaps), you get distinct blocks with perfect angles.

Validation: After using the knife, you should see the stitch angles automatically re-orient themselves to follow the flow of the border.

5. Stitch Player: The Digital Pre-Flight Check

The video runs Stitch Player to specifically check for "little small errors" like gaps at border join points.

Do not skip this. Use the visual simulation to look for:

• The "White Flash": If you see a gap between the border and the letter on screen, it will be a crater on the actual hat.
• Travel Paths: Confirm your run stitches are truly hidden under the satin.


6. The "Hidden" Prep Pros Do Before 3D Puff (Thread, Bobbin, Foam, Safety)

Before you stitch, do the prep that prevents 80% of cap disasters. The video shows the materials clearly: a structured black snapback, gold and red polyester thread, bobbin thread, and 3 mm dense red puff foam.

Shop Floor Reality Check:

• Foam Density: Use High Density foam. Craft store foam is too soft; the needle will smash it flat instead of standing it up.
• Bobbin: Ensure you have enough thread. Changing a bobbin in the middle of a puff cap run is a nightmare.
• Needle: Use a sharp needle with a large eye (e.g., 75/11 Sharp). Ballpoints can struggle to perforate dense foam cleanly.

Warning: Keep fingers clear! When testing cap driver clearance, keep your hands away from the needle bar. Cap frames pull fabric extremely tight, and the machine moves with high torque. A needle puncture here is a hospital trip.

Prep Checklist (Do this OR Fail)

• Foam: Verify you have 3 mm High Density foam (squeeze it—it should feel firm, like a yoga mat, not a sponge).
• Needle: Install a fresh needle (Sharp point recommended for puff).
• Clearance: Manually rotate the cap driver to ensure the bill clears the machine head.
• Speed: Beginner Sweet Spot: Set your machine to 500-600 SPM. Puff creates friction; high speed causes thread breaks.


7. Cap Hooping Reality: Tension is Everything

The video uses a cylindrical cap frame on a cap driver. This is the industry standard for finished hats.

The Physics of Hooping:

• The Sound: When you clamp the cap, tap the front panel. It should sound like a dull drum—"thump." If it sounds loose or fabric ripples, re-hoop.
• The Zone: Ensure the sweatband is pulled back smoothly. A bunched sweatband acts like a speed bump, causing flagrant needle breaks.

For shops comparing systems, specific compatibility matters. Terms like tajima hat hoop or tajima embroidery hoop often appear in searches because Tajima's driver system sets a high standard for stability. If you are buying third-party hoops, ensure they lock effectively into your specific driver.

8. Stitch the Gold Border First: The Foundation

The machine runs the gold border directly onto the cap first (flat embroidery). The creator calls it a "solid border."

Visual Check: A "wall" for the foam. The border creates a channel. When you lay the puff down later, it will sit inside this gold border, and the red satin will lock over it. This provides a crisp definition that prevents the "messy edge" look.

9. Foam Placement: The Pause and The Material

The video pauses the machine. The operator places a strip of 3 mm dense puff foam over the design.

Critical Material Note: The creator explicitly advises against craft foam.

• Why? Craft foam shreds. Dense puff foam perforates cleanly.
• Technique: You can use a light spray of temporary adhesive (very light!) or tape the edges to hold the foam if your fingers shouldn't be that close.


10. The High-Density Satin Pass: Perforate and Cover

Now the red satin stitches run over the foam. The needle is doing two things: perforating the foam to cut it out, and covering it with color.

Sensory Monitoring:

• Sound: You should hear a rhythmic thud-thud-thud as the needle penetrates the foam. If it sounds like a sharp crack or metallic ping, stop immediately—your needle may be deflecting.
• Density Settings: For puff, you generally need double the density of standard flat embroidery. (e.g., if standard spacing is 0.40mm, puff might need 0.18mm - 0.22mm).


Warning: Magnet Safety. If you use magnetic hoops for flat items in your shop to speed up production, remember they carry extreme clamping force. Do not place them near pacemakers, and watch your fingertips—they can pinch skin severely.

Operation Checklist (Right before running the Puff)

• Coverage: Does the foam cover the entire border area?
• Position: Is the foam flat? No wrinkles.
• Presser Foot: Is the presser foot height adjustable? If so, raise it slightly (2-3mm) to clear the foam height without dragging.
• Tension: Loosen top tension slightly. If the thread is too tight, it will slice the foam in half.

11. The Tear-Away Reveal: Patience Pays Off

The finishing in the video is straightforward:

1. The Tear: Pull the excess foam away. It should separate cleanly like a perforated stamp.
2. The Tickle: If small tufts remain, use tweezers or your fingernail to tuck them back under the satin.
3. The Heat (Optional Pro Tip): Hitting the finished cap briefly with a heat gun can shrink any tiny micro-tufts of foam back under the thread.


12. Flip the Cap: The "Inside Out" Quality Check

The creator turns the cap inside out to inspect the bobbin. "Clean" means no bird nests and correct tension.

The "1/3 Rule" Visual: Look at the back of the satin column. You should see the white bobbin thread occupying the center 1/3 of the column, with the top thread pulling around slightly to the back.

• If you see only top thread on the back: Tension is too loose (or bobbin too tight).
• If you see only bobbin thread: Top tension is too tight.


Final Inspection Checklist

• Clean Edge: No foam poking out.
• Registration: Is the red puff perfectly centered inside the gold border?
• Distortion: Did the cap front warp? (If yes, check stabilizer and hooping tightness).


13. Stabilizer Decision Tree for Structured Caps

The video doesn't specify the backing, but here is the logic for consistent results:

Note: Always use water-soluble topping if the cap fabric is corduroy or textured, though usually not needed for smooth cotton twill.

14. Troubleshooting 3D Puff: The "Why is this happening?" Guide

15. The Upgrade Path: Moving from Hobby to Production

Once you can produce a clean sample, the next bottleneck is speed.

Level 1: The Stability Fix If you struggle with alignment on flat goods (like patches for hats), consider a hooping station for machine embroidery. Standardizing how you load the hoop eliminates the "operator variable."

Level 2: The Reliability Fix If your current machine struggles to penetrate the foam or keep tension consistent, this is often where single-needle machines hit their limit. A dedicated commercial machine offers the torque and independent needle bars required for heavy 3D work.

Level 3: The Ecosystem Check When scaling up, compatibility is key. Many pro shops standardize on the Tajima ecosystem for accessories. Searching for a tajima embroidery machine or checking accessory compatibility like a tajima hoop ensures you have access to the widest range of professional clamps and frames.

By respecting the numbers, prepping the materials, and listening to the machine, you can turn the dreaded 3D puff cap into your shop's most profitable item.

FAQ

• Q: What needle and speed settings are a safe starting point for 3D puff hat embroidery on a commercial multi-needle embroidery machine with a cap driver?
  A: Start with a fresh sharp needle and slow the machine down to reduce foam friction and thread breaks—this is common, don’t worry.
  • Install: Use a fresh sharp-point needle (e.g., 75/11 Sharp as shown).
  • Set speed: Run 500–600 SPM as a beginner sweet spot.
  • Prep: Confirm the bobbin has enough thread before starting (mid-run bobbin changes are risky on caps).
  • Success check: Stitching sounds rhythmic and “thuddy” through foam, not sharp “cracks” or metallic “pings.”
  • If it still fails: Stop and re-check cap driver clearance and thread path for snags before increasing speed.
• Q: How can Wilcom EmbroideryStudio digitizing prevent foam “poke-out” on an SF-style logo by splitting the satin stitch “S” into segments?
  A: Break the “S” into 4–5 segments and re-aim stitch angles segment-by-segment so the needle perforates the foam cleanly instead of slicing it open.
  • Split: Add segment breaks at the tightest curves of the “S.”
  • Adjust: Re-orient stitch angles so they stay perpendicular to the edge through each curve.
  • Inspect: Look at Wilcom stitch angle lines and fix any crossed or bunched areas.
  • Success check: Stitch angle lines fan out evenly without bunching where curves tighten.
  • If it still fails: Increase satin density slightly and re-check the tightest curve segments first.
• Q: How can Wilcom EmbroideryStudio “run stitches under satin” reduce trim count (about 5 cuts) on a cap driver stitch-out for 3D puff hats?
  A: Connect elements with run stitches hidden under satin so the machine travels without unnecessary trims, reducing shift risk on caps.
  • Add: Place run stitches between objects where the satin will cover the travel.
  • Verify: Simulate the sew-out to confirm travel stitches are buried, not exposed.
  • Minimize: Keep trims only where absolutely required (the example workflow lands around 5 cuts).
  • Success check: In simulation, travel paths disappear under satin and trims occur only at key transitions.
  • If it still fails: Re-sequence objects so the machine stitches connected areas before jumping across open spaces.
• Q: How does Wilcom EmbroideryStudio Magic Knife help fix complex border geometry for a 3D puff cap logo border?
  A: Use Magic Knife to slice the border into sections so stitch angles recalculate cleanly, preventing gaps and angle conflicts around curves.
  • Create: Trace one border line, convert to a fill object, then create a hole to form the border.
  • Slice: Apply Magic Knife to break the complex border into manageable sections.
  • Review: Confirm each new section shows re-oriented stitch angles following the border flow.
  • Success check: After slicing, stitch angles visibly re-align per section instead of one object fighting the curve.
  • If it still fails: Run Stitch Player and look for “white flash” gaps at join points, then adjust the join or slice location.
• Q: How do you judge correct cap hooping tension on a cylindrical cap frame and cap driver before running 3D puff hat embroidery?
  A: Hoop tighter than flat goods—caps punish “almost right” hooping, so aim for even, drum-like tension and a smooth sweatband.
  • Tap-test: Tap the front panel after clamping; re-hoop if it sounds loose or you see ripples.
  • Smooth: Pull the sweatband back evenly; remove any bunching that can cause needle breaks.
  • Align: Match the cap centerline to the driver’s center reference marks.
  • Success check: The panel feels firm and sounds like a dull “thump,” with no visible ripples near the sew zone.
  • If it still fails: Re-hoop and reduce trims where possible to lower the chance of micro-shifts during stops.
• Q: What does the “1/3 rule” bobbin-thread check mean for tension on a finished 3D puff satin column inside a structured hat?
  A: On the back of the satin column, bobbin thread should sit in the center third—this quickly confirms balanced tension after stitching over foam.
  • Inspect: Turn the cap inside out and look at the back of the satin columns.
  • Adjust: If only top thread shows on the back, top tension is often too loose (or bobbin too tight).
  • Adjust: If only bobbin thread shows, top tension is too tight.
  • Success check: Bobbin thread occupies about the center 1/3, with top thread pulling slightly around to the back edges.
  • If it still fails: Re-check thread path and rerun a small test—foam friction can change tension behavior during the run.
• Q: What safety steps prevent finger and needle injuries when testing cap driver clearance on a commercial multi-needle embroidery machine?
  A: Keep hands completely away from the needle bar area during clearance tests—cap frames clamp hard and the driver moves with high torque.
  • Rotate: Manually rotate/turn the cap driver to confirm the bill clears the machine head.
  • Position: Hold the cap by safe edges, not near the needle path or needle bar.
  • Pause: Stop the machine fully before making any adjustments near the sewing field.
  • Success check: The bill clears through a full rotation without needing your fingers near the needle area.
  • If it still fails: Reposition the cap in the frame and re-check clearance before running at speed.
