Stop Guessing Your ITH Quilt Layout: Use Embrilliance to Preview Blocks, Plan Batting Trims, and Save Clean Files

If you have ever stitched an In-the-Hoop (ITH) quilting block, finished the final satin stitch, and thought, “I hope these will line up when I sew them together,” you are already gambling with your time and money. That specific uncertainty—the "hope strategy"—is exactly where embroidery projects get expensive. It leads to wasted batting, mismatched joins that catch the eye, and a pile of “almost perfect” blocks that never become a quilt.

As a seasoned embroiderer, I know that machine embroidery is an empirical science hidden inside an art form. Success isn't just about pressing "Start"; it's about preparation.

In this comprehensive guide, we are analyzing a workflow used by Ginny from Nonna Scraps using Embrilliance (Essentials, Enthusiast, or StitchArtist). We will treat the software not as a digitizer, but as a virtual layout table. We will use it to preview how blocks meet, decide exactly where batting should be trimmed for precise joins, and create brand-new patterns by mirroring and rotating single blocks.

The Calm-Down Moment: Your Embrilliance Layout Is for Planning, Not for Sending a Giant File to the Machine

The first mental reset is crucial for beginners: looking at a screen is different from managing physics in a hoop. When you merge multiple blocks in software and see a “perfect runner” on screen, your brain’s immediate desire is to stitch that whole layout in one massive pass.

Stop. Ginny is very clear: this is a visualization tool. Unless you are operating a large-format commercial multi-needle machine, your domestic machine would essentially “think you were nuts” if you tried to feed it a 30-inch runner file when it only has a 5x7 inch embroidery field.

I recommend this method for intermediate embroiderers because it separates the design logic from the hooping logic. It gives you the confidence of a full layout preview without creating a risky, oversized stitch-out that causes needle drag or registration errors.

If you are building ITH runners, placemats, or "quilt-as-you-go" panels, this planning mindset protects your body and your schedule. You stop redoing blocks because visualized errors are free to fix; stitched errors cost fabric.

The “Hidden” Prep Before You Click Anything: File Hygiene, Block Order, and a Reality Check on Hoop Limits

Before you touch the software, you must perform a "Pre-Flight Check." 90% of embroidery frustration happens because of steps skipped before the computer is even turned on.

1. File Hygiene

Navigate to your design storage. You must choose the specific hoop-size folder mandated by your machine limits (Ginny selects the 5x7 set for her Janome workflow).

• The Trap: If you import a 6x10 file thinking you can "shrink it" to fit a 5x7 hoop, you will increase the stitch density dangerously. This leads to thread breaks and stiff, bulletproof embroidery. Rule of thumb: Always start with the file digitize for your specific hoop size.

2. Define the Mission

Decide what you are using Embrilliance for today:

• A) Composition: Checking block order, repeats, and fabric placement.
• B) Technical Planning: Deciding batting trimming edges for joins.
• C) Pattern Hacking: Creating a new pattern by mirroring/rotating a single block.

3. Materials Reality Check (The Physics of the Hoop)

ITH quilting stacks can get thick very fast.

• The Sandwich: Top Fabric + Batting + Backing/Stabilizer = High Hoop Tension.
• The Sensory Check: When you hoop a quilt sandwich, tap the center. It should sound like a dull thud, not a loose rattle. However, it shouldn't be so tight that the inner hoop ring distorts the fabric weave (creating "waffle" patterns).

This thickness dramatically changes how stable the sandwich feels in the hoop. Standard plastic hoops often struggle to grip thick batting evenly without "popping" out or leaving "hoop burn" (permanent crush marks). Many high-volume stitchers eventually move toward hooping for embroidery machine setups that utilize magnets to reduce shifting. Hooping is the bottleneck; if you can clean up your hooping process, the rest of the workflow speeds up.

Prep Checklist (Do this BEFORE opening Embrilliance):

• Sensory Audit: Touch your batting. Is it high-loft? If so, consider using a magnetic frame to avoid crushing it.
• File Verification: Confirm you are in the correct hoop-size folder (e.g., 5x7).
• Folder Setup: Create a project folder named "Project_Name_Modified" to keep originals separate.
• Consumable Check: Ensure you have enough temporary spray adhesive (like Odif 505) and a fresh Topstitch 90/14 needle (quilt sandwiches need a larger eye and sharp point).


The Clean Canvas Trick in Embrilliance: Turn Off “Draw Hoop” So You Can Think Like a Quilter

When embroidery software loads, it usually displays the hoop boundary by default. Psychologically, this forces you to think "Inside the Box." To plan a layout effectively, we need to think "Outside the Box."

Ginny starts with a new page in Embrilliance and immediately removes visual clutter:

1. Go to the View menu.
2. Deselect “Draw Hoop.”

Why this works: The grey hoop outline disappears. Now you have an infinite white canvas. Your brain stops trying to cram elements into a restricted 5x7 space and starts focusing on composition—how blocks flow into one another, where the seams land, and if the pattern repeats look intentional.

Merge Stitch Files Without the Mess: Import Multiple Blocks (Yes, It’ll Look Jumbled at First)

To see the full runner, you need all the puzzle pieces on the table. Ginny imports multiple blocks simultaneously:

1. Click Merge Stitch File (the icon usually looks like a needle with a plus sign).
2. Navigate to your verified design folder.
3. Choose the correct hoop-size folder (she uses the 5x7 set).
4. Hold Shift (PC/Mac) to select multiple block files at once.
5. Click Import.

The "Messy Desk" Phenomenon: The outcome will look terrible. The designs will appear stacked directly on top of each other in the center of the screen, looking like a tangled thread nest. Do not panic. This is normal software behavior.

The Fix:

• Click a block on the screen (or select it from the Objects list on the right panel).
• Drag it away from the pile.
• Repeat until every block has its own "breathing room" on the digital canvas.


The Stitch-Line Detective Work: Find the Real Join Line vs the Batting Tack-Down Line (Sweet Pea Style)

This section separates the amateurs from the experts. If you align your blocks based on the wrong visual cue, your final quilt strips will be crooked.

In ITH quilting designs (especially Sweet Pea style), there are multiple outlines. You need to zoom in—way in, to at least 400%—to identify the difference.

Ginny points out two specific stitch lines:

1. The Inner Line (Batting Tack-down): This is usually a simple running stitch that holds the batting in place. It will be covered by fabric later.
2. The Outer Line (Finished Stitch Line): This is the perimeter stitch that defines the block's final size. This is your reference.

Expert Insight: When you join blocks using a sewing machine later, you will be sewing comfortably inside the seam allowance. However, for visual planning, you must align the Outer Finished Lines of two blocks so they touch.

If you align the batting lines instead, your blocks will look "gapped" in the preview, and you might erroneously add extra fabric strips that ruin the pattern flow. The software preview trains your eye to respect the true seam line.

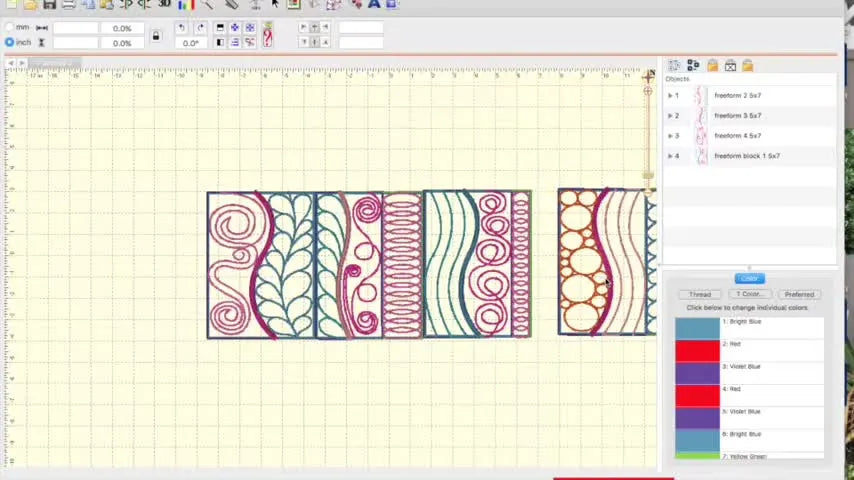

Arrange Quilt Blocks in Embrilliance Like a Layout Wall: Align Outer Stitching Lines to Preview the Finished Runner

Now comes the "Digital Design Wall" phase. This is where you save money by catching design errors before cutting fabric.

1. Zoom out so you can see the whole canvas.
2. Drag blocks side-by-side.
3. Carefully align the outer stitching lines of adjacent blocks to simulate the final joined look.

Ginny notes that pixel-perfect precision isn't required here—this is a simulation, not a stitch file generation.

What to look for:

• Rhythm: Does the pattern flow? If you have Block A and Block B, does A-B-A-B look better, or A-A-B-B?
• Color Balance: If using different fabrics, does the runner look "heavy" on one side?

The Production Reality: If you are planning to make five of these runners for a craft fair or holiday gifts, realize that the bottleneck is hooping consistency. It takes seconds to stitch a line, but minutes to hoop straight. If your blocks are slightly rotated in the hoop, they won't join squarely later. This is why professional shops invest in hooping stations or a dedicated machine embroidery hooping station to ensure every block is loaded at the exact same angle. A hooping station ensures that "Block 1" and "Block 10" are identical.

The 1/2-Inch Binding Payoff: Plan Batting Trimming Edges So Joins Are Flat and Perimeter Finishes Look Plush

One of the most valuable "secrets" in ITH quilting is selective trimming. Ginny shares a strategy that ensures your final binding feels full, while your joins remain flat.

The Rule:

• At Joining Seams: You want the seam to be flat. Therefore, you trim the batting closer to the tack-down line inside the seam allowance.
• At Perimeter Edges: You want the binding (the fabric that wraps the edge) to feel "stuffed" and premium. Therefore, you leave the batting untrimmed or trim it less aggressively.

Ginny leaves a generous amount of batting on the outside perimeter edges because she uses a 1/2-inch binding and wants that binding to be filled with batting for a nicer tactile finish.

Decision Tree: Batting Trim Plan Use this logic flow when you have your scissors in hand at the machine:

1. Look at the edge you are about to trim.
2. Ask: "Is this edge going to be sewn to another block?"
   • YES (It is a Join): Trim batting close to the tack-down line. (Goal: Reduce bulk for the sewing machine foot).
   • NO (It is a Perimeter): Leave batting untrimmed extend into the seam allowance. (Goal: Plush binding).

The Stability Caveat: Trimming batting inside the hoop requires the fabric to be held perfectly still. If your fabric slips while you are cutting, you might snip the stabilizer. This is where the type of hoop matters. Standard hoops rely on friction (tightening a screw). If you are fighting with thick batting, magnetic embroidery hoops can be a practical upgrade. They clamp directly down with vertical force, holding the "sandwich" distinctively firm without distorting the fibers, making in-the-hoop trimming safer and more accurate.

When Printing Lies to You: Use Screen Capture as Your Reference Sheet

Ginny attempts to print her layout from Embrilliance and encounters a classic frustration: the print dialog box often misinterprets the scale of a multi-block layout, spanning it across 20 sheets of paper or shrinking it to a stamp.

The Solution: High-Res Screen Capture Don't fight the printer drivers.

1. Use the magnifying glass in Embrilliance to frame exactly what you want to see.
2. Mac Users: Press Shift + Command + 4. Your cursor becomes a crosshair. Drag a box around the layout. It saves to your desktop.
3. PC Users: Use the "Snipping Tool" or "Snip & Sketch."
4. Open the image and add digital notes (or print it and write on it). Mark the Joining Edges with an asterisk (*) so you remember where to trim batting.

Expected Outcome: You get a reliable reference sheet that matches your screen, without wasting ink or paper.

The Pattern-Hack That Feels Like Magic: Copy, Mirror, and Rotate One Block to Create a Whole New Look

This is the moment you transition from "Assembler" to "Designer." You can double the value of the designs you bought by manipulating their orientation.

Ginny deletes the clutter and focuses on one single block.

1. Duplicate: Copy and Paste the block (Command/Control + C, then V).
2. Transform: Use the toolbar buttons:
   • Horizontal Mirror (Flips left/right)
   • Vertical Mirror (Flips up/down)
   • Rotate 90°

She watches how the lines meet where the blocks touch. A simple curve, when mirrored, often becomes a circle, a heart, or a complex kaleidoscope pattern.

Expert Insight (Why this is safe for beginners): Digitizing is hard. Altering density is risky. But Mirroring is safe. It creates a completely new composition without changing the underlying engineering of the stitches. The underlay, pull compensation, and tie-offs remain exactly as the original digitizer intended; they are just facing a different direction.

The Safe Export Ritual for a Janome Hoop: Turn “Draw Hoop” Back On, Select Janome RE18, Center, and Save As

You have created a cool mirrored design. Now you must prep it for the machine. If you skip this, you might send a file that is off-center, causing your needle to hit the hoop frame.

The Protocol:

1. Isolate: Delete the extra "layout" duplicates. You should only have the one single block you intend to stitch on the screen.
2. Visual Check: Go to View → Draw Hoop (Turn it back ON).
3. Hoop Selection: In preferences, select your specific machine hoop. Ginny selects the Janome RE 18 (140 mm × 180 mm).
4. Centering (Crucial): Click the Center Design button. This ensures the needle starts exactly where the machine expects.
5. Safe Save: Use File → Save As.
   • Naming: Use a descriptive name like Block_B_Rotated_Right.JEF.
   • Never click clear "Save," or you will overwrite your original purchased file.

A Note on Hardware: If you stitch on a janome embroidery machine and regularly work with quilt blocks, notice your wrists. Are you straining to close the hoop lever? Janome hoops are excellent, but thick quilting layers can be a struggle. Many users upgrade to magnetic hoops for janome embroidery machines. These allow you to "slap" the hoop onto the machine arms quickly, drastically reducing the physical toll of hooping repeatedly for a large quilt project.

Troubleshooting: Two Common Headaches and How to Fix Them

Even with a perfect plan, things go wrong. Here is a quick diagnostic table.

Warning: The Cutter Hazard
When performing In-the-Hoop Appliqué trimming or batting trimming, keep your fingers clear of the cutting path. Use "Duckbill" or double-curved scissors to keep the blade lifted away from the bottom fabric. One slip can slice your stabilizer—or your finger.

The Upgrade Path: When Better Tools Beat "More Skill"

A comment under Ginny's video captures the essence: once you realize you can layout blocks differently, you stop being locked into the default pattern. That freedom is addictive.

However, the "Studio Reality" hits when you start production. As soon as you decide to make a runner with 12 blocks, your bottleneck shifts from Creativity to Labor. If you are feeling these pain points, it is time to upgrade your tools:

1. Wrist Pain: From tightening hoop screws 12 times in a row.
2. Inconsistent Taughtness: Block 1 is tight, Block 5 is loose.
3. Hoop Burn: Permanent rings on your nice quilting cotton.

In these cases, magnetic hoops for embroidery machines are the logical industry standard upgrade. They solve the physics problem of "holding thick things flat" without crushing them.

Warning: Magnetic Safety
Professional magnetic hoops use strong Neodymium magnets.
1. Pinch Hazard: They snap together with force. Keep fingers clear of the contact zone.
2. Medical Device: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
3. Electronics: Do not rest them on laptops or near credit cards.

Setup Checklist (Do this so your layout matches reality)

• Hoop Match: Confirm the imported design folder matches your physical hoop size (e.g., 5x7).
• Visuals: Turn Draw Hoop OFF for planning; turn it ON for exporting.
• Alignment: Zoom in 400% and align by the Finished Stitch Line, not the batting line.
• Strategy: Decide which edges are Perimeter (leave batting) and which are Joins (trim batting).

Operation Checklist (Your "Don't Regret It" Routine)

• Reference: Create a screen capture of your layout and mark trim edges with asterisks.
• Mirror Check: If creating a new pattern, ensure the mirrored block lines meet gracefully.
• Isolation: Delete all layout duplicates before export—send only ONE block to the machine.
• Centering: Hit the "Center in Hoop" button before saving.
• Final Save: Always use Save As to protect your original asset.

By adopting this workflow, you move from "guessing and hoping" to "engineering and executing." Your joins will be flatter, your patterns will be unique, and your quilting will look like it came from a professional studio. Happy stitching!

FAQ

• Q: How do Embrilliance Essentials/Enthusiast/StitchArtist users prevent oversized “table runner” layouts from being sent to a 5x7 domestic embroidery hoop?
  A: Use Embrilliance as a planning layout wall, but export and stitch only one hoop-sized block at a time.
  • Merge: Import multiple blocks to preview the full runner, then arrange them on the canvas for visual planning only.
  • Isolate: Delete layout duplicates before export so only ONE intended block remains on-screen.
  • Export: Turn “Draw Hoop” back ON, select the correct hoop (example shown: Janome RE18), press “Center Design,” then use “Save As.”
  • Success check: The exported file preview shows a single block centered inside the chosen hoop boundary (not a long multi-block strip).
  • If it still fails… Re-check that the design came from the correct hoop-size folder (example shown: 5x7 set) before importing.
• Q: Why do Embrilliance users get thread breaks and overly stiff results after shrinking a 6x10 embroidery file to fit a 5x7 hoop?
  A: Do not “shrink to fit” across hoop sizes; start with the design file that was digitized for the exact hoop size.
  • Verify: Choose the machine-specific hoop-size folder before importing (example shown: selecting the 5x7 set for a 5x7 workflow).
  • Avoid: Skip resizing a larger file to a smaller hoop because stitch density can become dangerously high.
  • Organize: Create a separate “Project_Name_Modified” folder to keep originals untouched while testing changes.
  • Success check: The stitched block feels flexible (not “bulletproof”) and runs without repeated thread breaks.
  • If it still fails… Reconfirm needle choice and consumables for thick quilt sandwiches (a fresh Topstitch 90/14 needle and adequate temporary spray adhesive are commonly used for this type of stack).
• Q: How can Embrilliance users align ITH quilting blocks correctly when Sweet Pea-style designs show multiple outline stitch lines?
  A: Align blocks using the OUTER finished stitch line, not the inner batting tack-down line.
  • Zoom: Increase zoom to at least 400% to clearly distinguish the inner tack-down line vs the outer finished perimeter line.
  • Align: Drag blocks until the outer finished lines touch to simulate the final joined look.
  • Preview: Zoom back out and check the overall rhythm and balance of the runner before cutting fabric.
  • Success check: The on-screen join looks “seam-to-seam” with no fake gaps created by referencing the wrong (batting) line.
  • If it still fails… Re-check that “Draw Hoop” is OFF during planning so the hoop boundary is not tricking the eye into misplacement.
• Q: What is the fastest way for Embrilliance users to create a reliable layout reference sheet when Embrilliance printing splits the layout across many pages or scales it wrong?
  A: Skip printing and use a high-resolution screen capture of the Embrilliance layout instead.
  • Frame: Use the zoom/magnifier to show exactly the full layout area needed.
  • Capture: On Mac use Shift + Command + 4; on Windows use Snipping Tool/Snip & Sketch.
  • Mark: Annotate the image (digital or printed) and mark joining edges with an asterisk so batting-trim decisions are not forgotten.
  • Success check: The reference image matches what is on the screen (same proportions and block order), without fragmented pages.
  • If it still fails… Re-capture after zooming to a comfortable full-layout view so the entire runner is inside the capture box.
• Q: How should ITH quilting makers trim batting in the hoop so joined seams stay flat but the 1/2-inch binding edge stays plush?
  A: Trim batting aggressively at join edges for flat seams, and leave batting fuller at perimeter edges for a premium binding feel.
  • Decide: Ask “Is this edge a join or the outside perimeter?” before every cut.
  • Trim: For joins, trim batting close to the batting tack-down line to reduce bulk under the sewing machine foot.
  • Preserve: For perimeter edges, leave batting less-trimmed so the 1/2-inch binding feels stuffed and plush.
  • Success check: Joined seams feel noticeably flatter, while the outer binding edge feels fuller to the touch.
  • If it still fails… Improve fabric hold before trimming; thick quilt sandwiches may shift in standard hoops, so more stable hooping (often magnetic-style clamping) can make in-hoop trimming safer and more accurate.
• Q: How do Janome embroidery machine users prevent accidentally overwriting original purchased design files when exporting from Embrilliance to a Janome RE18 hoop file?
  A: Always use “Save As” into a separate modified folder, and never overwrite the original download.
  • Prepare: Create a “Project_Name_Modified” folder before starting.
  • Name: Use descriptive filenames (example shown: Block_B_Rotated_Right.JEF) for every exported variation.
  • Confirm: Turn “Draw Hoop” ON, select Janome RE18, and press “Center Design” before saving.
  • Success check: The original purchased file remains unchanged in the original folder, and the modified file exists separately with the new name.
  • If it still fails… Immediately check Recycle Bin/Trash for the overwritten file, then rebuild the folder structure before continuing.
• Q: What safety rules should I follow when trimming ITH appliqué fabric or batting in the hoop with duckbill or double-curved embroidery scissors?
  A: Slow down and control the cutting path; keep fingers out of the blade line and keep the blade lifted to avoid slicing stabilizer or skin.
  • Position: Keep fingertips outside the cutting path before every snip (this is a common moment for slips).
  • Use: Choose duckbill or double-curved scissors to keep the blade elevated away from the bottom fabric/stabilizer layer.
  • Cut: Make small controlled cuts rather than long sweeping cuts inside the hoop.
  • Success check: The stabilizer remains uncut and intact, and the trimmed edge is clean without accidental nicks.
  • If it still fails… Stop trimming in-hoop and reassess fabric hold; shifting layers are a major cause of accidental stabilizer cuts.
