Embroidery Font Formats That Actually Stitch Clean: BX vs TrueType, Stitch Files, and Monograms (Without the “Telegraph Pole” Disaster)

Lettering is where embroidery looks “professional”… or instantly homemade.

If you’ve ever watched a name stitch out and thought, “Why does this look like a fence post?”—you’re not alone. In my 20 years on the shop floor, most lettering failures trace back to one decision made before the first stitch: choosing the wrong font type (or converting a font that was never meant to become stitches).

This article rebuilds the video’s core lesson into a workflow you can actually use: the main embroidery font categories, what each one is good at, what each one will ruin, and how to avoid the two classic traps—the telegraph pole effect and ugly spacing/kerning.

Calm the Panic: “Bad Embroidery Fonts” Usually Aren’t Your Machine’s Fault

When lettering stitches poorly, people immediately blame tension, needles, or the machine. Sometimes that’s true—but with fonts, the bigger culprit is often the file logic: how the stitches were generated and whether the stitch direction follows the shape of the letter.

The video breaks embroidery fonts into five practical buckets:

• Stitch File Fonts (individual pre-digitized letter files)
• Monogram Fonts / Monogram layouts (initials + borders/shapes)
• Auto-Converted TrueType Fonts (computer fonts converted into stitches)
• BX Fonts (keyboard-mapped, pre-digitized stitches)
• Built-in Machine Fonts (fonts inside the embroidery machine)

If you’re running a hobby setup, you can “get away with” more. If you’re selling hats, patches, or team orders, you need repeatable results—because every failed name is time you can’t bill.

One sentence that saves money: a font that looks good on screen can still stitch terribly.

The “Hidden” Prep Pros Do Before Choosing Any Embroidery Font File

Before you even pick a font, you want to know what the job demands. Caps, patches, and thin cotton behave differently, and lettering is unforgiving.

Here’s the prep I do (and teach) because it prevents 80% of rework:

• Analyze the Substrate: Is it a cap (unstable curve), patch twill (solid), or t-shirt cotton (stretchy)? Stretchy fabrics need a font with stronger underlay.
• Define the Style: Do you need satin stitches (shiny, raised) or fill stitches (flat, durable)? Satin looks premium but snags easily on large letters.
• Determine Workflow Speed: Do you need fast typing (names, bulk personalization) or custom control (logos)?
• Software Check: Confirm your software can handle the specific font file type you intend to use.


Prep Checklist (do this before you touch the font menu)

• Material Match: Confirm the final product (cap, patch, or flat fabric).
• Goal Definition: Determine if this is logo text (strict branding), a monogram (decorative), or a sentence.
• Speed Requirement: Decide if you need to type quickly (production) or place letters manually (custom).
• Visual Inspection: Open your design view in "Wireframe" or "3D" mode to inspect stitch direction.
• Stabilizer Plan: Lettering magnifies fabric movement. If you are stitching on knits, promote your stabilizer choice one level up (e.g., from tear-away to cut-away).

Warning: Keep fingers, hair, and loose sleeves away from the needle area during test runs. Never reach under the presser foot while the machine is active. A moving hoop can pinch severely, and needles can break with high velocity.

Stitch File Fonts (PES/DST/JEF Letter Files): Great When You Need Exact Stitches—Awkward When You Need Speed

The video shows stitch file fonts as individual letter files you import one by one. Instead of typing on a keyboard, you are essentially assembling a word manually, like laying tiles.

In the demonstration, letters are imported separately (for example, bringing in “W”, then “O”, then “O”, then “D”) and aligned by eye—baseline and spacing included.

How to use stitch file fonts the way the video shows

1. Locate the files: Open your design folder; each letter (A.pes, B.pes) is a separate file.
2. Import individually: Bring one letter at a time into your workspace.
3. Drag and align: Use the alignment grid. Look for the baseline (the invisible line the letters sit on).
4. Visual spacing: Nudge letters closer or farther apart. Trust your eyes more than the grid lines here.

Expected outcome: You get exactly what the digitizer designed. These are usually high-quality because they were digitized specifically as embroidery.

The big limitation (and the biggest beginner trap)

The video warns that stitch file fonts can’t be resized significantly because they are stitch-based, not vector-based.

• The Math: If you scale a file up 20%, the software just spreads the existing stitches out, creating gaps.
• The Rule: Do not resize these more than 10-15%. If you need a bigger letter, you need a different file.

Monogram Layouts: The Fastest Way to Make Personalization Look Premium (If You Center It Correctly)

Monograms are a different mindset: you’re not just choosing a font—you’re building a layout. The video shows mixing borders/shapes (like circles or crests) with initials, typically one large center initial with two smaller flanking initials.

The monogram workflow shown in the video

1. Select the frame: Choose a monogram template or border shape.
2. Input Initials: Place the large center initial and two smaller side initials.
3. Optical alignment: Center the text inside the border.
4. Balance: Resize the elements until the negative space feels even.

Expected outcome: A clean, personalized design that reads well and looks intentional.

Pro tip from the shop floor

Monograms look “off” even when the software says they are centered. This is because letters like "A" or "V" have uneven visual weight. Always zoom in and check the optical center (how it looks to the eye), not just the software’s numeric center.

Auto-Converting TrueType Fonts: Why the “Telegraph Pole Effect” Happens (and How to Spot It Before You Stitch)

The video’s most important warning is about auto-converting standard computer fonts (TrueType/OpenType) into embroidery. Yes, it’s tempting: type a word, click convert, done.

But the video demonstrates the classic failure: the telegraph pole effect. This happens when the machine treats a letter stroke like a simple shape and fills it with horizontal lines, regardless of the letter's flow.

What the video shows (the “T” example)

A letter “T” is compared side-by-side:

• The Good: Stitch direction follows the letter structure (vertical stitches for the vertical bar, horizontal for the crossbar).
• The Bad: The stitches fill in a single direction (like vertical lines across the whole shape), making the crossbar look like a messy blob.


Why this happens (expert explanation, in plain English)

Auto-conversion often lacks "turning angle" logic. Hand-digitized letters tell the machine: "Start south, turn corner, go east." Cheap auto-conversion says: "Fill this box with lines."

If you’re doing committed commercial work, this is where you lose money: you don’t just get ugly stitches—you get extra trims, thread breaks, and distorted edges caused by improper pull.

Practical Rule: If the font has serifs (the little feet on letters), thin strokes, or complex scripts, I generally do not trust auto-conversion.

BX Fonts (Keyboard-Mapped): The Sweet Spot for Fast Typing *and* Clean Stitching

BX fonts are the reason many professional shops can personalize quickly without sacrificing quality. The video shows selecting a BX font from a dropdown and typing directly into a text box—then the software maps each keystroke to pre-digitized stitches.

In the demo, the phrase “Riley is beautiful” is typed and immediately generates clean satin-style lettering.

How to use BX fonts the way the video demonstrates

1. Select Font: Choose the BX font from your list (it installs like a plugin).
2. Type: Use the text tool to type your phrase.
3. Generate: The software pulls the specific pre-digitized file for each key pressed.
4. Preview: Check the stitch result in 3D view.

Expected outcome: You get the speed of typing with the stitch quality of a hand-digitized font.

If you’re building a personalization workflow, the logical next step to optimize is your framing process. A hooping station for machine embroidery becomes the next bottleneck to solve—because once typing is fast, align-and-hoop speed is what limits your daily output.

Built-In Machine Fonts vs Software Fonts: When “Good Enough” Is Actually Good Enough

Built-in machine fonts can be convenient, especially for quick names on gym bags or towels. But the video points out a common weakness: spacing and letter width handling can be inconsistent, and results vary by machine model.

My practical advice:

• Use Built-in Fonts: For quick internal jobs, simple labels, or when you don't have access to software.
• Use Software/BX Fonts: When the customer is paying for “clean,” high-end retail looks.

If you’re running dense production on brother multi needle embroidery machines, you’ll feel this difference even more. Multi-needle speeds (800-1000 spm) make digitizing flaws show up faster—bad lettering finishes quickly, but it still finishes bad.

The Spacing Reality Check: Fixing Kerning Before It Becomes a Customer Complaint

The video highlights poor kerning (the space between letters) as a major issue. Default machine spacing often leaves huge gaps between an "A" and a "W," or crashes an "O" into a "T."

What causes bad spacing (from the video)

• Machine fonts or auto-converted fonts struggle with variable-width letters.
• Gaps or overlaps appear, making the word look disjointed.

How to fix it (video + real-world checkpoints)

• Software Fix: Use the "text spacing" or "kerning" slider in your software properties.
• Manual Fix: Select the individual letter and nudge it left or right.

Checkpoint: The Squint Test. Zoom out until the word on your screen is the actual physical size it will be stitched (e.g., hold a ruler to the screen). Squint your eyes. Does the word look like one cohesive unit? If yes, you are good to go.

The “Why” Behind Pull Compensation and Auto Spacing (So You Don’t Chase Ghost Problems)

The video shows lettering properties like Pull Compensation (0.17–0.20 mm) and Auto Spacing (checked) in the software panel.

Here’s the practical meaning:

• Pull Compensation: Thread is under tension. When it stitches, it pulls the fabric in, making the column of stitches narrower. Compensation adds thickness to the design before it stitches, so the result looks correct.
• Auto Spacing: Helps keep text readable, but it is not magic—some script fonts still need manual adjustment.

On caps and patches, pull is often more noticeable because the substrate is either curved or dense. If you’re utilizing a cap hoop for embroidery machine, test your smallest text first—caps punish tiny lettering because the fabric moves away from the needle plate.

Decision Tree: Pick the Right Font Type Based on Job + Risk

Use this decision tree when you’re staring at a font list and trying not to waste a hooping.

Start: What are you making?

1. Bulk names / fast personalization (Team Shirts)
   • Need: Speed + Readable.
   • Choice: BX fonts.
   • Backup: Built-in machine fonts (test spacing first).
2. A logo with specific brand lettering
   • Need: Exact Match.
   • Choice: Digitized Lettering (hire a digitizer or manual punch).
   • Risk: Auto-converting TrueType (Only if you verify stitch angles).
3. Monogram gift / premium personalization
   • Need: Aesthetic balance.
   • Choice: Monogram Layouts (Focus on borders).
4. You only have individual letter stitch files
   • Need: Quality, time is not an issue.
   • Choice: Stitch File Fonts. (Do act resize).

If your workflow includes frequent re-hooping based on these decisions, a magnetic hooping station can be a serious quality-of-life upgrade because it reduces handling time and keeps textile placement consistent between different font jobs.

Setup That Prevents Rework: Stabilizer + Hooping Choices That Make Fonts Behave

The video shows tear-away stabilizer and backing material used in examples. Lettering is highly sensitive to movement. If the fabric shifts 1mm, your outline will be off.

General shop rule: The smaller and thinner the text, the more stabilization matters.

Often, "bad font" issues are actually "bad hooping" issues. The fabric must be drum-tight. This is why professionals often switch to magnetic embroidery hoops. They clamp thick garments flat without the "tug of war" required by traditional screw hoops, reducing hoop burn and fabric distortion.

Setup Checklist (before you run the first stitch)

• Consumables Check: Ensure you have the correct backing (e.g., Cut-away for knits, Tear-away for woven). Do you have sharp scissors for jump threads?
• Orientation: Confirm the design is oriented correctly (is the cap driver upside down? Is the shirt neck facing the machine?).
• Pre-Flight Preview: Check stitch direction on key letters (T, E, A) and curves.
• Hoop Check: Is the hoop secure? If using magnetic frames, ensure the fabric is taut but not stretched.
• Test Run: Run a small test on scrap fabric if the garment is expensive.

Warning: Magnetic Safety. Magnetic frames use powerful industrial magnets. Keep them away from pacemakers, ICDs, and other medical implants. Be careful to avoid pinching fingers between the magnets, and keep them away from credit cards and phone screens.

Operation: The Clean-Lettering Routine (What to Watch While It Stitches)

Once you’ve chosen the right font type, your job is to confirm the stitch-out matches the preview.

Watch for:

• The Rhythm: A good satin stitch has a smooth, rhythmic sound. A harsh "thump-thump" might mean needle deflection.
• The Angles: Satin columns should twist cleanly around curves.
• The Flow: Crossbars (like on 'H' or 'T') should stitch horizontally, not vertically.

If you’re producing on a multi-needle machine, the “speed advantage” can hide problems until the end—so pause early if you see a bad stitch angle on the first few letters.

A practical production note: if hooping is slowing you down more than typing, upgrading to specific magnetic hoops for embroidery machines can be the most noticeable time saver in a week—because it cuts out the tedious screw-tightening step.

Operation Checklist (during the stitch-out)

• First Letter Audit: Confirm the stitch direction matches the letter shape immediately.
• Crossbar Check: Verify letters (T, E, F) don’t fill in the wrong direction (The Telegraph Pole).
• Spacing verify: Ensure spacing doesn’t close up once the thread adds bulk.
• Emergency Stop: Stop early if you see distortion—fixing after 2 letters is cheaper than after 20.
• Documentation: Save a “known good” font + size combo for repeat orders.

Troubleshooting the Two Scariest Font Failures (and the Fast Fix)

The Upgrade Path: When Better Fonts Aren’t Enough (You Need Better Throughput)

Once you stop fighting bad font conversions, the next ceiling is production flow: typing speed, hooping speed, and repeatability.

• Level 1 (Software): If you are doing one-offs, focus on choosing BX fonts or clean digitized lettering and stabilizing well.
• Level 2 (Hardware - Hoops): If you are doing batches (caps, patches, team names), your profit is lost in handling time. If you see placement drift or hoop marks, efficient machine embroidery hoops (especially magnetic ones) load faster and hold consistently without damaging fabric.
• Level 3 (Hardware - Machine): If you are scaling into paid work, a high-productivity multi-needle setup (like SEWTECH’s value-focused multi-needle machines) provides the stability and speed to run fonts cleanly all day long.

And if you’re running a cap-heavy business, pairing a stable cap system with a reliable font workflow matters more than chasing fancy computer fonts—because customers remember clean lettering, not your font menu.

A Quick Note on Comments: Ignore the Noise, Focus on Repeatable Results

The comments under any embroidery video range from praise to criticism. That’s normal. What matters in your shop is whether your lettering workflow is repeatable:

• Choose the right font type for the job.
• Preview stitch direction (Audit the logic).
• Fix spacing before stitching.
• Stabilize and hoop consistently.

Do that, and you’ll stop wasting caps, stop redoing patches, and stop blaming your machine for what was really a font-format problem.

FAQ

• Q: Why does a TrueType/OpenType font auto-converted in Wilcom/Hatch-style embroidery software create the “telegraph pole effect” on lettering?
  A: Stop the stitch-out and switch to a pre-digitized embroidery font (BX font or stitch file letters), because auto-conversion often assigns one fill direction that ignores the letter structure.
  • Preview the lettering in 3D/Simulation and inspect stitch angles on problem letters like T, E, A before stitching.
  • Compare the vertical bar vs crossbar direction on a “T” (they should not all run in one direction).
  • Rebuild the text using a BX font (keyboard-mapped) or a stitch file font set instead of converting a screen font.
  • Success check: crossbars (T/E/F) stitch horizontally and curves twist cleanly, not as one “fence post” fill.
  • If it still fails, treat it as a digitizing issue: avoid serif/thin/script fonts for auto-conversion and use a digitized lettering source.
• Q: How much can PES/DST/JEF stitch file font letters be resized in embroidery software without causing gaps and ugly columns?
  A: Keep resizing minimal—generally no more than 10–15%, because stitch-based letters don’t re-digitize; they just spread stitches apart.
  • Choose the closest intended size of the stitch file font set before layout.
  • If larger text is required, load a different size letter file set rather than scaling up.
  • Re-check spacing after any size change, because small scaling can still change how letters visually sit together.
  • Success check: satin/fill coverage stays solid (no “see-through” gaps inside columns) when viewed in preview and on the stitch-out.
  • If it still fails, switch to a font type designed for resizing/typing (often BX fonts) or use properly digitized lettering for that target height.
• Q: How do you fix bad kerning/letter spacing when using built-in embroidery machine fonts or auto-converted fonts for names?
  A: Adjust spacing before stitching—use the software “text spacing/kerning” control or manually nudge individual letters until the word reads as one unit.
  • Zoom the design to the real stitched size and do the Squint Test to catch gaps/collisions early.
  • Manually move problem pairs (often wide letters like A/W and round letters like O/T) left or right.
  • Re-preview in 3D to ensure spacing doesn’t “close up” after stitch bulk is added.
  • Success check: at 100% size, the word looks cohesive (no obvious holes or crashes between letters) when you squint.
  • If it still fails, switch to a BX font (pre-digitized per letter) because spacing behavior is usually more predictable.
• Q: What is a safe starting point for pull compensation (0.17–0.20 mm) when digitizing or editing embroidery lettering on caps and patches?
  A: Use 0.17–0.20 mm as a practical starting point, then test, because fabric pull can make satin columns stitch narrower than the preview.
  • Start with Auto Spacing enabled if available, then fine-tune kerning manually if the font still reads uneven.
  • Test the smallest text first on the real substrate (caps and patches show pull issues faster).
  • Promote stabilizer strength if the fabric is moving (lettering exaggerates even small shifts).
  • Success check: columns land at the intended thickness and outlines don’t look “starved” or skinny after stitching.
  • If it still fails, treat it as movement: improve hooping/stabilization before chasing more compensation.
• Q: What stabilizer and hooping setup prevents small embroidery lettering distortion on stretchy knits versus woven fabric?
  A: Increase stabilization as text gets smaller—knits generally need a stronger stabilizer plan than wovens because movement ruins lettering.
  • Match backing to fabric type: use cut-away for knits and tear-away for woven as a common workflow.
  • Hoop so the fabric is drum-tight (taut, not stretched), because 1 mm of shift can ruin an outline.
  • Run a small test if the garment is expensive, especially for tiny cap text or thin cotton lettering.
  • Success check: fabric stays stable during stitching and edges of letters stay crisp without waviness or drift.
  • If it still fails, re-hoop and reassess holding consistency; inconsistent hoop tension is a common root cause of “bad font” complaints.
• Q: What are the key safety rules when doing a test stitch-out on an embroidery machine hoop area for lettering?
  A: Keep hands and anything loose away from the needle/hoop path during test runs, because the hoop can pinch and needles can break at high velocity.
  • Tie back hair and secure sleeves before starting the run.
  • Never reach under the presser foot while the machine is active, even to “just move a thread.”
  • Pause/stop early if the first letters show wrong stitch direction or distortion—fixing after 2 letters is cheaper than after 20.
  • Success check: the operator can monitor the first letter without hands entering the moving hoop zone.
  • If it still fails, stop the machine fully and troubleshoot with the hoop motion stopped—do not “assist” the fabric while stitching.
• Q: What safety precautions are required when using magnetic embroidery hoops/frames for lettering jobs?
  A: Treat magnetic frames as industrial-strength magnets—avoid pinch points and keep them away from medical implants and sensitive items.
  • Keep magnetic hoops away from pacemakers/ICDs and follow medical guidance for any implant device.
  • Place magnets deliberately to avoid trapping fingers between magnet and frame.
  • Keep magnets away from credit cards and phone screens to reduce damage risk.
  • Success check: the fabric is held taut without a struggle, and magnets are seated cleanly without finger pinches during loading.
  • If it still fails, slow down the loading routine and confirm the frame is fully seated before starting the stitch-out.
• Q: For a personalization business stitching names daily, when should a shop upgrade from manual font conversion + screw hoops to BX fonts + magnetic hoops, and when does a SEWTECH multi-needle embroidery machine become the next step?
  A: Upgrade in layers: fix font logic first (BX/digitized), then remove hooping bottlenecks (magnetic hoops), and only then scale output with a multi-needle machine if daily throughput demands it.
  • Level 1 (Technique): switch away from auto-converted TrueType for production; preview stitch angles and fix kerning before stitching.
  • Level 2 (Hooping): if placement drift, hoop marks, or re-hooping time is costing profit, magnetic hoops can improve consistency and loading speed.

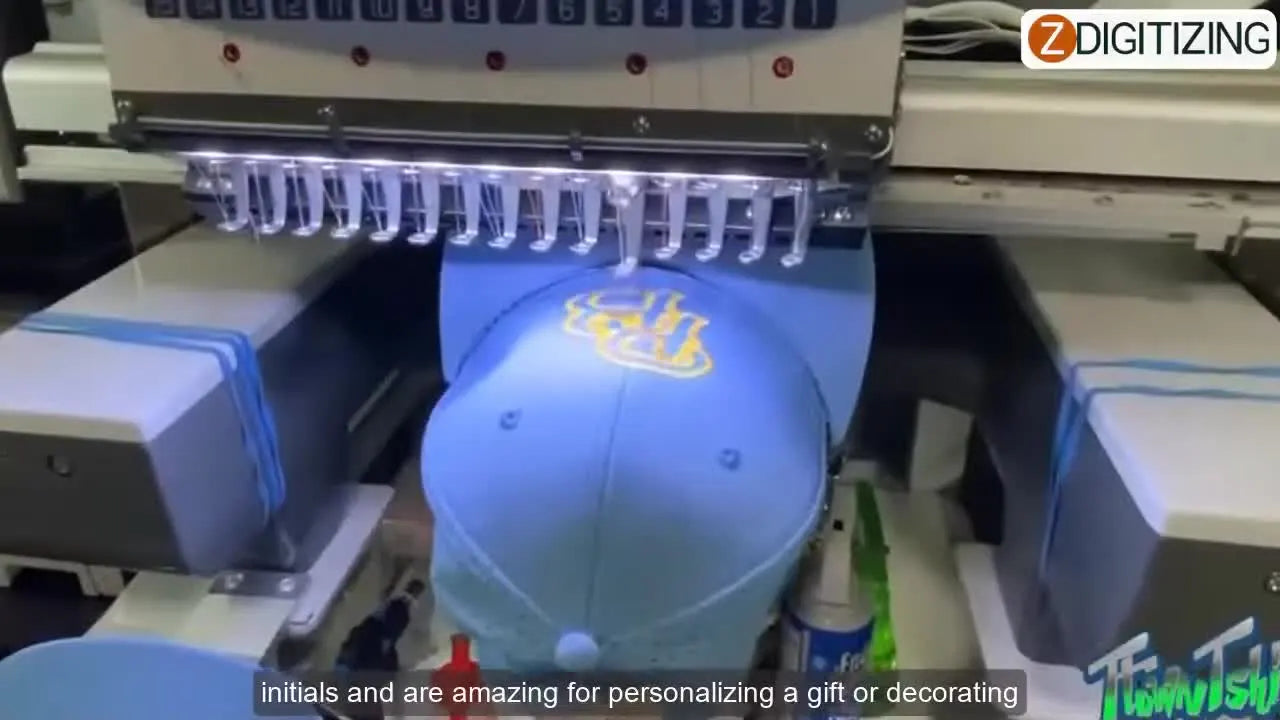

  • Level 3 (Capacity): if orders require repeatable, high-volume runs (caps/patches/team names), a stable multi-needle platform can hold speed and consistency for lettering all day.
  • Success check: fewer restarts/re-hoops, fewer rejected names, and repeat orders can use saved “known good” font + size combos.
  • If it still fails, identify the bottleneck (digitizing logic vs stabilization vs hooping time) and address that single constraint before buying more capability.
