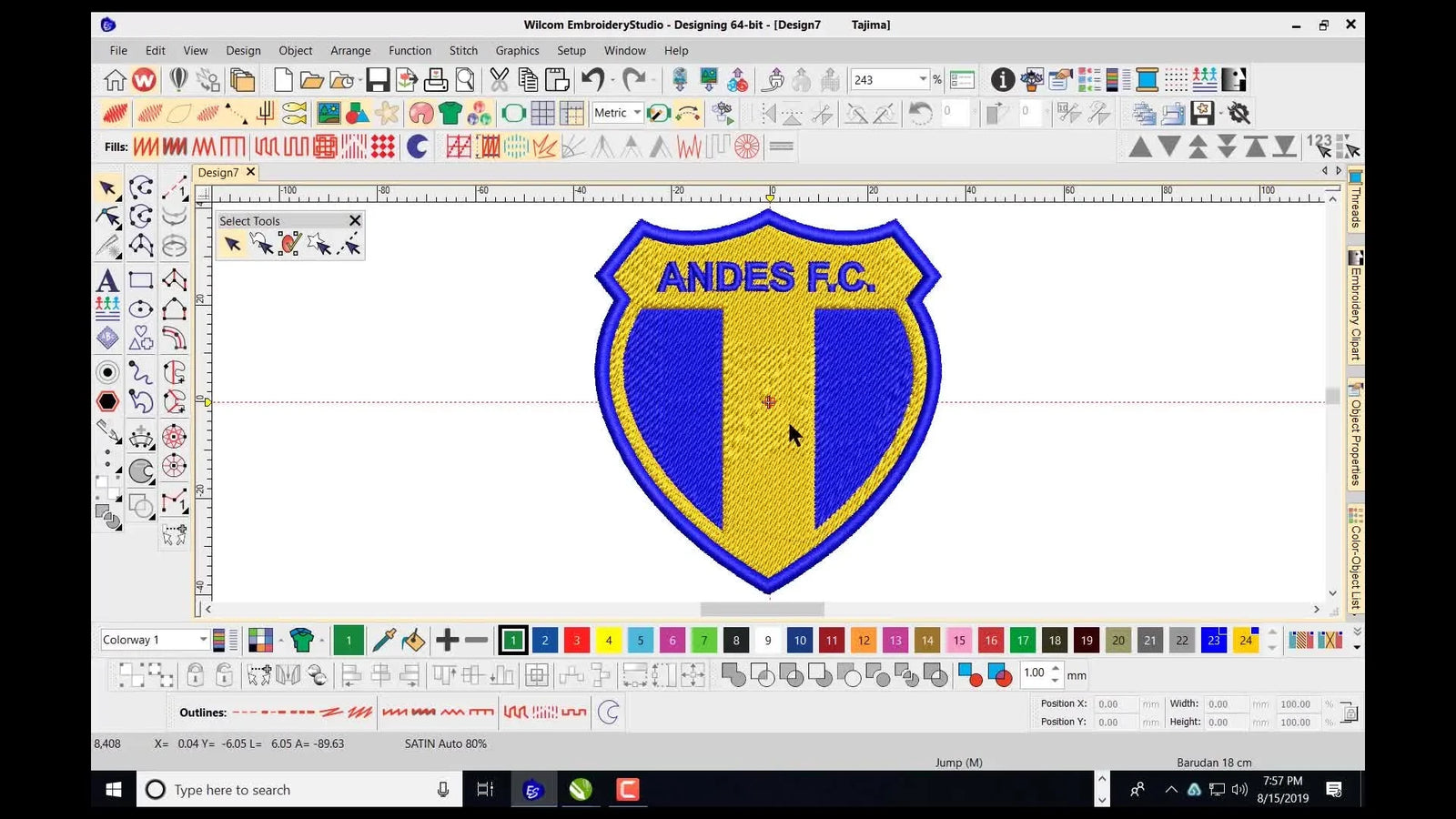

From CorelDRAW CDR to Clean Stitches in Wilcom EmbroideryStudio e4.2: The Conversion Workflow That Won’t Bite You Later

If you’ve ever hit “Auto-Convert” and felt a surge of hope, only to watch your machine chew through a t-shirt five minutes later, you know the specific pain of "amateur digitizing." The thread breaks with a sharp snap, the fill stitches look like bulletproof vests, and the text is unreadable.

Wilcom EmbroideryStudio e4.2 is a powerhouse, but it acts like a wild horse: without the reins of specific settings, it will trample your fabric.

This guide rebuilds James Timmons’ workflow into a Production Safety Protocol. We aren't just clicking buttons; we are engineering structural integrity so your machine runs quietly, your needles stay cool, and your profit margins stay safe.

Don’t Panic—Wilcom EmbroideryStudio e4.2 Auto-Convert Can Work (If You Treat It Like a Draft)

Auto-digitizing is not a "Finished Product" button. It is a "Rough Draft" generator. When beginners panic—usually because a file won't open or the stitches look weird—it’s because they expect the software to think like a human. It can't.

The Expert Mindset Shift:

• The Software is the Architect: It draws the blueprints.
• You represent the Physics: You must tell the software that fabric stretches, needles bend, and thread has thickness.

If you follow the sequence below, you maximize your "Safe Zone." Predictable results mean you don't have to hold your breath while the machine runs.

The “Finished Size First” Rule: Resize the CorelDRAW Graphic to 3.00" Before You Convert

The Golden Rule of Density: Never resize a design after it has been converted to stitches unless you are adjustments less than 10%.

James imports a CorelDRAW vector and immediately resizes it from 8.47 inches down to 3.00 inches before generating a single stitch.

Why this prevents disaster: Imagine a 1-inch box filled with 100 marbles. If you shrink the box to half an inch but keep 100 marbles, the box explodes. In embroidery, if you convert a large image and then shrink it, the stitch count remains high, density skyrockets, and your needle will hammer the same spot until it cuts a hole in the fabric.

Import + Resize (Safety Workflow)

1. Open Graphics Mode: Go to Graphics > Import Graphic.
2. Select File: Choose your .CDR file.
3. Lock Aspect Ratio: Ensure the lock icon next to the dimensions is closed.
4. Set Finished Height: Type 3.0 (or your target size) into the height box.
5. Verify: Visually confirm the artwork is now the actual size you intend to sew.


Warning: Excessive density (too many stitches in a small area) is the #1 cause of broken needles. If your machine sounds like a jackhammer, stop immediately. You likely resized after conversion.

Prep Checklist (Before You Import Anything)

• Dimensions Locked: Do I know the exact final size (e.g., Left Chest = 3.5" max)?
• Vector Quality: Is the artwork a true vector (clean lines) or a bitmap inside a vector container?
• Production Intent: Is this for a flat woven fabric (easier) or a stretchy knit (harder)?
• Master File Strategy: Are you saving this for a tajima embroidery machine or similar commercial unit? If so, strict sizing now prevents errors across different garment sizes later.

Vector Prep That Saves You Later: Remove Outlines, Ungroup Everything, Then Thicken the Border to 8.0 pt

Auto-conversion is literal. If it sees a hairline outline, it tries to put stitches there. This results in "Satin Slivers"—microscopic columns that break thread and look messy.

James performs three "Pre-Flight" maneuvers to clean the vector data before the software translates it.

The 8.0 Point Rule

Thin lines in print do not translate to thread. A standard embroidery needle (Size 75/11) creates a hole. If your satin border is too thin, the needle perforations will rip the fabric rather than covering it. Thickening the border to 8.0 points ensures the satin column is wide enough (approx 1.5mm - 2mm) to sit on top of the fabric safely.

Vector Preparation (Step-by-Step)

1. Strip the "Ghost" Outlines: Select the graphic. Right-click the “No Color” swatch to remove invisible hairlines.
2. Break it Down: Ungroup all objects so the software treats them as separate lego blocks, not one giant brick.
3. Thicken the Borders: Select the blue border element.
4. Apply Safety Width: Set Border Width / Outline Width to 8.0 pt.


The One-Click Moment: Use “Convert Graphics to Embroidery,” Then Immediately Clean the Color-Object List

Once the physics are set (Size and Width), you can click the magic button.

However, the job isn't done. The software often keeps the original vector art "hidden" behind the stitches. This confuses the machine and bloats the file size. You must perform a "Site Cleanup."

Convert + Cleanup Protocol

1. Execute: Select all vectors > Click Convert Graphics to Embroidery.
2. Audit: Open the Color-Object List docked on the right.
3. Purge: Look for the Corel-style icons (vectors). Select them and Delete.
4. Verify: You should now see only the Embroidery Object icons.


Troubleshooting: "I can't open my CDR!" If your Wilcom crashes or refuses to open a file, it is usually a version mismatch.

• The Fix: Open the file in CorelDRAW stand-alone, specific "Save As" > CorelDRAW X6 (or an older version). This acts as a "Universal Translator" for the embroidery software.

Underlay Is the Difference Between “Looks Fine” and “Stitches Fine”: Fix Tatami and Satin Underlay Settings

This is the most critical section of this guide. Underlay is the foundation of your house. Without it, the "roof" (top stitches) will collapse into the basement (the fabric).

• Symptoms of Bad Underlay: Gaps between borders and fills (registration errors), fabric puckering, and "flat" looking embroidery.

Tatami (Fill) Underlay Strategy

Large areas of stitching push the fabric around like a bulldozer. You need a dual-layer foundation to lock it in.

• Action: Select Tatami objects > Object Properties > Underlay.
• The Setting: Check Edge Run (outlines the shape) AND Secondary Tatami (fills the middle).




Satin (Border/Text) Underlay Strategy

Here, we differentiate based on width.

• Thick Borders (The Shield): Need stability. Use Edge Run + Center Run.
• Thin Text (The Letters): DANGER ZONE. If you put too much underlay here, the needle creates a hard knot, leading to thread breaks.
• Action for Text: Select Satin text > Object Properties > Underlay.
• The Setting: Center Run only (or "Single"). Never use Edge run on tiny text—it will poke out the sides.




Workflow Upgrade: When Software Isn't Enough

Sometimes, even perfect underlay fails because the hoop is the problem. Traditional hoops force you to pull fabric ("drum tight"), which causes "hoop burn" (permanent rings) on delicate polos.

• Trigger: If you are fighting to get the fabric straight or your wrists hurt from tightening screws.
• The Solution: Many pros switch to magnetic embroidery hoops. The magnets clamp the fabric flat without forcing it into a ring, reducing distortion and preventing the "gap" that underlay tries to fix.

The 0.50 mm Cleanup Pass: Remove Small Stitches Before They Become Thread Breaks and Bird Nests

"Bird Nests" (a tangle of thread under the throat plate) are often caused by the machine trying to make 5 stitches in the space of 1 millimeter. The machine cannot physically move that fast, and the thread snaps.

James uses the Remove Small Stitches filter to automatically delete these dangerous microscopic movements.

The 0.50mm Rule

1. Go to Stitch > Remove Small Stitches.
2. Set the filter to 0.50 mm (The Safety Sweet Spot).
3. Click OK.
4. Audit: Zoom in on your text. Did it delete the dot on the 'i'? If so, Undo and try 0.40mm.

Warning: Do not go above 0.70mm for text designs, or you will start deleting necessary corners of your letters.

Save Like a Pro: EMB First as the Blueprint, Then Export Tajima DST for the Machine

Stitch files (DST, PES, EXP) are "dumb" files—they are just XY coordinates. You cannot easily resize or edit them. Design files (EMB) are "smart" files—they retain object data, density settings, and colors.

The "Forever Editable" Protocol

1. Save As: DesignName_MASTER.EMB (Do this first. Always.)
2. Export: DesignName_Production.DST (Or your machine format).

This ensures that when a client comes back 6 months later and wants the logo "just a little bit bigger," you open the EMB and the density recalculates automatically. If you resize the DST, you ruin it.

A Practical Decision Tree: From Fabric Reality to Stabilizer + Hooping Choices

You have a clean file. Now you have to sew it. Creating the file is 50% of the battle; the "Physics of the Hoop" is the other 50%.

Use this decision matrix before you press start:

1. The Fabric Factor

• Stretchy (Performance Knits/Polos):
  • Risk: Distortion and Pucker.
  • Stabilizer: Cutaway (2.5oz or 3.0oz). No exceptions. Tearaway will fail.
  • Hooping: Do not stretch the fabric. Lay it neutral.
• Stable (Denim/Canvas/Caps):
  • Risk: Needle deflection (broken needles).
  • Stabilizer: Tearaway is usually sufficient.

2. The Production Volume

• Hobby (1-5 shirts): Standard hoops are fine. Take your time.
• Side Hustle (10-50 shirts): Time is money. Re-hooping takes 2 minutes per shirt with standard hoops.
  • Upgrade Option: A machine embroidery hooping station ensures every logo is in the exact same spot on every shirt, eliminating the "did I putting this on crooked?" anxiety.

3. The Equipment Scale

• Home Single Needle: Great for learning, but requires a thread change manually for every color.
• The Limit: If you are turning away orders because you can't sit by the machine to change threads, you have hit the ceiling.
• The Next Step: Shops scaling up often look at the brother pr680w 6 needle embroidery machine or similiar multi-needle units. These machines run unattended, allowing you to hoop the next run while the current one stitches.

Warning: Magnetic Hoop Safety. If you upgrade to magnetic frames, be aware they use Neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers.

The "Why" Behind the Workflow: What Actually Prevents the Ugly Seam Lines and Gaps

A common complaint in the comments is visible "seam lines" where satin stitches join or jump. This is usually a Sequence issue.

Auto-digitizing follows a mathematical path, not an artistic one. It might finish the left side of a circle, jump to the right, and leave a visible seam. To fix this:

1. Use the Reshape Tool in Wilcom.
2. Move the Entry (Green Diamond) and Exit (Red Cross) points so they are hidden in corners, not sitting in the middle of a smooth curve.

If you are struggling with thread tension causing gaps on a home machine (like a Brother PE800), and you've already fixed the underlay, the issue is likely the hoop "breathing." Using magnetic embroidery hoops for brother allows the hoop to hold firm pressure evenly across the garment, preventing the fabric from slipping inward as the stitches pull tight.

Operation Checklist (The Final "Go/No-Go" Gauge)

Before you hit start, run this mental check. If you answer "No" to any of these, do not sew.

• Size Check: Is the design size appropriate for the garment (e.g., it won't sew over the pocket seam)?
• Needle Check: Is the needle fresh? (A burred needle ruins good digitizing).
• Underlay Audit: Did I verify the Tatami has a "floor" (Edge Run + Secondary) and the Text has a "skeleton" (Center Run)?
• Small Stitch Filter: Did I run the 0.50mm cleanup to prevent bird nests?
• Format: Am I sending the .DST (Machine) file, not the .EMB (Design) file to the machine?

Follow these steps, and you stop "hoping" it works and start knowing it will.
