FSL Intertwined Heart Earrings on a Baby Lock Visionary: The No-Slip Hooping Setup and the Clean-Back Tricks That Make Lace Look Expensive

Freestanding lace (FSL) is one of those deceptive projects. When done right, it looks like high-end, "store-bought" jewelry. When done wrong, it looks like a tangled science experiment that dissolves into a shapeless rag the moment you wash it.

Regina’s intertwined heart earrings (plus the matching gift tag) are the perfect intermediate project to master this art form. They force you to graduate from "trusting the machine" to "controlling the physics." You must master three fundamentals:

1. Stabilizer Architecture: Your water-soluble stabilizer acts as the temporary fabric. If it moves even 1mm, your design fails.
2. Aesthetics from All Angles: Your bobbin thread must match your top thread perfectly because there is no "back side" to hide mistakes.
3. Tail Discipline: You must manage thread tails intentionally, or they will be stitched into the lace, creating permanent, ugly knots.

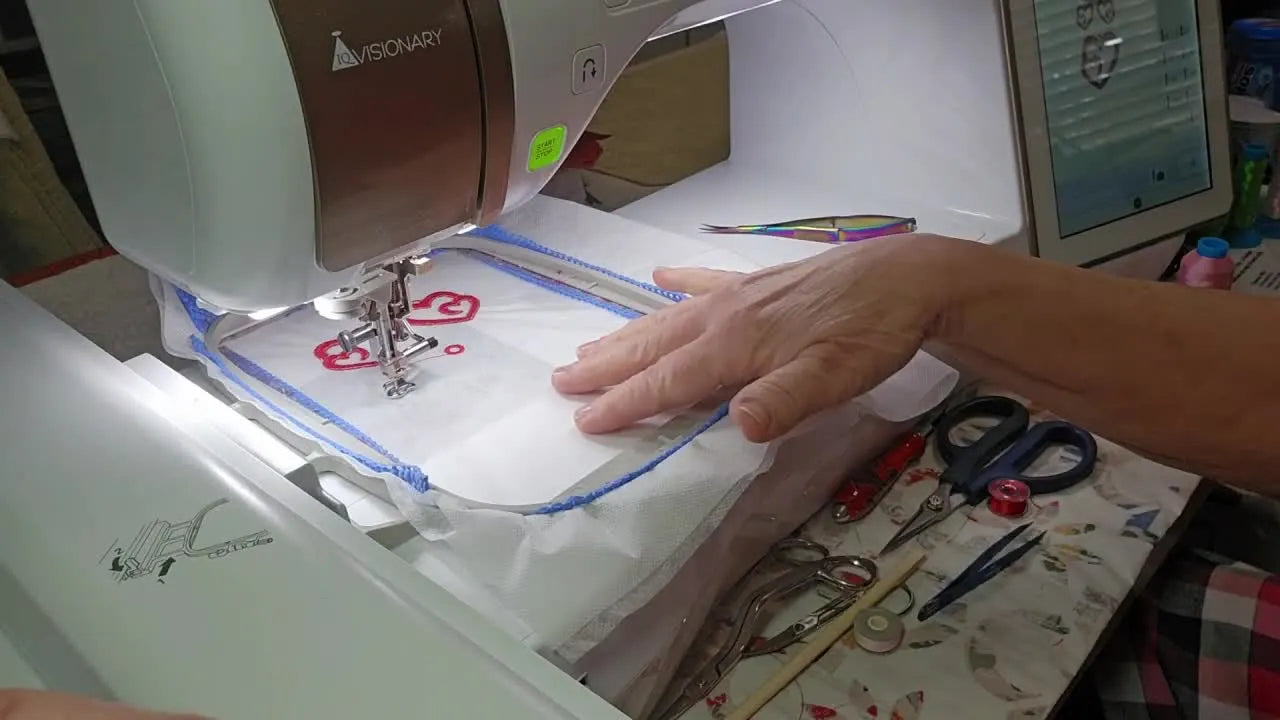

Below is the exact workflow shown on a Baby Lock Visionary using a 5x7 hoop, re-engineered into a shop-ready Standard Operating Procedure (SOP). We will cover the specific checkpoints, the sensory cues of success, and the definitive upgrades that take you from "hobbyist" to "producer."

Don’t Panic: FSL Earrings Fail for Boring Reasons (and That’s Good News)

Novices often fear FSL because you are stitching "into thin air." There is no fabric to anchor the stitches, no seam allowance to forgive a messy back, and no second chance.

However, from an engineering perspective, FSL is actually quite predictable. Failures are rarely random; they usually stem from specific setups:

• The "Drift": Stabilizer relaxes or slips in the hoop during the high-stitch-count run.
• The "Dirty Back": Bobbin thread shows through, or worse, is a different color/weight, making the lace look patchy.
• The "Snap": High density causes thread breaks because the speed is too high.
• The "Bird's Nest": Long starting tails get sucked into the bobbin case.

If you treat this like a tiny manufacturing job—Prep, Setup, Execution, QC—you will get consistent lace every time.

Materials for Freestanding Lace Heart Earrings (Baby Lock Visionary + 5x7 Hoop)

Regina stitches the earrings and gift tag in a 5x7 hoop because the combined layout is too large for a standard 4x4.

The Essential Consumables (What Regina uses)

• Baby Lock Visionary embroidery machine.
• 5x7 embroidery hoop (standard plastic hoop with screw mechanism).
• Heavy Duty Water-Soluble Stabilizer (WSS): You need the fibrous "fabric-type" (like Vilene), not the clear plastic film (solvy) which perforates too easily. Use two layers.
• Shelf liner strip: A piece of rubbery gripping material placed between the hoop rings.
• Embroidery Thread (40wt):
  • Red (Base structure).
  • Darker Red (Satin border definition).
  • Pink (Optional top-stitch highlight).
• Matching Bobbin Thread: This is crucial. You must wind a bobbin from your top thread spool so the weight and color are identical.
• 75/11 Sharp Needle: expert tip: Avoid Ballpoint needles for FSL; Sharps penetrate the stabilizer cleanly without tearing it.

The "Hidden" Consumables (Don't start without these)

• Curved Embroidery Snips: Essential for trimming tails close to the lace surface without cutting the knots.
• Tweezers or Stiletto: To act as your "fingers" near the needle.
• Fresh Needle: FSL is dense; a dull needle causes unnecessary friction and heat.

The Time Reality (Pacing Your Production)

Regina shows the following stitch-time estimates. Note: Reduce your machine speed to the 600-700 SPM (Stitches Per Minute) "Sweet Spot" for FSL. The estimates below assume standard speeds, so budget slightly more time for higher quality.

• 1 pair of earrings: ~17 min
• 2 pairs of earrings: ~33 min
• 1 gift tag: ~23 min
• 1 pair + gift tag: ~40 min


This timing confirms why FSL is a great "small product" category. However, a 40-minute run time is long enough for stabilizer to slip if your hooping isn't secure.

Prep Checklist (Pre-Flight Protocol)

• Check File Size: Confirm the layout fits your 5x7 hoop (earrings + tag).
• Cut Stabilizer: Cut two layers of fibrous WSS, ensuring they extend at least 1 inch past the hoop edges on all sides.
• Cut Grip Strip: Prepare a strip of shelf liner for the hoop modification (if using standard hoops).
• Wind Bobbin: Wind a bobbin using the exact Red top thread. Sensory Check: Ensure the bobbin is wound evenly and feels firm, not spongy.
• Tool Station: Place curved snips and tweezers within arm's reach. You cannot hunt for these while the machine is running.

Lock Down Water-Soluble Stabilizer in a 5x7 Hoop: The Shelf Liner Grip Method

The single point of failure in this project is hoop tension. Regina is blunt: if the stabilizer slips, you cannot simply "re-align" it. The structural integrity of the lace relies on the layers staying drum-tight.

The "Shelf Liner" Hack (Standard Hoops)

Standard plastic hoops are smooth. WSS is fibrous and slippery. Under the vibration of thousands of stitches, they naturally want to separate. Regina uses a household hack to fix this:

1. Place two layers of water-soluble stabilizer together.
2. Add a strip of rubber shelf liner between the inner and outer hoop rings. This gives the hoop "teeth" to bite into the stabilizer.
3. Tighten the screw while pulling the stabilizer taut.


The Sensory Check: The "Drum Skin" Test

How do you know it's tight enough?

• Tactile: Press your finger in the center of the hooped stabilizer. It should have very little give.
• Auditory: Tap it lightly. It should sound like a drum—a dull thud, not a paper-like rattle.

The Professional Alternative: Magnetic Hoops

While Regina mentions T-pins as another alternative, adding pins introduces manual labor and safety risks (hitting a pin with a needle).

If you find yourself constantly fighting with shelf liners, screws, and hand fatigue, this is the trigger point to consider a magnetic hoops for babylock embroidery machines.

• Why Upgrade? Unlike screw hoops that pull fabric/stabilizer to one side as you tighten, magnetic hoops clamp straight down. This creates even pressure around the entire perimeter without distortion, eliminating the need for shelf liners or pins.
• The Business Case: If you plan to sell these earrings, time is money. A magnetic hoop reduces hooping time from 3 minutes to 30 seconds and guarantees zero slippage.

Stitch Order Strategy: Loops First, Then the Base Hearts

Smart digitizing (and smart operation) separates the hardware loop from the main design. Regina sequences the small hardware loops first.

Action Steps

1. Thread Color 1 (Red loops).
2. Stitch the loops.
   • Design Note: If you want a jewelry look, you can substitute this step with silver or gold metallic thread. Warning: Metallic thread requires a Metallic Needle (Topstitch 90/14) and slower speeds.

Success Metric

Look closely at the stitched circles. They must be perfectly round. If they look oval or distorted, your stabilizer was not hooped tightly enough. Stop now. Do not proceed to the main heart, or you will waste thread.

Warning: Physical Safety
Keep fingers, snips, and tweezers away from the needle bar while the machine is running. FSL designs often jump quickly between sections. Only reach in when the machine is fully stopped (red light).

The "Match Both Sides" Rule: Winding Bobbins From Top Thread

Regina’s FSL rule is non-negotiable: wind your bobbin from your top thread. Do not use pre-wound white or black bobbins.

From a physics standpoint, embroidery thread tension serves to link the top and bottom threads. In normal embroidery, we pull the top thread down so the knot hides on the back. In FSL, the "back" is visible when the earring dangles. If your bobbin is white, the back of your red earring will look polka-dotted and cheap.

This is a critical area where beginners struggle. When you professionalize your workflow with tools like a magnetic embroidery hoop, you also need to professionalize your thread management. Matching density and fiber type ensures the lace shrinks and expands uniformly during the wash-out phase.

Action Steps

• Install your custom-wound red bobbin.
• Run the structural underlay and base fill of the hearts.
• Sensory Check: Listen to the machine. A rhythmic, smooth hum is good. A clattering sound usually indicates the bobbin is jumping or nearly empty.

Success Metric

The hearts should handle the density without puckering. The back of the hoop should look almost identical to the front.

Thread Shade Swap for the Satin Border: Adding "Edge Definition"

To give the earrings visual depth, Regina changes from the base Red to a Darker Red for the satin border. This creates a shadow effect that makes the lace look 3D.

Action Steps

• Machine stops for color change.
• Clip the thread, re-thread with Darker Red.
• CRITICAL PAUSE: Do not hit start yet. You must manage the tails (see next section).

Success Metric

The satin border should sit on top of the previous lattice work, sealing the edges cleanly.

The Clean-Back Habit: Trim Tails After Every Stop

This is the hallmark of a professional. Regina removes the hoop, flips it over, and trims thread tails on the back with curved snips after every color stop.

The "Why": The Physics of Knot Formation

In FSL, a long tail left on the back isn't just ugly; it's a structural liability.

1. Entanglement: New stitches will catch the long tail, sewing it permanently into the lace.
2. Wash-out Failure: When you dissolve the stabilizer, that trapped tail may loosen, creating a loop that snags on hair or clothing.
3. Destruction: If you try to trim a trapped tail later, you risk cutting the structural knot, causing the earring to unravel.

Action Steps

1. Remove the hoop (or slide the frame out).
2. Flip over.
3. Identify the start/dangling tails.
4. Trim them flush to the knot. DO NOT cut the knot itself.

Success Metric

The back of your hoop should look clean—no "spaghetti" or loose whiskers.

Starting Satin Stitch: The "Tweezers Technique"

When Regina starts the dense satin border, she uses a tool to hold the starting tail.

Action Steps

1. Re-attach the hoop.
2. Hold the new thread tail with tweezers/stylus to the side.
3. Hit "Start."
4. Let the machine take 3-5 distinct stitches. Sensory Check: Feel the tension on the tail; once it's locked, you can let go.
5. Pause machine, trim the tail close, then Resume.

Success Metric

The satin column starts flush. There is no "bird's nest" of thread underneath the needle plate.

Optional: Pink Top Stitch Highlight

Regina adds a contrasting pink running stitch on top of the satin border.

Action Steps

• Thread with Pink.
• Repeat the tail-holding technique.
• Run the stitch.


This step is purely aesthetic, but it demonstrates how to add value to a simple product line. One design file can yield endless variations just by changing the top-stitch color.

Dealing with Machine Stops: The "Bobbin Reset"

Regina encounters a machine stop where the Visionary "didn't like" the bobbin. This is common in FSL due to the high density and lack of fabric absorption.

Structured Troubleshooting: Factors of a Mid-Run Stop

If your machine sets off an alarm or you hear the sound change:

1. Stop immediately.
2. The "Path of Least Resistance" Fix: Cut the thread and re-thread the top path. Often, the thread has jumped out of the tension disks.
3. The Bobbin Check: As Regina did, swap to a brand new bobbin. As bobbins get low (last 10%), the tension curve changes, which can upset delicate FSL balance.
4. The Needle Check: If the machine sounds like it's "punching" the fabric, your needle is dull. Change it.

The Gift Tag: Consistency is Key

Regina stitches the gift tag in the same hoop session, repeating the exact workflow.

Key Lesson: FSL punishes improvisation. Do not skip the tail trimming on the tag just because you are tired. Consistency = Quality.

Stabilizer & Hoop Decision Tree

Use this logic flow to determine your setup before you cut a single piece of stabilizer.

• Scenario A: True Freestanding Lace (No Fabric)
  • Requirement: 2 Layers of Heavy Water-Soluble Stabilizer (Fibrous).
  • Hoop Strategy:
    • Standard Hoop: Must use "Shelf Liner" method to prevent slipping.
    • Professional Upgrade: Use a baby lock magnetic hoop. The magnetic force clamps directly through the layers without the need for friction hacks.
• Scenario B: Lace Accents on Fabric (e.g., Denim Jacket)
  • Requirement: 1 Layer WSS + Fabric + Cutaway Stabilizer on back.
  • Hoop Strategy: Standard hooping is usually sufficient as the fabric adds friction.

Setup Checklist (The "Go/No-Go" Check)

• Hoop Tension: Perform the "Drum Skin" tap test. If it rattles, re-hoop.
• Correct Thread Map: Top thread and Bobbin thread match in color and weight.
• Machine Speed: Lowered to ~600-700 SPM (optional but recommended for beginners).
• Correct Foot: Ensure your embroidery foot (usually "W" or "Q" foot) is attached.
• Tools: Snips and tweezers are on the table right next to the machine.

Troubleshooting FSL: Symptom → Cause → Fix

The Upgrade Path: Scaling from Hobby to Business

If you are making one pair for a gift, Regina's shelf liner method is acceptable. However, if you plan to sell these at markets or on Etsy, you must address the bottleneck: Setup Time and Consistency.

Level 1: Technique Optimization

Master the "Trim-as-you-go" method. It saves you 10 minutes of post-production cleaning per earring.

Level 2: Tool Upgrade (Magnetic Hoops)

When you are hooping slippery WSS repeatedly, a consistent clamp is vital. A baby lock magnetic hoop removes the variable of "how tight did I screw the hoop?" It applies constant, vertical pressure.

• ROI: If it saves you one ruined batch of earrings (materials + time), it pays for itself.
• Sizing: Check baby lock magnetic hoop sizes to find the equivalent of your 5x7 (often a 130x180mm).

Warning: Magnet Safety
Magnetic hoops use strong industrial magnets. Keep them away from pacemakers and magnetic media. Watch your fingers—they snap together with significant force!

Level 3: Workflow Optimization

If you are running batches, consider a hooping station for embroidery machine. This allows you to stand comfortably and hoop garments or stabilizer with ergonomic precision, reducing wrist strain. For high-volume shops, a hoop master embroidery hooping station ensures that every single earring is placed in the exact same spot, reducing waste.

Operation Checklist (Run-Time Habits)

• Stitch Loops: Check for perfect circles.
• Stop & Trim: Remove hoop, trim back tails.
• Base Fill: Listen for smooth stitching sounds.
• Color Change: Swap to Dark Red, hold the tail, stitch satin border.
• Top Stitch: Optional Pink highlight.
• Final Audit: Inspect back side before un-hooping.

Final Reveal: The Gold Standard

Regina’s finished set demonstrates the goal: crisp edges (thanks to the satin stitch), a distinct highlight (thanks to the pink top-stitch), and a structure that holds its shape.

FSL is not magic; it’s engineering. By controlling your stabilization, matching your threads, and disciplining your trimming, you can turn a "tangled mess" into a high-value product.

FAQ

• Q: On a Baby Lock Visionary 5x7 hoop, how do I stop heavy water-soluble stabilizer from slipping during freestanding lace (FSL) earrings?
  A: Use two layers of fibrous heavy-duty water-soluble stabilizer and lock it down with the shelf-liner grip method (or upgrade to a magnetic hoop) to prevent drift.
  • Layer: Stack 2 layers of fibrous WSS (not clear film) with at least 1 inch extra past the hoop edge.
  • Add: Place a strip of rubber shelf liner between the inner and outer hoop rings before tightening.
  • Tighten: Pull stabilizer taut while tightening the screw so the clamp pressure stays even.
  • Success check: Do the “drum skin” test—press the center (minimal give) and tap (dull thud, not a rattle).
  • If it still fails: Stop after stitching the first loops—if circles look oval, re-hoop immediately before running the hearts.
• Q: On a Baby Lock Visionary freestanding lace earring design, why must the bobbin be wound from the same top thread spool?
  A: Wind the bobbin from the same top thread spool so both sides of the FSL lace match in color and thread weight.
  • Wind: Make a custom bobbin using the exact top thread color used in the design.
  • Install: Replace any pre-wound white/black bobbin before stitching FSL.
  • Inspect: Check both front and back early (after base structure begins) to confirm the “no wrong side” rule is met.
  • Success check: The back of the hoop looks almost identical to the front (no polka-dot bobbin show-through).
  • If it still fails: Recheck top re-threading (thread may have jumped out of tension disks) and swap to a fresh full bobbin.
• Q: On a Baby Lock Visionary, how do I prevent a “bird’s nest” under the needle plate when starting satin stitch on freestanding lace?
  A: Hold the starting thread tail to the side with tweezers for the first few stitches, then trim and resume.
  • Hold: Use tweezers/stylus to keep the new tail controlled when the satin border starts.
  • Start: Run 3–5 distinct stitches to lock the tail, then pause.
  • Trim: Clip the tail close, then resume stitching.
  • Success check: The satin column starts flush and clean with no thread wad forming under the plate.
  • If it still fails: Stop, carefully cut away the nest, and change the needle if it was bent or stressed.
• Q: For Baby Lock Visionary freestanding lace earrings, when should thread tails be trimmed, and how close should trimming be?
  A: Trim thread tails after every color stop by flipping the hoop and cutting tails flush to the knot without cutting the knot.
  • Stop: Remove or slide out the hoop/frame at each color change.
  • Flip: Turn the hoop over and find starting/dangling tails immediately.
  • Trim: Use curved embroidery snips to cut tails flush to the knot—do not cut the knot itself.
  • Success check: The back side looks clean (no “spaghetti” tails that can get stitched into the lace).
  • If it still fails: If a tail got stitched in, attempt careful removal with sharp curved snips (risky); prevention is trimming every stop.
• Q: On a Baby Lock Visionary freestanding lace run, what should I do when the machine stops mid-design and “doesn’t like” the bobbin?
  A: Stop immediately, then re-thread and swap to a fresh full bobbin because low bobbins can destabilize tension during dense FSL.
  • Stop: Pause as soon as you hear a sound change or get an alarm.
  • Re-thread: Cut thread and re-thread the top path to ensure it sits correctly in the tension system.
  • Replace: Install a brand new, full bobbin (avoid the last ~10% for FSL).
  • Check: Change to a fresh needle if stitching sounds like “punching” or feels overly aggressive.
  • Success check: Stitching returns to a smooth, rhythmic hum without clattering.
  • If it still fails: Slow the machine speed toward the 600–700 SPM sweet spot as a safe starting point (confirm with the machine manual).
• Q: What machine-speed setting is a safe starting point for Baby Lock Visionary freestanding lace (FSL) earrings to reduce thread breaks?
  A: Reduce speed to about 600–700 SPM as a safe starting point to lower heat and stress in dense FSL stitching.
  • Set: Dial the embroidery speed down before starting the long, high-stitch-count run.
  • Listen: Monitor sound—harsh clattering often signals stress, while a steady hum is healthier.
  • Combine: Pair slower speed with a fresh needle to reduce friction during satin and dense areas.
  • Success check: Fewer thread breaks and smoother stitch formation through dense sections.
  • If it still fails: Re-check hoop tension (stabilizer drift increases friction) and confirm you are using heavy fibrous WSS in two layers.
• Q: What are the key safety rules when using tweezers, snips, and magnetic hoops around a Baby Lock Visionary embroidery needle area during FSL?
  A: Keep hands and tools away from the needle bar while running, and treat magnetic hoops as strong pinch hazards.
  • Stop: Only reach in with tweezers/snips when the machine is fully stopped (red light) to avoid sudden jumps.
  • Position: Hold thread tails to the side—never under the needle path—when starting dense satin.
  • Protect: Keep fingers clear when handling magnetic hoops; magnets can snap together with significant force.
  • Success check: No “near-miss” tool strikes, no pinched fingers, and no accidental contact with the moving needle bar.
  • If it still fails: If tool handling feels rushed, pause more often and set tools within arm’s reach before starting; if using magnetic hoops, keep them away from pacemakers and magnetic media.
