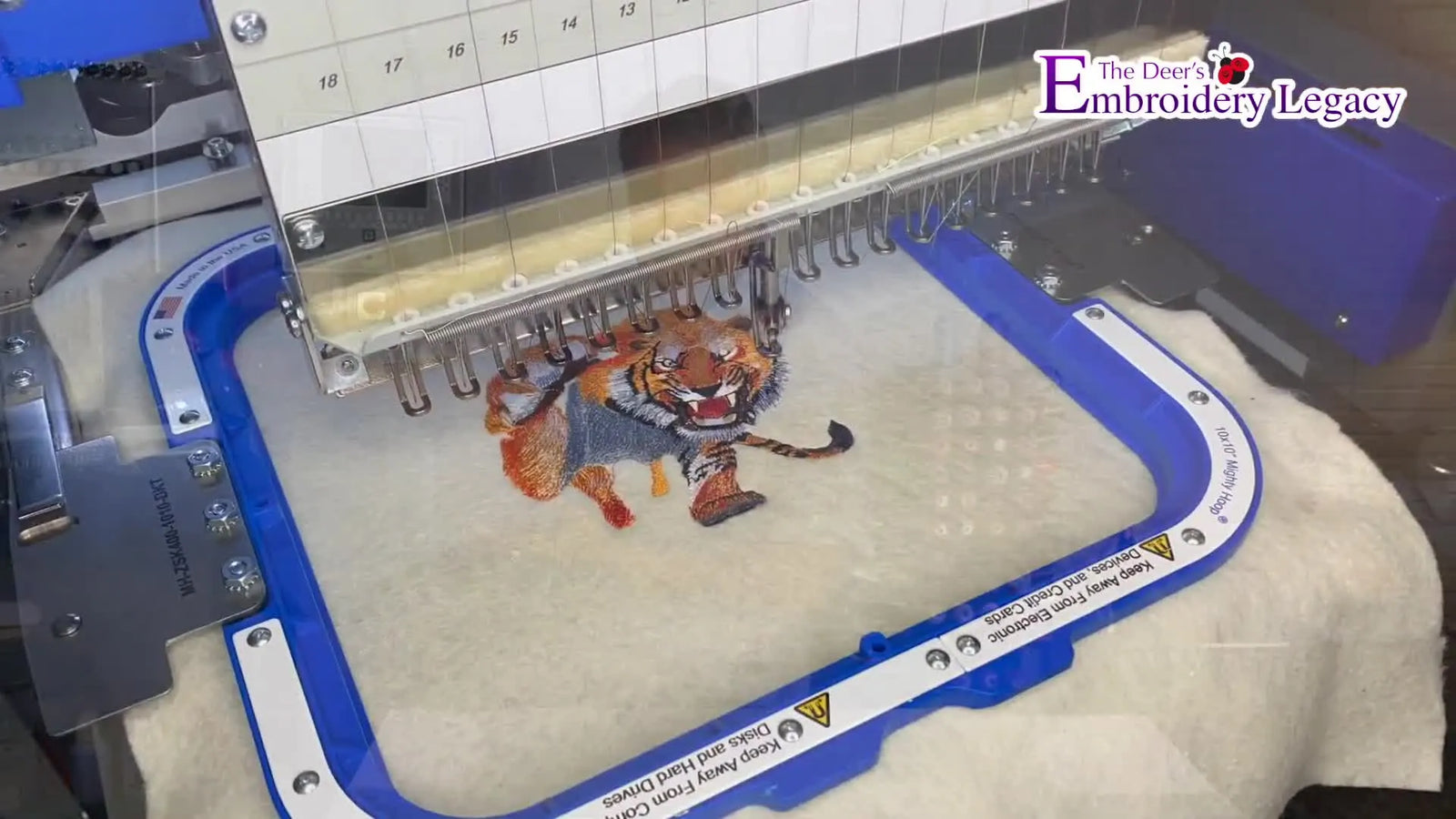

Embroidery Machine Speed (SPM) Without the Headaches: How to Run Fast, Stay Clean, and Stop Breaks on Brother & ZSK

When people ask me about “the best embroidery machine speed,” what they’re really saying is: “I’m tired of puckering, thread breaks, and wasted blanks—how do I run faster without ruining quality?” You’re not alone.

John from The Deer's Embroidery Legacy nails the core truth: machine speed is stitches per minute (SPM), but your real limit is the combination of design movement, material resistance, thread behavior, and digitizing quality. Once you understand what’s physically happening at the needle and at the frame, speed stops being guesswork—and starts being a controlled production tool.

Machine Speed (Stitches Per Minute) Isn’t a Flex—It’s a Quality Lever You Control

John defines machine speed as how many stitches per minute your machine will run, and he’s right to emphasize that every machine and model behaves a little differently. However, numbers on a screen can be deceiving.

A home machine might top out around 800 SPM, while a commercial machine like his ZSK can run 1000–1200 SPM and still hold quality—when everything else is right. But here is the "physics of the stitch" that manufacturers rarely tell you:

Speed amplifies vibration. As an educator, I tell my students that doubling your speed doesn't just double the output; the kinetic energy quadruples. That means four times the force pulling on your thread, shaking your needle bar, and rattling your hoop.

Here’s the part many embroiderers learn the hard way: SPM is not a promise of quality. It’s only a ceiling. Your “sweet spot” is the fastest speed that still gives you:

• Stable fabric: No shifting inside the hoop (drum-tight sound).
• Stable thread path: No shredding or "flossing" sound at the needle eye.
• Stable stitch formation: No loops on top, no bird nests below.
• Stable registration: Borders line up perfectly with the fill.

Pro tip from the community: One viewer mentioned their first embroidery class kept everyone on “slow” (approx. 400-600 SPM), and they got cleaner designs with fewer breaks—especially on lower-end home machines. That’s not beginner hand-holding; it’s a smart baseline when you’re still learning how your machine sounds and feels under load.

The “Hidden” Prep Before You Touch the Speed Slider: Set Yourself Up to Run Fast *Safely*

Speed problems often show up like “random” thread breaks or puckering, but the root cause is usually predictable. If you try to drive a car with flat tires at 100mph, you will crash. Embroidery is the same. Before you change SPM, do the prep that experienced operators do automatically.

You must clear the "friction paths" before you demand speed. A slight burr on a needle or a piece of lint in the bobbin case creates drag. At low speed, the machine powers through. At high speed, the thread snaps.

Prep Checklist (Do this *before* every speed test)

• The "Fingernail Test": Run your fingernail down the needle checking for burrs. A scratched needle shreds thread at high RPM.
• Confirm your design type: Is it a wide satin (high vibration)? Dense fill (high push)? Freestanding lace (fragile structure)? Speed limits change immediately.
• Match thread to the job: Metallic behaves differently than cotton or standard polyester. (See section below).
• Check Hidden Consumables: Do you have fresh needles, temporary adhesive spray (for floating), and a clean bobbin area?
• Choose stabilizer on purpose: Light fabric + weak backing + high speed is a puckering recipe. You need rigidity to counter the speed.
• Inspect the hooping method: If you pull on the fabric and it slips even 1mm, speed will magnify that into a ruined shirt.
• Plan your “test run” mindset: Start at 50% speed, then increase only after the first clean section.

Warning: Keep fingers, hair, and loose sleeves away from the needle area and moving frame. At higher SPM, the pantograph moves violently, and a distraction can turn into a puncture wound or a shattered needle instantly.

Stitch Width vs Frame Movement: Why Wide Satins Force Your Machine to Slow Down

John’s first factor is stitch width: the wider the stitch, the more movement is demanded on the frame. That’s not theory—it’s mechanics.

Imagine holding a heavy book and moving it left to right, one inch at a time. Easy, right? Now move it six inches left to right, very fast. Your arms get tired, and you lose accuracy.

A wide satin stitch means the needle penetrations are farther apart left-to-right (e.g., 7mm or more). The machine must drive the hoop/frame farther between penetrations. That extra travel creates Inertia.

• Overshoot: The heavy frame wants to keep moving past the stopping point.
• Vibration: Especially on lighter stands or tables, the whole machine may shake.
• Registration Errors: This shows up as "wobble" or saw-toothed edges on what should be a straight column.

John notes many machines will automatically slow down incrementally as stitch width increases to protect the motors, but you may still need to manually reduce speed further.

If you’re doing hooping for embroidery machine work involving wide satins or large fonts, slow down early. If you hear a loud "clack-clack-clack" rhythm, your pantograph is struggling against momentum. Slow down until the sound softens.

What you should see (expected outcomes)

• Satin edges look smooth and straight, not scalloped.
• Corners land cleanly without “hooking” past the turn.
• The machine sounds steady, not like it’s “slamming” direction changes.

Leather & Marine Vinyl on a ZSK: Slow Down to Beat Needle Deflection and Heat

John’s second factor is material resistance: marine vinyl, leather, and thick canvas need slower speeds.

On dense substrates, two physical enemies attack you at high SPM:

1. Needle Deflection: The needle hits the tough material at 1000 times a minute. If the material resists, the needle bends slightly before penetrating. This causes the needle to hit the needle plate (breakage) or miss the bobbin hook (skipped stitches).
2. Friction Heat: Speed creates heat. On synthetic vinyl or leather adhesives, the needle can get hot enough to melt the material or the thread coating. This "gums up" the needle, causing immediate shredding.

John demonstrates stitching on black leather held in a blue magnetic hoop on the ZSK, and his advice is simple: slow down to reflect the material.

If you’re running a zsk machine or any commercial unit on patches, car mats, or vinyl goods, treat speed like a "torque setting" on a drill. You need power and precision, not velocity.

Checkpoints while stitching heavy substrates

• Listen: If the needle sounds “punchy” (a loud thud) or harsh, reduce speed.
• Inspect: Look at the back. If you see tiny gaps or the needle hole looks torn rather than pierced, reduce speed.
• Check the Thread: If thread starts to fuzz near the needle eye, heat is building up. Slow down and consider a larger needle (e.g., 75/11 to 90/14).

Lightweight Fabric Puckering: The Speed–Tension Trap That Ruins Clean Designs

John’s third factor is the one that frustrates most home embroiderers: light materials that pucker.

He explains it clearly: the faster the machine runs, the more pull you’ll have on the tensions, which increases the odds of puckering.

Let's break down the physics. Thread tension is dynamic. At 400 SPM, the thread flows gently. At 1000 SPM, the thread is yanked through the tension disks. This momentary spike in tension pulls the fabric together. If the fabric is light (like a t-shirt or silk) and the stabilizer is weak, the fabric will collapse under the thread.

If you’re on a brother embroidery machine or similar home model and you’re chasing speed on light fabric, realize this: your machine motor can handle the speed, but your Physics System (Hoop + Fabric + Stabilizer) cannot handling the tension spike.

Setup Checklist (light fabric anti-pucker baseline)

• Start slower (Try 600 SPM limit): You can always increase after the underlay is down and the fabric is secured.
• Stabilize for the fabric, not for your patience: Beginners often use tearaway because it's easy. For knits and lightweights, use Cutaway stabilizer. It solves 90% of puckering issues.
• Watch the fabric surface: If it starts to ripple or lift like a wave in front of the foot, stop immediately.
• Listen for strain: A "tight" sound (like a guitar string being plucked) often proves tension is too high for the speed.

Freestanding Lace (FSL): Slow Speed So the Lace Actually Bonds and Survives Washing

John calls out freestanding lace as its own category: lace needs to connect, and too much tension/speed can prevent proper bonding—so the design can fall apart when you finish.

Freestanding lace is essentially "air embroidery." You are building a fabric out of thread. In the video, you see lace stitching on stabilizer and then being dipped in water to dissolve the water-soluble stabilizer (WSS).

That wash-out moment is the moment of truth. If you ran too fast, the thread loops might be too tight, missing the crucial "interlock" points. When the stabilizer dissolves, your lace turns into a pile of spaghetti.

If you’re doing lace with magnetic embroidery hoops, ensure the water-soluble stabilizer is held drum-tight. Magnetic hoops are excellent for this as they prevent the "hoop burn" on the stabilizer itself, but you must ensure the hold is aggressive enough to stop the WSS from shrinking under the stitch load.

Expected outcomes for good FSL at the right speed

• The lace looks crisp, not “stringy.”
• Connection points serve as solid nodes.
• Sensory Check: You should hear a consistent stitching rhythm. Any hesitation usually means the needle is struggling to form the loop in the void.
• After dissolving stabilizer, the lace holds shape instead of opening up.

Metallic Thread, Cotton, and Specialty Weights: Run Slower to Avoid Breaks and Bird Nests

John’s fifth factor is thread choice: metallic threads separate or break easily under high-speed friction, and heavier/finer threads may also require speed reduction avoiding thread breaks or bird nesting.

Metallic thread is a flat ribbon of foil wrapped around a core. It creates immense friction. It is the "Diva" of embroidery threads.

• The Twist Issue: At high speeds, metallic thread twists as it comes off the spool. This twist hits the needle eye and snaps.
• The Heat Issue: Friction melts the foil.

A viewer comment summed up the real-world lesson: even with a “top-end” home machine, they still don’t run at top speed with metallics. They often drop to 400-500 SPM. If you don't, you will spend more time re-threading the needle than you saved by running fast.

Operation Checklist (thread-break prevention while running)

• Use a top-stitch or metallic needle: Larger eye reduces friction.
• If breaks start, don’t keep pushing: Reduce speed first (drop to 500 SPM).
• If you see looping or nesting, pause immediately: A "bird nest" under the throat plate can throw your machine timing off if you let it grow.
• Match speed to the most fragile element: If the thread is fragile, the whole project is slow. Accept it.

Commercial vs Home Machines: Why a ZSK Can Hold 1000–1200 SPM (and Some Machines Can’t)

John points out a reality every shop owner should tattoo on their workflow: all machines aren’t created equal. He’s used commercial multi-needle machines where tension behavior at top speed promotes puckering.

Then he contrasts that with his ZSK: he can run it at 1000–1200 SPM and get consistent quality because of the engineering (heavier chassis, better active tensioning, stronger motors).

This is where business reality kicks in:

• A home single-needle machine creates beautiful work, but it is a "sports car."
• A commercial multi-needle machine is a "freight train." It is built for throughput.

If you’re building a workflow around zsk hoops or other production hooping systems, the goal isn’t just faster stitching—it’s fewer stops, fewer rehoops, and fewer rejects. If your current machine requires you to stitch at 400 SPM to get good quality, and you have an order for 50 shirts, you have a capacity problem, not a settings problem.

Digitizing Quality Is the Real Speed Limit: Why Bad Files Force You to Crawl

John’s most important takeaway is also the most painful: no machine setting can fix a poorly digitized file. A well-digitized design lets you run faster with better results; a poorly digitized design causes puckering, thread breaks, and bird nests that destroy production.

From an operator’s perspective, here’s what “bad digitizing” looks like in the real world:

• You slow down, and it still breaks.
• You stabilize more, and it still puckers.
• You rethread, and it still nests.

That’s not you failing—it’s the file demanding physics your machine can’t deliver cleanly (e.g., 20,000 stitches in a 2-inch circle).

Expert insight (what to do when speed changes don’t help)

Generally, if a design only runs clean at extremely low speed (300 SPM), check the file:

• Too dense: Is the stitch count sky-high for the size?
• Bad pathing: Are there sharp direction changes without proper underlay?
• Lacking structure: Is it trying to put heavy fill on light fabric without foundation stitches?

You don’t need to become a full-time digitizer, but you do need a standard: if a file repeatedly forces slow speed and still misbehaves, replace the file.

The Stabilizer Decision Tree: Choose Support Based on Fabric and Embroidery Type (Not Hope)

Speed and stabilization are married. If you want to run faster with fewer defects, you need a repeatable way to choose backing. Don't guess.

Here’s a practical decision tree you can use at the machine:

Decision Tree (Fabric → Embroidery Type → Stabilizer Direction)

1. Are you stitching freestanding lace (FSL)?
   • Yes → Use Water-Soluble Stabilizer (2 layers if needed). Run Slower (600 SPM max) to ensure bonding.
   • No → Go to #2.
2. Is the substrate dense and rigid (Leather / Marine Vinyl / Carhartt)?
   • Yes → Use Cutaway or tearaway (depending on visibility). Slow Down to prevent needle deflection.
   • No → Go to #3.
3. Is the fabric stretchy or lightweight (T-shirts / Polos / Knits)?
   • Yes → MUST use Cutaway stabilizer. Use temporary spray adhesive. Reduce Speed 20% to minimize push/pull puckering.
   • No → Go to #4.
4. Is the fabric stable woven (Denim / Towels / Caps)?
   • Yes → Tearaway is usually fine. You can generally Increase Speed to the machine's optimal zone.

This isn’t about being “slow.” It’s about being predictable.

“How Do We Adjust the Speed?”—The Practical Answer Without Guessing Your Buttons

A common comment was: “Now how do we adjust the speed?” The video doesn’t show a specific button sequence (and every machine interface differs), so I’ll answer it the way a shop trainer would.

Generally, you adjust speed in one of three ways:

1. A speed slider or +/- control on the screen (Common on Brother, Babylock, Janome).
2. A physical knob or slider on the machine body (Common on older semi-pro models).
3. Automatic speed reduction by the machine (The machine self-governs based on stitch width).

The Protocol:

• Start your machine at a "safe" speed (e.g., 600 SPM).
• Listen to the first 200–500 stitches (the underlay).
• Ramping up: If it sounds smooth, bump it up +100 SPM.
• The Limit: When the sound changes from a "hum" to a "rattle," or the table starts to vibrate visibly, back off 50 SPM. That is your actual max speed for that job.

Troubleshooting the “Mishaps”: Symptoms → Likely Cause → Fix You Can Do Today

One viewer said this video may explain their “mishaps.” Let’s translate that into a fast diagnostic table you can actually use. Always fix the physical issue first before touching the computer screen.

1) Puckering on lightweight fabric

• Symptom: Fabric gathers, ripples, or looks “drawn in” around dense areas (the "bacon effect").
• Likely cause: Speed is too high creates tension drag; Stabilizer is too weak (using tearaway on knit).
• Quick Fix: Switch to cutaway stabilizer. Hoop tighter (skin-on-a-drum). Reduce speed by 200 SPM.

2) Freestanding lace falls apart after rinsing

• Symptom: Lace opens up, connection points separate, design unravels.
• Likely cause: Speed prevented tight locking of stitches; stabilizer shifted.
• Quick Fix: Hoop WSS tighter. Slow down significantly to allow the hook to catch every loop securely.

3) Thread breaks or bird nests

• Symptom: Repeated breaks, shredding, or a giant knot under the needle plate.
• Likely cause: Metallic/Specialty thread running too fast; Burred needle; or poor digitizing.
• Quick Fix: Change needle ($0.50 fix). Rethread completely. Slow down.

The Upgrade Path: When Speed Problems Are Really Hooping Problems

Speed is only productive when the work is stable. If hooping is slow, inconsistent, or leaves marks, you’ll never feel confident pushing SPM—because you’re already fighting the foundation.

This is where magnetic hoops become a practical upgrade, rather than just a luxury accessory.

Scenario Trigger: The "Hoop Burn" & Wrist Pain

• Do you spend more time hooping the shirt than stitching it?
• Do you see "hoop burn" (shininess/crushing) on delicate fabrics like velvet or performance wear?
• Does your fabric slip slightly at high speeds, ruining outlines?

The Criteria for Upgrading

• If you are doing one-off hobby projects, stick to standard hoops and learn the technique.
• If you are doing production runs (even small ones like 10 shirts) or working with difficult thick materials (backpacks, towels), standard hoops are a bottleneck.

The Solution Options

• Level 1 (Technique): Use "floating" techniques with adhesive spray to avoid hoop burn (messy, but works).
• Level 2 (Tool Upgrade): Owners of specific models often search for a magnetic hoop for brother (or their specific brand) to solve the tension issue. Magnetic hoops clamp automatically without forcing inner/outer rings together, eliminating hoop burn and significantly speeding up the process.
• Level 3 (Production Upgrade): For shops, pairing these hoops with a magnetic hooping station allows you to hoop a garment perfectly in under 10 seconds. This is how you reclaim profit—not just by stitching faster, but by loading faster.

Warning: Magnetic frames contain strong magnets (Neodymium). Keep them away from pacemakers/medical implants. Be careful of pinch points—these magnets can snap together with enough force to injure fingers or pinch skin violently.

Production vs Quality: The “Sweet Spot” Rule That Keeps You Profitable

John closes with the right mindset: you have to find the sweet spot and understand your equipment.

Here’s the veteran version of that rule:

• If you’re stopping to fix breaks, you’re not producing. (0 stitches per minute is your actual speed).
• If you’re redoing puckered pieces, you’re paying twice. (Cost of garment + Cost of time).
• If you’re slowing down because the file is bad, the file is the problem—not your machine.

So yes—run fast when the design, material, thread, and hooping system allow it. But don’t chase the top number on the screen. Chase the clean run.

FAQ

• Q: On a Brother embroidery machine, what is a safe starting stitches-per-minute (SPM) speed to reduce puckering and thread breaks on a first test run?
  A: Use a safe starting point of about 600 SPM, then increase only after the first section sews cleanly.
  • Start at ~50% speed and let the first 200–500 stitches (often underlay) run before changing anything.
  • Increase in small steps (about +100 SPM) only if stitching stays smooth.
  • Back off if the sound changes from a steady hum to a rattle or if the table/frame vibration becomes obvious.
  • Success check: fabric stays flat (no ripples) and stitching forms cleanly (no top loops, no bird nest underneath).
  • If it still fails… stop and do a needle/bobbin-area cleaning check before blaming speed.
• Q: What pre-flight checklist should an embroidery operator do before increasing stitches per minute (SPM) to prevent thread snapping at high speed?
  A: Clear friction and stability issues first—small burrs, lint, and weak hooping become thread breaks at higher SPM.
  • Run the fingernail test on the needle and replace the needle if it feels scratched or catches.
  • Clean lint from the bobbin area and rethread completely to remove hidden drag points.
  • Confirm the design type (wide satin, dense fill, freestanding lace) because each category may require a lower SPM.
  • Success check: thread runs without a “flossing/shredding” sound at the needle eye and stitches do not start breaking as speed increases.
  • If it still fails… reduce speed first, then reassess stabilizer choice and the design file quality.
• Q: How can an operator tell when hooping tension is “tight enough” to safely run higher SPM without registration shift?
  A: Hoop until the fabric is stable and does not slip even slightly—high speed magnifies tiny movement into outlines that miss.
  • Press and tap the hooped area and aim for a drum-tight feel/sound rather than a loose bounce.
  • Pull lightly on the fabric; if it can slip even ~1 mm, re-hoop before testing faster speed.
  • Start the run slower and watch the first stitching section for any shifting before ramping up.
  • Success check: borders line up with fills cleanly and satin edges stay straight (no wobble/saw-tooth look).
  • If it still fails… slow down and check whether wide satin columns or sharp direction changes are forcing excessive frame travel.
• Q: On leather or marine vinyl (for example on a ZSK commercial embroidery machine), what speed strategy reduces needle deflection, skipped stitches, and heat-related thread shredding?
  A: Slow down to match material resistance—heavy substrates punish high SPM with deflection and friction heat.
  • Reduce speed as soon as the needle sounds “punchy” or harsh on penetration.
  • Inspect the back frequently for gaps/skips and watch for torn holes rather than cleanly pierced holes.
  • If thread fuzzing starts near the needle eye, slow down and consider a larger needle size (for example moving from 75/11 toward 90/14).
  • Success check: consistent stitch formation with no skips, and thread remains smooth (not fuzzy) near the needle.
  • If it still fails… reassess hoop stability and confirm the design is not overly dense for the material.
• Q: What is the fastest way to troubleshoot “bird nest” thread tangles under the needle plate when running specialty thread like metallic thread?
  A: Stop immediately, then reduce speed and remove friction—metallic thread often needs slow operation to avoid nesting and breaks.
  • Pause as soon as looping/nesting starts; do not keep stitching with a growing bird nest.
  • Change to a top-stitch or metallic needle (larger eye) and rethread completely.
  • Drop speed first (a common working range mentioned by operators is around 400–500 SPM for metallics).
  • Success check: stitches lock cleanly with no loops on top and no knotting under the throat plate during the next test section.
  • If it still fails… replace the needle again (cheap fix) and consider whether the design pathing/density is forcing excessive stress.
• Q: What is the safest operating practice to prevent finger injuries or broken needles when increasing embroidery machine speed and the pantograph starts moving aggressively?
  A: Treat higher SPM as a safety risk: keep hands, hair, and loose sleeves away from the needle area and moving frame at all times.
  • Keep fingers completely out of the hoop/needle zone while the machine is running—especially during fast direction changes.
  • Avoid leaning over the moving frame; vibration and sudden motion can pull material (or hands) into danger.
  • Start speed tests slower and only increase once the run is stable, so you are not reacting near moving parts.
  • Success check: you can monitor the stitch-out without needing to touch or steady the hoop/frame while the machine runs.
  • If it still fails… stop the machine, correct the root cause (hooping/stabilizer/thread path), then restart at a lower SPM.
• Q: What magnetic embroidery hoop safety precautions are required when using neodymium magnetic frames for garment hooping and freestanding lace stabilizer?
  A: Use magnetic hoops carefully—neodymium magnets can pinch hard and must be kept away from pacemakers/medical implants.
  • Keep magnetic frames away from pacemakers and other medical implants and warn anyone nearby before handling.
  • Keep fingertips clear of pinch points when magnets snap together; separate and seat magnets slowly and deliberately.
  • For freestanding lace on water-soluble stabilizer, clamp stabilizer drum-tight so it cannot shift or shrink under stitch load.
  • Success check: stabilizer stays flat and secure during stitching, and the machine runs without the stabilizer creeping in the hoop.
  • If it still fails… slow down further for lace bonding and verify the magnetic hold is strong enough for the stabilizer thickness.
