Brother PR-Series "White Screen of Death" Fix: A Masterclass in Recovery & Prevention

If your Brother PR-series machine powers on and the touchscreen turns into a solid white panel, your stomach drops for a reason: downtime is expensive. These machines are the workhorses of your business; they are heavy, awkward, and not something you casually haul to a dealer.

The good news is that the "White Screen of Death" (WSOD) shown in repair tutorials is rarely a terminal motherboard failure. In my 20 years of experience diagnosing industrial embroidery equipment, this is frequently a loose internal connection—specifically the ribbon cable between the LCD and the main board—caused by the natural vibration of high-speed stitching.

This guide acts as your senior technician, walking you through the repair with zero jargon and maximum safety.

The Diagnosis: Don’t Panic, Validate

In the typical failure scenario, the machine boots, fans spin, but the LCD goes solid white. Dealers often present two possibilities:

1. The Good Scenario: A loose connection (Free fix, just labor).
2. The Bad Scenario: A dead motherboard (Expensive replacement).

That emotional whiplash is real. If you run orders on a brother multi needle embroidery machine, a blank screen isn’t just annoying—it’s lost production time, missed ship dates, and angry customers.

The Mindset Shift: Before you touch a screwdriver, stop thinking "Broken." Start thinking "Disconnected." Vibration works connectors loose over time—it's simple physics. We are going to:

• Work clean and slow (rushed hands break plastic tabs).
• Verify the connection (using tactile feedback).
• Test before reassembly (to avoid doing the work twice).


Phase 1: Preparation & The "Hidden" Consumables

Most tutorials skip the setup, which is where beginners make fatal mistakes. You aren't just unplugging a toaster; you are opening a high-precision computer.

The Golden Rule: Turn the machine off and unplug it from the wall. Then, press the power button while unplugged for 5 seconds. This helps discharge residual electricity in the capacitors.

Warning: Electricity and exposed electronics are a life-safety hazard. Do not open panels or touch internal components while the machine is plugged in. Power off at the switch, unplug from the wall, and wait 5 minutes before you putting your hands inside.

Essential "Hidden" Consumables

Before you start, gather these items. They aren't in the manual, but they save you from disaster:

• Magnetic Parts Tray: To hold screws (dropping a screw inside the motherboard chassis is a nightmare).
• Reference Photos: Take a picture of every cable before you unplug it.
• Lint Brush/Canned Air: While you're in there, you might as well clean the dust that causes overheating.

Prep Checklist (Do this OR Fail)

• Machine unplugged from the wall for at least 5 minutes.
• Work zone cleared; ensure you can stand comfortably at the machine's side.
• Static Discharge: Touch a metal table leg or unpainted metal surface to ground yourself.
• Lighting angles checked; you need to see inside the dark chassis recesses.
• "No-Snag" clothing compliant (remove jewelry, watch, loose sleeves).

Phase 2: Disassembly Without Breaking Tabs

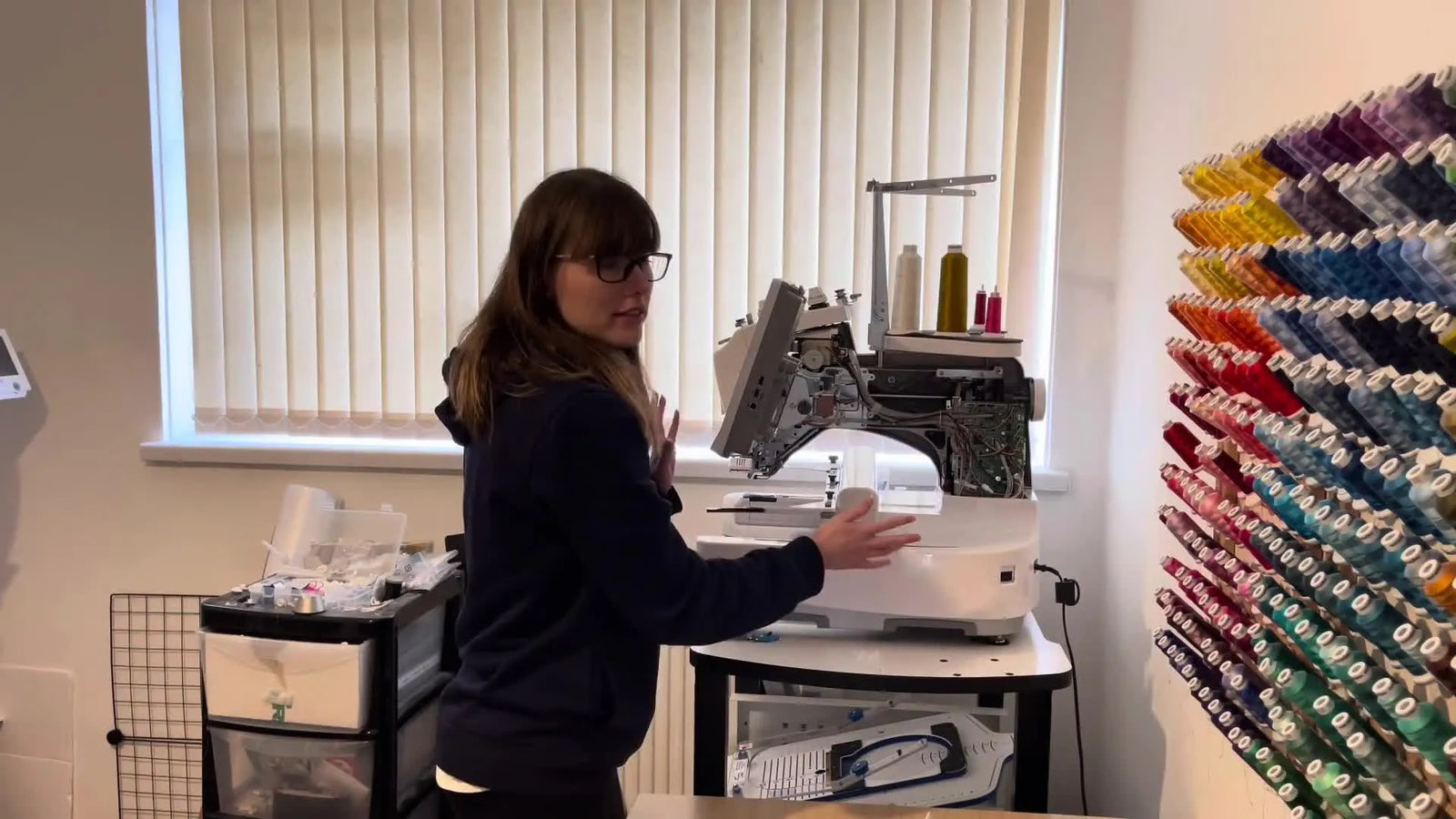

Lauren (the creator of the reference video) highlights a critical point: Sequence Matters. Plastic tabs are designed to interlock. If you pull them out of order, they snap.

The Removal Sequence:

1. The "Diddy" Panel (Top Rear): Remove this smaller panel first. It acts as the "lock" for the larger side panel.
2. The Main Side Panel: Once the top is clear, this releases more easily.




Sensory Tip: When a panel feels "stuck," stop pulling. It is not a strength test; it is an alignment puzzle. Wiggle it gently (think millimeters, not inches). If you have to force it, you missed a screw or a tab.

Phase 3: The Fix – Reseating the Grey Ribbon Cable

Once the panels are off, you will see the main PCB (Printed Circuit Board). Locate the grey ribbon cable running from the LCD screen assembly to the board.

The Procedure:

1. Identify: Find the grey flat cable.
2. Disconnect: Grip the connector housing (the hard plastic part), never the wire itself. Pull straight out.
3. Inspect: Look at the pins. Are they straight? Is there oxidation (white powder)?
4. Reseat: Plug it back in.


Warning: Circuit boards usually have sharp solder points on the back that can cut fingers like glass. Also, needles or loose screws dropped here can short-circuit the board when you power back on. Keep a clean field of operation.

The "Tactile Click" – What Good Feels Like

How do you know it's fixed? You can't just guess.

• Visual: Look for the "tan line." Most ribbon cables have a faint line or ridge. It should be parallel to the socket.
• Tactile: You won't always hear a "click," but you should feel a distinct friction fit. It should require firm (but not white-knuckle) pressure to seat.
• Check: Gently tug the cable. It should hold fast.

Phase 4: The Dealer Trick (Testing Safely)

Do not put the screws back in yet. You need to verify the fix. Lauren utilizes a classic technician strategy: Power-On Test with Covers Off.

The Safe Test Protocol:

1. Ensure no wires are touching fans or moving belts.
2. Plug the machine in.
3. Stand back and power on.
4. Look ONLY at the screen. Do not reach inside.

If the Brother logo appears, Stop. You have won. Power down and unplug immediately.

Phase 5: Reassembly – The "Lip" & Loose Screw Method

Reassembly is where alignment issues happen, leading to rattling noises later.

The Lip Technique: The bottom of the side panel has a specific "lip" or guide rail that must slide under or onto the machine frame.

The "Loose Screw" Strategy: Never tighten the first screw you insert.

1. Insert all screws loosely (2-3 turns).
2. Wiggle the panel to ensure it sits flat.
3. Tighten in a Star Pattern: Just like changing a car tire, tighten opposite corners to distribute tension evenly.


Pro Tip for Screw Covers: Use the tip of a universal embroidery needle to pop out those annoying white screw caps. The sharp point engages the center hole better than a fingernail.

Setup Checklist (Before Final Tightening)

• Bottom panel lip is fully seated on the frame rail.
• All screws are started but moving freely.
• Panel seams are flush (run your finger over the gap; it should be smooth).
• No cables are pinched between the plastic panel and the metal frame.

Phase 6: Prevention & The Business Upgrade

You fixed it. But why did it break? Vibration. Multi-needle machines vibrate intensely. If you are experiencing frequent loose cables, "hoop burn" on fabrics, or wrist fatigue, your equipment setup might be the root cause. This is the Trigger Point to upgrade your workflow.

1. Upgrade Your Hooping System (Vibration Control)

Traditional hoops require high physical force to lock, effectively acting as a drum that transmits vibration back into the machine arms. Many professionals switch to magnetic embroidery hoops for brother (Safety Note: Ensure compatibility with your specific arm width).

• The Physics: Magnetic hoops hold fabric firmly without the "drum skin" tension that strains machine pantographs.
• The Benefit: Less vibration entering the chassis = fewer loose cables. Plus, no more "hoop burn" on delicate uniforms.

Warning: Magnetic Hoop Safety. These use industrial-grade magnets. They can pinch fingers severely (blood blister risk) and can interfere with pacemakers. Keep them at least 6 inches away from medical devices and magnetic media (credit cards).

2. Stabilizer: The Absorber

Are you using the right stabilizer? Heavy stitch density on a thin stabilizer forces the machine to work harder, increasing chassis shake.

• Scenario: Stretchy Polos.
• Solution: Don't rely on tearaway. Use a high-quality Cutaway Stabilizer (like SEWTECH's fuse-less cutaway). It absorbs the stitch impact, reducing the mechanical load on the needle bar and motor.

3. Production Scaling

If you find yourself repairing your PR-600 or PR-670e yearly because you are running it 10 hours a day at 1000 stitches per minute (SPM), you are pushing the gear physically.

• The Calculation: If you produce 50+ items a week, the cost of specialized SEWTECH Multi-Needle Machines often offsets the cost of one major repair on an overworked hobbyist machine.
• Search Intent: When you look for a magnetic hoop for brother, also check if your current machine volume justifies a second embroidery head to split the workload.

Operations Decision Tree: Troubleshoot Like a Pro

Use this logic flow to make expensive decisions quickly.

• Symptom: Screen is Solid White at Boot
  • Action: Perform the Ribbon Cable Reseat (Phase 3).
  • Result: Works? Great. Fails? Check cable for physical tears.
• Symptom: Screen is Black (No Backlight)
  • Action: This is different from White Screen. Check the power supply unit (PSU) fuse.
  • Result: If fuse is good, motherboard backlight circuit may be dead. Consult valid tech.
• Symptom: Machine Locks / "Needle Case Motor Lock"
  • Action: This is mechanical, not digital. Check for "bird nesting" (thread tangles) in the bobbin area.
  • Result: Clear thread nest. Do not force the main shaft.

Final Operation Checklist: The "Smoke Test"

Before you accept that rush order, run this test sequence to ensure absolute reliability.

• Power on. Watch the boot sequence. does it flicker? (Flicker = Cable still loose).
• Load a simple design (e.g., a 2-inch circle).
• Auditory Check: Listen to the machine at idle. Any new rattles?
• Vibration Check: Place your hand lightly on the side housing. It should hum, not shake.
• Run the design at 600 SPM (Medium Speed). Do not max it out immediately.
• Inspect the stitch out. Tension should be balanced (1/3 bobbin showing on back).

By treating this repair as a lesson in machine physics and upgrading your tools (hoops, stabilizers) to match your production volume, you turn a breakdown into a breakthrough. Keep stitching.

FAQ

• Q: How do I fix a Brother PR-series embroidery machine touchscreen that boots to a solid white screen (White Screen of Death)?
  A: In many cases, reseating the grey LCD ribbon cable on the main PCB restores the display, and it is a common vibration-loosened connection.
  • Power off, unplug from the wall, wait 5 minutes, then press the power button (while unplugged) for 5 seconds to help discharge residual electricity.
  • Remove panels in the correct order (top rear “Diddy” panel first, then the main side panel) to avoid snapping plastic tabs.
  • Disconnect and firmly reseat the grey ribbon cable by holding the connector housing (not the cable), then push it straight in.
  • Success check: the ribbon shows an even “tan line” alignment and feels like a solid friction-fit; on power-up test (covers off), the Brother logo appears instead of a white screen.
  • If it still fails: inspect the cable for tears, bent pins, or oxidation, and consider professional service for deeper board-level issues.
• Q: What prep items should be on the bench before opening a Brother PR-series embroidery machine for a white-screen repair?
  A: Use a few “hidden consumables” to prevent lost screws, broken connectors, and reassembly mistakes.
  • Use a magnetic parts tray to control screws (a dropped screw inside the chassis can cause serious trouble).
  • Take reference photos of every cable before unplugging anything to avoid misrouting during reassembly.
  • Clean dust while the machine is open using a lint brush/canned air to reduce overheating risk.
  • Success check: the work area is clear, lighting lets you see deep recesses, and you can account for every screw you remove.
  • If it still fails: stop and reset the setup—most damage happens when rushing the prep, not during the actual cable reseat.
• Q: How do I safely test a Brother PR-series embroidery machine after reseating the LCD ribbon cable without fully reassembling the covers?
  A: Do a controlled “power-on test with covers off,” then shut down immediately once the screen confirms a normal boot.
  • Keep hands out of the chassis and ensure no wires can touch fans or moving parts.
  • Plug in, stand back, and power on—watch only the screen during the test.
  • Power down and unplug immediately if the Brother logo appears, then proceed to reassembly.
  • Success check: normal boot screen appears consistently (no flicker) during the open-cover test.
  • If it still fails: unplug and re-check the ribbon seating and cable condition before attempting any further power cycles.
• Q: How can I avoid breaking plastic tabs when removing Brother PR-series embroidery machine panels for a White Screen of Death repair?
  A: Follow the correct removal sequence and treat panel removal as alignment, not force.
  • Remove the small top rear “Diddy” panel first because it locks the larger side panel.
  • Stop pulling if a panel feels stuck; gently wiggle in millimeters and re-check for missed screws or interlocking tabs.
  • Work clean and slow to avoid snapping tabs or cracking screw bosses.
  • Success check: panels release with controlled movement and no sudden “pop” from stressed plastic.
  • If it still fails: assume a screw or tab is still engaged—forcing the panel is the fastest way to create a permanent fit problem.
• Q: What is the correct way to reseat the Brother PR-series grey ribbon cable, and how can I tell the connection is truly seated?
  A: Reseat the ribbon by holding the connector housing and confirm alignment and retention—do not “guess” the connection is good.
  • Pull straight out on the hard plastic connector housing, never on the ribbon itself.
  • Inspect pins for straightness and check for oxidation (for example, white powdery residue).
  • Push the ribbon/connector straight back in with firm, controlled pressure.
  • Success check: the cable’s alignment line looks parallel to the socket and a gentle tug test confirms it holds fast with a solid friction-fit.
  • If it still fails: re-inspect for damaged pins or contamination and avoid repeated reseating if anything looks torn or deformed.
• Q: What safety steps should be followed before touching internal electronics on a Brother PR-series embroidery machine during a WSOD repair?
  A: Treat the Brother PR-series chassis like a computer with hazardous energy—power isolation and waiting time are mandatory.
  • Turn the machine off, unplug from the wall, and wait 5 minutes before placing hands inside.
  • Press the power button for 5 seconds while unplugged to help discharge residual electricity.
  • Ground yourself by touching an unpainted metal surface to reduce static discharge risk.
  • Success check: the machine is physically unplugged, you have waited, and you are not wearing snag-prone items (jewelry/loose sleeves).
  • If it still fails: do not proceed while plugged in—stop and consult a qualified technician because exposed electronics can be a life-safety hazard.
• Q: What magnetic embroidery hoop safety rules should be followed when using magnetic hoops on Brother multi-needle embroidery machines?
  A: Magnetic hoops are powerful and can injure fingers or interfere with medical devices, so handle them like industrial tools.
  • Keep fingers clear when closing the magnetic frame to avoid severe pinching and blood blisters.
  • Keep magnetic hoops at least 6 inches away from pacemakers and away from magnetic media (for example, credit cards).
  • Confirm the hoop is compatible with the specific machine arm width before use to avoid fit and handling hazards.
  • Success check: the hoop closes without finger contact, sits flat, and fabric is held firmly without excessive “drum-tight” force.
  • If it still fails: stop using that hoop setup and verify compatibility and handling technique before continuing production.
• Q: If a Brother PR-600 or PR-670e keeps loosening connections or vibrating heavily during high-volume work, what is a practical upgrade path to reduce downtime?
  A: Start with technique and support materials, then upgrade hooping, then consider capacity—this reduces vibration-related failures and production risk.
  • Optimize setup first: slow down and confirm stable operation (for example, restart production runs at a medium speed instead of immediately maxing out).
  • Upgrade materials next: switch to an appropriate cutaway stabilizer for demanding items (like stretchy polos) to reduce mechanical load.
  • Upgrade tools next: use a compatible magnetic hoop to reduce excessive hooping force and help limit vibration transfer into the machine chassis.
  • Success check: the machine “hums, not shakes,” stitches run cleanly, and the display boots reliably without flicker after extended operation.
  • If it still fails: reassess workload—running long daily hours at high speed may justify moving production to a dedicated multi-needle platform to split volume and avoid repeated repairs.
