Compucon EOS Stitch Edit for DST Files: Clean Junk Jumps, Split Blocks, and Add Trims Without Ruining the Sew-Out

It starts with a sinking feeling. You open a customer-supplied DST file, and instead of a clean, organized object list, you see a chaotic "digital spaghetti" of jumps, random trims, and elements welded together. This isn't just annoying—it’s a liability. A bad stitch file causes thread breaks (SNAP!), birdnesting (GRIND!), and the dreaded 45-minute teardown of your bobbin case.

I have spent two decades on the production floor, listening to the rhythm of embroidery machines. I know that machine embroidery is an "empirical science"—a mix of software precision and physical intuition. This guide takes a raw software workflow for Compucon EOS and calibrates it for the real world. We aren’t just cleaning files; we are preventing physical failures before they happen.

DST / XXX / EXP Stitch Files: The "Dumb" Data That Needs Your Brain

Let’s set the expectation. Stitch files (DST, PES, EXP, XXX) are "dumb" files. Unlike object-based files (EMB or OFM), they don’t know that a circle is a circle; they only know "move needle X coordinates, drop needle."

In Compucon EOS (or any editor), you cannot "fix underlay" easily because the underlay is now just a series of stitches, not a property. The mindset shift is this: You are not designing; you are trafficking. Your goal is to clean up the roadmap so the machine doesn't drive off a cliff.

• The Pro’s Rule: If a file requires more than 20 minutes of cleanup to make it safe, request a new file or re-digitize it. Don't be a hero; be profitable.


The "Pre-Flight" Audit: Diagnostic Before Surgery

Before you click a single tool, you need to diagnose the patient. Spend 60 seconds scrolling the object list.

The Sensory Audit:

• Visual: Is the timeline packed with tiny "Jump" (JMP) codes? These act like speed bumps, causing your machine to stutter.
• Visual: Are there standalone scissor icons where they shouldn't be?
• Tactile (Mental): Try to select a single letter. Does the entire logo highlight? If yes, they are "glued" together, and you have editing to do.

Hidden Consumables Check: Before you start editing, ensure you have your physical toolkit ready for the test run later: Temporary Spray Adhesive, 75/11 Ballpoint Needles (for knits), and Water Soluble Pen for marking. No software edit fixes a dull needle.

Prep Checklist (The Safety Gate):

• File Type Verification: Confirm it is a stitch file (DST/XXX).
• The "Glued" Test: Attempt to select text vs. logo. If they merge, plan for "Splitting."
• Jump Scout: Identify if the file is 50% jump codes (common in bad auto-digitizing).
• Zoom Check: Zoom to 600%. Can you distinguish individual needle penetrations? If not, you are flying blind.


The 10-Second Detox: Design > Optimize

We start by flushing the system. This removes the "digital noise"—useless jump stitches and zero-motion data that confuse the machine.

The Micro-Steps:

1. Go to Design > Optimize.
2. Check the box: Clean up JMP stitches.
3. The Sweet Spot Settings:
   • Min Value: 2/10mm (0.2mm). Anything smaller is a threat to your fabric.
   • Max Value: 120/10mm (12mm). This prevents the trim mechanism from activating on tiny jumps.
4. Click OK.

Watch the object list shrink. You have just removed hundreds of potential hesitations that cause machine motor fatigue.

Warning (Digital Safety): Optimization changes the physical structure of the file. ALWAYS "Save As" (e.g., Logo_Fixed_v1.dst) before optimizing. If the optimization deletes a critical connector, you need the original to rollback.

The Scissor Purge: Why We Delete Standalone Trims

This is counter-intuitive. Why delete trim codes? Because in a bad DST, you don't know if a "Lock Stitch" (Tie-off) exists before the trim.

The Risk: A trim without a tie-off results in the thread unraveling after the first wash. It creates a "loop" that pulls out.

The Fix:

1. In the object list, identify standalone scissor/trim icons.
2. Hold Ctrl and multi-select them.
3. Delete them.
4. Let EOS (or your machine settings) re-calculate trims based on distance.

Empirical Data: Most modern machines (like the brother pr680w or industrial SEWTECH models) have settings to "Trim if jump is > X mm." Letting the machine decide is often safer than trusting a bad file.

Setup Checklist (Post-Optimization):

• Clutter Check: Is the object list now readable sequences rather than 1000 tiny icons?
• Trim Protocol: Have you removed suspicious manual trims?
• Connection Policy: Check your software preferences. Ensure "Insert Tie-offs" is enabled for new connections.

The "Split" Surgery: Separating Text from Graphics

Here is the most common pain point: The customer wants you to change the text "2023" to "2024," but the text is welded to the graphics in the DST. You cannot delete the text without deleting the logo’s outline.

You must perform surgery to separate them.

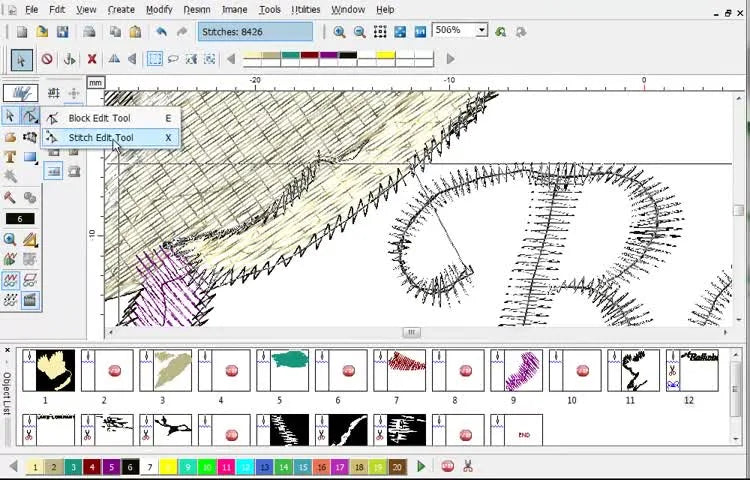

The Step-by-Step Split Technique

1. Zoom 1:1: Get in close. You need to see the "travel run" (the thread walking from the logo to the letter).
2. Activate Stitch Edit Mode.
3. Anchor Point: Left-click on the connector thread.
4. Fine Tune: Use your Keyboard Arrow Keys. This is distinct. Press Right Arrow... Right Arrow... watch the crosshair move stitch by stitch.
5. The Cut Point: Stop exactly when the crosshair lands on the first penetration point of the letter "B" (or your target text).
6. Execute: Click the Split stitches to blocks icon.






How to Know You Succeeded (Success Metrics):

• Visual: The object list splits one block into two.
• Functional: You can now select the word "Ballwin" and delete it, move it, or recolor it without the duck logo moving.
• Safety: Check for "orphan stitches." If you see a block with only 2-3 stitches, you split it too early. Delete that micro-block immediately; it will cause a thread break.


Warning (Physical Hazard): Never leave "micro-blocks" (under 1mm) in your file. At 1000 stitches per minute (SPM), a needle trying to stitch in place will hammer the fabric, potentially punching a hole or breaking the needle tip.

The Lettering Refinement: To Trim or Not To Trim?

Now you have the text separated. But the letters L-A-N-D are linked by a running stitch. Do you cut them?

The Trade-off:

• Continuous Stitching: Faster production, but leaves a "jump thread" you must trim by hand (or rely on the customer not to notice).
• Trim Always: Cleaner look, but adds roughly 6-10 seconds per trim to the cycle time.

The Decision:

• For High-End Retail: Split the letters and set Connection Type: Trim Always.
• For Bulk Workwear (100+ shirts): Only trim if the jump is longer than 2mm.




Surgical Selection: Box vs. Polygon

When files are messy, standard "click to select" fails. You need surgical tools.

• The Box Select (The Broadsword): Great for square text blocks. Click, drag a rectangle, and everything inside moves.
• The Polygon Select (The Scalpel): Essential for curved logos. Right-click in Select Mode -> Polygon Select. Click point-by-point to draw a fence around the specific stitches you need to isolate.






The Bridge to Production: From Screen to Machine

You have fixed the software. The file is clean. But a perfect file will still fail if your physical setup is flawed. The number one cause of "bad digitizing" complaints is actually bad stabilization and hooping.

The "Hoop Burn" & Registration Crisis

If you are editing files to clean up small text, you need that text to land perfectly on the shirt. Using traditional plastic hoops requires immense hand strength to secure thick garments (like Carhartt jackets) or creates "hoop burn" (permanent rings) on delicate performance wear.

The Trigger: Are you struggling to hoop thick items? Are your wrists sore after a 50-shirt order? Do you see ring marks on dark polyester?

The Solution Hierarchy:

1. Level 1 (Technique): Use "floating" techniques (hoop the stabilizer, spray adhesive, stick the garment on top). This saves the fabric but risks registration errors if the glue slips.
2. Level 2 (Tool Upgrade): Switch to magnetic embroidery hoops. These use powerful magnets to clamp the fabric without forcing it into a ring.
   • Benefit: Zero hoop burn.
   • Benefit: Automatic thickness adjustment. You can switch from a T-shirt to a hoodie without adjusting screws.
   • Search Intent: Many shops look for how to use magnetic embroidery hoop videos to see how much faster the reloading process becomes—often cutting downtime by 30%.


Stabilizer Decision Tree (The "Don't Ruin the Shirt" Logic)

A clean DST file has no structural integrity. The stabilizer provides it.

START: What are you stitching on?

1. Is it Stretchy? (T-shirt, Polo, Performance)
   • YES: Use Cutaway Stabilizer (2.5oz - 3.0oz).
   • Why: Knits move. Tearaway will pulverize, and the design will distort.
   • Pro Tip: Use a Ballpoint Needle (75/11 BP).
   • NO: Go to step 2.
2. Is it Thick/Stable? (Canvas, Denim, Cap)
   • YES: Use Tearaway Stabilizer.
   • Why: The fabric supports itself; the backing is just for the actual stitching process.
   • NO: Go to step 3.
3. Is it Fluffy/Texture? (Towel, Fleece, Velvet)
   • YES: Use Iron-on Cutaway (Back) + Water Soluble Topping (Front).
   • Why: The topping prevents stitches from sinking into the pile.
   • NO: Default to Medium Cutaway test.

Scaling Up: When "Good Enough" Isn't Enough

You have mastered the DST edit. You have the right stabilizer. But you are still running until midnight to finish 50 shirts.

The Production Bottleneck: If you are using a single-needle machine (like a consumer sewing/embroidery combo), every color change forces you to stop, cut, re-thread, and start. A 6-color logo that takes 8 minutes on a pro machine might take 25 minutes on a single-needle.

The Upgrade Path:

• The Criteria: If you are consistently taking orders of 12+ pieces or multi-color logos, the labor cost of a single-needle machine is destroying your profit margin.
• The Solution: A multi-needle machine (like the SEWTECH line).
  • 10-15 Needles: Set up the colors once. The machine runs the whole job non-stop.
  • Speed: Industrial speeds (1000 - 1200 SPM) vs. Home speeds (400-600 SPM).
  • Capacity: Combine this with a hooping station for embroidery machine to create an assembly line: one operator hoops while the machine stitches.

Warning (Magnet Safety): If you upgrade to magnetic hooping station systems, be aware: these are industrial N52 magnets. They can pinch fingers severely and must be kept away from pacemakers. Treat them as power tools, not accessories.

Operation Checklist: The Final Sanity Pass

Before you press "Start" on that machine, run this final pilot check. This saves garments.

• The Split Check: Select your modified text block. Does the logo stay behind? (Yes/No)
• The Micro-Object Hunt: scroll the object list for any block with <5 stitches. Delete them.
• Sensory "Tug" Test: Pull your bobbin thread. It should unravel with light but smooth resistance (like flossing teeth), not loose and not jerky.
• Needle Orientation: Is the needle flat side to the back? Is it fresh?
• Trace Function: Always run the "Trace" or "Contour" function on the machine to ensure the design fits inside the hoop arms.

By combining precise software surgery with the right physical tools—magnetic hoops, correct stabilizers, and eventually easier multi-needle machines—you turn "struggle" into "production." Clean the file, secure the fabric, and let it run.

FAQ

• Q: In Compucon EOS, what Design > Optimize settings should be used to clean up JMP stitches in a customer-supplied DST stitch file?
  A: Use Design > Optimize with “Clean up JMP stitches” enabled, Min Value 2/10mm (0.2mm) and Max Value 120/10mm (12mm), and always Save As first.
  • Go to Design > Optimize and check “Clean up JMP stitches.”
  • Set Min Value to 2/10mm (0.2mm) and Max Value to 120/10mm (12mm), then click OK.
  • Save the optimized file under a new name (example: Logo_Fixed_v1.dst) to keep a rollback copy.
  • Success check: the object list becomes noticeably shorter/cleaner with fewer tiny JMP icons.
  • If it still fails: zoom in and inspect for connectors that were removed; revert to the original file and re-optimize more cautiously.
• Q: In Compucon EOS DST editing, why should standalone trim (scissor) icons be deleted instead of trusted?
  A: Delete suspicious standalone trims because a trim without a tie-off can unravel after washing; let EOS or the embroidery machine’s “trim if jump is > X mm” logic handle trims instead.
  • Identify isolated scissor/trim icons in the object list that do not clearly belong.
  • Ctrl-click to multi-select those trims and delete them.
  • Enable/confirm tie-off insertion in software preferences for new connections (if available on the setup).
  • Success check: the stitch sequence looks continuous and logical, without random trims breaking areas that should be secured.
  • If it still fails: run a test sew and inspect for unraveling at color changes; if unraveling appears, the original file may be missing proper tie-offs and may need re-digitizing.
• Q: In Compucon EOS, how can a DST stitch file be split to separate welded text from a logo so the text can be edited safely?
  A: Use Stitch Edit Mode and “Split stitches to blocks” exactly at the first penetration point of the target text, then delete any micro-blocks created.
  • Zoom to 1:1 and locate the travel run that walks from the logo into the lettering.
  • Enter Stitch Edit Mode, click the connector, and step stitch-by-stitch using the keyboard arrow keys.
  • Stop on the first needle penetration of the first letter, then click “Split stitches to blocks.”
  • Success check: the object list turns one block into two, and selecting the text does not move the logo.
  • If it still fails: hunt and delete “orphan” micro-blocks (only a few stitches) created by splitting too early, then re-split at a cleaner stitch boundary.
• Q: In Compucon EOS, should lettering in a DST stitch file use “Trim Always” between letters for retail embroidery, or keep continuous connections for bulk workwear?
  A: Use “Trim Always” for high-end retail cleanliness, and keep continuous connections for bulk workwear unless a jump is longer than 2mm.
  • Choose “Trim Always” when the customer will closely inspect small lettering and jump threads are not acceptable.
  • For 100+ piece workwear runs, avoid trimming every letter to save cycle time; trim only when the jump exceeds 2mm.
  • Run a small sample to confirm the chosen connection policy does not create visible jump threads in the finished area.
  • Success check: retail jobs show no visible connecting threads between letters; bulk jobs run faster without unacceptable loose threads.
  • If it still fails: re-check stabilization/hooping first, because registration shift can make otherwise “acceptable” connections look messy.
• Q: Before running a cleaned DST stitch file, what “hidden consumables” should be prepared to prevent thread breaks and bad test results on an embroidery machine?
  A: Prepare temporary spray adhesive, a 75/11 ballpoint needle for knits, and a water soluble marking pen so the test run reflects real production conditions.
  • Load a fresh, correct needle for the fabric (use 75/11 ballpoint for knits as a safe starting point).
  • Use temporary spray adhesive for floating techniques (hoop stabilizer, adhere garment) when hooping is risky.
  • Mark placement with a water soluble pen so registration checks are meaningful.
  • Success check: the test stitch runs without repeated thread snaps and the design lands in the intended position.
  • If it still fails: stop blaming the file first—inspect needle condition/orientation and confirm the stabilization choice matches the fabric type.
• Q: What is the best stabilizer choice for stretchy knits vs thick stable fabrics vs fluffy towels when running a DST stitch file on an embroidery machine?
  A: Match stabilizer to fabric: cutaway (2.5–3.0oz) for stretchy knits, tearaway for thick/stable fabrics, and iron-on cutaway + water soluble topping for fluffy textures.
  • Use cutaway stabilizer (2.5–3.0oz) for T-shirts/polos/performance knits; pair with a ballpoint needle for knits.
  • Use tearaway stabilizer for stable items like canvas/denim/caps.
  • Use iron-on cutaway on the back plus water soluble topping on the front for towel/fleece/velvet to prevent stitch sink.
  • Success check: the design holds shape (no distortion on knits) and stitches do not sink into pile on towels/fleece.
  • If it still fails: default to a medium cutaway test and adjust based on what the fabric is physically doing during stitching.
• Q: How can embroidery hoop burn and registration problems on thick garments be reduced without slowing production, and when should magnetic embroidery hoops be considered?
  A: Start with floating techniques, then move to magnetic embroidery hoops if hoop burn, wrist strain, or thickness changes are constant problems.
  • Level 1: Hoop the stabilizer, apply temporary spray adhesive, and float the garment to reduce ring marks (watch for slip).
  • Level 2: Switch to magnetic embroidery hoops to clamp without forcing fabric into a tight ring and to auto-adjust for thickness changes.
  • Always use the machine’s trace/contour function to confirm the design fits inside the hoop arms before stitching.
  • Success check: no permanent hoop rings on dark polyester/performance wear and fewer re-hoops due to shifting.
  • If it still fails: review stabilization first (many “digitizing” complaints are actually hooping/stabilizer issues), then consider upgrading workflow tools like a hooping station for consistency.
• Q: What magnetic embroidery hoop safety rules should be followed when using industrial-strength magnets near an embroidery machine?
  A: Treat magnetic hoops like power tools: keep fingers clear of pinch points and keep magnets away from pacemakers.
  • Keep hands and fingertips out of the closing path when magnets snap together.
  • Store magnets controlled and separated to prevent accidental impact or pinch injuries.
  • Keep magnetic hoops away from anyone with a pacemaker or sensitive medical device.
  • Success check: operators can load/unload hoops repeatedly with no pinches and no “surprise snap” closures.
  • If it still fails: slow the loading process and retrain handling steps; magnet injuries usually come from rushing, not from stitching.
