mySewnet Embroidery on Windows: Build a SuperDesign Coffee Wreath, Then Nail 3 Monogram Styles That Actually Stitch Clean

When your design looks perfect on-screen but stitches out crooked, crowded, or “mysteriously different,” it isn't bad luck—it is workflow. Embroidery is an unforgiving art where a millimeter of digital drift becomes a disaster in physical thread.

In this Owner’s Class #2 for mySewnet Embroidery on Windows, we are moving beyond basic clicks. We will build a composite SuperDesign layout (French press + coffee beans) and master monograms in three distinct ways.

But as your Chief Education Officer, I am not just going to tell you which buttons to press. I am going to teach you the sensory habits of a pro—what to look for, what to listen for, and how to feel the difference between a "hobby" setup and a "production" workflow. We will cover the specific density parameters and safety checks that keep your machine running and your waste bin empty.

The Calm-Down Reset: mySewnet Configure “Reset All Modules” So Everyone Starts From the Same Baseline

The first move is not glamorous, but it provides psychological safety. It prevents that panic-inducing moment 20 minutes from now when you ask, “Why doesn’t my screen look like yours?”

1. Open the mySewnet Embroidery software.
2. Click the Tools folder.
3. Open Configure.
4. Go to the Utilities tab.
5. Click Reset All Modules.
6. Confirm the popup by clicking OK.

Checkpoint (Sensory check): Your workspace should look sterile and standard. Panels are docked; customization is gone. This is your "Clean Slate."

Warning: If you are in the middle of a paid job or a complex project, STOP. Resetting modules wipes your custom defaults. If you are a production shop with specific thread charts or grid settings loaded, export your current settings first.

Prep Checklist (Do this before you design)

• Software State: Verified you are in Windows launching mySewnet Embroidery (not the Digitizing module).
• Reset Complete: Confirmed Configure → Utilities → Reset All Modules.
• Target Defined: You have mentally committed to a hoop size (240mm x 150mm for the coffee layout).
• Hidden Consumables: Do you have your secondary tools ready? Standard 75/11 needles for cotton, or 90/14 for denim? A fresh bobbin? Searching for these later breaks your flow.


Lock the Canvas First: Universal Hoop 240mm x 150mm (Natural Orientation) to Stop Surprise Cropping Later

From the mySewnet Embroidery launch screen, stick to a disciplined routine.

1. Choose hoop size 240mm x 150mm.
2. Select your machine brand/model, or default to Universal if you are designing for multiple machines.
3. Set orientation to Natural.
   • Why? "Natural" mimics how the hoop sits physically on your machine arm. It reduces the mental gymnastics of rotating your head sideways to visualize the final result.
4. Click OK.

The "Real-World" Why: The hoop on screen is your safety boundary. If you design without a boundary, you risk creating a layout that hits the plastic frame, causing a "Hoop Strike"—a loud, jarring crash that can knock your machine's timing out or break a needle.

Commercial Context: If you are doing repeatable orders (e.g., 20 café aprons), your physical hooping workflow determines your profit margin. Standard hoops are fine for one-offs, but they rely heavily on hand strength and visual estimation. If you find your wrists hurting or your fabric slipping, professionals often switch to magnetic embroidery hoops. These allow you to clamp the fabric instantly without forcing the inner ring, reducing "hoop burn" marks and keeping your continuous production flow smooth.

Build the Coffee Wreath Fast: SuperDesigns + Encore Circle (6 Repeats) Without Beans Touching the Pot

We will use "Composite Design Thinking"—taking disparate elements and using math (Encore) to structure them.

Insert the French Press and Beans

1. Click the SuperDesigns tab.
2. Set Categories to All.
3. Open the Gallery Viewer.
4. Search: Don't scroll blindly. Type “coffee” in the search bar.
5. Select the French press (Design #4 in the set) and Click Apply.
6. Select the coffee beans (Design #3).
7. CRITICAL STEP: Before applying, change Design Size to 30mm.
   • Beginner Sweet Spot: 30mm is large enough to show detail but small enough to act as a border element.
8. Click Apply.

Checkpoint (Visual): You should see a large French press and one floating coffee bean.

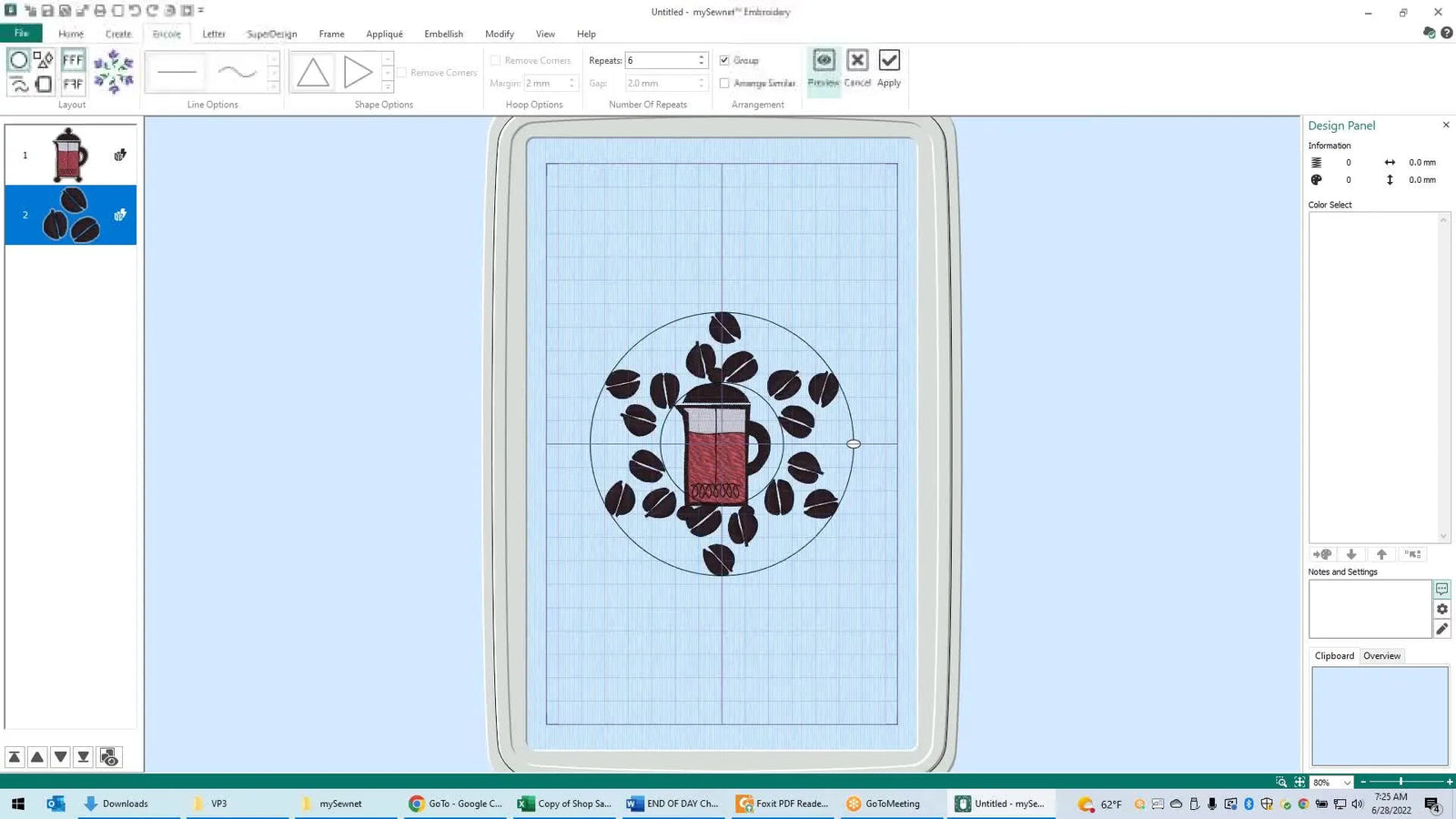

Encore the Beans into a Circle

1. Select the single coffee bean. You must see the Green Selection Box around it.
2. Go to the Encore tab.
3. Select Circle layout.
4. Set Repeats to 6.
5. Click Preview.
6. Action: Left-click the Orange Handle on the screen and drag outward.
   • Visual Guide: Watch the gap between the beans and the pot. You want about 10mm of white space. Too close, and the dense stitches will overlap, causing a needle jam (the dreaded "bird's nest").
7. Click Apply.

Expert Insight: Encore provides mathematical consistency. In a production environment, you never want to place 6 beans by eye. If you do, the human eye will spot the irregularity immediately.

Setup Checklist (Pre-Group Check)

• Hoop Check: Confirmed 240mm x 150mm / Natural.
• Selection Check: Ensured only the bean was selected before clicking Encore.
• Spacing Check: Verified visuals—beans are not touching the central pot.
• Density Safety: If shrinking designs, did you ensure they didn't get too dense? (SuperDesigns recalculate automatically, but imported STLs do not).


The “Don’t Break Your Layout” Habit: Grouping in Home Tab So the French Press + Beans Move as One

Physics dictates that if things can move, they will move. Locking your layout digitally is vital.

1. Look at the Film Strip. The beans are currently selected.
2. Hold Shift and Click the French press icon in the strip. Both items are now highlighted.
3. Go to the Home tab.
4. Click Group.

Checkpoint (Sensory): Watch the selection outline. It changes from a dashed line (individual items) to a solid line (group). Now, if you click and drag, the entire artwork moves as one solid unit.

Why this prevents tears: Imagine you are aligning text later. If you aren't grouped, the alignment tool might center the pot but leave the beans behind. Grouping is your insurance policy.

Align Like a Pro (Without the “Oops, Everything Overlapped” Moment): Home Tab Alignment Center + Middle

Now we add the text. Alignment tools are precise, but they are dumb—they do exactly what you tell them.

1. Go to SuperDesigns.
2. Select Coffee Break text and Click Apply.
3. Rough Placement: Drag the text vaguely near the center.
4. Go to Home tab.
5. Select the Coffee Break text.
6. Hold Control/Shift and select your Grouped Pot/Beans.
7. Click Alignment:
   • First: Align Center (Horizontal).
   • Second: Align Middle (Vertical).

The "Stacked" Error: If everything suddenly collapses into a single pile in the middle of the screen, you likely used "Align Center" on individual objects rather than the group.

• Immediate Fix: Click Undo. Do not try to manually fix it.

From Screen to Shirt: Digital alignment is easy. Physical alignment is hard. If you find your designs are perfectly centered in the software but crooked on the chest, your issue is likely the hooping process. Standard hoops require practice. Many intermediate embroiderers invest in a hooping station for embroidery to serve as a physical jig, ensuring the garment is perfectly square before the hoop is applied.

Save and Export Without Regret: When to Stop “Tweaking” and Lock the File

• Save (.vp4/.edo): This is your "working file." Save get before every major change.
• Export (.pes/.dst): This is your "machine file."

Speed & Tension Note: When you export, you are finalizing the design. When you eventually stitch this:

• Newbie Speed Limit: Set your machine to 500-600 SPM (Stitches Per Minute).
• Pro Speed: 800-1000 SPM.
• Why? Slower speeds reduce thread breakage and friction, giving you a better finish while you are learning.

Switch Gears Cleanly: New Blank Canvas + Universal Hoop 120mm x 120mm (Natural) for Monograms

Monograms live on pockets, cuffs, and napkins. We need a tighter canvas.

1. File → New blank canvas.
2. Save Changes? Choose No (assuming you saved previously).
3. Select Hoop: 120mm x 120mm.
4. Orientation: Natural.


Technique 1—Manual Diamond Monogram in mySewnet Letter Tab: Shape First, Then Type “NBA”

This method gives you total control over aspect ratio.

1. Click the Letter tab.
2. Shape: Select Diamond (The icon looks like a warped grid).
3. Font: Open Gallery Viewer -> Monograms Category.
4. Select UC Olympia.
5. Text: Type NBA (or your initials).
6. Click Apply.
7. Resize: Change size to 20mm - 30mm in the panel to start.


The “Green Handle” Trick: Stretching the Diamond Bounding Box to Make the Monogram Look Custom

This is where you act like a graphic designer.

1. Select the monogram.
2. Action: Grab the Green Square Handles on the bounding box.
3. Tactile Move: Drag the handles outward and inward. Watch the letters warp.

Expert Caution: The Density Trap When you stretch a letter, you are stretching the satin stitches.

• Risk: If a satin column gets wider than 7mm-9mm, loose loops will snag.
• Risk: If you squish it too narrow, the thread piles up and breaks needles.
• Solution: Check with your eyes. If the column looks like a solid block of color, it's safe. If it looks incredibly thin or incredibly wide, adjust.

For difficult-to-hoop items like bags where you might apply this monogram, traditional hoops are a struggle. Learning how to use magnetic embroidery hoop mechanisms can save your fingers; these frames snap onto thick materials without the need to force a screw-tightened inner ring, preserving the material's grain.

Fix the “Why Is My Flourish on the Bottom?” Problem: Frame Tab Flourish + Set Placement to “Above”

1. Frame Tab -> Flourish Category.
2. Select a flourish and Apply.

The Logic: If the flourish appears under the letters, it's because the software defaults to "Surround."

• Fix: Look at the options panel. Change Placement to Above.

Checkpoint: The flourish snaps to the top.

Warning: Mechanical Safety. When you transfer this to the machine, ensure your hoop path is clear. Flourishes often push the design to the very edge of the hoop. Before you hit "Start," trace the design area to ensure the needle bar won't hit the plastic frame.

Technique 2—Individual Letter Editing: Make the Middle Letter Bigger (Small–Large–Small) Without the Wizard

This is the "Old School" method, offering maximum customization.

1. New Canvas (120x120mm).
2. Letter Tab -> UC Olympia.
3. Text: NBA.
4. Shape: Line (Default).
5. CRITICAL CHECK: Check the box that says Individual.
6. Click Apply.




Checkpoint (Visual): Each letter now has its own separate selection box.

The Resize Move

1. Click empty space to deselect.
2. Select the middle letter B.
3. Drag the corner handle to scale it up (approx 150%).

Physics Note: When you resize a "Letter" object in mySewnet, the software recalculates density. This is good. If you were resizing a raw stitch file (DST), the density would not change, leading to gaps. Because we are using native fonts, the stitch quality remains high.

Turn It Into an Appliqué Monogram: Frame Tab → Applique Shields → Shield #9 + Design Player to Verify Stops

Appliqué adds fabric texture but introduces machine stops.

1. Group your letters so they are one unit.
2. Frame Tab -> Applique Shields.
3. Select Shield #9 -> Apply.


The Simulation Habit:

1. Open Design Player (The "Play" button icon).
2. Action: Press Play.
3. Watch:
   • Stop 1: Placement line (tells you where to put fabric).
   • Stop 2: Tack down (stitches fabric down).
   • Stop 3 (Manual): You must trim here.
   • Stop 4: Satin finish.


Hidden Complication: Appliqué requires you to remove the hoop, trim fabric, and replace the hoop exactly. If your hoop isn't secure, the registration slips. A hooping station for embroidery keeps the hoop stable while you place the initial fabric, reducing the chance of ripples.

Technique 3—Express Monogram Wizard: Traditional 3-Letter Layout + Classic 1 Envelope + Mixed Fonts

The Wizard isn't cheating; it's efficiency.

1. File -> Express Monogram Wizard.
2. Select: 3-letter monogram.
3. Layout: Traditional.
4. Enter Initials.
5. Envelope: Classic 1.

Mixing Fonts (The Designer's Touch):

1. Large Letter Font: Category Retro -> Zepherus.
2. Size Check: Note the range (55-80mm). Stay in this zone.
3. Small Letter Tab: Check Alternative Style.
4. Small Letter Font: Pristine.






Add a Border

1. Border Tab: Check the box.
2. Style: Satin Stitch.


Result: A fully formed, professional badge style in 45 seconds.

The “Why It Stitches Better” Layer: Selection Discipline, Density Reality, and Hooping Physics

Why do some designs pucker while others lay flat?

1. Selection Discipline

The software is literal. If you don't select the object, the tool (Encore/Align) is grayed out or acts on the wrong thing. Always look for the Green Box.

2. Physical Stabilization

All the software settings in the world won't save you if you hoop incorrectly.

• The Tactile Test: The fabric in the hoop should not be "drum tight" (distorted). It should be flat and neutral. If you pull it too tight, it snaps back after stitching, causing puckering.

3. The Tool Upgrade

If you are struggling with "Hoop Burn" (shiny rings left on fabric by tight plastic loops) or if clamping thick towels is painful, consider the hardware solution.

• The magnetic frame for embroidery machine is the industry standard for difficult items.
• Users of specific European machines often search for a pfaff magnetic embroidery hoop. Always verify: Does the magnet clear your specific machine's motor housing? Compatibility is key.

Warning: Magnetic Safety. Magnetic hoops contain high-power Neodymium magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear.
* Medical: distinct distance required for pacemakers (consult manual).
* Electronics: Keep away from credit cards and screens.

A Simple Decision Tree: Pick the Right Hoop + Stabilization Approach

Use this logic before you hit Export.

START HERE

1. Is the design heavy/dense (like the Appliqué Shield)?
   • YES: Use Cutaway Stabilizer (Mesh). It provides permanent support.
   • NO: Go to step 2.
2. Is the fabric stretchy (T-shirt/Knit)?
   • YES: Cutaway Stabilizer is mandatory. Do not use Tearaway; the stitches will pop.
   • NO (Woven/Cotton): Tearaway is acceptable.
3. Is this a high-volume production run (10+ items)?
   • YES: Do not rely on "eyeballing" hoop placement. Use a marking grid or upgrade to a hooping for embroidery machine system (station/magnetic) to ensure every logo hits the same spot.
   • NO: Standard manual hooping is fine.

Operation Checklist (The "Pre-Flight" Check)

• Coffee Layout: Confirmed 6 beans, checked spacing (no overlap with pot).
• Grouping: Pot + Beans are a single selectable entity.
• Monogram: Check letters for extreme warping (satin columns >9mm or <1mm).
• Appliqué: Ran Design Player simulation? You know exactly when to trim.
• Color Stop: Does the file have the correct thread colors (or at least valid stops)?
• Safety: Hoop path is clear of obstacles on the actual machine.

The Upgrade Result: When Your Software Skills Outgrow Your Setup Time

You now possess the software skills to create complex, beautiful composites and monograms. But software is fast; physics is slow.

As you move from "making one for fun" to "making 50 for profit," your bottleneck will shift. You will find yourself waiting on the machine or struggling with the hoops. When that day comes, remember that the ecosystem supports you. From embroidery machine hoops that snap instantly with magnets, to multi-needle machines that change colors automatically (like SEWTECH platforms), there is always a tool to match your growing ambition.

Master the click, master the hoop, and let the machine do the work.

FAQ

• Q: In mySewnet Embroidery for Windows, how do I reset the workspace using Configure → Utilities → Reset All Modules so the screen matches the class layout?
  A: Use Tools → Configure → Utilities → Reset All Modules → OK to return every panel and default to a clean baseline.
  • Export/save any custom settings first if the workflow relies on specific defaults (common in production).
  • Reopen the design after the reset and reselect the intended hoop size and orientation.
  • Success check: The workspace looks “sterile and standard” with docked panels and no personal layout customizations.
  • If it still fails: Confirm the software module is mySewnet Embroidery on Windows (not a different module) and repeat the reset once.
• Q: In mySewnet Embroidery, how does setting Universal Hoop 240mm × 150mm with Natural orientation prevent surprise cropping and hoop strikes?
  A: Set the hoop boundary first—240mm × 150mm + Natural—so the on-screen canvas matches the real hoop limits and reduces edge-hit risk.
  • Choose 240mm × 150mm, pick Universal if designing for multiple machines, and set Orientation: Natural before clicking OK.
  • Keep the entire layout inside the hoop boundary before exporting a machine file.
  • Success check: No part of the design touches or crosses the hoop outline on screen.
  • If it still fails: Recheck that the correct hoop is selected (not a leftover hoop from an earlier file) and verify nothing is pushed to the extreme edge.
• Q: In mySewnet Embroidery Encore Circle, how do I place 6 coffee beans around a French press without overlaps that cause bird’s nests (thread nesting) and needle jams?
  A: Encore only the bean and keep spacing—set Circle + 6 repeats and leave about 10mm white space from the pot to avoid dense overlap.
  • Select the single coffee bean until the green selection box is visible, then open Encore → Circle → Repeats: 6 → Preview.
  • Drag the orange handle outward until the beans clear the pot with visible space.
  • Success check: Beans do not touch the pot, and the circle looks evenly spaced (not “crowded”).
  • If it still fails: Undo, confirm only the bean (not multiple objects) was selected before Encore, then redo Preview/drag.
• Q: In mySewnet Embroidery Home tab, how do I group the French press + coffee bean circle so alignment tools do not shift parts and ruin the layout?
  A: Group the elements in the Film Strip so the artwork moves as one unit before doing any alignment.
  • Shift-select the beans and the French press in the Film Strip.
  • Click Home → Group before dragging or aligning anything.
  • Success check: The selection outline changes from dashed (separate items) to solid (group), and dragging moves everything together.
  • If it still fails: Undo, reselect both objects in the Film Strip (not just on the canvas), then group again.
• Q: In mySewnet Embroidery Home tab Alignment, how do I center “Coffee Break” text without the “everything stacked into a pile” mistake?
  A: Align the text to the grouped artwork (not to multiple ungrouped pieces), and use Undo immediately if it collapses.
  • Select the Coffee Break text first, then Control/Shift-select the grouped pot/beans.
  • Click Alignment → Align Center, then Alignment → Align Middle.
  • Success check: The text moves to the true center while the wreath layout stays intact (no sudden overlap pile).
  • If it still fails: Press Undo, confirm the pot/beans are grouped, then repeat the alignment in the same order.
• Q: In mySewnet Letter tab monograms, how do I stretch the diamond bounding box using green handles without creating the satin density trap (too wide >7–9mm or too narrow columns)?
  A: Stretch cautiously—use the green handles for shape, but stop before satin columns look extremely wide or needle-break dense.
  • Select the monogram and drag the green square handles to adjust the diamond’s proportions.
  • Visually monitor satin columns: avoid pushing any column beyond the 7mm–9mm risk zone, and avoid squashing to razor-thin strokes.
  • Success check: Satin areas look smooth and balanced—not like loose, wide “loops,” and not like a solid overpacked block.
  • If it still fails: Reduce the distortion and keep the monogram closer to the starting size range (a safe starting point is 20–30mm) before reshaping again.
• Q: When creating an appliqué monogram in mySewnet (Frame tab → Applique Shields → Shield #9), how do I confirm machine stops and the manual trim point using Design Player?
  A: Always run Design Player and watch the stop sequence so the trim happens at the correct moment.
  • Group the letters, apply Frame → Applique Shields → Shield #9, then open Design Player and press Play.
  • Track the sequence: Stop 1 placement line → Stop 2 tack down → Stop 3 manual trim → Stop 4 satin finish.
  • Success check: The simulation clearly shows a dedicated trim moment before the final satin border stitches.
  • If it still fails: Re-run the simulation from the start and confirm the appliqué shield is applied to the intended grouped letters (not to a single letter).
• Q: What are the key safety checks for magnetic embroidery hoops and edge-of-hoop designs to prevent pinch injuries and hoop strikes before pressing Start on an embroidery machine?
  A: Treat magnets and hoop edges as hazards—keep fingers clear of snap zones and verify the stitch path will not hit the hoop frame.
  • Keep fingers away when closing magnetic hoops because the magnets snap together instantly (pinch hazard).
  • Maintain required distance for pacemakers per the product/manual guidance, and keep magnets away from sensitive electronics and cards.
  • Trace/verify the design area on the machine when flourishes or borders sit near the hoop edge to avoid needle-to-frame contact.
  • Success check: Hoop closes without finger contact, and the needle path clears the plastic frame throughout the full design boundary.
  • If it still fails: Reduce or reposition the design away from the hoop edge and re-check physical clearance before restarting.
