Open Up a Husqvarna Viking Emerald 183 Without Cracking the Casing: Hidden Screws, Ribbon Cables, and the “Black-to-Black” Mainboard Check

There is a specific kind of silence that fills a sewing room when a machine fails. It’s not peaceful; it’s heavy. When your Husqvarna Viking Emerald 183 refuses to power up—especially after you’ve already tried to fix it once—that silence is filled with the dread of sunk costs. You stare at the plastic casing, knowing that inside lies a labyrinth of fragile ribbon cables, snap-fits that love to crack, and electronics that don't forgive mistakes.

But here is the truth derived from twenty years of diagnosing dead machines: The machine is rarely "dead." It is usually just confused or disconnected.

The Husqvarna Viking Emerald 183 is a machine that bridges the gap between mechanical reliability and computerized precision. However, it was built in an era where serviceability required patience, not force. If you treat this teardown like a race, you will break tabs. If you treat it like a surgical procedure, visualizing every connection before you make it, you will likely have it running within the hour.

This guide rebuilds the disassembly process into a "White Paper" standard workflow. We are moving beyond "try this"; we are establishing a protocol for safe, repeatable repair.

The calm-first rule for Husqvarna Viking Emerald 183 teardown: you’re not fighting the machine, you’re mapping it

Before you touch a single screw, we must address the "Fear Factor." Most technicians I train destroy more machines in the first five minutes of panic than they do during the actual repair.

The primary reason an Emerald 183 fails to power on after a previous reassembly, as shown in the case study, is almost always user-induced connection error. It is rarely a blown motor or a fried board initially; it is a connector that was plugged in 1mm too shallow, or a ribbon cable that was pulled 5 degrees off-axis.

Your mental model for this repair is Mapping, not Fighting. You are not forcing the machine open; you are unlocking it layer by layer to map the electrical path.

Warning: Electrical & Mechanical Hazard. Always unplug the machine and wait 60 seconds for capacitors to discharge before opening the casing. Treat the needle bar area as a "sharps hazard"—the hook assembly can slice fingertips instantly if the handwheel is turned while your fingers are investigating the bobbin case.

Tools that actually matter on a Husqvarna Viking Emerald 183 (and the “don’t improvise” list)

You do not need a factory full of equipment, but you do need tools that respect the materials you are working with. The Emerald 183 uses a combination of ABS plastics and metal chassis components. The enemy here is "Cam-Out"—where a screwdriver slips and gouges the plastic screw head or the casing.

The Mandatory Toolkit:

1. Magnetic Tip Screwdrivers (Ph2 & Ph1): Essential for retrieving screws that drop into the chassis.
2. Plastic Spudger / Pry Tool: Never use a flathead screwdriver to pry the case open. Metal on plastic leaves scars; plastic on plastic yields.
3. Smartphone Camera: You will take photos at three depths: Outer shell, initial opening (ribbons attached), and fully exposed board.
4. Parts Organization Tray: You must separate screws by "Step." (e.g., Cup A: Bottom Base, Cup B: Handle).

Hidden Consumables (The "Pro" Secrets):

• Painter’s Tape: Use this to label the unplugged cables immediately. "J3 - White" written on a flag of tape saves twenty minutes of guessing later.
• Silicon Grease (Dielectric): If you encounter dry gears, use only plastic-safe synthetic grease. Never use WD-40 implies; it eats plastic gears over time.


Prep Checklist (do this before the first screw)

• Power Safety: Machine is fully unplugged; foot control is disconnected and stored.
• Clearance: Needle is removed; Presser foot is removed; Bobbin case is taken out.
• Lighting: A movable task light is aimed directly into the free-arm throat plate area.
• Documentation: Take a high-res photo of the machine's current state, specifically where the casing seams meet.
• Static Discharge: Touch a metal object (like a table leg) to ground yourself before handling the PCB (Printed Circuit Board).

The “one screw that starts it all”: removing the Emerald 183 side cover without chewing the plastic

The teardown sequence is distinct. We start with the End Cap (Faceplate) on the left side.

The Action: Locate the single screw holding the side cover. Remove it. The Sensory Check: When you pull this cover, do not yank. Slide it slightly to the left or wiggle it. You should feel it detach from the internal guide rails. The "Why": This cover hides the needle bar light and the upper shaft end. Removing this first gives you a visual line of sight into the top of the machine, which helps you see how the front and back covers interlock later.

Bottom access on the Emerald 183: needle plate area, free-arm tray, and the underside screw hunt

We now move to the machine's foundation. The presenter in the documentation specifically tilts the machine back. This is where organization is critical because the screws here are often different lengths.

Step-by-Step:

1. Remove the Accessory Tray: This pulls off the free arm. Do not try to unscrew the base with this attached.
2. Locate Base Screws: There are typically 4-6 deep-set screws in the grey chassis.
3. The "Back-Thread" Technique: When you eventually put these screws back in later, turn them counter-clockwise first until you hear a soft "click." That is the screw thread falling into the existing plastic groove. Only then tighten. This prevents cutting new threads and stripping the plastic posts—a common death sentence for older machines.




Separating the Husqvarna Viking Emerald 183 plastic clamshell: how to release snaps without cracking the case

This is the psychological crux of the repair. Splitting the "Clamshell" (Front and Back covers) requires force, but it must be controlled force.

The Protocol:

1. Visual Audit: Triple-check that every screw is out. Check under the handle. Check the handwheel area. A screw left in will cause the plastic to shatter if you pry.
2. The Starting Point: Start at the bottom seam or the top handle seam where there is already slight movement.
3. The Spudger Walk: Insert your plastic pry tool into the seam. Twist gently.
4. Sensory Anchor (Sound):
   • A dull "Thud/Pop": Good. This is a friction tab releasing.
   • A sharp "Crack/Snap": Bad. Stop immediately. You have missed a screw or are forcing a fixed tab.

This step is tedious. It is supposed to be. If you are rushing this because you have 50 items to embroider, stop. Repair mode requires a different headspace than production mode.

The ribbon cable trap: the short internal connector you must unplug before the back cover comes free

CRITICAL STEP: This is the precise moment where 80% of DIY repairs fail.

The Emerald 183, like many computerized machines, has a "tether"—a short ribbon cable connecting the controls on the front/back housing to the mainboard deep inside. The video documentation highlights this at the 11-minute mark for a reason.

The Danger Zone: If you separate the case halves and pull them apart like opening a suitcase, you will rip this ribbon cable or tear the header off the motherboard.

The Safe Method:

1. The Peek: Open the case only 2-3 inches. Shine your light inside.
2. Identify the Tether: Locate the flat, grey/white ribbon cable spanning the gap.
3. The Unlatch: Reach in (or use long-nose pliers gently). Grip the connector head, not the wire. Pull straight out.
4. Verification: Ensure no other ground wires or harnesses are taped to the cover before fully removing it.


Warning: Ribbon Cable Fragility. These cables are made of thin foil traces laminated in plastic. A single hard crease or a 2mm tear renders the control panel dead. Do not fold perfectly flat; keep a gentle loop curve.

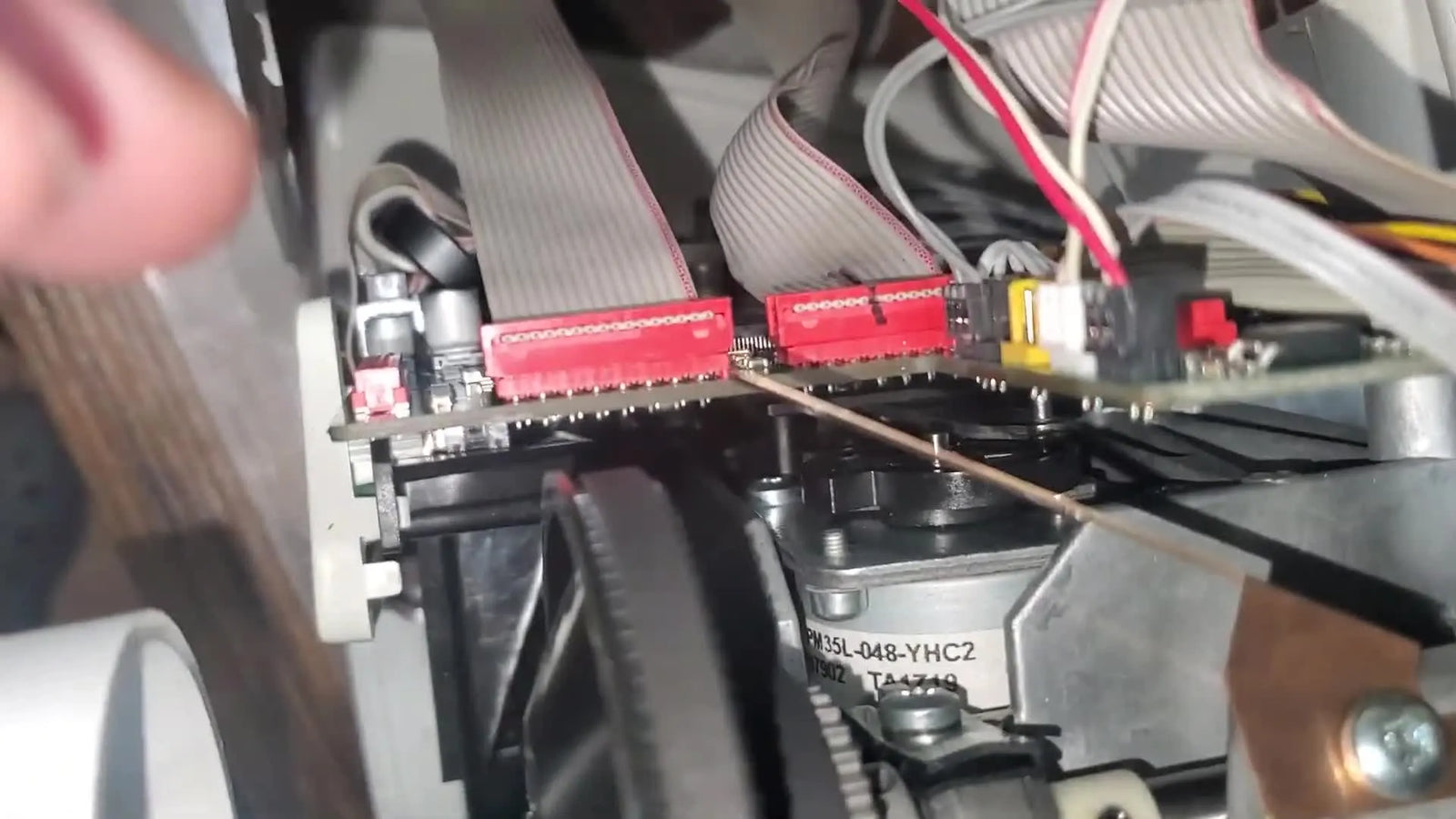

The “black-to-black, white-to-white” mainboard ritual: your fastest fix for Emerald 183 no-power after reassembly

Once inside, we address the root cause of the "No Power" mystery. The mainboard is a roadmap of connectors. The manufacturers—Husqvarna Viking engineers—designed this to be assembled quickly, using Color Coding.

The video presenter solves the mystery by checking the headers: Black plugs go to Black sockets. White plugs go to White sockets.

The Connection Protocol:

1. Inspection: Look at the pins inside the headers on the board. Are any bent flat? (Common if a plug was forced).
2. Alignment: Line up the plug. Most are "Keyed" (they have a tiny plastic ridge that only fits one way).
3. The Tactile Confirmation: Push the connector in until you feel a definitive, solid stop. Some click, some just bottom out.
4. The Tug Test: Gently brush the wires with your finger. If the plug falls out, it wasn't seated.

If you are maintaining a fleet of machines, including a husqvarna embroidery machine, this habit of "Seat, Push, Tug" prevents machines from vibrating loose mid-stitch three months from now.

Setup Checklist (before you touch motors, gears, or reassembly)

• Connector Audit: All white plugs are in white headers; all black plugs are in black headers.
• Pin Check: Shine a light into unplugged headers to ensure no pins are bent.
• Debris Sweep: Check the gear train area for old needle tips or "birds nests" of thread.
• Cable Routing: verify that internal wires are tucked into their plastic guides (traps) so screw posts won't pierce them upon closing.
• Capacitor inspection: Look at the cylindrical components on the board. Are any bulging or leaking? (If yes, board repair is needed).

Inside the Emerald 183: what you’re actually looking at (mainboard, screen, stepper motors, gears)

Understanding the anatomy reduces the fear.

• The Brain (Mainboard): Controls the logic. It sends electrical pulses.
• The Muscle (Stepper Motors): These square motors turn electrical pulses into precise rotation. One moves the needle, others move the embroidery unit (X/Y axis).
• The Skeleton (Chassis): The metal frame that holds the alignment.

Sensory Diagnostics:

• Smell: Put your nose near the motor vents. A sharp, acidic smell (ozone) suggests an electrical short. A "dirty sock" smell often means old, congealed grease.
• Sight: Look at the white plastic gears. Are there yellow/brown dust piles underneath them? That is "gear dust"—a sign the gears are grinding and need replacement soon.
• Touch: The belts should be taut like a firm guitar string, not sloppy, but not rock hard (dry rot).


The magnet question the video raises: can very strong magnetic hoops damage a motor?

The video raises a hypothesis: Did a strong magnetic hoop break the motor? This is a controversial topic, but we can look at it through physics, not myth.

The Reality: The magnetic field itself rarely destroys the motor directly. The stepper motors are shielded. The real risk with incorrectly chosen magnetic hoops is Inertia and Drag.

1. Weight: If you buy a cheap, heavy third-party hoop that is too heavy for the Emerald 183's consumer-grade carriage, the stepper motor has to work 3x hard to move the pantograph. This causes overheating and skipped steps.
2. Friction: Some generic hoops are too thick and drag against the machine bed, acting like a brake.

The Solution: It is not about avoiding magnetic hoops; it is about choosing engineered ones. High-quality magnetic hoops (like those from SEWTECH) are designed to match the weight distribution of standard hoops. They allow you to hoop thick items (towels, jackets) without the "Hoop Burn" damage of standard rings, but they must be lightweight.

Warning: High-Force Magnet Safety. Modern magnetic hoops use Neodymium magnets. They snap together with enough force to crush fingertips or pinch skin severely. Keep away from pacemakers. If you are working in a shop with children, store these high on a shelf.

Troubleshooting Emerald 183 “not working after reassembly”: symptoms → likely causes → what to check first

If you reassemble the machine and it fails, do not panic. Use this logic tree.

Table: Post-Repair Diagnostic Matrix

If you are looking for specific replacements like embroidery hoops for husqvarna viking, ensure you are testing the machine with the standard hoop first to rule out accessory variables.

The “why it fails” lesson: cable discipline, strain relief, and plastic snap physics

The failure described in the video—where a machine stops working after a "repair"—is a classic case of Cable Pinching.

When you close the plastic clamshell, there are plastic posts that mate with holes. If a thin black wire drifts 1cm to the left, it lands exactly where that post crushes it.

1. The Pinch: The screw tightens, the wire flattens.
2. The Short: The insulation breaks, the copper touches the metal chassis (Ground).
3. The Result: The board detects a short and refuses to boot, or the signal to the motor is grounded out.

The Fix: Before closing, tape the wires down into their valleys. Gravity is not your friend here; tape is.

A practical decision tree: when to stay with standard hoops vs. move to magnetic frames (and when to upgrade the machine)

You are likely reading this because your machine is down, and you are frustrated. This is the perfect time to evaluate your needs vs. your tools.

Step 1: The Fabric Test

• Are you embroidering delicate silk or thick towels?
  • Delicate: Standard hoops leave "hoop burn" (crushed fibers).
  • Thick: Standard hoops pop open and break wrists.
  • Solution: This is the specific use case for a magnetic hoop for husqvarna viking. The clamp force is vertical, not radial, preventing burn and handling bulk.

Step 2: The Volume Test

• Are you fixing this machine because it broke mid-order on a 50-shirt run?
  • Yes: You have outgrown the Emerald 183. It is a domestic machine. Running it 8 hours a day will kill it.
  • Solution: Consider the move to a Multi-Needle machine (like SEWTECH). They have metal frames, open chassis for easy oiling, and are built for the hooping station workflow that speeds up production.

Step 3: The Alignment Test

• Do you struggle to get the design straight?
  • Solution: If you stay with the Emerald, look into a hoopmaster or similar fixture to standardize placement, reducing the re-hooping attempts that wear out your machine's mount.

The upgrade conversation (without hype): tools that reduce risk and increase output

We repair machines to keep them running, but sometimes the "repair" is upgrading the process.

If you find yourself constantly battling with hooping—fighting to close the ring, hurting your hands, or breaking inner rings—the issue is the tool interface.

• The Magnetic Upgrade: A properly sized magnetic embroidery hoop allows you to float the stabilizer and fabric, snapping the magnets heavily in place. This reduces the physical torque you apply to the machine's carriage during attachment (because you aren't wrestling the hoop).
• The Machine Upgrade: If you are tired of plastic tabs and hidden clips, industrial-style multi-needle machines are designed to be serviced. Panels unscrew with standard bolts. Boards are accessible. They are built for the user who relies on uptime for income.

Operation Checklist (closing the machine and proving it’s healthy)

• The Ribbon Reconnect: The short ribbon cable is clicked in before the case is fully shut.
• The Pinch Check: Run your finger along the entire seam. Is any wire peeking out?
• The Snap Audible: Press the case together. Listen for the clean "clicks." If you have to force it hard, Something Is Wrong. Open and re-check.
• The Hand-Turn Test: Before plugging in power, turn the handwheel one full cycle. It should be smooth.
• Power On: Plug in. Turn on. Listen. A happy machine makes a startup sound and resets the stepper motors to "Home" position.

Repairing the Emerald 183 is a rite of passage. It teaches you that in embroidery, as in life, connection is everything.

FAQ

• Q: What should be checked first when a Husqvarna Viking Emerald 183 will not power on after reassembly?
  A: Start by assuming a connector is not fully seated; most “no power after reassembly” cases are a shallow or misaligned plug, not a dead board.
  • Unplug the machine and wait 60 seconds, then reopen enough to access the mainboard area safely.
  • Reseat every connector using “align → push to a solid stop → gentle tug test,” and match color-coded plugs to matching headers (black-to-black, white-to-white).
  • Inspect headers for bent pins before pushing anything back in.
  • Success check: the connector bottoms out firmly and does not loosen when lightly brushed; after power-on the machine produces normal startup sound/reset.
  • If it still fails: inspect the power inlet connection and the internal power-supply-to-board connection for a loose fit.
• Q: How can a Husqvarna Viking Emerald 183 ribbon cable cause a dead control panel after the case is opened or closed?
  A: The short internal ribbon “tether” can be pulled, creased, or reinserted crooked, which commonly causes “screen on but buttons dead” after DIY work.
  • Open the clamshell only 2–3 inches first and shine a light inside to locate the ribbon before separating covers fully.
  • Unplug by gripping the connector head and pulling straight out; avoid yanking the cable itself.
  • Reconnect straight and fully, keeping the ribbon in a gentle curve (do not hard-fold flat).
  • Success check: after reassembly, buttons respond normally and the control panel behaves consistently with no intermittent input.
  • If it still fails: reopen and check whether the ribbon is loose, off-axis, or damaged (a crease/tear can make the panel stay dead).
• Q: How can a Husqvarna Viking Emerald 183 plastic clamshell be separated without cracking tabs or chewing the casing?
  A: Use controlled force with a plastic spudger and stop immediately if the sound changes to a sharp crack—sharp crack usually means a hidden screw is still in.
  • Triple-check for missed screws (handle area, handwheel area, underside) before any prying.
  • Start at a seam that already shows slight movement (often bottom seam or handle seam), then “walk” the spudger along the seam with small twists.
  • Listen for a dull thud/pop (tab releasing) and avoid levering with metal tools.
  • Success check: the halves separate progressively with repeated dull pops and no white stress marks or snapped tabs.
  • If it still fails: pause and re-audit screw locations; forcing a stuck point typically breaks a fixed tab.
• Q: What is the safest way to avoid wire pinching and shorts when closing a Husqvarna Viking Emerald 183 after repair?
  A: Treat cable routing like a final assembly step—most post-repair failures come from one wire drifting into a screw post or seam.
  • Route wires back into their plastic guides/traps before bringing the covers together.
  • Tape loose harness sections into “valleys” so gravity cannot move them while you close the clamshell.
  • Run a finger along the full seam before tightening screws to confirm no wire is peeking out.
  • Success check: the case closes with clean “clicks” (not forced), and the seam is uniform with no cable visible.
  • If it still fails: reopen and look for flattened insulation near posts/screw towers; correct routing before powering on again.
• Q: What safety steps should be followed before opening a Husqvarna Viking Emerald 183 for internal troubleshooting?
  A: Unplug completely and give the machine time to discharge, then remove sharp/loose parts so hands are not working around hazards.
  • Unplug the power cord and disconnect the foot control, then wait 60 seconds before touching internal electronics.
  • Remove the needle, presser foot, and bobbin case to reduce sharps and snag risks while handling the machine.
  • Ground yourself by touching a metal object before handling the PCB to reduce static risk.
  • Success check: no power sources are connected, and the needle/bar area is clear so fingers can’t be cut if the handwheel is moved accidentally.
  • If it still fails: stop and reassess workspace lighting and stability—poor visibility and awkward angles cause most injuries and broken plastics.
• Q: Can strong magnetic hoops damage a Husqvarna Viking Emerald 183 motor, and what is the safe way to judge hoop risk?
  A: The magnet field itself is rarely the direct problem; the common risks are hoop weight and drag that overload the consumer-grade carriage.
  • Compare behavior with a standard hoop first to rule out accessory variables before blaming the machine.
  • Watch for drag: ensure the hoop does not rub the machine bed or feel like a brake during movement.
  • Pay attention to load: avoid overly heavy hoops that make the carriage work harder than normal.
  • Success check: the carriage moves smoothly without skipped steps, overheating behavior, or abnormal resistance when the hoop travels.
  • If it still fails: discontinue the heavy/dragging hoop and return to a lighter, properly engineered hoop style; also keep magnetic hoops away from pacemakers and protect fingers from snap force.
• Q: When should a Husqvarna Viking Emerald 183 user switch from standard hoops to magnetic hoops, and when is a multi-needle upgrade more practical?
  A: Use a tiered decision: fix the immediate failure first, then match tools to fabric difficulty and production volume instead of fighting the same pain repeatedly.
  • Level 1 (technique): if hoop burn on delicate fabric or hoops popping on thick items is the main trigger, adjust process and test with the standard hoop to confirm the machine is healthy.
  • Level 2 (tool): if thick towels/jackets or hoop-burn-prone fabrics are consistent jobs, magnetic hoops can reduce ring pressure and improve handling—choose lightweight, well-matched hoops to avoid inertia/drag issues.
  • Level 3 (capacity): if the Emerald 183 is being pushed through long daily runs and downtime risks orders, a multi-needle platform is often the more stable uptime solution.
  • Success check: fewer re-hoops, less fabric marking, and the machine runs without mid-job loosening/vibration-related disconnects.
  • If it still fails: re-check connector seating and cable routing first—process upgrades won’t fix a loose plug or pinched wire.
