Stop Ruining Shirts on a 4x4 Hoop: Split a Design in Embrilliance Essentials and Re-Hoop with Confidence

If you’ve ever pulled a shirt out of a 4x4 hoop, re-hooped to stitch the bottom half, hit start… and watched in horror as the needle landed three millimeters to the left, you are not alone. That sinking “I just wasted a garment” feeling is a rite of passage in machine embroidery.

But here is the harsh reality of our craft: Hope is not a strategy.

The good news is that precision isn't about luck; it's about coordinates. The method in this lesson builds the alignment into the digital files themselves using Embrilliance Essentials. When you create the split correctly—and more importantly, stitch it in the right physical order—the two halves can line up with repeatable precision, eliminating the guesswork.

The Calm-Down Primer: Why an Embrilliance Essentials Alignment Line Makes Re-Hooping Feel “Mathematically Safe”

Lisa’s approach is simple, but as an educator, I want to deepen your understanding of why this works so you can trust it. Think of this method like printing a large banner on two sheets of paper. If you don't have a mark that exists on both pages, you are just guessing where to tape them together.

In this workflow, we add a specific registration mark—a vertical running-stitch line. This line serves as a strict coordinate reference. It appears in Hoop #1 (to mark the fabric) and in Hoop #2 (to mark the stabilizer). Your only job is to physically match stitch holes to stitch holes.

The Psychology of the "Practice Run": If you are attempting multi-hooping for the first time, your brain will be in "fight or flight" mode. To lower the stakes, follow this rule: start with a simple, one-color design on scrap fabric (calico or high-quality cotton). Do not start on a finished garment. Lisa frames this as a "10-minute stitching investment," which is the perfect mindset. You are buying confidence with thread and scrap fabric.

One operational detail: toggle your software to metric (mm). In the world of engineering and embroidery, millimeters offer the granularity we need for precise layout work.

The “Hidden” Prep Before You Split Anything: Fabric + Adhesive Stabilizer + a Low-Risk Practice Plan

Before you touch the software buttons, we must stabilize the physics of your setup. Software perfection cannot fix physical instability.

What the video uses:

• Fabric (Scrap cotton/woven).
• Adhesive stabilizer (often called Sticky Tear-Away or Hydro-Stick).
• A 4x4 hoop (100 mm × 100 mm).
• Embrilliance Essentials software.

My Shop-Floor Perspective (The "Invisible" Consumables): Novices often fail here because they lack the "uncool" supplies.

• Adhesive Stabilizer: You need a stabilizer that is sticky enough to hold fabric but won't gum up your needle. Sensory Check: When you touch the sticky surface, it should feel tacky like a Post-it note, not wet or gooey like duct tape.
• 75/11 Sharp Needle: Since we are aligning precise lines, a dull needle can deflect, causing the line to be slightly off. Use a fresh needle.

The Physics of Failure: Multi-hooping usually fails because the fabric shifts between hoopings or stretches during the re-hooping process. The method we are using today involves "Floating." We will hooping the fabric for step 1, but for step 2, we will only hoop sticky stabilizer and stick the fabric to it.

If you are working on a small home machine with a restricted sewing field—like a rigid brother 4x4 embroidery hoop—your margin for error is razor-thin. This prep work is your insurance policy.

Prep Checklist (Do this **before** opening software)

• Mental Contract: Accept that you must remove the fabric from the hoop after Part 1.
• Design Choice: Choose a low-density, one-color design (like the wine bottle outline).
• Stabilizer Inventory: ensure you have enough adhesive stabilizer to hoop a fresh piece by itself for Hoop #2.
• Alignment Strategy: Decide where your alignment line will live (Vertical, inside the hoop, far right).
• Safety Check: Ensure your work area is clear.

Warning: Needle Zone Safety. When we get to the test-stitch phase, keep fingers, hair, and loose sleeves far away from the needle area. Alignment lines are running stitches; machines accelerate rapidly during these long strokes. A "quick test" is still a mechanical hazard.

Build the First Half in Embrilliance Essentials: Import the Wine Bottle and Keep It Simple on Purpose

In the video, Lisa opens the wine bottle design first. The key teaching point isn’t the bottle—it’s the discipline of starting with something uncomplicated. When learning a sophisticated technique, strip away complexity.

1. Open the base design file (the wine bottle).
2. Visual Check: Confirm it sits comfortably inside the displayed 4x4 hoop boundary.
3. Metric Toggle: Switch your units to mm (usually in the preferences/view menu).

At this stage, do not try to "finish the art" or add text. You are building a reliable two-hoop system architecture.

Add the Vertical Alignment Line (and Put It in the Stitch Order That Actually Works at the Machine)

This is the step that makes or breaks the entire operation. If the machine doesn't stitch this line, you have no map.

Lisa merges in an alignment line file (a simple straight stitch) and places it:

• Position: On the far right side of the hoop area (where the split will happen).
• Orientation: Vertical.
• Boundary Check: Crucially, it must be inside the hoop boundary. If it is outside, the machine will ignore it or refuse to sew.

The logical trap: Stitch Order Lisa checks the object list to confirm stitch order. In her example:

1. Wine Bottle (Object 1)
2. Alignment Line (Object 2)

Why this matters: For Hoop #1, you want the design to stitch, and then the alignment line to mark where the next hoop begins. For Hoop #2 (which we will set up later), this order will flip.

Expert Note: A viewer comment highlighted a common failure: "The alignment line didn't stitch even though it showed up on the screen."

• The Fix: The line must be an actual object in the file, and it must be the last color in File #1 and the first color in File #2. If it is the same color as the design, the machine might combine them. Force a color stop (make the line a jarring color like Neon Green in the software) to ensure the machine stops and acknowledges it.

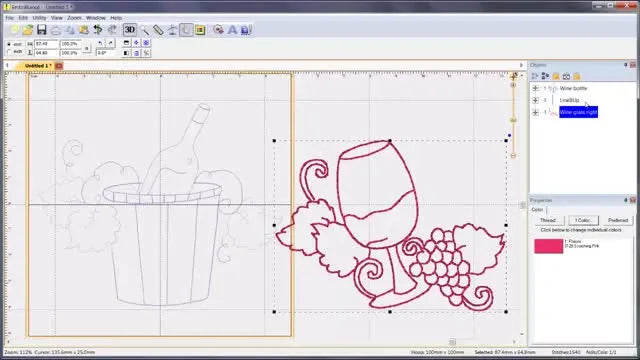

Merge the Second Design (Wine Glass) and Ignore the Hoop Boundary—For Now

Next, Lisa merges the wine glass design. To make life easier, change its color (e.g., to pink) so you can visually distinguish it from the bottle.

She places the glass to the right of the alignment line. She explicitly tells you to ignore the hoop boundary temporarily. This is excellent advice. It separates the "Design Phase" (Composition) from the "Engineering Phase" (Hooping layout).

Right now, it is normal for the glass to float in the grey void outside the hoop. You are building a "Master Layout" that effectively spans two hoops.

The 100mm Reality Check: Measure the Line + Wine Glass So Hoop #2 Will Actually Fit

Now you must switch from "Artist Brain" (does it look good?) to "Production Brain" (will it physically fit?).

Lisa selects the objects that will eventually live in Hoop #2: The Alignment Line + The Wine Glass. (Use Shift+Click in the object list).

The Math Check: Look at the dimensions bar at the bottom of the screen.

• Hoop Capacity: 100 mm (width).
• Selection Width: Must be < 100 mm.

If your selection is 102mm, it will not fit in the 4x4 hoop. You must nudge the wine glass closer to the alignment line until the total width drops below the limit (e.g., 98mm).

Troubleshooting Note: If you get to the machine and it refuses to load the second file, it is almost always because you skipped this step. The "Line + Design" combo is the new design. It must fit.

The “Center Button” Rule: Copy → New Page → Paste → Center (and Don’t Touch It Again)

This requires absolute discipline. This step is the "Secret Sauce" of the method.

Lisa’s rule is blunt: Once you hit CENTER, do not manually move anything.

The Principle: The "Center" of the hoop is the only coordinate (0,0) that is guaranteed to be identical in two different files. By centering the content of Hoop #1 in File A, and centering the content of Hoop #2 in File B, you are forcing the software to align them to a shared mathematical standard.

The Common Mistake: You paste the design into a new page. You center it. Then you think, "I'll just drag it up a tiny bit." STOP. That "tiny bit" destroys the coordinate system. If you move it manually, you lose the mathematical link between the two files.

If you’re learning multi hooping machine embroidery techniques, treat the "Center" button like a locking mechanism. Click it, then hands off.

Create “leftside.pes”: Bottle + Line, Centered and Saved Cleanly

Let's execute the split. We will create the file for the left side (Hoop #1).

1. Select: In the object pane, select Wine Bottle + Alignment Line.
2. Copy: (Ctrl+C / Cmd+C).
3. New: Open a New Design page.
4. Paste: (Ctrl+V / Cmd+V).
5. Unselect: Click in the empty white space to drop the selection.
6. CENTER: Click the Center button. (Do not skip step 5, or you might only center one object relative to the other).
7. Save As: leftside.pes (Start a clear naming convention).

Result: You have a file where the bottle stitches first, and the alignment line stitches last.

Create “rightside.pes”: Line + Glass, Centered So the Same Line Lands in the Same Place

Now, we create the file for the right side (Hoop #2).

1. Return: Go back to your original composite design tab.
2. Select: Select Alignment Line + Wine Glass.
3. Copy.
4. New: Open another New Design page.
5. Paste.
6. Unselect: Click off.
7. CENTER: Click the Center button.
8. Save As: rightside.pes.

Result: In this file, the Alignment Line is exactly in the same position relative to the center as it was in the first file. It will be the first thing to stitch.

Stitch-Out Without Panic: Hoop #1 on Fabric + Stabilizer, Then Hoop #2 on Adhesive Stabilizer Only

This is the physical execution. Read this twice before walking to your machine.

Part A: Hoop #1 (The Foundation)

1. Hoop: Hoop your fabric with your standard stabilizer (tear-away or cut-away) as normal.
2. Load: leftside.pes.
3. Stitch: Run the design. Watch the Alignment Line stitch at the end.
4. Un-hoop: Remove the hoop from the machine and remove the fabric from the hoop.
5. CRITICAL: Do not pick out or remove the alignment line stitches. They are your roadmap.

Part B: Hoop #2 (The Floater)

1. Hoop: Hoop a piece of Adhesive Stabilizer (sticky paper) all by itself. Peel the paper to reveal the sticky surface.
   • Sensory Check: It should be tight. Tap it; it should sound like a drum.
2. Load: rightside.pes.
3. Stitch Color 1 Only: Run only the first color—the Alignment Line. It will stitch directly onto the sticky paper.
4. Match: Remove the hoop from the machine (put it on a flat table). Take your fabric from Part A. Match the stitched line on the fabric exactly on top of the stitched line on the sticky stabilizer.
5. Adhere: When the lines cover each other perfectly, press the fabric down firmly.
6. Finish: Put the hoop back in the machine and stitch the rest (the Wine Glass).

If you’ve been struggling with hooping for embroidery machine accuracy, this "adhesive stabilizer as a positioning bed" is the most forgiving way to learn because it separates hooping from aligning.

The “Why It Works” (So You Don’t Break It Next Time): Hooping Physics, Fabric Movement, and Repeatable Coordinates

Let's translate the principle into shop language.

1. The Software Lock: By using "Copy to New Page -> Center," you forced both halves to share the absolute center (0,0) of the hoop as their reference point.
2. The Physical Variable: Fabric is fluid. It stretches. By not re-hooping the fabric for the second pass (and using the sticky stabilizer method instead), you eliminate the distortion caused by pulling fabric rings together. You are essentially "gluing" the fabric in the perfect spot.
3. The Hidden Risk (Gravity): In production, I watch for "creep." If you pick up the fabric by one corner, gravity stretches the bias. When placing the fabric onto the sticky stabilizer, support the weight of the garment so it lays neutral.

If you find yourself doing this repeatedly (logos, team names), your hands will get tired. Consider setting up a consistent work surface—an embroidery hooping station can reduce the handling errors that add up over time.

Troubleshooting the Scary Stuff: When the Alignment Line Doesn’t Stitch, the Second Half Won’t Fit, or You’re Just Lost

Troubleshooting is a logical process of elimination. Start with the cheapest fix first.

Setup Checklist (Pre-Flight for Perfection)

Do not export your files until you can tick all these boxes:

• Hoop Size: Confirmed as 100 mm × 100 mm in software.
• Line Property: Alignment line is Vertical and Inside the boundary.
• Order Logic: Line is Object #2 in file 1, and Object #1 in file 2.
• Size Constraint: Line + Glass selection measures < 100 mm.
• The Golden Rule: You used Center in both new pages and did not touch them again.
• File Integrity: Saved as two separate files: leftside.pes and rightside.pes.


A Simple Stabilizer Decision Tree for This Exact Two-Hoop Method

Use this to decide your strategy.

Decision Tree (Hoop #2 Placement):

• Scenario A: You are following the video method (Float).
  • Action: Hoop Adhesive Stabilizer only.
  • Why: Safest for beginners. Minimizes fabric stretch.
• Scenario B: You don't have adhesive stabilizer.
  • Action: Hoop regular heavy tear-away + Spray Adhesive (e.g., 505 Spray).
  • Technique: Stitch the line on the stabilizer, lightly spray it, then adhere fabric.
  • Warning: Don't overspray near the machine to avoid gumming up the gears.
• Scenario C: You insist on hooping the fabric itself for Hoop #2.
  • Action: Use a removable marking pen instead of a stitched line.
  • Risk: High. It is very difficult to hoop a bulky garment perfectly straight twice. Expect rotation errors.


The Upgrade Path That Actually Matches This Workflow: Faster Re-Hooping, Less Hoop Burn, and Better Repeatability

Once you’ve proven the method works, the next bottleneck is rarely the software—it’s the physical limit of your tools.

Problem 1: Hoop Burn & "Pinch" Struggle

If you are working with delicate fabrics (velvet, performance wear) or thick items (towels), standard plastic hoops are a nightmare. They leave "hoop burn" (crushed fibers) that requires steaming to fix, and wrestling the inner ring causes wrist strain.

• The Solution: magnetic embroidery hoops.
• Why: These frames use magnetic force rather than friction. They snap onto the fabric without crushing fibers, making the "float" method we just discussed significantly faster and safer for the garment.

Warning: Magnetic Safety. These are not fridge magnets. They are industrial-strength neodymium magnets. Keep them away from pacemakers and implanted medical devices. Watch your fingers—they snap together with bone-pinching force.

Problem 2: Volume & Speed

If you master this technique and start getting orders for 50 team shirts, the "single needle swap" dance becomes a profit killer.

• The Solution: A Multi-Needle Machine (like the SEWTECH high-value series).
• Why: Moving from a 4x4 single needle to a multi-needle machine usually gives you a larger embroidery field (eliminating the need to split designs entirely!) and automates color changes.

When professional shops search for terms like how to use magnetic embroidery hoop or research multi-needle setups, it isn't just about cool gear—it's about solving the "time per unit" equation.

Operation Checklist (At the Machine)

Keep this list next to your machine so you don't "muck it up" in the heat of the moment:

• Hoop #1: Stitch leftside.pes on fabric + stabilizer. Includes alignment line.
• Preserve: Remove fabric but keep the alignment stitches intact.
• Hoop #2: Hoop adhesive stabilizer only.
• Trace: Stitch Color #1 of rightside.pes onto the stabilizer.
• Match: Align fabric line to stabilizer line. Press firmly.
• Finish: Return to machine, stitch the rest.
• Cleanup: Gently pick out the alignment stitches with a seam ripper after everything is done.

If you can execute this sequence cleanly once, you have unlocked the ability to stitch designs of any size, regardless of your hoop limits. Welcome to the next level of embroidery.

FAQ

• Q: In Embrilliance Essentials split designs, why does the alignment line show on screen but not stitch on the embroidery machine?
  A: Make the alignment line a real, separate object with its own color stop so the machine cannot merge it into another block.
  • Assign the alignment line a very different thread color in software (a “jarring” color) to force a color stop.
  • Verify stitch order: in leftside.pes the alignment line is the last color; in rightside.pes the alignment line is the first color.
  • Keep the alignment line inside the hoop boundary; if it sits outside, many machines ignore it or refuse to sew.
  • Success check: the machine visibly stops for a color change between the main design and the alignment line (file 1), and stitches the line first (file 2).
  • If it still fails: re-merge or re-create the line so it is not grouped with the design, then re-save both files.
• Q: With a 100 mm × 100 mm (4x4) embroidery hoop in Embrilliance Essentials, why won’t the rightside.pes file load or fit on the machine?
  A: The combined width of “alignment line + right-side design” is over 100 mm, so the file cannot fit the hoop.
  • Select only the objects intended for Hoop #2 (alignment line + right-side design) and read the selection width.
  • Nudge the right-side design closer to the alignment line until the selection width is under 100 mm.
  • Re-do the split: copy → new page → paste → unselect → CENTER → save again as rightside.pes.
  • Success check: the selection width displays under 100 mm and the machine accepts the file without a “too large”/fit refusal.
  • If it still fails: confirm the hoop size in software is set to 100 mm × 100 mm before saving.
• Q: In Embrilliance Essentials multi-hooping, why is there a gap or offset after pressing CENTER when stitching leftside.pes and rightside.pes?
  A: Any manual move after CENTER breaks the shared coordinate system, so the two halves will not land in the same place.
  • Repeat the split workflow exactly: copy → new page → paste → click off to unselect → CENTER.
  • Do not drag, nudge, or “fix” placement after centering—treat CENTER like a lock.
  • Keep the alignment line vertical and inside the hoop boundary in both files.
  • Success check: the stitched holes of the alignment line from Hoop #1 can be matched hole-for-hole to the alignment line stitched on the stabilizer in Hoop #2.
  • If it still fails: verify you centered the entire selection (not just one object) by unselecting before pressing CENTER.
• Q: For the two-hoop “float” method, what adhesive stabilizer and needle setup prevents fabric shifting between Hoop #1 and Hoop #2?
  A: Use a tacky (not gooey) adhesive stabilizer for Hoop #2 and a fresh 75/11 sharp needle to keep the alignment stitches precise.
  • Touch-test the adhesive: it should feel like a Post-it note (tacky), not wet or gummy.
  • Hoop the adhesive stabilizer by itself for Hoop #2 and peel the paper to expose the sticky surface.
  • Install a fresh 75/11 sharp needle before stitching alignment lines.
  • Success check: the hooped sticky stabilizer sounds “drum tight” when tapped, and the alignment line stitches look straight and consistent (no wandering).
  • If it still fails: switch to heavy tear-away + light spray adhesive as a backup placement method (avoid overspray near the machine).
• Q: In the two-hoop method, what is the safest physical stitching order for leftside.pes on fabric and rightside.pes on adhesive stabilizer to get repeatable alignment?
  A: Stitch Hoop #1 on fabric + stabilizer (including the alignment line), then stitch only the first color (alignment line) of Hoop #2 onto sticky stabilizer before sticking the fabric down.
  • Stitch leftside.pes completely on hooped fabric, and keep the alignment stitches intact when removing the fabric.
  • Hoop only adhesive stabilizer for Hoop #2, then stitch Color 1 only (the alignment line) onto the sticky surface.
  • Match the fabric’s stitched alignment line directly over the stabilizer’s stitched alignment line on a flat table, then press firmly before finishing the design.
  • Success check: the two stitched alignment lines fully overlap with no visible “shadow line,” then the second half stitches without drifting.
  • If it still fails: support the garment weight while placing it (avoid gravity stretch/creep) and smooth from the alignment line outward to prevent bubbles.
• Q: What needle-zone safety rule should beginners follow when test-stitching long running-stitch alignment lines on an embroidery machine?
  A: Treat alignment-line test stitches like full-speed production—keep fingers, hair, and loose sleeves away because the machine accelerates quickly on long strokes.
  • Clear the area around the needle before starting any alignment-line run.
  • Hold fabric away from the needle zone; do not “guide” the fabric during stitching.
  • Stop the machine before reaching in to adjust anything.
  • Success check: hands never enter the needle area while the machine is moving, even during a “quick test.”
  • If it still fails: pause and reposition your work surface so you can watch the stitch line without leaning into the needle zone.
• Q: If multi-hooping in a 4x4 hoop keeps failing due to fabric movement and slow re-hooping, when should embroidery users switch from technique tweaks to magnetic hoops or a multi-needle machine?
  A: Start by stabilizing the process, then upgrade tools only if the same failure repeats—magnetic hoops help repeatability and reduce hoop burn, and a multi-needle machine can reduce splitting and manual color-change time.
  • Level 1 (technique): use the float method—Hoop #2 is adhesive stabilizer only, and align by stitched line to stitched line.
  • Level 2 (tool): consider magnetic hoops if standard hoops cause hoop burn, pinch struggle, or inconsistent clamping during re-hoop/float placement.
  • Level 3 (capacity): consider a multi-needle machine when order volume makes repeated re-hooping and single-needle color changes the main bottleneck.
  • Success check: you can repeat the two-hoop alignment cleanly on scrap without gaps, and cycle time per piece becomes predictable.
  • If it still fails: document which step breaks (line not stitching, file not fitting, fabric shifting) and address that specific bottleneck before upgrading.
