Wilcom Underlay Settings That Actually Stitch Clean: Stop “Egg” Circles, Wavy Satins, and Bulletproof Fills

If you’ve ever stitched a “perfect” circle that came out looking like an egg—or a square that leaned into a rhombus—you’re not alone. That isn't just bad luck. That is physics, thread tension, and often, a missing foundation.

Embroidery is a physical battle. You are pushing a sharp needle through fabric thousands of times at high speeds. Without the right structural support, the fabric will pucker, pull, and distort.

In this Wilcom-focused masterclass, we’re going to rebuild that foundation. We will treat underlay not as an "extra step," but like framing a house. When the underlay is correct, your top stitches sit flatter, your edges stay sharper, and—crucially—you can reduce density without seeing the fabric through the thread.

Underlay in Wilcom Object Properties: the foundation that removes the fear of “making adjustments”

Underlay is a setting that intimidates new digitizers because it feels hidden. However, once you understand the physics, it becomes your most powerful tool. In Wilcom, you work inside Object Properties, but you must think in two distinct physical layers:

1. Underlay stitches: The "bones" or structural framing that stabilizes the fabric to the stabilizer.
2. Top stitches: The "siding" or cosmetic layer that covers the bones.

When you separate these functions, you stop guessing. You start making small, controlled millimeter-level changes that dramatically improve stitch quality.

The "Brothers" Concept: Think of Density (spacing) and Underlay as brothers. If the Big Brother (Underlay) is strong and supportive, the Little Brother (Density) doesn't have to work as hard. By building a solid underlay, you can often open up your top stitch spacing (reducing density), resulting in a soft, flexible patch instead of a stiff, "bulletproof" cardboard feel.

X-Ray View in Wilcom: read stitch angle like “bones” before you touch underlay

Before you change a single setting, you must diagnose what is already happening. Toggling settings blindly is how needles break.

In the workflow shown, the pro digitizer:

• Enables X-Ray view to see through the solid blocks of color.
• Hides the outer border temporarily to remove visual noise.
• Changes the fill color (to maroon) to create high contrast against the background.
• Confirms the fill stitch angle is 15°.

This is the professional habit that prevents wasted samples. You must identify the direction your top stitches are pulling so you can run your "joists" (underlay) against them.

The “Hidden” Prep most digitizers skip (and then blame the machine)

There is a "pre-flight" sequence you should perform before touching the underlay tab. If you skip this, no amount of underlay will fix the resulting distortion.

1. Confirm Object Type: Are you working with a Tatami fill (large area) or a Satin column (narrow line)? Mixing these rules causes messy embroidery. 2. Check the Physics: Use the X-Ray or wireframe view. You need to see the angle of the stitches. 3. Isolate the Problem: Hide borders and overlapping objects so you are only looking at the specific shape you are tuning.

Prep Checklist (Pre-Digitizing):

• X-Ray View Enabled: Can you clearly see the internal stitch direction?
• Top Stitch Angle Identity: Have you noted the exact angle (e.g., 15°) of the top fill?
• Object Type Confirmed: Are you applying Tatami rules to a Tatami object?
• Visual Isolation: Have you hidden borders to avoid analyzing the wrong object?
• Goal Defined: Are you fixing gaps, stiffness, or shape distortion?

The “Egg Theory” and rhombus distortion: why zero underlay ruins geometry—and profits

The tutorial demonstrates a harsh truth: Zero Underlay = Geometry Failure.

• A square fill stitched with zero underlay will slant into a rhombus.
• A circle without underlay will deform into an egg—the sides aligned with the stitch direction will pull in, while the perpendicular sides push out.

This is "Push and Pull" compensation in action.

The Financial Impact: If you stitch for yourself, distortion is annoying. If you run a business, distortion kills profit. Every distorted logo on a polo shirt is a ruined garment that costs you money to replace.

If you find that your underlay is perfect but your shapes still shift, the culprit is likely physical movement. No software setting can fix a loose hoop. This is where hardware upgrades become necessary. Many professionals switch to magnetic embroidery hoops because they grip fabric firmly without the "hoop burn" or slippage common with traditional plastic rings. If the fabric moves 1mm, the design is ruined; a strong magnetic grip ensures your digital underlay decisions actually translate to the physical garment.

Tatami underlay in Wilcom: the Perpendicular Rule (90°) that keeps fills crisp

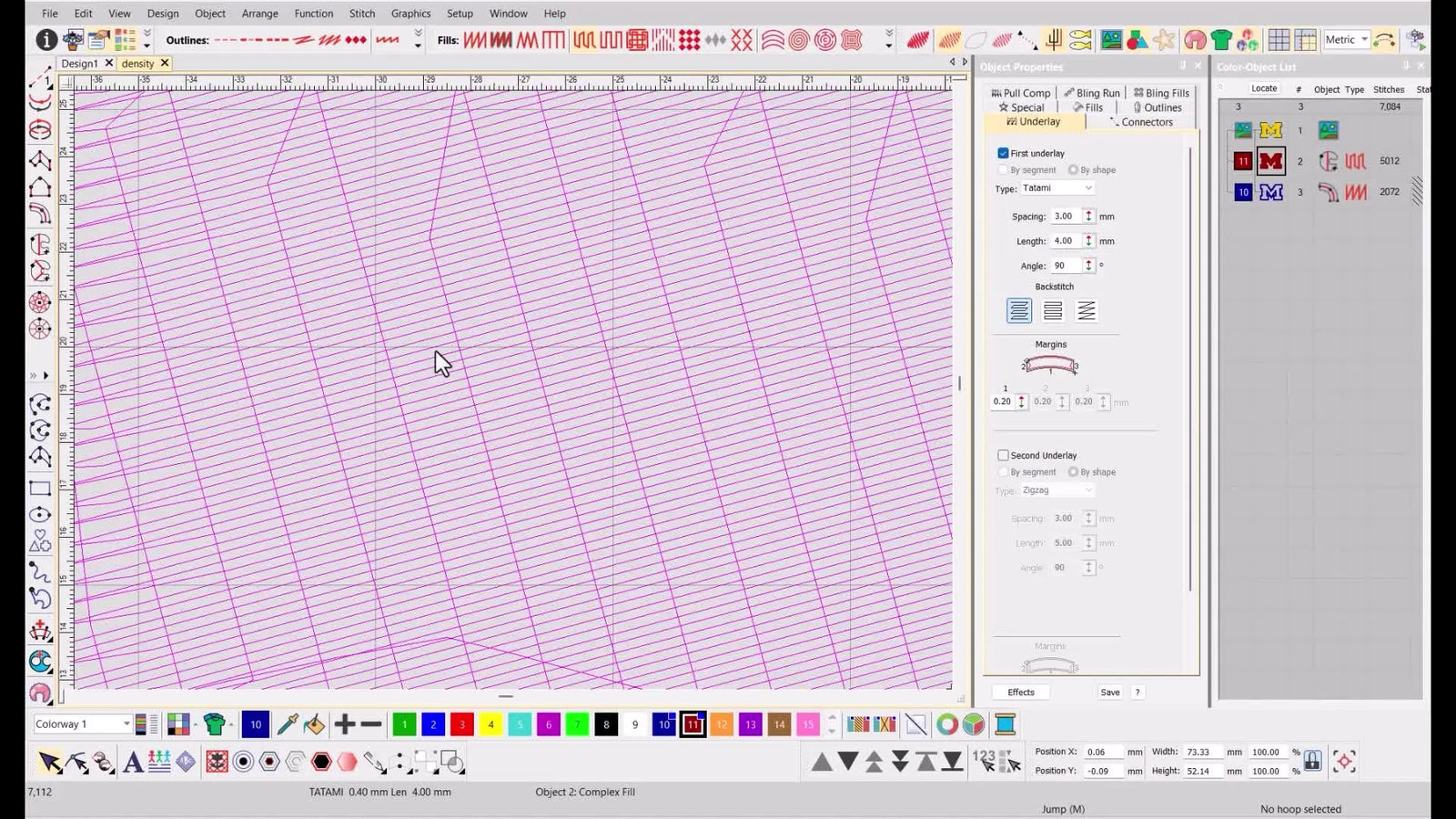

For large fill areas (Tatami fills), the presenter goes into Object Properties → Underlay and sets:

• Underlay 1: Tatami (do not use Zigzag for large fills unless necessary).
• Underlay Angle: 90° (perpendicular) relative to the top stitches.
• Spacing: Shown at 4.0 mm.

The rule is non-negotiable for standard fills:

The Golden Rule: Your Tatami underlay must run perpendicular to your top stitches.

Why? Think of a wooden deck. You lay the floorboards (top stitches) across the joists (underlay). If you ran them in the same direction, the floor would collapse. Perpendicular underlay supports the top thread, preventing it from sinking into the fabric's weave.

Warning: When testing new underlay settings, never put your hands near the needle bar to "feel" the fabric while the machine is running. A generic 800 SPM (Stitches Per Minute) speed means the needle strikes 13 times per second. Keep fingers clear of the embroidery foot area at all times.

The one Tatami underlay mistake that adds bulk but not structure

The tutorial highlights a common rookie mistake:

• Do not run Tatami underlay parallel (0°) to the top stitches.

If your underlay runs at the same angle as your top stitch, you are simply piling thread on top of thread. This creates a "ridge" effect, adds unnecessary bulk, stiffens the garment, and provides zero structural support against the pull of the fabric.

Double Tatami underlay in Wilcom: why it flips to 45° (and when that’s useful)

The video demonstrates that if you select "Double Tatami" (using Tatami for both Underlay 1 and Underlay 2), Wilcom automatically creates a cross-hatch pattern and usually shifts the angle to 45°.

This is the software helping you avoid the parallel mistake. By crossing the angles, it creates a mesh-like net that stabilizes the fabric in all directions. Use this for difficult fabrics like pique knits or unstable performance wear where you need maximum stability.

Pro Tip: Double Tatami is effective but heavy. Only use it when a single perpendicular layer isn't enough to stop the fabric from shifting.

Density vs underlay in Wilcom: how opening spacing from 0.40 to 0.44 can save stitches without losing coverage

Here is a measurable tradeoff that saves production time. The presenter demonstrates:

• Top Stitch Spacing: Adjusted from 0.40 mm (tighter) to 0.44 mm (looser).
• Stitch Count Drop: A reduction of roughly 400 stitches on a small object (from ~5700 to ~5300).

The Sensory Check: If your patch feels like a piece of cardboard or "bulletproof," your density is likely too high.

1. Strengthen underlay: Ensure it is perpendicular and supportive.
2. Reduce density: Open the spacing to 0.42mm or 0.45mm.

The result is a design that covers the fabric but flows and drapes naturally. For commercial shops, shaving 10% off the stitch count without losing quality means 10% faster production runs. If you are already optimizing files like this and still can't keep up with orders, it might be time to look at equipment that matches your efficiency—such as moving from a single-needle machine to a SEWTECH multi-needle system, where you don't lose time manually changing threads 15 times per design.

Edge Run underlay for Tatami fills: the perimeter trick that makes corners look “expensive”

After setting the internal structural Tatami underlay, the presenter adds:

• Underlay 2: Edge Run

Edge Run travels around the exact perimeter of the shape before the fill begins. It acts like the outline in a coloring book. It gives the Tatami fill a sharp wall to bounce off of, ensuring crisp corners and defined edges.

Setup habits that prevent “why are my edges fuzzy?” moments

You are building a house. Tatami is the floor joist; Edge Run is the perimeter wall.

Setup Checklist (Software Configuration):

• Tatami Selected: Used for large fill objects (avoid generic Zigzag here).
• 90° Rule Verified: Is Underlay angle perpendicular to top stitch angle?
• Spacing Standard: Is spacing set to a standard ~3.0mm - 4.0mm?
• Edge Run Enabled: Have you turned on Edge Run for sharp definition?
• Density Balanced: Did you increase spacing (e.g., 0.44mm) now that underlay is strong?

Satin underlay by column width: 2.5 mm Center Run, 4 mm Edge Run, 6 mm+ Double Zigzag

Satin stitches (columns) have different physical requirements than fills. The type of underlay depends entirely on the width of the column.

Narrow satin (~2.5 mm): Center Run only

For a delicate satin column around 2.5 mm:

• Select: Center Run only.
• Avoid: Edge Run or Zigzag (they might poke out).
• Settings: Run length ~2.2 mm.


Why? A Center Run acts like a guide rail. Without it, thin satin stitches can look squiggly or wavy, like a worm. The center run keeps the column straight and elevated.

Small text: when to shorten run length

• Rule: For tiny text (<5mm height), reduce run length to 1.8 mm. This prevents the machine from making long jumps that might loop or snag on small letters.

Medium satin (~4 mm): add Edge Run for structure

When width hits 4 mm, a single center line isn't enough.

• Add: Edge Run.

This supports the "walls" of the wider column so the stitches don't collapse.

Large satin (6 mm+): Zigzag, and sometimes Double Zigzag

For wide columns (6–8 mm+):

• Select: Zigzag or Double Zigzag.

Wide satin stitches are loose and vulnerable to snagging. They need a "loft" to sit on to maintain tension and volume.

Logic Check: If a satin border sits on top of a Tatami fill, that fill acts as underlay. You may not need heavy satin underlay in that specific overlap.

Edge Run margin in Wilcom: how to “tuck in” underlay so it doesn’t peek on curves

There is nothing more amateur-looking than white underlay stitches poking out from under a navy blue satin border. This usually happens on sharp curves.

The Fix: Edge Run Margin

• Standard: 0.35 mm (Good for straight lines).
• Tight Curves: Increase to 0.6 mm – 0.7 mm.

By increasing the margin, you force the underlay to sit further inside the column ("tucking it in").

Real-world Q&A fixes: jump length worries, travel on edge, and thin satin borders over fills

Common questions from the embroidery floor, answered with production safety in mind.

“Does it matter if Zigzag is underlay 1 or underlay 2?”

Answer: It is personal preference, but the general consensus is Zigzag first, then Edge Run.

• Reasoning: Build the loft (Zigzag) first, then define the clean edge (Edge Run) to hold it all in.

“Why use Center Run on 1–2 mm satin at all?”

Answer: To prevent "Worming." Even on a 1.5mm column, without a center run, the thread tension can pull the fabric, making the line look wavy. Center run provides a straight anchor. Sensory Check: It makes the satin look like a drawn ink line rather than a piece of yarn lying on the fabric.

“Can Wilcom measure stitch jumps so I don’t overkill the machine?”

Answer: Long jumps create huge risks for thread breaks and needle deflection.

• Action: Use Wilcom’s "Connector" settings to limit jump length (e.g., force a trim if the jump is >7mm). Always check your machine manual for its specific jump limits.

“Travel on edge” for fill stitches—can it be used?

Answer: Use with caution. Traveling on the edge reduces trims (which saves time), but on thin fabrics, you might see the travel line through the gaps. Workflow Upgrade: If you are obsessed with saving trims to increase speed, the better solution is often stabilizing the fabric so perfectly that you don't worry about gaps. A hooping station ensures your placement is identical every time, reducing the need for "emergency" digitizing tricks to hide alignment errors.

Decision tree: choose stabilizer strategy by fabric behavior

Underlay cannot fix a bad stabilizer choice. Use this logic flow before you digitize.

Decision Tree: Fabric & Stabilization

1. Is the fabric STABLE? (Denim, Canvas, Twill)
   • YES: Use Tearaway or Cutaway. Rely on standard Underlay (Perpendicular Tatami).
   • NO: Go to step 2.
2. Is the fabric STRETCHY? (T-shirts, Polos, Performance Knits)
   • YES: Must use Cutaway. (Tearaway will result in broken stitches). Consider Double Tatami underlay (45°) for extra support.
   • NO: Go to step 3.
3. Is the fabric TEXTURED/FLUFFY? (Towels, Fleece, Velvet)
   • YES: Use Cutaway (Backing) AND Water Soluble Topping (on top). Increase Underlay density to prevent stitches sinking into the pile.
   • NO: Proceed with standard setup.

Hidden Consumables:

• Spray Adhesive: Essential for floating fabric or securing slippery material to stabilizer.
• Water Soluble Pen: For marking centers without ruining the garment.
• Top Starch: For crisp lettering on wobbly knits.

The “don’t waste garments” troubleshooting table: symptom → cause → fix

When things go wrong, do not guess. Look at the symptom.

The upgrade path that actually makes sense: when hooping consistency becomes your quality bottleneck

Digitizing software like Wilcom is powerful, but it relies on the physical world being stable. If your file is perfect, but your hooping varies from shirt to shirt, your results will be inconsistent.

Diagnostic: Do you need a tool upgrade?

• Trigger: You see "Hoop Burn" (shiny rings) on delicate fabrics, or you struggle to hoop thick jackets.
  • Solution Level 1: Use "floating" techniques with spray adhesive.
  • Solution Level 2 (Tool): Switch to magnetic embroidery hoop sets. These clamp shut automatically without force, eliminating hoop burn and holding thick seams securely.
  • Magnet Safety Warning: > Warning: Magnetic hoops contain neodymium magnets. They are incredibly strong. Keep away from pacemakers. Watch your fingers—they can pinch severely. Do not let children handle them.
• Trigger: You are spending more time changing thread colors than running the machine.
  • Criteria: Are you rejecting orders of 20+ shirts because you can't finish them on a weekend?
  • Solution Level 3 (Scale): This is the threshold for a Multi-Needle machine. A machine like the SEWTECH commercial series allows you to set up 15 colors at once and walk away. This turns "babysitting" time into profitable production time.

The final stitch-out mindset: test like a pro, not like a gambler

Underlay is proven at the machine level. The screen lies; the thread tells the truth.

Pro Test Method: Run your design on a scrap of piece of fabric identical to your final garment (use an old shirt or buy yardage of similar knit).

Operation Checklist (Final Pass/Fail):

• Geometry Check: Is the circle a circle? Measure diameter N-S and E-W.
• Satin Straightness: Are thin borders straight, with no waviness?
• Edge Cleanliness: Is any white underlay visible at the corners?
• Fold Test: Fold the embroidery. Does it bend, or does it feel like a hard plastic chip? (It should bend).
• Density Check: Can you see the fabric color through the fill? (If yes, tighten density slightly or check underlay angle).

By systematically building your underlay—joists for fills, rails for satins—you stop hoping for a good result and start engineering one.

FAQ

• Q: In Wilcom Object Properties, why do Tatami fill circles turn into “eggs” and squares turn into rhombuses when Tatami Underlay is set to zero?
  A: Set a structural Tatami underlay—zero underlay commonly causes push/pull distortion that breaks geometry.
  • Enable X-Ray (or wireframe) and note the exact top stitch angle (example shown: 15°).
  • Set Underlay 1 to Tatami and set the underlay angle to 90° (perpendicular) to the top stitches.
  • Keep underlay spacing around the standard range shown (about 3.0–4.0 mm; example shown: 4.0 mm).
  • Success check: Stitch a test—measure the circle diameter N–S and E–W; the shape should match closely instead of “egg” deformation.
  • If it still fails: Check hooping grip—software cannot fix fabric movement in a loose hoop.
• Q: In Wilcom Tatami fills, why does a Tatami underlay angle of 0° (parallel to top stitches) make embroidery feel “bulletproof” but still not stabilize the fabric?
  A: Change the Tatami underlay to run perpendicular, because parallel underlay stacks thread bulk without adding structure.
  • Open Object Properties → Underlay and set the Tatami underlay angle to 90° relative to the top stitch angle.
  • Avoid “piling thread on thread” by not matching underlay angle to the top stitch angle.
  • Re-check top stitch spacing after underlay is corrected (you may be able to open spacing and keep coverage).
  • Success check: Feel the sample—embroidery should bend instead of behaving like stiff cardboard.
  • If it still fails: Reduce top stitch density slightly (example shown: spacing 0.40 mm to 0.44 mm) after confirming underlay is perpendicular.
• Q: In Wilcom, how do you stop Edge Run underlay from peeking out on curved satin borders when stitching dark thread over light underlay?
  A: Increase Wilcom Edge Run Margin to “tuck” the underlay inside the satin column, especially on tight curves.
  • Set Edge Run Margin to a standard starting point (example shown: 0.35 mm) for straighter areas.
  • Increase Edge Run Margin on tight curves (example shown: 0.6–0.7 mm) to pull underlay inward.
  • Re-stitch only the border on a scrap to verify the curve behavior before committing to a full garment.
  • Success check: Visually inspect corners/curves—no light underlay should be visible outside the satin edge.
  • If it still fails: Reconfirm column width vs underlay type (Center Run / Edge Run / Zigzag) so the border isn’t being overbuilt.
• Q: In Wilcom satin columns, what underlay should be used at 2.5 mm, 4 mm, and 6 mm+ column widths to prevent “wormy” or collapsing satin?
  A: Match satin underlay to column width: Center Run (~2.5 mm), add Edge Run (~4 mm), and use Zigzag/Double Zigzag (6 mm+).
  • Use Center Run only for narrow satin around 2.5 mm (example run length shown: ~2.2 mm).
  • Reduce run length for tiny text under 5 mm height (example shown: 1.8 mm) to avoid long jumps that loop/snags.
  • Add Edge Run when satin width reaches about 4 mm to support the “walls.”
  • Switch to Zigzag or Double Zigzag when satin is wide (about 6–8 mm+) to add loft and reduce snag vulnerability.
  • Success check: Thin satin should look like a clean ink line (not wavy “worming”), and wide satin should look full without collapsing.
  • If it still fails: If the satin border sits on top of a Tatami fill, treat that fill as support and reduce overly heavy satin underlay.
• Q: What is the safest way to test new Wilcom underlay settings on an 800 SPM embroidery machine without risking finger injury near the needle bar?
  A: Never put hands near the needle/foot area during a run—test underlay changes using controlled samples and visual checks only.
  • Run the design on scrap fabric that matches the final garment (same knit/weave and similar stabilizer).
  • Stop the machine completely before touching the hoop, fabric, or checking the underside.
  • Inspect results after the run: edge clarity, underlay visibility, stiffness, and shape accuracy.
  • Success check: You can complete the test run without reaching into the needle/foot area, and the sample shows the intended improvement.
  • If it still fails: Make one small change at a time (angle, spacing, margin) and retest—avoid “blind toggling” that can cause breaks.
• Q: What consumables and stabilization choices should be prepared before digitizing Wilcom underlay for stretchy knits, fluffy towels/fleece, and stable denim/twill?
  A: Choose stabilizer by fabric behavior first—underlay cannot compensate for the wrong backing or missing topping/adhesion.
  • Use Tearaway or Cutaway for stable fabrics like denim/canvas/twill (standard underlay rules apply).
  • Use Cutaway for stretchy knits (tearaway commonly fails on stretch); consider Double Tatami underlay only when extra stability is needed.
  • Use Cutaway backing plus water-soluble topping for textured/fluffy fabrics (towels/fleece/velvet) to prevent stitches sinking.
  • Keep key consumables ready: spray adhesive (for floating/slippery fabric), water-soluble pen (for center marks), and top starch (for crisper lettering on wobbly knits).
  • Success check: Fabric stays flat during stitching with reduced puckering, and the top surface remains readable (no sink-in on pile fabrics).
  • If it still fails: Re-check hooping grip consistency—unstable hooping can override correct stabilizer and underlay choices.
• Q: When embroidery puckers or shifts even after correct Wilcom underlay settings, when should a shop move from hooping technique fixes to magnetic embroidery hoops or a multi-needle embroidery machine?
  A: Escalate in levels: optimize technique first, then upgrade hooping stability with magnetic hoops, then scale production with a multi-needle system if color changes are the bottleneck.
  • Level 1 (Technique): Tighten hooping using a consistent “drum skin” feel; float with spray adhesive when needed to reduce hoop marks and movement.
  • Level 2 (Tool): Use magnetic embroidery hoops when hoop burn, slippage, or thick seams/jackets make consistent tension hard to achieve.
  • Level 3 (Scale): Move to a multi-needle embroidery machine when thread-change downtime limits order volume (example trigger: repeatedly turning down 20+ shirt orders due to time).
  • Success check: The same file stitches consistently from garment to garment (no 1 mm shifts causing visible misalignment/distortion).
  • If it still fails: Re-test the design on identical scrap fabric to separate digitizing issues (angle/margin/density) from hooping movement.
