A Clean Barbie Appliqué on a Tiny Ruffle Shirt: Embrilliance Kerning + 8x9 Magnetic Hoop Setup (Without the Usual Headaches)

The "Cute Shirt" Survival Guide: Mastering Toddler Ruffles, Appliqué, and Magnetic Hoops for Pro Results

When you are embroidering a size 3T toddler ruffle shirt, you are effectively juggling three chaotic elements at once: a garment designed to twist rather than lay flat, a multi-layer appliqué that threatens to shift if you rush, and a customer (or mom) who expects the finish to look like it came from a high-end boutique.

This Barbie-themed order is the perfect case study for transforming anxiety into a repeatable production workflow. We are going to tighten up lettering in Embrilliance, conquer the difficult task of hooping a small garment using a magnetic frame, and stitch a mixed-media appliqué using black embroidery vinyl and fabric with Heat n Bond Lite.

More importantly, I am going to walk you through the "why" behind every button we press—including specific speed settings, tension sensations, and safety clearances—so you never have to guess again.

Don’t Panic—A “Cute Shirt” Order Still Needs a Production Mindset

Small shirts are deceptively difficult. The ruffles add bulk that lifts the hoop mechanism, the side seams create uneven pressure points, and the fabric area is often smaller than the hoop itself.

The workflow we are breaking down today is built around three safety anchors:

1. Software Safety: Fixing the design file before the machine is even turned on.
2. Mechanical Stability: Stabilizing and hooping so the fabric cannot creep (the root cause of gaps).
3. Physical Clearance: Verifying the path with a trace to protect your eyes and your machine.

One viewer raised a critical point: they had a shirt stitch perfectly, but the finished product looked "backwards." This isn't a stitching error—it is a cognitive orientation error. We will address exactly how to prevent that nightmare scenario in the troubleshooting section.

The “Hidden” Prep Pros Do First: Embrilliance Kerning, Materials, and a Written Stitch Plan

Before you touch the hoop, we need to set the stage. A chaotic setup leads to thread breaks; a calm setup leads to boring (in the best way) machine runs.

1. Fix Unattractive Font Spacing (Kerning)

In the video, Amber opens the file in Embrilliance. She doesn't just hit "save." She isolates letters individually and drags them closer.

Why this matters: Default font spacing is mathematical, not optical. It leaves awkward gaps between letters like 'A' and 'V' or 'T' and 'o'.

• The Pro Standard: Don’t settle for the default. If you are learning Embrilliance software letter spacing, the goal is "optical evenness."
• Visual Anchor: Look at the negative space between the letters. The volume of white space should feel consistent, even if the distance between the serifs varies.

2. Gather Appliqué Materials (The "Two Rules" System)

This project uses two different materials, and treating them the same will cause failure.

• Material A: Black Embroidery Vinyl. This material is stable and does not fray. Rule: Do NOT use Heat n Bond. It naturally lays flat.
• Material B: Pink Woven Cotton (The Bow). This frays and shifts. Rule: You MUST use Heat n Bond Lite.

3. The Analog Backup: Write It Down

Amber uses a physical notepad to write the color sequence.

• Why: Digital screens time out. Brain fog happens. A written list is your hard copy prevents you from stitching a black outline in pink thread.

Prep Checklist: The "Hidden" Consumables

Do you have these ready?

• Clean Appliqué Scissors: Duckbill or curved tip (double curved is best for hoop clearance).
• Machine Oil: For the rotary hook.
• Fresh Needle: Size 75/11 Ballpoint (for knits) or 75/11 Sharp (if going through heavy vinyl).
• Heat n Bond Lite: For the fabric bow only.
• Stabilizer: Cutaway (Mesh or Medium Weight). Never use Tearaway on a toddler knit shirt—the stitches will pop when the child pulls the shirt over their head.
• Design Orientation Verified: Is the shirt inside out or right side out?


Hooping a 3T Ruffled Sleeve Shirt: The Physics of Magnetic Holding

The video demonstrates using an 8x9 magnetic hoop. On a tiny ruffled shirt, this tool is not just a luxury; it is a sanity saver. Traditional screw hoops require you to pull the fabric to get it tight, which distorts the ribbing (the "smile" effect).

If you are researching hooping for embroidery machine techniques for children's wear, you likely know the struggle of "hoop burn"—those crushed rings of fabric left by standard hoops.

The Magnetic Advantage (Physics & Feel)

1. The Bottom Ring: Goes inside the shirt with the stabilizer. It creates a flat platform.
2. The Alignment: You have seconds to adjust the center point without fighting a screw.
3. The Snap: The top frame locks down vertically.
   • Sensory Check (Tactile): You should feel the fabric is taut like a "drum skin," but the ribbing of the shirt should not look stretched out or distorted. If the vertical ribs are curved, you have pulled too tight.

For those looking up how to use magnetic embroidery hoop videos, remember this golden rule: Smooth, don't Tug. Let the magnets provide the tension.

Warning: Magnet Safety
Magnetic hoops (especially industrial/commercial grade) have extreme pinching force.
* Do not place fingers between the rings when snapping.
* Do not let the rings "slam" together uncontrollably.
* Keep away from pacemakers and sensitive electronics.

The 60-Second Machine Reset: Clean, Oil, and Bracket Adjustment

Amber cleans lint and oils the rotary hook before the project. This is the difference between a hobbyist and a pro.

1. The Auditory Cleaning Check

• Action: Remove the bobbin case. Brush out the lint. Add one drop of oil to the race (if your manual permits).
• Sensory Check (Auditory): A dry machine sounds "clunky" or "raspy." An oiled machine has a smooth, consistent "hum." If it sounds like a tractor, it needs oil.

2. Bracket Width Adjustment

She loosens the screws on the machine arms to fit the 8x9 8x9 mighty hoop style frame.

• The Trap: If you force a hoop into brackets that are 2mm too narrow, you warp the hoop and stress the pantograph motor.
• The Fix: Loosen the screws, insert the hoop until it clicks, then tighten the screws.




The Trace Test: Your Safety Net Against Disaster

In the video, Amber runs the "Trace" function. This moves the hoop around the design's perimeter without stitching.

Why is this non-negotiable? On a metal magnetic hoop, the frame is thicker and wider than plastic hoops. If your needle lowers while the hoop is moving, or if the needle bar hits the metal frame, you risk:

1. Shattering the needle (flying metal shrapnel).
2. Throwing off the machine's timing (expensive repair).

Warning: Mechanical Safety
During the "Trace" function and the first 100 stitches:
* Wear glasses (prescription or safety) in case of needle shatter.
* Keep hands clear. Do not try to smooth the fabric while the machine is moving.

Setup Checklist (Pre-Flight)

• Bobbin Check: Is the bobbin full? (Running out mid-satin stitch is a nightmare).
• Bracket Security: Are the thumb screws on the hoop arms tight? Wiggle the hoop—it should not move.
• Clearance Trace: Did the presser foot clear all metal parts of the magnetic hoop?
• Speed Setting: Reduce speed. For intricate satin columns on a 3T shirt, dry running at 1000 SPM is risky. Set your machine to 600-700 SPM for better control.

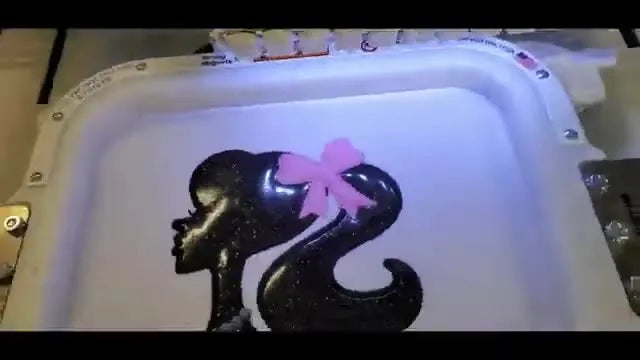

The No-Fusible Vinyl Appliqué: Placement → Lay → Tack → Trim

We start with the black silhouette.

Step 1: Placement & Lay

The machine stitches a single run line (Outline). Place your black embroidery vinyl over it.

• Note: We do not use adhesive here. The vinyl is heavy enough to sit still if you don't bump it.

Step 2: The Tack-Down & Trim

After the machine tacks the vinyl down, remove the hoop (or slide it forward if possible) to trim.

• Technique: Use your "duckbill" scissors.
• Sensory Anchor (Tactile): Rest the flat "bill" of the scissors on the vinyl. You should feel it glide against the stitch line.
• Action: Rotate the hoop, not your wrist. Cut cleanly. Any jagged tag of vinyl will poke through the satin stitch later.

Pro Tip on Search Intent: When looking for applique embroidery vinyl tutorial content, always check if the instructor recommends fusible backing. For vinyl, the answer is almost always "No"—fusible backing creates a gummy mess with vinyl heat.

The Bow Layer: Fabric + Fusible (The "Sticker" Method)

While the long satin stitch runs on the black vinyl (which takes time), prep the bow.

The Heat n Bond Protocol

1. Cut: Pink fabric slightly larger than the bow.
2. Fuse: Iron Heat n Bond Lite to the back of the fabric.
   • Time: 3-5 Seconds. No steam.
3. Peel: Remove the paper backing. The back of the fabric should now look shiny/glossy.




Final Assembly: The Value of Patience

1. Placement Stitch: Run it for the bow location.
2. Stick: Place the pink fabric. Use a small travel iron to fuse it inside the hoop (carefully!) or just tape it if you are worried about heat near the hoop. The fusible makes it stiff like cardstock, reducing bubbling.
3. Trim & Satin: Trim close.

Visual Success Metric: Before the final satin stitch starts, inspect your trimming. If you see "whiskers" of fabric extending 2mm past the tack-down line, trim them now. The satin stitch will not cover them.

The "Backwards Shirt" Cognitive Trap

A viewer commented that their shirt looked flipped. This is common with "mirror mode" mistakes or hooping inside-out garments.

The Fix:

• Physical Reality Check: Before snapping the hoop, hold the shirt up against your own chest. Where is the neck? Where is the sleeve?
• Screen Check: Does the design on the screen match the shirt orientation?
• Mirror Mode: Ensure you didn't accidentally toggle the "Mirror Image" icon on your screen.

Stabilizer Decision Tree: Stop Guessing

Which stabilizer should I use for kids' clothes?

Note: If you find hooping stabilizing layers difficult with standard hoops, this is where adding a magnetic hooping station or a magnetic frame allows you to sandwich layers without them slipping apart.

Troubleshooting the "Shop Floor" Snags

Symptom 1: Gaps between the border and the fabric (The fabric "pulled away").

• Likely Cause: The shirt was hooped too loosely, or you used tearaway stabilizer on a knit.
• The Fix: Use cutaway stabilizer. Ensure the fabric is "drum tight" (but not distorted) in the magnetic hoop.
• Level 2 Fix: Use a spray adhesive (temporary) to bond the shirt to the stabilizer.

Symptom 2: White thread showing on top (Bobbin showing).

• Likely Cause: Top tension is too tight, or the bobbin path is dirty.
• The Fix: Cleaning (as done in the Prep section). If clean, lower the top tension slightly.
• Sensory Anchor: When pulling top thread through the needle (foot up), it should pull with slight resistance/drag. If it feels like it's locked, it's too tight.

Symptom 3: Needle Breaks/Hits Frame.

• Likely Cause: Brackets not adjusted or design too close to edges.
• The Fix: Always run a Trace.

Finishing Like a Pro

The video concludes with a reveal.

1. Tear away the excess stabilizer (cut the cutaway, tear the tearaway).
2. Lint roll the garment.
3. Care Card: Include a card for the customer: "Wash cold inside out, hang dry." This protects your vinyl from melting in a hot dryer.




The Upgrade Path: Meaningful Tool Investments

If you are doing one shirt a month, standard tools are fine. But if you felt frustration reading this—if your wrists hurt from screwing hoops tight, or you dread the "re-hoop" because you messed up the alignment—it is time to look at your tools as an investment in yield.

1. The "Safety & Speed" Upgrade: A magnetic embroidery hoop solves the pinch-distortion problem. For commercial production, it cuts hooping time by 40%.
2. The "Volume" Upgrade: If you have orders for 20 team shirts, a single-needle machine will bottleneck you. Moving to a multi-needle machine (like the SEWTECH ecosystem) allows you to queue colors without manual thread changes, drastically increasing profit per hour.

Verification & Operation Checklist

• Watch the Placement: Did the machine stitch the outline exactly where you expected?
• Bubble Check: Is the vinyl laying flat before tack-down?
• Trimming Patience: Did you verify no loose threads are in the path before the final satin stitch?
• Final Inspection: Did you trim the stabilizer on the back close to the design (1/4 inch) so it doesn't scratch the child's skin?

By combining the precision of software prep, the grip of magnetic hoops, and the patience of specific material handling, you turn a stressful "Barbie shirt" order into a repeatable, profitable standard operating procedure. Happy stitching!

FAQ

• Q: What stabilizer should be used for embroidering a 3T toddler knit ruffle shirt on a multi-needle embroidery machine?
  A: Use cutaway stabilizer for toddler knit shirts to prevent stitches from popping and the design from shifting during wear.
  • Choose Medium Weight Cutaway for standard tees, or No-Show Mesh (often in 2 cross-hatched layers) for thin/slinky knits.
  • Add Solvy topper when ruffles or texture could let stitches sink.
  • Avoid tearaway on toddler knits because the fabric stretches and the embroidery can fail when the shirt is pulled on/off.
  • Success check: The shirt stays flat after stitching and the design does not ripple or “wave” when the garment is stretched lightly by hand.
  • If it still fails… Re-check hoop tension (too loose is common) and consider temporarily bonding the shirt to the stabilizer with spray adhesive.
• Q: How can a magnetic embroidery hoop be used to hoop a size 3T ruffled shirt without hoop burn or ribbing distortion?
  A: Use a magnetic hoop to “smooth, don’t tug,” letting the magnets create even tension instead of stretching the knit.
  • Insert the bottom ring inside the shirt with the cutaway stabilizer to create a flat platform.
  • Align the center point, then lower the top frame straight down—do not pull the fabric sideways.
  • Adjust until the fabric is taut before snapping fully closed.
  • Success check: The fabric feels “drum tight,” but the knit ribs stay straight (not curved into a “smile”).
  • If it still fails… Re-hoop with less pull and check that bulky ruffles or side seams are not sitting under the hoop edge.
• Q: What are the required safety steps for running the Trace function with a metal magnetic hoop on a multi-needle embroidery machine?
  A: Always run a Trace and verify presser-foot clearance to prevent needle shatter and frame strikes.
  • Run the machine’s Trace so the hoop travels the design perimeter without stitching.
  • Watch the entire path and confirm the presser foot clears all metal parts of the magnetic hoop.
  • Wear glasses and keep hands away during Trace and the first ~100 stitches.
  • Success check: The traced path completes with no contact, clicking, or near-misses at the hoop edges.
  • If it still fails… Move the design away from the hoop boundary and re-check that the hoop brackets are properly adjusted for the hoop width.
• Q: How can hoop brackets be adjusted when installing an 8x9 magnetic embroidery hoop so the embroidery machine does not stress the pantograph?
  A: Loosen the bracket screws, seat the hoop correctly, then tighten—never force a hoop that is slightly too wide.
  • Loosen the screws on the machine arms/brackets before inserting the hoop.
  • Insert the hoop until it clicks into place, then tighten the screws.
  • Wiggle-test the hoop before stitching to confirm it is locked and stable.
  • Success check: The hoop seats smoothly without resistance, and the hoop does not shift when gently wiggled.
  • If it still fails… Stop and re-seat the hoop; forcing the fit can warp the hoop and create ongoing strike/trace problems.
• Q: What is the fastest pre-run maintenance routine (cleaning and oiling) to reduce thread breaks on a multi-needle embroidery machine before stitching a toddler shirt?
  A: Do a 60-second lint clean and oil check at the rotary hook area before starting to prevent rough running and tension issues.
  • Remove the bobbin case and brush out lint from the hook area.
  • Add one drop of oil to the race only if the machine manual allows it.
  • Reinstall the bobbin case carefully and verify smooth thread path.
  • Success check: The machine sound changes from “clunky/raspy” to a smooth, consistent hum.
  • If it still fails… Re-check for lint in the bobbin path and confirm the bobbin is correctly seated and not running low.
• Q: What should be done when white bobbin thread shows on top during satin stitching on a toddler shirt embroidery design?
  A: Clean the bobbin path first, then slightly lower top tension if needed—bobbin showing is usually top-tension too tight or a dirty bobbin path.
  • Clean lint from the hook/bobbin area and reinstall the bobbin case.
  • Test pull the top thread with the presser foot up; it should have slight, smooth resistance (not locked).
  • Adjust top tension slightly if the machine is clean and the problem persists.
  • Success check: Satin stitches look filled and glossy with no white bobbin peeking on the surface.
  • If it still fails… Slow the machine down (600–700 SPM is safer for intricate satin) and re-check needle condition and threading.
• Q: What should be done when gaps appear between the satin border and appliqué fabric on a toddler knit shirt embroidery project?
  A: Treat gaps as fabric creep: re-hoop tighter (without distortion) and use cutaway stabilizer; add temporary spray adhesive if layers are slipping.
  • Switch to cutaway stabilizer if tearaway was used on a knit shirt.
  • Re-hoop so the fabric is taut like a drum but the knit ribs are not stretched or curved.
  • Bond the shirt to the stabilizer with temporary spray adhesive to reduce shifting during stitching.
  • Success check: The border stitches land cleanly on the appliqué edge with no “pull-away” gaps after the run.
  • If it still fails… Verify the hoop is mechanically secure in the brackets and run another Trace to confirm no movement or edge interference.
