Break the Brother SE625 4x4 Limit: A Calm, Repeatable Repositional Hoop Workflow That Actually Lines Up

If you own a Brother SE625 (or any 4x4-only Brother in the same family), you’ve probably hit the "Size Wall." The machine is capable, your ambition is high, but that 4x4 inch (100x100mm) embroidery area feels like a creative straightjacket.

Here is the truth: The strict 4x4 limit is a myth.

You can stitch a design nearly double that size by utilizing a specific tool called a multi-position (repositional) hoop and a technique called "design splitting." It allows you to stitch a large design in overlapping sections without ever un-hooping your fabric.

Does it sound intimidating? Yes. Is it actually difficult? Not if you understand the physics behind it.

This guide rebuilds the workflow demonstrated in the source video—software setup in Embrilliance, mounting the hoop in three distinct positions, and stitching each file. However, we are going to add the "Old Hand" sensory details—the sounds, the tactile feelings, and the safety margins—that keep your alignment clean and prevent your machine from throwing a tantrum.

The Panic-to-Plan Moment: What a Brother SE625 Can (and Can’t) Do With a Repositional Hoop

The first time you unbox a Sew Tech 3-in-1 hoop set, you will see a large hoop with four mounting brackets on the side. You will look at your Brother machine and see only two attachment slots.

Do not panic. This mismatch is the secret to how the system works.

You are not supposed to attach all four brackets at once. The hoop is an "indexed" system. You attach the top pair for the top of the design, then unlatch the hoop, slide it down, and attach the next pair for the middle section.

In the video, the creator uses a large hoop (approx. 4" x 6.7" / 100 x 172 mm) to stitch a text design on a 16" x 16" pillow cover.

The Physics of the "Split": What is actually happening?

1. Software Level: You take one large image and slice it into three separate data files (Top, Middle, Bottom).
2. Hardware Level: The brackets mechanically force the hoop to move to the exact coordinates where the next file begins.
3. The Critical Variable: Friction. The only thing keeping the Top and Bottom aligned is how tightly your fabric is gripped. If the fabric slips even 1mm, your design will look "broken."

If you are shopping for the right tool to break the 4x4 barrier, the industry term you need to search for is a repositionable embroidery hoop.

The “Hidden” Prep That Makes Multi-Position Hooping Behave (Fabric, Stabilizer, and Tension)

Most alignment disasters do not happen in the software. They happen because the fabric moved.

A repositional hoop is unforgiving. Unlike a standard single hoop, you are subjecting the fabric to the vibration of unlatching and re-latching the frame multiple times. Any slack becomes a visible gap.

In the video, the project is a polyester/cotton blend pillow cover. The creator wisely uses cut-away stabilizer.

The Sensory Standard: "Drum Tight" is not a Metaphor

When you hoop your fabric and stabilizer, use your fingers to tap on the fabric surface.

• The Sound: You should hear a dull thump-thump, similar to a drum.
• The Feel: There should be zero ripples. If you pull the fabric edge gently, it should not move.

Why Stabilizer Choice is Non-Negotiable Here

For single-hoop designs, you might get away with Tear-Away stabilizer. For multi-position hooping, you must use Cut-Away stabilizer (specifically 2.5oz to 3.0oz medium weight).

• The "Why": Tear-Away stabilizer weakens every time the needle penetrates it. By the time you get to the third section, the stabilizer has practically disintegrated, losing its grip on the fabric. Cut-Away maintains 100% structural integrity throughout the 30+ minute process.

Warning: Keep fingers, hair, jewelry, and loose sleeves away from the needle area while the machine is running. Stop the machine before reaching near the presser foot or needle—broken needles can become sharp projectiles traveling at high speeds.

Prep Checklist (The "Pre-Flight" Safety Protocol)

• Needle Check: Use the small oval screwdriver to tighten the needle screw. Finger-tight is not enough. (A loose needle causes the "falling out" issue seen in the video).
• Consumables: Have temporary spray adhesive (like Odif 505) ready to bond your stabilizer to the fabric. This prevents "micro-shifting."
• Bobbin Area: Open the plate and blow out any lint. A generic "birdnest" ruin a multi-position project instantly.
• Center Mark: Use a water-soluble pen or chalk to mark the absolute center of your fabric. This is your visual anchor.
• Bulk Management: Roll up the excess pillow fabric and clip it so it doesn't drag on the table. Drag = Misalignment.

Embrilliance Preferences That Unlock the 100 x 172 mm Multi-Position Hoop

The video uses Embrilliance software on a PC. This is where you tell the computer, "I am using the special sliding hoop."

Step-by-Step Software Config

1. Open your design file (usually a .PES file for Brother).
2. Navigate to Preferences/Settings.
3. Set Hoop Style to Multi-Position.
4. Select Hoop Size: 100 x 172 mm.

Once selected, your workspace changes. You will see a large rectangle broken into three overlapping colored zones (usually Red, Blue, Green). The creator rotates the design 90 degrees so it fits vertically across these zones.

If you are trying to replicate this workflow, search online for the specific term brother repositional hoop to ensure your software version supports these definitions.

"Why don't I see Multi-Position?" (The Free Version Trap)

A common frustration in the comments is missing menus. The creator confirms they use Embrilliance Essentials and Enthusiast. The free "Express" versions often view files but restrict saving multi-position splits.

Saving to USB: The "Magic Split"

When you save the file in Embrilliance, you click "Save" once. However, when you plug the USB into your Brother SE625, you will likely see three separate files (e.g., Design_Top, Design_Mid, Design_Bot).

• This is correct. Do not look for one big file. The machine needs three small maps, not one big atlas.

Hooping the Sew Tech Multi-Position Frame on a Brother SE625 Without Fighting the Brackets

Here is where the mechanical logic kicks in. The Sew Tech hoop has four mounting slots (labeled 1, 2, 3, 4). Your machine arm has two attachment pegs.

The Rule of Pairs

You attach specific pairs to tell the machine "where" the fabric is.

• Top Section (File 1): Attach slots 1 & 2. (The hoop sits low on the arm).
• Middle Section (File 2): Attach slots 2 & 3. (The hoop sits centrally).
• Bottom Section (File 3): Attach slots 3 & 4. (The hoop sits high on the arm).

Setup Checklist (Execute immediately before pressing "Start")

• Bracket Verification: Are you on slots 1 & 2 for the first file? Double-check.
• The "Click" Test: Push the hoop connector firmly. You must hear a strictly mechanical click or snap. A "mushy" connection means the hoop will wiggle.
• Clearance Check: Manually move the hoop to the four corners. Ensure the pillow fabric isn't bunched under the needle bar.

Stitching File 1 on Brother SE625 (Slots 1 & 2) — and Skipping the Surprise Basting Step

Select the first file (Top Section) on your LCD screen.

The Basting Trap

In the video, the machine attempts to stitch a wide "basting box" first. The creator realizes this baste stitch will physically block the hoop from sliding later.

• The Fix: Use the "Needle +/-" button on your screen. Advance the stitch count forward until you bypass the long rectangular straight stitches and reach the actual design fill.


Pro Tip: For beginners, Cap your speed. The SE625 might go faster, but for Multi-Position work, limit your speed to 400-600 SPM (Stitches Per Minute). High speed = high vibration = alignment slip.

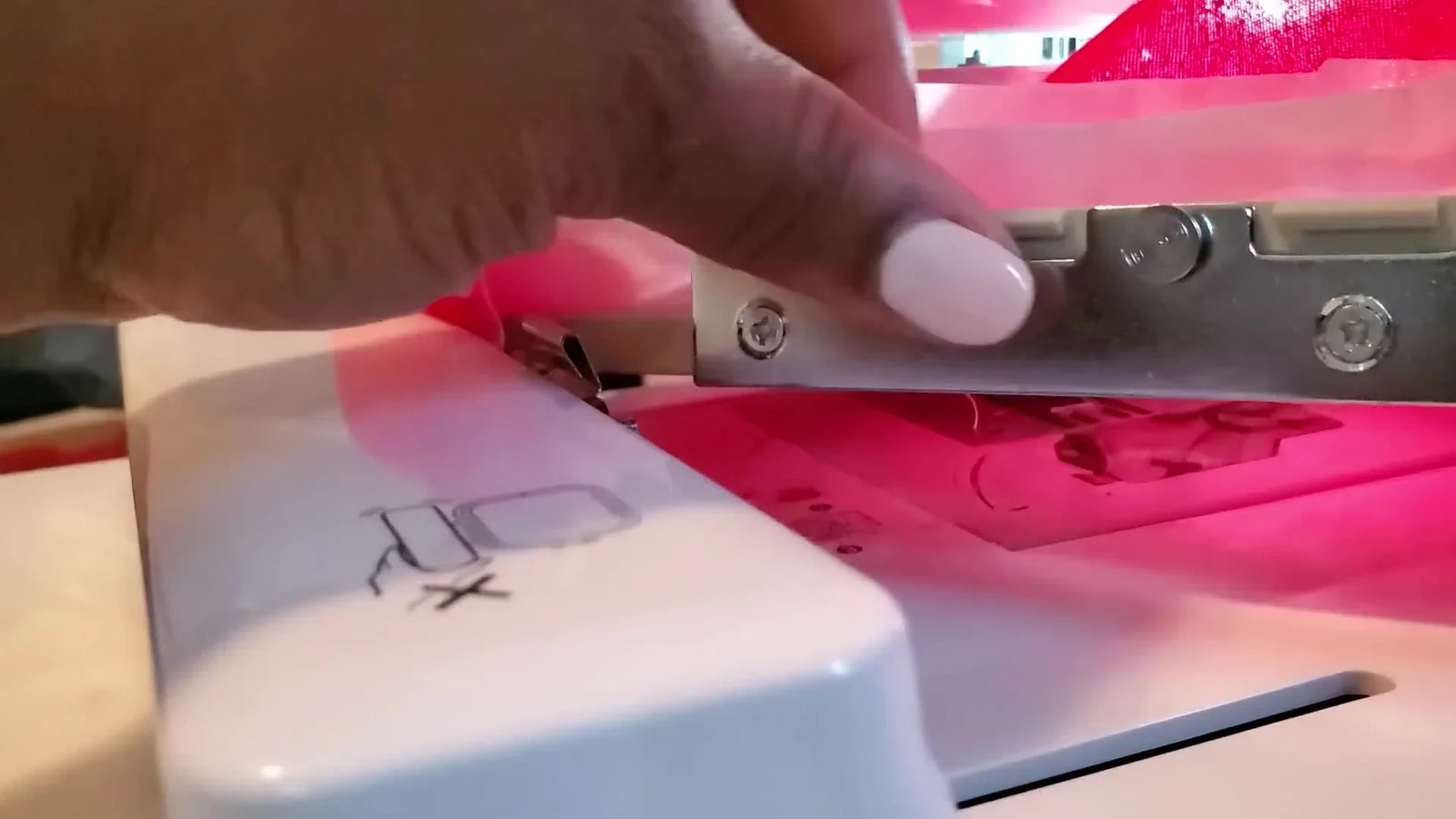

The Clean Reposition: Moving to Slots 2 & 3 Without Re-Hooping the Fabric

This is the "Surgery Phase." The first section finishes. The machine stops.

1. Do NOT remove the fabric from the hoop.
2. Flip the grey latch on the carriage arm.
3. Slide the entire hoop unit toward you.
4. Align Slots 2 & 3 with the carriage pegs.
5. Lock it down. Listen for the click.


The Alignment Reality Check

Because the fabric never left the hoop, your registration depends entirely on the hoop frame being rigid. This is why techniques regarding hooping for embroidery machine accuracy are vital—if your hoop screw was loose, the fabric has already slipped, and the next section will be crooked.

Stitching File 2 (Slots 2 & 3): Keep the Same Rhythm

Load the second file. Skip the basting steps again.

Visual Confirmation

Before pressing the green button, bring the needle down manually (using the handwheel) to see where the first stitch will land. It should look like it aligns with the bottom of the previous text. If it looks 1/2 inch off, you are likely on the wrong bracket slots.

Stitching File 3 (Slots 3 & 4): The Final Shift and the Finish

The process repeats:

1. Unlatch.
2. Shift to Slots 3 & 4.
3. Load File 3.
4. Stitch.


When Things Go Sideways: Thread Breaking, Needle Falling Out, and the “Centipede” Mess

In the source video, the creator encounters a nightmare scenario: the needle physically falls out of the machine multiple times, causing a "centipede" mess of thread.

This is a valuable learning moment. These failures are almost always mechanical setup errors, not machine faults.

Troubleshooting Table: Symptom → Cause → Fix

Warning: Magnetic Hoop Safety
If you decide to upgrade to Magnetic Hoops later (mentioned below), be aware they use high-gauss industrial magnets. Pinch Hazard: Do not place fingers between the magnets. Medical Device: Keep 6 inches away from pacemakers.

A Stabilizer Decision Tree for Multi-Position Designs

Do not guess. Use this logic flow to prevent "rework depression."

Start → What is your Fabric?

• Stable Woven (Canvas, Denim, Heavy Cotton):
  • Solution: Medium Weight Cut-Away (2.5oz).
  • Why: Even stable fabrics shift under the vibration of a repositionable hoop. Cut-away locks it in.
• Stretchy Knit (T-Shirts, Jersey within a pillow):
  • Solution: Heavy Cut-Away + Spray Adhesive.
  • Why: Knits define "instability." You need a chemical bond (spray) and a physical anchor (cut-away).
• Lightweight/Slippery (Satin, Silk):
  • Solution: Fusible Poly-Mesh.
  • Why: Iron-on stabilizer prevents the fabric from sliding like water inside the hoop.

The Upgrade Path: When to Stick With a Repositional Hoop—and When to Level Up

The repositional hoop method is a brilliant "hack" that saves you thousands of dollars when you are learning. It turns a hobby machine into a semi-capable creator.

However, as a Chief Education Officer, I must be honest about the Cost of Time.

When to stay with the Multi-Position Hoop:

• You embroider as a hobby (0-5 items a week).
• You enjoy the technical challenge.
• Budget is your primary constraint.
• You are exploring concepts involving multi hooping machine embroidery for personal gifts.

When to Upgrade Tools (The "Production" Threshold):

If you find yourself stitching 10+ items a week, or if you begin selling your work, the "Unlatch-Slide-Relatch" dance becomes a profitability killer.

1. The "Wrists Hurt" Stage: If you struggle with tightening screws or getting fabric taut without burning it, look into Magnetic Hoops for your current machine. They use magnetic force to clamp fabric instantly without the "unscrew-tighten" fatigue.
   • Note: This fixes the physical pain, but not the size limit.
2. The "Need More Speed" Stage: If you are rejecting orders because you can't stitch fast enough, or complex color changes are taking hours, this is the trigger to look at a SEWTECH Multi-Needle Machine.
   • Why: These machines use giant hoops natively (no splitting files) and change colors automatically.
   • The Value: You trade money for time. A design that takes 45 minutes of babysitting on a SE625 might take 12 minutes of "walk-away" time on a multi-needle.

Operation Checklist (The 90% Success Rate Habits)

• Test Stitch: Always run the split design on a piece of scrap felt first. Always.
• Thread Consistency: Do not change thread brands between sections. The sheen difference will be visible.
• Visual Pause: After Section 1 finishes, pause. Look at the fabric. Is it still "drum tight"? If yes, proceed.
• Latch Check: Before pressing start on Section 2 or 3, physically wiggle the hoop. If it moves, you didn't latch it properly.
• Stop at the Nest: If you hear a "crunchy" sound, stop immediately. Do not pray it goes away. It won't.

By mastering the brother 4x4 embroidery hoop limitations with patience and physics, you are building the exact skills that will make you a master on an industrial machine later. Start slow, clamp tight, and listen to your machine.

FAQ

• Q: How can a Brother SE625 stitch a design larger than the 4x4 hoop area using a multi-position (repositionable) embroidery hoop?
  A: A Brother SE625 can stitch a larger design by splitting the design into multiple files (Top/Middle/Bottom) and stitching each file in a different indexed hoop position without un-hooping the fabric.
  • Split the original design in Embrilliance using a Multi-Position hoop setting (100 x 172 mm), then save to USB.
  • Load File 1, stitch, then unlatch and move the same hooped fabric to the next bracket pair for File 2, then repeat for File 3.
  • Keep the fabric clamped firmly the entire time—alignment depends on zero fabric slip.
  • Success check: The overlap area between sections looks continuous (no visible step/gap) when the next section begins stitching.
  • If it still fails: Re-check stabilizer choice (cut-away) and confirm the hoop fully “clicks” into the carriage each time.
• Q: What Brother SE625 bracket slots should be used for each split file on a Sew Tech multi-position hoop?
  A: Use the rule of pairs: File 1 uses slots 1&2, File 2 uses slots 2&3, and File 3 uses slots 3&4.
  • Mount File 1 with slots 1 & 2 and stitch the first section.
  • Unlatch, slide, then mount File 2 with slots 2 & 3; stitch the middle section.
  • Unlatch, slide, then mount File 3 with slots 3 & 4; stitch the final section.
  • Success check: Each time the hoop is attached, the connector gives a firm mechanical “click/snap,” not a soft or mushy feel.
  • If it still fails: Do a manual needle drop (handwheel) at the start point—if it lands far off, the wrong slot pair is installed.
• Q: Why does Embrilliance not show “Multi-Position” options when setting up a Brother SE625 repositionable hoop workflow?
  A: This is commonly a software edition limitation—Embrilliance Express often lets you view files but may restrict saving multi-position splits, while Essentials/Enthusiast supports the workflow shown.
  • Open Preferences/Settings and look for Hoop Style = Multi-Position and Hoop Size = 100 x 172 mm.
  • Confirm the design is being saved in a way that generates multiple stitch files (Top/Mid/Bot) for the USB.
  • Plan for three files on the Brother SE625 screen; do not expect one “big” file.
  • Success check: After saving and inserting the USB, the Brother SE625 displays three separate design files for the same project.
  • If it still fails: Verify the Embrilliance version/license supports saving multi-position splits (check Embrilliance documentation for your edition).
• Q: What stabilizer should be used for Brother SE625 multi-position hoop embroidery to prevent gaps between sections?
  A: Use medium-weight cut-away stabilizer (about 2.5–3.0 oz) because it keeps structural integrity through multiple repositioning steps.
  • Bond stabilizer to fabric with temporary spray adhesive to reduce micro-shifting.
  • Hoop fabric + stabilizer “drum tight” and avoid slack before starting File 1.
  • Keep excess fabric rolled/clipped so it does not drag and pull the hooped area.
  • Success check: Tap the hooped fabric—there is a dull “thump-thump” sound and the surface shows no ripples.
  • If it still fails: Switch to heavier cut-away + spray for knits, or use fusible poly-mesh for slippery fabrics (and test on scrap first).
• Q: How can Brother SE625 users skip the basting box that blocks sliding when stitching a split design in a multi-position hoop?
  A: Bypass the basting stitches using the Brother SE625 “Needle +/-” control so the machine advances past the long rectangular basting run to the actual design.
  • Load the split file (e.g., Top Section) on the Brother SE625 screen.
  • Use “Needle +/-” to step forward until the stitch preview reaches the first real design stitches.
  • Keep speed conservative (about 400–600 SPM) to reduce vibration and slip.
  • Success check: The needle begins stitching the intended design area, not a large perimeter rectangle.
  • If it still fails: Stop and re-check the file order (Top/Mid/Bottom) and confirm the correct bracket slot pair is installed for that file.
• Q: Why does the needle fall out on a Brother SE625 during multi-position hoop embroidery, and how can it be prevented?
  A: This is usually a setup issue: the needle clamp screw was finger-tight instead of tool-tight, and vibration loosens it—stop and tighten with the screwdriver.
  • Stop immediately and remove the loose needle safely.
  • Reinsert the needle with the flat side facing back, then tighten the clamp screw firmly with the small oval screwdriver.
  • Reduce speed for multi-position work to limit vibration.
  • Success check: After a few minutes of stitching, the needle remains fully seated and the clamp screw does not back out.
  • If it still fails: Inspect for repeated vibration causes (hoop not fully clicked in, fabric drag) and correct before restarting.
• Q: What safety steps should be followed on a Brother SE625 when running multi-position hoop embroidery and when considering magnetic hoops later?
  A: Keep hands and loose items away from the needle area while running, and stop the machine before reaching near the presser foot; magnetic hoops also require pinch and pacemaker precautions.
  • Stop the Brother SE625 before adjusting thread, fabric bulk, or checking needle position—broken needles can become sharp projectiles.
  • Keep hair, jewelry, and loose sleeves clear of the needle bar and moving hoop.
  • If upgrading to magnetic hoops later, keep fingers out of the magnet closing zone to avoid pinch injury.
  • Success check: All adjustments are made only when the machine is fully stopped, and the hoop area remains clear during operation.
  • If it still fails: Review the machine manual’s safety section and slow down the workflow—rushing is a common cause of accidents and misalignment.
