Brother PE800 Review, Set Up, and Real-World Workflow: Get Clean 5x7 Results Without Wasting Thread (or Desk Space)

If you’re shopping for (or already own) a Brother PE800, you are likely chasing one specific goal: graduating from “crafting” to “creating.” You want bigger, cleaner embroidery without turning your dining table into a loud, industrial factory floor.

This machine is popular because it sits in the “Goldilocks Zone”—it is a dedicated embroidery-only unit with a true 5x7 stitch field, a color screen that makes sense, and a workflow that forgives beginner mistakes. However, embroidery is a physics game, not just a software game.

Below is a hands-on, combat-tested guide. We won’t just tell you what the buttons do; we will teach you the “old operator” habits—the sounds, the tactile checks, and the setups—that keep you from burning time on birdnesting, thread breaks, and wavy outlines.

Calm the Panic: What the Brother PE800 *Really* Is (and Why It Feels “Chunky” on Your Desk)

The Brother PE800 is not a sewing/embroidery combo—it is an embroidery-only specialist, and its physical build reflects that engineering. The reviewer in the source video notes the larger frame around the needle plate area. This isn't wasted plastic; it's structural integrity designed to stabilize the hoop as it moves at 650 stitches per minute (SPM).

This means you must surrender some desk real estate. The machine footprint is comparable to a small CRT TV. In a home setup, you need to calculate “Travel Clearance”: ensure there is at least 10 inches of empty space to the left and rear of the machine. The embroidery arm needs to swing freely. If it hits a wall or a coffee mug mid-stitch, your design alignment is ruined instantly.

If you are coming from a smaller 4x4 machine, the emotional shift is real: “Why is this thing so big?” Because stability is the only way to get clean satin stitches in a 5x7 field.

The 5x7 Stitch Field on the Brother PE800: The Upgrade You Feel on Day One

The video highlights the PE800’s 5 x 7 inch embroidery field. In the world of embroidery, this is the demarcation line between “toy” and “tool.” In practice, this size separates amateur frustration from professional results:

• Constraint Removal: You can stitch standard large monograms and full jacket-back logos (split designs) without shrinking them to illegibility.
• Fewer Re-hoops: The #1 cause of design misalignment is splitting a design into two hoops. The 5x7 field eliminates this for 90% of home projects.

When people ask about brother pe800 hoop size, the technical answer is 130mm x 180mm. But the experienced answer is this: It is large enough to allow for errors.

Veteran Insight: A larger field increases the leverage on the fabric. If your hooping is loose, a 5x7 design allows more room for the fabric to push and pull, leading to puckering. The bigger the field, the stricter your stabilization must be.

The “Hidden” Prep Before You Stitch: Bobbin, Thread Sensor, and the Stuff That Saves a Project

The video calls out two features that matter more than most beginners realize:

1) Automatic bobbin winding (creates consistent tension). 2) A thread sensor (your early warning system).

The sensor is not a gimmick. In real production, you will look away—trimming applique, answering an email, or grabbing coffee. Without the alert, the machine keeps punching holes in your fabric without thread.

The Sensory Check:

• Visual: Look at your wound bobbin. It should be smooth and tight, like a spool of thread from the store. If it feels spongy or looks like an hourglass, throw it away. A bad bobbin will cause loops on top of your design.
• Tactile: When you drop the bobbin in, follow the thread path. You should feel a slight “click” or resistance as it slides into the tension spring. No resistance = birdnest waiting to happen.

Warning: Keep fingers, hair, jewelry, and loose sleeves away from the needle area while the machine is stitching. Never reach under the presser foot to “help” or push fabric while the machine is running. A needle moving at 650 SPM creates a puncture hazard and can shatter into flying metal shards if it strikes a hoop or ring.

Prep Checklist (do this before you even pick a design)

• Wind the Bobbin: Use the automatic winder; ensure the thread is tight and the bobbin is not "squishy."
• Seating Check: Drop the bobbin in. Listen for the thread to catch in the tension spring. Ensure the bobbin rotates counter-clockwise when you pull the tail.
• Consumables Audit: Do you have a fresh needle (Size 75/11 is the sweet spot for most 5x7 work) and the correct backing?
• Clearance Sweep: Physically wave your hand behind and to the left of the machine to ensure the embroidery arm has a "No-Fly Zone."
• Test Patch: If using a new material (like the bag canvas mentioned in comments), stitch a small "H" or "8" on a scrap to test tension.


The Brother PE800 Color LCD Workflow: Pick a Design, Preview It, Then Edit Like a Pro

The video demonstrates the color LCD touchscreen. This is where the PE800 feels “modern.” You aren’t guessing with cryptic codes; you see the design.

The on-screen editing features shown include Rotate, Mirror, Resize, and Color Change.

Veteran Advice: Use editing to refine your reality, not to fix a bad setup.

• Rotate/Mirror: Essential if you hooped your towel upside down (it happens to the best of us).
• Resize Rules: The video mentions resizing, but be careful. Scaling a design down by more than 10-15% on the machine does not always recalculate the stitch count effectively. This increases density and can break needles.
  • Safe Range: +/- 10% on screen.
  • Risk Range: >20% (Do this in software, not on the machine).

When you’re building speed, a clean screen workflow matters. It’s one of the reasons the PE800 is often chosen as a secondary machine or a hooping station for machine embroidery partner in a home studio: you can prep the next job digitally while another machine stitches.

Built-In Designs, Fonts, and Borders: What You Actually Get on the Brother PE800

The video states the PE800 includes 138 designs, 11 fonts (7 English, 3 Japanese, 1 Cyrillic), and various frame combos.

The Strategy for Beginners vs. Business:

• For Hobbyists: The built-in florals and scrolls are excellent for learning how density works without risking a bad internet download.
• For Small Business: The 10 frame shapes and 14 border styles are your money-makers. A simple Monogram + Border = A customized wedding napkin in 15 minutes.




USB Design Import on the Brother PE800: The Fastest Way to Outgrow Built-Ins (Safely)

The video shows inserting a USB thumb drive. This ports you out of the "Brother ecosystem" and into the infinite world of digitalizing.

Two critical efficiency notes:

1. Built-in Memory: Save your most-used designs (like your business logo) directly to the machine.
2. Position Memory: If you turn the machine off, it remembers where the needle was.

Tech Tip: Keep your USB drive small (under 16GB is preferred for these older operating systems) and formatted to FAT32. If you are searching for efficient hooping for embroidery machine workflows, the USB is key: organize folders by category (e.g., "Kids," "Christmas," "Logos") on your computer, so you don't scroll endlessly on the tiny toggle screen.

Warranty Reality Check: What the Brother PE800 Covers (and What It Doesn’t)

The video outlines the 25-year limited warranty (1 year machine, 5 years circuit board, 25 years chassis).

The Hard Truth: Warranties cover defects, not collisions. If you hoop incorrectly, the hoop hits the foot, and you knock the timing gear out of alignment—that is usually a paid repair.

• Warranty-Friendly Habit: Never force the hoop onto the carriage. It should slide and click. If you have to jam it, stop—you are about to void your warranty (or at least break a sensor).


Stabilizer + Fabric Decision Tree (Because 5x7 Designs Punish Weak Support)

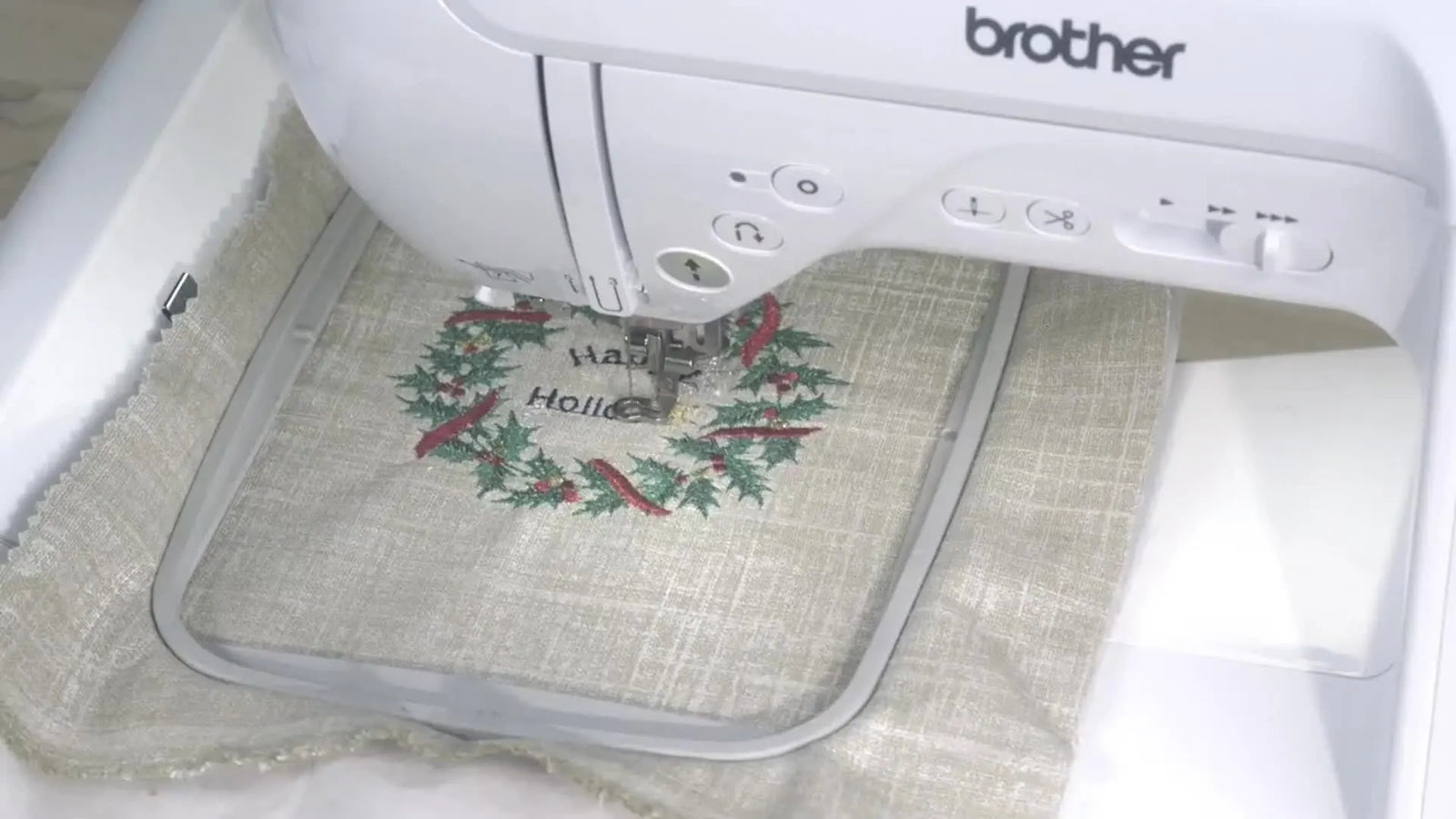

The video shows embroidery on linen and implies capability on bag materials. Here is the physics: The machine moves the hoop, but the stabilizer moves the fabric. If your stabilizer is too weak, the fabric drags, and your circle becomes an oval.

Use this decision tree. It is the single biggest factor in stitch quality.

Decision Tree: Choose stabilizer/backing by fabric behavior

1) Is the fabric stretchy (T-shirts, hoodies, knits)?

• Logic: The fabric moves; you need a stabilizer that stays forever to hold the stitches.
• Action: Use Cutaway stabilizer (2.5oz or 3.0oz). Do not use Tearaway.

2) Is the fabric stable/woven (Quilting cotton, denim, towels)?

• Logic: The fabric supports itself; the stabilizer just needs to handle the needle impact.
• Action: Use Tearaway. For towels, add a Water Soluble Topper (Solvy) to keep stitches from sinking into the loops.

3) Is the item unstructured/slippery (Silk, Rayon)?

• Logic: It will pucker if you breathe on it.
• Action: Use No-Show Mesh (Cutaway) + light spray adhesive (like 505 spray) to bond the fabric to the stabilizer.

Business Context: If you want consistent results, stop buying "whatever is on sale." Find a brand (like New Brothread or similar quality) and stick to their weights. Predictability is profit.

Hooping Physics That Prevents Puckering: Tight Enough to Hold, Not Tight Enough to Warp

The video focuses on features, but the hidden skill is hooping. Roughly 80% of "tension issues" are actually "hooping issues."

The Tactile Goal: The fabric needs to be "Drum Tight."

• Test: Tap the hooped fabric. It should make a dull thumping sound.
• Test: Pull the fabric gently. It should not move.

The Pain Point (Hoop Burn): Traditional plastic hoops require you to tighten a screw and shove an inner ring into an outer ring. This friction creates "hoop burn" (shiny marks) on velvet or delicate fabrics. It is also brutal on your wrists if you are doing a run of 50 shirts.

The Solution Path:

• Scenario: You start seeing shiny rings on dark shirts, or your wrists ache after 3 items.
• Criteria: If you are producing more than 5 items a week, or working with velvet/thick towels.
• Option: Consider upgrading to a magnetic hoop for brother pe800.
  • Why? It uses vertical magnetic force rather than horizontal friction. No scrubbing, no burn, and zero wrist strain. Companies like Sewtech create magnetic frames specifically calibrated for the PE800's attachment arm.

Warning: Magnetic Hoops use industrial-grade neodymium magnets. They are incredibly strong. Pinch Hazard: Do not let your fingers get caught between the magnets—it will bruise or break skin. Medical Safety: Keep them at least 6 inches away from pacemakers, ICDs, and magnetic storage media (credit cards/hard drives).

Setup That Feels “Too Basic” (Until It Saves You): Screen Preview, Color Plan, and Placement Discipline

The PE800’s color preview is your last line of defense.

The "Ghost Stitch" Technique: The PE800 interface allows you to "trace" the design area. The needle moves around the outer box without stitching.

• Always do this. It confirms that your design won't hit the plastic edge of the hoop (which breaks needles instantly).

Setup Checklist (right before you press start)

• Top Thread: Is the threading path correct? Did the thread "snap" into the take-up lever (the moving silver arm)?
• Placement Trace: Run the layout check. Does the needle area stay within the safe zone of the hoop?
• Presser Foot: Is it down? (The light should be green).
• Clearance: Is the table clear?
• Speed: For the first layer, consider slowing the machine down via the screen settings to ensure the stabilizer is holding.

Bobbin Thread Running Out: The One Problem the PE800 Warns You About—So Listen

The video notes the Low Bobbin Sensor.

• Symptom: The machine stops and beeps; a message appears.
• Action: DO NOT hit "continue" to squeeze out a few more inches.
• The "Why": As a bobbin gets near-empty, the tension drops because there is less drag mass. The last 2 yards of thread often create loose, ugly loops. Change it immediately.

Pro Tip: If you are doing a large order, pre-wind 10 bobbins. Nothing kills productivity like stopping to wind a bobbin in the middle of a complex color change.

Comment Questions, Answered Like a Shop Owner

1) “Is it computerized / can it connect to devices?” Yes, it is fully computerized. The "connection" is manual (USB drive), not Wi-Fi. It reads .PES files, which is the industry standard for Brother.

2) “Can it be used on bag materials?” Yes, but with a caveat. The PE800 has a home-grade motor. It can penetrate canvas or denim (use a Size 90/14 Jeans Needle), but it cannot sew through multiple layers of heavy webbing handles. If you force it, you will throw off the timing.

3) “Price?” Pricing fluctuates, but treat this as an investment in a "prosumer" entry-level tool.

4) “Narration Glitch?” The narrator sometimes says "PE I 100" in the transcript. Ignore that. This is the Brother PE800.

When a Magnetic Hoop Becomes the Smart Upgrade (Not a Luxury)

If you stitch once a month, the included plastic hoop is adequate. If you stitch for profit or passion weekly, the plastic hoop is a bottleneck.

Using a brother 5x7 magnetic hoop changes the physics of your workflow:

• Speed: You clamp fabric in 2 seconds instead of 30 seconds of wrestling screws.
• Quality: The magnets hold thick items (like towels) without crushing the pile, which keeps the embroidery lofted and plush.
• Compatibility: Ensure you look for "MaggieFrame" or Sewtech models specifically listed for the Brother PE800 / SE1900 series, as the connector arm is specific to this machine.

If you find yourself rejecting projects because "hooping is too hard," a magnetic hoop is the cheaper alternative to buying an industrial machine.

The “Small Business” Angle: Turning PE800 Features Into Repeatable Output

The video explicitly calls the PE800 great for small businesses. How do you scale with a single-needle machine?

The Secret is Batching:

1. Batch Hooping: Hoop 3 items (if you buy extra hoops).
2. Batch Winding: Wind all bobbins first.
3. Color Sorting: If stitching 5 shirts, stitch Color 1 on all shirts, then switch to Color 2 on all shirts. (This saves 4 thread changes per shirt).

The Ceiling: Eventually, if you are successful, the PE800 will become too slow (single needle means you manually change thread for every color).

• Trigger: When you are spending more time changing thread than the machine spends stitching.
• Solution: This is when you look at SEWTECH / Ricoma / Brother Multi-Needle Machines (6 to 10 needles). But until you hit that wall, the PE800 is a capable workhorse.

Operation Habits That Keep the PE800 Running Smooth

The video shows a clean sample. To get that:

• Listen to the Machine: A happy embroidery machine makes a rhythmic "chug-chug-chug" sound. A sharp "CLACK" or a grinding noise means STOP immediately. It usually means the needle is dull or the thread path is snagged.
• Clean the Race: Every 5-10 hours of stitching, take the needle plate off and brush out the "lint bunny" in the bobbin case. Lint alters tension.

Operation Checklist (during stitching)

• Watch the First 100 Stitches: This is when birdnesting happens. If the sound is deep/thumping, stop and check under the hoop.
• Manage the Thread Path: Ensure the thread spool isn't catching on a nick in the plastic cap.
• Trim Jump Stitches: If your design has long jumps, trim them as you go (pause the machine) so the foot doesn't catch them on the next pass.
• Post-Op: Inspect the back. White bobbin thread should be visible in the middle 1/3 tightness, with colored top thread on the sides. This is the perfect "I" tension test.




The Bottom Line: Who the Brother PE800 Fits—and the Cleanest Next Upgrade

The PE800 is the best "Second Machine" for a sewer, or the best "First Machine" for a dedicated embroiderer. It bridges the gap between hobby and side-hustle using a forgiving 5x7 field and clear visual interface.

To master it, focus on the "Trinity of Stability":

1. Correct Stabilizer (Cutaway for knits, Tearaway for wovens).
2. Correct Hooping (Drum tight, no burn).
3. Quality Consumables (Good thread, fresh needles).

If hooping becomes your enemy, don't quit—upgrade to magnetic embroidery hoops for brother pe800. It allows you to focus on the creativity shown on that color LCD screen, rather than the wrestling match with plastic rings.

FAQ

• Q: What needle size and consumables should be prepared before starting embroidery on the Brother PE800?
  A: Start with a fresh 75/11 needle for most 5x7 work, and confirm bobbin + backing choices before loading a design.
  • Replace: Install a new needle (75/11 as a common starting point); switch to a 90/14 jeans needle for canvas/denim.
  • Audit: Confirm correct backing type for the fabric (cutaway for knits, tearaway for stable wovens; add water-soluble topper for towels).
  • Wind: Use the automatic bobbin winder and reject any bobbin that looks “hourglass” or feels spongy.
  • Success check: The bobbin looks smooth and tight like store thread, and the stitch-out does not show looping on top.
  • If it still fails: Re-seat the bobbin and re-check that the bobbin thread catches in the tension spring with slight resistance.
• Q: How do I correctly seat the bobbin on the Brother PE800 to prevent birdnesting and top loops?
  A: Seat the bobbin so the thread engages the tension spring and the bobbin feeds counter-clockwise.
  • Insert: Drop the bobbin in and follow the exact thread path in the bobbin area.
  • Feel/Listen: Slide the thread into the tension spring until there is slight resistance (often feels like a small “click”).
  • Confirm: Pull the tail and verify the bobbin rotates counter-clockwise.
  • Success check: The first 100 stitches run without a “lint lump” forming under the hoop and without loose loops on top.
  • If it still fails: Stop immediately, remove the hoop, and clear thread from under the needle plate/bobbin area before restarting.
• Q: How do I judge “drum tight” hooping on the Brother PE800 to reduce puckering on 5x7 designs?
  A: Hoop the fabric tight enough to hold firmly without shifting, because the 5x7 field magnifies any looseness.
  • Tap: Tap the hooped fabric and aim for a dull “drum” thump.
  • Tug: Pull the fabric gently—there should be no visible movement inside the hoop.
  • Stabilize: Match backing to fabric behavior (cutaway for knits; tearaway for stable wovens; no-show mesh cutaway + light adhesive for slippery fabrics).
  • Success check: Circles stay round (not oval) and satin edges stay smooth without wavy outlines.
  • If it still fails: Upgrade stabilization first (heavier or more appropriate backing) before touching tension settings.
• Q: How do I use the Brother PE800 layout “trace” to prevent the needle from striking the hoop?
  A: Always run the on-screen placement trace before stitching to confirm the design stays inside the hoop’s safe zone.
  • Select: Load the design and position it on the screen where it should stitch.
  • Trace: Run the layout/check function so the needle travels the boundary without stitching.
  • Clear: Ensure at least 10 inches of empty space to the left and rear so the hoop arm cannot hit anything mid-trace or mid-stitch.
  • Success check: The traced boundary never approaches the hoop edge closely enough to risk contact, and the arm moves freely without bumping objects.
  • If it still fails: Re-hoop with better centering or choose the correct hoop size/design orientation (rotate/mirror as needed).
• Q: What should I do when the Brother PE800 low bobbin sensor stops the machine during a design?
  A: Replace the bobbin immediately and do not “continue” to squeeze out the last bit of thread.
  • Stop: Acknowledge the alert and remove the bobbin.
  • Replace: Insert a freshly wound bobbin (tight, smooth wind).
  • Resume: Continue the design after confirming proper seating and thread path.
  • Success check: The next stitches do not show loose, ugly loops (often caused by near-empty bobbin tension drop).
  • If it still fails: Re-wind bobbins in advance for large orders and discard any unevenly wound bobbin.
• Q: What are the key safety rules when operating the Brother PE800 needle area at 650 SPM?
  A: Keep hands, hair, jewelry, and loose sleeves away from the needle area and never reach under the presser foot while the Brother PE800 is running.
  • Pause: Stop the machine before trimming jumps, checking thread, or adjusting fabric.
  • Clear: Keep the hoop path and table free so nothing collides with the moving arm.
  • React: Stop immediately if a sharp “CLACK” or grinding sound occurs—do not force the stitch.
  • Success check: The machine sound stays rhythmic and steady, without sudden impact noises.
  • If it still fails: Inspect for a dull/bent needle or a hoop positioning issue before restarting.
• Q: What magnetic hoop safety precautions apply when using a magnetic embroidery hoop on the Brother PE800?
  A: Treat magnetic hoops as pinch-hazard tools and keep strong magnets away from pacemakers/ICDs and magnetic storage.
  • Clamp: Lower magnets straight down—do not slide fingers between magnet and frame.
  • Protect: Keep magnets at least 6 inches away from pacemakers, ICDs, credit cards, and hard drives.
  • Control: Place magnetic hoop parts on a stable surface so they cannot snap together unexpectedly.
  • Success check: The fabric clamps securely in seconds without “hoop burn” marks or wrist-straining force.
  • If it still fails: Re-check fabric thickness and stabilization; if hooping remains the bottleneck, consider adding extra hoops for batching or moving up to a multi-needle system when thread changes dominate your time.
