Brother SE1900 Bobbin Winder Thread Jam? Pop the Grey Seat Off Safely (No Tweezers, No Drama)

A bobbin-winder jam on the Brother SE1900 has a special talent for triggering panic. You hear a grinding noise, the thread disappears under that grey plastic seat, your fingers can’t reach it, and suddenly you’re hovering with sharp scissors over fragile plastic posts, wondering if you've just voided your warranty.

Take a breath. As someone who has serviced hundreds of these computerized combo machines, I can tell you this is a "looks catastrophic, fixes cleanly" scenario. It doesn’t require force; it requires understanding the hidden geometry of the machine. It is a puzzle, not a demolition job.

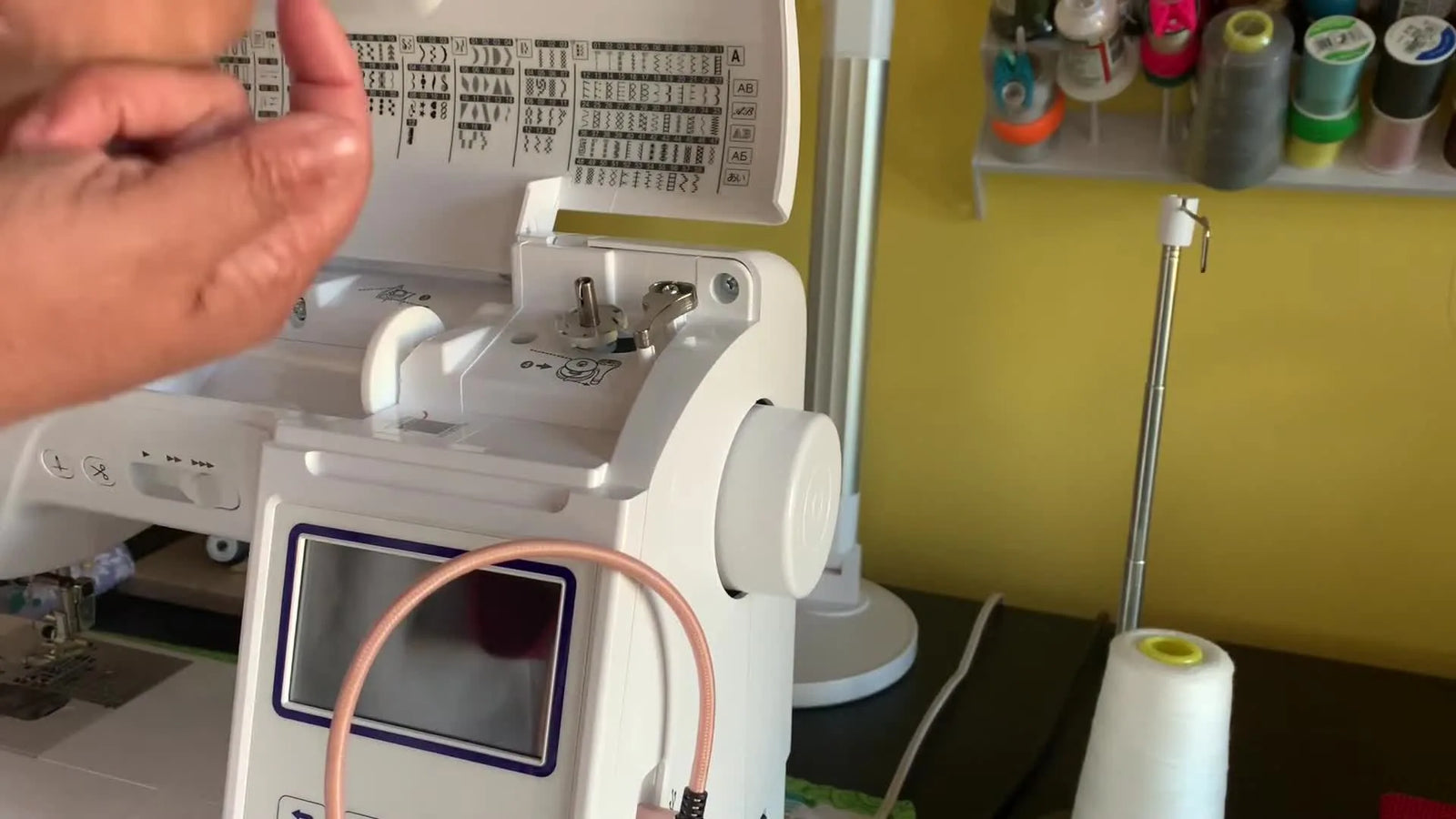

The Brother SE1900 bobbin winder seat jam: the exact gap where thread hides (and why it feels impossible)

To fix this, we must first understand the anatomy of the failure. When you wind your own bobbin, the thread travels from the spool pin, around the pre-tension disk, and to the bobbin. If there is slack in the line—often caused by a spool cap that is too small or a thread tail that wasn't trimmed—the thread can slip off the intended path.

In the video, Jeanette points to a specific, narrow gap under the grey plastic bobbin winder seat. This seat rotates. When thread slips underneath it, it wraps around the metal drive shaft. As the motor spins, that thread tightens like a tourniquet.

This is why the jam feels “stuck forever.” You are pulling against the friction of multiple tight wraps around a steel shaft, trying to drag it through a plastic gap smaller than a human hair. Pulling harder here isn't the solution; it's the fastest way to bend the winder shaft.

When this problem shows up most often

• The "Start-Stop" Error: You start winding, stop to check something, and restart. The sudden loss of tension allows the thread to loop downwards.
• The Incorrect Spool Cap: Using a cap smaller than the spool base allows thread to snag on the spool’s notch, creating erratic tension.
• The "Tail" Trap: Not winding the thread tail around the bobbin screw (or cutting it flush) leaves a loose end that whips around and gets sucked under the seat.

Pre-wound bobbins vs winding your own on the Brother SE1900: choose based on what the back of your project will show

This jam often forces a re-evaluation of your workflow. Jeanette’s example—a blanket where both sides are visible—is the perfect case study.

In professional embroidery, we view bobbins not just as thread, but as structural anchors.

The Decision Logic

1. Use Pre-Wound Bobbins (Plastic-sided Class 15/SA156) whenever possible.
   • Why: They are wound at factory-perfect high tension. They hold more thread (usually 60wt or 90wt), meaning fewer changes.
   • Benefit: Zero risk of winder jams. Consistent tension for standard embroidery.
2. Wind Your Own ONLY when visibility demands it.
   • Scenario: Free-standing lace (FSL), towels, scarves, or blankets where the back is visible.
   • Rule: You must match the weight as well as the color. If your top thread is 40wt Rayon, wind a bobbin with that same 40wt thread. Note: You may need to slightly adjust your bobbin case tension (the green-marked screw on the SE1900 bobbin case) if switching from 60wt pre-wound to 40wt custom wound.


Put the scissors down: why tweezers and curved embroidery scissors create more risk than results

Jeanette demonstrates the instinctual method first: attacking the gap with tweezers and curved embroidery scissors. She rightly calls this "unnecessary drama."

From a technical standpoint, this is dangerous territory. The grey seat sits on a nylon or plastic cam. Metal tools are harder than plastic. If you dig blindly into that gap:

1. You create burrs: A scratch on the plastic path will snag thread forever, causing mysterious breakage 6 months from now.
2. You risk shaft misalignment: Prying sideways can bend the thin metal winder shaft. Once bent, your bobbins will never wind evenly again (they will look cone-shaped).

Warning: Mechanical Safety Risk. Never use a seam ripper or metal screwdriver to pry the bobbin winder seat up. The plastic is designed to snap fit. Prying creates stress fractures that will cause the seat to fly off during high-speed winding later.

The “two-finger pop” removal on the Brother SE1900 bobbin winder seat (the safe way that doesn’t snap plastic)

This is the "ah-ha" moment. The grey plastic seat is designed to be removable for service. You do not need tools; you need symmetrical simple physics.

The "Pop" Technique

1. Power Down: Turn off the SE1900. A spinning winder can cause friction burns or trap fingers.
2. Position: Place your thumb and index finger (or index fingers of both hands) on exact opposite sides of the grey disk.
3. The Sensory Check: Feel for the edge of the disk. Do not grab the bobbin status lever/stopper (the white plastic piece that touches the bobbin). Grab only the grey circular seat.
4. Action: Pull straight up with legitimate force. Do not twist. Do not rock.
   • The Feeling: It will offer resistance, then suddenly release with a distinct "pop."

If you pull from only one side, you bind the mechanism, making it feel stuck. Equal upward pressure unlocks it instantly.

Checkpoint: did it come off “too easily”?

If the seat lifts without a "pop," check the underside later. The retention clips might be worn. For now, just set it aside safely.

Cleaning the exposed bobbin winder shaft area: remove the thread mass without tools

Once the seat is removed, the "monster" is revealed. You will likely see a tight nest of thread wrapped around the metal shaft, sitting on top of the machine chassis.

The Removal Protocol

1. Finger Removal First: Try to lift the thread nest off as a single unit or "donut."
2. Surgical Cutting (If needed): Now that the plastic cover is gone, you can safely use small snips to cut the thread loop away from the shaft. Cut the thread, not the machine.
3. Hidden Consumables Check: This is a great time to grab your canned air or a small nylon cleaning brush. Dust often accumulates here. A clear shaft ensures the seat snaps back on level.

Success Metric: The metal post spins freely by hand, and there are no fuzzy lint remnants at the base.

The “hidden prep” that prevents repeat Brother SE1900 bobbin winding jams (what experienced operators check first)

Prevention is cheaper than repair. The video shows the fix, but let's discuss how to never need this fix again.

The root cause of 90% of jams is Initial Tension Failure. If the thread is loose as it hits the bobbin, it loops down.

Prep Checklist (Pre-Flight Protocol)

• The Spool Cap Rule: Does your spool cap cover the entire rim of the thread spool? If the spool rim is exposed, thread will catch on the rough plastic notch. Use a cap slightly larger than the spool.
• The "Floss" Test: When threading the pre-tension disk (the little silver stud on top), hold the thread with both hands (like dental floss) and "floss" it under the disk until you feel a distinct click or resistance.
• Speed Ramping: Do not stomp on the foot pedal or hit "Start" at max speed. Start the winding slowly. Watch the thread establish a tight core on the bobbin for 5 seconds before speeding up.
• Stabilizer ready? Have your cutaway or tearaway stabilizer near. Thread jams often happen when we are rushed. Slow down your setup.


Reinstalling the Brother SE1900 bobbin winder seat: match the underside grooves like a keyed puzzle piece

This is the step where force causes damage. The grey seat is keyed. It is not a perfect circle underneath; it has a specific shape (usually a D-shape or a slot-and-tab) that mates with the machine.

Jeanette uses a purple pointer to highlight these molded grooves. This is essentially a lock-and-key system.

How to align it (The "Clock Face" Method)

1. Inspect the Shaft: Look at the white/metal assembly on the machine. Note where the "flat" side or the protruding tab is (e.g., at the 3 o'clock position).
2. Inspect the Seat: Flip the grey seat over. Find the corresponding flat spot or slot.
3. Hover and Rotate: Place the seat gently on the shaft. Do not press yet. Rotate it slowly.
   • Sensory Feedback: You will feel it "drop" about 2 millimeters when the keys align. If it feels like it's wobbling on a pivot, it is not aligned.


The angle-then-push technique: how to engage the catch and seat the part without forcing it

Gravity isn't enough. There is a spring-loaded retention clip inside that holds the seat down. Jeanette demonstrates a subtle "Angle-then-Push" move.

1. The Angle: Tilt the seat very slightly to slip the edge under the bobbin stopper lever.
2. The Drop: Once under the lever, let it sit flat (aligned with the keys from the previous step).
3. The Pre-Load: Place your thumb dead-center on the disk.

Setup Checklist (Before snapping)

• Is the seat completely flat?
• Is the thread cutter blade (if equipped on the winder) accessible?
• Is the white bobbin stopper lever free to move, or is it trapped under the seat? (It must be touching the side of the bobbin, not trapped underneath).

The final snap-in on the Brother SE1900: press, wiggle, and listen for the click

This requires confidence. You need to overcome the friction of the retention clip.

The Action:

1. Press firmly straight down with your thumb.
2. While pressing, give a micro-wiggle (rotate left/right 1 degree).

The Sound: You are listening for a sharp "SNAP" or "CLICK."

The Verification: Place your fingernail under the edge of the grey seat and try to lift gently. If it lifts, it wasn't seated. If it holds firm, you are safe.

If it won’t snap flush: fast troubleshooting for the Brother SE1900 bobbin winder seat

If you are pressing until your thumb turns white and it won't click, STOP. You are fighting misalignment.

Structured Troubleshooting Table

The “why” behind this fix: keyed parts, even pressure, and how plastic fails in real life

Understanding the "Why" (Cognitive Framing) helps you respect the machine. The SE1900 is a domestic machine; its tolerances are tight but its materials are lightweight.

• Keyed Parts: Exist to ensure the bobbin winds evenly level. If this key is stripped by force, your bobbins will wind diagonally forever.
• Even Pressure: Plastic handles compression (pushing down) well, but it handles shear (twisting) very poorly. The "two-finger" removal method respects the material properties of the polymer.

Decision tree: fabric visibility → bobbin choice → stabilizer mindset (so you don’t redo work)

Repairing the machine is Level 1. Optimizing your workflow is Level 2.

We wind our own bobbins usually for aesthetic reasons. This implies the project is delicate or high-stakes.

• IF project is for personal use/prototype: Use Pre-wound (SA156).
• IF project is reversable (Towel/Blanket):
  • Step 1: Use matching thread in the bobbin.
  • Step 2: Use Water Soluble Topping (to prevent stitches sinking).
  • Step 3: Use a Backing that matches the fabric stretch (Cutaway for knits, Tearaway for woven).

Don't let a bobbin jam ruin a complex project. If the machine is fighting you, pause and check the fundamentals.

Operation habits that keep the Brother SE1900 winding smooth (and reduce “ah man” moments)

Jeanette admits she avoids winding bobbins because of this issue. But with good habits, you can wind confidently.

The "Safe Winding" Protocol

1. Visual Scan: Before hitting start, look at the thread path. Is it caught on a zipper foot? Is it wrapped around the spool pin?
2. Audible Check: Listen. A smooth wind sounds like a hum. A bad wind sounds like a rhythmic "chug-chug" or a high-pitched whine.
3. Tactile Verify: Put your finger gently on the thread tower/spool. It should feed off with consistent drag, not jerks.

Operation Checklist (The "Live" Check)

• Start: Slow speed (hold pedal halfway or set slider into middle).
• Middle: Thread is moving up and down the bobbin evenly.
• End: Machine stops automatically. Thread is not bunched at the top or bottom of the bobbin.

Smart upgrade paths that save time without changing your style (tools that earn their keep)

Fixing a bobbin jam takes 5 minutes. But struggling with hooping and fabric slippage can cost you hours every week. If you are regularly pushing your Brother SE1900 to its limits, you will eventually encounter the physical limitations of standard plastic hoops—hoop burn (marks on fabric), wrist strain from tightening screws, and fabric shifting.

This is where professional tool upgrades bridge the gap between "fighting the machine" and "smooth production."

• The Hooping Problem: Standard hoops require perfect screw tension. Too loose? The fabric puckers. Too tight? You get "hoop burn" or hand fatigue.
• The Solution: Many serious hobbyists upgrade to a magnetic hoop for brother se1900. Instead of screwing frames together, these use strong magnets to sandwich the fabric. This automatically adjusts for thickness—whether you are embroidering a thin napkin or a thick towel—without leaving ring marks.

For those managing multiple projects or suffering from repetitive strain:

• A magnetic hoop for brother creates a "flat" clamping mechanism. This is vastly easier on the wrists than twisting the tightening screw of a traditional hoop 50 times a day.
• If you find yourself constantly re-doing alignment because the fabric slipped while closing the hoop, magnetic embroidery hoops can solve this by gripping the fabric instantly on all sides, locking the grain line in place before distortion occurs.

For Small Business/Volume Production: If you are running the SE1900 for profit (e.g., Left Chest Logos), consistency is your currency.

• Professionals typically invest in a hooping station for machine embroidery. These boards hold the hoop and garment in a fixed position, ensuring that every shirt is logo'd in the exact same spot.
• Combining a magnetic hooping station with your machine setup transforms the workflow. You slide the shirt on, snap the magnets down, and you are ready to stitch in under 15 seconds.
• While generic hooping stations are great, ensuring you look for compatible brother se1900 hoops ensures you aren't fighting fitment issues.

Warning: Magnetic Safety. Powerful magnetic hoops contain neodymium magnets. They can pinch fingers severely if they snap together unexpectedly. Keep them at least 6 inches away from pacemakers, insulin pumps, and magnetic storage media (credit cards/hard drives).

One last reassurance: this Brother SE1900 bobbin winder seat fix is a skill you’ll use again

Once you have successfully popped that seat off and realized the world didn't end, the fear vanishes. You now possess a "Master" skill.

The key takeaways from Jeanette’s method are universal to machine maintenance:

1. Analyze, don't Force.
2. Equal Leverage (Two Fingers).
3. Respect the Keys (Alignment).
4. Listen for the Click.

Use this confidence. If you can fix the winder, you can master tension, you can handle stabilizers, and you can certainly handle the creative projects you are dreaming of.

FAQ

• Q: How do I remove a thread jam trapped under the Brother SE1900 bobbin winder seat without breaking the grey plastic disk?
  A: Turn the Brother SE1900 off and “two-finger pop” the grey bobbin winder seat straight up—no tools and no twisting.
  • Power down the Brother SE1900 completely before touching the winder area.
  • Place two fingers on opposite sides of the grey circular seat (not on the white bobbin-stopper lever).
  • Pull straight up with even force until the seat releases with a distinct pop.
  • Remove the wrapped thread from the exposed metal shaft using fingers first; snip only the thread if needed.
  • Success check: The seat comes off with a pop, and the metal post spins freely by hand with no lint/thread at the base.
  • If it still fails: Stop pulling harder—re-grip opposite sides and pull straight up again (uneven lifting makes it feel “stuck”).
• Q: What tools should I avoid when fixing a Brother SE1900 bobbin winder jam under the bobbin winder seat?
  A: Do not pry the Brother SE1900 bobbin winder seat with metal tools because it can gouge plastic or bend the winder shaft.
  • Avoid seam rippers, screwdrivers, and aggressive tweezing inside the narrow gap under the seat.
  • Remove the seat first using the two-finger straight-up pop, then cut thread only after the plastic cover is off.
  • Handle the winder shaft gently; sideways prying can misalign it and cause permanently uneven (cone-shaped) bobbins.
  • Success check: No new scratches/burrs on plastic, and the winder shaft remains straight and spins smoothly.
  • If it still fails: Remove the seat again and look for thread wrapped tightly around the shaft—do not escalate to prying force.
• Q: How do I reinstall and align the Brother SE1900 bobbin winder seat so it snaps flush and clicks?
  A: Align the keyed underside of the Brother SE1900 bobbin winder seat first, then press straight down and listen for a click.
  • Inspect the underside grooves/flat spot on the grey seat and match them to the shaft shape (think lock-and-key).
  • Hover and rotate the seat gently until it “drops” slightly when the keys align—do not press while misaligned.
  • Use the angle-then-push move: tilt slightly to clear the white bobbin-stopper lever, then lay flat.
  • Press firmly dead-center and micro-wiggle (tiny left/right rotation) until it snaps.
  • Success check: A sharp “click/snap” is heard and the seat does not lift when you try to raise the edge with a fingernail.
  • If it still fails: Stop and re-check for trapped lever or leftover thread/lint under the seat (misalignment will feel spongy, rocky, or crooked).
• Q: What does it mean when a Brother SE1900 bobbin winder seat feels spongy, rocks side-to-side, or sits crooked after reinstalling?
  A: Those Brother SE1900 bobbin winder seat symptoms usually mean misalignment, trapped parts, or debris—do not force the snap.
  • If the seat feels spongy/bouncy: Remove it and clear hidden thread/lint at the base of the shaft.
  • If the seat rocks side-to-side: Lift off and realign the keyed shape; rotate and try again only after it “drops” into place.
  • If the seat sits crooked: Check the white bobbin-stopper lever is not pinched under the grey disk.
  • If the plastic turns white: Stop immediately—this indicates stress and possible cracking from forcing.
  • Success check: The seat sits perfectly flat, snaps in with a click, and cannot be lifted easily.
  • If it still fails: Re-check the keyed alignment and lever position before applying any additional downward pressure.
• Q: How do I prevent repeat Brother SE1900 bobbin winding jams caused by slack thread at the start?
  A: Prevent Brother SE1900 bobbin winder jams by ensuring firm initial tension and a clean, controlled start.
  • Use the correct spool cap size so it covers the entire rim of the spool (exposed rim can snag and create slack).
  • “Floss” the thread under the pre-tension disk until you feel a clear resistance/click.
  • Start winding slowly for a few seconds to build a tight core, then increase speed.
  • Trim or secure the thread tail properly so it cannot whip and get sucked under the rotating seat.
  • Success check: The winding sound is a smooth hum (not chugging/whining) and the thread lays evenly on the bobbin.
  • If it still fails: Stop, re-thread the winder path, and re-check for sudden stop/restart habits that can drop tension.
• Q: When should I use pre-wound bobbins versus winding my own bobbin on the Brother SE1900 for embroidery where the back is visible?
  A: Use pre-wound Class 15/SA156 bobbins on the Brother SE1900 for most embroidery, and wind your own only when the back will be seen and must match.
  • Choose pre-wound bobbins when consistency matters and you want to eliminate winder-jam risk.
  • Wind your own when making items like blankets, scarves, towels, or free-standing lace where the reverse side is visible.
  • Match bobbin thread weight to the top thread when appearance demands it (switching weights may require bobbin-case tension attention per the Brother SE1900 setup).
  • Success check: The back of the embroidery looks intentional (matched color/coverage) and stitching remains stable without repeated tension issues.
  • If it still fails: Return to pre-wound bobbins to isolate whether the issue is winding quality versus threading/tension.
• Q: What magnetic hoop safety rules should I follow when using magnetic embroidery hoops or frames with a Brother SE1900 workflow?
  A: Treat magnetic embroidery hoops as pinch-and-medical-device hazards and handle magnets slowly and deliberately.
  • Keep strong magnetic hoops at least 6 inches away from pacemakers, insulin pumps, and magnetic storage media (credit cards/hard drives).
  • Lower magnets in a controlled way and keep fingers out of the closing path to avoid severe pinches.
  • Store hoop magnets separated or secured so they cannot snap together unexpectedly.
  • Success check: The hoop closes without finger pinch incidents and the fabric is clamped evenly without sudden snapping.
  • If it still fails: Pause and change handling technique (separate hands, slower closure) before continuing production work.
