The Master Guide to Brother SE400 USB Transfers: Zero Frustration, Perfect Stitch-Outs

If you have ever watched your Brother SE400 screen say "Transmitting," seen the memory numbers change, yet found absolutely no design icon to tap, you are experiencing the initiation rite of modern machine embroidery.

I have spent twenty years in this industry, moving from single-needle home machines to running floors of multi-head industrial giants. I can tell you with certainty: The SE400 is a workhorse, but its USB interface is from a different era. It doesn't behave like a modern smartphone; it behaves like an old-school hard drive.

Most transfer problems aren’t "ghosts in the machine." They are physical disconnects, file format misunderstandings, or simple sequence errors.

This guide rebuilds the workflow from the ground up. We won't just tell you what to do; we will explain how it feels when you do it right, so you can stop guessing and start stitching.

The Calm-Down Primer: What the Brother SE400 Is *Really* Doing

To master this process, you need the right mental model. When you plug the SE400 into a Windows computer, the machine physically stops being an "embroidery machine" for a moment and becomes a Removable Disk (like a USB thumb drive).

Here is the cognitive disconnect that frustrates beginners:

1. Computer Side: You drag a file onto the drive. You think, "I'm done."
2. Machine Side: The machine doesn't know that file exists yet. You must manually "pull" it from the temporary drive into the machine's active memory.

If you skip the "pull" step, or if you look for the design while the machine is still in "Sewing Mode," you will stare at a blank screen forever.

Furthermore, because the SE400 is a dual-purpose brother sewing and embroidery machine, it has two brains. If you are looking at the utility stitch menu (zig-zags and straight stitches), the embroidery file you just transferred is invisible to the system.

The "Hidden" Prep Pros Do First: Cable, File, and Safety Checks

Before you touch a cable, we need to perform a "Pre-Flight Check." In a professional shop, we never skip this because troubleshooting while the machine is on wastes time.

The Physical Hardware

• The Cable: You need a USB Type-A to Type-B cable.
  • Visual Check: One end is the standard flat USB (Type-A). The other end is square with two beveled corners (Type-B). This is often called a "printer cable."
  • Sensory Check: Ensure the cable doesn't have kinks or exposed wires. Data transfer on older machines is sensitive to signal noise.

The Digital Asset

The video tutorial uses a .DST file. However, as an expert, I must advise you: generally, Brother machines prefer .PES files.

• .PES: Contains color information and hoop data specific to Brother.
• .DST: A commercial format. It works, but often displays with "weird" colors on the screen because it lacks a color palette.
• The Limit: The design must fit within the 100mm x 100mm (3.93" x 3.93") stitch field. If your design is 101mm, the SE400 will simply refuse to see it.

Hidden Consumables (Don't start without these)

• Fresh Needle: A 75/11 Embroidery needle.
• Bobbin: Verify you have enough bobbin thread (60wt or 90wt, depending on your setup).
• Stabilizer: Tear-away or cut-away, depending on your fabric.
• Adhesive Spray: For floating fabric if you aren't hooping directly.

Prep Checklist: 60-Second Go/No-Go

• Cable is Type-A to Type-B (Square end).
• File name is short (e.g., STAR.dst not Star_Trek_Logo_Final_v2.dst). Long names can crash the transfer.
• File size fits strictly within the brother 4x4 embroidery hoop limit (3.93" x 3.93").
• You can locate the file on your Desktop (don't bury it in sub-folders).
• Machine space is clear of scissors or coffee cups.

Warning: Physical Safety
Embroidery machines involve high-speed moving parts. Keep sensitive body parts (fingers), loose jewelry, long hair, and hoodie strings away from the needle bar and moving carriage. A 400 stitches-per-minute finger puncture is a hospital trip you want to avoid.

The No-Drama Connection: The "Cold Boot" Sequence

The video’s first rule is the golden rule of legacy hardware. Do not plug the cable in while the machine is running.

The Correct Sequence:

1. Switch the Brother SE400 OFF. (Listen for the shutdown mechanism to settle).
2. Plug the Type-B (square) end into the port on the right side of the machine.
   • Sensory Check: You should feel a firm "chunk" or click. If it feels wobbly, the data connection will fail.
3. Plug the Type-A end into your computer's USB port.
4. Switch the machine ON.

Why this matters: When the SE400 boots up with the cable attached, it initializes the USB driver immediately. If you plug it in 'hot,' Windows often fails to mount the drive correctly.

The Windows Explorer Move: Result-Oriented Drag-and-Drop

Once the machine boots, your computer should make the standard "Device Connect" chime (that da-ding sound). Windows will identify the machine as a Removable Disk.

The Workflow:

1. Open "My Computer" or "This PC."
2. Look for a drive named "Removable Disk" (often Drive E: or F:).
3. Double-click to open it. You might see internal folders—ignore them for now.
4. Locate your .DST or .PES file on your desktop.
5. Click and Drag the file into the Removable Disk window.

Expert Note: If your computer is slow, wait for the copy usage bar to disappear completely. Pulling the cable too early will corrupt the file, leading to a machine freeze.

The One Button That Changes Everything: Mode Switching

Now, physically move your body to the machine.

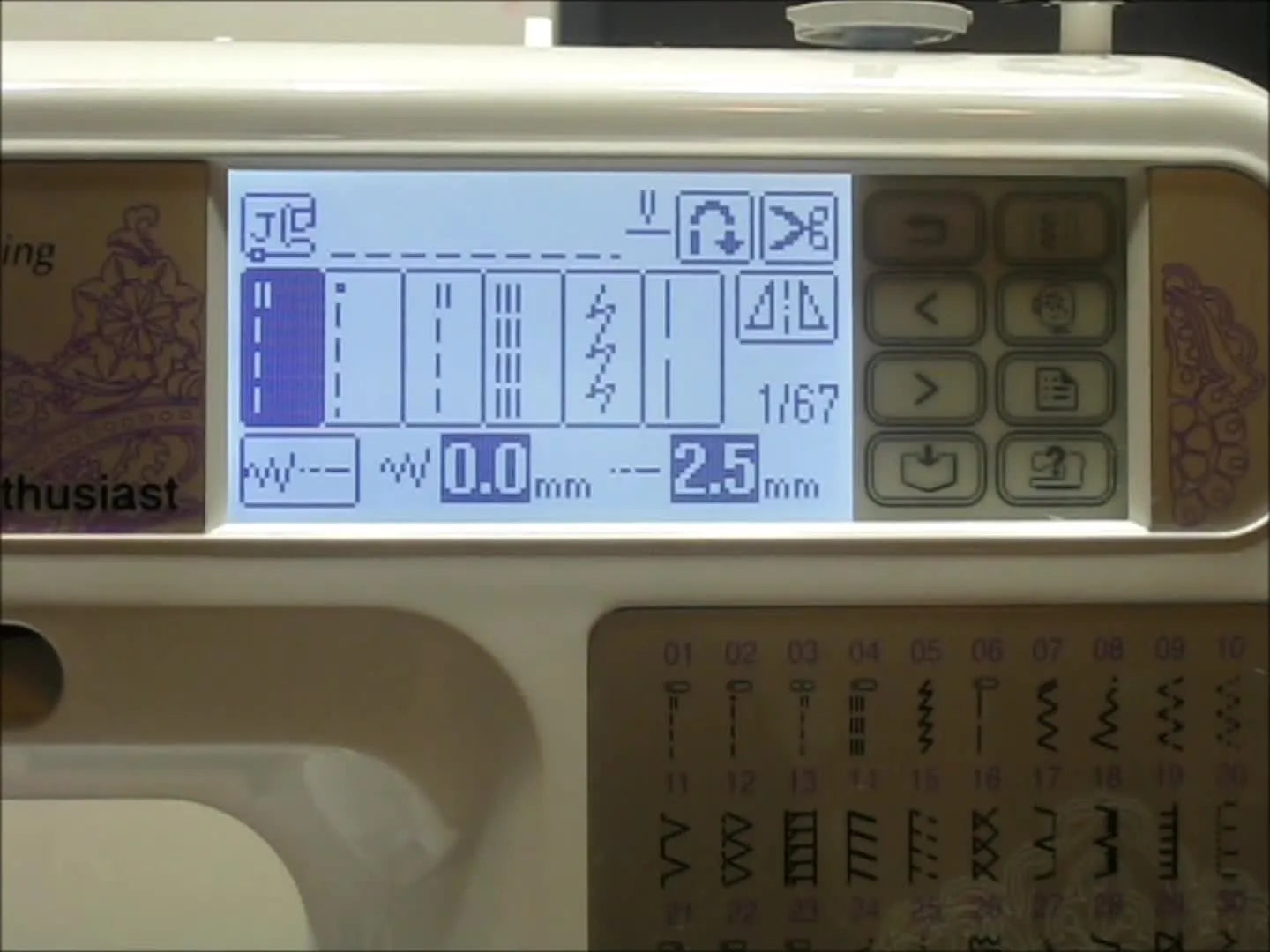

You must press the Embroidery Mode Button. On the SE400, this is a physical button on the right side of the control panel.

• Visual Anchor: The icon looks like a hoop with a grid inside.
• Action: Press it firmly. The screen should change from showing stitch types (Zig-zag/Straight) to show embroidery folders or icons.

Crucial: If you do not press this, the machine is still a sewing machine. It cannot "see" the embroidery file you just successfully copied.

The USB Icon Screen: The "Pull" Verification

On the Embroidery Menu touch screen, look for the USB Icon. In the video, this is located in the middle of the bottom row.

Tap it.

You are now looking at the contents of that "Removable Disk." You should see your file name (e.g., STE2WI...).

Verify Before Loading:

1. Name: Does it match?
2. Size: The video shows 12KB. If it says 0KB, the transfer failed.
3. Format: Ensure it says .DST or .PES.

Tap the file name to select it. The machine will "think" for a moment as it loads the stitch coordinates into its temporary working memory (RAM).

The "Pocket" Rule: Saving to Permanent Memory

This is the step that separates the amateurs from the pros. Currently, your design is in volatile RAM. If the power flickers, or if you turn the machine off for lunch, the design is gone.

To keep it, you must save it to the machine's internal hard drive (ROM).

The Action:

• Look for the icon that resembles a Pocket with an Arrow pointing DOWN.
• Tap it.
• Sensory Check: The machine might beep, and you will see a "Saving" animation or hourglass. Wait for it to finish.

In a professional studio, we treat this like saving a Word document. Do it immediately. Do not stitch until you have saved.

The Scary Pop-Up: "OK to Delete Selected Pattern?"

Immediately after saving, you might press the "Back" button or try to exit. The machine will ask: "OK to delete the selected pattern?"

Don't Panic.

Cognitively, this feels like an attack. "I just saved it! Why do you want to delete it?"

The Reality: The machine is asking to clear the temporary working memory (the RAM buffer) to make room for the next task. It is not asking to delete the file you just saved to the permanent "Pocket" memory.

The Fix: Tap OK. You are simply clearing the digital workbench. Your file is safely stored in the cabinet.

The Proof Test: Retrieval

To confirm everything worked, let's find the file in the permanent storage.

1. Go back to the main Embroidery Menu.
2. Tap the Retrieve Icon.
   • Visual Anchor: This looks like a pocket with an Arrow pointing UP/OUT.
3. Use the > (Next Page) arrow keys to scroll.
4. Your new design is usually the last one in the list.

Deep Expert Tip: If you think you are at the end of the list, click "Next" one more time. The SE400 interface sometimes hides the final slot on a fresh page.

Setup Checklist: The "Pre-Stitch" Sanity Check

You have the file. Now, before you ruin a garment, verify your status.

• Mode Check: You are in Embroidery Mode (screen shows hoop boundaries).
• Visual Confirm: The design preview icon is visible on the LCD.
• Color Check: If using DST, ignore the weird colors on screen; trust your thread chart.
• Safety Check: The file was saved to Machine Memory (Pocket Arrow Down).
• Physical Clear: The carriage arm has room to move without hitting the wall or your coffee mug.

Troubleshooting: When the File "Transfers" but the Screen is Blank

If you followed the steps but the machine is still ghosting you, use this diagnostic table. We move from low-cost (easy) fixes to high-cost fixes.

The "Why" Behind the Failures: Physical vs. Digital

Embroidery machines are precise robots. They are not interpreting "art"; they are executing X/Y coordinates. If a single coordinate in your file tells the needle to move 101mm to the right, but the physical arm can only move 100mm, the machine's safety firmware will block the entire file to prevent the carriage from grinding gears.

This is why sizing is the #1 silent killer of file transfers on the SE400.

A Practical Decision Tree: When to Stick vs. When to Upgrade

You are reading this because you are frustrated. Is it time to push through, or time to upgrade your tools? Use this logic flow.

Scenario A: You embroider 1-2 items a month for family.

• Verdict: Stick with the USB cable. Use the checklist above. It takes 3 minutes once you know the flow.
• Tip: Keep a dedicated folder on your PC named "SE400 Safe" containing only resized, confirmed working files.

Scenario B: You run a small Etsy shop or make team gifts (10-20 items/week).

• The Friction: Your bottleneck isn't the USB cable; it's the hooping process. Standard hoops cause "hoop burn" (white rings) on fabrics, requiring hours of steaming to remove.
• The Upgrade: Invest in magnetic embroidery hoops for brother. They use magnets to hold fabric without forcing it into rings, drastically reducing hoop burn and strain on your wrists.

Scenario C: You have orders for 50+ shirts or hats.

• The Friction: Color changes. The SE400 is a single-needle machine. For a 4-color logo on 50 shirts, you will manually change thread 200 times. That is unsustainable.
• The Upgrade: This is the trigger point for a Multi-Needle Machine (like SEWTECH models). These machines hold 10-15 colors at once. You press "Start" and walk away.

The Hooping Reality Check: Stability is King

Transferring the file is only 10% of the job. 90% of quality comes from Hooping and Stabilizing.

If your design transfers perfectly but pucker or gaps appear during stitching, the file isn't the problem—the physics of the fabric is.

1. Hoop Tightness: The fabric should feel taut, like a drum skin. Tap it. It should make a "thump" sound.
2. Upgrade Option: If you struggle to get that "drum skin" tension without distorting the fabric, this is where magnetic hoop for brother systems shine. They clamp flat, allowing you to adjust tension evenly without the "tug of war" required by screw-tightened hoops.

Warning: Magnet Safety
Professional magnetic hoops use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: They can snap together instantly, pinching skin severely. Handle with deliberate care.
* Medical Devices: Keep them at least 6 inches away from pacemakers or insulin pumps.

Comment-Driven Pro Tips (The "I Wish I Knew Earlier" List)

• Tip 1: The "Jumper" Trick. If your PC refuses to see the machine, try a shorter USB cable. Long cables cause voltage drops.
• Tip 2: Don't Open It. You do not need software on your PC to open the .DST/.PES file. Just copy the file icon (even if it looks blank) to the drive. Windows doesn't need to understand the file; the machine does.
• Tip 3: Clean House. The SE400 has very limited memory. If you get a "Memory Full" error, delete old designs from the "Retrieve" screen (Pocket Arrow Out -> Select Old Design -> Hit Delete).

Operation Checklist: The First Test Stitch

Your file is loaded. You are ready to stitch. Do not skip this sequence.

• Thread Path: Re-thread the top thread. Ensure the presser foot was UP when you threaded (so tension discs are open).
• Bobbin Check: Use your finger to verify the bobbin is spinning counter-clockwise ("p" shape config).
• Clearance: Ensure the hoop is locked in. Give it a gentle wiggle. It should not move.
• Speed: If you are nervous, lower the speed slider on the screen to the halfway mark.
• Observation: Watch the first 100 stitches.
  • Listen: A rhythmic chuk-chuk-chuk is good. A loud CLACK means stop immediately.
  • Look: Is the top thread shredding?

If you eventually find yourself doing repetitive placement work (like left-chest logos), consider a hooping station for embroidery. This tool holds the hoop in a fixed position, allowing you to load shirts identically every time, doubling your output speed.

The Upgrade Path: Workflow over Wishful Thinking

Don't buy new gear just to buy gear. Buy it to solve a specific pain point.

• Pain: "I hate re-hooping for hours." -> Solution: hooping stations + Magnetic Frames.
• Pain: "I can't do hats on my SE400." -> Reality: Be careful. The SE400 "hat hoop" is usually just a flat hoop with a jig. True hat embroidery requires a rotating cap driver, which is only available on multi-needle machines. If hats are your main business, look at dedicated hat hoop for brother embroidery machine limitations before buying, or plan for a machine upgrade.

Quick Recap: The 1-Breath Workflow

1. Power: Machine OFF -> Connect Cable -> Machine ON.
2. PC: Drag design (PES/DST, <100mm) to "Removable Disk."
3. Machine: Press "Embroidery Mode" button.
4. Load: Tap USB Icon -> Select File.
5. Store: Tap "Pocket Down" icon to Save.
6. Stitch: Retrieve from "Pocket Up" and press Go.

That’s it. You have conquered the USB transfer. Now, go make something beautiful.

FAQ

• Q: Why does the Brother SE400 show “Transmitting” and change memory numbers, but no design icon appears on the Brother SE400 screen?
  A: This usually happens because the Brother SE400 is still in Sewing Mode or the design was never “pulled” from the USB screen into the embroidery side of the machine—this is common, don’t worry.
  • Press the physical Embroidery Mode button (hoop/grid icon) so the screen switches from utility stitches to embroidery menus.
  • Tap the USB icon on the Brother SE400 embroidery screen to view the removable-disk contents.
  • Tap the file name to load it, then tap Save (Pocket Arrow Down) to store it to internal memory.
  • Success check: The design thumbnail/preview appears in Embroidery Mode and can be found again via Retrieve (Pocket Arrow Up/Out).
  • If it still fails: Rename the design to a very short name (example: test.pes or 1.dst) and retry the transfer.
• Q: What is the correct Brother SE400 USB cable connection sequence to make Windows detect the Brother SE400 as a “Removable Disk”?
  A: Power the Brother SE400 OFF first, connect the USB Type-A to Type-B cable, then power ON—hot-plugging often causes Windows to not mount the drive.
  • Switch the Brother SE400 OFF and wait for it to fully settle.
  • Plug the Type-B (square “printer” end) into the machine, then plug Type-A (flat end) into the computer.
  • Switch the Brother SE400 ON and look in “This PC” for a Removable Disk.
  • Success check: Windows plays the device-connect chime and a new removable drive letter appears.
  • If it still fails: Swap to another USB port and try a different (often shorter) USB cable.
• Q: Why does the Brother SE400 USB screen show an empty file list after copying a PES or DST file to the Brother SE400 “Removable Disk”?
  A: The most common causes are file naming/characters or an incompatible file situation, so simplify the name and confirm the file type before re-copying.
  • Rename the file to something short like test.pes or 1.dst (avoid long names, spaces, and symbols).
  • Copy the file again and wait until Windows finishes copying before unplugging anything.
  • On the Brother SE400, enter Embroidery Mode and tap the USB icon to refresh the list.
  • Success check: The Brother SE400 USB list shows the file name and a non-zero size (not 0KB).
  • If it still fails: Re-download the original file and re-transfer using a different USB cable (corrupt transfers can appear “blank”).
• Q: How do I fix the Brother SE400 “Cannot use this file” message when loading a design through the Brother SE400 USB transfer?
  A: The Brother SE400 often rejects designs that exceed the 100mm x 100mm (3.93" x 3.93") stitch field, even slightly.
  • Confirm the design is within the Brother SE400 4x4 field limit before transfer.
  • Resize in embroidery software so the maximum dimension is safely under the limit (a commonly safe approach is slightly under 100mm).
  • Re-copy the resized file to the Brother SE400 removable disk and load again from the USB icon screen.
  • Success check: The design preview loads and the hoop boundary screen appears without an error.
  • If it still fails: Try transferring a known-small test design to confirm the connection workflow is working.
• Q: Why does a Brother SE400 design disappear after turning the Brother SE400 power off, even though the design loaded from USB successfully?
  A: The design was loaded into temporary working memory (RAM) but was not saved into the Brother SE400 permanent internal memory using the Pocket Arrow Down icon.
  • Load the design from the USB icon screen as normal.
  • Tap Save (Pocket with Arrow Down) immediately after loading.
  • When the Brother SE400 asks “OK to delete selected pattern?”, tap OK (this clears temporary RAM, not the saved copy).
  • Success check: After a power cycle, the design is still available via Retrieve (Pocket Arrow Up/Out).
  • If it still fails: The Brother SE400 internal memory may be full—delete older designs from the Retrieve screen and save again.
• Q: What “hidden” prep items should be checked before running a first test stitch on a Brother SE400 embroidery design transferred by USB?
  A: Use a quick pre-flight check: fresh needle, enough bobbin thread, correct stabilizer, and a clean, safe work area—these prevent avoidable stitch-outs and stops.
  • Install a fresh 75/11 embroidery needle.
  • Verify bobbin thread quantity and correct bobbin orientation (the “p” shape / counter-clockwise as described).
  • Choose stabilizer (tear-away or cut-away) and use adhesive spray if floating fabric.
  • Clear the machine area so the carriage cannot hit tools or objects.
  • Success check: The first 100 stitches run smoothly with steady sound (rhythmic stitching) and no thread shredding.
  • If it still fails: Re-thread the top thread with the presser foot UP so tension discs are open, then test again.
• Q: What safety rules should beginners follow when operating a Brother SE400 embroidery machine and when handling magnetic embroidery hoops?
  A: Keep hands, hair, jewelry, and strings away from the moving needle/carriage, and treat magnetic hoops as pinch-hazard tools that can snap together suddenly.
  • Power off before connecting the USB cable and keep fingers away from the needle area during stitching.
  • Tie back long hair and remove/secure loose sleeves, hoodie strings, and jewelry before pressing Start.
  • Handle magnetic hoops deliberately; keep fingers out of the closing gap to avoid pinching.
  • Keep magnetic hoops away from pacemakers or insulin pumps (a commonly recommended minimum is several inches; follow medical device guidance).
  • Success check: The carriage can move full travel without obstruction, and hands never need to enter the hoop area while running.
  • If it still fails: Stop the machine immediately if anything feels unsafe or you hear an abnormal loud “CLACK,” then re-check clearance and setup before restarting.
• Q: If Brother SE400 USB transfers are working but production feels slow, what is a practical upgrade path from technique fixes to magnetic hoops to a multi-needle machine?
  A: Upgrade in layers: first stabilize the workflow, then reduce hooping pain with magnetic hoops, and only then consider a multi-needle machine when color changes become the bottleneck.
  • Level 1 (Technique): Use the exact Brother SE400 sequence—OFF → connect cable → ON → copy file → Embroidery Mode → USB icon → load → Save (Pocket Down).
  • Level 2 (Tool): If hoop burn and wrist strain are the main issue, magnetic hoops often reduce fabric marking and speed up hooping.
  • Level 3 (Capacity): If you routinely stitch 50+ items with multi-color logos, a multi-needle machine reduces constant manual thread changes.
  • Success check: The chosen upgrade removes the specific pain point (fewer hoop marks, faster setup, fewer thread-change interruptions) rather than adding new complexity.
  • If it still fails: Identify the true bottleneck (file handling vs hooping vs thread changes) and address that single constraint before buying more accessories.
