Brother SE725 Bobbin Problems That Ruin Embroidery: Clean the Race, Find the Hidden Needle Tip, and Stop the Loops

Reference Guide: Mastering the Brother SE725 Bobbin System: A Field Manual for Flawless Stitching

When an embroidery machine like the Brother SE725 stops mid-design or nests thread underneath the fabric, it feels personal. It feels like the machine is fighting you. But after 20 years of managing production floors and teaching novices, I can tell you this: the machine isn’t angry. It is simply a physics engine reacting to friction, obstruction, or misalignment.

Most "catastrophic" failures stem from three microscopic issues: lint displacing the bobbin case, a broken needle tip acting as a magnetic saboteur, or user error during the critical "hooping and loading" phase.

This guide rebuilds standard troubleshooting into a preventative maintenance protocol. We will move beyond "what button to press" and cover the feel, the sound, and the precise mechanics required for professional results.

The "Safety Sensor" Logic: Why the SE725 Beeps When the Plate moves

If you slide the needle plate cover off, the Brother SE725 immediately locks down and displays a warning. This is not a glitch; it is a micro-switch safety interlock.

The machine protects you from engaging the rotary hook while your fingers are exposed to the drive mechanism.

Troubleshooting Scenario: If your machine suddenly refuses to sew after a jam clearance, do not panic. The sensor tolerance is tight. If the cover is off by even 1mm, the circuit remains open.

• The Fix: Slide the cover firmly until you hear a distinct plastic snap.
• Success Metric: The warning screen vanishes instantly.

Warning: Physical Safety Hazard. Even with sensors, never place tools or fingers near the needle bar when the machine is powered on. If you need to perform deep cleaning, touching the "Lock" icon on the screen is good, but turning the power switch OFF is the only 100% guarantee against accidental needle strikes.

Phase 1: The "Hidden Prep" (Consumables You Didn't Know You Needed)

Before opening the bobbin race, pause. Rushing this stage is how novices scratch the needle plate or bend the bi-level tension springs. You need a clean environment.

The video demonstrates using fingers and a brush. However, for a "White Paper" standard of maintenance, you should assemble a specific toolkit.

The Veteran's "Pre-Flight" Kit:

1. Non-Magnetic Tweezers: For pulling lint (magnetic tools can accidentallymagnetize machine parts).
2. A "Micro-Vacuum" or Straw: Never blow canned air into the machine; it pushes lint deeper into the sensors. Suck the lint out.
3. Flashlight: Room lighting is rarely enough to see black grease vs. black lint.
4. Magnifier: To spot the tiny burrs on the needle plate.

If you are running a brother embroidery machine for a side hustle (Etsy, patches), this prep is not optional. It is your insurance policy against ruined inventory.

Prep Checklist: The "Zero-Friction" Setup

• Power Status: Machine allows cleaning, but "Lock" mode or Power Off is active.
• Visual Field: Needle plate area cleared of fabric and hoops.
• Tool Readiness: Brush and tweezers in hand (no hunting for tools mid-job).
• Mental State: You have 5 minutes of uninterrupted time. (Do not do this while on a phone call).


Phase 2: Surgical Disassembly (Do Not Pry)

Accessing the race involves removing two distinct covers. They require finesse, not force.

1. Bobbin Turn-Cover: Slide the black release latch to the right. The clear plastic cover should "pop" up. Lift it away.
2. Needle Plate Cover: This is the larger gray plastic section. Place your thumb on it and apply downward and forward pressure (sliding it toward you).


Sensory Anchor (Tactile): You should feel a smooth slide followed by a release. If you feel you need to leverage it up with a screwdriver, STOP. You are pulling at the wrong angle and risk snapping the retention clips.

Phase 3: The Deep Clean (Lint is the Enemy of Tension)

The rotary hook system requires a specific gap between the hook and the needle (the scarf). Lint buildup acts like shim, widening this gap or creating drag.

The Expert "Why": Thread tension is created by friction. If lint accumulates in the race, it adds uncontrolled friction. This is why you can have perfect tension settings on your screen but still get looping on your fabric.

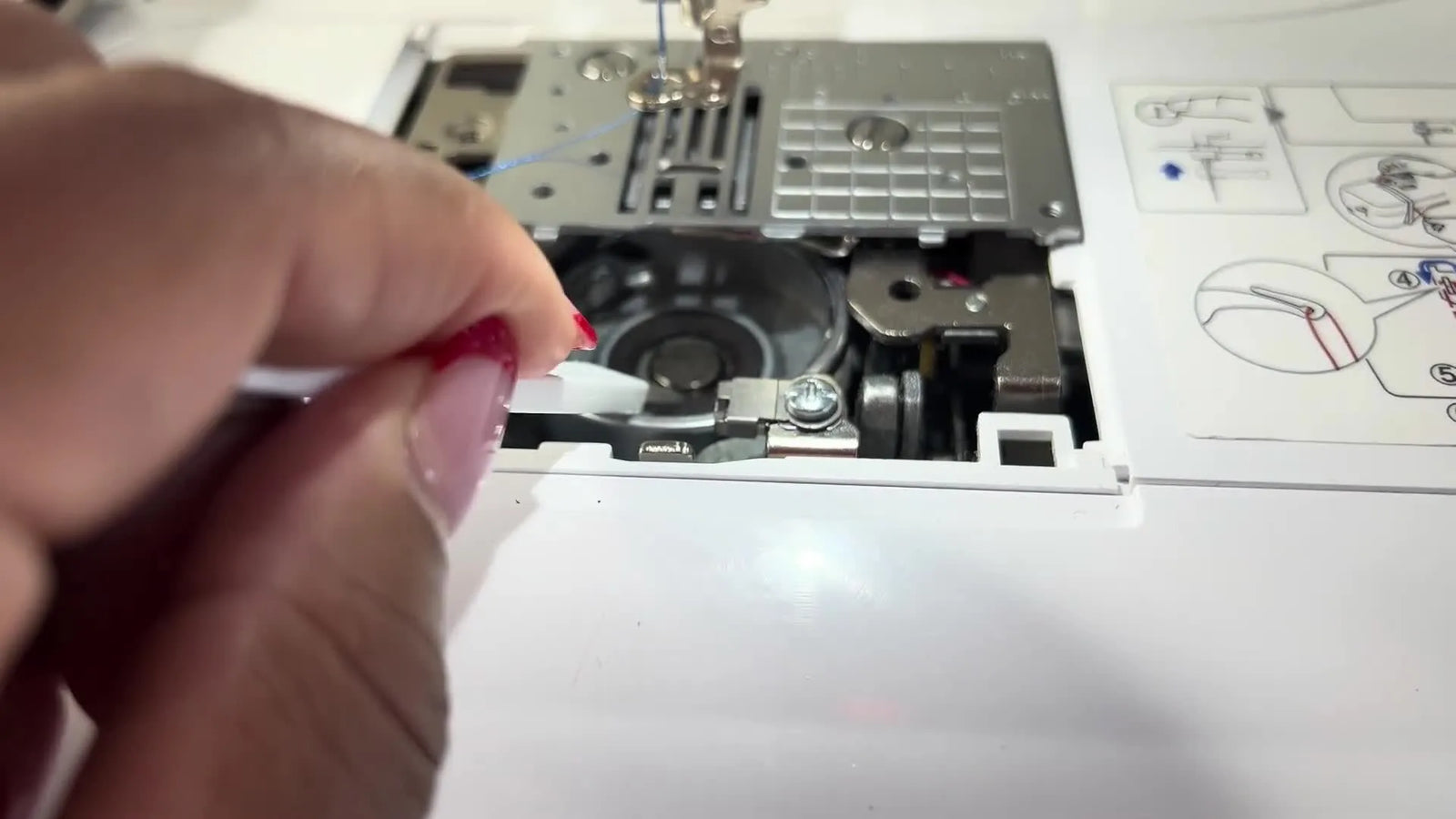

Action: Sweep the brush deep into the crevices of the race. Rotate the handwheel (toward you) slightly to expose hidden wedges of lint.

Success Metric: The grey metal race should look polished and free of any "fuzzy" texture.

Phase 4: The Magnet Trap (Finding the Invisible Saboteur)

This is the most critical step often missed by manual readers. The black bobbin case (the part you lift out) sits on top of a magnetic drive system.

The Physics of Failure: If a needle breaks, the tip doesn't disappear. It often falls into the race and gets stuck to the magnet. A 1mm shard of metal here will catch the upper thread every time it rotates, causing "mystery shreds" or immediate nesting.

Action: Lift the bobbin case out. Inspect the central magnet and the surrounding metal race. Use your tweezers (or the metal scissors trick shown in the video) to sweep the area.

Sensory Anchor (Visual): Look for a "glint." Oil and grease are matte black/grey. Anything that reflects light sharply is likely a metal shard.

Warning: Do Not Scrape. The bobbin case is precision-molded plastic. If you use a sharp tool and scratch the plastic ramp, that scratch will snag thread forever. Use soft tools or the very tip of tweezers only on the metal parts.

Phase 5: The "White Dot" Alignment (The Binary Pass/Fail)

Re-seating the bobbin case is where 50% of beginners fail. It is not a "drop in and wiggle" operation. It is a precision alignment.

• Locate the White Triangle/Dot on the black bobbin case.
• Locate the White Dot on the machine's metal race frame (usually at the 6 o'clock or 7 o'clock position).




The Rule: These two marks must kiss. They must align perfectly.

Sensory Anchor (Touch): When the case is seated correctly, press down gently on the center. It should feel "springy" but bottomed out. If it rocks side-to-side like a wobbly table, it is not seated.

Phase 6: The "Green Paint" Screw (The Tension Myth)

You will see a small screw on the bobbin case sealed with green paint.

Expert Advice: Do not touch this screw. The green paint indicates factory calibration for 60wt bobbin thread. Many users instinctively grab a screwdriver when they see loops. However, 90% of "bobbin tension" issues are actually:

1. Top threading path errors.
2. A burred needle.
3. Poor stabilization.

If you are using a standard embroidery machine for beginners, treat the bobbin case as a "constant." Variable troubleshooting should happen on top of the machine (upper tension) or at the hoop (stabilizer), not in the factory-sealed mechanics.

Phase 7: Reassembly and Sensor Reset

Slide the needle plate cover back.

Sensory Anchor (Auditory): Listen for the CLICK. If you do not hear the click, the safety sensor (from Section 1) will not engage, and the machine will refuse to sew.

Phase 8: Loading the Bobbin (The "P" for Perfect)

Embroidery requires lower tension on the bobbin than sewing. The path is critical to prevent "backlash" (where the bobbin spins faster than the thread is consumed).

The "P" Rule: Hold the bobbin so the thread trail hangs down on the left, forming the letter "P". If it looks like a "q", flip it over.

The Path:

1. Drop the bobbin in.
2. Crucial Step: Place a finger slightly on the bobbin to stop it from spinning.
3. Pull the thread tail through the slit and under the tension blade.
4. Cut the tail at the cutter.

If you skip the tension blade, you effectively have zero tension. This causes the "Birdnest" (massive looping on the bottom). Users transitioning from a standard brother sewing machine often miss this because sewing machines are more forgiving of loose bobbin loading. Embroidery machines are not.

Phase 9: The "Needle Down" Confidence Check

Before you hit "Start" on a complex design, cycle the machine manually.

Use the Needle Up/Down button.

Why do this? It confirms the physical path is clear. If the needle hits the plate or the bobbin case, you want to know now—at slow speed—rather than at 400 stitches per minute.

Phase 10: Tension & Stabilization (The Hidden Variables)

The video suggests a tension dial setting between 2 and 3. This is the novice "Sweet Spot."

However, tension is relative. A setting of "3" works for cotton with tearaway. It might fail on jersey knit with cutaway.

Decision Tree: Fabric vs. Stabilization Strategy

Most "tension" problems are actually "fabric shifting" problems.

1. Is the fabric stretchy? (T-shirts, Hoodies)
   • Risk: Fabric stretches while stitching, creating puckers.
   • Solution: Use Iron-on Fusible Mesh or Cutaway Stabilizer. Do not rely on tearaway alone.
2. Is the fabric thick/plush? (Towels, Fleece)
   • Risk: Stitches sink into the pile; bobbin thread shows on top.
   • Solution: Use a Water Soluble Topper (Solvy) to float the stitches.
3. Are you making patches?
   • Risk: Edge distortion.
   • Solution: Use thick micron backing and slow the machine speed down (e.g., 600 SPM).

Troubleshooting: The "10-Second" Break

Scenario: You start a design. At stitch 15 (approx. 10 seconds in), the thread snaps.

The Rapid Triage Protocol (Order of Operations):

1. Rethread the Top: 70% of breaks are just the thread jumping out of the take-up lever.
2. Change the Needle: If the needle has hit the plate once, it has a microscopic burr. That burr acts like a knife. Replace it.
3. Check Bobbin Orientation: Did you load it as a "P"? Is it under the blade?
4. Check the Magnet: Did a needle tip fall in during a previous jam?

From Frustration to Production: The Commercial Upgrade Path

Once you master the bobbin, your bottleneck shifts. You will stop fighting the machine and start fighting time.

If you are producing patches or Etsy orders, your biggest enemy becomes hooping.

• The Pain: Tightening screws hurts your wrists. Hoop burn marks ruin delicate velvet or performance polos. Re-hooping takes 3 minutes per shirt.
• The Cause: Traditional friction hoops are slow and physically demanding.

This is where the term hooping for embroidery machine shifts from a chore to a strategy.

The Upgrade Logic:

• Level 1 (Technique): Use floating techniques with adhesive spray to avoid hoop burn.
• Level 2 (Tooling): Upgrade to magnetic embroidery hoops for brother. These use powerful magnets to clamp fabric instantly without "forcing" the inner ring.
  • Benefit: Zero hoop burn, faster loading, and relief for arthritic hands. Searching for a brother magnetic embroidery frame compatible with your machine is the single highest ROI upgrade for a single-needle user.
• Level 3 (Scale): When you are doing 50 shirts a week, a single-needle machine (like the SE725) becomes the bottleneck because of thread changes. This is when you look at SEWTECH multi-needle solutions, allowing you to set 12 colors and walk away.

Warning: Magnetic Hazard. Magnetic hoops contain industrial-strength neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers, credit cards, and smartphones.

Summary: Your Operational Standard

Do not wait for a jam to perform maintenance. Adopt this checklists as your standard operating procedure.

Setup Checklist (Pre-Stitch)

• Bobbin case seated (White dots aligned).
• Needle plate cover clicked (Sensor warning cleared).
• Bobbin loaded counter-clockwise ("P" shape).
• Thread under the tension blade.
• New needle installed (if starting a major project).
• Hidden Item: Stabilizer is matched to the fabric stretch profile.

Operation Checklist (During Stitch)

• Listen: A rhythmic "thump-thump" is normal. A sharp "click-click" means a needle is hitting something—STOP immediately.
• Watch: If the bobbin count is low, the sound often changes to a slightly "hollow" mechanical noise before the sensor alerts you.
• Monitor: If loops appear, do not pull the fabric. Cut the thread, remove the hoop, and check underneath.

By respecting the physics of the machine and keeping the magnetic race clean, your Brother SE725 changes from a temperamental gadget into a reliable production tool.

FAQ

• Q: Why does the Brother SE725 beep or refuse to sew after the needle plate cover is moved during jam clearing?
  A: Reseat the Brother SE725 needle plate cover until the safety micro-switch clicks; even a 1 mm gap can keep the interlock open.
  • Slide the cover firmly into place instead of pressing down randomly.
  • Listen for a distinct plastic “snap/click” as the cover locks.
  • Success check: the warning screen disappears immediately and the machine will sew again.
  • If it still fails: remove and reinstall the cover slowly to confirm it is fully seated and not misaligned.
• Q: What maintenance tools are most useful for cleaning the Brother SE725 bobbin race without causing damage?
  A: Use a small, controlled “pre-flight” cleaning kit to remove lint safely and avoid pushing debris deeper into the Brother SE725 hook area.
  • Use non-magnetic tweezers to pull lint (avoid magnetizing parts).
  • Use a micro-vacuum or straw to suck lint out (do not blow canned air into the machine).
  • Add a flashlight and magnifier to spot black lint vs. grease and tiny burrs on the needle plate.
  • Success check: the metal race looks polished with no fuzzy lint texture in crevices.
  • If it still fails: re-check hidden lint pockets by turning the handwheel toward you slightly to expose new angles.
• Q: How do you correctly seat the Brother SE725 bobbin case using the white dot alignment to prevent wobble and birdnesting?
  A: Align the white mark on the Brother SE725 bobbin case with the white dot on the metal race frame; it is a pass/fail alignment, not “drop-in and wiggle.”
  • Locate the white triangle/dot on the bobbin case and the white dot on the machine’s race frame.
  • Press the bobbin case down gently after aligning; do not force or pry.
  • Success check: the bobbin case feels springy but fully seated and does not rock side-to-side.
  • If it still fails: lift it out and repeat the alignment—rocking usually means the marks are not truly aligned.
• Q: Should the Brother SE725 bobbin case “green paint” screw be adjusted to fix loops or bottom nesting?
  A: Do not adjust the Brother SE725 bobbin case screw with green paint; loops are usually caused by top threading errors, a damaged needle, or stabilization issues.
  • Rethread the top path carefully (thread often jumps out of the take-up lever).
  • Replace the needle if it has hit the plate even once (a tiny burr can shred thread).
  • Match stabilizer to fabric (stretchy knits often need cutaway or fusible mesh, not tearaway alone).
  • Success check: bottom thread stops forming large loose loops and stitching becomes consistent without changing the bobbin screw.
  • If it still fails: confirm the bobbin thread is under the tension blade during bobbin loading.
• Q: How should a Brother SE725 drop-in bobbin be loaded to follow the “P” rule and avoid backlash birdnesting underneath?
  A: Load the Brother SE725 bobbin so the thread forms a “P” (not a “q”) and 반드시 pull the thread under the tension blade before cutting the tail.
  • Hold the bobbin with the thread trailing on the left to form a “P,” then drop it in.
  • Hold a finger lightly on the bobbin to prevent free-spinning while pulling the thread into the slit.
  • Pull the thread under the tension blade, then cut at the cutter.
  • Success check: the thread tail pulls with controlled resistance (not completely free) and the next start does not create a thread “birdnest.”
  • If it still fails: re-check that the thread is truly under the blade, not just sitting in the slit.
• Q: What causes “mystery shredding” or instant nesting on the Brother SE725 after a needle break, and how do you check the magnet trap?
  A: Check the Brother SE725 magnetic hook area for a broken needle tip stuck to the magnet; even a 1 mm shard can snag the top thread every rotation.
  • Lift out the bobbin case and inspect the central magnet and surrounding metal race.
  • Sweep the area with tweezers and look for a sharp reflective “glint” (metal reflects; grease/lint is matte).
  • Avoid scraping the plastic bobbin case ramp—scratches can snag thread permanently.
  • Success check: no reflective shard remains and the machine stitches without repeated shredding at the same point.
  • If it still fails: replace the needle and re-check bobbin loading under the tension blade.
• Q: When does upgrading from technique changes to magnetic embroidery hoops or a multi-needle machine make sense for Brother SE725 production work?
  A: Start with technique fixes for hooping pain and rework, move to magnetic hoops for faster, cleaner hooping, and consider a multi-needle machine when thread changes become the true bottleneck.
  • Level 1 (Technique): use floating methods with adhesive spray to reduce hoop burn and re-hooping.
  • Level 2 (Tool): use magnetic embroidery hoops to clamp fabric quickly and reduce hoop burn and hand strain.
  • Level 3 (Scale): move to a multi-needle setup when frequent color changes on a single-needle machine limit weekly output.
  • Success check: hooping time drops and fabric shows fewer clamp/pressure marks while keeping registration stable.
  • If it still fails: reassess stabilization (stretch or plush fabrics often look like “tension problems” when they are actually fabric-control problems).
