Buttonholes in PREMIER+ 2 Embroidery: The Virtual Hoop + Encore Trick That Makes Spacing (and Stitch-Out) Foolproof

If you’ve ever stared at a row of buttonholes on a finished garment and thought, “One of these is going to drift, and I won’t notice until it’s too late,” you are experiencing a very specific type of anxiety. Buttonholes are high-stakes embroidery. They are often the final step in garment construction; if they are misaligned by even a millimeter, the human eye detects it instantly once the buttons are sewn on.

In my twenty years on the production floor, I’ve learned that "eyeballing" layout is the enemy of quality. Phil Carlton’s method in PREMIER+ 2 Embroidery is a masterclass in risk management. It combines a temporary “virtual hoop” for mathematical evenness with a physical placement line (running stitch) that creates a fail-safe boundary for floating your fabric.

This guide will deconstruct this workflow into a manufacturing-grade standard operating procedure (SOP), ensuring your results are identical whether you are stitching one pillow back or fifty commercial uniforms.

The Calm-Down Truth About In-the-Hoop Buttonholes: You’re Not “Bad at Measuring,” You’re Missing a Reference Line

In-the-hoop buttonholes succeed or fail based on one variable: a hard reference point. When you try to manually mark fabric with chalk and align it visually in a hoop, you are fighting three physical enemies: fabric stretch, grain distortion, and optical illusions.

Phil’s approach eliminates these variables by building two hard references inside the digital file before a single stitch is formed:

1. A Mathematical Span: By using a "virtual hoop," the software calculates the exact distance between holes, removing human calculation error.
2. A Physical Anchor: The center placement line allows you to align the fabric edge against a stitched line, which is far more accurate than aligning to a chalk mark.

The Psychology of Success: This method feels "life-changing" because it shifts the cognitive load from your eyes (subjective) to the machine (objective). You stop guessing and start executing.

The “Hidden” Prep Before You Touch PREMIER+ 2 Embroidery: Button Size, Ease, and a Clean Plan for Floating Fabric

Before you open your software, you must gather your "Real World Data." Software cannot feel your fabric or measure your buttons.

1. The Physical Measurement (The "Floss" Test): Do not trust the button packaging size.

• Action: Measure your actual button diameter with calipers or a ruler.
• Action: Determine the "Ease." A buttonhole must be slightly larger than the button. For a standard flat button, add 2-3mm. For a domed button, wrap a piece of thread around the button and measure the length.
• Sensory Check: When passing the button through a test hole, it should feel like pulling floss between teeth—distinct resistance, but smooth passage.

2. The Stabilization Strategy: Phil’s method uses "floating," where the fabric is not hooped but stuck to a hooped stabilizer.

• Stabilizer: Use a water-soluble sticky stabilizer (like Aqua Magic Plus).
• Needle: Use a 75/11 Sharp needle for woven fabrics. If using sticky stabilizer, consider an Anti-Glue or Titanium needle, as adhesive buildup can cause thread shredding.
• Hidden Consumable: Keep Sewers Aid or silicone lubricant handy to wipe the needle if you hear the "thump-thump" of gummed-up adhesive.

Prep Checklist (The "Go/No-Go" Criteria):

• Button Data: Actual button diameter + 2mm ease = Target Hole Size.
• Edge Distance: Distance from fabric edge to hole center (e.g., 3/8" or 10mm).
• Hooping Strategy: Floating on Sticky vs. Traditional Hooping.
• Final Hoop Selection: Select the hoop you will actually stitch in (Phil uses 360x200mm).


Pick the Right SuperDesign Buttonhole in PREMIER+ 2 Embroidery (and Measure It Like You Mean It)

In the PREMIER+ 2 Embroidery (Extra Module), navigate to the SuperDesign tab. Set the Category to Buttonholes and select the “Buttonholes 2” set.

The Expert Trap: Novices choose based on aesthetics. Pros choose based on physics.

• Action: Select a buttonhole style that matches your fabric weight. Denser satin stitches for heavy twill; lighter density for dress shirts.
• Action: Use the Get Length tool immediately. Do not assume the default size matches your button.

In Phil's example, the default is 23mm perfectly suitable for a coat button, but too loose for a standard 20mm shirt button.

Resize While the Handles Are Still Green: The Density Trap That Wrecks Clean Buttonholes

This is the most critical technical concept in this entire guide.

The "Green Handle" Rule: In PREMIER+ 2, an object with Green Handles is a "SuperDesign." It is mathematically calculated. If you resize it, the software adds or subtracts stitches to maintain the correct density (stitches per millimeter).

• Action: Hold Control (to keep proportions) and drag the corner handle until the height is exactly your Target Hole Size (e.g., 22.2mm for a 20mm button).

The White Handle Danger Zone: Once you enter the Modify tab, the object creates White Handles. It is now raw stitch data.

• Risk: If you shrink a "White Handle" object, the stitch count remains the same, but the area shrinks. This dramatically increases density.
• Result: A bulletproof, stiff buttonhole that snaps needles and creates a "bird's nest" of thread on the bobbin side.
• Rule: Always finalize size while handles are green.


Delete Decorative Elements in the Modify Tab Without Nuking the Buttonhole (Color-Block Hiding Trick)

Phil demonstrates a professional hygiene habit: cleaning the file. We need the functional buttonhole, not the decorative flower attached to it.

Action Sequence:

1. Go to the Modify tab (Stitches correspond now generated).
2. Isolate: In the color panel, uncheck Color Block #2 (the buttonhole) to make it invisible.
3. Select: Click Select All Visible. Since the buttonhole is hidden, you only grab the flower.
4. Execute: Press Delete.
5. Restore: Re-check the buttonhole color to bring it back.

By "hiding" the asset you want to keep, you prevent accidental deletion. It is the digital equivalent of putting your valuables in a safe before cleaning your house.

The Virtual Hoop Trick: Enter a 12-Inch Hoop Width to Space Buttonholes Like a Production File

Here is the genius of Phil’s workflow. Physical hoops are constraints; virtual hoops are tools.

The Concept: You are creating a "canvas" that matches the physical spread of your garment's placket, regardless of what your machine’s actual plastic hoop can hold.

Action Sequence:

1. Open Hoop Settings.
2. Select "Enter Size" (Manual).
3. Input Width: 305mm (12 inches).
4. Click OK.

Why This Works: Alignment tools (like Encore) calculate spacing based on the hoop boundaries. By setting a 12-inch boundary, you force the software to calculate spacing across that exact distance. If you tried to do this in a small hoop, you would be fighting the math.

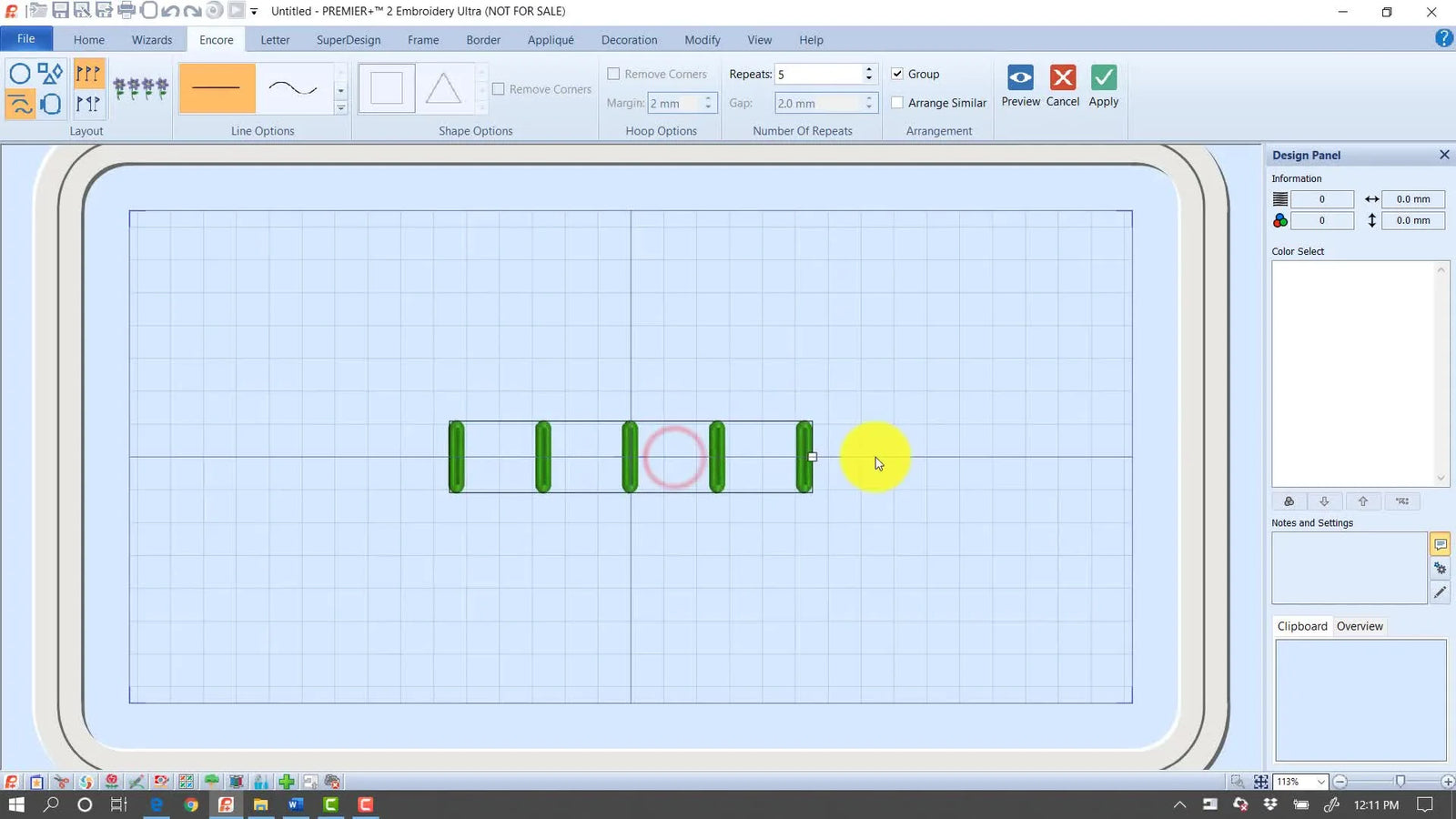

Use Encore to Line (5 Repeats) and Drag the White Handle Until the Spacing Looks “Factory Even”

With your canvas set, you now distribute the holes.

Action Sequence:

1. Go to the Encore tab.
2. Select Line type.
3. Set Repeats onto the Control Panel (e.g., 5 buttonholes).
4. Click Preview.
5. The Sensory Adjustment: Drag the White End-Handle to the right. Watch the gaps between the buttonholes expand. Stop when the group spans your required length.

Production Note: Phil uses 5 holes. In the pro world, odd numbers are standard for aesthetics, but the math doesn't care. Whether you choose 4 or 7, the "Virtual Hoop" ensures the distance between center-point to center-point is mathematically identical to 0.01mm.

Floating Fabric on Water-Soluble Sticky Stabilizer: The Placement Line Is Your Insurance Policy

Now we bridge the gap between software and the physical world. Phil uses Inspira Aqua Magic Plus (water-soluble sticky).

The Physics of Floating: Traditional hooping stretches the fabric. Floating lets the fabric sit naturally on top of the adhesive stabilizer, preventing the "wavy placket" look known as puckering. However, floating lacks alignment guides—until we create one.

The Solution: Stitch a straight line on the stabilizer before putting the fabric down. This line acts as a "fence." You simply butt the edge of your fabric against the stitched line.

Commercial Insight: The "Hoop Burn" Problem If you are doing production runs of delicate fabrics (velvet, silk, performance wear), traditional plastic hoops leave friction marks ("hoop burn") that are impossible to steam out. This is a primary trigger for shops to upgrade. Professionals often use magnetic embroidery hoops for floating techniques. These hoops clamp the stabilizer instantly without the "unscrew-tighten-pull" struggle of traditional hoops, creating a perfectly flat surface for floating high-end garments.

Warning: Project Safety. When floating fabric, your hands are close to the active needle area during placement. Keep fingers at least 4 inches away from the needle bar. A running stitch moves faster than your reflexes.

Build the 200 mm Running-Stitch Placement Line (and Don’t Accidentally Group It)

We need to draw the "fence."

Action Sequence:

1. Go to the Border tab.
2. Select Running Stitch (Motif).
3. Data Point: Keep Stitch Length at 2.5mm. Anything smaller perforates the stabilizer too much; anything larger is too loose.
4. Set Length to 200mm (or the length covering your buttonhole span).
5. Crucial Step: Click in the grey workspace to Deselect All before clicking Apply.

Why Deselect? If the buttonholes are selected when you click Apply, the software groups the line with the buttonholes. You want them separate so you can manipulate them independently.

Make the Placement Line Stitch First: “Move to Back” Is the Difference Between Clean Workflow and Chaos

Software layers usually determine stitch order (top to bottom).

The Logical Order:

1. Placement Line: Stitches onto empty stabilizer.
2. Machine Stop: Allows you to place fabric.
3. Buttonholes: Stitch through fabric + stabilizer.

Action Sequence:

1. Select the new Placement Line.
2. Go to Layout Order.
3. Click Move to Back. (In most embroidery software, "Back" means "First in sequence").

Expert Trick: If you want to save thread, you can run the placement line without thread in the needle (just the needle perforations in the stabilizer). However, a contrasting thread color (e.g., red) creates a much better visual guide for your eyes.

Switch to the Real 360 x 200 mm Hoop, Rotate 90°, and Use the Grid to Hit the 3/8-Inch Edge Distance

Now we move from the "Virtual Layout" to the "Physical Reality."

Action Sequence:

1. Hoop Change: Select your actual 360 x 200 mm hoop.
2. Orientation: The design is horizontal, but plackets are vertical. Select All --> Rotate 45° --> Rotate 45° (Total 90°).
3. Grid Activation: Turn on the Grid. Set grid spacing to your Edge Distance (e.g., 10mm or 3/8").
4. The Alignment: Move the buttonhole group so the edge of the buttonholes sits exactly one grid square away from the placement line.

The Result: You now have a file that creates a line, waits for you, and then stitches buttonholes exactly 3/8" from that line.

When You Can’t Click the Thin Placement Line: Use Tab or Next Design (Don’t Waste 10 Minutes Hunting Pixels)

Trying to click a single running stitch line on a screen is frustrating.

The Workflow Accelerator: do not aim with your mouse. Use your keyboard.

• Action: Press the TAB key. This cycles through the objects on screen.
• Action: Alternatively, use the Next Design arrow in the control panel.

This reduces "mouse mileage" and wrist strain, allowing you to work faster.

Verify the Stitch-Out in Design Player: Watch the Order Like a Hawk Before You Export

Never export without simulation. The Design Player is your flight simulator.

What to Look For (Visual Check):

1. Does the straight line appear first?
2. Is there a pause/color change command between the line and the buttonholes? (Ideally, make them different colors so the machine forces a stop).
3. Do the buttonholes stitch top-to-bottom or bottom-to-top? (Know this so you manage fabric bulk correctly).

Setup Checklist (The Pre-Flight Inspection):

• Ease Check: Buttonhole Height = Button Diameter + 2-3mm.
• Spacing Check: Total span matches garment length.
• Separation Check: Placement line is a separate object (not grouped).
• Order Check: Placement line is technically Step 1.
• Grid Check: Distance between Placement Line and Buttonhole Edge is correct (e.g., 10mm).
• Hoop Check: Final hoop size matches the frame you are physically holding.

Fabric + Stabilizer Decision Tree for Floating Buttonholes (So You Don’t Get Wavy Plackets)

Floating is a technique, not a universal law. Use this logic gate to decide your method:

1. Is the area already structurally stable?
   • Yes (Placket/Interfacing): Float it. The fabric can support the stitch density; the stabilizer is just for holding it in place.
   • No (Single layer t-shirt/Light Cotton): Do NOT Float. You need to hoop the fabric with Cutaway stabilizer to prevent distortion.
2. Is the fabric slippery (Silk/Rayon)?
   • Yes: Sticky stabilizer alone may not hold. Use temporary spray adhesive for extra grip, or upgrade to a magnetic embroidery hoop which clamps the fabric firmly without the abrasion of inner plastic rings.
3. Are you doing production volume (50+ shirts)?
   • Yes: Floating is fast, but aligning gets tiring.
   • The Solution: Professionals use magnetic hoops for embroidery machines combined with a hooping station for machine embroidery. This hardware ensures every chest logo or placket is clamped in the exact same spot, reducing the "setup time" from minutes to seconds per garment.

Troubleshooting the Four Problems That Actually Ruin This Workflow

If things go wrong, start here. Proceed from Low Cost (User Error) to High Cost (Hardware/Digitizing).

The Upgrade Path When You’re Tired of Fighting Hoops: Faster Clamping, Cleaner Placement, Less Wrist Pain

If you are stitching one shirt a month, Phil’s method is perfect. However, if you are running a small business, "hooping fatigue" is a real medical risk and a productivity bottleneck.

Level 1: The Stability Upgrade For tricky placements (collars, cuffs, plackets), standard hoops are clumsy. Users looking for consistent tension often search for terms like pfaff magnetic embroidery hoop (or their specific machine brand) to find frames that snap shut. These allow you to adjust the fabric while it is in the hoop, something impossible with screw-tightened hoops.

Level 2: The Production Upgrade If you find yourself spending more time changing threads and re-hooping than actually sewing, your single-needle machine is the throttle on your income.

• The Trigger: You are turning away orders because you "don't have time."
• The Solution: Transitioning to a multi-needle machine (like the SEWTECH series). These machines utilize industrial-style magnetic frames and allow you to set up the next garment while the current one stitches, effectively doubling your output.

Warning: Magnetic Safety. Magnetic hoops use industrial-grade neodymium magnets. They can pinch skin severely. Never place them near pacemakers, and keep credit cards/phones at least 12 inches away.

Operation Checklist (The Machine-Side Protocol):

• Hoop: Stabilizer is "drum-tight" and sticky paper is peeled.
• Step 1: Run the placement line. STOP.
• Placement: Align fabric edge to the stitched line. Press firmly working from center out to remove bubbles.
• Step 2: Stitch buttonholes. Watch for "flagging" (fabric lifting with the needle).
• Finish: Tear away stabilizer gently. Use tweezers to pick out any placement line stitches caught under the satin stitch (if applicable).

One Last Practical Use: This Same Layout Method Works for Sew-In Labels and Other Repeat Elements

Once you master this "Virtual Hoop + Placement Line" logic, you have unlocked a massive shortcut for other products.

• Sew-in Labels: Space 10 labels evenly, stitch a placement box, stick ribbon down, stitch labels.
• Hook & Loop Tape: Stitch placement box, stick tape, stitch down.

The software math does the spacing; the placement line does the holding. Stop trusting your eyes, and start trusting the data.

FAQ

• Q: In PREMIER+ 2 Embroidery, why does a resized buttonhole turn “bulletproof” and start causing bird’s nests on the bobbin side?
  A: Resize the buttonhole only while the SuperDesign handles are green so PREMIER+ 2 recalculates stitch density.
  • Action: Go back to the SuperDesign stage (green handles) and set the final buttonhole height there (button diameter + 2–3 mm ease).
  • Action: Avoid shrinking after entering the Modify tab (white handles), because stitch count stays the same while the area gets smaller.
  • Success check: The buttonhole stitches look smooth (not stiff/overpacked), and the machine runs without sudden needle deflection or a thread wad forming underneath.
  • If it still fails… Re-check needle choice (75/11 Sharp for wovens) and watch for adhesive buildup if using sticky stabilizer.
• Q: When floating fabric for in-the-hoop buttonholes with water-soluble sticky stabilizer (Aqua Magic Plus style), what needle and prep prevent thread shredding from adhesive buildup?
  A: Use a 75/11 Sharp needle and manage adhesive residue proactively to stop shredding and “thump-thump” punching.
  • Action: Install a 75/11 Sharp for woven fabrics; if adhesive is heavy, try an Anti-Glue or Titanium needle (a safe starting point).
  • Action: Keep Sewers Aid (or silicone lubricant) available and wipe the needle when you hear the “thump-thump” sound or see drag.
  • Success check: Upper thread stops fraying mid-run, and stitches form cleanly without intermittent tension spikes.
  • If it still fails… Reduce handling of the adhesive surface and confirm the fabric is firmly pressed from center outward to remove bubbles.
• Q: In PREMIER+ 2 Embroidery, why do the running-stitch placement line and the buttonhole group move together, and how do I prevent accidental grouping?
  A: Create the placement line only after clicking in the grey workspace to deselect everything, so the line is not grouped to the buttonholes.
  • Action: Before clicking Apply in the Border tab (Running Stitch), click the grey workspace to Deselect All.
  • Action: If the line already moves with the buttonholes, ungroup/separate in Modify, or delete and redraw the line with proper deselection.
  • Success check: Selecting the placement line moves only the line, and selecting the buttonholes moves only the buttonholes.
  • If it still fails… Use the TAB key to cycle object selection so the correct element is being edited.
• Q: In PREMIER+ 2 Embroidery, how do I select a thin running-stitch placement line without wasting time clicking pixels?
  A: Use the TAB key (or the Next Design arrow) to cycle selections instead of mouse-hunting the line.
  • Action: Press TAB until the placement line highlights; then move or reorder it as needed.
  • Action: Use the control panel “Next Design” arrow if TAB cycling is faster on the setup.
  • Success check: The correct object highlights immediately and can be moved without accidentally grabbing the buttonholes.
  • If it still fails… Temporarily zoom in and hide other elements, then cycle again with TAB.
• Q: When floating fabric for buttonholes on sticky stabilizer, how do I align the placket edge accurately without chalk marks in PREMIER+ 2 Embroidery?
  A: Stitch a running-stitch placement line first and butt the fabric edge against that stitched line like a physical fence.
  • Action: Build a 200 mm running-stitch line with 2.5 mm stitch length (or long enough to cover the span).
  • Action: Move the placement line to stitch first (Layout Order → Move to Back), then stop the machine and place fabric to the stitched line.
  • Success check: The fabric edge sits consistently against the stitched line with no drift, and the buttonholes land at the intended edge distance.
  • If it still fails… Make the placement line a different color so the machine forces a stop between the line and the buttonholes.
• Q: What needle-area safety rule should be followed when floating fabric on sticky stabilizer for in-the-hoop buttonholes?
  A: Keep fingers at least 4 inches away from the needle bar during placement because a running stitch moves faster than reflexes.
  • Action: Stop the machine fully before placing or adjusting fabric on the hooped stabilizer.
  • Action: Press fabric down working from the center outward, keeping hands away from the needle path.
  • Success check: Fabric placement is controlled without hands entering the active needle zone.
  • If it still fails… Slow down the workflow and plan a clear “stop → place → hands off → stitch” routine before starting the sequence.
• Q: What magnetic hoop safety precautions apply when using magnetic embroidery hoops for floating and production placement?
  A: Treat magnetic hoops as pinch hazards and keep them away from pacemakers and sensitive items like phones and credit cards.
  • Action: Separate and close magnetic frames deliberately to avoid skin pinches.
  • Action: Never use magnetic hoops near pacemakers; keep phones/credit cards at least 12 inches away.
  • Success check: Hooping is fast and controlled with no snapped closure or finger pinches, and the hoop sits flat without distortion marks.
  • If it still fails… Switch to a slower clamping motion and confirm the stabilizer is flat before bringing magnets together.
• Q: For repeat buttonholes on garments, when should a user switch from technique fixes to magnetic hoops or to a multi-needle SEWTECH embroidery machine?
  A: Start with layout + stabilization technique, move to magnetic hoops when hooping and alignment become the bottleneck, and consider a multi-needle SEWTECH machine when re-hooping/thread changes cap your daily output.
  • Action: Level 1 (technique): Use the virtual hoop for mathematically even spacing, and a running-stitch placement line for physical alignment.
  • Action: Level 2 (tool): Use magnetic hoops when hoop burn, wrist fatigue, or slow clamp time is causing inconsistent placement or discomfort.
  • Action: Level 3 (capacity): Move to a multi-needle SEWTECH machine if orders are being delayed because too much time is spent re-hooping and changing threads.
  • Success check: Setup time drops and placement becomes repeatable across multiple garments, with fewer rejected pieces from misalignment.
  • If it still fails… Track where time is lost (alignment vs. hooping vs. thread changes) and upgrade the step that is consistently slowing production.
