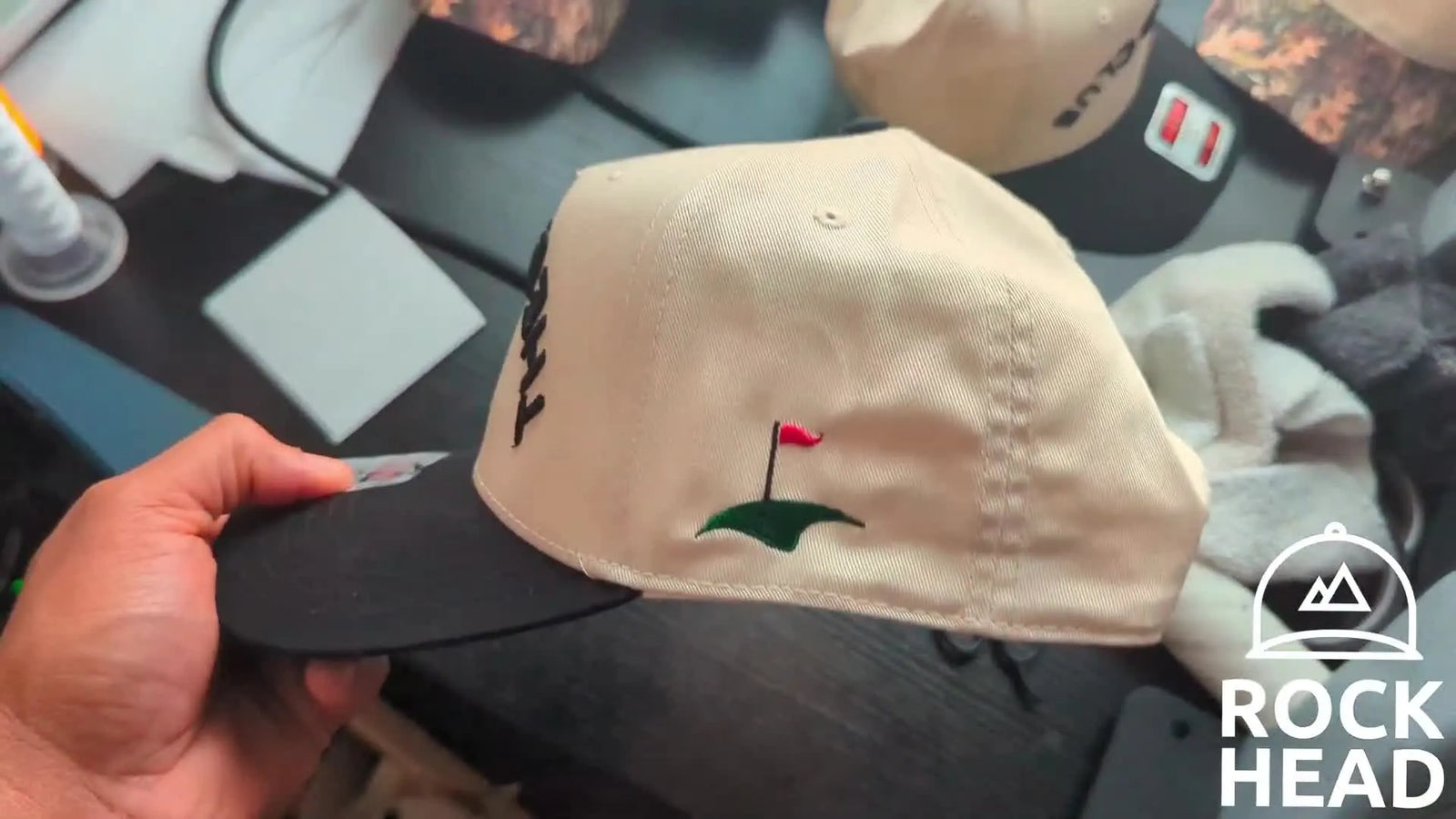

Clean Side Hat Logos on an Otto Cap: The Pocket Hoop Method That Keeps the Sweatband Free

Side-of-hat embroidery is one of those specific disciplines that separates the hobbyist from the professional shop. It looks deceptive: just a small logo on the side, right? But between the rigid bill fighting for space, the curve of the crown, and the risk of sewing the sweatband to the face of the cap, it is a minefield.

If you are running structured caps (like the Otto cap shown in our reference workflow) for clients, the stakes are high. A ruined T-shirt is a $3 mistake; a ruined structured cap is often a $10–$15 loss plus shipping time.

This guide effectively deconstructs the workflow using a Smartstitch multi-needle machine and a pocket-style clamping hoop. We are going to move beyond simple instructions and talk about the feel of the process—the sensory checks that tell you if you are about to succeed or crash.

Don’t Panic: Side Hat Embroidery on an Otto Cap Is Hard for Real Reasons (Not Because You’re “Bad at Hooping”)

Let’s validate your frustration immediately: Structural caps are engineered not to be flattened. When you try to embroider the side, you are fighting physics in three dimensions:

1. The Bill: It acts as a lever, physically blocking the hoop from sliding deep enough into the station.
2. The Buckram: The stiff mesh in the front panels resists the "taco fold" needed to clear the pantograph.
3. The Sweatband: It sits exactly in the needle path, waiting to be stitched down permanently.

The "Sweatband Flip" isn't just a trick; it is an essential clearance maneuver. If you do not perform this, you are relying on luck. The method we are refining here turns that luck into a repeatable engineering process.

The “Hidden” Prep That Prevents Rework: Tear-Away Backing + a Pocket Hoop Jig That Actually Holds the Side Panel

The foundation of a good stitch-out is what happens before the hat touches the machine. In the reference workflow, the operator places a single sheet of tear-away stabilizer (typically 1.5oz to 2.0oz) into the hooping station first.

Why Tear-Away? Structured caps already have a stable foundation (the fabric and often buckram reinforcement). Using a heavy cutaway here adds unnecessary bulk that can cause needle deflection on the curve. Tear-away provides just enough friction to keep the fabric from shifting without adding density.

If you are struggling to keep the station still while wrestling a stiff cap, this is where your hardware matters. Professionals often upgrade to a magnetic hooping station because it locks the bottom jig to the table. A sliding jig spells disaster for registration.

Prep checklist (do this before you touch the hat)

• Stabilizer Check: Confirm one sheet of crisp tear-away stabilizer is centered in the jig.
• Hardware Hygiene: Run your finger over the clamping surface. Is there sticky residue from spray adhesive? Clean it. A 0.5mm bump can cause thread breaks on a tight cap.
• Needle Integrity: Side caps are dense. Swap to a fresh 75/11 Sharp or Titanium needle if you’ve run more than 8 hours on the current one.
• The "Ear Clearance" Decision: Decide your vertical placement now. If it’s too low, the ear covers it (aim for at least 20mm up from the bottom edge).
• Hidden Consumable: Keep a pair of fine-point tweezers and a lighter handy for the finishing steps.


The Sweatband Flip Trick: How to Keep the Inner Sweatband from Getting Stitched Down

This step is the difference between a sellable hat and a "seconds bin" donation. The operator flips the inner sweatband completely outward so it wraps around the exterior bottom edge of the cap.

Sensory Check (Visual & Tactile): When you flip the band out, run your thumb along the fold inside the cap. It should feel strictly like the cap fabric meeting the fold. If you feel a "lump" or a double layer, the sweatband is not fully cleared. It needs to be pulled out until the seam is visible exposed.

Compatibility is vital here. If you are operating a smartstitch 1501 or similar multi-needle machine, the clearance under the sewing arm is designed for this specific flip. On smaller domestic machines, this flip can sometimes obstruct the luer/connection point, so verify your machine's throat space.

The Tightest Part: Sliding the Hat into the Pocket Hoop Without Warping the Side Panel

This is the moment of highest physical resistance. The bill of the hat will hit the hoop station arm.

The Physics Fix: You cannot force the bill through solid metal. Instead, you must narrow the profile of the cap.

1. The "Taco" Fold: Gently fold the back of the cap into the crown.
2. The Slide: Slide the pocket hoop frame into the cap (not the cap onto the frame).
3. The Seat: Push structurally until the sweatband (which is flipped out) hits the stop on the jig.

If the cap wants to spring off, do not just clamp it down. A cap under high tension will "flag" (bounce) during stitching, causing birdnesting. Rearrange it until it sits naturally flat against the stabilizer.

Warning: Mechanical Hazard. When operating clamping hoops, keep fingers clear of the snap-zone. The leverage on manual pocket clamps is enough to bruise bone, and if you are using automated or magnetic clamps, the pinch force is significant.

Placement That Sells (and Doesn’t Get Hidden): Using the Pocket Hoop Window Edge to Stay Above the Ear Line

Amateurs center the design in the available space. Professionals center the design visibly. The vertical space on a side panel is deceptive. The bottom 1 inch (2.54cm) gently curves inward toward the wearer's skull; anything stitched here will be masked by the top of the ear.

The Expert Reference Point: Use the metal edge of the pocket hoop window as your "Hard Deck." The bottom of your design should sit at least 10mm to 15mm above the metal frame's bottom edge. In the video, the operator straightens the fabric parallel to this edge. If the fabric grain looks tilted against the metal bar, your logo will be crooked.

Clamp It Like You Mean It: Getting Even Tension Across the Bottom Edge (Without Hoop Burn)

Once the cap is seated, you apply the top frame. This is where "Hoop Burn" (permanent shiny rings on the fabric) happens.

The Tension Sweet Spot: You want the fabric effectively taut, but not stretched to its limit.

• Tactile Test: Tap the side panel. It should sound like cardstock, not a high-pitched drum. If it's too tight, the fabric weave opens up, and your satin stitches will sink.

If you are seeing rectangular crush marks on delicate navy or black caps, your clamp pressure is too high. This is a primary reason shops eventually transition to a magnetic embroidery hoop. Magnetic systems distribute the downward force evenly along the perimeter rather than crushing specific leverage points, significantly reducing hoop burn on structured caps.

Warning: Magnet Safety. If you upgrade to magnetic hoops, treat them with extreme caution. They can snap together with over 30lbs of force. Never place hands between frames, and keep them away from pacemakers or computerized machine screens.

Mounting the Hoop on a Smartstitch Multi-Needle: Lock It In, Then Stop Touching It

The transfer from station to machine is critical. The assembly is heavy. Slide the hoop onto the pantograph arm (driver) until you hear and feel a distinct metallic click.

The Wiggle Test: Once locked, give the hoop tip a very gentle 1mm vertical wiggle. It should feel solid, like it is part of the machine arm. If there is play, or if it feels "mushy," it is not seated. A loose hoop on a side cap causes registration loss (where the outline doesn't match the fill).

Repeatability is key here. smartstitch embroidery hoops are designed to index specifically to that machine's arm. Never force a hoop that doesn't slide on smoothly; you risk bending the pantograph drive, which is a technician-level repair.

The Trace Habit That Saves Needles: Checking Clearance So You Don’t Strike the Metal Frame

This step is non-negotiable. On a flat shirt, if you hit the hoop, you break a needle. On a side cap with a metal pocket clamp, if you hit the frame, you can shatter the needle bar reciprocator.

The "Trace" Protocol:

1. Select the design.
2. Activate the "Trace" or "Border Check" function physically on the screen.
3. Visual Check: Watch the presser foot (not just the laser). Does the metal foot foot enter the "No Fly Zone" of the metal clamp?
4. The Buffer: You need at least 2-3mm of clearance between the needle and the metal clamp.

If you are using a specifically designed pocket hoop for embroidery machine, the margins are tighter than standard hoops. Do not walk away during the trace.

Running the Stitch-Out: What “Normal” Looks Like While the Machine Embroiders the Side Logo

Press start. But do not leave. The first 300 stitches are where 90% of cap failures occur.

Auditory Diagnosis:

• Normal: A rhythmic, thumping hum.
• Danger: A sharp "slap-slap" sound? The cap is flagging (lifting) and hitting the needle plate.
• Danger: A grinding noise? The bill is likely rubbing against the machine head or arm.

Speed Management: Just because your machine can do 1000 SPM (Stitches Per Minute) doesn't mean it should on a side cap. The centrifugal force on a wobbly cap frame is high.

• Beginner Safe Zone: 600 - 700 SPM.
• Pro Zone: 800 - 900 SPM (only with perfect stabilization).


Operation checklist (use this during the run)

• The Clearance confirm: Did the manual Trace complete without the foot hovering over metal?
• Bill Watch: As the design moves left-to-right, is the bill hitting the machine body? (If yes, pause and gently manipulate the bill or rotate the design 180 degrees if possible).
• Sweatband Patrol: Is the sweatband still flipped out? A loose band can curl back under the needle in seconds.
• Sound Check: Listen for the "ticking" of a needle hitting a dense seam. If loud, slow down.
• Thread Path: Ensure no spare thread tails are caught in the moving hoop arm.


Unhooping Without Distorting the Cap: Release from the Arm, Then Pop the Frame Cleanly

The run is done. The lockstitch has fired.

1. Unlock the hoop from the pantograph.
2. Move to a flat table.
3. Release the top clamp.

Crucial Step: Do not yank the hat out. The stitches are warm and the fibers are stressed. Gently slide the hat off the pocket jig. If you pull hard/diagonally, you can skew the design while the stabilizer is still attached.

The Payoff: Tear Away the Backing, Flip the Sweatband Back, and Check the Inside Like a Customer Would

The final quality check is tactile.

1. Tear: removing the stabilizer. Use a quick, sharp motion to tear it cleanly from the stitches. Support the embroidery with your thumb so you don't distort the fabric.
2. Flip: Turn the sweatband back inside.
3. Feel: Put your hand inside the cap against the embroidery. Are there sharp knots? Is there leftover scratchy backing? (Use a lighter quickly to singe fuzz, or tweezers to pick stray backing).

If the sweatband flips back perfectly covering the backside of the embroidery, you have achieved the "Retail Look."

Quick Decision Tree: Which Stabilizer and Hoop Approach Makes Sense for Side Caps?

Not all caps are created equal. Use this logic flow to stop guessing.

Start: Analyze the Cap Structure

1. Strictly Structured (Hard buckram, stiff mesh - e.g., Otto, Richardson 112)
   • Stabilizer: 1 sheet Tear-away.
   • Hoop Strategy: Pocket Clamp or Magnetic Clamp. High tension is okay.
   • Risk: Hoop burn. Solution: Magnetic frames.
2. Unstructured / "Dad Hat" (Soft cotton, floppy)
   • Stabilizer: Cutaway (2.0oz - 2.5oz). Tear-away is often insufficient; the fabric will distort.
   • Hoop Strategy: Magnetic Frame preferred to prevent "bunching."
   • Risk: Pucker. Solution: Float a layer of water-soluble topping if fabric is textured.
3. Flexfit / Elastic Band (No adjustable strap)
   • Stabilizer: Cutaway + temporay adhesive spray.
   • Hoop Strategy: Careful! Don't overstretch the elastic band or the hat won't fit the customer.
   • Risk: Sizing distortion. Solution: Use the smallest hoop possible.


Troubleshooting the Two Most Common Side-Cap Failures (Straight from the Video)

Symptom: "The Hoop Won't Lock In" or "Bill hits the machine"

• Likely Cause: The hat is not "folded" enough for the bill to clear the throat space.
• Quick Fix: Remove hoop. Fold the back half of the hat deeper into the crown (like a taco). Use masking tape to hold the bill back if necessary (classic shop hack).
• Prevention: Check machine throat depth before accepting orders for massive flat-bill caps.

Symptom: Logo disappears behind the ear

• Likely Cause: You centered the design physically on the panel, ignoring the panel's curve.
• Quick Fix: Stop. Rip out if possible? Usually fatal.
• Prevention: Always place the design 10-15mm above the visual center. Use the hoop’s bottom metal edge as the "Do Not Cross" line.


The Upgrade Path I’d Use in a Real Shop: Faster Loading, Cleaner Interiors, and Less Wrist Pain

You have learned the technique. Now, let’s talk about scalability. Hand-clamping pocket hoops works fine for 5 hats. It is torture for 500.

Here is the professional diagnostics for when to upgrade your tools:

1. Scenario: "I have hoop burn on every black hat."
   • Diagnosis: Your manual clamps are applying crushed pressure at the corners.
   • The Prescription: Magnetic Hoops.
   • Why: They use vertical magnetic force rather than mechanical leverage. This eliminates the "crush points" that leave shiny marks.
   • Upgrade Level: Essential for Quality.
2. Scenario: "Hooping takes longer than the actual stitching."
   • Diagnosis: You are fighting the screw-tightening mechanism on every single hat.
   • The Prescription: Complete Magnetic Station Kit.
   • Why: You slide the hat on, snap the magnet, and go. It cuts hooping time by 40-60%.
   • Upgrade Level: Essential for Efficiency.
3. Scenario: "I am turning down orders because I can't keep up."
   • Diagnosis: Your single-head or single-needle machine is the bottleneck. You are changing threads manually.
   • The Prescription: SEWTECH Multi-Needle Ecosystem.
   • Why: Combining a specialized multi-needle machine with industrial magnetic frames allows you to hoop the next cap while the current one runs. This is how you run a business, not just a hobby.
   • Upgrade Level: Essential for Profit.

Setup checklist (for repeatable production results)

• Standardize: Mark your hooping station with tape for "Left Side" and "Right Side" alignment.
• Trace Routine: Never skip the trace, even on the 50th hat.
• Maintenance: Clean the bobbin case area every 5,000 stitches (caps create lint).
• Inspection: Check the first cap off the line for ear clearance before running the rest.


If you take one thing from this guide: Flip the sweatband, trust your trace, and respect the clearance. Do that, and side-of-hat embroidery becomes just another profitable service in your catalog.

FAQ

• Q: On a Smartstitch multi-needle embroidery machine, which stabilizer should be used for side-of-hat embroidery on structured caps like Otto?
  A: Use one sheet of crisp tear-away stabilizer as the default for structured caps, because the cap already has built-in stability and extra bulk can cause needle deflection.
  • Place: Center 1 sheet of tear-away (about 1.5oz–2.0oz) in the hooping jig before touching the cap.
  • Avoid: Heavy cutaway on stiff structured caps if bulk is causing problems on the curve.
  • Success check: The side panel sits flat against the stabilizer without needing to “force” the clamp to hold it.
  • If it still fails: If the cap is unstructured/floppy and puckers, switch to cutaway and re-test the same design.
• Q: On a Smartstitch 1501 multi-needle embroidery machine, how do you prevent stitching the inner sweatband down during side-cap embroidery?
  A: Flip the sweatband completely outward around the exterior bottom edge before loading the cap into the pocket clamp.
  • Flip: Pull the sweatband out until the seam is visibly exposed and nothing is tucked under the needle path.
  • Feel: Run a thumb along the inside fold to confirm there is no “lump” or double layer.
  • Success check: The inside feels like a single clean fabric fold, not a stacked edge, and the band stays outside during the first stitches.
  • If it still fails: Pause immediately if the band curls back under; re-flip and re-seat the cap before continuing.
• Q: On a Smartstitch multi-needle machine with a metal pocket clamping hoop, how do you verify the hoop is locked correctly and won’t cause registration loss?
  A: Slide the hoop onto the pantograph arm until there is a distinct metallic click, then do a gentle wiggle test.
  • Lock: Push the hoop fully onto the driver until the click is heard/felt.
  • Test: Wiggle the hoop tip about 1mm vertically—only lightly.
  • Success check: The hoop feels solid like part of the machine arm, not “mushy,” and shows no play.
  • If it still fails: Do not force the hoop; remove it and re-seat it smoothly (forcing can risk bending the drive and becomes a technician-level repair).
• Q: On a Smartstitch multi-needle embroidery machine, how do you run a Trace/Border Check to avoid the needle striking a metal pocket clamp frame on side hats?
  A: Always run Trace/Border Check and confirm 2–3mm clearance between the needle path/presser foot and the metal clamp before pressing Start.
  • Select: Load the design, then activate Trace/Border Check on the control screen.
  • Watch: Focus on the presser foot movement (not only a laser) as it traces the boundary.
  • Success check: The foot never enters the clamp “no-fly zone,” and there is a visible 2–3mm buffer from metal at all points.
  • If it still fails: Reposition the design higher/away from the clamp boundary and trace again—do not stitch until clearance is confirmed.
• Q: On a Smartstitch multi-needle machine, what does “flagging” sound like during side-of-cap embroidery, and what should be adjusted to stop birdnesting?
  A: If a sharp “slap-slap” sound starts, the cap is flagging (lifting/bouncing), so stop and re-seat the cap to reduce tension and movement before continuing.
  • Pause: Stop the machine within the first 300 stitches if the sound appears.
  • Re-seat: Remove and rearrange the cap so it sits naturally flat on the stabilizer instead of being clamped under high tension.
  • Slow: Reduce speed toward the safer 600–700 SPM range until stability is proven.
  • Success check: The sound returns to a steady rhythmic thumping hum and the cap no longer bounces against the needle plate.
  • If it still fails: Check for bill rubbing or clearance issues and re-run Trace/Border Check before restarting.
• Q: With manual pocket clamping hoops for side-hat embroidery, how do you set clamp tension to avoid hoop burn marks on black or navy structured caps?
  A: Clamp to “taut but not stretched,” because over-clamping creates crush points that leave shiny rectangular marks (hoop burn).
  • Tap: Tap the side panel—aim for a cardstock-like feel, not a high-pitched drum-tight feel.
  • Reduce: Back off clamp pressure if satin stitches are sinking or the fabric weave looks opened.
  • Success check: After unhooping, there are no permanent shiny rings/rectangular crush marks around the clamp area.
  • If it still fails: Consider switching to magnetic frames, which generally distribute force more evenly and reduce hoop burn on structured caps.
• Q: For side-of-cap embroidery production, when should a shop upgrade from manual pocket clamps to magnetic hoops, and when is a SEWTECH multi-needle machine the next step?
  A: Upgrade in levels: first optimize technique, then switch to magnetic hoops for consistent pressure and faster loading, then move to a multi-needle setup when throughput is limited by manual thread changes.
  • Level 1 (Technique): Standardize stabilizer choice, sweatband flip, and never skip Trace/Border Check.
  • Level 2 (Tooling): Move to magnetic hoops if hoop burn is frequent or hooping time is longer than stitching (often a 40–60% hooping-time reduction).
  • Level 3 (Capacity): Choose a SEWTECH multi-needle workflow when orders are being turned down because single-needle/single-head speed is the bottleneck.
  • Success check: Hooping becomes repeatable, first-cap approval happens quickly, and the shop can run continuous caps without rework.
  • If it still fails: Re-audit the process first (placement height above ear line, clamp seating, and clearance trace) before assuming the machine is the root cause.
