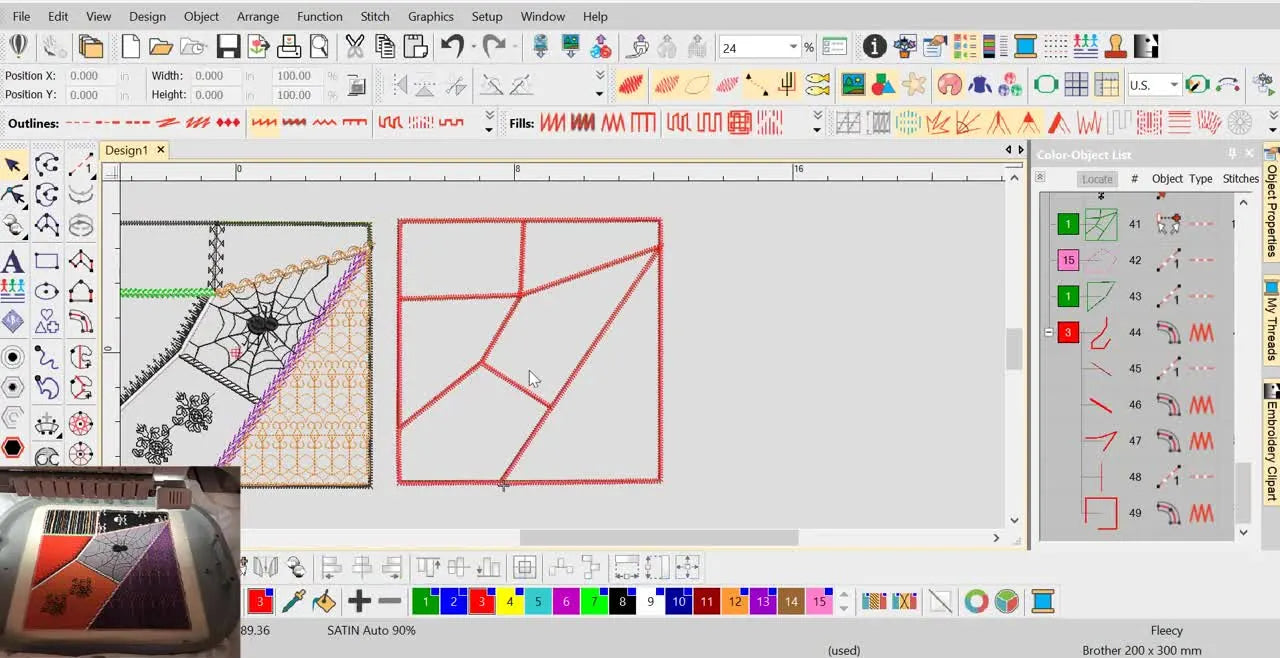

Cleaner Crazy Quilt Appliqué in Wilcom e4: Branching, No-Underlay Borders, and Satin Corners That Actually Behave

If you’ve ever watched a crazy quilt appliqué stitch-out and thought, “This is gorgeous… but my file would be a jump-stitch nightmare,” you’re in the right place.

Machine embroidery is a discipline of physics as much as art. It involves tension, displacement, and the physical struggle of pushing a needle through multiple layers of fabric. This post rebuilds Sue’s Part 2 workflow (Wilcom EmbroideryStudio e4) into a clean, repeatable digitizing routine you can trust at the machine—especially when you’re doing multiple fabric placements and you don’t want bulk, trims, or ugly satin intersections.

The Calm-Down Moment: Wilcom EmbroideryStudio e4 Crazy Quilt Digitizing Is Just Layer Discipline

Crazy quilting looks chaotic, but the digitizing is not. The whole block works because each layer has one job. Think of this like building a house: you don't pour the roof before the foundation.

• Placement line (The Blueprint): Shows exactly where every fabric shard belongs.
• Tack-down (The Framing): Holds each shard so you can trim safely without shifting.
• Zig-zag security (The Drywall): Locks raw edges flat so nothing lifts or frays.
• Satin border (The Paint/Trim): Makes it look intentional and “finished.”

If you keep those roles separate, you’ll stop fighting density issues (where the needle gets stuck), thread breaks, and bulky ridges that look unprofessional.

One quick note for anyone who’s excited but nervous (a common vibe in the comments): it is “a lot to take on board.” Plan to replay Part 1 and Part 2. Do not rush. Build one block slowly before you try to speed up. Simulating the stitch-out on screen is free; ruining a garment costs money.

The “Hidden” Prep That Saves Your Stitch-Out: Stabilizer, Fabric Stack, and a Real 7.5" Square

Sue starts by creating a precise base rectangle: 7.5" x 7.5" (approx. 190mm x 190mm). She types the dimensions instead of dragging. Why? Because dragging invites tiny errors (e.g., 7.52"), which become huge alignment headaches when you try to piece quilt blocks together later.

That 7.5" square is not just a shape—it’s your contract with the finished quilt block size.

Before you digitize anything else, decide what your real-world sandwich will be. Sue references stitching on stabilizer and a thin lining fabric, then placing the Halloween cotton on top.

The "Ghost" Consumables List

Beginners often fail because they lack the unspoken tools. Ensure you have:

• Duckbill Appliqué Scissors: Essential for trimming close to the tack-down line without cutting the base fabric.
• Temporary Spray Adhesive (or Glue Stick): To hold fabric shards if your machine moves fast.
• Topstitch Needles (Size 80/12): Crazy quilting involves thick layers; standard needles may deflect or break.

Prep Checklist (do this before you draw a single stitch)

• Confirm the finished block size is 7.5" x 7.5" (type it in; don’t eyeball it).
• Decide your base layer: Stabilizer choice is critical (see the Decision Tree below).
• Pre-cut appliqué fabrics slightly oversized (add at least 0.5" / 12mm margin) to overlap placement areas.
• Make a plan for stops: You will use color changes to force the machine to pause.
• Commit to a “no bulk” mindset: You’ll be turning off underlay later.

If you’re already thinking about faster hooping for repeated blocks, this is where hooping stations start to matter—because crazy quilt appliqué is a lot of stop-and-place, and every re-hoop or fabric shift costs you quality. A stable station ensures your "square" remains square, not a rhombus.

The “Hack It Out” Draft: Running Stitch Lines That Let You Design Without Overthinking

Sue’s method is refreshingly practical: she “hacks out” the crazy quilt shards using the Running Stitch tool. These first lines are planning lines, not the final stitch objects.

Key Mindset: The shapes don’t need to be perfect at this stage. She’s dividing the square into irregular polygons.

What you’re really doing here is designing a layout that:

• gives you enough seam-like borders to look “crazy quilt,”
• avoids tiny slivers (shards smaller than 1 inch) that are miserable to trim,
• and keeps intersections manageable for satin later.

Sensory Check: Look at your drafted lines. If three or more lines meet at a single point (creating a starburst), move them. Satin stitching a "starburst" intersection creates a hard knot of thread that can break needles. Aim for "T" intersections rather than "X" or "*" intersections.

The No-Jump Placement Line: Branching Tool (Shortcut “I”) for One Fluid Path

Now the “for real” placement line gets digitized with running stitch—cleaner angles, better intersections, and most importantly: one continuous stitch path.

Sue selects the placement lines and uses Branching (shortcut I) to consolidate them into a single object so the machine runs it in one motion.

Checkpoint: After branching, you should see the branching indicator/symbol on the object.

Expected outcome at the machine:

• Visual: The needle travels like a pen drawing a map, never lifting.
• Auditory: You should hear a continuous rhythmic hum. If you hear the "thwack-thwack" of trims or the silence of frame movement (jumps), you have broken lines.

If you ever see jumps between placement lines, that’s not “just how it is.” It’s usually discontinuous vectors.

Warning: Don’t chase speed by leaving jump stitches “for later.” Jump stitches in a placement map become misalignment, snagged thread tails, and trimming mistakes once you start placing fabric. Why risk catching your presser foot on a loose loop?

Appliqué Tack-Down That Forces Machine Stops: Color Changes as a Control Lever

Next, Sue digitizes tack-down running stitches just inside the perimeter of each shard that will receive fabric.

The important operational trick: change colors in the software even if the physical thread color stays the same.

Why?

• Standard Machines: Most single-needle and commercial machines interpret a "Color Change" command as a "Stop."
• The Benefit: This forced pause gives you safety and time to place your next fabric piece without panicking that the machine will start stitching your fingers.

This is one of those pro habits that separates “it stitched out” from “it stitched out predictably.” Even on a multi-needle machine, color changes are a reliable way to force pauses.

Practical sequencing advice from Sue: Do the shards in a logical order (e.g., clockwise or center-out) so you don’t confuse yourself at the machine. The order doesn’t have to be identical to hers, but it must be easy to follow.

The Zig-Zag Security Pass: Default Settings Are Fine—But Don’t Double Back

Sue switches to an Open Shape approach and applies a zig-zag stitch over the raw edges to hold everything down like classic appliqué.

A viewer asked the exact question most digitizers are thinking: “How wide or the spacing of the zig zag—Is default ok?” Sue’s answer: yes, default is what she used and it was perfect.

Data Check: In Wilcom, default Zig-Zag usually implies a spacing of roughly 1.5mm to 2.0mm and a width of 3.0mm to 3.5mm.

• Beginner Tip: If your fabrics are fraying easily (like satins or loosely woven cottons), slightly increase the density (lower the spacing number to 1.2mm) to grip more fibers.

Here’s the part that matters more than the exact zig-zag width: path discipline.

Sue repeatedly emphasizes:

• avoid trims and jump stitches,
• don’t go over lines twice,
• and use short running connections when needed so you don’t zig-zag up and then zig-zag back.

That “don’t double” rule is not just aesthetic—it’s density management. Every extra pass becomes stiffness (bulletproof embroidery), puckering, and a satin border that sits on a high ridge rather than flat on the fabric.

The White Crosshair Trick: Recover Your Last Stitch Point in Wilcom e4

If you’ve ever zoomed, panned, and then thought, “Where did I leave off?” Sue calls out the lifesaver:

• Look for the white crosshair marker—it shows the last stitch end point.

This is especially useful during the zig-zag stage when you’re making strategic connections across the block.

Expected outcome: You can keep the zig-zag continuous and intentional, instead of accidentally restarting in the wrong place and creating overlaps. A confused digitizer leads to a confused machine.

The Golden Rule: Turn Off Underlay on Zig-Zag and Satin or You’ll Build a Brick Wall

Sue nearly forgets it on camera—which tells you how easy it is to miss when you’re in the flow—but she stops and makes it crystal clear:

• You do not want underlay on the zig-zag stitches.
• You also do not want underlay on the satin stitches in this specific construction, because the zig-zag already functions as the support layer.

The Physics of Failure: If you leave auto-underlay on, you’re creating a "Brick Wall" effect:

1. Running stitch (placement/tack-down)
2. Zig-zag
3. Edge run underlay (Auto)
4. Center run underlay (Auto)
5. Satin Topstitch

That is 5 layers of thread in one narrow channel. This leads to thread shredding, needle deflection (hitting the throat plate), and stiff, cardboard-like borders. Turn it off. Trust the zig-zag.

Satin Borders That Look “Quilted,” Not Clumsy: Long Lines First, Then Tuck the Short Ones

Sue digitizes satin columns over the zig-zag lines and explains her sequencing logic:

• Do the longer lines as continuous pieces first (the backbone).
• Then connect the shorter intersecting lines so the flow looks more natural.
• Avoid overlaps that create lumps at intersections.

She also notes she chose not to satin stitch the outside edge in her sample (she preferred leaving the zig-zag there), which is a style choice you can make based on how you want the block to stitch and feel.

Expert insight (why intersections get ugly)

Satin intersections misbehave because satin is a column with width, pull, and push. When two columns collide at a corner, you’re dealing with:

• Pull Compensation: Thread tension pulling the fabric inward.
• Push Effect: The stitching pushing fabric out at the open ends.
• Visual Reality: “Perfect vectors” on screen don’t automatically produce perfect thread coverage on fabric.

So the fix is rarely “change one number.” It’s usually node control and sequencing.

The Reshape Tool Fix: Move Yellow Nodes Until Corners Butt Cleanly (No Awkward Overlap)

Sue highlights a messy satin connection, then fixes it using:

• Reshape tool
• the yellow node handles (stitch angle lines)

Her goal is simple: make perpendicular satin bars butt up cleanly and tuck ends so they don’t look like a sloppy overlap.

Checkpoint: You must select the correct object. Sue even shows how easy it is to accidentally select the running stitch underneath.

Visual Success Metric: On your simulation screen, the satin lines should look like a picture frame—mitered or butted cleanly—not like two logs thrown on top of each other.

Warning: Mechanical Safety
Keep your hands and eyes safe when you test stitch-outs. When trimming appliqué close to tack-down lines, it is easy to slip. Stop the machine completely. Do not trim while the machine is idling if your foot is near the pedal. Use proper appliqué scissors (duckbill), slow the machine speed down (500-600 SPM for precision work), and keep fingers clear of the needle area.

Density Tuning Without Regret: Why Sue Uses ~0.50 Spacing on Satin for This Block

Sue selects the satin objects and adjusts spacing (reducing density) to about 0.50mm. She notes this drops the stitch count by roughly 200 stitches in her example.

She also gives a very honest guideline: normally she wouldn’t recommend changing satin density (Standard is usually 0.40mm), but for this “crazy design” style, she liked the lighter result.

What to watch when you lighten satin

• If spacing is too open (>0.60mm): You’ll see the fabric or zig-zag peeking through at the turns. It looks "gappy."
• If spacing is too tight (<0.35mm): You’ll get stiffness and raised borders that feel like heavy rope.
• The Sweet Spot: 0.45mm - 0.50mm is excellent for decorative borders that don't need to withstand heavy commercial laundering.

In other words: density is the polish, not the foundation.

A Stabilizer Decision Tree for Crazy Quilt Appliqué Blocks (So Your Satin Doesn’t Ripple)

Sue’s workflow assumes stabilizer plus a thin lining fabric, then appliqué fabrics placed on top. When you translate that to your own materials, use a simple decision tree:

Scenario A: Quilting Cotton / Non-Stretch (The Standard)

• Stabilizer: Medium-weight Tearaway (1.5 - 2.0 oz).
• Why: Enough support for the satin, but easy to remove for a soft quilt block.
• Outcome: Soft, pliable block.

Scenario B: Loose Weave / Light Cottons / Prone to Distortion

• Stabilizer: Mesh Cutaway (Poly-mesh) + optional Tearaway on top.
• Why: You need the permanent stability of the Cutaway to prevent the "Placement Map" from shifting as you add heavy satin.
• Outcome: Very sharp alignment, slightly stiffer feel.

Scenario C: Heavy Use (Bag Panels, Placemats)

• Stabilizer: Heavy Cutaway.
• Why: Prioritize stability so satin borders don’t tunnel or ripple over time during washing/handling.

Because every machine and stabilizer behaves a little differently, test a small section first. Tactile Test: If your finished satin border feels hard enough to scratch your skin, switch to a lighter stabilizer or increase satin spacing.

Setup Checklist (Wilcom e4 file hygiene that prevents machine-time mistakes)

• Geometry Check: Base rectangle is typed to 7.5" x 7.5".
• Clean-up: Yellow “hack” lines are deleted or clearly separated from final stitch objects.
• Pathing: Placement line is a continuous running stitch path (Branching used if needed).
• Stops: Tack-down lines are assigned distinct colors to force machine stops.
• Pathing: Zig-zag security pass is continuous and avoids double coverage.
• Density Physics: Underlay is turned off for zig-zag objects and satin objects.
• Refinement: Satin intersections are reshaped so ends tuck cleanly.

If you’re digitizing for repeat production, this is where a consistent hooping method matters. Many shops move to hooping for embroidery machine workflows that reduce re-hooping and fabric shift, because appliqué projects punish sloppy hooping. If your hoop isn't tight (drum-skin tight), your "perfect" spacing of 0.50mm will look like 0.80mm on the fabric due to shifting.

Operation Checklist (what you should see at the machine, stop by stop)

• Stop 1 (Placement): Stitches out cleanly. Listen: No jump sounds.
• Placement: Spray adhesive/glue applied lightly. Fabric placed covering the lines.
• Stops for each shard: Machine pauses (via color changes).
• Trimming: Fabric trimmed close (1-2mm) to the tack-down line without cutting stitches.
• Stop (Zig-Zag): Zig-zag security stitches hold raw edges. Check: Is it flat? If it's tunneling, your hoop is too loose.
• Finish (Satin): Satin borders cover zig-zag cleanly, with tidy intersections.

When you start doing multiple blocks, the slowest part is often not stitching—it’s handling fabric between stops. That’s why magnetic embroidery hoops can be a practical upgrade path: they often make it easier to open, adjust, and re-seat layers without fighting clamp pressure or leaving hoop marks (always confirm compatibility with your machine and frame system).

Warning: Magnetic Safety
If you use any magnetic embroidery frame system, keep magnets away from pacemakers/implanted medical devices. Be mindful of pinch hazards—industrial embroidery magnets are incredibly strong and can snap together unexpectedly, pinching skin. Handle with respect.

The “Why It Works” Layer Logic: Bulk Control, Travel Paths, and Clean Corners

Three principles are doing the heavy lifting in Sue’s method:

1. Travel path control (Branching + logical sequencing)
   • Fewer jumps means fewer trims, fewer thread tails, and fewer chances to shift fabric while you’re handling the hoop.
2. Bulk control (underlay off where it’s redundant)
   • Zig-zag already supports satin here, so extra underlay becomes stiffness and mess.
3. Geometry control (Reshape nodes at intersections)
   • Satin corners don’t “auto-fix.” You fix them by moving nodes until the stitch coverage behaves.

If you’re running a small studio and want to scale this from “one fun block” to “a product line,” the biggest leap is workflow consistency. That’s where tools like magnetic hooping station setups can reduce handling time and operator fatigue, especially when you’re doing repeated stop-and-place appliqué.

The Upgrade Path (No Hard Sell—Just the Reality of Time)

If you’re doing this occasionally for personal quilts, your current setup is probably fine.

However, if you are doing this weekly—or you plan to sell quilt blocks, bags, or seasonal panels—your bottlenecks will show up fast:

• Hooping time and re-hooping errors (especially with multiple fabric placements).
• Operator fatigue from repeated clamping and adjustments.
• Consistency across batches.

That’s when it’s worth evaluating upgrades based on your pain points:

1. Pain Point: Hoop Burn & Wrist Pain: For home single-needle users who struggle with clamping or nasty hoop marks on delicate fabric, consider embroidery hoops magnetic as a comfort and quality upgrade (verify fit and thickness limits).
2. Pain Point: Constant Color Changes: If you are frustrated by stopping to change threads manually for every decorative element, stepping up to a multi-needle platform like a SEWTECH multi-needle embroidery machine can reduce downtime.
3. Pain Point: Alignment Issues: If you’re already using a fixture system like a hoop master embroidery hooping station, keep the same discipline Sue teaches here—clean paths, controlled stops, and no unnecessary bulk—because the best hooping system in the world can’t rescue a file that’s overbuilt.

FAQ

• Q: In Wilcom EmbroideryStudio e4 crazy quilt appliqué digitizing, how can Wilcom Branching Tool (shortcut “I”) eliminate jump stitches in the placement line?
  A: Use Branching to convert separate running-stitch segments into one continuous placement object so the machine stitches like one fluid path.
  • Select the placement-line segments that should connect as one run.
  • Apply Branching (shortcut “I”) and confirm the branching indicator appears on the object.
  • Re-run the simulation and watch for any frame moves between segments.
  • Success check: At the machine, the placement line runs with a steady hum and no “jump/trim” sounds between lines.
  • If it still fails: Look for discontinuous vectors or tiny gaps in the artwork—those breaks usually create the jumps.
• Q: For crazy quilt appliqué blocks in Wilcom EmbroideryStudio e4, how can color changes force machine stops during tack-down stitching?
  A: Assign different thread colors to each tack-down section in software (even if the real thread stays the same) because many machines interpret a color change as a stop.
  • Digitize tack-down running stitches just inside each fabric shard perimeter.
  • Change the object color between shards to create predictable “pause points.”
  • Stitch shards in a simple order (clockwise or center-out) so the stop sequence is easy to follow.
  • Success check: The machine consistently pauses at each color change, giving time to place fabric safely before continuing.
  • If it still fails: Confirm the machine is set to stop on color change and that the file actually contains color-change commands (not just visual color edits).
• Q: In Wilcom EmbroideryStudio e4 crazy quilt appliqué, why should underlay be turned off for zig-zag and satin stitches, and what problems happen if underlay stays on?
  A: Turn off underlay on zig-zag and satin for this construction because the zig-zag already supports the satin; leaving auto-underlay on often creates excessive bulk and thread failure.
  • Disable underlay for the zig-zag security objects.
  • Disable underlay for the satin border objects in this specific layered method.
  • Re-simulate to ensure the stitch stack is not building multiple support layers under the satin.
  • Success check: Satin borders stitch flatter (less ridge), with fewer thread breaks and less needle “struggle” through the channel.
  • If it still fails: Reduce overall bulk by ensuring the zig-zag path does not double back or overlap the same edge twice.
• Q: In Wilcom EmbroideryStudio e4, what does the white crosshair marker indicate, and how does it help keep zig-zag security stitching continuous?
  A: The white crosshair shows the last stitch end point, helping you resume from the correct location to avoid accidental overlaps and restarts.
  • Zoom/pan as needed, then locate the white crosshair before continuing edits.
  • Connect zig-zag paths intentionally with short running connections when necessary.
  • Avoid restarting zig-zag in a new spot that would cause double coverage.
  • Success check: The zig-zag runs as one controlled path with no unexpected doubled sections that create stiffness or puckering.
  • If it still fails: Undo back to the last clean endpoint and re-connect using a short, planned travel line instead of re-stitching the same edge.
• Q: For Wilcom EmbroideryStudio e4 crazy quilt appliqué, what zig-zag stitch width and spacing are a safe starting point, and when should density be increased?
  A: Start with Wilcom’s default zig-zag settings (often about 1.5–2.0 mm spacing and 3.0–3.5 mm width), and only increase density slightly when fabric edges fray easily.
  • Use default zig-zag first rather than guessing settings.
  • Increase density slightly by lowering spacing (for example, toward 1.2 mm) if the fabric is prone to fraying.
  • Keep the zig-zag path disciplined—do not double back over the same edge.
  • Success check: Raw edges lie flat with no lifting, and the zig-zag looks even without “bulletproof” stiffness.
  • If it still fails: Check hoop tightness and layering—edge tunneling or rippling often points to fabric movement, not just zig-zag settings.
• Q: When trimming appliqué during a multi-stop crazy quilt stitch-out, what safety steps prevent needle injuries and cutting the base fabric?
  A: Stop the machine completely and trim with proper duckbill appliqué scissors; do not trim while the machine is idling or when a pedal could be pressed.
  • Stop the machine fully before hands enter the needle area.
  • Use duckbill appliqué scissors to trim 1–2 mm from the tack-down without nicking the base fabric.
  • Slow the machine for precision work (a safe starting point is 500–600 SPM when trimming-heavy steps are frequent).
  • Success check: Fabric is trimmed cleanly without cut stitches, and fingers never approach a moving needle.
  • If it still fails: Improve control by adding forced stops (software color changes) so trimming never feels rushed.
• Q: For repeated crazy quilt appliqué blocks with many stop-and-place steps, when should an embroiderer upgrade from technique optimization to magnetic hoops or a multi-needle embroidery machine?
  A: Upgrade in stages: first fix pathing/stops/bulk, then consider magnetic hoops for faster, gentler hoop handling, and consider a multi-needle machine when manual interruptions become the main bottleneck.
  • Level 1 (Technique): Enforce continuous placement paths (Branching), force stops with color changes, and keep underlay off where zig-zag already supports satin.
  • Level 2 (Tooling): Consider magnetic hoops if hoop burn, clamping effort, or frequent re-seating is slowing production (confirm machine/frame compatibility and thickness limits).
  • Level 3 (Capacity): Consider a multi-needle embroidery machine when constant manual thread changes and stop-handling dominate run time.
  • Success check: Handling time between stops drops and alignment stays consistent across multiple blocks.
  • If it still fails: Review hoop tightness (drum-skin tight) and stabilizer choice—fabric shifting will defeat any upgrade if the foundation is unstable.
• Q: What magnetic embroidery hoop safety rules reduce pinch hazards and medical-device risks during appliqué-heavy embroidery workflows?
  A: Treat industrial embroidery magnets as high-force tools: keep them away from pacemakers/implanted devices and control hand placement to prevent pinch injuries.
  • Keep magnets away from pacemakers and other implanted medical devices.
  • Separate and join magnets deliberately—do not let parts snap together uncontrolled.
  • Keep fingertips out of the closing gap when seating the magnetic frame.
  • Success check: The frame seats securely without sudden snapping, and hands stay clear during closure.
  • If it still fails: Switch to slower, two-handed placement and set the hoop down on a stable surface before assembling the magnetic parts.
