Durkee EZ Name Frame on an SWF Multi-Needle Machine: The Fast, Clamp-Style Workflow for Name Tape, Webbing, and Dog Collars (Without the Usual Hooping Drama)

Mastering Narrow Goods: The Definitive Guide to the Durkee EZ Name Frame

If you’ve ever tried to embroider name tape and thought, “Why is something this narrow so hard to keep centered?”—you’re not alone. Narrow goods (name tape, dog collars with buckles, key fob webbing, belts) are notorious for "The Twist and Drift." They love to creep under the needle, landing your lettering half-on, half-off the edge.

The Durkee EZ Name Frame is the industry-standard solution for this psychological hazard. It clamps and tensions the material so you can stitch, advance, and stitch again—without re-hooping every single piece.

However, owning the frame doesn't guarantee success. Technique does. This guide breaks down the physics of tension, the sensory cues of a perfect load, and the "Beginner Sweet Spot" settings to keep you safe.

The Problem: Why Standard Hoops Fail on Narrow Strips

The video opens with the real-world pain: name tape that won’t sit exactly where you need it, and dog collars that won’t hoop because of bulky buckles.

Standard hoops rely on perimeter friction (inner ring pressing against outer ring). Narrow strips don't touch the perimeter; they float in the middle. A clamp-style frame changes the game by creating bi-directional tension. You aren't "holding" the fabric; you are stretching a specific window of it so the needle hits the same vertical lane every time.

When you understand this, you realize why the loading pattern (over/under) is non-negotiable. It’s what prevents the dreaded "hour-glassing" effect where the fabric bunches in the center.

While you might see these tools listed generically under terms like durkee ez frames, the specific workflow below is what determines whether it feels like magic—or an expensive paperweight.

Know Your Parts: The Anatomy of Stability

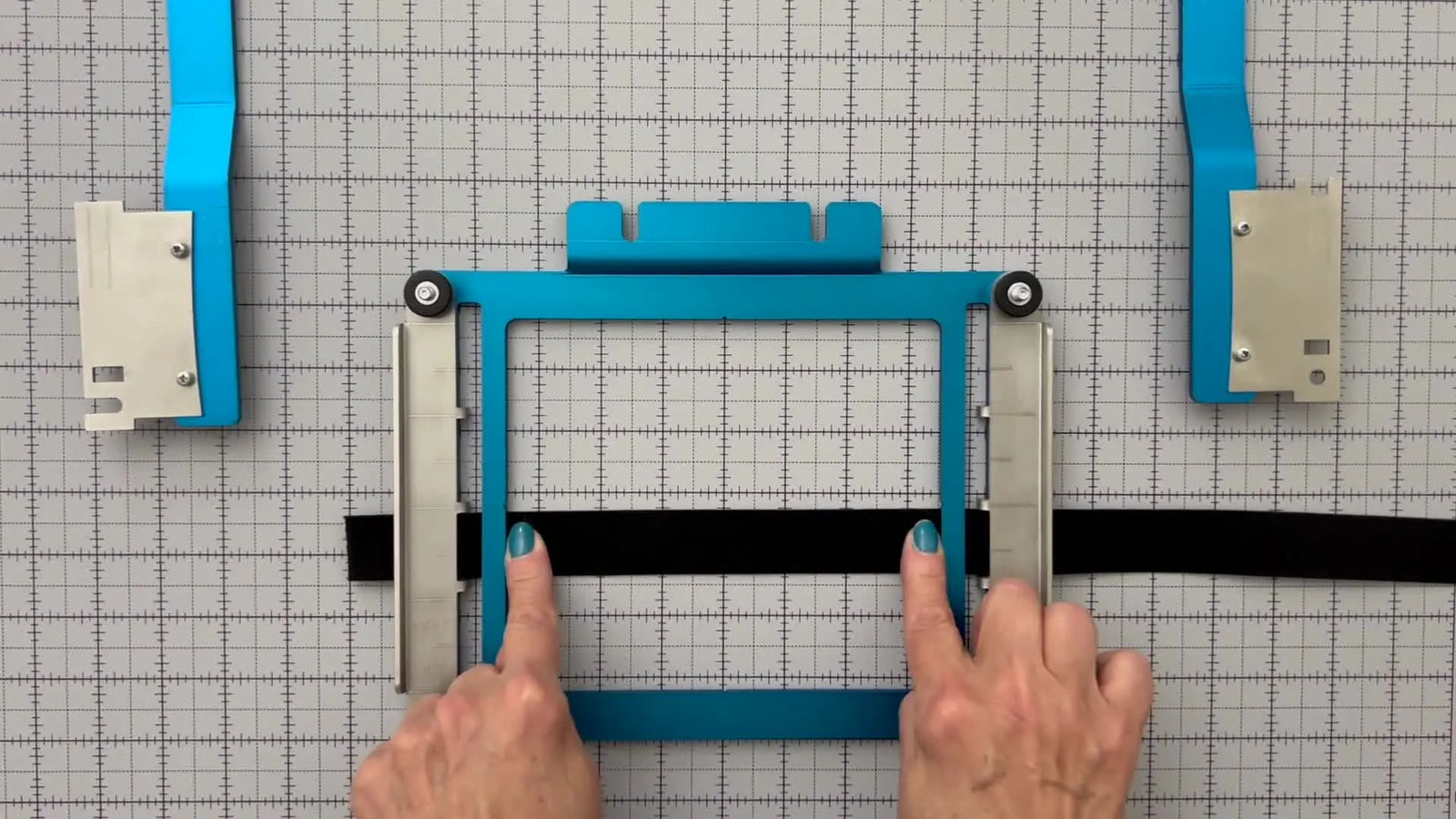

The system consists of two parts: the EZ Name Frame itself and the Blue Adapter Arms specific to your machine brand. They must be assembled on your workbench, not on the machine.

The frame accommodates an approximate sewing field of 5.5 inches high by 6.5 inches wide.

You also get two clamp styles. Choosing the wrong one is the #1 cause of slippage:

• Guided Clamps (Metal Guides): Use for standard 1-inch or 1.25-inch name tapes. The guides physically prevent vertical drift.
• Flat Clamps (No Guides): Use for variable items like dog collars, belts, or thick webbing.


Expert Tip: On the guided clamp, the spacing is fixed:

• 1.25 inches between upper and center guide.
• 1 inch between center and lower guide.

Measurement Check: Before starting, measure your tape. If it's 0.9 inches, do not use the 1-inch guide slot; the slack will cause letters to distortions. Use the flat clamps instead.

The "Hidden" Prep: Pre-Flight Checks

Before you load anything, set yourself up for a production run.

Bench Setup & Consumables:

• Surface: Clear a flat table. Do not assemble this in the air.
• Hidden Consumable: Have a water-soluble marking pen ready to mark the center of your first tape for alignment verification.
• Screw Check: Ensure thumb screws turn smoothly. If they feel gritty, a drop of sewing machine oil is necessary.

Experienced operators also check the strip itself. Nylon webbing and name tapes often arrive with a packaging "curl." Iron this out. If you clamp a curled strip, it will try to "relax" during stitching, causing the design to warp.

Prep Checklist: The "Go/No-Go" Gauge

• Hardware Match: Confirm the blue adapter arm physically fits your machine's pantograph width.
• Clamp Selection: Selected Guided for standard tape or Flat for odd sizes/collars.
• Material Flatness: Strip is ironed flat; no curls or twists.
• Screw Position: Back thumb screws out until clamp bars float freely (about 3mm clearance).
• Design Safety: Design width is at least 4mm narrower than the strip width (2mm safety margin on top/bottom).

Loading Technique: The "Over/Under" Weave

Dawn’s loading method is the core mechanical skill. Without this weave, the frame is useless.

1. Open the Gate: Loosen thumb screws and slide the metal clamp bars outward to clear the deck.
2. The Wepath: Feed the tape ON TOP of the outer frame bars and UNDERNEATH the inner clamp bars.


Sensory Anchor (Touch): Lift the frame slightly off the table. As you slide the tape through, it should feel unencumbered but guided.

Expert Insight: This path creates a capstan effect. Friction is multiplied around the bars, meaning you don't need to crank the screws to death to hold the tape. This is a critical distinction when comparing systems like durkee fast frames versus sticking stabilizers—mechanical friction is more reliable than adhesive.

Clamp & Tension: Finding the "Drum Skin" Feel

Once the tape is woven through:

1. Anchor Left: Slide the left clamp over the tape. Tighten both left-side thumb screws.
2. Apply Tension: Tautness is everything. Pull the strip from the right side.
   • Sensory Anchor (Sound/Touch): Flick the tape with your finger. It should sound like a dull thud or low-pitch "thump," and feel tight like a loose drum skin. If it ripples, it's too loose.
3. Anchor Right: While maintaining that tension, slide the right clamp over and tighten.




The Symmetry Rule: You must tighten the top and bottom screws equally. If the top screw is tight and the bottom is loose, the clamp bar acts like a scissor blade, skewing the tape.

Commercial Context: This manual clamping is perfect for narrow goods. However, if you find yourself struggling with wrist fatigue from tightening screws on garments (polos, jackets), that is the industry trigger to switch tools. Pros search for how to use magnetic embroidery hoop tutorials specifically to solve wrist strain and hoop burn on thicker items.

Bench Assembly vs. Machine Mounting

Never attach the blue arms to the frame while it is on the machine. Gravity will fight you.

• Align the blue U-shaped adapter arm to the top of the name frame.
• Slide the frame into the slots.
• Torque Check: Tighten the screws securely. A loose adapter arm leads to "flagging" (bouncing) during high-speed stitching.


The SWF "Centering Gotcha"

Dawn demonstrates loading the unit onto an SWF machine.

Critical Safety Notice: On many multi-needle machines, including the swf embroidery machine shown, the physical center of the pantograph arms does NOT match the center of the name tape clamp.

The Fix:

1. Load the frame.
2. Manually jog the pantograph until the needle is directly over the center of your name tape.
3. Set Origin/Design Start Point.

If you skip this, you will stitch directly into the metal clamp.

The Stitching Phase: Data & Safety

Dawn strongly encourages tracing. I will go further: Tracing is mandatory.

Setup Checklist: Avoid the "Crash"

• Seating: Frame is locked onto the machine driver arms (listen for the "Click").
• Alignment: Needle creates a visual center line on the tape (use your water-soluble pen mark).
• Trace: Run a contour trace. Visual Check: Presser foot clears metal clamps by at least 3mm.
• Speed Setting: Beginner Sweet Spot: Set machine speed to 600-700 SPM.
  • Why? Standard 1000 SPM is too risky for narrow goods until you trust your tensioning. Flagging is higher on narrow strips.

Warning (Mechanical Safety): Metal Strike Hazard. Never walk away during the first run of a name tape batch. If the needle strikes the steel clamp, shards can fly towards eyes/face. Always wear safety glasses when testing new frame setups.

Operation: The Stitch & Advance Rhythm

Once the trace clears, stitch the design.

To advance:

1. Loosen thumb screws (approx 1 turn).
2. Pull tape from the left, feed from the right.
3. Re-Tension: Pull taut (get the "thump" sound).
4. Tighten screws.


Operation Checklist: The Repeat Loop

• Loosen: Just enough to slide—don't remove screws.
• Slide: Advance smoothly. Do not yank, or you will unseat the weave.
• Tension: Verify "Drum Skin" feel.
• Trace: Yes, trace again. Even if you didn't change the design, the tape might have skewed slightly.

Stabilizer: To Use or Not to Use?

Dawn notes she isn't using stabilizer.

The Physics: The frame provides mechanical tension, replacing the need for a stabilizer to hold the fabric shape. Name tape is structurally stable.

When to Break the Rule (Stabilizer Decision):

• Stiff Webbing/Name Tape: No Stabilizer needed.
• Satin Ribbon / Silk: A Must. Use a layer of tear-away underneath to prevent needle perforation from shredding the delicate edges.
• Cotton Belts: No Stabilizer, unless the design is extremely dense (high stitch count), then use tear-away.

Expanding Material Options

The ROI (Return on Investment) of this frame comes from versatility:

• Dog Collars (keeps buckles away from the head).
• Key Fobs (nylon webbing).
• Karate Belts (thick material that creates hoop burn in standard hoops).
• Cheer Ribbons.


Decision Tree: The Right Tool for the Job

Don't use a hammer to drive a screw. Choose the right holding method for your production:

1. Is the item a narrow strip (under 2" wide) or does it have heavy hardware (buckles)?
   • Yes: Use Clamp Frames (Durkee EZ Name Frame).
   • No: Go to Step 2.
2. Is the item a finished garment (Polo, Jacket, Hoodie) where "Hoop Burn" is a risk?
   • Yes: Upgrade to Magnetic Hoops.
     • Why? Magnets hold thick seams without crushing the fabric fibers.
     • Search Strategy: Terms like magnetic embroidery hoop are your gateways to understanding damage-free production.
   • No: Go to Step 3.
3. Is the item a clear, flat fabric panel (Quilting square, patch fabric)?
   • Yes: Standard Hoops are perfectly fine and cost-effective.

Warning (Safety - Magnetic Hoops): If you opt for the upgrade path in Step 2, be aware: Industrial magnetic hoops generate extreme force. Pinch Hazard. Keep fingers clear of the snapping zone. People with pacemakers should maintain a safe distance (consult manufacturer guidelines).

Troubleshooting: The "Quick Fix" Matrix

For operators using SWF equipment, properly matched swf embroidery frames or specifically researching embroidery hoops for swf ensures your adapter arms fit tight. A loose arm destroys stitch quality.

The Commercial Upgrade Path: Identifying Bottlenecks

The Durkee EZ Name Frame is a "Level 1" optimization for narrow goods. But as your shop grows, you will hit new ceilings.

• Pain Point: "My wrists hurt from clamping and hooping 50 shirts a day."
  • Solution: Magnetic Hoops. They snap on/off in seconds.
• Pain Point: "I can't load fast enough to keep the machine running."
  • Solution: embroidery hooping station. This standardizes placement so every logo is in the exact same spot, regardless of who loads it.
• Pain Point: "I have more orders than machine time."
  • Solution: Multi-Needle Expansion. Upgrading to a dedicated SEWTECH multi-needle machine allows you to dedicate one machine to "clamps/narrow goods" and another to "flats/garments," doubling throughput.




Final Verdict: The Durkee EZ Name Frame is not just a hoop; it is a tensioning system. Respect the physics, listen for the "thump," and stay within the safety speed limits. That is how you turn a frustrating chore into a profitable niche.

FAQ

• Q: Which machines does the Durkee EZ Name Frame require blue adapter arms for, and how can users verify the correct fit before stitching?
  A: The Durkee EZ Name Frame must be paired with the correct blue adapter arms for the specific embroidery machine brand, and the fit should be confirmed on the bench before mounting.
  • Confirm the blue adapter arm matches the machine’s pantograph width and slots without forcing.
  • Assemble the frame and blue arms on a flat table (not on the machine) and tighten securely.
  • Perform a torque check by gently shaking the assembled unit to confirm nothing rattles.
  • Success check: The assembly feels rigid with no wobble or “flagging” movement when handled.
  • If it still fails… stop and source the correctly matched adapter arms; a loose match will ruin stitch quality and can lead to strikes.
• Q: What pre-flight checks should be done before loading name tape into a Durkee EZ Name Frame to prevent drift and distortion?
  A: Do the bench prep and material checks first—most “mystery drift” problems start before the tape ever gets clamped.
  • Flatten the strip (iron out packaging curl) so the tape does not relax during stitching.
  • Prepare a water-soluble marking pen and mark the tape center for alignment verification.
  • Back thumb screws out until clamp bars float freely (about 3 mm clearance) before threading the tape path.
  • Success check: The strip lies flat with no twist, and the clamps slide freely before tightening.
  • If it still fails… re-check clamp style choice (guided vs flat) and confirm the design width has a safety margin from the strip edges.
• Q: How should operators thread the “over/under” path on a Durkee EZ Name Frame to stop name tape from slipping during stitching?
  A: Use the required weave: feed the tape on top of the outer bars and underneath the inner clamp bars to create reliable friction without over-tightening.
  • Open the gate by loosening thumb screws and sliding clamp bars outward.
  • Feed the tape ON TOP of the outer frame bars, then UNDER the inner clamp bars (do not shortcut the path).
  • Slide the tape through smoothly without dragging or twisting.
  • Success check: The tape moves guided-but-free when sliding, then locks down firmly once tensioned and clamped.
  • If it still fails… re-thread the path from scratch; incorrect routing defeats the friction effect and causes creep.
• Q: How can operators set correct tape tension on a Durkee EZ Name Frame so lettering does not become wavy or distorted?
  A: Tension the strip until it feels like a loose drum skin, then clamp symmetrically—low tension is the main cause of wavy text.
  • Anchor the left clamp first and tighten both left-side thumb screws.
  • Pull the strip taut from the right side, then slide and tighten the right clamp while holding tension.
  • Tighten top and bottom screws evenly on each clamp to prevent skew.
  • Success check: Flick the tape—correct tension gives a low “thump” and shows no ripples.
  • If it still fails… loosen everything and re-tension; also confirm clamp choice is correct for the strip width.
• Q: How can SWF multi-needle embroidery machine operators avoid a needle strike on Durkee EZ Name Frame metal clamps when setting design origin?
  A: Do not assume pantograph center equals tape center on an SWF multi-needle machine—manually jog to the tape center and set the origin before stitching.
  • Load the Durkee EZ Name Frame onto the machine and lock it in place.
  • Manually jog the pantograph until the needle is directly over the marked center of the name tape.
  • Set the machine origin/design start point only after confirming true tape center.
  • Success check: A contour trace clears the clamps with at least 3 mm presser-foot clearance before running stitches.
  • If it still fails… reduce design width (a small reduction is safer) and re-center manually before re-tracing.
• Q: What safety steps should be followed to prevent needle breakage or flying debris when using a Durkee EZ Name Frame for narrow goods?
  A: Treat the first run as a metal-strike risk: tracing is mandatory, and operators should not leave the machine unattended during initial tests.
  • Run a contour trace every time before stitching, especially after advancing the tape.
  • Set a safer beginner speed of 600–700 SPM until the loading and tensioning are consistent.
  • Stay with the machine for the first tape in a batch and wear safety glasses when testing a new setup.
  • Success check: The trace completes with no clamp contact, and the machine runs without unusual metal sounds.
  • If it still fails… stop immediately, re-check origin/centering, and confirm the design is not too wide for the tape.
• Q: When should embroidery operators upgrade from a Durkee EZ Name Frame to magnetic embroidery hoops or a multi-needle SEWTECH embroidery machine for production efficiency?
  A: Use the bottleneck to choose the upgrade: clamp frames solve narrow goods, magnetic hoops solve garment hoop burn and wrist fatigue, and a multi-needle SEWTECH machine solves machine-time limits.
  • Diagnose the trigger: narrow strips/hardware items → clamp frame workflow; finished garments with hoop burn risk or wrist fatigue → magnetic hoops; demand exceeding available machine time → add multi-needle capacity.
  • Standardize placement when loading speed is the issue by adding an embroidery hooping station.
  • Keep production safe by choosing the method that minimizes re-hooping and reduces operator strain.
  • Success check: Loading time drops and placement becomes repeatable with fewer rejects per batch.
  • If it still fails… audit where time is lost (clamping, placement, machine downtime) and upgrade the single step that is limiting throughput first.
