Embird Studio Quilt Label Digitizing: Build a Decorative Frame Fast (and Avoid the 3 Mistakes That Ruin Stitch-Outs)

Master Guide: Creating Custom Design Labels in Embird Studio (From Zero to Finished Patch)

You’re not alone if Embird Studio feels “too powerful” at first—one wrong click and suddenly your pretty border turns into a skinny line, or the shape menu goes grey and you feel like you’ve broken the software.

But machine embroidery is 20% software and 80% physical physics. If you master the digitizing but fail the stabilizing, you just get a well-designed puckered mess.

This guide bridges that gap. We will build a quick quilt block or name label from scratch using only a curved line, a motif run, and simple lettering. I will walk you through the software steps faithful to the original tutorial, but I will also overlay the shop-floor reality: specific density settings, stabilizer pairings, and the physical tools that prevent the dreaded "hoop burn."

The Calm-Down Moment: What You’re Building in Embird Studio (and Why It Works)

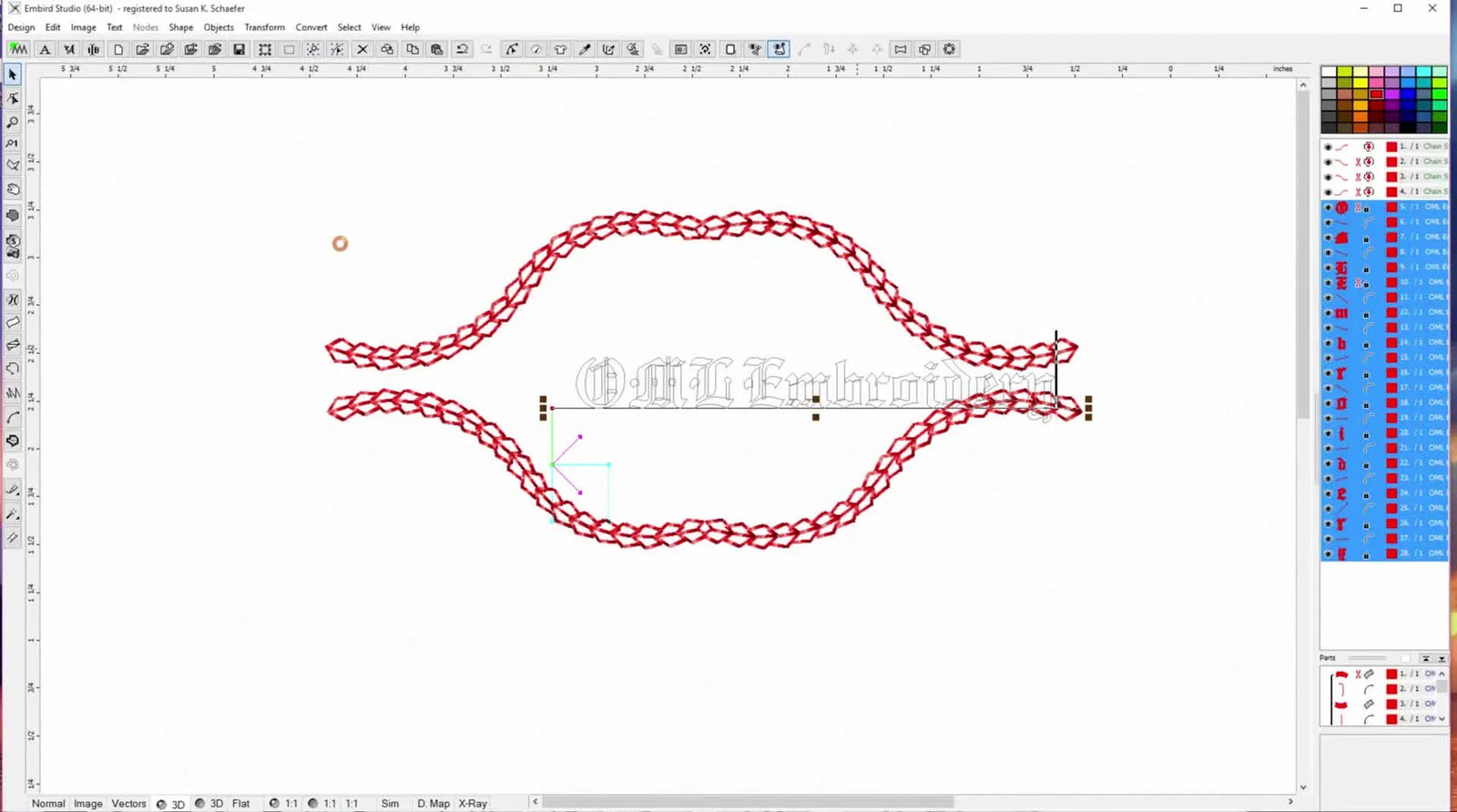

Sue’s project is a simple “frame + name” label you can stitch on a quilt block, pillow, or patch. The magic is that you’re not drawing a complicated border pixel-by-pixel—you’re drawing one good curve, then letting Embird’s motif runs and transform tools do the heavy lifting.

You will create:

• One curved outline path (the skeleton).
• A decorative motif run applied via Parameters > Sample (Chain Stitch, Candlewicking, etc.).
• Mirrored borders (Top and Bottom) created via simple duplication.
• Center lettering that stays readable because we group it immediately.
• (Optional) A Satin Border for a patch-style finish.


The “Hidden” Prep Before You Digitize: Set Yourself Up for a Clean Stitch-Out

Even though this is a software tutorial, the end goal is thread on fabric. Most "my border looks messy" problems are not artistic problems—they are physics problems.

Before you click a single node in Embird, you must define the physical environment necessary for success.

1. The Fabric-Stabilizer Equation

• Quilt Cotton (Woven): Use a medium-weight Tearaway (1.8 - 2.0 oz). The fabric is stable, so the stabilizer just needs to support the needle penetration.
• Knit/T-Shirt (Stretchy): You must use a Cutaway stabilizer (2.5 oz). If you use tearaway here, the border will separate from the text after the first wash.
• Texture (Towel/Fleece): Add a water-soluble topping (Solvy) to prevent the "Chain Stitch" motif from sinking into the pile and disappearing.

2. The Hooping Strategy

If you are stitching labels in batches, your hooping method becomes your bottleneck. Traditional hoops often leave "hoop burn" (crushed fibers) that can ruin delicate fabrics.

If you are fighting consistent alignment or wrist fatigue from tightening screws all day, professional embroiderers use a hooping station for embroidery to standardize placement. This ensures every label is straight, reducing the "user error" that software can't fix.

Hidden Consumables Checklist:

• Spray Adhesive (Temporary): Vital for floating fabric if you aren't hooping it directly.
• 75/11 Sharp Needle: For woven cotton. Use a Ballpoint for knits.
• Bobbin Thread: Ensure you have enough white (or matching) bobbin thread winded. A midway run-out on a border is a nightmare to patch.

Prep Checklist (Do this before digitizing):

• Confirm Scope: Is this a patch (needs heavy stabilizer) or a direct stitch (needs drapability)?
• Sizing: Plan a realistic size (e.g., 4x4 inches). Scaling down later creates density lumps.
• Hooping Plan: If using a home machine, ensure your hoop fits the total area comfortably with at least 0.5-inch clearance on all sides.


Outline Tool in Embird Studio: Draw One Smooth Curve Without Fighting Nodes

The project starts with the Outline Tool. The goal is a clean "skeleton" for your stitches to sit on.

1. Select the Outline Tool.
2. Click (Left Click) on the canvas to place your first point (Anchor).
3. Continue clicking to place points along the path.
   • Pro Tip: Fewer points = smoother curves. Don't "stutter" click.
4. Use the small circular node handles to pull the curve smooth between points.

Visual Check: You should see a thin line with control nodes (little squares or circles). This line has no stitch properties yet—it's just vector math. Sue notes she sees "a little bump" and leaves it. For beginners, this is good advice: do not obsess over perfection yet. The motif run will hide minor imperfections.

Motif Runs in the Parameters Window: The “Apply” Button Is Not Optional

Now you turn that plain vector curve into thread data.

1. Right-click the curve object.
2. Choose Parameters.
3. Go to the Sample tab.
4. Browse motifs. (Sue tries Stars, Candlewicking, then lands on Chain Stitch).
5. CRITICAL: Click Apply to preview the change on the canvas.

If you don't click Apply, you are flying blind.

Expert Data: Motif Length Settings

The video suggests specific values. Here is what they mean physically:

• Min. Length: 0.7 mm (Prevents the machine from making micro-stitches that cause thread breakage).
• Max. Length: 2.0 mm (Controls the detail).
• Adjustment Rule: 2.0 mm is great for a fine Chain Stitch. However, if you choose a bold motif like Stars or Hearts, you may want to increase the Max Length to 3.0mm - 4.0mm. Small, complex motifs at high speeds create "birdsnests."


The “Generate Stitches” Habit: Why Your Pretty Border Sometimes Turns Into a Straight Line

This is the moment that scares beginners: you flip the design, and suddenly your stars/hearts vanish, replaced by a skinny line.

The Physics: Embird calculates stitches based on geometry. When you warp the geometry (flip/rotate), the old stitch calculation is invalid, so it reverts to a "wireframe" view.

The Fix:

• Locate the Lightning Bolt Icon (Generate Stitches) or press Ctrl+G.
• This forces the software to recalculate the needle penetrations for the new position.

If you want to master this workflow, understanding this "wireframe vs. stitch" mode is the core of any effective Embird Studio tutorial. Always regenerate after a move.

Transform > Flip Horizontally: Build a Symmetrical Top Border Fast (Copy, Paste, Join)

Do not draw the second half of the border manually. You will never match the curve perfectly. Use symmetry instead.

1. Right-click > Copy, then Paste (or press Ctrl+C, Ctrl+V).
2. With the NEW segment selected, go to Edit > Transform > Flip Horizontally.
3. Panic Check: If it turns into a straight line, click Generate Stitches.
4. Drag the flipped segment so its start point "snaps" or touches the end point of your first segment.

Success Metric: It should look like one continuous wavy line across the top of your hoop area.

Mirror the Whole Assembly: Create the Bottom Border Without Redrawing Anything

Now we replicate the top border to the bottom to create the frame.

1. Select both top segments (Hold Shift + Click).
2. Duplicate them.
3. Move the duplicate down to the bottom position.
4. Use Transform > Flip Horizontally again.
   • Note: Depending on your design, you might also need Flip Vertically. Use visual judgment here.
5. Click Generate Stitches to bring the texture back.


Lettering That Doesn’t Fall Apart: Text Tool + Group Immediately

Text is the most delicate part of a label. Distorted text screams "amateur."

1. Select the Text tool (A icon).
2. Click to place the cursor on the canvas.
3. Type “OML Embroidery” (or your custom text).
4. Choose a readable font. Recommendation: avoid skinny serifs for textured fabrics.
5. Generate the text.
6. ACTION: Group the lettering immediately. (Ctrl+G or Right Click > Group).

Why Group? If you accidentally click and drag a single letter like "O" later, you ruin the kerning (spacing). Grouping locks the word as a single solid object.

Bulk Editing the Border: Shift-Select + Parameters to Swap Chain Stitch for Hearts/Stars

One of Embird's strengths is rapid prototyping. You can change the "vibe" of the label without redrawing it.

1. Select all four border segments (Hold Shift + click each one).
2. Right-click and open Parameters.
3. Choose a different motif (e.g., Hearts or Stars).
4. Click Apply.
5. Click Generate Stitches.

Safety Note: If you switch to a dense motif (like Satin Hearts), check your stitch count. If it jumps from 2,000 to 8,000 stitches, ensure your stabilizer is heavy enough to handle the extra ink... I mean, thread.

The Rectangle Shape Tool Shortcut: A Clean Satin Border When You Need a Professional Edge

Sometimes you don't want a "cute" motif; you want a military-grade patch edge. For this, use the Satin Column.

1. Select the Rectangle Shape tool.
2. CRITICAL: Click ONCE on the canvas. If you don't place this anchor point first, the shape menu will stay greyed out.
3. Go to Shape > Rectangle.
4. Right-click into Parameters.
5. Select Satin Stitches.
6. Density Data: The video mentions Density: 4.0.
   • Clarification: In standard digitized terms, this likely refers to 0.4mm spacing (standard coverage). If your software uses specific "points," 4.0 is standard.
   • Warning: Do not go lower than 0.3mm (too dense, breaks needles) or higher than 0.6mm (gaps show fabric).
7. Click Generate Stitches.


The “Why” Behind Clean Borders: Fabric Stability Beats Fancy Motifs Every Time

Borders are "truth-tellers." Because they sit on the perimeter, they define the geometry. If your fabric slips 1mm, the border looks circular, but the text looks slanted.

The Physics of Failure:

1. Pull Compensation: Stitches pull fabric inward. A satin border will shrink the fabric slightly.
2. Hoop Tension: If the fabric is "drum tight" in some spots but loose in others, the border will wave.

To combat this, the industry standard is better hooping.

• Home Machines: Ensure your embroidery frame is tightened evenly. Do not pull the fabric after tightening the screw, as this distorts the grain.
• Production: Use a machine embroidery hooping station to hold the outer hoop static while you press the inner hoop down using magnetic force. This guarantees even tension every single time.

Warning: Mechanical Safety
When test-stitching borders, keep your hands clear! Borders often jump from top-left to bottom-right. Never reach into the hoop area while the machine is active.

Decision Tree: Motif Run Border vs Satin Rectangle

Not sure which border to use? Follow this logic path.

1. Is your fabric stretchy (T-shirt, Hoodie, Knit)?

• YES: Use Motif Run (Chain/Stars). It is lower density and moves with the fabric.
• NO: Go to Step 2.

2. Are you making a standalone patch?

• YES: Use Satin Rectangle. You need the dense edge to seal the fabric (often with a hot knife finish).
• NO: Go to Step 3.

3. Is your stabilizer heavy duty?

• YES: Satin Rectangle is safe.
• NO (Light Tearaway): Use Motif Run. A heavy satin border on light stabilizer will curl up like a potato chip.

Troubleshooting the Two Scary Moments Sue Mentions (So You Don’t Panic)

The Upgrade Path (Without the Hard Sell): When Tools Matter More Than Talent

Once you master the software, the frustration usually shifts to the physical workflow. You might notice:

1. Hoop Burn: Circular ring marks on your nice fabric.
2. Wrist Pain: From tightening hoop screws 50 times a day.
3. Slippage: The satin border doesn't line up with the start point.

When to upgrade your hardware:

• For Delicate/Expensive Garments: Consider a magnetic embroidery hoop. Unlike friction hoops that crush fibers, magnetic hoops clamp flat. This eliminates hoop burn and holds thick items (like Carhartt jackets) that standard hoops can't grip.
• For Volume Production (50+ items): If you are running a business, time is money. Integrating magnetic embroidery frames into a magnetic hooping station workflow reduces hooping time from 2 minutes to 15 seconds per shirt. It saves your wrists and doubles your hourly output.

Warning: Magnetic Safety
Professional magnetic hoops clearly warn about pinch hazards. They snap together with significant force. Keep fingers clear of the contact zone and keep magnets away from pacemakers or sensitive electronics.

Setup Checklist (Right Before You Save to USB)

• Selection Check: Are all border parts selected? (Shift+Click to verify).
• Generation: Hit Generate Stitches one last time ensures what you see is what you get.
• Grouping: Is the text grouped? Center it one last time vertically and horizontally.
• File Format: Export to the correct machine format (e.g., .PES for Brother, .DST for Commercial/Tajimas).

Operation Checklist (The First Stitch-Out)

• The "Drum" Test: Tap the hooped fabric. It should sound like a drum (taught), not a thud (loose).
• Speed Limit: For the first test run, reduce machine speed to 600 SPM. High speed + dense satin = thread breaks.
• Watch the Outline: Watch the first pass of the border. If it looks wavy immediately, stop. Don't waste thread. Re-hoop with heavier stabilizer.

FAQ

• Q: In Embird Studio, why does a motif run border turn into a thin straight line after using Transform > Flip Horizontally?
  A: This is common—Embird is showing a wireframe because the geometry changed, so regenerate the stitches.
  • Click the Lightning Bolt icon (Generate Stitches) or press Ctrl+G.
  • Re-check the border texture on-screen before saving/exporting.
  • Repeat Ctrl+G after any flip/rotate/major move of the border objects.
  • Success check: the decorative motif (Chain Stitch/Stars/Hearts) reappears instead of a skinny line.
  • If it still fails: open Parameters > Sample, click Apply, then Generate Stitches again.
• Q: In Embird Studio, why is the Shape > Rectangle menu greyed out when trying to create a satin rectangle border?
  A: The Rectangle tool needs an anchor point on the canvas first—click once on the white workspace to “place” the tool.
  • Select the Rectangle Shape tool.
  • Click once on the canvas (do not drag first).
  • Go to Shape > Rectangle, then set Satin Stitches in Parameters.
  • Success check: Shape > Rectangle becomes clickable and the rectangle object appears on the workspace.
  • If it still fails: deselect everything, reselect the Rectangle tool, and click the workspace again to re-establish the anchor.
• Q: What stabilizer should be used for Embird Studio motif run label borders on quilt cotton vs knit T-shirts vs towels to prevent puckering and sinking?
  A: Match stabilizer to fabric first, because most messy borders are physics—not digitizing.
  • Use medium-weight Tearaway (about 1.8–2.0 oz) for quilt cotton (woven).
  • Use Cutaway (about 2.5 oz) for knits/T-shirts to stop separation after washing.
  • Add water-soluble topping on towel/fleece so Chain Stitch motifs don’t sink into the pile.
  • Success check: the border stays flat and readable, and the motif remains visible on textured fabric.
  • If it still fails: re-hoop with more even tension and avoid scaling the design down after digitizing (density can lump).
• Q: What “hidden consumables” should be prepared before stitching an Embird Studio label border to avoid mid-run failures?
  A: Prepare the small items first—running out or swapping mid-border is where clean labels turn into patch jobs.
  • Confirm correct needle choice: 75/11 Sharp for woven cotton; Ballpoint for knits.
  • Check bobbin thread supply before starting (especially for borders).
  • Use temporary spray adhesive when floating fabric instead of hooping it directly.
  • Success check: the full border finishes without bobbin run-out, thread break, or fabric shifting.
  • If it still fails: slow the first test run and re-check stabilizer choice for the fabric type.
• Q: How can machine embroidery hooping be judged as “correct” for stitching Embird Studio label borders without wavy edges?
  A: Use a clear physical standard before stitching: tension must be even, not “tight in spots.”
  • Tap-test the hooped fabric to confirm it sounds like a drum (taut), not a thud (loose).
  • Keep fabric grain straight and avoid pulling fabric after tightening the hoop screw.
  • Ensure at least 0.5-inch clearance around the design in the hoop area.
  • Success check: the border looks smooth immediately in the first pass—no waves forming early.
  • If it still fails: switch to heavier stabilizer (often Cutaway) and re-hoop; uneven hoop tension is a top cause of wavy borders.
• Q: What is the safest way to run the first stitch-out of a satin border made in Embird Studio to reduce thread breaks and prevent hand injuries?
  A: Treat the first run as a controlled test: slow down and keep hands out of the hoop zone.
  • Reduce machine speed to about 600 SPM for the first test run when using dense satin.
  • Watch the first outline/border pass; stop early if waviness appears to avoid wasting thread.
  • Keep hands clear—borders can jump across the design area unexpectedly.
  • Success check: the satin border stitches continuously without repeated thread breaks and without fabric distortion on the first pass.
  • If it still fails: verify stabilizer is heavy enough for satin density and re-hoop with more even tension.
• Q: When repeated hoop burn, wrist fatigue from tightening screws, or border slippage happens during label production, when should embroidery workflow move from technique fixes to magnetic hoops or a multi-needle machine?
  A: Start with process fixes, then upgrade tools only when the same physical symptoms keep repeating in batches.
  • Level 1 (Technique): re-hoop evenly, match stabilizer to fabric, and slow the first test stitch-out to confirm stability.
  • Level 2 (Tool): move to magnetic embroidery hoops when hoop burn or slippage persists, especially on thick/delicate garments.
  • Level 3 (Capacity): consider a multi-needle setup when volume work (often 50+ items) makes hooping time and thread changes the bottleneck.
  • Success check: hooping becomes faster and more consistent, and borders land cleanly without repeat re-hooping.
  • If it still fails: standardize placement with a hooping station so alignment is repeatable across operators and batches.
• Q: What magnetic hoop safety precautions should be followed when using magnetic embroidery hoops for production hooping?
  A: Magnetic hoops clamp with high force—treat them like a pinch hazard and keep magnets away from medical devices.
  • Keep fingers out of the contact zone when the magnets snap together.
  • Keep magnetic hoops away from pacemakers and sensitive electronics.
  • Set the hoop down flat and control the snap instead of letting it slam shut.
  • Success check: hooping is fast and consistent without finger pinches or uncontrolled snapping.
  • If it still fails: slow the hooping motion and use a station-style workflow so hands stay clear during clamping.
