EverSewn Sparrow X2 Threading That Actually Works: The “P for Perfect” Bobbin, Needle-Up Safety Checks, and a First-Stitch Tension Test

New machine day is exciting—right up until the first ugly stitch, the first thread snarl, or that heart-sinking moment the needle threader “won’t catch.” If you’re staring at your EverSewn Sparrow X2 (or any similar combo machine) and thinking, I followed the diagram… why is it still wrong?—take a breath.

I have spent 20 years teaching embroidery, and I can tell you this: Machines are not emotional, but they are physical. They rely on physics, not luck.

This guide is the exact routine I teach new owners to run every single time they change thread or troubleshoot stitch quality. We are going to move beyond "reading the manual" to "feeling the machine."

Pick the Right EverSewn Sparrow X2 Spool Pin (Horizontal vs Vertical) Before You Touch Anything Else

Thread feeding problems often start before you even thread the machine. You might blame the tension discs later, but the culprit is often physics happening at the spool pin.

The Sparrow X2 gives you two spool-pin options. Here is the Sensory Rule to choose the right one:

• Look at the thread wound on the spool.

1. Use the Horizontal Spool Pin: If the thread forms an "X" pattern (Cross-wound). This thread is engineered to lift off the top of the spool.
2. Use the Vertical Spool Pin: If the thread looks like stacked records (Parallel wound). This thread is engineered to spin off the side.

The "Why" (Expert Insight): If you put a parallel-wound spool on the horizontal pin, every time the thread lifts off, it adds a tiny twist. Over 1,000 stitches, that twist accumulates until the thread snaps or creates a "bird's nest."

If you’re setting up a sewing and embroidery machine like the Sparrow X2, treat spool orientation as part of your tension control system—not a cosmetic choice.

Wind a Bobbin on the Sparrow X2 Without Lumps: Slow Speed, Clean Start, and the “Stutter Stop” Cue

A bobbin is not just “thread storage.” It is 50% of your tension system. A poorly wound bobbin that feels "spongy" (soft) will cause looping, skipped stitches, and that maddening on-and-off stitch quality.

The "Compact Wind" Technique

1. Route Correctly: Put your thread on the correct spool pin. If using the horizontal pin, you must use the spool cap to prevent snagging.
2. Follow the Dotted Line: This specific path puts tension on the thread before it hits the bobbin.
3. The Inside-Out Trick: Pass the thread end through the small hole in the bobbin from inside to outside. Hold this tail!
4. Engage: Push the bobbin winder pin to the right. You should feel a distinct mechanical click.
5. The "Clean Start": Hold the thread tail tightly. Start the machine (Start/Stop button or pedal). Let it wind for 3-5 seconds, then STOP.
6. Trim Close: Cut that thread tail flush with the plastic. If you leave it, it will tangle later.
7. The Speed Limit: Continue winding at medium speed. Do not floor the pedal. High speed stretches the thread; when it relaxes later, it distorts your bobbin case.

Sensory Anchor: When the bobbin gets full, listen for a rhythmic stuttering sound or the plastic bobbin tapping against the stopper. That is your cue to stop immediately.

Warning: Mechanical Safety. Keep fingers, long hair, jewelry, and loose sleeves away from the needle area and moving shafts. Even during bobbin winding, the needle bar may move on some machines, or shafts spin rapidly. Keep a "safety circle" around the moving parts.

Expected Outcome: Touch the wound bobbin. It should feel firm, like a flexed muscle, not squishy like a marshmallow. It should be level from top to bottom.

Quick Reality Check: If your bobbin looks spongy or lopsided, unwind it and do it again. A bad bobbin will ruin a $20 shirt later.

Prep Checklist (Do this BEFORE threading the needle)

• Spool is on the correct pin (Horizontal for "X" wind, Vertical for "Stacked")
• Spool cap is on tight (if horizontal)
• Thread passed through the bobbin hole (Inside -> Out)
• Bobbin winder engaged (Clicked Right)
• Action: Winding speed kept to Medium (no "pedal to the metal")

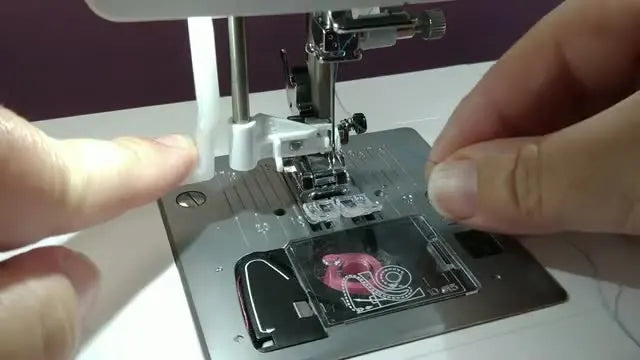

The “P for Perfect” EverSewn Sparrow X2 Bobbin Load That Stops 90% of First-Day Headaches

Drop-in bobbins are convenient—until you flip one the wrong way. If you do, the bobbin spins without tension, and you ultimately get giant loops on the back of your fabric.

The Visual Anchor: P vs. Q

Hold the bobbin in your hand with the thread hanging down.

• The "P" Shape: The thread comes off the left side going down. This is Correct ("P" for Perfect).
• The "Q" Shape: The thread comes off the right side. This is Wrong ("Q" for Quit).

The Execution

1. Drop & Slide: Drop the "P" oriented bobbin into the case.
2. The Arrow Path: Place your finger gently on top of the bobbin to stop it from spinning. Pull the thread tail through the arrow-marked path.
3. Sensory Check: As you pull the thread through the guides, you should feel a slight, consistent resistance. It shouldn't just flop out.
4. The Cutter: Pull quickly through the built-in cutter at the end. Close the clear door.


The "Why" (Expert Insight): There is a small metal spring in the side of the bobbin case. The "P" rotation forces the thread into that spring. The "Q" rotation spins away from it, resulting in zero tension.

Needle Up + Presser Foot Up: The Sparrow X2 Threading Safety Check That Saves Your Tension Discs

This is the single most common mistake I see in my workshops. Beginners thread the machine with the presser foot down because "it feels secure." This is wrong.

The Physical Rule:

• Presser Foot DOWN = Tension Discs CLOSED. (You cannot get thread between them).
• Presser Foot UP = Tension Discs OPEN. (Thread slides deep into the mechanism).

Before you touch the upper thread, establish this habit:

1. Press Needle Up/Down button (Ensure needle is at highest point).
2. Lift the Presser Foot Lever (Ensure foot is up).


If you thread with the foot down, the thread floats on top of the tension discs. You will sew perfectly for 10 stitches, and then create a bird's nest. If you’re an embroidery machine for beginners owner, tattoo this on your brain: Needle Up, Foot Up, THEN Thread.

Thread the EverSewn Sparrow X2 Upper Path (1–7) Like a Technician

The video follows the numbered guides 1 through 7, but there is one specific movement that defines success.

The "Flossing" Motion

Follow the numbers. When you reach Number 3 (The Tension Discs) and Number 5 (The Take-Up Lever), hold the thread with both hands (one near the spool, one near the needle) and give it a gentle tug, like flossing teeth. This snaps the thread deep into the guides.

Critical Checkpoint: The Take-Up Lever (#5) This is the metal arm that moves up and down. You must go Down –> Around –> Up and hook it.

• Sensory Check: Peek inside the slot. Can you see the thread inside the eyelet of that lever?


Expert Tip: After threading (before threading the needle eye), lower the presser foot. Pull the thread gently. You should feel tension/resistance now. Lift the foot; the thread should pull freely. This confirms your tension discs are working.

Make the Automatic Needle Threader on the Sparrow X2 Catch Every Time (Without Bending Anything)

Automatic needle threaders are delicate micro-mechanisms. Brute force will break them.

The Sequence

1. Constraint: Needle must be in the highest position.
2. Clearance: Lower the presser foot now (to give the threader room to descend).
3. Engage: Pull the threader down until it clicks.
4. Route: Hook under the left plastic guide -> Across front of needle -> Catch on right hook.
5. The Loop: Push the lever up gently.
6. Recovery: A loop of thread should pull through the eye. Grab it (a seam ripper works well to hook the loop) and pull the tail through.


Warning: Hardware Safety. Never force the threader lever. If it feels stuck, check your needle height. Using a needle smaller than size 75/11? The eye might be too small for the threader hook. Thread by hand to avoid bending the mechanism.

Sew the First Test Line on Muslin and Read Tension Like a Pro

Do not start your actual project yet. You need to "calibrate" the machine for the day. Use two layers of plain muslin or cotton (similar to what you will sew).

The Diagnostic Test

1. Needle Up.
2. Presser Foot DOWN.
3. Action: Sew a straight line for 6 inches.
4. Inspect: Look closely at the stitches.


Success Metrics

• Top Side: Clean dashes of top color. You might see a tiny, microscopic dot of bobbin thread (this is acceptable).
• Bottom Side: Clean dashes of bobbin thread. You might see tiny dots of top thread.


The Data Interpretation:

• Looping on Top? = Bobbin tension issue (Did you do the "P" check?).
• Looping on Bottom (Bird's nest)? = Top tension issue (Did you thread with the foot UP?).

Essential Troubleshooting Stat: 95% of tension issues are actually threading issues. If it looks wrong, cut the thread and re-thread from scratch. Do not touch the tension dial yet.

Setup Checklist (Pre-Flight for Sewing)

• Bobbin inserted with "P" orientation (Counter-clockwise unwind)
• Thread seated in bobbin tension spring (Arrow path)
• Needle confirmed fully UP
• Action: Presser foot was UP during threading sequence
• Thread verified in Take-Up Lever (#5) eyelet
• Test: Tension check passed (resistance felt when foot is down)

Use the Sparrow X2 Front Panel to Adjust Stitch Length, Width, and Pattern 06 Zigzag

Once your straight stitch is balanced, you can look at the digital settings.

Straight Stitch Physics

• Factory Default: 2.5 mm. (This is your "Sweet Spot" for general sewing).
• Basting: 5.0 mm. (Long, loose stitches for temporary holding).
• Reinforcement: 0.5 - 1.0 mm. (Tight, strong stitches).


Zigzag Dynamics

Select Pattern 06.

• Width: Controls how wide the needle swings (Max 7.0 mm).
• Length: Controls how dense the zigzag is (satin stitch vs. open zigzag).






Expert Note for Future Embroidery: When you eventually switch to embroidery mode, the machine takes over these settings automatically. But understanding that Density = Stitch Length is crucial. If stitches are too close (low length), you will punch a hole in your fabric.

The Fabric + Stabilizer Decision Tree (Avoiding the "Puckered Shirt" Disaster)

The Sparrow X2 is a hybrid machine. Transitioning to embroidery requires a mental shift: Fabric is fluid; Stabilizer makes it solid.

If you skip stabilizer, or pick the wrong one, your design will distort. Here is a simplified logic tree to help you make the right choice before you hoop.

Decision Tree: Fabric → Stabilizer Starting Point

1. Is the Fabric Stretchy? (T-Shirts, Jersey, Knits)
   • YES → You MUST use Cutaway Stabilizer.
   • Why? Knits stretch forever. Tearaway will shatter, and the stitches will distort. Cutaway stays forever to support the design.
2. Is the Fabric Stable? (Denim, Woven Cotton, Canvas)
   • YES → You can use Tearaway Stabilizer.
   • Why? The fabric supports itself; the stabilizer just helps during stitching.
3. Is the Fabric "Fluffy"? (Towels, Fleece, Velvet)
   • YES → Use Water Soluble Topping (on top) + Tearaway/Cutaway (on bottom).
   • Why? The topping prevents stitches from sinking into the pile.

Advice: When exploring hooping for embroidery machine projects, buy quality stabilizer. Cheap stabilizer leads to expensive frustration.

The Upgrade Path: When to Buy Tools to Save Your Sanity / Business

Once you master the machine, the bottleneck becomes You. Specifically, your wrists and your time.

The Problem: Hoop Burn and Wrist Fatigue

Hooping is physical labor. Traditional two-ring hoops require significant hand strength to tighten, and they often leave "hoop burn" (creases or shine marks) on delicate fabrics like velvet or performance wear.

Level 1 Solution: Better Technique

Practice "floating" fabric (hooping only the stabilizer and sticking the fabric to it).

Level 2 Solution: Tool Upgrade (Magnetic Hoops)

If you are struggling with thick items (towels, bags) or find yourself re-hooping 5 times to get it straight, terms like magnetic embroidery hoops are your gateway to relief.

• The Benefit: They use magnetic force to clamp rather than friction. No screwing, no twisting, no hoop burn.
• The Scenario: You have an order for 10 tote bags. A magnetic hoop cuts hooping time by 50%.

Warning: Magnetic Safety. These are not fridge magnets. They are industrial N52 magnets. They can pinch fingers severely. Keep away from pacemakers and implanted medical devices.

Level 3 Solution: Production Scaling

If you find yourself turning down orders because you can't sew fast enough on a single-needle machine, or if you are doing batches of 50+ shirts, look into a machine embroidery hooping station. This tool standardizes placement so every logo is in the exact same spot.

If the Sparrow X2 is your stepping stone, knowing when to upgrade to a multi-needle machine or add a embroidery hooping station is the difference between a struggling hobbyist and a profitable business owner.

The Three Problems New Sparrow X2 Owners Hit First (Structured Troubleshooting)

Don't guess. Use this matrix when things go wrong.

Hidden Consumables Checklist: You need more than just the machine. Keep these in your drawer:

• Spare Needles: (Universal 80/12 and Embroidery 75/11). Needles dull every 8 hours of sewing.
• Curved Embroidery Scissors: For snipping jump threads close to the fabric.
• Tweezers: For grabbing that short thread tail.

Operation Checklist (Your Ritual for Every Session):

• Safety: Needle Up / Foot Up.
• Threading: Complete upper path, feel for tension resistance.
• Bobbin: "P" orientation confirmed.
• Test: 6-inch straight stitch on scrap fabric.
• Verification: Check back of fabric for tension balance.

Only when the test line is clean do you touch your expensive garment. Happy stitching!

FAQ

• Q: EverSewn Sparrow X2 thread keeps snapping or twisting—should the spool go on the horizontal spool pin or the vertical spool pin?
  A: Match the spool pin to the way the thread is wound: cross-wound (“X” pattern) uses the horizontal pin, parallel-wound (“stacked records”) uses the vertical pin.
  • Look: Inspect the spool—“X” crossing = horizontal; stacked rows = vertical.
  • Install: If using the horizontal pin, add the spool cap snug so the thread cannot snag.
  • Re-thread: After changing pin/orientation, rethread the upper path from the start (don’t just pull thread through).
  • Success check: Thread feeds smoothly without building twist, and the first test line sews without sudden snaps.
  • If it still fails: Recheck take-up lever threading and confirm the presser foot was UP during threading.
• Q: EverSewn Sparrow X2 bobbin winding looks lumpy or feels “spongy”—how do you wind a firm bobbin without bumps?
  A: Rewind the bobbin at medium speed using the correct path and a clean start—high speed and missed guides cause soft, uneven bobbins.
  • Route: Follow the machine’s dotted-line bobbin-winding path to add pre-tension before the bobbin.
  • Start: Thread the bobbin hole from inside-to-outside, hold the tail, wind 3–5 seconds, stop, then trim the tail flush.
  • Control: Continue at medium speed (do not floor the pedal).
  • Success check: The bobbin feels firm “like a flexed muscle,” looks level from top to bottom, and you hear a rhythmic stutter/tap at full.
  • If it still fails: Unwind and redo—don’t try to “use up” a bad bobbin on a real garment.
• Q: EverSewn Sparrow X2 drop-in bobbin gives giant loops on the back—what is the correct “P vs Q” bobbin direction?
  A: Load the bobbin in the “P” direction (thread off the left side going down) so the thread seats into the bobbin-case spring.
  • Orient: Hold the bobbin with thread hanging—left/down = “P” (correct), right/down = “Q” (wrong).
  • Seat: Drop in the “P” bobbin, then pull the thread through the arrow-marked path while lightly holding the bobbin.
  • Cut: Pull briskly into the built-in cutter and close the clear door.
  • Success check: You feel slight, consistent resistance when pulling the bobbin thread through the guides (not a free-fall).
  • If it still fails: Rethread the upper path with presser foot UP—top threading errors commonly mimic bobbin problems.
• Q: EverSewn Sparrow X2 keeps making a bird’s nest on the bottom after threading—what presser foot and needle position prevents tension-disc threading mistakes?
  A: Thread the EverSewn Sparrow X2 with the needle at its highest point and the presser foot UP so the thread can enter the tension discs.
  • Set: Press Needle Up/Down until the needle is at the highest position.
  • Lift: Raise the presser foot lever before touching the upper thread path.
  • Verify: After threading, lower the presser foot and pull the thread—feel resistance; lift the foot and it should pull freely.
  • Success check: A 6-inch straight test line on scrap fabric shows clean stitches without bottom tangles.
  • If it still fails: Cut thread and rethread from scratch, confirming the take-up lever is threaded correctly.
• Q: EverSewn Sparrow X2 automatic needle threader will not catch the thread—what is the correct sequence to avoid bending the threader?
  A: Use the needle-highest position, then lower the presser foot for clearance, and engage the threader gently—never force the lever.
  • Position: Move the needle to the highest point first.
  • Clear: Lower the presser foot to give the threader room to descend.
  • Engage: Pull the threader down until it clicks, then route thread under the left guide, across the needle front, and onto the right hook.
  • Success check: A loop pulls through the needle eye when you raise the lever; pull the loop tail through (a seam ripper can help hook it).
  • If it still fails: Do not force it—confirm needle height again and consider hand-threading if using a very small needle eye.
• Q: EverSewn Sparrow X2 stitch tension looks wrong—how do you read a 6-inch test line to decide “top tension vs bobbin load” without touching the tension dial?
  A: Sew a 6-inch straight line on two layers of muslin/cotton and interpret the loops: loops on bottom usually mean top threading/tension is wrong; loops on top usually mean bobbin load is wrong.
  • Test: Needle up, presser foot DOWN, sew 6 inches on scrap fabric before starting a real project.
  • Inspect: Check both sides—balanced stitches show clean dashes with only tiny dots of the opposite thread color.
  • Fix: If looping on bottom, rethread upper path with presser foot UP; if looping on top, reload bobbin in “P” direction and re-seat through the arrow path.
  • Success check: Top and bottom both show neat, even dashes with no big loops or tangles.
  • If it still fails: Cut thread and rethread completely—most tension issues are actually threading issues, not dial settings.
• Q: Magnetic embroidery hoops reduce hoop burn and wrist fatigue, but are magnetic embroidery hoops safe to use for production hooping?
  A: Magnetic embroidery hoops can be a safe upgrade when handled correctly, but the magnets are strong and can pinch—keep fingers clear and keep them away from pacemakers/implanted devices.
  • Handle: Separate and place magnets deliberately; never let magnets “snap” together near skin.
  • Protect: Keep hands out of the clamping zone when positioning fabric and stabilizer.
  • Restrict: Do not use around pacemakers or implanted medical devices; store magnets away from sensitive items.
  • Success check: Fabric is clamped evenly without hoop burn/creasing, and hooping time drops noticeably on repeat items (totes, towels).
  • If it still fails: Use Level 1 technique first (float fabric by hooping stabilizer only), then reassess whether a magnetic hoop or a placement station fits the workload.
