Fast Frames on a Brother PR670E: The Clip-and-Float Method for Perfectly Centered Appliqué Shirts (Without Hoop Burn Panic)

If you have ever slid a metal frame onto a multi-needle machine and felt that sudden, cold spike of fear—“What if the needle hits the frame and shatters?”—you are not being dramatic. You are being smart. That fear is your intuition telling you that the margin for error on a rigid metal frame is zero.

In this project, we are breaking down a "Back to School" appliqué shirt project on a Brother Entrepreneur 6-Plus PR670E. Instead of traditional hooping, we are using a 7x7 Fast Frame secured with simple sewing clips. This method is fast, clean, and highly effective for business owners—provided you respect the physics of the machine and understand exactly why the shirt is mounted upside down.

The Calm-Down Moment: Why a Brother PR670E + Metal Fast Frame Can Feel “Risky” (and How to Make It Safe)

Metal frames (often called "Fast Frames") are fantastic for speed because they eliminate the "inner ring" of a standard hoop, meaning no "hoop burn" on the fabric. However, they come with a non-negotiable reality: The machine does not know this frame exists.

Unlike OEM hoops that communicate their size to the machine's computer, a Fast Frame is a "dumb" accessory. The machine will happily drive a needle straight into the metal bar if you tell it to.

If you are running a brother pr670e embroidery machine, treat this as your baseline survival rule: No manual boundary check, no start button. A single needle strike into metal can result in a shattered needle, a scarred rotary hook, or damaged needle bar timing—repairs that cost far more than the shirt you are stitching.

Warning: Keep fingers, stylus pens, scissors, and loose clothing/jewelry well away from the needle area when jogging the frame to checking extremes. A multi-needle head can move suddenly and with torque; a generic "needle break" can send metal shards flying toward your eyes.

What you are aiming for is simple physical certainty:

• The design is numerically centered.
• The needle drop points at the farthest Top, Bottom, Left, and Right positions stay safely inside the "air" of the open window.
• The shirt bulk is managed so it cannot snag or drag the frame during movement.


The “Hidden” Prep Pros Don’t Skip: Crease, Crosshair, Stabilizer, and Appliqué Fabric Readiness

This project looks easy in the video because the preparation creates a controlled environment. If you skip these steps, you are relying on luck.

1) Put a physical center crease in the shirt

Don't guess the center. Fold the shirt vertically, matching shoulder seams, and press a crease down the center front. This crease becomes your "Truth Line." Even if the shirt is loaded slightly crooked, if you align the machine to the Truth Line, the design will be straight relative to the body.

2) Mark a crosshair with a water-soluble pen

Draw a visible crosshair on the shirt using a water-soluble marker (or air-erase pen for quick jobs). Align the vertical line with your pressed crease, and measure down from the collar for your horizontal placement (usually 3–4 inches down for a youth shirt).

3) Prep stabilizer for a frame-based workflow

In the video, stabilizer is used under the frame. For T-shirts (knits), you must use Cutaway stabilizer.

• The Physics: Knits stretch. Tearaway stabilizer eventually tears, allowing the stitches to distort the fabric. Cutaway holds the structure forever.
• The Glue: Use a light mist of temporary spray adhesive (like 505 Spray) to tack the stabilizer to the back of the frame, or tape it as shown. This prevents the "trampoline effect" where the stabilizer bounces up and down.

4) Pre-prep appliqué fabrics with Heat n Bond

Eris has her appliqué fabrics (yellow, pink, brown, gray) backed with Heat n Bond Lite. This is crucial. It stiffens the fabric, preventing fraying when the machine does the tack-down stitch, and keeps the edges crisp inside the satin border.

Prep Checklist (Do this BEFORE the frame goes near the machine)

• Needle Check: Is a fresh 75/11 Ballpoint needle installed? (Sharps cut knit fibers; Ballpoints slide between them).
• Shirt Pressed: Clear center crease is visible/basted.
• Crosshair Marked: Used water-soluble pen or chalk.
• Stabilizer Secured: Cutaway stabilizer is taped or sprayed to the frame window (no sag).
• Appliqué Ready: Fabrics fused with Heat n Bond and cut slightly larger than the target area.
• Thread Map: Threads loaded and user knows which color is on which needle number.


Floating a Small T-Shirt on a 7x7 Fast Frame: The Backwards Insert Trick That Saves Your Sanity

Eris uses a method known as a floating embroidery hoop approach. "Floating" means the garment is not pinched between rings; it sits on top of the stabilizer/frame assembly.

Here is the key maneuver for small shirts: Insert the Fast Frame into the shirt BACKWARDS.

Hold the frame so the attachment arm (the part that clicks into the machine) is facing the bottom hem of the shirt. Slide it up into the body. This positions the bulk of the shirt opening toward the machine arm, giving you maximum maneuvering room.

How to align for Zero Slant

1. Slide the frame inside the shirt body.
2. Locate the small metal notch or center arrow on the Fast Frame.
3. Visual Lock: Align that metal notch perfectly with your pressed center crease and pen mark.

If the notch and crease are not aligned now, your design will be crooked later. Do not "fix it in post" (software)—fix it mechanically now.

Clips, Not Chaos: Securing the Shirt to the Fast Frame So It Doesn’t Drift Mid-Run

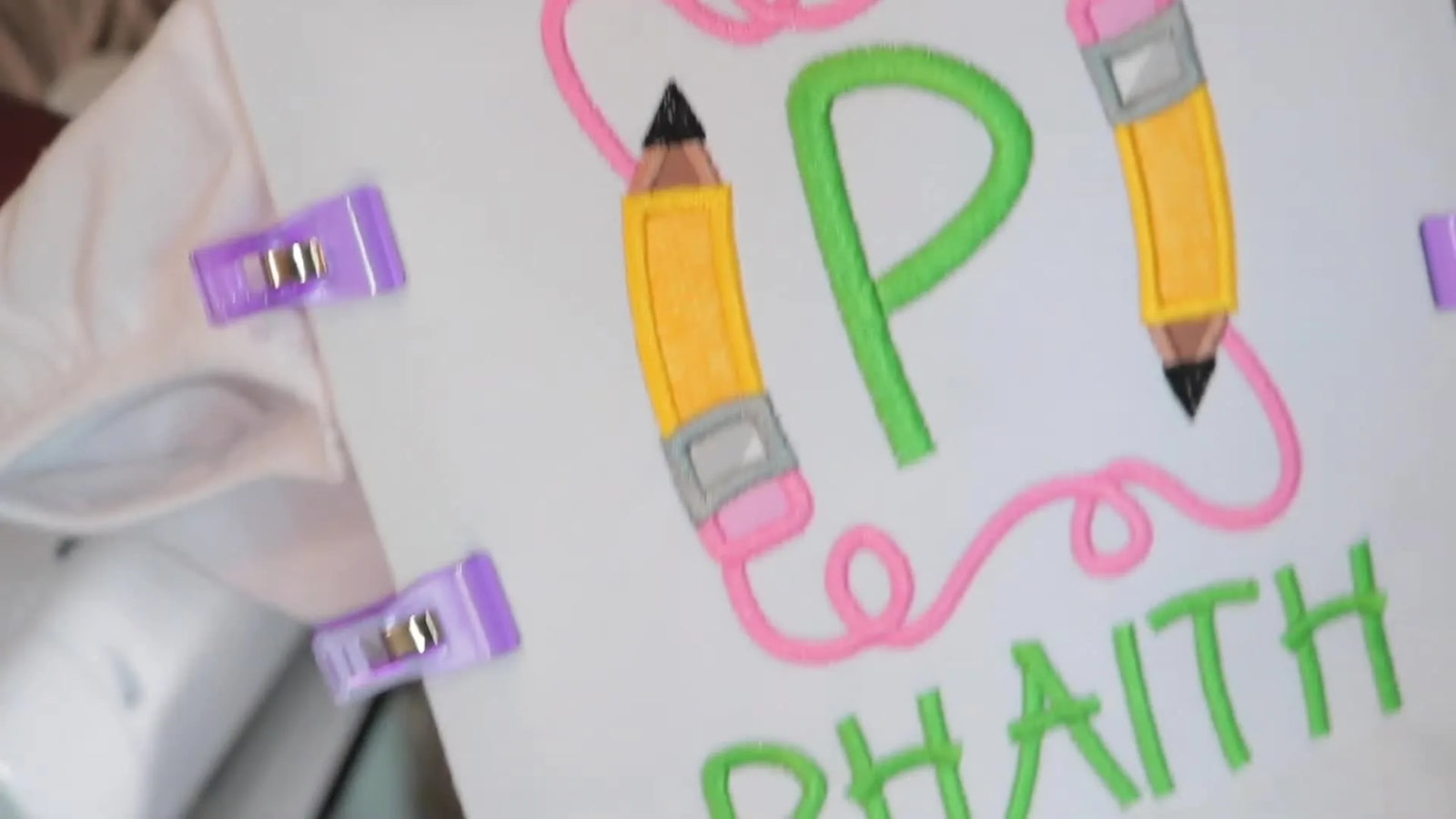

Eris uses generic purple sewing clips (available at big-box stores) to clamp the shirt fabric to the edges of the metal frame. She smooths the fabric taut by hand first, then clips the sides and top.

The Sensor Check: "Taut," not "Tight"

This is where beginners fail. You are not trying to stretch the shirt like a drum skin—that will cause the fabric to snap back and pucker once removed.

• Correct Feel: Gently pull until the wrinkles disappear. It should feel like a freshly made bed sheet—smooth, but relaxed.
• Incorrect Feel: If you pull the knit fabric until the grain lines distort or curve, it is too tight.

If you are doing fast frames embroidery regularly, your "drift prevention" strategy relies on:

1. Symmetry: Place clips directly across from each other (Top Left + Top Right).
2. Frequency: For a 7x7 area, use at least 4-6 clips.
3. Clearance: Ensure the clip handles are folded down or flat so they don't snag on the machine head.


Mounting the Fast Frame on the Brother PR670E: Clear the Sewing Field Before You Touch the Screen

Eris slides the metal arm of the Fast Frame into the machine's "A" bracket (or equivalent for your arm width) and tightens the thumb screws.

The "Bulk Check": Before doing anything else, push the excess shirt fabric back and around the machine arm.

• Why? If the heavy cotton of the shirt bunches up under the frame arm, it forces the frame upward. This changes the Z-axis height, causing the needle to strike the bobbin case or causing skipped stitches.
• The Fix: Use magnetic clips or even painter's tape to hold the excess fabric out of the "Kill Zone" (the moving pantograph area).

If you are doing hooping for embroidery machine work on garments, always treat "bulk management" as part of the hooping connection itself.

Setup Checklist (Right before you touch the LCD screen)

• Mechanical Lock: Frame arm is fully seated in the bracket; screws are finger-tight + 1/4 turn.
• Clearance: Shirt bulk is pushed back; nothing is obstructing the Y-axis movement.
• Center: The pen crosshair is still aligned with the frame's center notch.
• Clips: Secured efficiently; not covering the stitch area.


The 180° Flip That Prevents Upside-Down Names: Rotating the Design on the PR670E Screen

Because we mounted the shirt upside down (to fit the frame comfortably), the neck is facing the user, and the hem is facing the machine. If you stitch now, the design will be upside down on the chest.

The Mandatory Step: Rotate the design 180 degrees on the machine’s on-screen editing interface.

• Look for the icon with the "L" or arrow rotating.
• Confirm visually on the screen: Is the top of your design pointing toward you (the user)? If yes, it is oriented correctly for the upside-down shirt.


The Boundary Safety Check Ritual: Jog to the Extremes and Prove the Needle Won’t Hit Metal

This is the "Do or Die" moment. This is what separates professional operators from those who break machines.

Eris manually "jogs" (moves) the frame via the touchscreen to the extreme Top, Bottom, and Side points of the design. She uses a stylus to physically point from the needle tip to the fabric.

The Sensory Safety Standard

1. Lower the Needle Bar: (Manually turn the handwheel or use the needle-down button without starting) so the needle tip is just above the fabric.
2. The Gap: You want to see at least 5mm to 10mm (about a fingertip width) of clearance between the needle and the metal frame edge at the closest point.
3. The Stylus Trick: If you can't fit your plastic stylus between the needle drop point and the metal clamp, you are too close. Shrink the design or move it. Do not gamble.


Needle and Color Mapping on the Brother PR670E: How Eris Programs a Clean Appliqué Run

Eris reviews the color steps and assigns them to the specific needle bars holding those threads.

On the Brother PR interface (and similar brother 6 needle embroidery machine menus), this is called "Needle Exchange" or "Manual Color Sequence."

Eris's Map:

• Needle 1: Black (Outline)
• Needle 2: Gray (Pencil tip)
• Needle 3: Yellow (Pencil body)
• Needle 4: Brown (Wood) -> Will Swap to Green manually later
• Needle 5: Pink (Eraser)
• Needle 6: White (Placement/Tack-down)

Pro Tip: For appliqué, always put your Placement/Tack-down color (usually white or grey) on a needle you don't need for the final satin stitch. This keeps your main colors pure.

Running the Appliqué: Placement Stitches, Fabric Drops, and Satin Borders (What to Expect at Each Stop)

Once the design is rotated, mapped, and boundary-checked, Eris presses the glowing green button.

The Stitch Rhythm

1. Placement Line: The machine stitches a simple outline (running stitch).
   • Action: Spray back of appliqué fabric with adhesive (or rely on Heat n Bond), place it continuously over the outline.
2. Tack-Down: The machine stitches a box or zigzag to hold the fabric.
   • Action: Remove frame (or slide out) to trim excess fabric close to stitches with curved appliqué scissors (Duckbill scissors). Note: Pre-cut shapes save you this step.
3. Satin Finish: The machine covers the raw edges with a dense satin column.

Speed Advisory: The "Beginner Sweet Spot"

Eris runs her machine at 1000 SPM (Stitches Per Minute). This is fine for experts. However, for beginners doing appliqué: Slow down to 600-700 SPM.

• Why? Slower speeds reduce the chance of thread shredding and give you more time to hit the "Stop" button if a piece of fabric lifts up.
• Sensory Check: The machine should sound like a rhythmic hum or a galloping horse. If it sounds like a jackhammer ("TAK-TAK-TAK"), your tension is too tight or your speed is too high for the frame stability.


Operation Checklist (Execute during the run)

• First Stitch: Did the bobbin catch? Is the top thread tails trimmed?
• Placement: Did the fabric cover the placement line entirely?
• Sound Check: Is there a "birdnesting" sound (muffled grinding)? If so, stop immediately.
• Color Swap: If manual thread change is needed (like Eris swapping Brown to Green), is the machine stopped and ready?


Unclipping and Unhooping Without Distortion: How to Remove the Shirt and Keep It Looking Crisp

After the final satin stitch locks the design, Eris removes the frame from the bracket. She unclips the purple clips and gently peels the taped/sprayed stabilizer away from the frame.

The "Be Gentle" Rule: When tearing away stabilizer (or trimming cutaway), hold the stitches with one hand and pull the stabilizer with the other. Do not yank the shirt. Warm, damp satin stitches can distort if pulled aggressively immediately after sewing.

Remove water-soluble marks with a damp cloth or a spray bottle of water. Do not iron over the marks before removing them—heat can set the ink permanently!

Decision Tree: When to Use Clips + Fast Frames vs. Upgrading to Magnetic Hoops

Eris’s method works perfectly for low volume. But if you are doing this commercially, "fiddling with clips" costs you money.

Use this decision tree to determine if it is time to upgrade your toolkit:

A) Are you stitching 1–5 shirts a week (Hobby / Occasional Order)?

• YES: Clips + Fast Frame is sufficient. Focus on your trace/boundary technique.
• NO: Go to B.

B) Are you spending more than 2 minutes just mounting the shirt to the frame?

• YES: You have a bottleneck. Consider hooping stations. These hold the frame and shirt in place, allowing for consistent placement without the "guess and check" method.
• NO: Go to C.

C) Are you seeing "Hoop Burn" (shiny rings) or struggling with thick items like hoodies?

• YES: It is time for magnets. magnetic embroidery hoops (like the MaggieFrame) clamp automatically without manual force. They hold thick material evenly and leave zero burn marks.
• NO: Keep your current setup, but inspect your clips for fatigue/weakness.

D) What machine ecosystem are you in?

• Home/Single Needle: Look for specific magnetic embroidery hoops for brother (consumer line). They solve the "struggle to close the hoop" problem.
• Multi-Needle (Pr670E, etc): A dedicated magnetic frame for embroidery machine (Industrial style) allows you to hoop a shirt in under 10 seconds.

Warning: Magnetic Safety
Modern magnetic hoops use high-grade Neodymium magnets. They are incredibly powerful.
* Pinch Hazard: They can crush fingers if they snap together unexpectedly. Slide them apart; don't pry them.
* Medical Risk: Keep them at least 6 inches away from pacemakers and insulin pumps.
* Electronics: Keep away from credit cards and older hard drives.

The Upgrade Path (Without the Hard Sell): What I’d Change First If You Want Faster Orders

Eris’s workflow has excellent "bones": Center crease, crosshair, upside-down mounting, and safety checks.

However, to scale this from "one custom shirt" to "50 company uniforms," here is the logical tool upgrade path:

1. Level 1 (Technique): Use Cutaway Stabilizer + 75/11 Ballpoint Needles. This fixes 90% of puckering and holes in knits.
2. Level 2 (Efficiency): Switch from clips to Magnetic Hoops. You eliminate the "smoothing and clipping" dance. The magnet is the smooth-and-clip. It saves about 60 seconds per shirt.
3. Level 3 (Capacity): If your single-needle machine is slowing you down because you have to change threads manually 7 times per shirt, looking into brother 6 needle embroidery machine or equivalent commercial multi-needle platforms (like SEWTECH's heavy-duty options) is the only way to reclaim your time.

The Final Takeaway: The shirt in this project came out centered and clean because the variables were controlled—not because of luck. Control your center, control your bulk, and check your boundaries. The rest is just letting the machine do the work.

FAQ

• Q: How can Brother PR670E operators prevent a needle strike when using a metal Fast Frame (7x7 Fast Frame) on a multi-needle embroidery machine?
  A: Do not press Start until Brother PR670E manual boundary checks prove the needle drop stays inside the open window with clearance.
  • Jog the design to Top/Bottom/Left/Right extremes using the touchscreen before stitching.
  • Lower the needle tip close to the fabric (needle-down/handwheel) without running the design.
  • Verify clearance stays about 5–10 mm from any metal edge; if clearance is too tight, move or shrink the design.
  • Success check: At every extreme, the needle drop point is clearly in “air,” not over metal, with visible clearance.
  • If it still fails: Re-center the design numerically and repeat the boundary check ritual before restarting.
• Q: What needle type should be installed for embroidering a knit T-shirt appliqué on a Brother PR670E to avoid holes and knit damage?
  A: Use a fresh 75/11 Ballpoint needle as the safe starting point for knit T-shirts on Brother PR670E.
  • Install a new 75/11 Ballpoint needle before the job (avoid sharps on knits).
  • Confirm the needle is seated correctly before loading the frame to reduce skips and snags.
  • Match the needle choice with proper stabilizer (cutaway) for knit control.
  • Success check: The knit surface shows no cut fibers/“runs,” and stitches form cleanly without skipped penetrations.
  • If it still fails: Slow the run speed and re-check fabric bulk clearance to reduce deflection and skipped stitches.
• Q: Which stabilizer should be used for embroidering knit T-shirts with a floating Fast Frame method on a Brother PR670E?
  A: Use cutaway stabilizer for knit T-shirts when floating on a Fast Frame, because knits stretch and need permanent support.
  • Attach cutaway stabilizer under the frame window with light temporary spray adhesive or tape to prevent bouncing.
  • Keep stabilizer flat with no sag to avoid the “trampoline effect.”
  • Float the shirt on top of the stabilized frame and secure the garment so it cannot drift.
  • Success check: The stabilizer stays flat during stitching and the design area does not ripple or distort.
  • If it still fails: Add more securement (tape/spray) to stop stabilizer lift and re-clip the garment symmetrically.
• Q: Why must a Brother PR670E design be rotated 180 degrees when the T-shirt is mounted upside down using a metal Fast Frame?
  A: Rotate the design 180° on the Brother PR670E screen so the finished chest design reads right-side-up after upside-down mounting.
  • Mount the shirt with the neck toward the operator and hem toward the machine for easier frame insertion.
  • Use on-screen rotate tools to flip the design 180° before sewing.
  • Visually confirm the top of the design points toward the operator on the screen before starting.
  • Success check: The on-screen preview orientation matches how the shirt is mounted (so the stitched result reads correctly when worn).
  • If it still fails: Stop before sewing and re-check garment orientation (neck vs hem) and rotate again rather than “fixing later.”
• Q: How can Brother PR670E users stop fabric drift when floating a small T-shirt on a 7x7 metal Fast Frame using sewing clips?
  A: Clip for symmetry and “taut, not tight” tension so the knit stays smooth without being stretched.
  • Smooth the shirt like a bed sheet (wrinkles removed) and then clip the sides/top in opposing pairs.
  • Use at least 4–6 clips for a 7x7 area and fold clip handles down for clearance.
  • Align the frame center notch to the pressed center crease and crosshair before clipping fully.
  • Success check: Fabric grain lines stay straight (not distorted), and the shirt does not creep during the first placement stitches.
  • If it still fails: Add clips in missed areas and re-check bulk management so garment weight is not pulling on the frame.
• Q: What is the “bulk check” on a Brother PR670E when using a Fast Frame, and how does poor bulk management cause skipped stitches or impact problems?
  A: Push and secure excess shirt fabric away from the moving field so the frame stays level and nothing snags the pantograph path.
  • Clear heavy shirt bulk from under/around the frame arm before touching the LCD controls.
  • Hold excess fabric back using clips or painter’s tape so it cannot drag during Y-axis movement.
  • Reconfirm the crosshair alignment after moving bulk to ensure the garment didn’t shift.
  • Success check: The frame moves freely through the full travel with no fabric tugging or lifting the frame upward.
  • If it still fails: Stop and re-mount—any upward force can change height and increase risk of strikes, skips, or nesting.
• Q: When should a shop move from clips + metal Fast Frames to magnetic embroidery hoops or a multi-needle production upgrade for T-shirt appliqué work?
  A: Upgrade in layers: optimize technique first, move to magnetic hoops when hooping time becomes a bottleneck, and consider a multi-needle platform when thread changes limit throughput.
  • Level 1 (Technique): Standardize cutaway stabilizer + correct needle choice and always perform boundary checks.
  • Level 2 (Tooling): Switch to magnetic hoops when mounting takes more than ~2 minutes or hoop burn/thick garments become a recurring problem.
  • Level 3 (Capacity): Consider a multi-needle workflow when frequent manual color changes are the main time sink per shirt.
  • Success check: Mounting time drops, placement consistency improves, and rework from puckers/drift decreases.
  • If it still fails: Track where time is actually lost (mounting vs trimming vs thread issues) and address the biggest bottleneck first.
• Q: What magnetic hoop safety rules should operators follow when using Neodymium magnetic embroidery hoops near a Brother PR670E workstation?
  A: Treat Neodymium magnets as pinch hazards and keep them away from sensitive medical devices and certain electronics.
  • Slide magnets apart instead of prying to reduce finger pinch/crush risk.
  • Keep magnetic hoops at least 6 inches away from pacemakers and insulin pumps.
  • Store magnetic hoops away from credit cards and older hard drives.
  • Success check: Operators can open/close hoops with controlled movement and no sudden snap-together incidents.
  • If it still fails: Re-train handling technique and reorganize the work area so magnets are staged safely and consistently.
