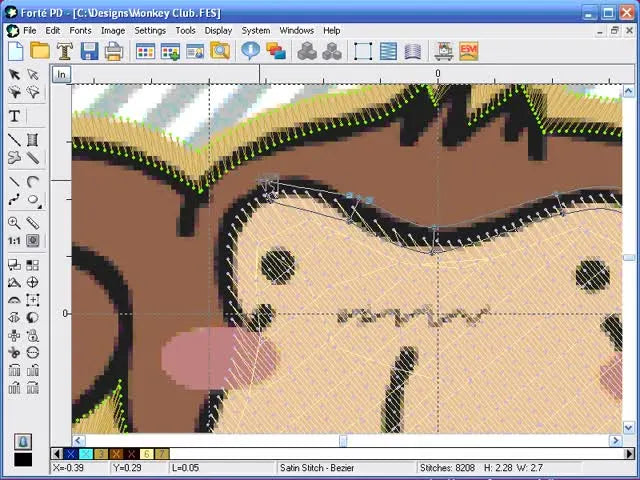

In this Forte PD session, we are reconstructing a workflow to digitize a black satin outline for a monkey face. However, as your guide with two decades on the shop floor, I’m going to take you deeper than the video. We will focus on the three habits that separate hobby files from production-ready files: (1) wireframe-first point discipline, (2) deliberate manual pull compensation, and (3) smart pathing to keep the machine moving.

Don’t Panic: Why Satin Outlines Fail (and How to Fix Them)

If your outline is coming out uneven or gapping away from the fill, the fastest way to calm the chaos is to separate the problem into two buckets:

1. The Digital Flaw: Is the shape wrong in the file? (Point placement / Tool choice)
2. The Physical Flaw: Is the shape right, but the fabric moved? (Pull-in / Stabilization / Hooping)

This guide focuses on the file side—but never forget that even a perfect file will fail if the hooping is loose. When hooping, tap the fabric; it should sound like a tight drum skin (thump-thump), not a loose sheet.

Note on Scale: The status bar in this project shows a design height of 2.28 inches. At this small scale, mistakes are magnified. A 1mm gap on a large jacket back is invisible; on a small patch, it’s a disaster.

The “Hidden” Prep: Cognitive Setup Before the First Click

Before you place a single node, you need to set up your workspace to favor precision over aesthetics.

The "Wireframe First" Rule

The instructor works in Wireframe mode. Why? Because standard 3D preview mode lies to you. It shows you fluffy simulated thread that hides crossing lines and messy nodes. Wireframe shows the skeleton.

• The Discipline: Work in Wireframe to build the geometry.
• The Reward: Toggle 3D view only to check the visual weight.

The Sectioning Strategy

Don't try to digitize the entire outline in one continuous loop. That is a recipe for frustration. Break it down:

1. Face curve (smooth arc).
2. Hair spikes (sharp angles).
3. Cheek area (complex curves).

By working in sections, if you mess up a hair spike, you don't have to delete the perfect chin curve you just finished.

Prep Checklist (Do this every time)

• View Check: Locate the Wireframe toggle (hotkey usually 'W' or similar).
• Plan the Path: mental fly-over of the design. Where should the needle start so it can end near the next object?
• Risk Assessment: Identify sharp corners (hair spikes). These will require a tool change.
• Hidden Consumables Check: Do you have your precision tweezers and fine-tip snips ready? You’ll need them for the jump stitches later.


Wireframe Mode: Place Points Like a Technician

The core habit here is separating Geometry from Behavior.

• Geometry (Wireframe): This tells the machine exactly where the needle penetrates.
• Behavior (3D View): This shows you how the thread blooms and covers the fabric.

A common rookie mistake is "Chasing the Preview"—constantly adjusting points in 3D view because the simulation looks weird. Trust the wireframe. If the skeleton is good, the body will follow.

The Sweet Spot: You want the fewest nodes possible to achieve the shape. Every extra node is a potential kink in your satin stitch fluidity.

Tool Switching: Arc vs. Straight Line for Hair Spikes

Here is where the software meets the needle. The video shows the hair spikes getting "really tricky." Why? Because curves want to flow, but spikes need to snap.

The Problem with Arcs on Corners

If you use an Arc or Bezier tool for a sharp hair spike, the software tries to smooth the transition. The result on the machine is a rounded, "mushy" point rather than a sharp thorn.

The Solution: Tool Switching

The instructor switches to the Straight Line tool specifically for the sharp angles.

1. Use Bezier/Arc for the face.
2. Stop, switch to Straight Line for the spikes.
3. Switch back for the next curve.

It feels slower, but it guarantees a sharp point (a "mitred corner" effect) rather than a rounded cap.

Warning: Mechanical Safety. When test-stitching sharp corners at high speeds, needles can deflect. Keep your hands at least 6 inches away from the needle bar area while the machine is running. Never reach in to trim a thread while the machine is active.

Thread & Tool Setup: Locking in Isacord Black

The setup details are crucial for consistency.

• Thread: Isacord 40wt (Standard Polyester).
• Color: Black 0020.
• Tool: Satin Stitch with Bezier.

Why Bezier? Unlike a standard column tool, Bezier curves allow you to manipulate the "Thick/Thin" profile of the line more organically, mimicking a hand-drawn calligraphy ink line. This gives the character life that a uniform-width satin stitch lacks.

The Golden Habit: Manual Pull Compensation

This is the most critical lesson in this guide. The instructor deliberately places nodes slightly outside the artwork line.

The Physics of Pull

When a needle penetrates fabric and the take-up lever pulls the knot tight, the fabric bunches slightly. This causes satin stitches to become narrower than they look on screen.

• On Screen: 3mm width.
• On Fabric (without comp): 2.5mm width.
• Result: Gaps between the outline and the fill.

The Fix: Exaggerate to Compensate

You must digitize the column wider than the artwork.

• Beginner Sweet Spot: Overlap your outline onto the fill by about 0.3mm to 0.5mm (or 2-4 wireframe "ticks" depending on zoom).
• Fabric Factor: Stretchy knits (polo shirts) need more overlap. Stable denim needs less.

If you find yourself constantly fighting gap issues despite adding compensation, the issue might be your hooping. In professional shops, stable tension is non-negotiable. This is why many upgraders look into machine embroidery hoops that offer better grip than standard plastic rings, reducing the amount of "guessing" needed in the software.

Quality Control: The "Clean View" Check

The instructor turns off the background image and the fill colors to look at the Black Outline in isolation.

Why do this? Your brain fills in gaps when looking at a busy image. By isolating the outline, you spot:

1. Kinks: Points that aren't smooth.
2. Flat Spots: Curves that look like 50-cent coins instead of circles.
3. Density Issues: Sections that look suspiciously thin.


Pathing & Travel Runs: The Secret to Speed

Now we move from "Art" to "Engineering." The instructor adds a Running Stitch using a Straight Line to bridge the gap between two satin objects.

The Logic:

• Without Travel Run: The machine stops → Trims thread → Moves → Slow Start → Locks In. (Time cost: 7-10 seconds).
• With Travel Run: The machine keeps running at speed, burying a thin line of stitches under where the next satin object will be. (Time cost: 0.5 seconds).


Setup Checklist: The Travel Run

• Tool Selected: Running Stitch (Straight).
• Placement: Must be strictly inside the area that will be covered by the next satin block.
• Length: Keep stitches around 2.5mm - 3.0mm. Too short/small creates bulletproof density; too long creates loose loops.
• Verification: Toggle Wireframe to ensure the travel line does not peek out from the edges of the future satin column.

The Long Travel: Routing Around the Perimeter

The video demonstrates routing a running stitch all the way up the side of the face to get to the next starting point.

The "Cover-Up" Strategy:

1. Stage 1: Stitch a thin running line up the path.
2. Stage 2: The Satin Stitch comes back down, sewing over that running stitch, burying it completely.

This technique is essential for production. It eliminates a trim. However, it requires confidence in your registration. If your fabric shifts, the "under" stitch might peek out.

Pro Tip: This is where hooping stability is paramount. If you are doing volume production (e.g., 50 patches), consider a hooping station for embroidery. It ensures that every piece of fabric is placed with the exact same tension and alignment, so your "cover-up" tricks work on the 50th item just as well as the 1st.

The "Why": Geometry vs. Fabric Physics

To master this, you must understand the forces at play so you don't have to relearn them the hard way.

1. The "Push-Pull" Effect

• Pull: Stitches shorten in the direction of the thread run (Satin columns get narrower).
• Push: Fabric expands perpendicular to the stitch (Satin columns get longer).
• Your Job: Digitizing is the art of counter-acting these forces before they happen.

2. The Cost of Trims

Every trim is a mechanical risk. It is the moment where thread breaks, needle unthreadings, and birdnests are most likely to occur. Good pathing isn't just about speed; it's about reliability.

3. Stability is King

Software settings cannot fix sloppy physical prep. If your hoop pops open or fabric slips, no amount of pull compensation will save you. For slippery performance wear or thick jackets, standard hoops struggle. This is the scenario where magnetic embroidery hoops become a game-changer—they clamp the fabric without forcing it into an inner ring, preserving the grain and tension.

Warning: Magnet Safety. Magnetic hoops use industrial-strength magnets (Neodymium). They can snap together with crushing force. Keep fingers clear of the mating surfaces. They can also damage credit cards and pacemakers—keep a 6-inch safety radius.

Troubleshooting Satin Outlines: A Diagnostic Table

Decision Tree: Fabric & Stabilizer Mapping

The software video assumes a stable world. You live in a variable one. Use this tree to adjust your approach.

Start: What is your base material?

1. Stable Cotton / Twill / Canvas:
   • Stabilizer: Tearaway (2 layers) or Cutaway (Medium).
   • Pull Comp: Standard (approx 0.3mm).
   • Risk: Low.
2. Stretchy Knits (T-Shirts/Polos):
   • Stabilizer: Must use Cutaway (No-Show Mesh or 2.5oz). Tearaway will fail.
   • Pull Comp: High (approx 0.4mm - 0.5mm).
   • Risk: High. Fabric will shrink under the satin.
3. High Pile (Towels / Fleece):
   • Stabilizer: Cutaway Backing + Water Soluble Topping (Solvy).
   • Pull Comp: Standard.
   • Special Reqt: You must use Topping to prevent the skinny satin outline from sinking into the loops and disappearing.

The Upgrade Path: When to Buy Better Tools?

You can digitize perfectly, but if your equipment fights you, it’s exhausting.

• Level 1: The Hobbyist. You use the hoops that came with your machine. You struggle with thick items or buttons. Solution: Master the "Floating" technique with adhesive stabilizer.
• Level 2: The Prosumer. You take small orders. Hooping takes too long, and wrists hurt. Solution: Upgrade to embroidery magnetic hoops. They allow you to clamp thick towels or delicate silks instantly without "unscrewing" rings.
• Level 3: The Production Shop. You are stitching 50 logos a day. Solution: If single-needle thread changes are killing your profit, look at the SEWTECH multi-needle ecosystem. Combine a multi-needle machine with a hooping station for embroidery to standardize placement across all 50 shirts.


Operation Checklist: The "Pre-Flight"

Before you export to DST/PES and run to the machine, run this final Check.

• Wireframe Scan: Are there any "knots" of 10+ points in one tiny spot? Delete them.
• Satin Width: Is the thinnest part of your outline at least 1.5mm? Anything thinner (1mm) may sink into the fabric.
• Travel Check: Are all travel running stitches buried? (View in 3D).
• Pull Comp: Did you exaggerate the overlap? (Yes/No).
• Start/End: Are they positioned to minimize jump stitches?
• Bobbin Check: Do you have a full bobbin? (Satin outlines consume thread fast; running out mid-outline creates a nasty seam).














FAQ

• Q: In Forte PD satin outline digitizing, why does a black satin outline stitch out skinny with gaps between the satin outline and the fill?
  A: Add deliberate manual pull compensation by digitizing the satin column slightly wider than the artwork so the stitched outline overlaps the fill.
  • Move nodes outward and overlap the outline onto the fill by about 0.3 mm to 0.5 mm as a safe starting point.
  • Increase overlap on stretchy knits and reduce overlap on very stable fabrics like denim.
  • Re-test at the same scale (small designs magnify errors; this project is around 2.28 inches tall).
  • Success check: the stitched satin outline visually “kisses” the fill with no daylight gap after stitching.
