From Giraffe Doodle to Clean Stitch-Out: The InStitch Workflow That Prevents Gaps, “Sinking,” and Chunky Outlines on a BAI Multi-Needle

You are not alone if you’ve ever looked at a cute doodle and thought: “I can digitize this… but will it stitch clean, or will it turn into gaps, sinking layers, and a chunky outline?”

Be honest: how many times have you digitized a file that looked perfect on the screen, only to hear the heartbreaking sound of a thread break or see white fabric peeking out from under a fill stitch? This giraffe project in InStitch is the perfect training ground. It is simple enough to finish quickly, yet it forces you to confront the three "Great Filters" that separate amateur hobbyists from professional embroiderers:

1. Coverage Physics: Managing the "Push-Pull" effect so no fabric shows through.
2. Layer Physics: Preventing top stitches from sinking into the bottom stitches (the "muddy" look).
3. Line Quality: Creating delicate outlines that sit on top of the texture rather than burying themselves inside it.

Below is the complete workflow, rebuilt using the InStitch software demonstration as a base, but upgraded with studio-level safety checks, sensory anchors, and hardware logic. We will move beyond just "clicking buttons" to understanding the physical interaction between your needle, thread, and hoop.

Calm the Panic: What This Workflow Solves (And What Only *You* Can Control)

The video demonstrates a specific "Trace-and-Refine" workflow: importing a hand-drawn giraffe, managing transparency, tracing fills, and reordering layers for a BAI multi-needle machine.

Here is the reassurance: Digitizing is not magic; it is engineering. It is a repeatable set of controls—transparency, node editing, stitch angles, and manual compensation.

However, software cannot feel the fabric. A digitizing file is just a map; the terrain is your fabric and stabilizer.

• The Software’s Job: Create the path.
• Your Job: Manage the physics.

If you skip the physical setup—choosing the right needle (e.g., 75/11 usually) or the right hoop tension—even a perfect file will fail. Always defer to your specific machine manual for distinct mechanical requirements, but use the following guide to master the digital side.

The “Hidden” Prep: Image Transparency + Layer Lock

Most beginners rush to place the first point. Stop. The success of your digitizing is determined before you unintentionally click a single node.

Start exactly like the video, but with this precise setup:

1. Import the giraffe JPEG as your background reference.
2. Adjust Image Transparency: Lower it to the 45%–60% range.
   • Sensory Check: The image should look like a "ghost"—visible enough to trace, but faint enough that your bright digi-lines pop against it.
3. Lock the Layer: In the object list, click the lock icon.

Checkpoint: Try to drag the image with your mouse. If it moves, you failed the prep. If it stays frozen while you pan around, you are safe.

Why this matters: When you zoom in to 600% to fix a tiny curve, you lose context. If your background image shifts even by 1mm (a common issue when using a mouse scroll wheel), your entire registration will be off, and your outlines will miss the fills.

Prep Checklist: The "Pilot's Walkaround"

• Reference Image: Imported and centered.
• Transparency: Set to ~50% (can see grid lines through it).
• Layer Lock: ENGAGED (Critical).
• Consumables on Standby: Do you have your fabric spray adhesive (e.g., spray 505) and water-soluble pen ready?
• Color Plan: Mental map confirmed (Brown Horns, Yellow Body, Black/White Eye).


Horn Fill Stitch: The 2mm rule and "Push-Pull" Physics

In the video, the horns are digitized first using a Fill Stitch.

1. Select a brown thread color.
2. Trace the shape using Fill Stitch.
3. Refine edges using Modify Stitches (moving anchor points).

The Master Move: Manual Pull Compensation The video instructs you to make the fill shape about 2 mm wider than the visual outline. Why?

Fabric is fluid. When a needle punches thousands of holes, it drags the fabric inward (Pull) and pushes it outward (Push). If you digitize exactly to the line, the fabric will pull in, leaving a "gap of shame" between the fill and the outline.

This is a universal physical rule. Whether you use a standard plastic frame or a bai embroidery hoop, the tensioning mechanism creates a drum-skin effect. As the stitches accumulate, they distort that skin. By overlapping the fill by 2mm, you are building a safety margin.

Warning: Project Safety. When test-stitching dense fills for the first time, keep your speed moderate (600-800 SPM). Never put your hands inside the hoop area while the machine is running. A generic industrial needle moves at ~15 impacts per second—faster than human reaction time.

Stitch Angle Control: The "Lincoln Log" Principle

Once the horn is shaped and widened, the video adjusts the stitch direction.

1. Select Adjustment Stitch Angle.
2. Drag the vector handle to change direction.
3. Settings: Change Stitch Type to Tatami and Underlay to Zigzag.

The "Why" (Expert Level): Imagine stacking two logs parallel to each other; they sink into the cracks. Now cross them perpendicularly; they sit on top.

• The Sink Problem: If your underlay, bottom fill, and top detail all run at 90°, the top layer will disappear into the valleys of the bottom layer.
• The Fix: Ensure your fill angle is 45° different from your underlay or adjacent fills.

This is critical on production equipment like a bai embroidery machine, where high-speed stitching generates vibration. Proper angle differentiation ensures the thread light reflection (chatoyancy) varies, making the design look 3D rather than flat.

Ears and Body: Using Angle as a Design Tool

For the ears, repeat the process:

1. Trace with Fill Stitch (Yellow).
2. Sensory Check: Look at the screen. Is the stitch angle of the ear at least 30-45 degrees different from the head?
3. If they look too similar, rotate the angle handle.

Expected Outcome: Even on a 2D screen, the ear should look like a separate object resting on the head, not a tattoo in the head.

Face and Body: The "Goldilocks" Anchor Points

When tracing the large body area:

• Too few points: The curve looks like a hexagon.
• Too many points: The machine stutters, and the curve looks lumpy.

Expert Tip: Use the minimum number of nodes required to create the shape. Let the Bezier handles do the work. If you hear your machine changing speed rapidly and aggressively during a long curve, you likely have too many nodes packed together. Smooth curves equate to a smooth, rhythmic machine sound.

Spots and Cheeks: Texture through Rotation

Here is where we move from "Manufacturing" to "Art."

1. Use Circle Fill for the blush.
2. Use Fill Stitch for irregular brown spots.
3. The Secret Sauce: Rotate the stitch angle for every single spot.

Do not let them all stitch at 45°. Set one to 30°, one to 60°, one to 135°. Visual Check: When the light hits the finished embroidery, the spots will shimmer differently, mimicking the organic randomness of animal fur. If you are selling these patches, this is the detail that justifies a higher price point.

Eye Layering: Building Height

The video demonstrates layering:

1. White Base.
2. White Pupil (on top of the base).
3. Black Details.

Sensory Concept: Think of this like icing a cookie. You need the base layer to dry (stitch) before adding the detail piping. By digitizing a white pupil on top of a white base, you create a physical ridge. Even though they are the same color, the eye will catch the light and look "wet" or alive. All top-quality cartoon embroidery uses this density-building trick.

Satin Outline: Preventing the "Bearded" Look

The most common mistake beginners make is using the default satin stitch width.

• Default: Usually ~3.0mm. This looks like a thick Sharpie marker. On a delicate giraffe face, it looks like a beard.
• The Fix: Select the outline, go to Parameters, and reduce width to 1.5mm - 1.7mm (Video uses 1.64mm).

Visual Anchor: The outline should look like a fine-tip pen line—definitive but not overwhelming.

Rounded Starts and Ends: The Polish

Standard satin stitches have blunt, square ends (like a chopped hot dog).

1. Enable Rounded Start/End in parameters.
2. Nuance: If a line connects to another line (forming a T-junction), turn OFF the rounded start at the connection point. You want a flush joint, not a bulbous one.

Checkpoint: Zoom in 400%. Do the open ends of the smile look like little soft caps? Yes? Perfect.

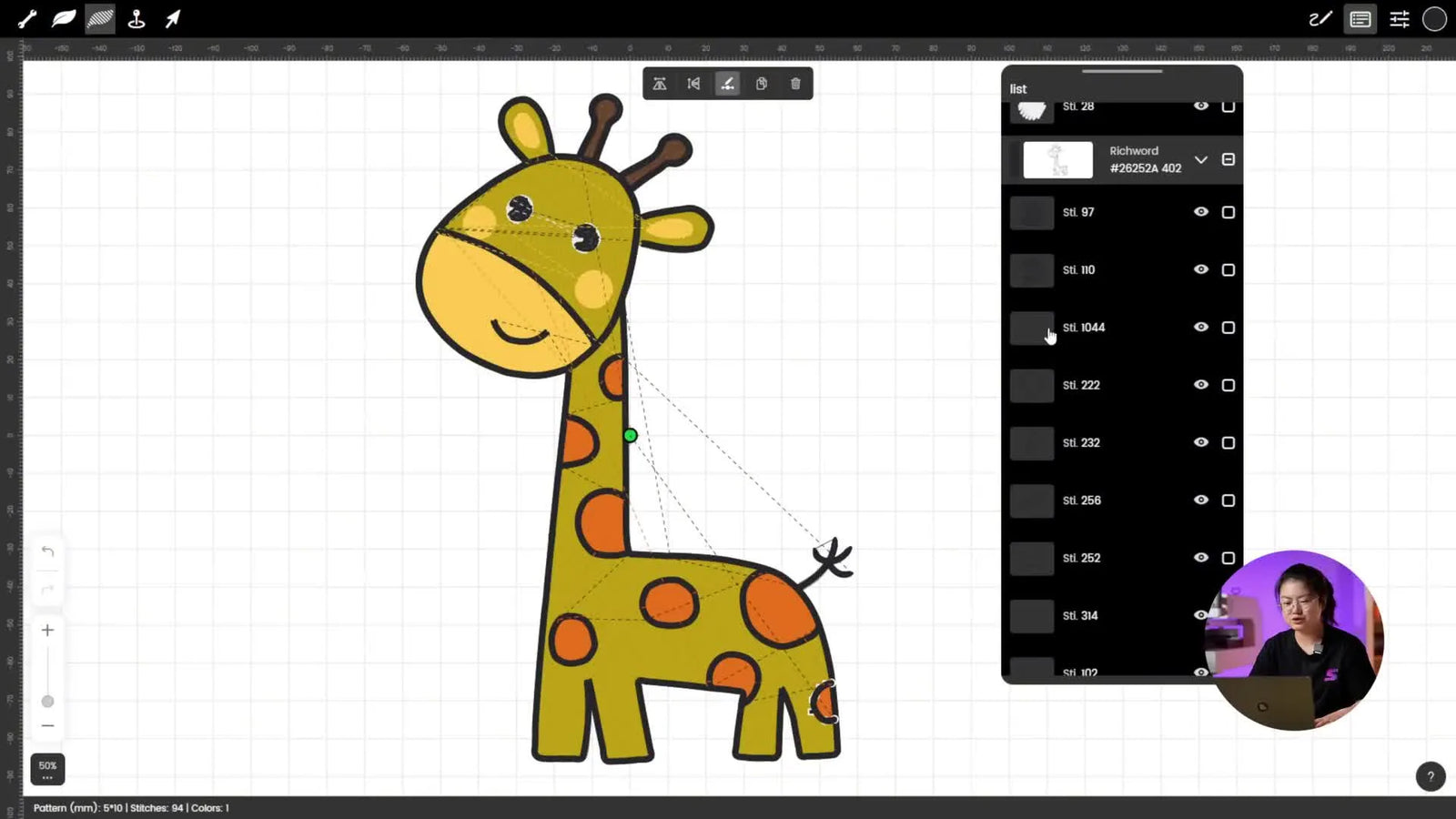

Sequencing: The "Cleanup Crew" Strategy

Finally, open your Stitch List. Drag the Black Body Outline to the very bottom.

The Logic: Your outline is your "Caulk." It covers the raw edges where the fill stitches stop. If you stitch the outline first, the fill stitches will push the fabric around, and by the time they finish, they might overlap onto the outline. By stitching the outline LAST, it lands safely on top of the fills, hiding those 2mm overlaps we created in Step 3.

Setup Reality Check: The Hardware Variable

You have a perfect file. Now you need to conquer the physics of the machine room. Stitch-out quality is 40% digitizing and 60% stabilization and hooping.

The Decision:

• Standard Method: Using traditional hoops. You must adjust the screw until the fabric is "drum tight."
  • Tactile Check: Tap the fabric. It should sound like a dull thud, not a loose flutter.
• The Problem: Traditional hoops often create "hoop burn" (permanent rings on delicate fabric) or allow slippage if the screw isn't cranked tight enough, leading to registration errors.

This is where the industry separates pros from hobbyists. If you find yourself struggling to hoop thick items (like hoodies) or delicate items (like performance wear), professionals often switch to magnetic embroidery hoops. These use powerful magnetic force to clamp fabric without the "screwing and tugging" distortion, ensuring the fabric grain stays straight—crucial for geometric fills like the giraffe's spots.

Warning: Magnet Safety. If you upgrade to magnetic frames, be aware they are incredibly strong. They can pinch skin severely. Keep them away from pacemakers and sensitive electronics.

Setup Checklist: The "Pre-Flight"

• Bobbin Check: Is the bobbin full? Do the "drop test" (hold the thread; the bobbin should drop slightly then stop, not plummet).
• Needle: 75/11 Ballpoint (for knits) or 75/11 Sharp (for wovens). New needle = crisper lines.
• Threading: Check the thread path. Is it caught on any guides?
• Hooping: Fabric is taut but not stretched / distorted.
• Trace: Run the "Trace" or "Contour" function on your machine to ensure the needle won't hit the hoop frame.


Wi-Fi Transfer & The Stitch-Out Watch

Transfer the file via InStitch’s Wi-Fi function. Press Start.

Don't Walk Away. Listen to the machine.

• Good Sound: A rhythmic, hum-like thump-thump-thump.
• Bad Sound: A sharp clack, grinding, or slapping sound.

While it stitches, watch the "Push-Pull" in real time.

• If the fill is pulling away from the edge, your stabilizer might be too light.
• If the fabric is puckering (rippling) around the design, your hooping might be too loose or your thread tension too high.

For shops doing this daily, consistency is the enemy. Fatigue leads to bad hooping. This is why high-volume shops invest in tools like magnetic frames for embroidery machine setups. They reduce the wrist strain of repetitive hooping and provide a consistent holding force, meaning the 100th giraffe looks exactly like the first one.

Troubleshooting: The "Doctor's Chart"

If your giraffe looks wrong, don't guess. Use this symptom chart.

Decision Tree: Fabric vs. Stabilizer Logic

Stop guessing. Follow this path for the Giraffe project.

What is your Fabric?

1. Stable Woven (Cotton / Denim / Canvas)
   • Stabilizer: Tearaway (Medium weight, 2.0 oz).
   • Hoop: Standard or Magnetic.
   • Needle: 75/11 Sharp.
2. Unstable Knit (T-Shirt / Polo / Hoodie)
   • Stabilizer: CUTAWAY (No exceptions). Tearaway will cause gaps.
   • Hoop: Take care not to stretch the fabric while hooping. A magnetic hooping station can help lay the garment flat without distortion.
   • Needle: 75/11 Ballpoint.
3. High Pile (Towel / Fleece)
   • Stabilizer: Cutaway on bottom + Water Soluble Topping (Solvy) on top.
   • Why? Topping prevents the stitches from sinking into the fluff.

The Upgrade Path: Determining Your Needs

If you completed this project and enjoyed it, you are a hobbyist. If you completed it and immediately thought, "How can I do 50 of these by Friday?", you are a business owner.

This workflow scales, but only if your tools keep up.

• The Skill Bottleneck: If your designs have gaps, refine your Pull Compensation and Stitch Angles (Software fix).
• The Consistency Bottleneck: If you battle hoop marks or wrist pain, investigate magnetic embroidery hoops (Hardware fix).
• The Volume Bottleneck: If you are waiting on color changes, the logical step is moving from single-needle to multi-needle solutions like the bai embroidery machine shown in the demo.

Operation Checklist: Post-Mortem

• Inspect Edges: Did the 2mm overlap cover completely?
• Backside Check: Is the bobbin thread showing about 1/3 width in the center of satin columns? (Goal: 1/3 white, 2/3 color).
• Trim: Are jump stitches trimmed flush?
• Notes: Write down exactly which stabilizer you used on the back of your printout for next time.

Mastering the giraffe is not about the giraffe—it is about mastering the gap between digital theory and analog reality. Happy stitching!

FAQ

• Q: InStitch giraffe digitizing: How do I set JPEG transparency and lock the background layer so the reference image does not shift while tracing?
  A: Set the JPEG transparency to about 45%–60% and lock the image layer before placing any nodes.
  • Lower transparency until the picture looks like a “ghost” but your digitizing lines stay easy to see.
  • Click the lock icon in the object list for the background image layer.
  • Pan/zoom normally, but avoid accidentally selecting the image.
  • Success check: Try to drag the JPEG with the mouse—if the image does not move, the setup is correct.
  • If it still fails: Re-check the object list to confirm the locked item is the JPEG layer (not a stitch object).
• Q: InStitch fill stitch gaps: How much manual pull compensation should I add on the giraffe horn fill to prevent fabric showing between fill and outline?
  A: Use a safe starting point of about 2 mm wider than the visual outline so push-pull does not create “gap of shame.”
  • Widen the fill shape past the drawn edge before refining the curve.
  • Test-stitch at a moderate speed (about 600–800 SPM) when running dense fills for the first time.
  • Success check: After stitch-out, the fill should still reach under the outline with no white fabric peeking through.
  • If it still fails: Re-hoop tighter and/or increase pull compensation (the blog notes 2.5 mm as a next step when gaps remain).
• Q: InStitch “muddy” embroidery: How do I set stitch angles and underlay so top stitches do not sink into bottom fills on the giraffe design?
  A: Rotate stitch angles so adjacent layers differ by roughly 30–45 degrees, and avoid stacking everything at the same angle.
  • Set the fill to Tatami and choose Zigzag underlay where shown in the workflow.
  • Rotate the top layer angle away from the underlay/bottom fill angle (a clear angle difference is the goal).
  • For spots, rotate each spot differently instead of repeating one angle across all spots.
  • Success check: The finished ear/spots should look like separate objects “sitting on top,” not visually flattened into the base fill.
  • If it still fails: Check thread tension (loose tension can worsen a flat, muddy look) and re-test one section.
• Q: Satin outline looks too thick: What satin stitch width should InStitch use for the giraffe outline to avoid a “bearded” Sharpie look?
  A: Reduce satin outline width to about 1.5–1.7 mm (the demo uses 1.64 mm) for a cleaner, finer line.
  • Select the outline object and adjust width in Parameters.
  • Enable Rounded Start/End for open ends, but turn it off where lines join (like T-junctions) to avoid bulges.
  • Zoom in before saving and check small facial lines (smile/eye area) for overload.
  • Success check: The outline reads like a fine-tip pen line—clear but not dominating the fill texture.
  • If it still fails: Confirm the outline is stitched last in the stitch sequence so it sits on top of the fills.
• Q: Birdnesting thread wad during stitch-out: How do I stop embroidery birdnesting caused by missing the take-up lever when running the InStitch giraffe file?
  A: Completely rethread the top thread with the presser foot UP to ensure the take-up lever is correctly threaded.
  • Stop the machine and remove the thread wad safely (do not pull aggressively against the needle).
  • Rethread from spool to needle, confirming the thread passes through every guide and the take-up lever.
  • Re-check bobbin setup and run a short test area if possible.
  • Success check: Stitching resumes with a steady, rhythmic “thump-thump” sound and no thread piling under the fabric.
  • If it still fails: Inspect for thread snagging on any guides and verify bobbin tension using the drop test described in the setup checklist.
• Q: Hooping quality standard: How do I judge correct hoop tension (drum-tight) to reduce puckering and registration errors when stitching the InStitch giraffe design?
  A: Hoop the fabric taut but not stretched, then use a tap-and-sound check before stitching.
  • Tighten and smooth fabric evenly so the grain stays straight (avoid distortion, especially on knits).
  • Tap the hooped fabric: aim for a dull “thud,” not a loose flutter.
  • Run the machine Trace/Contour function to ensure the needle path clears the frame.
  • Success check: During stitching, the fabric stays flat (no rippling around the design) and outlines land cleanly over fills.
  • If it still fails: Switch stabilizer weight/type per fabric (knits: cutaway; high pile: add water-soluble topping) and re-hoop.
• Q: Magnetic embroidery hoop safety: What precautions should operators follow when using magnetic embroidery hoops or magnetic frames to avoid injury and device interference?
  A: Treat magnetic hoops as high-force tools—handle slowly, keep fingers clear, and keep magnets away from pacemakers and sensitive electronics.
  • Separate and join magnetic parts with controlled motion; do not “snap” them together near hands.
  • Keep fingertips away from pinch points when positioning fabric.
  • Store magnets safely so they cannot jump to metal tools or machines unexpectedly.
  • Success check: The frame closes without finger pinches and holds fabric firmly without screw-cranking marks.
  • If it still fails: Pause and reposition—never force magnets into alignment; reduce clutter on the worktable to prevent sudden attraction accidents.
• Q: Production upgrade decision: If InStitch giraffe stitch-outs keep failing from gaps, hoop burn, or inconsistent results, when should operators move from technique fixes to magnetic hoops or a multi-needle machine?
  A: Follow a staged approach: fix digitizing physics first, upgrade hooping consistency second, and upgrade machine capacity last when volume demands it.
  • Level 1 (Technique): Increase pull compensation and vary stitch angles; stitch outlines last to “caulk” edges.
  • Level 2 (Tooling): Use magnetic hoops to reduce hoop burn, slippage, and operator fatigue from repetitive hooping.
  • Level 3 (Capacity): Move to a multi-needle setup when color changes and throughput become the main bottleneck.
  • Success check: The 10th stitch-out matches the 1st (same coverage, clean outlines, minimal puckering) without constant re-hooping.
  • If it still fails: Re-run the troubleshooting chart symptom-by-symptom and confirm stabilizer choice using the fabric decision tree (woven vs knit vs high pile).
