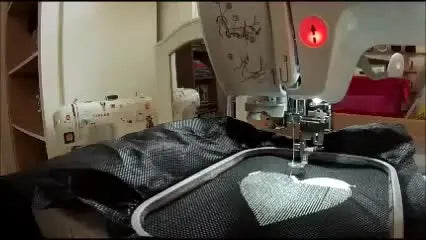

From SewArt 64 to a Clean Stitch-Out on a Brother SE-400: The Heart Design Workflow That Avoids “Too Big” Hoop Errors

The "Ghost Design" Fix: A Master Workflow for SewArt 64 & Brother SE-400

If you’ve ever saved a design, walked to your Brother machine feeling proud, and then watched the machine refuse to load it—or worse, display it as an empty, invisible spot—you are not alone. That moment is a specific type of frustration: the "Format Fear." The machine sits silent, and the software feels like it’s gaslighting you.

But here is the truth experienced embroiderers know: Embroidery is a game of millimeters.

This guide is not just a summary of a video; it is a reconstruction of the workflow designed to eliminate that fear. We will use the SewArt 64 to Brother SE-400/SE-425 pipeline to create a simple heart. But more importantly, we will install "safety buffers" into your process so you avoid the two classic beginner traps: the "Invisible File" (sizing errors) and the "Double Border" (digitizing errors).

1. Calm the Panic: The Physics of the "4x4" Hoop

Your Brother SE-400/SE-425 has a hard physical limit. While the hoop is nominally 4x4 inches (100mm x 100mm), the machine’s brain has zero tolerance for files that touch that edge.

The video highlights a critical reality: If your digitizing software says the design is 100.1mm, the machine reads it as "Invalid." It may refuse to transfer, or it may load a blank screen because the design exists "outside" the usable area.

The "95 Safe Zone" Rule

We need to shift your mindset from "Maximizing Space" to "Ensuring Success." Don’t design on the razor's edge.

The Golden Rule: Treat your 4x4 workspace as a 95mm x 95mm workspace.

When you are working with a standard brother 4x4 embroidery hoop, leaving that 5mm buffer solves 90% of file loading errors before they happen. It accounts for slight fabric pull, stabilizer shifts, and software rounding errors. It turns "Maybe it will load" into "It will load."

2. The "Hidden" Prep in SewArt 64: Grid, Canvas Discipline, and Visual Anchors

SewArt can launch with a blank white canvas, which looks clean but is dangerous for beginners. Without visual anchors, you lose your sense of scale. The video correctly demonstrates toggling the grid from the View menu.

Why expert teaches use the grid: It provides immediate visual feedback on centering. Embroidery machines always center the design by default. If you draw your heart in the top-left corner of a blank canvas, the machine will pull it to the center, potentially rotating it or messing up your alignment.

Prep Checklist: The "Before You Click" Protocol

• Software Verification: Confirm you are in SewArt 64 (or your specific version).
• Visual Safety: Go to View → Grid (Toggle ON).
• Hoop Target: Mental check—are we designing for the 4x4 hoop? (Yes).
• Consumable Check: Do you have your USB drive plugged in? Do you have temporary spray adhesive or reliable stabilizer ready?
• Stitch Plan: Strategy is Fill First, Outline Last.


3. The 95×95 Guardrail: Resizing to Prevent "Ghost Files"

In the video, the creator explicitly uses the resize tool to input 95.00. This is not a suggestion; it is a mechanism of control.

Execute this sequence:

1. Click the Resize Image icon.
2. Input 95.00 for Width.
3. Input 95.00 for Height.
4. Lock the aspect ratio if you want to maintain shape, but ensure neither number exceeds 95.

Why this matters: This step creates the "digital sandbox" described in step 1. By defining the boundaries now, you stop worrying about size for the rest of the design process.

4. Building the Heart: One Shape, Centered, Controlled

The specific method used in the video leverages SewArt’s built-in vector shapes (located near the "R" button).

1. Open the Shapes menu.
2. Select Heart.
3. Click and drag to draw a large heart. The grid allows you to see exactly how close you are getting to the edges without crossing them.

Note on Color: The machine doesn't care what color the digital file is; it stitches whatever thread you load. However, the creator notes that using contrasting colors on screen (e.g., Red Fill, Black Outline) helps you visually confirm that you have separated the two elements.

5. The Stitch Order Logic: Avoiding the "Double Border" Disaster

This is the specific technical failure point for 50% of new digitizers.

The video outlines a specific path: Fill Stitches First -> Outline Centerline Last.

The "Centerline" vs. "Border" Distinction

• Outline Border: The software traces the outside of your shape and the inside of your shape. If you apply a satin stitch to this, you get two thin satin lines with a gap in the middle. It looks messy/bulky.
• Outline Centerline: The software calculates the exact middle of the edge and runs one clean bead of satin stitching right over the seam.

The Pro Insight: Stitch order is structural engineering. The fill stitches pull the fabric inward ("pucker"). The satin outline covers the rough edges of the fill. If you do Outline first and Fill second, the fill will pull away from the outline, leaving ugly gaps (registration errors). Always Fill, then Outline.

6. Mastering Satin Parameters: Height vs. Length

The video inputs specific manual settings for the Satin stitch: Height: 45 and Length: 2. To a beginner, these are random numbers. Let’s decode them into "Embroidery Physics."

• Height (45): In SewArt, this usually corresponds to the width of the satin column (approx 4.5mm). A wider satin stitch is more forgiving—it covers up messy fabric edges better than a thin one.
• Length (2): This controls density (spacing between needle penetrations). A lower number means stitches are packed tighter.
  • Warning: If you go too low (e.g., 1.0), you risk "bulletproof embroidery" where the needle hammers the same spot repeatedly, causing thread breaks or holes in the fabric.
  • Sweet Spot: 2.0 to 4.0 is usually safe for standard thread (40wt).

The UI Glitch: The video notes that SewArt’s left-hand menu might not visually update these numbers. Trust the manual entry panel on the right. If you type 45 and 2, the software knows it, even if the display lags.

What causes "Choppy" Satin?

If your satin stitch looks ragged or jagged (like a saw blade), it usually isn't a software setting—it's a physics problem known as Flagging.

• The Cause: The fabric is bouncing up and down with the needle.
• The Fix: You need a stiffer material stack. This means better stabilizer or tighter hooping.

Warning: Safety First. When observing your machine's needle path or troubleshooting choppy stitches, keep fingers, hair, jewelry, and loose clothing at least 6 inches away from the needle bar. Never reach into the hoop area while the machine is running.

7. The Export Protocol: Naming for the Future

The video demonstrates exporting via File → Save to a USB drive.

The Naming Strategy: Don't name your file Heart1.pes. Name it Heart_Satin45_Len2.pes.

Why? Because three weeks from now, you will forget what settings worked. Embedding the data in the filename builds a personal database of what works for your specific machine.

Final Pre-Flight Check: In the Save dialog, look at the dimensions one last time. If it says 99mm or 101mm, Stop. Go back to Resize. Do not hope the machine will forgive you.

8. Brother SE-400 Setup: The "Trial" Trace is Mandatory

Loading the file is simple: Tap the Computer/USB icon, select the file, and tap Set.

But just because it loaded doesn’t mean you are safe. The video demonstrates using the Adjustment/Layout screen to verify position, followed by the Trial button.

The "Trial" Trace (Sensory Check)

The Trial button moves the hoop to show you the extreme edges of the design.

• Visual: Watch the foot. Does it hit the plastic frame of the hoop?
• Auditory: Listen for any grinding. If the hoop hits the limit while tracing, your design is still too big or off-center.

This step is your insurance policy against broken needles.

Setup Checklist (Machine Side)

• Hoop Check: Is the hoop locked firmly into the carriage? (Give it a gentle wiggle—it should not move).
• Bobbin Check: Is the bobbin full? Running out in the middle of a satin stitch is a nightmare to fix.
• Thread Path: Is the upper thread threaded with the presser foot UP? (If threaded with foot down, tension discs are closed, and you will get a bird's nest).
• Trial Run: Execute the border trace.
• Ready: Lower presser foot. Green light on.

9. The "Garden Fabric" Hack vs. Professional Stabilizer

The video creator admits to using "garden fabric" (polypropylene weed barrier) instead of official stabilizer.

Let’s be honest about this: For a cheap test run to see if a design works? Sure, it’s a clever, cost-effective hack. It provides the stiffness (resistance) needed to form a stitch.

However... For a garment you intend to wear, sell, or gift? Avoid it. Garden fabric is not designed to withstand washing machines, ironing (it melts!), or long-term wear. It is coarse and can scratch skin.

Decision Tree: Choosing the Right Stabilizer

A major cause of beginner failure is mismatching the "Backing" (Stabilizer) to the "Fronting" (Fabric).

10. The Hooping Reality: "Drum Tight" vs. "Hoop Burn"

The quality of your satin stitch depends entirely on how the fabric is held.

The Standard Hoop Struggle: With a standard brother 4x4 embroidery hoop, achieving perfect tension is a physical battle. You have to unscrew, place fabric, place ring, push down (hard!), and tighten.

• Sensory Check: Tap the fabric. It should sound like a dull drum thud. If it ripples, it's too loose.
• The Pain: Beginners often overtighten the screw before pushing the inner ring in. This causes Hoop Burn—a permanent white crease or friction mark on delicate fabrics (like velvet or dark cotton).

The Commercial Solution: This is specifically where professional shops upgrade to magnetic embroidery hoops. Unlike the screw-and-push method, magnetic hoops clamp the fabric flat instantly.

• Trigger: Are your wrists hurting? Are you seeing white rings (burn) on your shirts?
• Upgrade: Magnetic hoops eliminate the friction-push. You lay the fabric, drop the magnets, and you are done. It creates even tension without distorting the fabric grain.

Warning: Magnetic Hazard. Magnetic hoops use industrial-strength magnets. They can pinch fingers severely. Never place them near pacemakers. Slide the magnets apart rather than pulling them up to separate.

11. Troubleshooting: The Symptom-Fix Map

When things go wrong during the stitch-out shown in the video, use this logic flow to fix it.

12. The Upgrade Path: Moving From Hobby to Production

The workflow described above works perfectly for one-off hobby projects. But what if you have an order for 20 shirts?

Using a single-needle machine with a screw-tighten hoop for 20 shirts is a recipe for burnout.

Level 1: Efficiency Tools If you are sticking with the SE-400, adding a brother 4x4 magnetic hoop is the single highest ROI (Return on Investment) upgrade you can verify. It cuts re-hooping time by 50% and saves your garments from marks.

Level 2: Workflow Stability Stop using garden fabric. Investing in a roll of proper Cutaway and Tearaway stabilizer, plus a can of temporary spray adhesive (like 505 spray), ensures that "File 2" looks exactly like "File 20."

Level 3: The Multi-Needle Leap If you find yourself constantly changing thread colors or waiting on the machine speed (the SE-400 is relatively slow), this is the "Trigger" for looking at multi-needle machines. However, master the digitizing physics on the single needle first. The principles of density, pull compensation, and hooping apply to every machine from $400 to $40,000.

Final Review: What "Good" Looks Like

Your next test stitch on the Brother SE-400 should meet these criteria:

1. Software: The file is saved at 95mm or less.
2. Hardware: The hoop is "drum tight" (or magnetically clamped).
3. Operation: You hear a consistent rhythmic thump-thump-thump.
4. Result: The satin edge is a single, raised column that covers the edge of the fill pattern without gaps.

If you achieve that, you haven't just followed a tutorial—you’ve mastered the variables.

FAQ

• Q: Why does a Brother SE-400/Brother SE-425 show a blank or invisible PES design on the screen after saving from SewArt 64?
  A: This is common—Brother SE-400/Brother SE-425 often treats designs that touch or exceed the 4x4 limit as invalid, so the file may load as “empty”; keep the design inside a 95mm × 95mm safe zone.
  • Resize: Set the SewArt 64 design to 95.00mm width and 95.00mm height (do not exceed 95 on either dimension).
  • Re-check: In the Save dialog, confirm the final dimensions are not 99–101mm.
  • Re-export: Save again to the USB, then reload on the Brother SE-400/Brother SE-425.
  • Success check: The design thumbnail/preview appears normally (not blank) and can be placed on the layout screen.
  • If it still fails: Re-center the artwork on the grid and confirm the design is not shifted near an edge before saving.
• Q: What is the safest stitch order in SewArt 64 to avoid a “double border” outline on a Brother SE-400/Brother SE-425 heart design?
  A: Use Fill stitches first and Outline Centerline last; selecting Outline Border commonly creates the “double border” look.
  • Digitize: Create the fill area first, then add the outline as a separate step.
  • Select: Choose “Outline Centerline” (not “Outline Border”) for the satin outline.
  • Stitch order: Ensure the fill runs before the satin outline in the sequence.
  • Success check: The outline stitches as one clean satin “bead” on the edge, not two thin lines with a gap.
  • If it still fails: Reconfirm the outline stitch type selection and re-save the PES with the corrected order.
• Q: What SewArt 64 satin settings (Height and Length) are a safe starting point for a Brother SE-400/Brother SE-425 outline, and why does the menu sometimes not update?
  A: A safe starting point shown is Satin Height 45 and Length 2, and SewArt 64 may not visually refresh the left menu even when the right-side manual entry is accepted.
  • Enter: Type Height 45 and Length 2 in the manual entry panel (trust the typed values).
  • Avoid: Don’t drop Length too low (example risk: 1.0) because it can cause needle breaks or holes.
  • Test: Stitch a small sample first before committing to a garment.
  • Success check: Satin stitches look smooth and raised without constant thread breaks or fabric damage.
  • If it still fails: Increase the Length to reduce density and improve fabric support with better stabilizer/hooping.
• Q: How do you diagnose and fix choppy or jagged satin stitches (“sawtooth satin”) on a Brother SE-400/Brother SE-425?
  A: Choppy satin is often fabric flagging (the fabric bounces with the needle), so the quick fix is to stiffen the fabric stack with stabilizer support.
  • Add: Use water-soluble topping (top) or double the backing to reduce flagging.
  • Tighten: Re-hoop so the fabric is held firmly and evenly.
  • Re-run: Stitch the same outline again after improving support.
  • Success check: The machine sound becomes more consistent and the satin edge looks continuous instead of jagged.
  • If it still fails: Recheck hooping method and stabilizer choice for the fabric type (knits typically need cutaway).
• Q: How do you prevent bird’s nests on a Brother SE-400/Brother SE-425 caused by incorrect top threading?
  A: Re-thread the upper thread with the presser foot UP; threading with the presser foot down can keep tension discs closed and cause nesting.
  • Lift: Raise the presser foot before threading the upper path.
  • Re-thread: Follow the full thread path again carefully (don’t “shortcut” guides).
  • Check: Ensure the bobbin is seated correctly before restarting.
  • Success check: The stitch-out starts with a clean underside (no big thread wad forming under the hoop).
  • If it still fails: Stop immediately, remove the nest, and re-thread again before continuing to avoid jams and broken thread.
• Q: What is the correct Brother SE-400/Brother SE-425 “Trial” trace check to prevent the hoop hitting the frame and breaking needles?
  A: Always run the Brother SE-400/Brother SE-425 Trial (border trace) to confirm the design stays inside the hoop’s safe area before stitching.
  • Load: Select the PES file, tap Set, then go to the layout/adjustment screen.
  • Trace: Press Trial and watch the foot travel to the extreme edges.
  • Listen: Pay attention for grinding or impact sounds that suggest a limit strike.
  • Success check: The trace completes without the foot contacting the plastic hoop frame.
  • If it still fails: Return to SewArt 64, resize to 95mm × 95mm and re-center the design before saving again.
• Q: What are the key safety rules when troubleshooting needle movement on a Brother SE-400/Brother SE-425 and when using magnetic embroidery hoops?
  A: Keep hands and loose items well away from the needle area during motion, and handle magnetic hoops carefully to avoid pinches and medical-device risk.
  • Keep clear: Maintain at least 6 inches distance from the needle bar area while the machine runs; never reach into the hoop area in motion.
  • Secure: Tie back hair and remove/secure jewelry or loose clothing before testing stitches.
  • Handle magnets: Slide magnetic hoop magnets apart to separate (don’t pull straight up) to reduce pinch risk.
  • Success check: Troubleshooting can be observed without any need to place fingers near the moving needle or between magnets.
  • If it still fails: Stop the machine completely (power off if needed) before adjusting fabric, hoop, needle, or thread.
