From SVG to Spot-On Appliqué: The Brother PE-Design + ScanNCut + Luminaire Workflow That Actually Stitches Clean

If you’ve ever watched a “wireless ecosystem” demo and thought, Sure… but will it actually line up when the needle hits the fabric?—you’re not alone. The fear of ruining a project at the final step is real. When appliqué goes wrong, it feels personal. But structurally, it’s rarely the software’s fault; it’s usually a breakdown in mirror logic, fabric prep, or the physics of hooping.

In this guide, we are deconstructing a project by Michelle, demonstrating a complete, repeatable workflow that turns an SVG pumpkin into a clean, fused appliqué wall hanging using PE-Design 11, a Brother ScanNCut SDX, and a Brother Luminaire 2 Innov-is XP2.

The magic isn’t just “wireless transfer.” It is the strict order of operations: Mirror for cutting, Flip Back for stitching, Pre-Cut & Fuse to skip the tack-down, and then letting the blanket stitch land right on the edge.

The Calm-Down Moment: Why This Brother Luminaire 2 + ScanNCut Appliqué Workflow Works When Others Don’t

There is a specific kind of anxiety that comes with machine appliqué: waiting for the needle to drift off the raw edge of your fabric. This workflow eliminates that guessing game.

Here is the reassurance: you aren’t asking the embroidery machine to "guess" where the fabric edges are. You are forcing the cut edge (physical) and the stitch edge (digital) to come from the exact same source code—your SVG file.

Michelle’s approach is solid for quilted wall hangings because it respects the mechanics of the materials:

• The appliqué fabric is pre-cut on the ScanNCut (zero hand-cutting variance).
• The pieces are fused (using Mistyfuse), creating a bond that resists the "push-pull" friction of the presser foot.
• The tack-down step is intentionally removed. This reduces thread bulk and prevents that amateur "double outline" look where a running stitch peeks out from under the blanket stitch.

If you are building seasonal items—pumpkins, ornaments, or team banners—this is how you scale production. Once the file is dialled in, the machine repeats it perfectly, whether you make one or one hundred.

The “Hidden” Prep Pros Do First: Fusible Web, Stabilizer Choices, and Hoop Stability Before You Touch PE-Design 11

Michelle moves quickly through prep in the video, but as any veteran will tell you: Prep is 80% of the job; embroidery is just the final 20%. If you skip these physical checks, no amount of software editing will save the project.

What the video shows (and implies)

• Appliqué fabric is backed with Mistyfuse (fusible web) before cutting.
• Background quilting is already completed on the wall hanging.
• A small iron (mini iron) is used to fuse pieces in place.
• She uses monofilament thread (invisible thread) for the top stitch to keep the look subtle.

The expert “why” and safety intervals

• Fusible web changes the physics of appliqué. Raw fabric is fluid; fused fabric is stable. Once fused, the fabric acts like cardstock—it won’t ripple under the foot. This is the only reason skipping the tack-down stitch is safe.
• Quilted layers behave like a spring. A quilt sandwich contains air. If your hooping isn't tight enough, the fabric "bounces" with every needle penetration. This causes registration loss. When you tap the hooped fabric, it should sound like a dull thud, not a loose rustle.
• Monofilament is unforgiving. It looks clean, but it demands low tension. Because it stretches, if your tension is too high, it will snap the needle or pucker the fabric.
  • Speed Tip: When using monofilament, slow your machine down. Don't run at 1000 SPM (Stitches Per Minute). Drop it to the 500-600 SPM sweet spot to prevent heat buildup and breakage.

If you are already thinking about how to reduce "hoop burn" (those shiny crushed rings specific hoops leave on velvet or quilt batting) and speed up production, this is where a brother luminaire magnetic hoop becomes a practical upgrade. Unlike standard hoops that require significant wrist strength to lock a quilt sandwich, magnetic frames use vertical force to clamp thick layers evenly without crushing the fibers.

Prep Checklist (Do this before software)

• Heat Test: Confirm your appliqué fabric can take the heat of the iron without melting (synthetic blends beware).
• Bubble Check: Apply fusible web smoothly. If you feel air bubbles under the paper, peel and redo. Bubbles = Ripped fabric on the cutter.
• Layer Consistency: Decide your background stack (top + batting + backing) now. Don't change batting thickness halfway through a set of projects.
• Needle Audit: Swap to a Fresh Size 75/11 or 80/12 Needle. A slight burr on an old needle will shred monofilament instantly.
• Clean Mat: Ensure your ScanNCut mat still has tack. If the fabric lifts during cutting, the geometry is ruined.

Warning: Projectile Hazard. When using monofilament or metallic threads, needle breakage is more common due to tension issues. Keep your face away from the needle bar area when hitting "Start," and ensure protective eyewear is worn if you are hovering close to inspect stitches.

PE-Design 11 Layout & Editing: Set the 9.5" x 9.5" Hoop First, Then Import the SVG (Don’t Skip This)

Michelle begins in PE-Design 11 with Layout & Editing open. The cognitive chunking here is critical: Environment first, Object second.

1. Set the Design Page to match your target hoop size: 9 1/2" x 9 1/2".
2. Import the vector image (SVG) from the desktop.

Why this order matters: If you import a large SVG onto a default small hoop setting, the software may auto-shrink the design to fit available space. This ruins your strictly calculated dimensions. By setting the "canvas" (hoop) first, you ensure the SVG imports at its true scale.

Mirror Logic That Saves You: Flip Horizontal for ScanNCut Cutting (Because Fabric Is Face-Down)

This is the step that causes the most "Why is my pumpkin backwards?" moments in forums.

Michelle’s cutting prep:

1. In PE-Design, select the shape and set the line attribute to Appliqué Material.
2. CRITICAL STEP: Because the fabric will be placed face-down (paper side up) on the ScanNCut mat to protect the fabric grain, she uses Flip Horizontal (Mirror Image).
3. Export using Send to CanvasWorkspace.

That mirror step is not optional. It is simple geometry. If you cut face-down without mirroring, your shape will be reversed when you flip it right-side up to fuse.

The Sticky Note Rule: If you are building a workflow for repeated projects, write this on a sticky note on your cutter: Face-Down Material = Mirrored File.

ScanNCut SDX: Retrieve Data via Wireless Cloud, Then Cut the Mistyfuse-Backed Fabric Cleanly

On the ScanNCut screen, the workflow is:

1. Select Retrieve Data.
2. Choose Wireless Cloud.
3. The mirrored pumpkin appears.
4. Initiate the cut.

Technical Verification: The cut quality shown in the clip is excellent—sharply defined even on the spiral stem. This tells us the blade depth was correct.

• Novice Trap: Don't blindly trust "Auto-Blade" on thick fused cotton. Always do a Test Cut (a small 1cm square in the corner). You want the blade to cut the fabric and the fusible web, but kiss-cut the backing paper without slicing deep into the mat.


Weed Like a Pro: Use a Spatula Tool So You Don’t Stretch the Cut Edge

Michelle weeds the negative space using a spatula tool, lifting excess fabric away and leaving the pumpkin pieces behind.

This is a subtle "pro habit" that saves your final stitch alignment:

• The Risk: Pulling excess fabric up with your fingers often puts tension on the bias grain of the "good" pieces, distorting their shape.
• The Fix: Using a metal spatula separates the adhesive from the mat without pulling the fabric fibers.
• The Result: The cut edge remains dimensionally identical to your digital file. If you stretch the edge now, the blanket stitch later will miss the fabric.






Flip It Back for Stitching: Appliqué Wizard Settings (Fabric = Yes, Tack-Down = No, Blanket Stitch = On)

After sending the mirrored cut file to the cutter, Michelle returns to PE-Design. She must now Flip Horizontal again to return the design to its "face up" orientation for the embroidery machine.

She opens Appliqué Wizard and inputs strictly controlled variables:

• Fabric: Yes (Tells software this acts as an appliqué object).
• Tack Down: No (Critical: Skips the running stitch; we are relying on the fuse).
• Stitch Type: Blanket Stitch.

She also adds a decorative stippling-style background fill. This is the heart of the method: You are not relying on a "Placement Stitch" $\to$ "Stop" $\to$ "Hand Cut" cycle. You are relying on Precision Cut $\to$ Fuse $\to$ Finish.

If you are searching for a clean, repeatable ScanNCut applique workflow, this "Mirror to Cut, Flip to Stitch" sequence is the core mechanic to memorize.

Wireless Transfer to the Brother Luminaire 2: Send to Network Machine, Then Load from the Pocket

Michelle sends the embroidery file from PE-Design to the Luminaire over the network:

• PE-Design: Send $\to$ Send to Network Machine.
• Luminaire: Embroidery $\to$ Pocket $\to$ Wireless icon.

Compatibility Reality Check: Many users get stuck here because Brother/Baby Lock models have different "wireless" pathways.

• If you own a Luminaire/Solaris: You likely have the direct transfer shown here.
• If you own an older model (e.g., Quattro 2): You may need to export the PES file to a USB drive.

The concept remains identical: The transfer method (Wi-Fi vs. USB) is just the vehicle. The payload (the perfectly digitized file) is what matters.

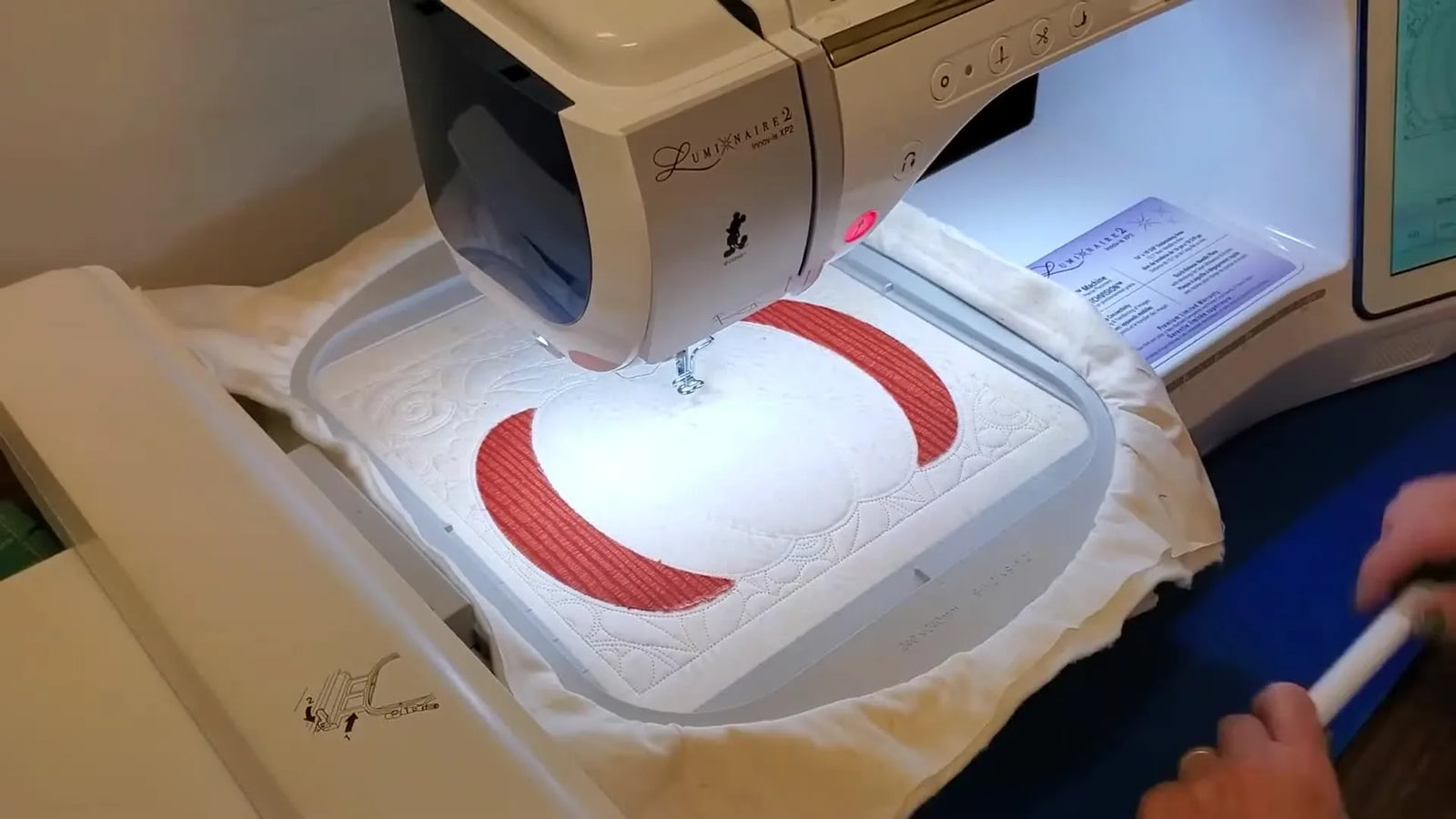

The Stitch-Out Moment: Skip Tack-Down on the Luminaire Screen, Lower the Foot, and Let the Blanket Stitch Bite the Edge

On the Luminaire screen (not the software), Michelle navigates to the sewing steps:

• She uses the +/- Step Keys to skip any preliminary tack-down/placement lines that might still be in the file metadata.
• Lowers the presser foot and engages the blanket stitch.

The " Hawk Eye" Protocol: When running a blanket stitch on pre-fused appliqué, the first 30 seconds are critical.

1. Auditory Check: Listen for the needle penetrating. It should be a crisp sound. If you hear a "crunch," the needle might be hitting built-up glue or a thick seam allowance.
2. Visual Check: Watch the "bite" of the stitch. The straight line of the blanket stitch should fall just off the raw edge (on the background fabric), and the "bite" (the horizontal swing) should grab the appliqué fabric comfortably.
3. Drift Warning: If you see the stitch drifting away from the edge, STOP INSTANTLY. Do not hope it corrects itself. It won't. This usually means your hoop tension was too loose for the quilt sandwich.

This is where hoop stability becomes the silent hero. If you find yourself fighting "fabric shifting" on thick quilted projects, upgrading to heavy-duty magnetic hoops for brother luminaire can solve the physics problem. These hoops hold the fabric sandwich firmly across the entire frame without the "drum effect" distortion of traditional screw-tightened hoops.

The “Why It Drifted” Truth: Hooping Physics on Quilted Wall Hangings (And How to Stop Fabric Creep)

Michelle’s sample is already quilted. This is realistic, but it introduces a physics problem called "The Sponge Effect."

Batting contains air. When a standard hoop squeezes a quilt, it compresses the perimeter but leaves the center puffy. As the embroidery foot presses down, it pushes a "wave" of fabric ahead of it. This micro-shifting accumulates, and by the end of the design, your outline is 2mm off-target.

How to stabilize the unstable

• Floating is risky: Do not just "float" a heavy quilt on sticky stabilizer. It's too heavy. It needs to be clamped.
• Friction is key: Ensure your bottom leader or stabilizer has friction.
• Tooling upgrade: If your wrists hurt from wrestling the inner ring into the outer ring over thick batting, stop forcing it. This physical strain is the primary reason professionals switch to magnetic embroidery hoops for brother. They use magnetic force to snap down instantly, saving your wrists and providing consistent, vertical clamping pressure that prevents the "Sponge Effect."

Warning: Magnetic Safety. Pro-grade magnetic hoops are extremely powerful. Keep them at least 6 inches away from pacemakers, ICDs, and magnetic storage media. Pinch Hazard: Never place your fingers between the magnets when snapping them shut; they close with enough force to cause blood blisters or bruising.

The Fabric + Stabilizer Decision Tree: Pick Backing That Matches Appliqué + Quilting

Michelle’s video focuses on the cutting, but the stabilizer choice is what keeps the background hanging flat on your wall.

Use this decision tree to stop guessing (Check your manual for your specific machine's tolerances):

Decision Tree (Quilted Wall Hanging Appliqué)

1. Is your base already quilted (Fabric + Batting + Backing)?
   • YES: The batting provides stability. You can often use a Medium Tear-Away just to give the hoop something to grip.
   • NO (Just top fabric): Go to Step 2.
2. Is the Top Fabric stretchy (Jersey/Knit) or Loose Weave (Linen)?
   • YES: You MUST use Cut-Away Mesh. Tear-away will result in broken stitches and gaps.
   • NO (Broadcloth/Quilting Cotton): Go to Step 3.
3. Is the design dense (Heavy fill stitch)?
   • YES: Medium Cut-Away (2.5oz). You need structural support preventing puckering.
   • NO (Open blanket stitch only): Crisp Tear-Away is sufficient.

Hidden Consumable Alert: Keep a temporary adhesive spray (like 505) or a glue stick handy. Even with magnetic hoops, a light mist of adhesive on the stabilizer helps prevent the quilt back from shifting during the run.

Comment-Driven Reality Check: “Can I Scan an Image and Send It to My Machine?”

A viewer asked: I have a Quattro 2 and ScanNCut—can I scan an image or use SVG/Cricut files and send it to my machine?

Michelle's demo proves the workflow is valid, but let's manage expectations:

• Yes, SVGs can be imported into PE-Design and converted.
• Yes, CanvasWorkspace acts as the bridge for cutting data.
• However, older machines may not have the "Wireless Pocket." You will likely need to save your PES file to a USB stick and walk it to the machine. The result is the same; the walk is just longer.

The Two Most Common “I Messed Up” Moments (And How to Recover Fast)

Michelle mentions two real-world issues. Recognizing them early saves the garment.

1. Fabric Fused on the Wrong Side

• Symptom: You cut the pumpkin, but when you go to place it, the glue is on the front, or the curve doesn't match the background outline.
• Cause: You forgot the "Sticky Note Rule" (Face Down = Mirror).
• Fix: Do not try to salvage it. Recut.

2. Design Scale Mismatch

• Symptom: The pumpkin stitch line looks too big/small for the space.
• Cause: Importing the SVG before setting the hoop size, causing auto-scaling.
• Fix: Always do a Test Sew on scrap fabric. Michelle corrected her sizing off-camera after a test.

The Golden Rule: A $1.00 scrap of fabric for a test sew saves a $50.00 project.

Setup Checklist (Right before you press Start)

• File Check: Is the loaded file the final version (did you save the resize)?
• Hoop Check: Is the quilt sandwich clamped evenly? (Tap the center; it should feel secure, not floppy).
• Needle: Is there a fresh needle installed? (Crucial for monofilament).
• Bobbin: Do you have enough bobbin thread to finish the blanket stitch without stopping?
• Path: Is the area behind the machine clear? (Quilts can get heavy and drag, ruining registration. Support the weight).

Operation Checklist (During the Stitch)

• The "First 10 Stitches" Rule: Watch the first 10 stitches closely. If they miss the edge, Stop.
• Sound Check: Listen for rhythmic "thump-thump." A harsh "clack" means needle deflection.
• Speed: If using monofilament, ensure speed is capped (approx. 600 SPM).

The Upgrade Path: When to Move Beyond the Basics

Once you master this workflow, you might find that your bottleneck isn't the software—it's the physical labor of production.

Here is how to diagnose when it is time to upgrade your tools:

• Pain Point: "My wrists hurt from tightening hoops on thick quilts."
  • Solution Level 1: Use a grip pad to turn screws.
  • Solution Level 2: Upgrade to a magnetic embroidery hoop. The magnetic closure eliminates screw-tightening fatigue entirely.
• Pain Point: "I have orders for 20 pumpkins and re-hooping is taking forever."
  • Solution Level 1: Buy a second standard hoop to prep one while the other stitches.
  • Solution Level 2: Invest in a hooping station for embroidery. This ensures every pumpkin is placed in the exact same spot on every quilt block, reducing measurement time.
  • Solution Level 3: For true commercial repeatability, shops use systems like the hoopmaster hooping station combined with magnetic hoops for embroidery machines. This turns a 5-minute setup into a 30-second tasks, allowing you to maximize the profit on every hour of machine run-time.

Embroidery is a journey from "hoping it works" to "knowing it will work." By mastering the mirror logic and stabilizing your materials properly, you turn hope into a repeatable science.

FAQ

• Q: How do I prevent backwards appliqué pieces when using Brother PE-Design 11 with Brother ScanNCut SDX face-down cutting?
  A: Mirror (Flip Horizontal) the appliqué shapes before sending to ScanNCut because the fabric is placed face-down on the mat.
  • Set the object line attribute to Appliqué Material in PE-Design 11.
  • Flip Horizontal (mirror) before sending to CanvasWorkspace/ScanNCut.
  • Flip Horizontal again after cutting so the embroidery file returns to the correct “face-up” stitching orientation.
  • Success check: The cut piece matches the on-screen outline when the fabric is flipped right-side up (no reversed curves/details).
  • If it still fails… Recut the fabric; do not try to “force fit” a mirrored mistake—alignment will never be clean.
• Q: How do I stop Brother PE-Design 11 from auto-scaling an imported SVG to the wrong size for a 9.5" x 9.5" hoop?
  A: Set the Design Page (hoop size) first, then import the SVG so the artwork comes in at true scale.
  • Open Layout & Editing and set the Design Page to 9 1/2" x 9 1/2" before importing.
  • Import the SVG only after the hoop/canvas is correct.
  • Run a small test sew on scrap before committing to the final quilted wall hanging.
  • Success check: The stitch outline on scrap matches the intended space and does not look unexpectedly too large/small.
  • If it still fails… Confirm you loaded the final saved/resized file on the machine (not an earlier version).
• Q: How do I safely skip the tack-down stitch in Brother PE-Design 11 Appliqué Wizard for a pre-cut, fused appliqué project?
  A: Skip tack-down only when the appliqué fabric is pre-cut and firmly fused; then set Appliqué Wizard to Fabric = Yes, Tack Down = No, Blanket Stitch = On.
  • Fuse the appliqué pieces first (fusible web) so the fabric behaves stable under the presser foot.
  • In Appliqué Wizard, set Fabric: Yes, Tack Down: No, and choose Blanket Stitch.
  • On the Brother Luminaire 2 Innov-is XP2 screen, use step keys to skip any leftover placement/tack steps in the stitch sequence.
  • Success check: The blanket stitch “bite” consistently grabs the appliqué edge while the straight run lands just off the raw edge on the background.
  • If it still fails… Stop immediately and re-check hoop stability; drift usually means the quilt sandwich is moving, not a software problem.
• Q: How do I prevent appliqué outline drift on a quilted wall hanging when stitching on a Brother Luminaire 2 Innov-is XP2?
  A: Clamp the quilt sandwich firmly to defeat the “sponge effect” from batting; loose hooping lets the layers creep and causes 1–2 mm registration loss.
  • Hoop so the center feels secure, not bouncy; thick quilts must be held, not “floated.”
  • Support the quilt’s weight behind the machine so it does not drag and pull the hoop during stitching.
  • Add light temporary adhesive on the stabilizer when needed to reduce back-layer shifting (follow product directions and machine guidance).
  • Success check: Tap the hooped area—aim for a dull, tight “thud,” not a loose rustle; during stitch-out, the edge alignment stays consistent instead of slowly walking off.
  • If it still fails… Reduce speed and re-hoop; if repeated projects keep creeping, consider a tool upgrade (magnetic frame or hooping station) to increase clamping consistency.
• Q: What stitch-out checks should I watch in the first 30 seconds of a Brother Luminaire 2 Innov-is XP2 blanket stitch appliqué run?
  A: Watch and listen immediately—early signs tell you whether to stop before the edge is ruined.
  • Listen for a crisp, steady needle sound; avoid continuing if you hear harsh “crunch/clack” that suggests deflection or thick glue/seams.
  • Watch the blanket stitch “bite” to ensure it catches the appliqué fabric while the straight portion lands on the background.
  • Stop instantly if you see drift away from the cut edge; it will not self-correct mid-run.
  • Success check: The first 10 stitches land consistently on the intended edge with no widening gap.
  • If it still fails… Re-check hoop tension and layer stability; quilt thickness and springiness often require a firmer clamp.
• Q: How do I reduce monofilament thread breakage on Brother Luminaire 2 Innov-is XP2 during blanket stitch appliqué?
  A: Slow down and start with lower tension; monofilament is clean-looking but unforgiving when run too fast or too tight.
  • Cap speed around the 500–600 SPM range to reduce heat buildup and snapping.
  • Install a fresh 75/11 or 80/12 needle; tiny burrs shred monofilament fast.
  • Sew a short test on scrap to confirm smooth feeding before stitching the final wall hanging.
  • Success check: Monofilament runs without repeated snapping, and the fabric surface stays flat without puckering near the stitch.
  • If it still fails… Re-check tension settings per the machine manual and consider switching thread type for that project if stability is critical.
• Q: What needle-break safety steps should I follow when stitching monofilament or metallic thread on Brother Luminaire 2 Innov-is XP2?
  A: Treat needle breaks as a real projectile risk and change your start-up habits.
  • Keep your face and hands away from the needle bar area when pressing Start, especially while diagnosing tension issues.
  • Wear protective eyewear if you must hover close to inspect early stitches.
  • Slow the machine down during these threads to reduce breakage risk and heat.
  • Success check: You can run the first minutes without sudden snaps, harsh impacts, or repeated thread shredding.
  • If it still fails… Stop, replace the needle, and troubleshoot tension and material thickness before restarting.
• Q: What magnetic hoop safety rules should be followed when using high-strength magnetic embroidery frames on thick quilts?
  A: Use strong magnets with respect—keep them away from medical devices and protect fingers from pinch injuries.
  • Keep magnetic frames at least 6 inches away from pacemakers, ICDs, and magnetic storage media.
  • Never place fingers between magnets when closing; snap-down force can bruise or blister.
  • Close the magnets deliberately on a flat surface so the clamp seats evenly across thick layers.
  • Success check: The frame closes smoothly without finger pinch incidents, and the quilt sandwich is held evenly without needing excessive force.
  • If it still fails… If clamping feels uneven or unsafe, pause and reposition; do not “fight” the magnets—adjust the layers and try again.
