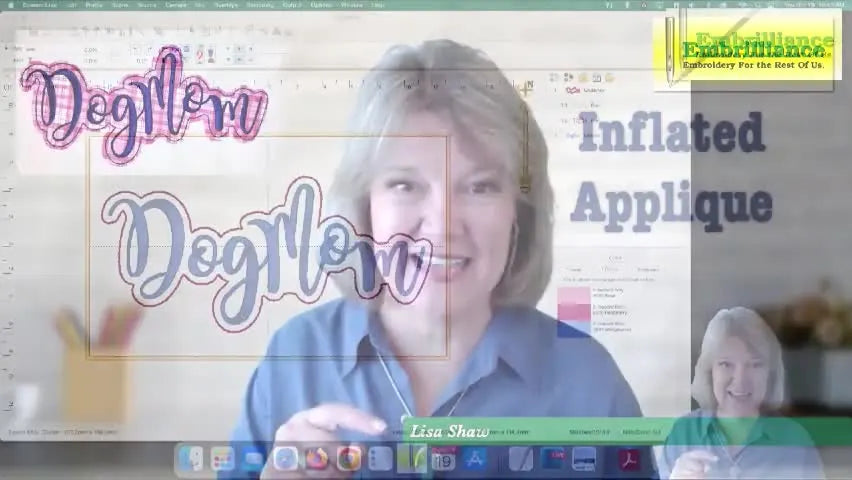

Inflated Raw-Edge Appliqué in Embrilliance: The “Dog Mom” Bubble Outline That Stitches Clean (and Trims Fast)

Master the "Inflated Appliqué": From Digitizing to Perfect Sweatshirts without the Tears

If you’ve ever seen those trendy sweatshirt and tote-bag appliqués with a soft, "puffy" outline and a hand-sewn-looking edge, you already know the appeal: it looks boutique, but it is absolutely achievable at home—if your file is sequenced correctly and your outline is cleaned up enough to trim without losing your mind.

This project creates an inflated outline around lettering (using the example "Dog Mom") with Embrilliance Essentials + Enthusiast + StitchArtist Level 1. The magic is that we are borrowing the shape created by the Knockdown utility, then turning it into a clean, editable outline that becomes your placement line, tack-down line, and final decorative edge.

Don’t Panic: "Inflated Appliqué" Is Just Smart Sequencing + a Clean Outline

The first time you try this technique, the scary part isn’t the stitching—it’s the software moment where your outline looks jagged, or your right-click menu doesn’t match the video.

Here is the calm truth: the workflow is straightforward, and the quality comes down to two specific factors:

1. Your outline shape must be simplified so manual trimming is realistic.
2. Your stitch order must force the right stops so you can place fabric, tack it down, trim, and then finish.

However, if you are working on garments, especially bulky sweatshirts, there is a third "silent" factor: Hooping Physics. A perfect file can still stitch out poorly if the fabric is shifting or stretched in the hoop.

The "Hidden Prep": Physics, Fabric, and Hooping Reality

This design is popular on sweatshirts and ready-to-wear tote bags for a reason: the raw-edge look hides tiny imperfections and feels modern. But these fabrics behave very differently in the hoop.

• Sweatshirts: You are fighting bulk, seams, and elasticity.
• Tote Bags: You are fighting stiffness and uneven layers.

Many beginners focus entirely on the digitizing and forget the physics: Hooping is controlled tension, not a wrestling match. If you hoop too loosely, the fabric "walks" (shifts), and your outlines won't match. If you hoop too tightly, you distort the knit structure, resulting in "hoop burn" or a wavy design once the fabric relaxes.

The "Sweet Spot" for Tension

When mastering hooping for embroidery machine projects on sweatshirts, aim for a neutral flat state.

• Tactile Check: The fabric should not feel like a drum skin. It should feel like it is resting on a table—taut enough not to ripple, but not stretched.
• Visual Check: The grain lines of the knit should be straight, not bowed.

Prep Checklist (Do this BEFORE opening software)

• Substrate Check: Are you doing a sweatshirt (needs cutaway mesh) or a tote (needs tear-away)?
• Appliqué Fabric: Choose a non-fraying knit (like jersey) for a smooth raw edge, or cotton woven if you don't mind a "shabby chic" frayed look after washing.
• Trimming Tool: Locate your double-curved appliqué scissors (duckbill). Standard craft scissors will struggle here.
• Consumables: Have temporary spray adhesive (like KK100) ready. It prevents the appliqué fabric from bubbling during the tack-down run.

Step 1: Set the Design Page Correctly

Lisa starts by opening a new design page and selecting the hoop she is actually going to stitch.

• Hoop Selection: She uses a Brother 6x10 hoop (160 x 260 mm).
• Check: Ensure your embroidery machine 6x10 hoop is selected in the preferences so you see the correct boundaries.
• Rotation: Because her physical hoop attaches vertically but handles wide designs better horizontally, she double-clicks the hoop label at the bottom to rotate it 90° into landscape orientation.


Why this matters: Designing "sideways" mentally is difficult. Rotating the virtual hoop prevents the classic mistake of designing a wide layout that hits the plastic frame during the actual stitch-out.

Step 2: Build the Lettering Object

Lisa uses the Create Letters tool (the "A" icon), types "DogMom," and selects the Magnolia Sky font.

• Font Size: 2.5 inches.
• Goal: Large enough to be bold on a sweatshirt, but leaving enough margin (about 1 inch) for the inflated bubble we are about to create.




Step 3: Make Script Look Like Script (Manual Kerning)

Script fonts are unforgiving. If the letters don't visually connect, the whole design looks disjointed.

Lisa manually adjusts spacing using the Green Selector Nodes:

• Center Node: Moves the entire letter left or right.
• Lower Node (on the 'm'): Pulls the connection tail closer to the previous letter.


Visual Check: Zoom in to 200%. Do the tails overlap smoothly? If there is a visible gap, the "bubble" outline we create next will dip into that gap, creating an ugly hole.

Note on BX Fonts: Even if letters look connected, you might see a jump stitch between them. This is normal for BX fonts. Your machine will trim these (if equipped) or you can snip them later.

Step 4: Save a Working File (Crucial Safety Step)

Before generating the outline, go to File > Save Working File As.

• Expert Advice: This is your "Undo Point." Once you convert objects to artwork in the next step, they are no longer editable text. If you misspell "Dog Mom," you cannot fix it later unless you have this saved file.

Step 5: Create the Inflated Bubble Outline

Here is the core technique using Embrilliance Enthusiast:

1. Select the lettering object.
2. Go to Utility > Add Knockdown Stitching.
3. The trick: Push the Inflation slider to the maximum (5 mm).
4. Ignore density settings—we are about to delete the stitches anyway. We only need the shape.




• Troubleshooting: If you don't see "Inflate" or "Knockdown," ensure your license for Enthusiast is active. This is not a base feature of Essentials.

Step 6: Convert Stitches to Editable Artwork

With the knockdown object selected, switch to StitchArtist Create Mode.

• Action: Change the stitch type button to Artwork.


The Transformation: The cloud of white underlay stitches disappears. You are left with a simple blue line. This line is now a vector shape you can edit. This is the moment your trimming future is determined.

Step 7: Clean the Outline (The "Human Factor")

Automated outlines follow every curve of every letter. This creates deep "V" shapes and tiny pockets. While a machine can stitch these, a human cannot trim them cleanly with scissors.

The Rule of Thumb: If your scissors tip cannot fit into the crevice, get rid of it.

Lisa deletes nodes in deep crevices (like between the "M" and "O"):

1. Zoom in closely.
2. Lasso-select the cluster of nodes creating the deep dip.
3. Hit Delete.
4. The line will snap straight across, creating a smooth bridge.


Step 8: Smooth the Nodes

Lisa uses the "Curve" function to ensure the machine movement is fluid. Sharp "Cusp" nodes make the machine jerk; "Curve" nodes make it glide.

1. Lasso-select all nodes on the outline.
2. Right-click directly ON a node (critical! If you miss the node, the menu changes).
3. Choose Curve.




Step 9: Build the Stitch Stack (The Production Sequence)

Now we turn that cleaned artwork line into three specific machine commands.

Layer 1: Placement Line

• Purpose: Shows you exactly where to spray and place your fabric.
• Action: Select the artwork. Click Run Stitch.
• Properties: Set to Single.


Layer 2: Tack-Down Line

• Purpose: Stitches the fabric down so you can trim it.
• Action: Copy the Placement object. Right-click and choose Paste Over.
• Settings: Change the Color. (This forces the machine to stop). Keep as a Run Stitch.


Layer 3: The Finishing Stitch

• Purpose: The decorative "hand-sewn" edge that secures the raw edge.
• Action: Paste Over again. Change color again (optional, depending on design).
• Settings: Change type to Backstitch.
• Properties: 5 Passes (this creates a bold, thick thread look) with a stitch length of 2.9 mm.


Expert Safety Check: A 5-pass backstitch is very dense. If your needle is small (75/11), this might shred thread. Use a Topstitch 90/14 needle to accommodate the heavy traffic in the same needle penetration points.

The Stabilizer Decision Tree: Sweatshirts vs. Totes

The video covers digitizing, but your success depends on the foundation. Use this decision tree to choose your stabilizer.

The "Hooping Hell" Solution: When to Upgrade Your Tools

Sweatshirts are the classic "why is hooping so hard?" garment. They are thick, the seams create uneven bulk, and the fabric is elastic.

The Pain Point: You muscle the inner ring into the outer ring. The sweatshirt stretches. You tighten the screw. By the time you start stitching, you have "hoop burn" (white friction marks) that won't wash out, or the design stitches out oval instead of round because the fabric was stretched.

The Solution: This is the primary scenario where professionals switch to magnetic embroidery hoops.

• How they work: Instead of forcing fabric between two friction rings, top magnets clamp the fabric flat against a bottom metal frame.
• The Benefit: Zero hand strain, zero hoop burn, and the fabric stays naturally relaxed (essential for that "puffy" appliqué look).
• Compatibility: If you are using a Brother machine (like the 6x10 hoop used here), look specifically for magnetic hoop for brother or general magnetic embroidery hoops for brother to ensure the attachment arm fits your machine.

Warning: Magnet Safety
Magnetic hoops use industrial-grade magnets. They are powerful.
* Pinch Hazard: Keep fingers clear when the magnets snap together.
* Medical Safety: Keep them away from pacemakers.

Stitch-Out Instructions: The Reality Check

Machine Speed: Slow down. For the 5-pass finishing stitch, reduce your machine speed to 400-600 SPM. High speed on multi-pass backstitches creates friction and thread breaks.

Operation Checklist (The "Pilot's Check")

1. Hooping: Fabric is flat and neutral? (Try the "pinch test"—you should be able to pinch a tiny bit of fabric; it shouldn't be drum-tight).
2. Sequence: Check screen. Colors 1, 2, and 3 are distinct?
3. Trimming (The Danger Zone):
   • Stitch Color 2 (Tack-down).
   • Remove the hoop from the machine to trim. Do not trim while attached—you risk bending the carriage arm or cutting the fabric underneath.
   • Trim smoothly, leaving about 1-2mm of fabric from the stitch line.
4. Finish: Re-attach hoop. Stitch Color 3 (Finishing) and Color 4 (Text).

Warning: Scissors and Needles
When trimming inside the hoop, ensure your scissors are curved up away from the fabric. An accidental snip of the sweatshirt material cannot be fixed.

Production Workflow: Scaling Up

Once you have perfected this "Dog Mom" file, you can swap the text for "Baseball Mom," team names, or cities.

If you start receiving bulk orders (e.g., 20 sweatshirts for a bridal party), your bottlenecks will shift.

1. Hooping Fatigue: If your wrists hurt after three shirts, consider a hooping station for embroidery. Using a fixture like a hoopmaster hooping station ensures the logo is in the exact same spot on every shirt, which is what customers pay for.
2. Field Constraints: If you find 6x10 limiting for XL/XXL sweatshirts, a repositionable embroidery hoop allow you to stitch larger multi-position designs without buying a larger machine—just remember to split your design files accordingly.

Final Thoughts

The "Inflated Appliqué" isn't just a style choice; it's a great way to use up fabric scraps and create high-value garments with low stitch counts. By combining the Knockdown tool for shape generation with Node Cleaning for human-friendly trimming, you turn a frustrating tech challenge into a reliable product.

Happy Stitching!

FAQ

• Q: How can Brother 6x10 hoop users set correct hoop orientation in Embrilliance Essentials for wide sweatshirt appliqué layouts?
  A: Select the exact 160×260 mm hoop and rotate the virtual hoop 90° before digitizing so the on-screen boundary matches the real frame.
  • Open Preferences/hoop selection and choose the Brother 6x10 (160×260 mm) hoop.
  • Double-click the hoop label to rotate to landscape when the physical hoop mounts vertically but the design is wide.
  • Keep at least ~1 inch margin around lettering for the inflated outline clearance.
  • Success check: The full design stays inside the rotated hoop boundary with comfortable spacing from the edge (no elements “kiss” the frame line).
  • If it still fails: Re-check you did not design in a different hoop size than the one mounted on the machine.
• Q: Why does Embrilliance Essentials not show “Add Knockdown Stitching” or the “Inflate” slider when creating inflated appliqué outlines?
  A: The Knockdown/Inflate controls require an active Embrilliance Enthusiast license; Essentials alone will not show those options.
  • Confirm Embrilliance Enthusiast is installed and activated on the same computer/profile.
  • Select the lettering object first, then go to Utility > Add Knockdown Stitching.
  • Set the Inflation slider to the maximum (5 mm) to generate the bubble shape (you are using the shape, not keeping the stitches).
  • Success check: A knockdown object is created and the Inflate slider is visible and adjustable.
  • If it still fails: Restart the software and verify the license state inside Embrilliance before troubleshooting the design file.
• Q: How do StitchArtist Level 1 users convert a Knockdown object into an editable outline for placement, tack-down, and finishing stitches?
  A: Switch to StitchArtist Create Mode and change the selected knockdown object’s stitch type to Artwork to turn stitches into an editable vector line.
  • Select the knockdown object created by the utility.
  • Enter StitchArtist Create Mode, then click the stitch type button and choose Artwork.
  • Edit nodes only after the object becomes a simple line (this is the trim-friendly outline stage).
  • Success check: The white “cloud” of stitches disappears and a clean line remains that can be node-edited.
  • If it still fails: Ensure the knockdown object (not the original lettering) is selected before changing to Artwork.
• Q: How do StitchArtist users clean jagged inflated appliqué outlines so trimming with duckbill appliqué scissors is realistic on sweatshirts?
  A: Remove deep “V” pockets by deleting node clusters so the outline bridges across areas where scissors cannot physically fit.
  • Zoom in and identify crevices (often between tight script joins like “M” and “O”).
  • Lasso-select the node cluster forming the deep dip and press Delete to snap a smoother bridge.
  • Convert remaining nodes to Curve by right-clicking directly on a node (not empty space) and choosing Curve.
  • Success check: The outline has no tiny pockets; the path looks smooth enough that scissors could follow it without stabbing inward.
  • If it still fails: Simplify more aggressively—if the scissor tip cannot enter, the outline is still too detailed.
• Q: What is the correct stitch sequence in Embrilliance for inflated appliqué: placement line, tack-down stop, and 5-pass backstitch finishing edge?
  A: Build three stacked runs from the same cleaned artwork line: Run Stitch (Single) for placement, Run Stitch for tack-down with a color change, then Backstitch with 5 passes at 2.9 mm for the finishing edge.
  • Create Placement: Select artwork line → Run Stitch → Properties set to Single.
  • Create Tack-down: Copy → Paste Over → change Color to force a stop → keep as Run Stitch.
  • Create Finish: Paste Over again → set stitch type to Backstitch → set 5 Passes and stitch length 2.9 mm.
  • Success check: The design shows distinct color blocks for the stops, and the finishing edge previews as noticeably bolder than the placement/tack-down lines.
  • If it still fails: Rebuild using Paste Over (not paste beside) so all three layers share the exact same path.
• Q: How can sweatshirt embroiderers prevent hoop burn and fabric distortion when hooping inflated appliqué on knit garments?
  A: Hoop to a neutral-flat tension—taut enough to remove ripples, but not stretched like a drum—so the knit grain stays straight.
  • Use a tactile check: The fabric should feel like it’s resting flat on a table, not drum-tight.
  • Use a visual check: Knit grain lines should be straight, not bowed from stretching.
  • Pair sweatshirts with cutaway mesh stabilizer so the outline stays supported during wear and stretch.
  • Success check: After stitching, the design stays the intended shape and the fabric does not show white friction marks from over-tight hooping.
  • If it still fails: Move to a magnetic embroidery hoop so the fabric can be clamped flat without friction-ring squeezing.
• Q: What safety steps should Brother embroidery machine owners follow when trimming appliqué fabric inside the hoop and when using magnetic embroidery hoops?
  A: Remove the hoop from the machine to trim, keep curved scissors angled upward, and treat magnetic hoops as industrial pinch hazards (and keep them away from pacemakers).
  • Stop after the tack-down run, detach the hoop from the machine, then trim leaving about 1–2 mm from the stitch line.
  • Angle duckbill/curved appliqué scissors “up” away from the garment to avoid accidental sweatshirt snips.
  • Keep fingers clear when magnetic hoop magnets snap together; clamp slowly and deliberately.
  • Success check: Trimming is controlled with no cut-through to the base garment, and magnets close without pinching fingers.
  • If it still fails: If trimming feels unsafe or inaccurate, simplify the outline further (node cleanup) before attempting another stitch-out.
