Ink/Stitch Push–Pull Compensation for Satin Fonts: The Overlap Trick That Stops Gaps (Plus Underlay Settings That Actually Matter)

If you have ever watched a satin letter look flawless in the simulator—then stitched it out only to find a hairline gap right where two columns meet—you are not "bad at digitizing." You are simply witnessing physics doing exactly what it promised to do.

Embroidery is a battle between the thread (which wants to shrink) and the fabric (which wants to pucker). This guide rebuilds the workflow from the Ink/Stitch deep dive, but we are adding the missing "shop-floor" context: how specific variables like fabric choice, stabilizer density, and hooping methods treat your geometry.

Push/Pull Compensation in Ink/Stitch Satin Columns: the calm explanation you needed before you rage-redesign

In the instructional video, the logic of push/pull is broken down into two distinct forces. Understanding this distinction is the first step to stopping the guessing game:

• Pull (Side Shrink): The satin column creates tension perpendicular to the stitch direction. Imagine wrapping a rubber band around a sponge; the sponge squeezes inward. This causes the column to become narrower than drawn.
• Push (End Bulge): As the needle penetrates the fabric, it displaces fibers. The satin column creates a "shoving" effect in the direction of the stitch, causing the column to become longer or bulge at the ends.


Here is the concept that often confuses beginners: Underlay is not the primary cure for pull gaps.

One viewer asked: "Most underlays are for push—am I missing something on pull?" The answer is no. Underlay provides a foundation (like rebar in concrete), but most compensation must happen in your design geometry, specifically where objects overlap.

Furthermore, these forces are not static. They change based on a system of physical variables:

• Fabric Physics: Denim is rigid; pique cotton is fluid.
• Stabilizer: The bedrock of your design.
• Hooping Tension: Is it "drum tight" or loose?
• Speed: 600 stitches per minute (SPM) behaves differently than 1000 SPM.

If you are moving into production work, you cannot treat these as separate settings. They are a connected ecosystem.

The “Hidden” Prep Before You Touch Ink/Stitch Params: fabric, stabilizer, hooping tightness, and speed

Before you click a mouse, you must make decisions about the physical world. Experienced digitizers save time by anticipating how the fabric will fail.

A practical rule of thumb: The more the fabric can stretch, the more you must lie to the computer. On a stable canvas (0% stretch), a 0.2mm overlap might suffice. On a stretchy performance knit (high stretch), you might need a 1.0mm overlap or more.

Consistency is your safety net. If you are doing manual hooping for embroidery machine work, your goal is to apply identical tension to every shirt. If one shirt is loose and the next is tight, your pull compensation will work on one and fail on the other.

Prep Checklist (Do this once per project)

• Fabric Diagnosis: Stretch the fabric with your hands. Does it snap back? If yes, it requires a cutaway stabilizer, not tearaway.
• Consumable Check: Do you have the right needle? (Ballpoint for knits, Sharp for wovens). Do you have temporary spray adhesive?
• Speed Limit: For satin lettering, set your machine to 600–750 SPM. "Max speed" is for large fills; precision demands moderation.
• Action: Perform a "Tug Test" on your stabilizer. If it tears easily in all directions, it will not support high-density satin columns.
• Hooping Check: Tap the hooped fabric. It should sound like a dull drum—taut, but not stretched to the point of warping the grain.

Warning: Needle Safety. Keep fingers strictly clear of the needle bar area. When trimming jump stitches or removing a hoop, power off or lock the machine. A needle driven through a finger by a motor is a traumatic injury that requires surgery.

Manual Overlap in Inkscape: the pull-compensation move that prevents gaps between satin columns

The most effective fix for gaps is offensively simple: Overlap your satin objects on purpose.

Do not trust the "Pull Compensation" slider alone. The instructor demonstrates a manual methodology:

1. Draw two parallel line shapes for your columns.
2. Combine the paths (Ctrl+K).
3. Physically move the columns closer until they overlap significantly in the vector view.






Why this works: When satin stitches contract (pull), they retreat from the edge. If two columns only "kiss" on the screen, the pull causes them to retreat away from each other, opening a gap that reveals the fabric. By overlapping them, the pull consumes the overlap first, leaving a seamless join to the naked eye.

The Magnetic Factor: If you are upgrading your workflow to use magnetic embroidery hoops, you gain an immediate advantage here. Unlike traditional screw hoops that can distort the fabric grain while tightening, magnetic frames clamp straight down. This preserves the fabric's natural state, meaning your manual overlap calculations will be much more accurate and repeatable.

A small but important mindset shift

Stop trying to make the screen look perfect. The screen is a blueprint, not a photograph. Your vector diagram is a set of instructions to deform fabric. If the vector looks "wrong" (overlapping), it often means the stitch out will look "right."

Ink/Stitch Underlay Settings (Center Walk, Contour, Zigzag): what the video actually proves in the simulator

In the Params dialouge, we control the "foundation" of the house. The instructor highlights three key types:

• Center Walk: A simple running stitch traveling down the middle to attach fabric to stabilizer.
• Contour: An edge-walk that defines the crispness of the letters.
• Zigzag: A low-density back-and-forth stitch that pins down the "nap" of the fabric.




The takeaway is critical: Zigzag underlay is your primary defense against push. By tacking down the fabric area first, it prevents the final satin stitches from plowing the fabric forward.

Recommended Starting Parameters (Beginner Safe Zone):

• Center walk stitch length: 1.5mm – 2.0mm
• Contour inset: 0.3mm – 0.4mm (Too close to edge = sticking out)
• Zigzag spacing: 0.4mm – 0.8mm (Too dense = stiff lettering)

Setup Checklist (Ink/Stitch Params + Safety)

• Confirm Object Type: Ensure your path is actually a valid Satin Column (with two rails).
• Underlay Strategy: Enable Zigzag for letters wider than 2mm to prevent "tunneling."
• Jump Stitch Management: If your machine does not have an automatic trimmer, uncheck "Trim jump stitches" to prevent the machine from tying off knots unnecessarily between close letters.
• Preview: Visual check—do you see the underlay executing before the satin stitch?

Warning: Magnet Safety. If you utilize magnetic hoops, be aware they generate powerful clamping force. Keep them away from pacemakers and sensitive electronics. Always use a controlled, two-handed "slide-on" or "vertical drop" technique to avoid pinching your skin between the magnets.

Digitizing a Letter “A” in Inkscape + Ink/Stitch: rungs, rails, and the overlap that saves your crossbar

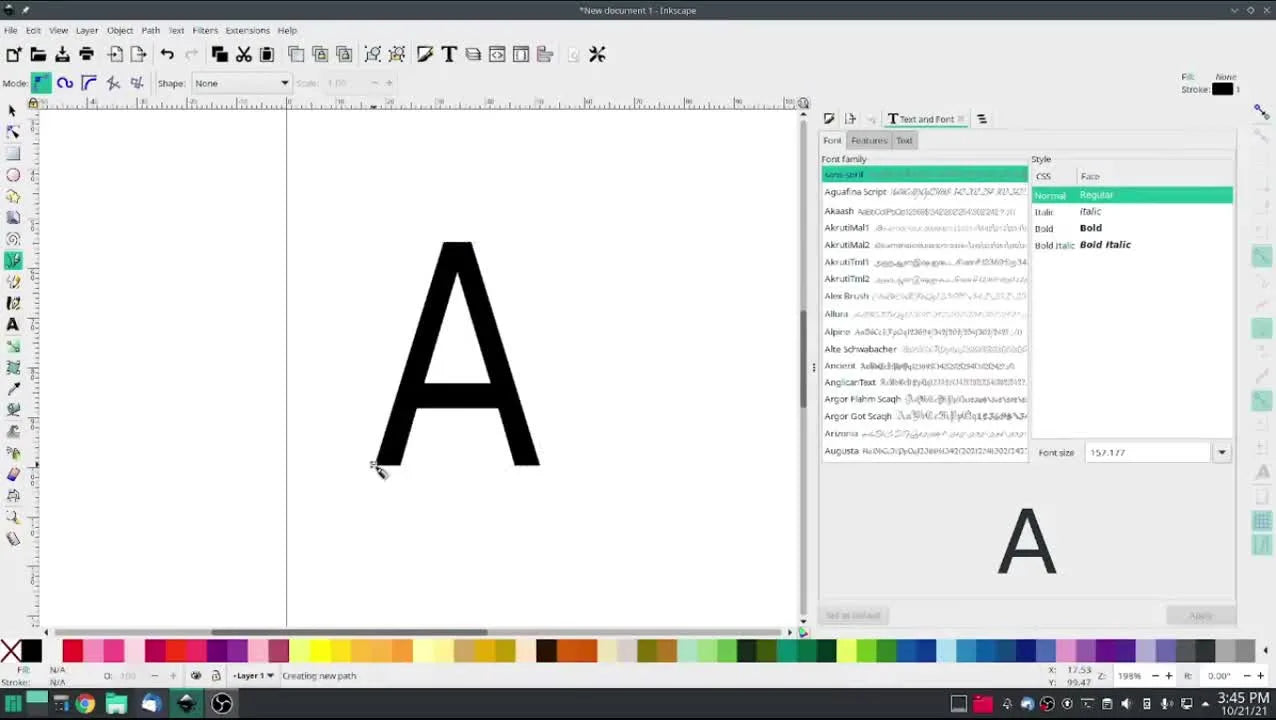

The video demonstrates the workflow on a capital "A," which is the perfect case study for multi-directional stitching.

1. Reference: Type a letter "A" as a background image.
2. Trace: Use the Bezier tool (Shift+F6) to trace the left leg.
3. Constrain: Hold Ctrl to force perfectly vertical lines.
4. Snap Check: Turn snapping OFF (% key). Snapping is the enemy of organic digitizing because it forces nodes to mathematical points rather than visual necessities.




The Critical Move: Rungs Control Flow

Rungs are the horizontal lines you draw across the column. They tell Ink/Stitch the angle of the thread. Without rungs, the software guesses, often resulting in erratic stitch directions that ruin the light reflection of the thread.

Build the Second Leg Fast

Pro-tip for efficiency:

• Duplicate the first leg (Ctrl+D).
• Flip it horizontally (H key).
• Drag it into position.
• Crucial: Ensure the two legs overlap at the top if they are meant to touch.

Crossbar Overlap: The Pull Problem Hiding in Plain Sight

For the horizontal crossbar of the "A," the instructor extends the specific anchor points so they overlap deep into the vertical legs.

The Logic: Both vertical legs will pull outward from the center. The crossbar will pull inward from the sides. This tri-directional tension guarantees a gap unless you bury the crossbar ends inside the legs.

For small shops utilizing a hooping station for embroidery, this digitizing consistency pairs perfectly with mechanical consistency. If your station ensures the shirt is straight every time, and your file has this overlap built-in, you eliminate 90% of your defect rate.

Auto-Route Satin Columns + “Trim Jump Stitches” Off: a compatibility-first routing habit

Once the geometry is built, we automate the pathing:

1. Select all three parts (Leg L, Leg R, Crossbar).
2. Extensions → Ink/Stitch → Satin Tools → Auto-Route Satin Columns.
3. Re-apply your Params (Zigzag underlay).






Why turn "Trim" OFF? Not every machine has a reliable cutter. On some single-needle machines, the cutter blade dulls quickly, causing birdsnests (thread jams) under the throat plate. By turning "Trim" off, you force the machine to leave a jump stitch. You can trim this manually with snips. It is safer to trim by hand than to unjam a birdsnest from the bobbin case.

Stabilizer + Fabric Decision Tree for Satin Lettering: reduce push/pull surprises before the first stitch

You cannot digitize in a vacuum. Use this decision tree to match your physical materials to your digital settings.

The "Can I Stitch This?" Decision Matrix

The Production Upgrade: If you answer "Yes" to doing repeated production runs of 20+ items, hooping becomes your bottleneck. Upgrading to a magnetic hooping station allows you to align garments precisely without the physical strain of tightening screws, ensuring that the decision tree above yields consistent results every time.

In scenarios where you used to fight with traditional rings leaving marks on sensitive polyester, embroidery hoops magnetic systems distribute pressure evenly, eliminating the "hoop burn" that often ruins shiny performance fabrics.

Troubleshooting Satin Gaps and Bulges: symptom → cause → fix (based on the video, plus field-tested checks)

When things go wrong, do not randomly change settings. Follow this diagnostic path, from "physical" to "digital."

1) Symptom: Gaps (White space) between columns

• The Check: Look at the fabric. Is it puckering around the design?
• Likely Cause: Poor stabilization or insufficient overlap regarding Pull.
• The Fix:
  1. Physical: Use a sticky stabilizer or spray adhesive.
  2. Digital: Increase the Manual Overlap at the joint in Inkscape.

2) Symptom: Ends of columns look "mushroomed" or fat

• The Check: Run your finger over the edge. Does it feel loose?
• Likely Cause: Push effect. The loops are pushing the fabric out.
• The Fix: Enable or increase Zigzag Underlay. This anchors the fabric before the satin stitch hits.

3) Symptom: "Birdsnesting" (Big knot under the plate)

• The Check: Listen. Did the machine make a "thud-thud" sound before stopping?
• Likely Cause: Upper thread tension too loose or thread jumped out of the take-up lever.
• The Fix: Rethread the machine completely. Ensure the presser foot is UP when threading (to open tension disks).

4) Symptom: Needle Deflection / Breakage inside the Satin

• The Check: Is the density too high?
• Likely Cause: Too much underlay + too much density = needle hits a wall of thread.
• The Fix: Reduce density (Ink/Stitch default is typically fine, but ensure you aren't stacking 3+ layers of fill).

The “Why” behind the video’s method: design-level compensation beats slider-level compensation

Ink/Stitch includes a global "Pull Compensation" slider. The instructor specifically chooses not to use it, setting it to 0.

Why? Global sliders are blunt instruments. They thicken everything—even the parts that don't need it (like the delicate tips of serifs). Manual Overlap is a scalpel. It allows you to add compensation only where the physics demand it (the joints), while keeping the rest of the letter crisp.

This is the difference between "good enough" for a hobbyist and "professional quality." Professionals control the geometry; they don't let the software guess.

The Upgrade Path: when better hooping and production tooling makes compensation easier (not just faster)

If you are stitching one-off gifts, you can afford to test, fail, and re-hoop. Time is cheap. If you are running a business, predictability is profit.

The variables we discussed—hooping tension and fabric stability—are the hardest to control with human hands.

• Level 1 (Technique): Use the methods in this guide.
• Level 2 (Tooling): Implement a hoop master embroidery hooping station or similar system. This eliminates the "human error" of crooked alignment.
• Level 3 (Hardware): Switch to magnetic embroidery hoop systems. They reduce the physical effort of hooping (saving your wrists) and provide the consistent fabric tension (drum-tight but not stretched) that makes your digitizing Pull Compensation settings accurate across 50 shirts, not just one.

For those ready to scale beyond the limitations of single-needle machines, investing in multi-needle equipment (like SEWTECH solutions) allows you to leave designs set up without constant thread changes, turning your digitizing effort into maximum throughput.

Operation Checklist (the “test piece” discipline that saves your best garments)

Do not ruin a $40 jacket on a hope.

• The Test Swatch: Hoop a scrap of the exact same fabric with the exact same stabilizer.
• The Visual Inspection:
  • Joins: Are the crossbars connected? (If gap -> Increase Overlap).
  • Edges: Are they straight or bulging? (If bulging -> Increase Edge Run Underlay).
  • Bobbin: Turn it over. You should see a focused white column of bobbin thread occupying the center 1/3 of the satin stitch width.
• Consumable Check: Ensure you have enough bobbin thread to finish the run.
• Final Clear: Clear the hoop path of any obstacles or loose fabric sleeves.

If you take only one lesson from the video: Underlay is your anchor, but Overlap is your bridge. Treat compensation as an architectural drawing, not a generic software setting.

FAQ

• Q: In Ink/Stitch satin lettering, how do I prevent hairline gaps between two satin columns where the join looked perfect in the simulator?
  A: Use manual overlap in the vector artwork first, because pull shrink will “eat” a seam that only touches edge-to-edge.
  • Move the two satin column shapes closer in Inkscape until they overlap intentionally (do not rely only on a pull-compensation slider).
  • Keep physical variables consistent (same fabric, stabilizer, hooping tension, and speed) before judging the result.
  • Success check: after stitching, the join shows no fabric “white line” when viewed at normal wearing distance.
  • If it still fails: improve stabilization (sticky stabilizer or spray adhesive) and re-test on a scrap with the same fabric/stabilizer.
• Q: For Ink/Stitch satin columns, what underlay settings are a safe starting point to reduce end bulges (“mushroomed” column ends) caused by push?
  A: Enable Zigzag underlay and start with the beginner-safe parameter ranges shown, because Zigzag is the primary defense against push.
  • Set Center walk stitch length to 1.5–2.0 mm.
  • Set Contour inset to 0.3–0.4 mm (too close to the edge can show).
  • Set Zigzag spacing to 0.4–0.8 mm (too dense can make lettering stiff).
  • Success check: column ends look crisp (not fat) and the edge feels firmly anchored when you run a finger along it.
  • If it still fails: slow the machine to 600–750 SPM for satin lettering and confirm the underlay runs before the satin in preview.
• Q: When hooping fabric for machine embroidery, what is the correct hoop tightness standard to avoid distortion while keeping satin letters stable?
  A: Hoop “taut like a dull drum,” not stretched to the point of warping the fabric grain.
  • Tap the hooped fabric and aim for a dull, drum-like sound (taut, not overly tight).
  • Avoid inconsistency between garments, because changing hoop tension changes pull behavior and ruins repeatability.
  • Success check: the fabric sits flat with no visible grain warp, and it does not relax or ripple when lightly pressed.
  • If it still fails: switch to a gentler strategy for knits (do not overstretch; consider float method) and increase stabilization before changing digitizing.
• Q: What stabilizer and needle choices reduce push/pull surprises for satin lettering on T-shirt jersey, pique polo, and performance knit fabrics?
  A: Match fabric stretch to stabilizer/needle first, because stretchy knits need cut-away support and the correct needle point.
  • Use cut-away stabilizer for T-shirt/jersey (no exceptions) with a 75/11 ballpoint needle.
  • For pique polo, use cut-away + water-soluble topping with a 75/11 ballpoint to prevent stitches sinking into texture.
  • For performance/athletic knits, use low-profile cut-away (mesh) with a 70/10 ballpoint, and use temporary spray adhesive to bind fabric to stabilizer.
  • Success check: satin columns stay flat without tunneling/puckering, and small details remain readable after the hoop is removed.
  • If it still fails: increase manual overlap at joins in the artwork and reduce speed to 600–750 SPM before increasing density.
• Q: On a single-needle embroidery machine without a reliable thread cutter, why should “Trim jump stitches” be turned OFF when auto-routing Ink/Stitch satin columns?
  A: Turn trim OFF to avoid unnecessary tie-offs and cutter-related jams; leave jump stitches and trim them by hand instead.
  • Uncheck “Trim jump stitches” in the Ink/Stitch workflow when close objects are being routed.
  • Plan to clip jump stitches manually with snips after stitching rather than forcing repeated trims.
  • Success check: the run completes without knots/birdnests under the throat plate and without repeated stop-start trimming behavior.
  • If it still fails: rethread the machine completely with presser foot UP to ensure the thread seats correctly in the tension disks.
• Q: During embroidery stitching, how do I troubleshoot “birdsnesting” (a big knot under the throat plate) on a home or commercial embroidery machine?
  A: Treat birdsnesting as a threading/tension-path problem first—rethread fully and confirm the thread is seated correctly.
  • Stop the machine and inspect: birdsnesting often follows a “thud-thud” sound before the machine stops.
  • Rethread the entire upper thread path; keep the presser foot UP while threading to open the tension disks.
  • Confirm the thread is correctly in the take-up lever (thread jumping out is a common cause).
  • Success check: the underside shows controlled bobbin presentation instead of a loose wad of top thread.
  • If it still fails: reduce unnecessary trims/jumps and verify hooping/stabilization so fabric movement is not amplifying the issue.
• Q: What needle safety steps prevent finger injuries when trimming jump stitches or removing a hoop from an embroidery machine?
  A: Power off or lock the machine before hands enter the needle bar area, because a motor-driven needle strike can cause traumatic injury.
  • Turn off power or engage the machine’s lockout before trimming jump stitches, clearing thread, or removing the hoop.
  • Keep fingers strictly clear of the needle bar zone at all times during motion and during any manual handling near the needle.
  • Success check: no hand enters the needle area unless the machine is fully stopped and locked out.
  • If it still fails: change the workflow—pause earlier, reposition the hoop away from the needle area, then trim.
• Q: What magnetic hoop safety rules should be followed when using magnetic embroidery hoops to improve hooping consistency?
  A: Treat magnetic hoops as high-clamp-force tools and handle them with controlled placement to avoid pinching and interference risks.
  • Keep magnetic hoops away from pacemakers and sensitive electronics.
  • Use a controlled two-handed “slide-on” or “vertical drop” technique to close the magnets instead of snapping them together.
  • Keep skin clear of the closing gap; magnets can pinch severely.
  • Success check: the frame closes smoothly without sudden snapping, and fabric is clamped evenly without hoop burn or shifting.
  • If it still fails: slow down the closing motion and re-check alignment on a flat surface before clamping.
