Janome Skyline S9 + AcuSetter: The Calm, Repeatable Workflow for Perfect Embroidery Placement (Without Wasting Fabric)

If you’ve ever stared at your Janome Skyline S9 screen thinking, “I love this machine… but the Wi-Fi and embroidery side feels like a lot,” you’re not alone. I’ve trained hundreds of sewists who freeze the moment they switch from sewing mode to embroidery mode. It’s a completely different mental gear—suddenly, you aren’t just driving the car; you’re programming the GPS while the car is moving.

The anxiety usually comes from fear of the unknown: Will the needle hit the hoop? Did I hoop it straight? Why did the app disconnect?

The good news: the S9 workflow is logical once you curb the urge to rush. Below is a clean, field-tested process. I have added the specific “old tech” preparation parameters (speed, tension, stabilizers) that apps can’t teach you—the secrets that prevent the two biggest heartbreaks in our industry: misplacement and puckering.

The “Don’t Panic” Primer: What the Janome Skyline S9 Is Really Good At (and What It Won’t Do)

The Skyline S9 is a "Combo" machine. It shines when you want a high-end 9mm sewing experience and a capable embroidery system without giving up half your sewing room table to a production beast. It features the AcuFeed system (great for feeding fabric layers) and the Wi-Fi ecosystem that unlocks iPad apps like AcuSetter.

However, let’s set the expectations to avoid frustration:

1. It is not a Digitizer: The S9 does not digitize photos by itself. You cannot take a photo of your dog and press "Go." You need external software to convert art into .JEF stitch files, which you then send to the machine.
2. The Physics of Field Size: The S9 comes with three standard hoops (RE20a, SQ14a, FA10a). The maximum embroidery field is fixed by the physical reach of the carriage arm. Using a larger physical hoop will not magically expand the stitchable area; it just holds more fabric.

If you are a hobbyist doing custom placements on quilt blocks, this machine is a dream. If you are looking to run 50 corporate polos a week, you will eventually hit a speed wall—but for now, let's master the S9.

The “Hidden” Prep Pros Do Before Touching Wi-Fi or Hoops

Before you even touch an iPad, you must secure the physical foundation. In my 20 years of experience, 80% of "software glitches" are actually "hardware physics" problems.

Fabric + Stabilizer: The Unbreakable Rule

In the demo, the host mentions that dense stitches need support. Let's make that a law: You cannot embroider on air. The needle penetrates the fabric thousands of times; without stabilizer (backing), your fabric will perforate and distort.

• The Principle: The stabilizer is the actual foundation; the fabric is just the paint canvas.
• Expert Tip: If you are new to traditional hooping for embroidery machine, getting the tension right is critical. If manual hooping hurts your wrists or you can't get it taut, this is the first point of failure.

Hooping Physics: The "Drum Skin" Myth

You often hear "tight as a drum." This is dangerous advice for beginners.

• The Sensation: You want the fabric taut, not stretched. When you run your finger across the hooped fabric, it should feel flat and firm, but if you pull the fabric borders, you shouldn't see the weave distort.
• The Trap: If you stretch a knit fabric (like a t-shirt) into the hoop to make it tight, you are stretching the fibers open. When you un-hoop it later, the fibers snap back, and your design will look like a wrinkled mess. This is why pros use Cutaway stabilizer for knits—it holds the structure permanently.

Prep Checklist (Do this before you open the apps)

• Hoop Selection: Confirm you have the correct hoop for the design size. (Rule of thumb: Use the smallest hoop that fits the design to reduce flagging/bouncing).
• Stabilizer Match: Cutaway for Knits; Tearaway for Woven; Water Soluble Topping for Towels.
• Hidden Consumable: Use a temporary spray adhesive (like Odif 505) to bond fabric to stabilizer. This prevents "micro-shifting" that causes outlines to mismatch.
• Thread Path: Check the top thread. Pull it gently near the needle—it should flow smoothly with slight resistance, like flossing teeth.
• Bobbin: Ensure the bobbin is wound evenly. A spongy bobbin equals a messy stitch-out.

Warning: Mechanical Safety. Keep hands clear of the carriage arm during initialization. The arm moves rapidly to "find home" when you switch to embroidery mode. A collision here can knock the calibration sensors off, requiring a dealer repair.

Wi-Fi on the Janome Skyline S9: The 90-Second Setup That Prevents “Why Won’t It Connect?”

Connectivity issues are the #1 support call for S9 owners. The machine creates a bridge between your iPad and the servo motors. Here is the foolproof sequence:

1. Hardware First: Go into Settings (gear icon) on the S9 screen.
2. Enable: Turn Wi-Fi ON and ensure IP Address is set to ON.
3. Network Search: Select your home network.
   • Expert Note: S9 units prefer 2.4GHz networks. If you have a modern 5GHz mesh router, you might struggle. Try connecting to the "Guest" network if your main one fails, as those are often 2.4GHz.
4. Visibility: Turn off the "hidden characters" option so you can read the password as you type.
5. Precision: Case sensitivity matters. "Password" is not "password".
6. Naming: Rename your machine (e.g., "S9 Studio"). This prevents connecting to a neighbor's machine or the wrong device in a class.

Success Output: Look for the Wi-Fi icon in the top toolbar. It should be solid, not blinking.

Warning: Firmware Safety. Never update firmware over unstable Wi-Fi. Use a USB stick following official instructions. A power loss during an update can "brick" the motherboard.

Tapering Stitches on the Skyline S9: How to Get Clean 45° Mitered Corners Without Thread-Cut Chaos

Although tapering is a sewing function, mastering it teaches you exactly how the S9 "thinks" about automation boundaries. This is excellent practice for understanding machine geometric logic.

In the demo, the host uses Satin stitch #16 (purple category) with a 45-degree angle. The critical "secret sauce" here is disabling the automatic cutter.

The "Continuous Flow" Workflow

1. Select: Satin stitch #16.
2. Modify: Tap the tapering icon → Set 45° for Start and End.
3. Override: Go into settings → Turn Thread Cut After Auto Lock = OFF.
   • Why? If the machine cuts the thread at every corner, you will have a nest of tails to trim, and your corners won't touch. We want it to lock, hover, and let you pivot.
4. Sew: Stitch the first side.
5. Lock: Press Auto Lock near the end; let it taper down.
6. Pivot: Needle Down → Lift Foot → Pivot 90°.
7. Continue: The visual corner is formed by the physics of the 45° taper meeting the pivot.

If you eventually invest in a dedicated hooping station for embroidery machine to aid your alignment, you'll find that this same discipline—setting up your tools to support your outcome—is what separates amateurs from pros.

Setup Checklist (Before you sew tapering stitches)

• Stitch Category: Purple Tapering menu only.
• Angle Check: 45° selected (or 30/60 if desired).
• Cutter Status: Auto-Cut is OFF.
• Support: Even for decorative stitches, use a tearaway stabilizer underneath thin cotton to prevent tunneling (where fabric bunches under the stitch).


In-Machine Embroidery Editing on the Janome Skyline S9: The Fast Layout Moves You’ll Use Every Week

The S9 screen is small compared to a computer, but it’s powerful for "at-the-machine" fixes. Don't try to digitize here; just organize.

The Essential Tool Kit:

• Corner Copy: Instantly places a motif in all four corners. Fantastic for napkin borders.
• Sizing Limit: You can resize ±20%.
  • The Physics: Why only 20%? Because the machine does not usually recalculate the stitch count (unless specified). If you shrink a design by 50% without removing stitches, you create a bulletproof knot that will snap needles. 20% is the safety zone.
• Grouping: Always group elements if you want to move them as a unit.

Success Indicator: Your layout looks balanced on the LCD grid.

AcuEdit on iPad: Build a Simple Multi-Design Layout Before You Worry About Perfect Placement

Stop trying to drag designs with your finger on the small machine screen. Use the iPad screen estate (the AcuEdit app) for composition.

The Workflow:

1. Settings: Select Skyline S9 and your hoop (e.g., RE20a).
2. Import: Grab designs (like the "Star" in the demo) from the library.
3. Duplicate: Copy/Paste your elements.
4. Rough Draft: Place them loosely where you want them. Do not obsess over millimeter precision here.
5. Send: Transfer to the machine.

The Reality of Production: If you find yourself spending 10 minutes fighting with fabric in a traditional hoop just to get it straight enough for the layout, you are experiencing the primary bottleneck of embroidery. This friction is why many users eventually switch to magnetic hoops for janome embroidery machines. These tools clamp fabric instantly without the "unscrew-push-pull-screw" dance, allowing you to focus on the design rather than the wrestling match.

AcuSetter on iPad: The 8-Marker Calibration That Makes Placement Actually Trustworthy

AcuSetter is the "Killer App" for the S9. It replaces the "plastic grid sheet" method with Augmented Reality (AR). It allows you to hoop crookedly (which will happen) and tells the machine to rotate the design to match your crooked fabric.

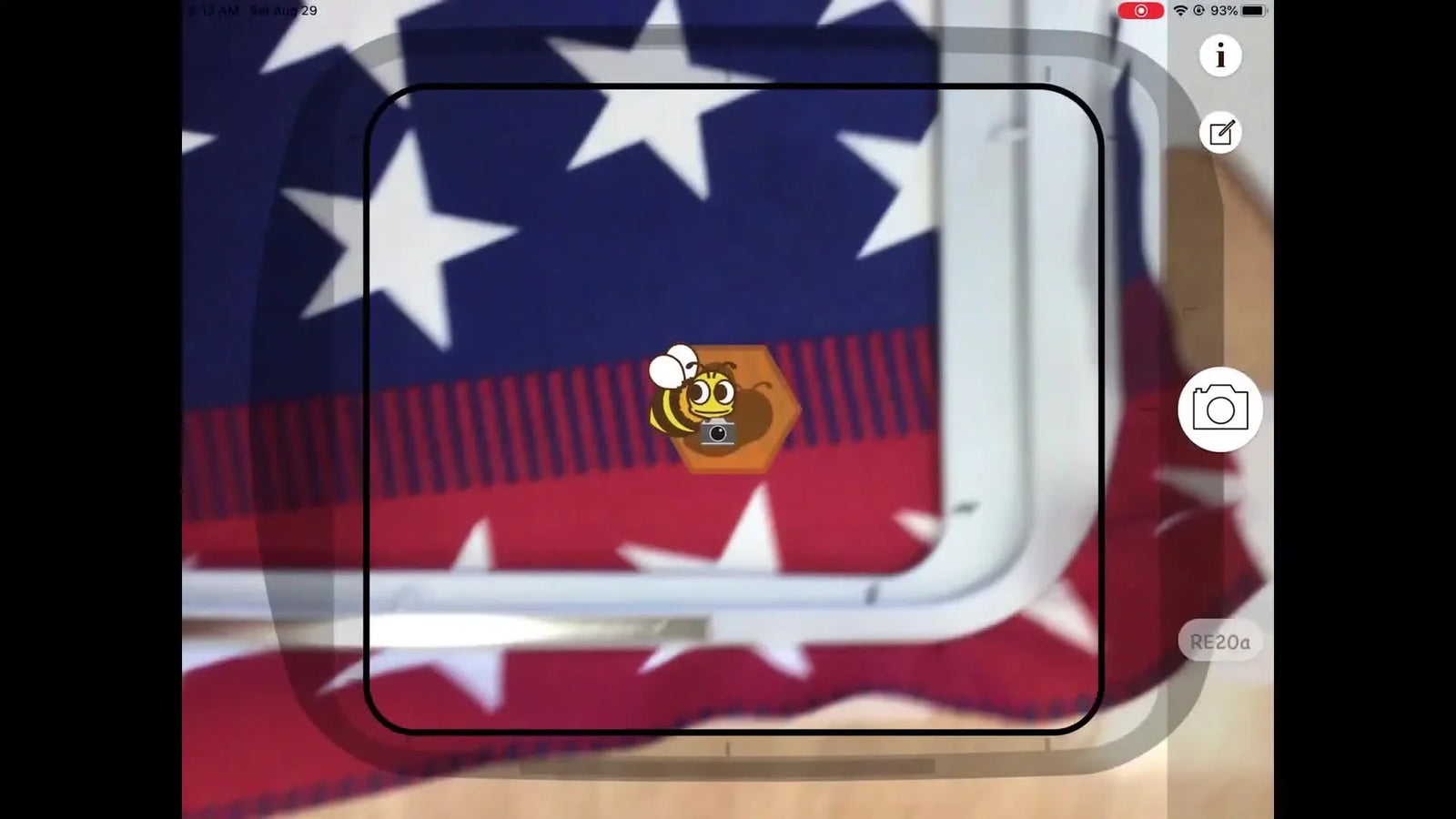

The "Bee" Calibration Sequence

1. Hoop First: Hoop your fabric. It doesn't need to be perfectly straight, but it must be flat.
2. Capture: In AcuSetter, take a photo of the hooped fabric using the iPad camera.
3. Constraint: You MUST see all 8 black markers on the hoop rim. The app uses these to calculate geometry.
4. Leveling: Wait for the "bee" icon to stop blinking (this acts as a digital spirit level).
5. Anchor: Drag the 8 green/crosshair virtual markers on the iPad screen to match the 8 physical black markers in the photo.
   • Sensory Check: Zoom in. Be precise. If these are off by 1mm, your design is off by 1mm.
6. Align: Now, drag your designs (the stars) over the specific spots on the fabric photo where you want them stitched.
7. Transfer: Send this new, calibrated map back to the S9.


Why Calibration Matters (and Why People Get “Almost Right” Results)

The app assumes the fabric in the photo is the fabric in the machine. If the fabric shifts after the photo is taken, the calibration is worthless.

The "Hoop Burn" Problem: Traditional friction hoops use an inner and outer ring. To secure thick fabrics, you have to jam them together, which can leave permanent shiny rings ("hoop burn") on delicate velvets or cause hand strain. Even worse, if the fabric slips 2mm while you walk to the machine, the AcuSetter photo is now a lie.

Warning: Magnet Safety. If you upgrade to third-party magnetic hoops to solve the slipping issue, be aware: these use industrial-grade magnets. They can pinch fingers severely. Do not use if you have a pacemaker, and keep them away from credit cards and hard drives.

Decision Tree: Fabric Type → Stabilizer Choice

Use this logic flow to ensure your foundation is solid before calibration:

• Is the fabric Stretchy (T-shirt, Jersey)?
  • YES: Use Cutaway Stabilizer. (Must handle: prevents design distortion).
  • NO: Go to next.
• Is the fabric Lofty/Texture (Towel, Velvet)?
  • YES: Use Tearaway/Cutaway Backing + Water Soluble Topping (prevent stitches sinking).
  • NO: Go to next.
• Is it Standard Cotton/Woven?
  • YES: Use Tearaway Stabilizer (medium weight).

If you are struggling to hoop thick items like towels or jackets, traditional generic methods often fail. Improving your technique on hooping for embroidery machine basics is step one, but knowing when your tool is the limiting factor is step two.

The Stitch-Out Moment: Attaching the RE20a Hoop and Letting the S9 Prove the Placement

This is the moment of truth.

1. Touch: Slide the hoop onto the carriage arm.
2. Sound: Listen for the solid click or engagement of the pins.
3. Secure: Turn the locking key. It should feel firm. If it wiggles, re-seat it.
4. Speed Check: Before pressing start, check your speed slider.
   • Beginner Sweet Spot: 600 SPM (Stitches Per Minute). Do not go full throttle yet. Faster speeds increase vibration and the chance of thread breakage.
5. Start: Press the button.

Success Outcome: The machine moves to the exact coordinate you selected on the iPad and lays the stitches over the pattern perfectly.

Operation Checklist (Right before you press Start)

• Clearance: Is there a wall or coffee cup behind the machine? The arm needs space to move back.
• Presser Foot: Is it set to "P" (Embroidery Foot)?
• Needle: Are you using a fresh needle? (Organ Blue Tip 75/11 is excellent for general S9 embroidery).
• Bobbin Case: Is the yellow dot on the bobbin case aligned (if applicable)?
• Top Tension: Is the thread seated deeply in the tension discs? (The "dental floss" feeling).


Troubleshooting the Two Problems That Make People Quit Embroidery

When things go wrong, don't guess. Follow this specialized diagnostic path.

Symptom table:

Note on Hoop Sizes

Many beginners search for terms like janome embroidery machine hoops hoping to find a "giant" 8x12 hoop for the S9.

• The Hard Truth: The S9 has a specific maximum limit. You cannot buy a bigger field.
• The Alternative: If you need to sew huge jacket backs, you are looking at split designs (multi-hooping) or upgrading to a dedicated embroidery-only machine (like the 500E/550E series).


The Upgrade Path: When to Stay with the S9 Workflow—and When to Upgrade Your Tools for Speed

The S9 is a marvel of technology, but it requires patience. As you gain confidence, you will naturally begin to calculate the value of your time.

The "Hobbyist" Zone (Stay Here)

If you embroider 1-3 items a week and enjoy the process of digital layout, the S9 + AcuSetter + Standard Hoops is a perfect ecosystem.

The "Frustration" Zone (Level 1 Upgrade)

If you dread the hooping process because of wrist pain, hoop marks on delicate items, or the inability to hoop thick towels:

• Solution: Magnetic Hoops.
• Why: They use magnetic force to clamp rather than friction. This eliminates "hoop burn" and makes hooping thick items instant. It turns a 5-minute struggle into a 30-second task.

The "Production" Zone (Level 2 Upgrade)

If you are taking orders for 20 team shirts, the S9's single-needle limitation will hurt. You have to stop the machine to change thread colors manually 10 times per shirt.

• Solution: Multi-Needle Machine (e.g., SEWTECH).
• Why: These machines hold 10-15 colors at once. You press "Start," and the machine sews the entire design without you.
• Comparison: Owners of dedicated units often look for janome 500e hoops or janome memory craft 500e hoops compatible gear, but moving to a multi-needle is the only way to gain automated speed.

Your job today is to master the S9. Build a calm, repeatable workflow—Wi-Fi first, Layout second, Calibration third, Stitch-out last. Once you hit the limits of that workflow, you'll know exactly which tool you need to buy next.

FAQ

• Q: How do I prevent Janome Skyline S9 “Bird’s Nest” tangles under the fabric during embroidery?
  A: Re-thread the Janome Skyline S9 top thread with the presser foot UP, because bird’s nests usually mean the top thread is not seated in the tension path.
  • Lift: Raise the presser foot before threading so the tension discs open.
  • Re-thread: Follow the full top thread path and pull near the needle; it should glide with slight “dental floss” resistance.
  • Verify: Check the bobbin is wound evenly (a spongy bobbin can worsen messy stitch-outs).
  • Success check: The underside shows a clean bobbin line (not a big thread wad), and the machine stitches without jamming.
  • If it still fails: Reduce speed to about 600 SPM and re-check the thread path for a missed guide.
• Q: What is the correct Wi-Fi setup sequence for Janome Skyline S9 to stop AcuEdit/AcuSetter connection failures?
  A: Use the Janome Skyline S9 Settings menu to enable Wi-Fi and IP Address, then connect to a 2.4GHz network if the router is dual-band.
  • Enable: Open Settings (gear icon) → Wi-Fi ON → IP Address ON.
  • Connect: Select the home network and type the password carefully (case-sensitive; show characters so you can confirm).
  • Prefer: Choose a 2.4GHz/Guest network if a 5GHz mesh network keeps failing.
  • Success check: The Wi-Fi icon on the Janome Skyline S9 toolbar is solid (not blinking).
  • If it still fails: Restart the router and machine, then consider assigning a Static IP in Janome Skyline S9 settings.
• Q: How tight should fabric be hooped on a Janome Skyline S9 hoop to avoid puckering and distortion?
  A: Hoop fabric on a Janome Skyline S9 hoop so it is taut and flat, not stretched like a “drum skin,” especially on knits.
  • Match: Use Cutaway stabilizer for stretchy knits; Tearaway for standard woven cotton; add water-soluble topping for towels/lofty fabrics.
  • Bond: Apply temporary spray adhesive to bond fabric to stabilizer to prevent micro-shifting.
  • Choose: Use the smallest Janome Skyline S9 hoop that fits the design to reduce flagging/bounce.
  • Success check: The fabric surface feels flat and firm, and pulling the edges does not visibly distort the weave/knit.
  • If it still fails: Stop and re-hoop—puckering generally cannot be “fixed” after stitching without unpicking.
• Q: How do I get accurate placement with Janome Skyline S9 AcuSetter “8-marker” calibration without “almost right” results?
  A: Calibrate Janome AcuSetter only after the fabric is stable in the hoop, and make sure all 8 black hoop markers are fully visible in the photo.
  • Hoop: Hoop first; keep the fabric flat so it cannot shift after the photo is taken.
  • Capture: Take the photo and confirm all 8 black markers on the hoop rim are visible.
  • Align: Zoom in and drag the 8 green/crosshair markers precisely onto the 8 physical markers.
  • Success check: After transfer, the stitch-out lands exactly where the iPad layout was placed (no consistent offset/rotation).
  • If it still fails: Re-take the photo after re-hooping, because any fabric shift after the photo invalidates the calibration.
• Q: How can I prevent Janome Skyline S9 needle breakage from hitting the hoop during embroidery?
  A: Run the Janome Skyline S9 “Trace” function and confirm hoop seating before starting, because needle breakage often comes from hoop collisions or overly thick materials.
  • Seat: Slide the hoop onto the carriage arm until it clicks, then turn the locking key firmly; re-seat if it wiggles.
  • Trace: Use Trace before stitching to confirm the design path clears the hoop edges and clamps.
  • Slow: Start around 600 SPM to reduce vibration while learning.
  • Success check: The needle traces the full boundary without contact, and the first stitches form without popping or snapping.
  • If it still fails: Switch to a stronger needle option (often a larger size or titanium needle helps on tough stacks) and re-check placement.
• Q: What safety steps prevent Janome Skyline S9 carriage arm collisions and calibration issues when switching to embroidery mode?
  A: Keep hands and objects clear when the Janome Skyline S9 initializes in embroidery mode, because the carriage arm moves fast to find “home.”
  • Clear: Remove cups/tools behind the machine so the arm has full travel space.
  • Wait: Let initialization finish before touching the hoop area.
  • Confirm: Attach the embroidery foot set to “P” and ensure the hoop is properly locked before pressing Start.
  • Success check: The carriage completes homing smoothly with no bumps, grinding, or sudden stops.
  • If it still fails: Power down and inspect for physical obstructions; repeated collisions may require dealer inspection.
• Q: When should a Janome Skyline S9 user upgrade from technique fixes to magnetic hoops or a multi-needle SEWTECH machine for embroidery efficiency?
  A: Use a tiered approach: optimize setup first, upgrade to magnetic hoops if hooping is the bottleneck, and move to a multi-needle SEWTECH machine when manual color changes become the time drain.
  • Level 1 (Technique): Improve stabilizer matching, use spray adhesive to prevent shifting, and slow to about 600 SPM for stability.
  • Level 2 (Tool): Choose magnetic hoops when wrist pain, hoop burn on delicate fabrics, or thick items (like towels/jackets) make traditional hoops unreliable.
  • Level 3 (Capacity): Choose a multi-needle machine when frequent multi-color designs require constant stopping for thread changes (production runs).
  • Success check: Hooping time drops (often from minutes to seconds) and placement/puckering issues decrease noticeably.
  • If it still fails: Re-check fabric/stabilizer pairing first—many “tool problems” are still foundation problems.
