Mickey on a Mask Without the Hoop Burn: Floating a Batik Panel on the Brother Luminaire XP1 (Projector Placement Included)

When you’re embroidering something as small and awkward as a face mask panel, the usual “tight hooping” advice isn't just difficult—it’s dangerous. It creates hoop burn (those crushed rings that won't iron out), distortion, and a panel that simply won’t sit flat. Linda’s solution in this video is the classic sticky-stabilizer float. When done with the right sensory checks, it is clean, fast, and surprisingly repeatable.

And yes, I’ve heard the same comments for years in my workshops: “I’m tired of masks,” “they’re hard to breathe in,” “where’s the template,” “what machine is that,” and “how did you get Mickey to face Minnie?” Let's strip away the noise and focus on the craft. The floating technique is the star here. You can apply this physics-based method to any small pre-cut panel (pockets, cuffs, baby bibs) where hooping directly is a pain.

The Calm-Down Truth: Brother Luminaire Innov-is XP1 Mask Embroidery Is Easier When You Stop Hooping the Fabric

If you’re staring at a tiny mask piece and thinking, “There’s no way I can hoop that without wrecking it,” you’re not wrong. Thick cottons (like batik) and small panels don’t behave like a flat quilt block. They resist the hoop, and forcing them causes fabric shearing.

Linda is using the Brother Luminaire Innov-is XP1 and a standard embroidery hoop, but she is floating the mask panel on adhesive stabilizer instead of clamping the fabric in the rings. That one choice reduces distortion and makes placement more forgiving—especially when you add the Luminaire projector to the mix.

A quick note from the comments: several viewers asked what machine she’s using. It’s the Brother Luminaire Innov-is XP1, and the projector feature is doing real work here—not a gimmick. It allows you to visualize the final result on the substrate before a single stitch is formed.

The “Hidden” Prep That Prevents Shifting: Perfect Stick Stabilizer Scoring Done the Right Way

This is where beginners fail 80% of the time. Linda hoops Perfect Stick stabilizer with the paper side UP, then scores the paper.

The Sensory Rule: You are cutting paper, not fiber.

• Touch: Use a pin or a sharp needle, not heavy scissors.
• Sound: Listen for a crisp zipping sound of paper tearing. If you hear a dull crunch, you are cutting too deep and slicing the stabilizer mesh.
• Sight: The stabilizer underneath should remain taut and unbroken white.

Here’s the workflow exactly as shown:

1. Hoop Tight: Place Perfect Stick in the hoop with the glossy paper side facing up. It should sound like a drum when tapped.
2. Score Lightly: Use a sharp scoring tool to score an “X” (or straight lines) into the paper layer inside the hoop perimeter.
3. Peel Back: Lift the paper execution from the center out to reveal the sticky surface.

Why scoring matters (the part most people skip): if you try to peel without scoring, you tug the stabilizer from the edges, warping the adhesive field. Your “float” becomes a slow drift during stitching, ruining registration.

If you’re used to the concept of a sticky hoop for embroidery machine, this is the DIY equivalent—creating a sticky surface manually using hooped tearaway rather than a dedicated sticky frame.

Prep Checklist (do this before you walk to the machine)

• Stabilizer Drum Test: Tap the Perfect Stick in the hoop. Does it sound tight? If it sounds loose/flappy, re-hoop.
• Scoring Inspection: Hold the hoop up to the light. Do you see cuts through the stabilizer? If yes, start over (holes cause puckering).
• Panel Sizing: Ensure mask panel is pre-cut to final working size (Linda uses one panel at a time).
• Consumables Ready: Water-soluble topper cut large enough to cover the stitch area, plus a temporary adhesive spray (optional but helpful for topper).
• Thread Selection: Threads ready (Linda uses Brother Embroidery colors 001, 079, 900).
• Design Check: Design selected and confirmed to fit the panel (Linda’s Mickey is about 1.53" x 1.54").

The No-Pucker Move: Floating a Batik Mask Panel on Sticky Stabilizer Without Stretching It

Linda centers the pre-cut red batik panel over the exposed adhesive and smooths it down firmly by hand. This is the “floating” technique.

Two expert notes that will save you from the most common failure:

1. The "No-Stretch" Rule: Don’t “pull tight” like you are hooping. With floating, you’re aiming for neutral tension. If you stretch the fabric while sticking it down, it will snap back (relax) once removed, creating deep puckers around the embroidery.
2. The Radial Press: Press from the center outward. Use the meaty part of your thumb. You are pushing microscopic air bubbles out to maximize surface contact.

Why Batik? Linda mentions she likes batik for masks because it is a high-thread-count cotton. In production terms, a tight weave provides a stable platform for needle penetration, resulting in cleaner edges and less flagging (fabric bouncing).

If you’ve ever fought with standard hooping for embroidery machine mechanisms on small, irregular pieces, you recall the frustration of slippage. Floating is the moment you stop wrestling the hoop and start controlling the fabric through chemistry (adhesive) rather than friction (clamping).

The Placement Cheat Code: Brother Luminaire Projector Display Makes “Centering” a Real Thing

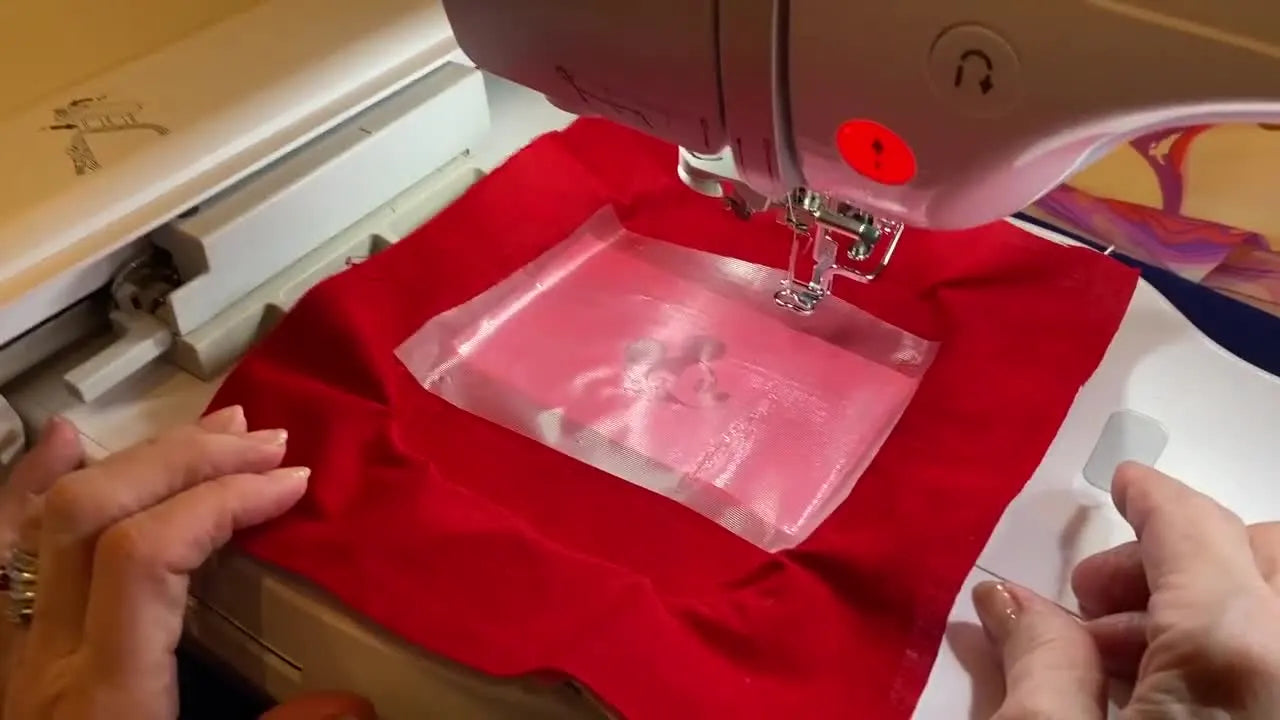

Once the hoop is on the machine, Linda adds a water-soluble topper over the fabric. She uses a little moisture at the corners (or spit-and-stick, as we call it in the shop) to keep it anchored. Then she presses the projector button.

This is where the Luminaire earns its keep vs. standard machines:

• Zero Guesswork: You aren't trusting a plastic grid template; you see the light directly on the weave.
• Aesthetic Judgment: You can judge “aesthetically pleasing” placement relative to the mask's curve before you stitch.
• Safety Zones: You can visually ensure the needle won't hit the seam allowance or breathability zones.

She also shows the machine screen details: the design is about 1.53" x 1.54", with 2326 stitches.

Pro Data: For a design this size, expect a run time of roughly 4-5 minutes depending on speed.

• Beginner Speed Limit: If you are new to floating, cap your machine speed at 600 SPM. High speeds on floated fabric can sometimes cause the adhesive bond to shake loose.

If you’re building a workflow around floating embroidery hoop methods, projector placement is the difference between “close enough” and “repeatable precision.”

Setup Checklist (right before you hit start)

• Hoop Security: Hoop fully seated on the Brother Luminaire Innov-is XP1 arm (Listen for the click so it doesn't rattle).
• Topper Security: Is the water-soluble topper taut? If it lifts, the foot will catch it.
• Projector Confirmed: Projector turned on and design placement confirmed on the actual fabric.
• Needle Clearance: Manually lower the needle bar (or use handwheel) to visually verify centeredness.
• Thread Staging: Colors staged for 3 changes (Do not leave thread tails drooping into the hoop area).

Warning: Physical Safety. Keep fingers, scissors, and loose topper edges at least 4 inches away from the active needle zone. A 90/14 embroidery needle moving at 800 stitches per minute effectively disappears to the human eye. Do not reach in while the machine is running.

Stitching the Built-In Disney Design: What to Watch During the 4-Minute Run

Linda threads the machine, lowers the foot, and starts stitching. The machine embroiders the white base of Mickey’s face first through both the topper and fabric.

During a small design like this, do not walk away. You must monitor the "Sensory Triad" of potential failure:

1. Visual: Fabric Creep (The Shadow Effect)
   • Watch the outline. If the fabric starts to drift on the adhesive, specific outlines will look misaligned or "shadowed." This means your adhesive bond failed.
   • Quick Fix: Apply a small piece of painter's tape to the very edge of the fabric (outside the stitch zone) to hold it down.
2. Auditory: Sound of Needle Strikes
   • A rhythmic thump-thump is good. A sharp slap-slap usually means the fabric is flagging (lifting up with the needle and slapping back down). This causes bird-nesting.
3. Tactile: Tension Check
   • Look at the bobbin side occasionally. You should see about 1/3 white bobbin thread in the center of the satin column.

Linda notes the Luminaire has a convenient function that drops the presser foot automatically, which reduces setup fatigue.

A comment asked, “How did you get Mickey to face Minnie?” The video shows Mickey being stitched; the “facing” effect is typically achieved by choosing a mirrored/rotated companion design or flipping orientation on-screen. Use the Luminaire’s on-screen rotate/mirror tools, and always verify with the projector.

If you’re planning to scale this beyond a couple of gifts, this is where hooping station for embroidery logic enters the chat: effective placement tools reduce the human error of "eyeballing it."

Operation Checklist (what you confirm while it’s running)

• Adhesion Check: The fabric stays fully stuck down (no lifting at the corners).
• Topper Control: The topper remains flat and doesn’t fold into the stitch path.
• Smooth Feeding: Thread feeds smoothly from the spool cap (no jerking movements).
• Accuracy: The stitch-out matches the projected placement you approved.

The Hygiene Finish That Makes It Wearable: Heat N Stay Fusible on the Back (Don’t Leave It Raw)

After stitching, Linda removes the hoop and tears the fabric away from the sticky stabilizer (tear-away). She specifically warns against leaving the embroidery raw on the inside of the mask.

Her finishing step is to apply Heat N Stay fusible stabilizer to the back of the embroidery. This is a non-woven fusible backing that acts as a protective filter.

Why this is non-negotiable for wearables:

• Comfort (Tactile): Embroidery backings are scratchy. Sealing them prevents skin abrasion on the face.
• Hygiene: Exposed bobbin threads trap moisture, bacteria, and lint. A fusible seal creates a smooth, wipeable barrier.
• structure: It locks the stitches in place so they don't unravel during harsh washing cycles.

Linda also shows her finished mask with elastic and mentions adding a nose wire (she tried a pipe cleaner but found it too soft, then used a wire that held shape better).

Fabric + Stabilizer Decision Tree: Pick the Backing Before You Pick the Design

Use this logic flow to avoid the "it looked good until I washed it" disaster.

Start: What fabric is your mask panel?

• Scenario A: Tight Weave Cotton (e.g., Batik, High-count Quilting Cotton)
  • Goal: Speed and ease.
  • Rx: Sticky Tearaway + Float Method + Water-Soluble Topper.
  • Finish: Fuse "Cloud Cover" or similar soft backing over the rear.
• Scenario B: Looser Weave / Lightweight Cotton
  • Risk: Pucker/Distortion.
  • Rx: Use a Fusible Poly Mesh (Cutaway) ironed on the back first, then float on sticky stabilizer. The poly mesh adds stability the fabric lacks.
  • Finish: Trim excess cutaway close to stitch.
• Scenario C: Stretchy Knit / Jersey
  • Risk: Extreme distortion.
  • Rx: DO NOT use Tearaway alone. You must use a Cutaway stabilizer. Float on sticky stabilizer? Only if you pre-stabilize the knit with a fusible backing first (like fusible no-show mesh).
  • Rule: If the fabric stretches, the stabilizer must stay (Cutaway).

Troubleshooting the “Floating on Sticky” Method: Symptoms, Causes, Fixes

Floating is fast, but it relies on chemistry (glue) rather than mechanics (hoop). Here is the diagnostic table I use in the studio:

Symptom 1: The design outline is OFF (gap between fill and outline)

• Likely Cause: The fabric shifted slightly during the high-speed fill stitch.
• Quick Fix: Slow machine speed down to 600 SPM.
• Prevention: Use a fresh piece of sticky stabilizer. The adhesive loses grip after one or two uses.

Symptom 2: Puckering around the design (funhouse mirror effect)

• Likely Cause: You "stretched" the fabric while smoothing it onto the sticky paper.
• Quick Fix: Press with steam (no motion, just press) to relax fibers.
• Prevention: Lay the fabric down gently. Do not pull. Let it "fall" onto the glue.

Symptom 3: Needle gumming up / Shredding thread

• Likely Cause: Friction heat is melting the adhesive onto the needle.
• Quick Fix: Wipe the needle with rubbing alcohol.
• Prevention: Use a non-stick embroidery needle (Titanium coated) or apply a drop of "Sewer's Aid" silicone to the needle.

Symptom 4: Sticky residue messes up your workflow

• Likely cause: Adhesive stabilizer is doing its job—your handling is the bottleneck.
• Fix: In small-batch work, accept some cleanup time. In lighter production, this is a trigger availability signal (see below).

The Upgrade Path (Without the Hard Sell): When Magnetic Hoops and Multi-Needle Machines Actually Pay Off

If you’re making one mask for yourself, Linda’s method regarding sticky stabilizer is perfect. However, if you are scaling up, you will hit a wall called "Handling Fatigue."

Here is the commercial reality check based on production volume:

Upgrade Trigger #1: The "Hoop Burn" & Fatigue Crisis

If stitches take 4 minutes but prep takes 8 minutes (peeling paper, scoring, aligning), you have a workflow bottleneck. Doing this 50 times a day will injure your wrists.

• The Problem: Traditional hoops require force and leave ring marks (hoop burn) on sensitive fabrics like velvet or performance wear.
• The Solution Level 1: Better stabilizer prep (Linda’s method).
• The Solution Level 2 (Tooling): Magnetic Hoops. Brands like SEWTECH offer magnetic embroidery hoops for brother machines.
  • Why: They clamp fabric instantly using magnetic force without forcing it into rings. No hoop burn, no wrist strain, and 50% faster reloading.

Warning: Magnet Safety. Magnetic hoops (specifically the industrial strength ones) are incredibly powerful. Pinch Hazard: Do not place fingers between the brackets. Medical Safety: Keep magnets away from pacemakers and implanted medical devices. Always use the provided spacers when storing them.

Upgrade Trigger #2: Consistency Anxiety

If you need the logo in the exact same spot on 100 shirts, "eyeballing it" with a float method is risky.

• The Problem: Human error in alignment increases as you get tired.
• The Solution: A Hooping Station.
  • Why: Use a fixture like the hoopmaster hooping station logic (or simple station fixtures) to ensure the chest logo is always 4 inches down, centered. This creates factory-level consistency.

Upgrade Trigger #3: The Color Change "Baby-sitting"

Linda’s Mickey has 3 color changes. On a single-needle machine, that is 3 times the machine stops and waits for you to thread it.

• The Problem: You cannot walk away. Your labor is tied to the machine.
• The Solution: A Multi-Needle Machine.
  • Why: Machines like the SEWTECH multi-needle series hold 10-15 colors at once. You press start, and the machine handles all changes automatically. You are free to hoop the next item while it runs. This is the single biggest leap in profitability.

Upgrade Trigger #4: Size Limitations

Linda works small here. But if you want to embroider a full jacket back?

• The Problem: Standard hoops are too small, requiring "split designs" (a nightmare).
• The Solution: Large format hoops, such as a brother 5x7 magnetic hoop or larger 8x12 options, allow for single-pass stitching on larger garments without re-hooping.

A Final Reality Check: Comfort, Breathability, and Why Placement Matters on a Mask

A few comments push back on masks being uncomfortable or hard to breathe in. Embroidery won’t fix breathability—it actually adds density.

To keep it wearable:

1. Placement: Keep designs small and to the side (cheek/chin area), away from the mouth zone effectively.
2. Backing: Always fuse the back.
3. Validation: Use the projector (or a paper printout template) to verify position on the actual curved surface.

If you copy Linda's sequence—sticky prep + neutral float + projector verification + fusible finish—you’ll get a clean result that looks like it came from a boutique, not a struggle session.

FAQ

• Q: How do I score Brother Perfect Stick stabilizer correctly for floating a small face mask panel without cutting through the mesh?
  A: Score only the paper layer lightly, then peel to expose adhesive—do not slice the stabilizer.
  • Use a pin/needle or sharp scoring tool and make an “X” or straight lines inside the hooped area.
  • Listen for a crisp “zip” of paper tearing; avoid a dull “crunch” sound that means you cut too deep.
  • Peel from the center outward so the stabilizer stays flat and the adhesive field stays even.
  • Success check: the stabilizer underneath remains taut, unbroken, and white with no visible cuts/holes.
  • If it still fails, re-hoop a fresh piece and repeat the scoring with less pressure.
• Q: What is the correct “drum tight” test when hooping Perfect Stick stabilizer on a Brother Luminaire Innov-is XP1 embroidery hoop?
  A: Hoop Perfect Stick so tight it taps like a drum before scoring and peeling.
  • Place Perfect Stick in the hoop with the glossy paper side facing up.
  • Tap the hooped stabilizer with a fingertip before scoring.
  • Re-hoop immediately if it sounds loose/flappy because loose stabilizer leads to drift.
  • Success check: a firm, drum-like tap sound and a smooth, flat surface with no ripples.
  • If it still fails, check the hoop is evenly tightened all the way around and start over with a new piece.
• Q: How do I float a pre-cut batik face mask panel on sticky stabilizer without causing puckering after embroidery?
  A: Use neutral tension—do not pull the fabric tight while sticking it down.
  • Lay the pre-cut panel onto the exposed adhesive gently and let it “fall” into place.
  • Press from the center outward using your thumb (radial press) to push out micro air bubbles.
  • Avoid stretching while smoothing; stretching now often rebounds into puckers after removal.
  • Success check: the panel lies flat with no edge lift and no “springy” tension when touched.
  • If it still fails, press with steam (no sliding motion) to relax fibers and re-evaluate whether the fabric was stretched during placement.
• Q: On a Brother Luminaire Innov-is XP1, what is a safe beginner stitching speed for floating embroidery on sticky stabilizer to prevent fabric shift?
  A: Cap speed at 600 SPM as a safe starting point when learning floating to reduce adhesive bond failure.
  • Set the machine speed limit to 600 SPM before starting the design.
  • Watch the outline early in the run for any “shadow” misalignment that indicates creep.
  • Slow down further if the fabric starts drifting during dense fill stitching.
  • Success check: outlines stay aligned with fills with no double-edge “shadow” effect.
  • If it still fails, switch to fresh sticky stabilizer because reused adhesive often loses grip.
• Q: What does correct bobbin-thread showing look like during a satin stitch on the Brother Luminaire Innov-is XP1 when stitching a small Disney design?
  A: Aim for about 1/3 bobbin thread showing in the center of the satin column on the back.
  • Pause occasionally and inspect the underside during the run (do not walk away on small floated pieces).
  • Adjust only if you see extreme bobbin showing (top tension too loose) or no bobbin showing (top tension too tight).
  • Keep thread feeding smooth and prevent loose thread tails from dropping into the hoop area.
  • Success check: the bobbin side shows a balanced “railroad track” look with roughly 1/3 bobbin thread centered.
  • If it still fails, re-thread the top path carefully and verify the topper is not catching and pulling stitches.
• Q: How do I fix needle gumming and thread shredding when using adhesive sticky stabilizer for floating embroidery on a Brother Luminaire Innov-is XP1?
  A: Clean adhesive off the needle and reduce stick-related friction.
  • Stop the machine and wipe the needle with rubbing alcohol to remove adhesive residue.
  • Switch to a non-stick (often titanium-coated) embroidery needle if gumming repeats.
  • Apply a tiny amount of silicone (such as Sewer’s Aid) to the needle as a preventive step if needed.
  • Success check: thread stops fraying and stitches form smoothly without squeaking or drag.
  • If it still fails, replace the needle and use a fresh sticky stabilizer piece because heavy adhesive buildup can accelerate heat and residue.
• Q: What are the needle-zone safety rules when running a Brother Luminaire Innov-is XP1 at 800 stitches per minute on floated embroidery?
  A: Keep hands and loose materials at least 4 inches away from the active needle zone and never reach in while stitching.
  • Trim or secure topper edges so the presser foot cannot catch and pull them into the stitch path.
  • Keep scissors, fingers, and thread tails out of the hoop area before pressing start.
  • Use the handwheel/manual needle-lower check before running to confirm clearance and centered placement.
  • Success check: nothing enters the needle path during motion and the topper remains flat and controlled.
  • If it still fails, stop the machine, clear the area, and restart only after the workspace is fully tidy.
• Q: When should a shop upgrade from sticky-stabilizer floating to SEWTECH magnetic embroidery hoops or SEWTECH multi-needle embroidery machines for mask-style small panels?
  A: Upgrade when prep time and handling fatigue become the bottleneck, or when consistency and color-change babysitting limit output.
  • Level 1 (technique): refine scoring/peeling, use neutral-tension floating, and slow to 600 SPM when needed.
  • Level 2 (tooling): move to SEWTECH magnetic hoops when hoop burn, wrist strain, or slow reloading dominates the day.
  • Level 3 (capacity): move to SEWTECH multi-needle machines when repeated color changes and constant supervision block productivity.
  • Success check: prep time drops below stitch time and placement stays repeatable across multiple pieces.
  • If it still fails, add a hooping station workflow to remove “eyeballing” errors before scaling volume.
