Nail Logo Placement on a Bernina 700 Without Chalk: Print & Stick Target Paper + Pinpoint Placement (and a Faster Bulk Workflow)

Master the "Float & Align" Workflow: Precision Placement for Uniforms without the Stress

When you’re stitching logos on uniforms, the stress isn't usually the embroidery design itself—it’s the placement. One crooked logo on a scrub top isn't just a wasted garment; it turns a "quick profitable batch" into a redo, a refund, or an awkward conversation with a client.

Embroidery is a game of millimeters. This guide breaks down a battle-tested workflow (demonstrated on a Bernina 700, but applicable to many systems) built for real-world production. We will use a "Float" method combined with a reusable printed crosshair sticker and digital Pinpoint Placement. This removes the reliance on "perfect hooping" and shifting chalk marks, giving you a repeatable system for bulk orders.

The Uniform Logo Problem on Scrub Tops: Stop Trusting Your Eyes Alone (and Stop Marking Fabric)

If you’ve ever tried to line up a left-chest logo on a stack of medical smocks or scrubs, you know the trap. The garment seams aren't always perfectly square from the factory, the fabric often has mechanical stretch, and your "looks straight" estimation on the hoop station becomes "why is it climbing toward the collar?" once it is stitched.

The Engineering of the Failure

The human eye is susceptible to parallax errors. When you look at a hoop from an angle, center looks different than when you are directly above it. Furthermore, relying on the fabric's weave for alignment is dangerous with modern scrubs, which often use bias cuts or flexible poly-blends that warp under tension.

The Solution

The workflow presented here is simple and production-friendly:

1. Isolate Placement: Print the design with a crosshair on DIME Print & Stick Target Paper.
2. Commit Physically: Stick the target to the garment while it is flat (relaxed state).
3. Align Digitally: Use the machine's laser or Pinpoint Placement to align the needle to that crosshair.

Note on Machine Capabilities: The demonstration uses a Bernina 700 with Pinpoint Placement. If your machine lacks this specific feature, you can still use the printed template as a visual aid, but your physical hooping must be perfectly square. On the Bernina 700, the alignment tool acts as a safety net, making the "Floating" technique safe rather than risky.

Print & Stick Target Paper: The “Reusable Crosshair Sticker” That Makes Placement Repeatable

Corinne uses DIME Print & Stick Target Paper as a printable, translucent, restickable template. This isn't just about seeing the design; it's about creating a glowing "X" marks the spot for your machine.

Why Translucency Matters (Visual Feedback)

Unlike standard printer paper, the translucent nature of this media allows you to see the fabric texture underneath. You can visually verify if a pocket seam or a texture line is running parallel to your design box before you ever take it to the machine.

The "Restickable" Economy

In a production run of 20 scrubs, you don't need to print 20 stickers. The adhesive is designed to be peeled and reused. Corinne notes the template can typically be reused several times before it loses tack. This makes it efficient for bulk uniforms: consistent placement without re-measuring every single garment.

If you are shopping for tools to improve your volume speed, this focus on consistency is usually where professional embroiderers start researching a dedicated hooping station for embroidery. It is not just a fancy table; it creates a standardized physical environment so every logo lands in the exact same spot relative to the collar.

The “Hidden” Prep Before You Stitch: Template Printing, Garment Flattening, and a No-Surprises Work Surface

Embroidery victories are won in the preparation phase. Before you touch the hoop, executing these "invisible" steps prevents 80% of placement headaches.

1) Resize for Reality (Scale First, Stitch Second)

In the video, the design is printed, visually assessed on the garment, and deemed too large. It is then resized before the final template is printed.

• Expert Tip: Always view your design at 100% scale on the physical garment. A logo that looks "polite" on a computer screen can look like a billboard on a Size Small scrub top.

2) The Crosshair is King

You must print the design with the crosshair (center axes) enabled in your software. Without these lines, you are guessing the center of an irregular shape.

Warning: Printer jams can ruin expensive target paper. The translucent film can "grab" regular paper in the tray due to static or friction. Always empty your printer tray of standard paper before loading a single sheet of Target Paper to prevent multi-feeds.

3) Flatten Like You Mean It

Lay the smock flat on a hard table. Do not "hold it up" to judge placement. Gravity stretches fabric. You need the fabric in its relaxed, neutral state when you apply the sticker.

4) The Hidden Consumables List

Don't start without these close by:

• Temporary Spray Adhesive (505): For the stabilizer.
• Tweezers: For grabbing thread tails.
• 75/11 Ballpoint Needles: Best for knit/poly-blend scrubs to avoid cutting fibers.
• Applique Scissors/Snips: For trimming stabilizer later.

Prep Checklist (Do this *before* you hoop)

• Design resized to visually fit the specific garment size (Size S vs XL often need different sizing).
• Design printed on Target Paper with Crosshairs Visible.
• Printer tray cleared to prevent jams.
• Garment laid dead-flat on a table; no hanging edges pulling the fabric.
• Template peeled and ready (handle by edges to preserve adhesive).


Placement on the Garment: Stick the Template Where You Want the Logo to Live

This step is manual and relies on your judgment.

1. Peel: Remove the backing.
2. Position: Place the sticky template on the garment.
3. Verify: Step back. Does it look straight to the eye? Is it centered relative to the pocket or placket?
4. Commit: Smooth it down firmly.

Production Consistency Rule: If doing a team set, measure the distance from the shoulder seam and the center placket for the first shirt. Write it down. Use those coordinates for every subsequent shirt. Consistency matters more than absolute perfection.

Floating on Cutaway Stabilizer in a Bernina Large Oval Hoop: Fast, Clean, and Less Stress on the Fabric

Now we build the foundation. We are using the "Floating" technique.

The Physics of Floating

"Floating" means we hoop only the stabilizer, and stick the garment on top.

• Why for Scripts/Uniforms? Hooping a scrub top is a nightmare because of pockets, seams, and slippery fabric. Clamping thick seams in a hoop creates "flagging" (bouncing fabric) which causes birdnests. Floating keeps the fabric stress-free.

The Stabilizer Choice: Cutaway is Non-Negotiable

For any garment you wear (especially knits or loose weaves like scrubs), you generally must use Cutaway Stabilizer. Tear-away will disintegrate over time and with washing, causing the logo to distort.

• Weight: Use a medium weight (2.5 oz) cutaway for standard scrubs.

The Setup Sequence

1. Hoop the Stabilizer: Hoop one layer of cutaway. Tighten the screw.
2. Sensory Check (Tactile & Auditory): Tap the stabilizer. It should sound like a drum—thump, thump. If it sounds loose or feels spongy, re-hoop. Loose stabilizer guarantees shifting holes.
3. Apply Adhesive: Lightly spray 505 adhesive onto the stabilizer window.
   • Tip: Spray into a box to avoid gumming up your floor. It should feel tacky (like a Post-it note), not wet.
4. Float the Garment: Smooth the garment onto the sticky stabilizer. Do not stretch it! Just pat it down flat.

This is the classic floating embroidery hoop approach: The stabilizer provides the tension; the adhesive provides the temporary hold.

Setup Checklist (Right before mounting the hoop)

• Cutaway stabilizer hooped tight (Drum-skin tension test passed).
• 505 spray applied lightly and evenly.
• Garment pressed onto stabilizer without stretching or bubbles.
• Target sticker is still firmly attached to the garment.
• Fabric excess is folded away from the attachment bracket mechanism.


Pinpoint Placement on the Bernina 700: Align Center + Correct Rotation Without Rehooping

This is where the magic happens. In traditional embroidery, if you hooped the fabric slightly crooked, you had to un-hoop and start over. With Pinpoint Placement, we adjust the machine to match the fabric.

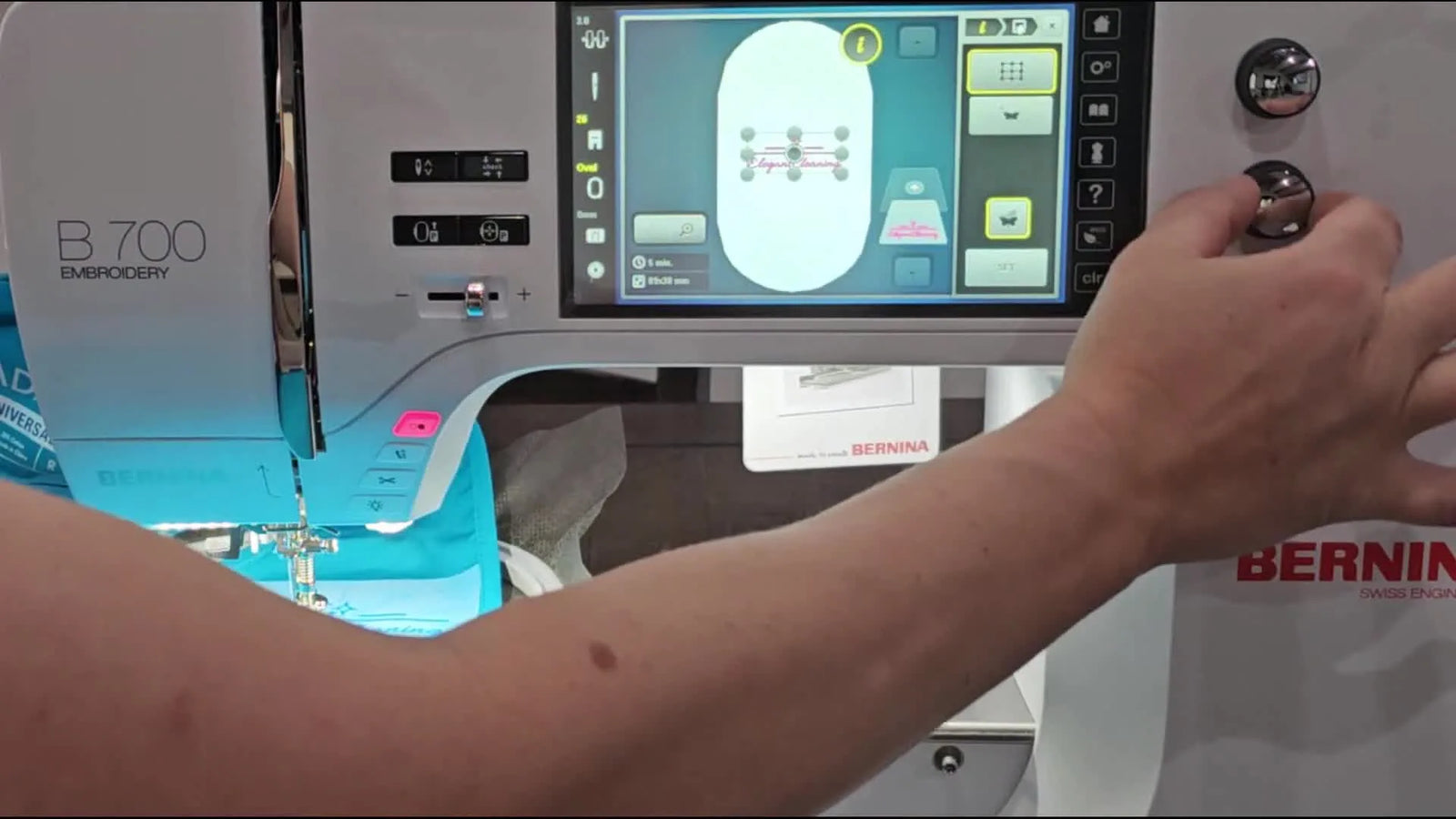

1) Activate Pinpoint Placement

Open the tool on the screen (Grid Icon). Select the Grid option.

2) Align the Center (The Ballpark)

Select the center node on the screen. Use the multifunction knobs to move the hoop until the needle is hovering directly over the center of the crosshair on your sticker.

• Visual Check: Lower the needle (using the handwheel) until the tip is millimeters away from the sticker center to confirm accuracy.

3) Correct the Rotation (The Angle Fix)

This is crucial. The garment might be rotated 3 degrees clockwise on the stabilizer.

1. Select a Right/Left alignment point on the screen (e.g., the right edge of the design).
2. Move the needle to match the corresponding horizontal line on your crosshair sticker.
3. Press "Set".

The machine now calculates the angle difference and rotates the design to match your sticker perfectly. This turns "close enough" hooping into laser-accurate stitching.

If you are comparing equipment, this digital compensation capability is a primary reason professionals upgrade within the family of bernina embroidery machines. It trades "skill" for "technology," reducing training time for new staff.

The Basting Box + Safe Template Removal: Lock It Down Before the Real Stitching Starts

Current Status: The garment is stuck with spray, and the design is aligned. But spray isn't enough to hold the fabric during high-speed stitching.

1) The Basting Box (The Anchor)

Engage the Basting Stitch function. This sews a long-stitch rectangle around the design perimeter.

• Why? It mechanically locks the top fabric to the stable cutaway bottom. It prevents the fabric from shifting or rippling as the dense logo stitches pull on it.

2) Removing the Template

Once the basting box is sewn, the machine will pause.

• The Technique: Carefully peel up the target sticker.
• Crucial Step: Place your fingers inside the basting box and hold the fabric down while you peel. Do not pull the fabric up away from the stabilizer. You want to disturb the "sandwich" as little as possible.

Warning: Physical Hazard. Be extremely careful when placing hands near the needle bar. Ensure the machine is stopped (foot off pedal, or lock screen engaged if available) before reaching in to peel the sticker. A finger under a descending needle is a trip to the ER.

Stitching the Logo: What “Good” Looks Like While It Runs

Remove the template, double-check your thread path, and press Start.

Speed Settings: The Beginner Sweet Spot

Just because your machine can do 1000 stitches per minute (SPM) doesn't mean it should on a floating scrub top.

• Recommendation: Slow down to 600-700 SPM.
• Why? Lower speeds reduce friction and fabric flagging. It gives the thread time to relax, resulting in sharper text and flatter satin columns.

Monitoring the Run

Watch the first 100 stitches closely.

• Sound Check: A rhythmic, smooth hum is good. A slapping sound means the fabric is bouncing (need more stabilizer or better basting). A grinding sound suggests a needle deflection.
• Sight Check: Ensure the fabric isn't "plowing" (pushing) in front of the foot.

If you find yourself spending more time hooping and aligning than actually stitching, that is the moment to evaluate your hooping for embroidery machine processes. Efficiency is about the ratio regarding "Needle Up" time vs. "Needle Down" time.

The Stabilizer-Reuse Trick for Bulk Orders: Keep the Hoop Mounted and Keep Moving

Corinne shares a massive time-saver for batch runs: Don't un-hoop the stabilizer.

1. When Shirt #1 finishes, remove the hoop from the machine.
2. Snip the basting stitches and remove Shirt #1.
3. Instead of tossing the stabilizer, patch the hole! Or, if the hoop is large enough (like the Bernina Large Oval), simply move the next shirt to a fresh, unused area of the same hooped stabilizer.
4. Re-spray lightly, float Shirt #2, aligns with Pinpoint, and stitch.

In a shop setting, avoiding the re-hooping of stabilizer can save 2-3 minutes per garment. Over 50 shirts, that is hours of labor saved.

Decision Tree: Choosing Stabilizer and Hooping Method for Uniforms

Not all uniforms are the same. Use this logic flow to decide your setup.

START: Pinch your fabric.

1. Is it a standard Polycotton Scrub (Medium weight, stable)?
   • YES: Use the method in this guide (Float on 2.5oz Cutaway + Spray + Basting Box).
   • NO: Go to step 2.
2. Is it a Performance Knit / Dri-Fit (Stretchy, slippery)?
   • YES: Do NOT just float. You need a "Fusible" stabilizer (like Fusible No-Show Mesh) ironed onto the back of the shirt to stop the stretch before you float it on Cutaway. Reduce machine speed to 500 SPM.
   • NO: Go to step 3.
3. Is it Heavy Canvas / Lab Coat (Thick, stiff)?
   • YES: Traditional hooping works well here. The fabric is strong enough to resist hoop burn. You can still use the sticker method for placement.

Troubleshooting: The "Why Did It Fail?" Matrix

The Upgrade Path: When to Move Beyond Standard Hoops

The video utilizes a standard screw-tightened hoop. It works perfectly fine for low volume. However, if you are tackling 50+ uniforms a week, you will likely encounter two enemies: Hoop Burn (ring marks on polyester) and Carpal Tunnel (wrist pain from tightening screws).

Here is the professional progression path:

1. The Trigger

You notice "shiny rings" on dark navy scrubs that won't steam out, or your thumbs hurt after a job.

2. The Solution: Magnetic Force

Many makers transition workflow toward magnetic embroidery hoops. These use powerful magnets to sandwich the fabric and stabilizer without forcing them into a plastic ring.

• Benefit 1: Zero hoop burn (no friction rings).
• Benefit 2: Speed. You just "snap" and go.
• Benefit 3: Thickness handling. They clamp over thick pockets and zippers where plastic hoops fit poorly.

3. Knowing What to Look For

• If you are looking for compatible systems, you might see terms like dime magnetic hoop or dime snap hoop. These are popular third-party benchmarks.
• Specifically for Bernina owners, searching for a bernina magnetic embroidery hoop requires care—ensure the attachment arm fits your specific Series 5, 7, or 8 module.
• Recommendation: Look for generic industrial-grade magnetic frames (like Sew Tech) that offer specific adapters for your machine model. They often provide the exact same "snap and hold" utility as premium brands but allow you to afford multiple sizes for different logo scales.

Warning: Magnetic Safety. These are not fridge magnets. They are high-power neodymium magnets.
* Pinch Hazard: They snaps together with force—keep fingers clear.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place phones or credit cards directly on the magnets.

Operation Checklist (The "No-Regrets" Sequence)

Print this out and tape it to your machine table.

• Prep: Template sticker placed straight-to-eye on flat garment; smoothed down.
• Hoop: Cutaway stabilizer hooped drum-tight; 505 spray applied (tacky feel).
• Float: Garment floated onto stabilizer. No wrinkles. Excess fabric folded away from pantograph.
• Align: Pinpoint Placement Grid ON. Center aligned. Rotation corrected using L/R points.
• Secure: Basting Box function enabled and stitched.
• Clear: Sticker peeled off gently while holding fabric down.
• Run: Stitch design (Start speed: 600 SPM). Monitor for flagging.
• Finish: Remove hoop. Unpick basting. Remove fabric. Trim stabilizer.


The Payoff: “Perfect Placement Every Time” Isn’t Luck—It’s a System

What makes this workflow superior is that it removes "luck" from the equation. It is a system composed of:

1. Visual Confirmation (The Target Paper)
2. Stable Foundation (The Floating Cutaway)
3. Digital Correction (The Pinpoint Placement)

When you combine these three, you can confidently accept that 50-piece scrub order, knowing the 50th logo will look exactly as professional as the first.

FAQ

• Q: How do I prevent a printer jam when using DIME Print & Stick Target Paper for Bernina 700 uniform logo placement?
  A: Empty the printer tray and feed Target Paper one sheet at a time to prevent multi-feeds.
  • Remove all regular paper from the tray before loading the translucent sheet.
  • Load a single sheet and print the template with crosshairs enabled.
  • Handle the sheet by the edges to keep the adhesive clean.
  • Success check: The printer pulls only one sheet and the crosshair prints cleanly without skewing.
  • If it still fails: Stop and re-load with a single sheet again—don’t “force print” through repeated jams.
• Q: What is the correct stabilizer and floating setup for stitching logos on polycotton scrubs using a Bernina 700 Large Oval Hoop?
  A: Float the scrub top on hooped medium (2.5 oz) cutaway stabilizer using light 505 spray, then add a basting box before stitching.
  • Hoop one layer of cutaway stabilizer first and tighten the hoop screw.
  • Spray 505 lightly until tacky, then pat the garment flat onto the stabilizer (do not stretch).
  • Stitch a basting box to mechanically lock the fabric to the stabilizer before running the design.
  • Success check: The hooped stabilizer passes the “drum” test (firm thump, not spongy) and the fabric stays flat inside the basting box.
  • If it still fails: Re-hoop tighter and re-apply spray lightly; then slow the machine speed.
• Q: How can I tell if cutaway stabilizer is hooped “drum-tight” enough before floating a scrub top in a Bernina embroidery hoop?
  A: Use the tap test—stabilizer should feel firm and sound like a drum before mounting the hoop.
  • Tap the hooped stabilizer window and listen/feel for a crisp “thump, thump.”
  • Re-hoop if the stabilizer feels spongy or sounds dull/loose.
  • Tighten the hoop screw firmly (often more reliable with a screwdriver gently than fingers alone).
  • Success check: The stabilizer is flat, taut, and does not ripple when pressed with a fingertip.
  • If it still fails: Inspect hoop ring tension and confirm the stabilizer is seated evenly all the way around.
• Q: Why is a Bernina 700 left-chest logo still crooked even after Pinpoint Placement rotation correction with a printed crosshair sticker?
  A: The alignment reference was likely wrong—do not align the crosshair to a crooked garment seam; use consistent measured points instead.
  • Place the sticker while the garment is flat and relaxed, then visually confirm before hooping.
  • Measure and record the first garment’s coordinates (distance from shoulder seam and center placket), then repeat those measurements for the batch.
  • Use Pinpoint Placement to match the needle to the sticker crosshair center and then set rotation using a left/right point on the crosshair.
  • Success check: The needle lands precisely on the sticker crosshair center and the horizontal crosshair line matches the chosen left/right alignment point.
  • If it still fails: Remove and re-place the sticker using measured reference points, then re-run center + rotation alignment.
• Q: How do I prevent rippling inside the basting box when floating scrubs with 505 spray adhesive on a Bernina 700?
  A: Re-smooth the garment without stretching, ensure the 505 spray is tacky (not wet), and reduce stitch speed.
  • Pat the garment onto the stabilizer flat—avoid bubbles and avoid pulling the knit/poly blend.
  • Apply 505 lightly and evenly so it feels like a Post-it note tack, then baste before stitching the logo.
  • Slow the Bernina 700 down to about 600–700 SPM for better control on floated garments.
  • Success check: The fabric stays flat after basting, with no waves forming as the first stitches run.
  • If it still fails: Stop early, remove, re-float more carefully, and re-baste before committing to the full design.
• Q: What is the safest way to remove a Print & Stick target template after stitching a basting box on a Bernina 700?
  A: Stop the machine completely and peel the template while holding the fabric down inside the basting box to avoid disturbing the fabric-stabilizer “sandwich.”
  • Confirm the needle is stopped and keep hands clear of the needle bar path before reaching in.
  • Place fingers inside the basting box to anchor the garment, then peel the sticker up gently.
  • Avoid lifting the garment away from the stabilizer while peeling.
  • Success check: The fabric remains flat and fixed after removal, with no edge lifting inside the basting perimeter.
  • If it still fails: Re-smooth the fabric and re-run the basting box to re-lock the layers before stitching.
• Q: When should a uniform embroidery workflow upgrade from a standard screw-tightened hoop to a magnetic embroidery hoop or a multi-needle machine for bulk scrubs?
  A: Upgrade when hoop burn and tightening fatigue start costing time or ruining garments; start with technique fixes, then move to magnetic hoops, then consider multi-needle production capacity.
  • Level 1 (Technique): Float on cutaway + light 505 + basting box, and slow speed to reduce shifting and rework.
  • Level 2 (Tool): Switch to a magnetic embroidery hoop when shiny hoop rings on polyester or repetitive screw-tightening pain becomes a weekly issue.
  • Level 3 (Capacity): Consider a multi-needle embroidery machine when volume is high enough that setup time and thread changes dominate the job.
  • Success check: Placement errors and visible hoop marks drop, and “needle down” time increases relative to hooping/alignment time.
  • If it still fails: Track minutes per garment (hooping/alignment vs stitching) to pinpoint whether the bottleneck is process, hooping hardware, or machine throughput.
• Q: What magnetic hoop safety rules should operators follow when using high-power neodymium magnetic embroidery hoops for uniforms?
  A: Treat magnetic embroidery hoops as pinch-hazard industrial magnets and keep them away from medical devices and sensitive electronics.
  • Keep fingers clear when bringing magnet halves together because they can snap shut with force.
  • Keep magnets at least 6 inches away from pacemakers and similar medical devices.
  • Do not place phones or credit cards directly on the magnets.
  • Success check: The hoop closes without finger pinches and the fabric/stabilizer is clamped evenly without shifting.
  • If it still fails: Slow down the handling process and reposition using controlled contact rather than letting magnets “jump” together.
