PE Design 11 in Real Life: Import a PES Design, Add Clean Text, and Build a Spiral-Fill Heart (Without Getting Lost in the Ribbon)

If PE Design 11 feels like the cockpit of an alien spaceship the moment it opens, you are not alone. My twenty years in this industry have taught me one universal truth: Beginners aren’t struggling with “digitizing”—they are struggling with spatial disorientation. You are trying to find where things live in the interface while simultaneously worrying about hoop tension, thread breakage, and ruining a $30 shirt.

This guide is your flight manual. We are going to bypass the noise and focus on the three jobs that actually matter on Day One: bringing a design in, adding readable lettering, and creating a simple shape that stitches beautifully. We will bridge the gap between clicking a mouse and the physical reality of needle penetration.

This is a hands-on run-through of exactly what the video demonstrates: closing the startup Wizard, navigating the Ribbon, importing from the Library, fixing text typos (the right way), and understanding the physics of fill stitches.

Calm the PE Design 11 Startup Wizard: Close It Once, Then Work From the Ribbon Like a Pro

When PE Design 11 launches, the center panel you see is the startup Wizard. While well-intentioned, this pop-up often induces "decision paralysis" before you’ve even started. It’s not “wrong” to use it—but if your goal is to build layouts with confidence, the fastest path is simply closing the Wizard so you can see your full workspace canvas.

In the video, the instructor closes the Wizard and immediately points out the Ribbon at the top. That Ribbon is your command center: importing, text, shapes, and stitch attributes all live there.

What to expect when you’re in the right place:

• Visual: The canvas is visible and feels “empty” (a clean slate).
• Tactile: You are no longer clicking through a "Next... Next..." menu tunnel.
• Mental: You have shifted from "answering questions" to "designing."

The Mindset Shift: Treat PE Design like a physical layout table. You are arranging objects (designs, text, shapes) on a table, and then telling the machine how to sew them via attributes.

The “Hidden” Prep Before You Import a PES File: Set Yourself Up for Fewer Surprises Later

Before you import anything, we need to perform a "Pre-Flight Check." This prevents the most common beginner frustration: “It looked perfect on screen, but my machine refused to read it.”

First, confirm the file format. The video notes that Brother machines and software use PES. If you are working with brother embroidery machines, this is your native language. If you are using a different brand, consult your manual. Sending a DST file to a machine expecting PES (or vice versa) is like putting diesel in a gasoline car—it simply won't run.

Second, decide the scope of your project. Are you building:

1. A Single Element: Just one design centered.
2. A Layout: Design + Text.
3. A Composition: Design + Text + Shape.

This decision dictates your spacing. If you center your first design immediately but plan to add text later, you will have to move it anyway. Anticipating this saves you mouse clicks.

Prep Checklist (Pre-Flight Protocol):

• Interface Check: Wizard closed, Ribbon tabs visible.
• Format Check: Verify output is set to PES (for Brother) or your machine's specific format.
• Hoop Check: Ensure the software "Design Page" size matches the physical hoop you own (e.g., 4x4 or 5x7). Warning: Designing a 5x7 layout for a 4x4 hoop is a guaranteed error message later.
• Consumable Check: Do you have temporary spray adhesive, a water-soluble marking pen, and firm stabilizer ready? These "Hidden Consumables" are just as important as the software settings.

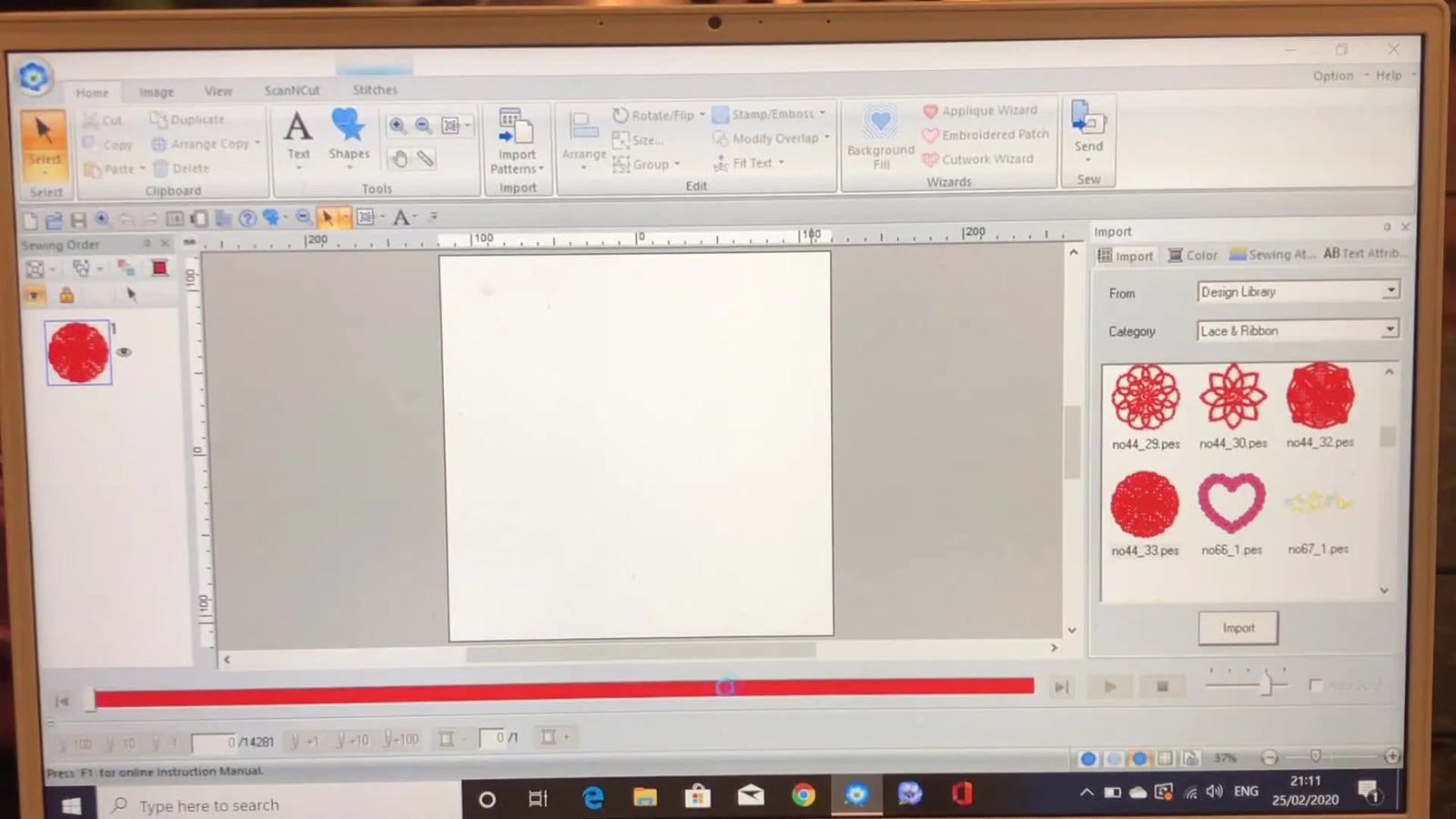

Import Patterns in PE Design 11: Use Home Ribbon → Import Patterns → From Design Library (and Change Categories)

The video’s import path is straightforward and reliable:

1. Go to the Home Ribbon.
2. Click Import Patterns.
3. Choose From Design Library.


Once the Design Library opens, you’ll see a category area with a drop-down menu. In the video, the category is changed from “Sports” to “Lace & Ribbon.” Then the instructor scrolls through the library and selects a red lace circular design to import.

Expected Outcome: The design appears on the canvas.

The "Beginner Trap" Warning: Importing is easy; organizing is hard. If you are setting up an workflow for an embroidery machine for beginners, resisting the urge to import five different designs at once. Start with one anchor element. The more dense designs you layer, the stiffness of the final patch increases. A "bulletproof" patch on a thin t-shirt will hang poorly. Keep it light.

The Center-First Habit: Move the Selection Box and Crosshair So Multi-Element Layouts Don’t Collide

After importing, the video demonstrates a critical habit: place designs into the center initially. This aligns the design with the geometric center of your hoop.

To make room for text, select the design and look for two visual anchors:

1. The Selection Box (dotted lines) with Black Handles (dots).
2. The Central Crosshair.

With the design selected, drag it downward to open "real estate" at the top of the hoop for your lettering.

Expected Outcome: The imported lace moves down, leaving clear white space above.

Why this matters: In software, moving a design is free. On the machine, moving a design often requires un-hooping and re-hooping the fabric. This "Center-First, Move-Second" workflow reduces the chance that your design drifts outside the printable area (the red safety line).

Add Lettering in PE Design 11 Text Tool: Pick Font #06, Anchor the Cursor, Type, Fix Typos, Press Enter

Text is where 60% of stitch-out failures happen. Beginners often choose script fonts that are too thin or small, causing thread nests. In the video, the process is mechanical and safe:

1. Click the Text tool (large “A” on the Ribbon).
2. Open the font drop-down.
3. Select Font #06 (A block serif font—highly recommended for beginners because it has good distinct columns).
4. Click on the canvas to set the anchor point.
5. Type the word (Example: “Sewing”).
6. Press Enter to finalize.






Fixing the classic typo (shown in the video)

The instructor types “Sewinf” by mistake. To fix it:

1. Click inside the text object.
2. Backspace to the error.
3. Type the correct letter.
4. Press Enter (listen for the rhythmic click of the mouse—don't drag away until you've confirmed).




Pro Tip on Text Density: If you scale Font #06 down below 8mm in height, the letters may become "blobs" on the fabric. If you must go small, check the pull compensation settings later or switch to a "Small Text" specific font.

Warning: Safety First. Keep fingers clear of needles and moving parts when you test-stitch your first lettering samples. Beginners often try to trim jump stitches while the machine is running. This is the #1 cause of finger injuries. Pause the machine completely before your hands enter the "Danger Zone."

Create a Heart Shape in PE Design 11 Shapes Tool: Switch Fill Stitch → Motif → Spiral → Flexible Spiral

The machine doesn't just "print" color; it lays down physical strands of thread. The Shape Tool demo illustrates this perfectly.

The workflow:

1. Choose the Shapes tool.
2. Select the Heart shape.
3. Click and drag to draw the heart.




Then, the instructor cycles through Fill Types in the Stitch Attributes panel:

• Fill Stitch: Standard back-and-forth tatami.
• Motif Stitch: Decorative pattern.
• Spiral Stitch / Flexible Spiral: Concentric circles radiating from the center.






The Physics of Fills (The Expert Insight)

Here is what the video implies but doesn't explicitly say: Fills distort fabric differently.

• Standard Fill: Pushes fabric int the direction of the stitch angle.
• Spiral Stitch: Pulls fabric toward the center like a black hole.

If you put a Spiral Stitch on a stretchy t-shirt without heavy stabilizer, you will get a "volcano" effect where the center of the heart bubbles up. If you are using unstable fabrics, stick to Standard Fills or Motif stitches that distribute tension more evenly.

The “Trace, Don’t Draw” Truth: Why Beginners Can Digitize Without Art Skills

A common limiting belief is: “I can’t draw, so I can’t digitize.” The instructor dispels this. You do not need to draw; you need to trace.

Think of PE Design 11 as a tracing paper layer over an image.

1. Import a background image (JPG/PNG).
2. Use the Shape or Pen tools to click points along the lines.
3. Let the software generate the stitches between the points.

This removes the pressure of being an artist and allows you to focus on being a technician of stitch paths.

Setup Reality Check: Your Software Layout Should Match Your Stitching Workflow

Software Perfection means nothing if the Physical setup fails.

Most beginners blame the software when text is crooked, but usually, it’s the hooping. If you find yourself spending 10 minutes trying to get a garment straight in a standard hoop, only to have it pop out or shift when you tighten the screw, your workflow is the bottleneck.

This is where beginners transition to intermediates. Experienced operators often utilize magnetic embroidery hoops. Unlike standard hoops that require significant hand strength and friction to hold fabric (which can leave permanent "hoop burn" marks on velvet or performance wear), magnetic hoops clamp from the top. They allow you to slide the fabric into position without wrestling the inner ring.

Setup Checklist (The "Don't Waste the Shirt" List):

• Visual Proof: Did you zoom in to 100% on screen to check for tiny gaps between outlines and fills?
• Spell Check: Read the text backward. (Our brains auto-correct typos when reading forward; reading backward reveals the "Sewinf" errors).
• Physics Match: Does your fill type match your fabric? (Stable fabric = Spiral OK. Stretchy fabric = Standard Fill + Cutaway Stabilizer).
• Needle Check: Is your needle fresh? A dull needle will push fabric down into the bobbin plate, regardless of your software settings.

Decision Tree: Match Fabric + Stabilizer + Hooping Method

The software creates the plan; the stabilizer provides the foundation. Use this decision tree to ensure your PE Design file survives the real world.

Step 1: Identify Fabric Stiffness

• Non-Stretch (Denim, Canvas, Twill):
  • Stabilizer: Tear-Away.
  • Hooping: Standard or Magnetic.
• Stretch/Unstable (T-Shirt, Jersey, Pique):
  • Stabilizer: Cut-Away (Non-negotiable. Tear-away will result in gaposis).
  • Hooping: Needs high tension. brother magnetic embroidery hoops are excellent here because they hold tension evenly around the perimeter without distorting the knit grain.

Step 2: Identify Fabric Delicacy

• Robust (Towels, Bags): High clamping force is fine.
• Delicate (Silk, Velvet, Performance Wear):
  • Risk: Hoop burn (crushed pile/fibers).
  • Solution: Use a magnetic hoop or "float" the fabric on adhesive stabilizer to avoid crushing the fibers between rings. Many pros search for how to use magnetic embroidery hoop specifically to solve the hoop-burn problem on expensive garments.

Warning: Magnetic Hazard. Magnetic frames use powerful neodymium magnets. They can pinch skin severely. Keep them away from pacemakers, ICDs, and magnetic storage media (credit cards). Never let two magnets snap together without a separator.

Troubleshooting the Beginner Pain Points (The "Why is this happening?" Section)

When things go wrong, do not panic. Follow this Low-Cost to High-Cost troubleshooting path.

Symptom: "My text is unrecognizable blobs."

• Likely Cause: The text is too small (under 6mm) or the font has serifs that are too thin.
• The Fix: Increase size to 10mm+ or switch to a sans-serif block font.
• Prevention: Use 60wt thread (thinner) and a smaller needle (70/10) for small text.

Symptom: "The design is not centered on the shirt."

• Likely Cause: Physical hooping error, not software.
• The Fix: Use a printed template (Paper Snowman) to mark the center on the fabric.
• Prevention: Upgrade to a hooping station for machine embroidery. This ensures that every shirt is hooped in the exact same spot, every time, reducing human error.

Symptom: "The outline doesn't match the fill (Gaposis)."

• Likely Cause: Fabric shifted during stitching (Pull Compensation issue).
• The Fix: In PE Design, increase "Pull Compensation" to 0.2mm or 0.3mm.
• The Physical Fix: Your stabilizer is too light. Add a second layer of stabilizer or use a magnetic hoop to ensure the fabric cannot slip during the rapid needle movement.

The Upgrade Path: When to Buy Better Tools

Finally, understand how to scale. You don't need expensive gear on Day One, but recognize the signs of outgrowing your starter kit.

• Production Speed: If you are turning away orders because your single-needle machine takes too long to change colors, look at multi-needle solutions.
• Setup Fatigue: If your wrists hurt from tightening hoop screws, or you are ruining shirts with hoop burn, switching to magnetic embroidery hoops is an ergonomic and quality investment, not just a luxury.

Operation Checklist: Run Your First PE Design 11 Layout

You are ready. Use this final check before pressing the green button.

Operation Checklist (The Green Button Protocol):

• Placement: confirm the needle is centered over your marked crosshair on the fabric.
• Clearance: Ensure the hoop arms will not hit the wall or other objects.
• Thread Path: Check the upper thread is seated in the tension discs (floss check).
• Bobbin: Listen for the "low bobbin" warning, or visually check you have at least 1/3 bobbin left.
• Speed: For your first test, lower the machine speed to 600 SPM (Stitches Per Minute). Speed kills quality until your stabilization skills catch up.

You have the software skills. You have the physical checklist. Now, trust your setup and let it stitch.

FAQ

• Q: In Brother PE Design 11, how do I stop the Startup Wizard from blocking the workspace so I can work from the Ribbon?
  A: Close the Startup Wizard once and work from the Ribbon tabs for a full, stable workspace view.
  • Click the close button on the center Startup Wizard panel.
  • Confirm the Ribbon at the top is visible (Home, Text, Shapes, etc.).
  • Start actions from Home → Import Patterns / Text / Shapes instead of “Next…Next…” screens.
  • Success check: The canvas is fully visible and looks like a clean “empty table” ready for layout.
  • If it still fails: Reset the workspace/view settings in PE Design 11 (menu names vary by version) and reopen the program.
• Q: In Brother PE Design 11, what pre-flight checks prevent “the machine refused to read my design” when exporting a PES file?
  A: Verify format + hoop size before importing or exporting to avoid a guaranteed read/hoop mismatch failure.
  • Confirm the output format is PES for Brother workflows (use the machine manual if unsure).
  • Match the software Design Page size to the physical hoop size you actually own (e.g., 4x4 vs 5x7).
  • Prepare the “hidden consumables”: temporary spray adhesive, a water-soluble marking pen, and firm stabilizer.
  • Success check: The design fits inside the hoop boundary/red safety area with no elements outside the stitchable field.
  • If it still fails: Re-check you did not build a 5x7 layout for a 4x4 hoop and re-export in the correct format.
• Q: In Brother PE Design 11, what is the safest import path to bring a built-in design from the Design Library (including changing categories)?
  A: Use Home Ribbon → Import Patterns → From Design Library, then switch the library category from the drop-down.
  • Click Home on the Ribbon.
  • Select Import Patterns → From Design Library.
  • Change the category in the drop-down (for example, from “Sports” to “Lace & Ribbon”) and choose a design.
  • Success check: The selected pattern appears on the canvas immediately after import.
  • If it still fails: Import only one “anchor” design first (avoid loading multiple designs at once) and try again.
• Q: In Brother PE Design 11, how do I place an imported pattern correctly for a design + text layout so the lettering does not collide or go out of hoop range?
  A: Center the imported design first, then move it to create clean space for text using the selection box and central crosshair.
  • Select the imported design so the dotted selection box with black handles appears.
  • Locate the central crosshair and use it as the true reference point.
  • Drag the design downward to open “real estate” above for text.
  • Success check: There is visible white space above the design and the layout remains inside the hoop safety boundary.
  • If it still fails: Zoom to 100% and verify nothing is crossing the hoop boundary before adding more elements.
• Q: In Brother PE Design 11 Text Tool, how do I add readable beginner-safe lettering with Font #06 and fix a typo without breaking the text object?
  A: Use Text Tool → Font #06, click once to anchor, type, then press Enter; edit inside the text object and press Enter again to finalize.
  • Choose the Text tool (the large “A”) and select Font #06 from the font drop-down.
  • Click the canvas once to set the anchor point, type the word, and press Enter to finalize.
  • Correct typos by clicking inside the text object, backspacing, typing the fix, and pressing Enter again.
  • Success check: The text stays selectable as a single text object and displays clean letter shapes (not distorted blobs) on screen.
  • If it still fails: Increase the text height (very small text may blob) or switch to a simpler block font before stitching.
• Q: In Brother PE Design 11 Shapes Tool, why does a Spiral (Flexible Spiral) fill on a heart sometimes cause fabric “bubbling/volcano” on stretchy shirts, and what is the safer fill choice?
  A: Spiral fills concentrate pull toward the center, so use Standard Fill (or a more evenly distributed fill) on unstable stretch fabric.
  • Draw the heart with Shapes → Heart, then review the Fill Type options in Stitch Attributes.
  • Choose Standard Fill as the safer option for stretchy/unsteady fabrics; reserve Spiral/Flexible Spiral for stable fabric setups.
  • Pair stretchy knits with cutaway stabilizer (tear-away often leads to distortion/gap issues on knits).
  • Success check: The stitched area stays flat with no raised center “pucker” and the edges remain true to the shape.
  • If it still fails: Add more stabilization (often a second layer) and reduce aggressive fill choices that pull inward.
• Q: What needle-and-moving-parts safety rule should beginners follow when trimming jump stitches during a first stitch-out on an embroidery machine?
  A: Pause or stop the embroidery machine completely before hands enter the needle area—never trim while the machine is running.
  • Press pause/stop and wait until all motion fully stops.
  • Keep fingers clear of the needle bar, presser foot area, and moving hoop arms.
  • Resume only after trimming is finished and tools are removed from the “danger zone.”
  • Success check: No hand movement occurs near the needle while the machine is actively stitching.
  • If it still fails: Slow the machine down for tests (a safe starting point is 600 SPM as shown) and practice trimming only at full stops.
• Q: When hooping keeps causing hoop burn, shifting, or crooked placement on garments, what is the step-by-step upgrade path from technique fixes to magnetic hoops to a multi-needle SEWTECH machine?
  A: Start with low-cost placement and stabilization controls, then move to magnetic hoops for consistent clamping, and upgrade to a multi-needle SEWTECH machine when color-change time becomes the bottleneck.
  • Level 1 (Technique): Mark center with a template, verify Design Page matches hoop size, use correct stabilizer (cutaway for knits), and slow the first run to 600 SPM.
  • Level 2 (Tool): Switch to a magnetic embroidery hoop when hoop screws cause wrist fatigue, fabric shifts, or hoop burn marks on delicate/performance fabrics.
  • Level 3 (Capacity): Choose a multi-needle SEWTECH machine when production is limited by frequent color changes on a single-needle workflow.
  • Success check: Shirts align consistently, fewer re-hoops happen, and stitch-outs match the on-screen layout without drift.
  • If it still fails: Re-evaluate stabilizer strength first (too light stabilizer causes movement) before assuming the software or file is the root cause.
