Machine Embroidery Placement Masterclass: From Beginner Struggle to Shop-Standard Precision

You are not alone if placement feels like the psychological hurdle of machine embroidery. It is the one step where a millimeter of error becomes a permanent, highly visible mistake. Beginner fear usually sounds like this: "What if I hoop it crooked? What if it's too high? What if I ruin this expensive hoodie?"

As someone who has spent two decades in commercial embroidery shops, let me replace that fear with a system. Great placement isn't an artistic talent; it is a repeatable engineering routine.

In this white-paper-style guide, we will break down the exact workflow from the source video, enhanced with the sensory cues and safety checks we use in professional production. We will cover templates, standard measurements, and three distinct hooping methods tailored to different garment types.

Templates That Don’t Lie: Using a Husqvarna Viking Hoop Grid and a Printed Paper Template to See Placement Before You Stitch

In the industry, confusion starts because the word "template" refers to two different tools. Let’s distinguish them immediately to lower your cognitive load.

1. The Hoop Grid (Plastic Template): This is the clear plastic grid that came with your machine. Its job is calibration. It shows you exactly where the center of your physical hoop is.
2. The Design Template (Paper Printout): This is your visualization tool. It is a printed version of your specific logo or design, including crosshairs.

The Pro Workflow: You use the paper template to make aesthetic decisions on the body, and the plastic grid to ensure those decisions align with the machine's mechanics.

The non-negotiable print setting

Open your embroidery software (like Embird, Embrilliance, or your machine’s native software) to print your design template.

Critical Check: You must select "Actual Size", "100%", or "1:1 Scale" in your printer dialog. Never select "Fit to Page."

• Sensory Check: Place a physical ruler against the printed scale guideline on the paper. If the 1-inch box measures 0.9 inches, throw it away. A scaled-down template guarantees off-center embroidery.


Cut it smart, not pretty

Cut around the printed design to remove white space so you can judge the size against the shirt. Action: Do not cut off the crosshairs (center lines). Those black lines are your navigation beacon. Clarification: The mark you make on the shirt represents the center of the design, not the top edge. This is a universal standard.

The 3-Inch and 7-Inch Rules: Shirt Logo Placement Measurements That Keep You Out of the “Too High” Zone

Where does a logo actually go? While personal preference plays a role, the industry operates on safe "standard zones" to avoid the awkward "belly logo" or "collarbone logo" effect.

• Center Chest (Adult Crew Neck): Measure 3 inches (7.5 cm) down from the bottom of the ringer (collar seam).
• Left Chest (Pocket Area): Measure roughly 7 to 8 inches down from the shoulder seam/collar intersection.


Expert Note: These numbers are your Starting Point Anchors.

• The "Mirror Test": Tape the paper template to your shirt using the measurements above. Stand in front of a mirror.
• Sensory Calibration: If it feels "a little high" when you are looking down at it, it is probably perfect. Designs tend to visually sink when worn. If it looks low while flat, it will look like a stomach stain when worn.

The “Big Crosshair” Habit: Marking Fabric with a Heat-Erasable Pen So the Hoop Center Actually Means Something

Once you determine the spot, you must upgrade from a "guess" to a "target."

Tools Needed:

• Clear quilting ruler.
• Heat-Erasable Pen (like Pilot FriXion) or Air-Erasable Pen. Hidden Consumable: Always keep a spare pen; they run dry mid-project often.

The Marking Protocol:

1. Find the Vertical Center: Measure seam-to-seam (armpit to armpit) to find the exact middle of the sweatshrit. Mark the vertical line.
2. Find the Horizontal Placement: Measure down your chosen distance (e.g., 3 inches from collar). Mark the horizontal line.
3. Draw the "Runway": Don't just make a dot. Draw a large crosshair (+) extending at least 3 inches in all directions.


Pro tip: make the crosshair bigger than you think

Why draw long lines? Because once you cover the center spread with the hoop, you lose sight of a small dot. Long lines allow you to align the hoop's outer notches even when the center is obscured.

Warning: Needle Zone Safety. When testing placement on the machine, keep your hands clear of the needle bar and presser foot. Do not try to adjust the hoop while the machine is running. A needle through the finger is the most common industry injury.

Traditional Hooping on a Standard 5x7 Hoop: The Pinch-and-Press Method That Works (Until Bulk Shows Up)

This is the fundamental skill for flat items (towels, rampant fabric, woven shirts).

The Physics of a Good Hoop: We want "Drum Skin" tension—taut, but not stretched to the point of distorting the weave.

The Workflow:

1. Loosen the outer hoop screw enough to accept the fabric volume.
2. Place the outer hoop on a solid surface.
3. Place your stabilizer over the outer hoop.
4. Align your fabric's drawn crosshair with the raised notches on the inner hoop.
5. The Pinch: Pinch the fabric against the sides of the inner hoop to lock the alignment in place.
6. The Press: Push the inner hoop straight down into the outer hoop.




Sensory Success Metrics

• Visual: The grid lines on fabric traverse straight through the hoop notches.
• Tactile: Run your fingers over the fabric. It should feel smooth and firm, like a well-made bed sheet.
• Auditory: On many hoops, you should hear a dull thud or click when the inner ring seats fully at the bottom.

The Limit: Traditional hooping fails on thick sweatshirts because the bulk fights the hoop rings, leading to "Hoop Burn" (permanent crushing of fibers) or popped hoops.

The Tape Trick with Double-Stick Hoop Tape: A Clean Way to Control Bulky Garments Without Losing Alignment

When the fabric is too thick to pinch, or you need to manage excess material, use the Tape Trick. This is a Level 1 Workaround before upgrading your tools.

1. Apply Double-Stick Embroidery Tape to the vertical outer walls of the inner hoop.
2. Align your inner hoop freely on top of the garment. Take your time.
3. Once aligned, fold the excess fabric up the sides of the hoop and stick it to the tape. This "freezes" the position.
4. Insert the prepared inner hoop payload into the outer hoop.




The residue trap (don’t learn this the hard way)

Do not use hardware store carpet tape. It leaves a gummy residue that will jam your hoop screw and transfer to expensive garments. Use specific residue-free embroidery tape.

Warning: Hoop Tape Residue. Inspect your hoops weekly. Buildup of adhesive changes the hoop's diameter slightly, causing slippage. Clean with citrus-based remover if sticky.

Where upgrades fit naturally

If you are doing this occasionally, the tape trick works. However, if you are fulfilling orders for 20+ hoodies, the time spent taping and peeling eats your profit margin. This is where most shops upgrade to a hooping station for machine embroidery. The station holds the outer hoop static, allowing you to use both hands for alignment, significantly reducing wrist strain and setup time.

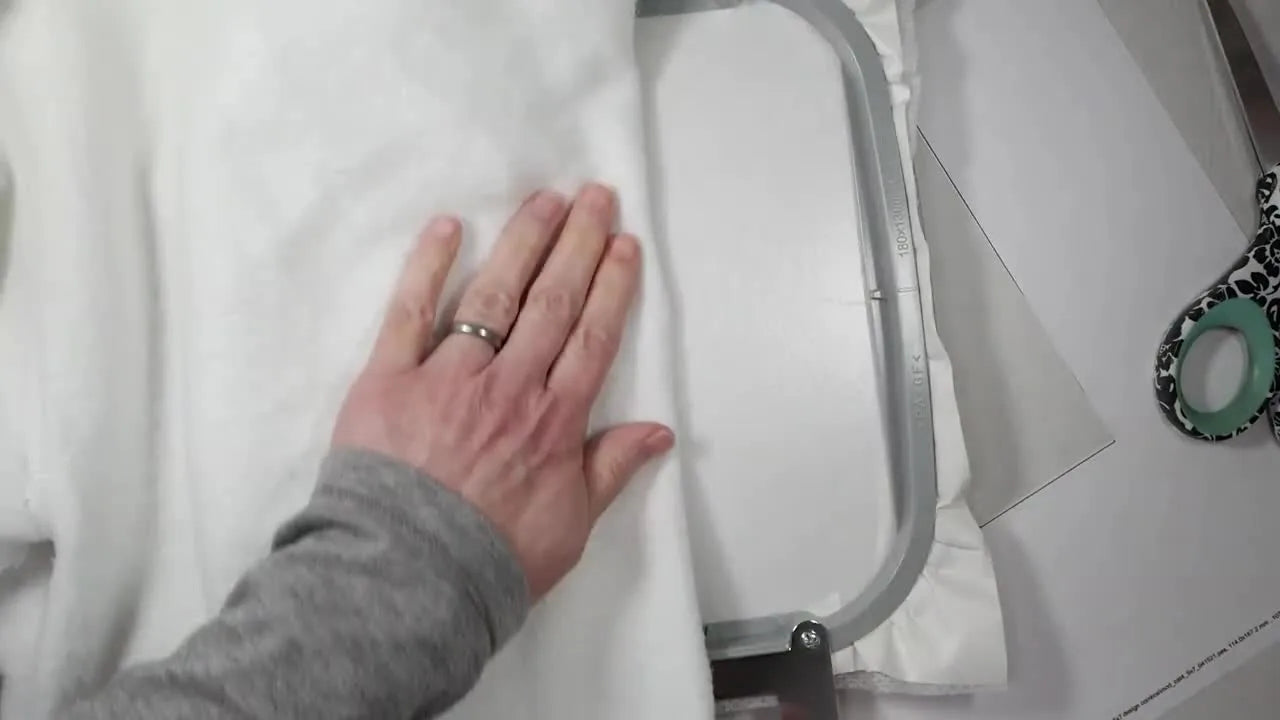

Floating a Sweatshirt on Sticky Stabilizer: The Inside-Out Fold Method for Centering Without Wrestling the Hoop

"Floating" is the industry standard for handling difficult items like heavy fleece, velvet, or tiny baby onesies. Instead of trapping the garment between rings (which causes hoop burn), you adhere the garment on top of the hoop.

The Stabilizer Sandwich:

• Base: Hooped Sticky Stabilizer (tear-away based).
• Support: A sheet of No-Show Mesh (Cutaway) floated underneath the hoop.
• Why Mesh? Sticky stabilizer alone isn't strong enough for dense sweatshirt designs. The mesh provides the permanent structure to prevent distortion over time.


The exact centering routine

1. Hoop the sticky stabilizer paper-side up. Score the paper with a pin (don't slash the stabilizer) and peel to reveal the sticky surface.
2. Turn your sweatshirt Inside Out.
3. Fold the sweatshirt perfectly in half vertically along your center mark.
4. Align the fold with the vertical center line drawn/marked on your stabilizer.
5. Smooth it down firmly from the center out.


Sensory Success Metric

• Tactile: The garment should not move when you tug it gently.
• Visual: The fold line should look like a laser beam cutting through the center of the hoop.

The “stretching” downside

Fleece is elastic. If you pull it off and restick it three times, you will stretch the fibers, resulting in a puckered design. Aim for "one touch" application.

Many beginners rely on sticky hoop for embroidery machine setups (using sticky stabilizer) because it eliminates the physical strength needed to hoop. It is a valid, low-cost technique for handling bulk.

The Claw-Clip Move: Keeping Sweatshirt Bulk Away from the Needle Bar So You Don’t Stitch a Sleeve Shut

A classic rookie mistake: stitching the back of the hoodie to the front, or catching a sleeve under the foot.

The Mitigation Protocol:

1. Flip the garment right-side out (carefully).
2. Roll or fold the excess bulk towards the back/sides.
3. Secure with a Large Claw Clip (hair clip).


Why this matters: It prevents "flagging" (fabric bouncing up and down), which causes birdsnests and thread breaks. It also clears your visual field so you can monitor the needle path.

Prep Checklist: What to Gather Before You Touch the Hoop

• Printed PDF Template: Verified at 100% scale.
• Marking Tool: Heat-erasable pen + clear ruler.
• Stabilizer Stack: Sticky stabilizer (hooped) + No-Show Mesh (floater).
• Topper: Water-soluble topping (for fleece/towels to keep stitches elevated).
• Adhesion: Spray adhesive (if not using sticky stabilizer) or specific embroidery tape.
• Hardware: Hoop and correct size needle (Size 75/11 Ballpoint for knits).

Setup Checklist: Dial In the “Center System”

• Template Check: Does the paper crosshair match the shirt markings?
• Hoop Check: Is the grid clear and are the notches visible?
• Stabilizer Tension: Is the sticky stabilizer drum-tight before you stick the garment to it?
• Hidden Consumable Check: Do you have enough bobbin thread to finish the design? (Changing bobbins on a floated hoodie is a nightmare).

Operation Checklist: Final Safety + Accuracy Checks

• Clearance: Move the bulk around—is anything pulling tight against the machine arm?
• Obstruction: Is the sleeve clipped back safely?
• Alignment: Double-check the digital needle position on your screen against the chalk crosshair.
• Start Speed: Reduce machine speed to 400-600 SPM (Stitches Per Minute) for the first layer to ensure stability, then ramp up.


The “Off-Center” Reality Check: When Brother/Baby Lock Hoop Marks Aren’t Perfectly True

Here is a dirty industry secret: Consumer hoop guide marks are molded plastic. They can have tolerances of 1-3mm.

The Fix: Trust your Needle Drop over the plastic marks. Lower your needle (using the handwheel) to see exactly where it lands relative to your crosshair. If it hits the center of your chalk X, you are clear for takeoff.

Decision Tree: Which Hooping Method Should You Use?

Follow this logic path to choose the safest method for your project:

1. Is the item flat and stable (e.g., woven cotton, apron)?
   • YES: Use Traditional Hooping. It provides the best tension.
   • NO: Go to Step 2.
2. Is the item tubular or bulky (e.g., Onesie, Hoodie Sleeve, Sock)?
   • YES: Use Floating (Adhesive + stabilizer). Hooping these causes immense frustration and stretching.
   • NO: Go to Step 3.
3. Is the item thick but flat (e.g., Quilted fabric, Heavy Jacket back)?
   • YES: Use Magnetic Hoops (if available) or the Tape Trick. Standard rings may pop off mid-stitch.

If you are struggling specifically with floating heavy sweatshirts, use the inside-out fold method described above. It is efficient and drastically reduces the variables for floating embroidery hoop placement errors.

“Can I Do This on a Single-Needle Machine?” Yes—But Watch the Throat Space

A viewer asked if an Elna 830 or similar single-needle home machine can handle a thick sweatshirt.

The Verdict: Absolutely. The Constraint: Throat Space (the distance between the needle and the machine body).

The Workaround:

• Bunch the excess fabric tightly and clip it.
• Floating is superior here because you don't have the stiff outer ring of a traditional hoop banging against the machine housing.
• Mental Check: If you spend more time wrestling the fabric behind the machine than stitching, this is your indicator that you are outgrowing your equipment.

When the physical limitations of a single-needle machine start costing you 10+ minutes per shirt setup, upgrading to a specialized system like a hooping station or a multi-needle machine shifts from a "luxury" to a "cost-saving measure."

The Upgrade Path: When Magnetic Hoops and Multi-Needle Machines Pay for Themselves

The video touches on advanced tools. As your Chief Education Officer, I want to frame these not as "shiny toys," but as solutions to specific business pain points.

Pain Point 1: "Hooping hurts my wrists and leaves hoop burn."

The Solution: Magnetic embroidery hoops. Instead of forcing rings together with muscle, magnetic hoops (like those from Sewtech compatible with many brands) use powerful magnets to clamp the fabric instantly.

• Benefit: Zero hoop burn on velvet/fleece. Zero wrist strain.
• Compatibility: You can find specifically engineered magnetic hoops for babylock embroidery machines or a magnetic hoop for brother to fit your current single-needle or multi-needle setup.

Pain Point 2: "I'm spending all day changing thread colors."

The Solution: Multi-Needle Machines (e.g., SEWTECH lines). If you are stitching 50 team shirts with a 4-color logo, a single-needle machine stops 200 times. A multi-needle machine does it automatically.

• The Math: If a thread change takes 2 minutes, and you do 200 changes, you lost 6.5 hours of production. A multi-needle machine reclaims that time immediately.

Warning: Magnetic Hazard. Magnetic hoops contain industrial-strength magnets. They can pinch skin severely.
* Keep 6 inches away from pacemakers.
* Keep away from credit cards and smartphones.
* Do not let children handle them.

The “You Still Need Stabilizer” Truth (Even on Practice Fabric)

Physics dictates that thread pulls fabric. Without stabilizer—even on scrap muslin—the fabric will pucker. Always practice with the exact fabric/stabilizer combo you intend to use on the final garment.

Where to Get Templates (and What to Do If Your Design Didn’t Include One)

Most professional digitizers include a PDF. If yours didn't:

1. Open the file in free software like Embrilliance Express or your machine's software.
2. Select Print > Print Template > Actual Size.
3. Cross-reference with a ruler.

Final Reality Check: What “Perfect Placement” Looks Like When You’re Done

Success leaves clues. A perfectly placed embroidery:

• Sits flat without puckering (thanks to the mesh stabilizer).
• Is visually centered on the body, not just the shirt (thanks to the 3-inch rule).
• Has no "hoop burn" rings (thanks to floating or magnetic hoops).


Mastering the Template → Crosshair → Hooping Method workflow solves 90% of beginner disasters. But remember: tools exist to solve the other 10%. If you are fighting your equipment daily, look into magnetic hoops or high-capacity machines to turn your struggle into a smooth production line.

FAQ

• Q: How do I print an Embird/Embrilliance embroidery design template at true 1:1 size so the placement crosshair is not off-center?
  A: Print the template at “Actual Size / 100% / 1:1 Scale” and verify with a ruler before marking any garment—this prevents guaranteed placement drift.
  • Select “Actual Size” (never “Fit to Page”) in the printer dialog.
  • Measure the printed scale box/guide on the paper with a physical ruler before cutting.
  • Cut away extra white paper but keep the printed crosshairs intact for alignment.
  • Success check: The printed 1-inch reference measures exactly 1 inch on a ruler.
  • If it still fails… Re-export/reprint from the embroidery software and recheck the printer scaling settings.
• Q: How do I place an adult crew neck center-chest embroidery design using the 3-inch rule without ending up in the “too high” zone?
  A: Use 3 inches (7.5 cm) down from the bottom of the collar seam as a safe starting point, then confirm visually with a taped paper template.
  • Measure 3 inches down from the bottom of the collar seam and mark the intended center point.
  • Tape the printed paper template to the garment at that mark and check in a mirror before hooping.
  • Trust the “looks slightly high when looking down = often correct when worn” cue.
  • Success check: In the mirror, the design looks balanced on the body and not crowding the collar.
  • If it still fails… Reconfirm the paper template is printed at 100% and re-mark the garment centerline seam-to-seam.
• Q: How do I mark a sweatshirt for machine embroidery placement with a heat-erasable pen so the hoop center notches actually line up?
  A: Draw a large crosshair “runway” (not a dot) so the hoop notches can be aligned even after the hoop blocks the center.
  • Measure seam-to-seam to find the vertical center and draw a straight vertical line.
  • Measure down to the chosen height and draw a straight horizontal line through the center.
  • Extend both lines at least 3 inches in each direction to stay visible after hooping.
  • Success check: The long lines remain visible near the hoop edges, allowing notch-to-line alignment.
  • If it still fails… Switch from aligning to plastic marks to confirming with a needle-drop test on the machine.
• Q: How do I check drum-tight tension and correct alignment when traditional hooping a 5x7 embroidery hoop with the pinch-and-press method?
  A: Hoop for “drum skin” tension—taut and smooth without stretching the weave—and use visual/tactile cues before stitching.
  • Loosen the outer hoop screw enough for the fabric + stabilizer stack to fit without forcing.
  • Pinch the fabric against the inner hoop sides to lock alignment, then press the inner hoop straight down.
  • Verify the fabric grain/grid runs straight through the hoop notches before tightening fully.
  • Success check: Fabric feels smooth and firm under your fingers, and the inner ring seats fully with a dull thud/click.
  • If it still fails… Stop forcing thick garments; use the tape trick or float the garment on sticky stabilizer to avoid hoop burn and popped hoops.
• Q: How do I control thick hoodie bulk using double-stick embroidery hoop tape without ruining hoops with adhesive residue?
  A: Use residue-free embroidery tape only, apply it to the inner hoop’s vertical walls, and keep adhesive buildup off the hoop to prevent slippage.
  • Apply double-stick embroidery tape to the vertical outer walls of the inner hoop (not random household tape).
  • Align the inner hoop on the garment first, then fold excess fabric up and stick it to the tape to “freeze” alignment.
  • Inspect hoops weekly and remove any stickiness with a citrus-based remover if needed.
  • Success check: The hoop tightens normally and the fabric does not creep during the first stitches.
  • If it still fails… Switch to floating on sticky stabilizer (with mesh support) or consider magnetic hoops for thick, repetitive work.
• Q: How do I float a heavy sweatshirt on sticky stabilizer using the inside-out fold method so the design lands centered?
  A: Hoop sticky stabilizer, add no-show mesh support, then fold the sweatshirt inside-out and align the fold to the stabilizer centerline for fast, accurate centering.
  • Hoop sticky stabilizer paper-side up, score the paper, and peel to expose adhesive (do not cut the stabilizer).
  • Float a sheet of no-show mesh (cutaway) underneath for structure before sticking the sweatshirt.
  • Turn the sweatshirt inside out, fold perfectly in half along the center mark, and match the fold to the hoop’s vertical center line.
  • Success check: The garment does not shift when gently tugged, and the fold line tracks dead-center through the hoop like a laser.
  • If it still fails… Avoid repeated peel-and-restick (fleece can stretch); re-hoop the sticky stabilizer drum-tight and aim for a one-touch placement.
• Q: What machine embroidery safety rules prevent needle injuries and prevent stitching a hoodie sleeve shut during placement testing?
  A: Keep hands away from the needle zone during any test run, and secure excess garment bulk with a claw clip before stitching.
  • Keep fingers clear of the needle bar/presser foot; never adjust the hoop while the machine is running.
  • Roll/fold the extra hoodie fabric away from the stitch field and clamp it with a large claw clip.
  • Perform a clearance check by moving the bulk around so nothing pulls tight against the machine arm.
  • Success check: The needle path is fully visible and no fabric layers are trapped under the hoop area.
  • If it still fails… Stop and re-clip/re-roll the garment; reduce speed to 400–600 SPM for the first layer to confirm stability before ramping up.
• Q: When does upgrading from a tape trick or sticky stabilizer floating to magnetic embroidery hoops or a multi-needle embroidery machine make sense for hoodie production?
  A: Upgrade when setup time and physical struggle become the bottleneck—optimize technique first, then upgrade tools, then upgrade capacity.
  • Level 1 (technique): Use the tape trick or floating with sticky stabilizer + no-show mesh; clip bulk and start at 400–600 SPM.
  • Level 2 (tool): Use magnetic embroidery hoops when thick garments cause hoop burn, popped hoops, or wrist strain during repeated hooping.
  • Level 3 (capacity): Move to a multi-needle machine when thread-change time dominates production on multi-color logos.
  • Success check: Hoop/setup time becomes predictable and repeatable, not a 10+ minute wrestle per garment.
  • If it still fails… Treat it as an equipment-limitation signal (often throat space on single-needle machines) and choose the next upgrade level accordingly.
