Ricoma MT-1501 Beanie Embroidery Without Sewing the Hat Shut: The Inside-Out Hooping Method That Actually Works

Beanies look simple—until you try to stitch one on a multi-needle and realize the hat wants to twist, stretch, and sneak under the needle bar at the worst possible moment.

If you’re running a ricoma mt 1501 embroidery machine and you want clean embroidery on a thick knit beanie without sewing the hat shut, this is the exact inside-out method Tracy from JDL Threads demonstrates. I have rebuilt this tutorial into a shop-ready workflow, adding the safety checkpoints and "sensory anchors" I’d insist on after 20 years of commercial embroidery experience to keep you out of the danger zone.

The “Don’t Panic” Primer for Ricoma MT-1501 Beanie Embroidery (Yes, the Hat Can Be Done Cleanly)

A knit beanie is a high-friction job: the fabric is stretchy (unstable), the cuff is thick (deflection risk), and the body of the hat is basically a giant fabric trap waiting to get stitched into itself.

The good news: the "inside-out" approach solves the biggest failure mode—accidentally catching the hat body—as long as you manage tension and bulk on purpose. The video’s method is simple: sticky stabilizer creates a temporary “hoop,” clips keep the knit from creeping, and a slow trace prevents collisions before the first stitch.

For the novice, the goal isn't speed; it's survival. We are going to lock this hat down so securely that the machine has no choice but to stitch it perfectly.

Supplies for a Knit Beanie on an 8-in-1 Frame (What Matters, What’s Optional)

Tracy’s supply list is short, but every item has a specific mechanical function. I have added the "Hidden Consumables" that rookies often forget but pros always have on hand.

The Core Kit:

• Navy knit beanie (turned inside out).
• Sticky-back stabilizer (This is non-negotiable for this method).
• Water-soluble stabilizer (Aqua topping/Solvy film) – crucial for preventing stitch sinkage.
• Straight pins (used as placement markers).
• Metal binder clips (Small/Medium standard office style).
• Pink quilting clips (to hold the topping).
• Scissors (sharp detail shears).
• 8-in-1 frame (or similar clamp frame).

The "Hidden" Consumables (Pro Additions):

• Fresh Needles: Since beanies are thick, ensure you are using a sharp or ballpoint 75/11. A dull needle on a thick cuff leads to thread breaks.
• Spray Adhesive (Optional): If your sticky stabilizer loses tackiness, a light mist of spray adhesive can save the sheet.

The reason the 8-in-1 frame shows up here is design size: Tracy mentions her design is bigger than the standard 5x5 hoop limit. If you’re using a 8 in 1 embroidery hoop setup for beanies, that “don’t shrink the design” decision is common—customers notice immediately when a corporate logo or holiday graphic looks undersized on a cuff.

The “Hidden” Prep: Sticky Stabilizer on the 8-in-1 Frame Without Wrinkles or Waste

This is where most people quietly lose quality. Sticky stabilizer is forgiving, but if you apply it sloppily (air bubbles, loose tension), the knit will shift, your registration will drift, and you’ll blame the machine.

The Sensory Method (How it should feel): When properly applied, the stabilizer should feel taut like a drum skin. If you tap it, it should have a slight bounce, not a sag.

What the video does (and you should copy):

1. Anchor: Set the 8-in-1 frame on a flat table.
2. Expose: Peel back the paper to expose the adhesive. Pro Tip: Score the paper with a pin rather than picking at corners to keep the stabilizer flat.
3. Apply: Place the stabilizer onto the frame with the sticky side facing up.
4. Center: Ensure you have roughly equal coverage left/right.
5. Secure: Press it down firmly on the metal frame edges.
6. Trim: Trim excess stabilizer so it only needs to adhere along the side rails—creating a taut “window.”

That trimming detail matters. You’re not trying to laminate the whole frame; you’re trying to create a flat adhesive field so the knit doesn’t ripple.

Prep Checklist (Verification before the beanie touches the sticky):

• Zone Check: Confirm your beanie cuff area is the target stitch zone (not the sewn seam).
• Adhesive Check: Touch the stabilizer. Is it tacky enough? If dust has settled, refresh it or spray it.
• Tool Check: Keep scissors within reach (you’ll trim stabilizer and later clean trims).
• Hardware Check: Have both clip types ready: metal binder clips for the beanie, pink clips for topping.
• Sizing: Decide your design size now (Tracy chose larger than 5x5 to avoid shrinking).

Warning: Mechanical Safety. Keep fingers clear of the needle area and moving pantograph during trace and stitch-out. A multi-needle head moves faster than human reaction time—treat every trace command like the machine could start stitching at 1000 SPM instantly.

The Inside-Out Beanie Trick: Why Turning the Hat Inside Out Prevents “Stitching It Shut”

Tracy turns the beanie inside out because she’s embroidering the bill/cuff area on what will become the outside of the hat.

The Physics of the "Why": When the beanie is right-side out, the body of the hat naturally wants to fold up into the sewing field (gravity works against you). By turning it inside out, the cuff lays flat on top, and the heavy body of the hat hangs naturally down and under the machine arm.

This is also a tension issue. Knit wants to stretch; when you flip the beanie and press it onto adhesive, you’re controlling stretch direction. Generally, the less you distort the cuff while sticking it down, the more circular and “professional” your finished design will look. Do not over-stretch the beanie onto the loose stabilizer. Just lay it flat.

Pin-Based Placement on the Beanie Cuff (A Simple Alignment System That Saves Re-Stitching)

In the video, Tracy uses straight pins as placement markers on the beanie. She presses the beanie onto the sticky stabilizer and uses the pins to ensure the design lands between them.

Action Steps:

1. With the beanie inside out, position the cuff area over the sticky window.
2. Sensory Check: Press the knit firmly onto the adhesive. Rub your hand over it. You should feel the fabric fibers lock into the glue.
3. Use your pins as “no-go borders” (Left and Right limits) so you can visually confirm the design is centered.

This is a practical alternative to drawing on knit, which can be messy and inconsistent. If you’re building a repeatable workflow, pins are fast and visible during trace.

Binder Clips on an 8-in-1 Frame: Secure the Knit Without Creating a Collision

Tracy clamps the beanie sides to the metal rails using small metal binder clips. The key nuance: she avoids the long-handle clips (standard office size often have long silver arms) that can bend down and interfere with the embroidery head.

If you’re doing hooping for embroidery machine work on bulky items, clip choice is not a minor detail—it’s the difference between a smooth run and a catastrophic head strike.

The Protocol:

• Action: Clip left and right sides of the beanie to the frame rails.
• Visual Check: Fold the silver handles of the binder clips flat against the clip body or remove them entirely if they are detachable.
• Rule: Never place a clip on the top or bottom path where the pantograph moves the most.


Warning: Collision Hazard. Do not use clips with long handles that can swing downward into the sewing field. A clip strike will break a needle, possibly shatter the presser foot, and potentially throw the machine's timing off. If in doubt, use tape or specialized low-profile clamping systems.

Loading the 8-in-1 Frame onto the Ricoma MT-1501 (The “Click” and the One Rule That Matters)

At the machine, Tracy slides the frame under the bar like any other hoop.

Sensory Anchor (Auditory): Stop pushing only when you hear a distinct, metallic "CLICK." If it feels mushy or you didn't hear the snap, pull it out and try again. A loose hoop causes layer shifting and needle breaks.

The one rule that matters: the bulk of the hat must hang underneath the embroidery arm/bed so you don’t sew the hat together.

This is where many operators get overconfident. A beanie body can creep upward as the pantograph moves. You’re not just loading a frame—you’re staging fabric so it can’t migrate.

If you’re using a ricoma 8 in 1 device style frame, take an extra second here: reach under the bed and pull the beanie body down to confirm it is free-hanging.

Bulk Management on the Machine Arm: Fold It Back Before It Fights You

Tracy folds the loose body of the beanie backward and tucks it slightly so it stays away from the needle bar and moving arm.

This is pure physics: thick knit creates drag. Drag creates shifting. Shifting creates registration issues and, in the worst case, the hat body gets pulled into the stitch path.

The "Flossing" Check: Run your hand between the machine arm and the hat body. Is there space? If the hat is bunched up tight against the machine neck, it will drag. Fold it back further. If necessary, use a piece of tape or a clip to manage the excess bulk behind the driver, far out of the stitch zone.

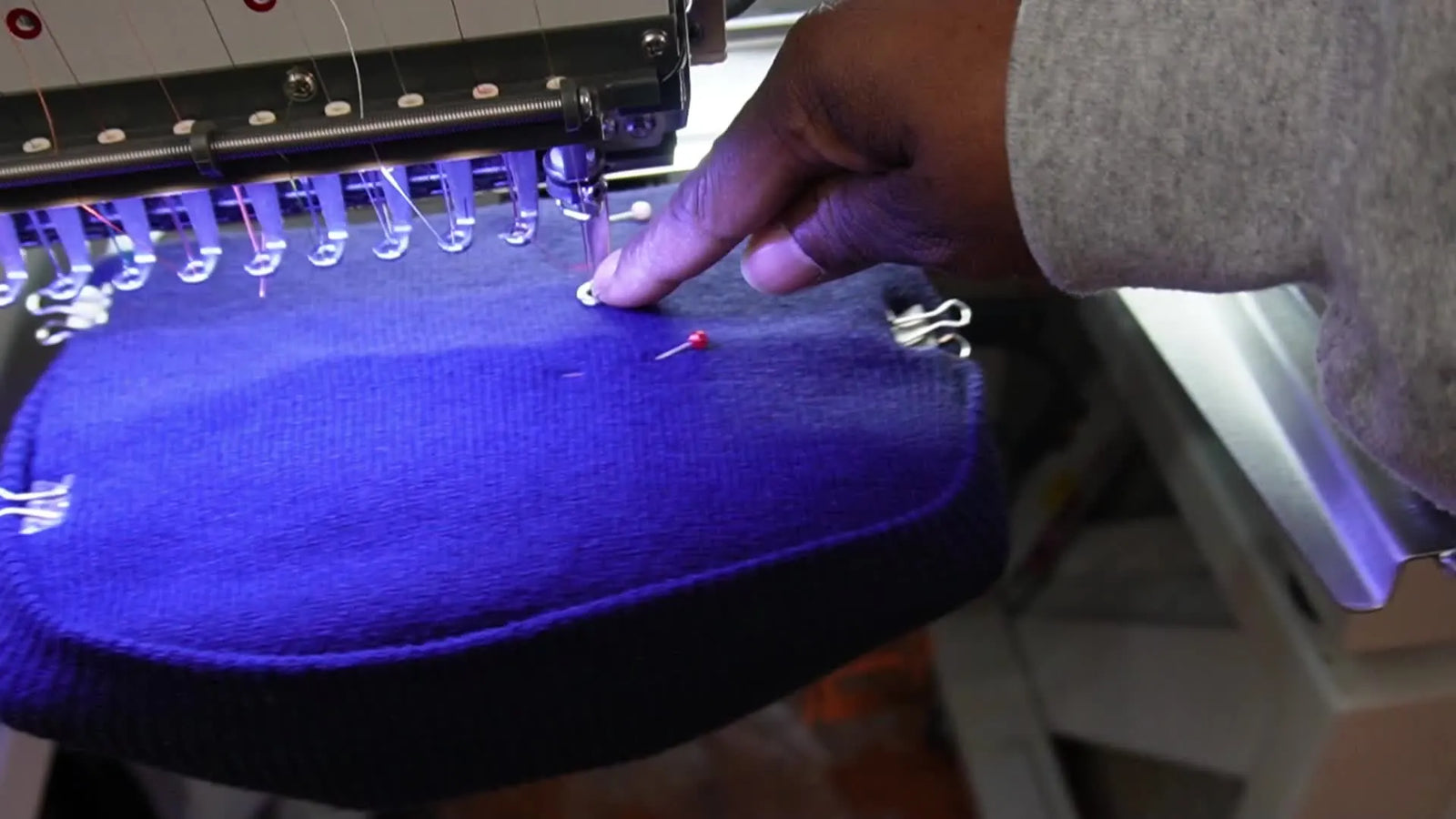

The Slow Trace on Ricoma MT-1501: Catch Pin Collisions Before They Cost You a Beanie

Tracy runs a trace and notices the traced perimeter hits the top placement pin. She then jogs the design down on the control panel and traces again. She specifically uses Slow Trace.

Expert Advice: Never use "Border Check" (Fast Trace) on a beanie setup for the first run. The machine moves too fast for you to react if a clip is in the way. Use the manual contour trace or needle-icon trace.

Checkpoints during trace:

• Placement: The bounding box clears both left/right pins.
• Hardware: The needle/laser path does not cross any clip, bracket, or screw.
• Height: The design sits vertically centered on the cuff (usually lower is safer than higher to avoid the rim).

Expected outcome: after adjustment, Tracy points out the gap between the design area and the pin—clearance achieved.

Setup Checklist (Your "Green Light" Before You Add Topping)

Do not proceed until you can check all five boxes.

• Engagement: Frame is fully seated and you heard/felt the mechanical "Click".
• Clearance: Hat body is hanging underneath the arm/bed (not draped across the stitch field).
• Hardware Safety: Binder clips are positioned on the rails, handles folded back, away from the needle drop zone.
• Visual Markers: Pins are visible and the traced perimeter clears them by at least 5mm.
• Confirmation: You ran a Slow Trace successfully without wincing or grabbing the emergency stop.

Water-Soluble Topping on Knit Beanies: The Clean Detail That Makes Satin and Fill Look Sharp

Tracy places a sheet of water-soluble stabilizer (Aqua topping) over the embroidery area and secures it using pink quilting clips attached to the existing binder clips.

The "Why": Knit fabric is structurally like a sponge. Without topping, stitches (especially narrow satin columns or text) will sink into the "valleys" of the knit. Topping creates a smooth surface tension, keeping the thread riding high on top of the fabric.

What the video does:

1. Lay topping over the design zone. Do not stretch it tight; lay it flat.
2. Clip it so it can’t slide or flutter during the stitch-out.
3. Start stitching.


Stitch-Out Reality Check: Speed, Monitoring, and "Baby-Sitting"

Once the machine starts, your job is to monitor the few things that actually predict failure.

The "Sweet Spot" for Speed: While your Ricoma might be rated for 1000 SPM (Stitches Per Minute), a thick beanie on a sticky frame is not the place for speed records.

• Beginner Safety Speed: 500 - 600 SPM.
• Pro Speed: 700 - 800 SPM.

Going faster increases the vibration of the hat, which can shake the clips loose.

Watch for:

• The Creep: The beanie body staying tucked back (no creeping toward the needle bar).
• The Walk: Clips staying stable (no vibration walking them inward).
• The Lift: Topping staying flat (no lifting that could snag the presser foot).


The "Why" Behind hooping Physics & The Magnetic Upgrade

Traditional hooping works by stretching fabric evenly in a ring. Thick knit beanies don't behave like woven cotton—they compress, rebound, and distort easily. This friction is what causes "Hoop Burn" (permanent shiny rings on the fabric).

The video’s approach works because it replaces "stretch tension" with "surface adhesion + side clamping."

However, there is a Level 2 Upgrade: If you find yourself struggling with bulky clamps or your hands hurt from wrestling clips all day, this is the trigger point to consider Magnetic Hoops.

• The Concept: Uses magnets to sandwich the fabric without forcing it into a ring.
• The Benefit: Zero hoop burn, significantly faster loading, and it holds thick beanies effortlessly. Terms like magnetic embroidery hoop are often the searched solution when embroiderers get tired of "hoop burn" ruining their profit margins.

Warning: Magnetic Safety. If you upgrade to magnetic hoops, be aware they use powerful Neodymium magnets. They can pinch fingers severely. Do not use magnetic hoops if you have a pacemaker. Keep them away from credit cards and screens.

Decision Tree: Stabilizer + Topping Choices for Knit Beanies

Use this logic flow to stop guessing.

1) Is the knit heavily textured, ribbed, or fluffy?

• Yes → Use Sticky Stabilizer (Bottom) + Water-Soluble Topping (Top).
• No (Smooth knit) → Sticky Stabilizer alone may work, but topping is safe insurance.

2) Is the beanie very thick or bulky at the cuff seam?

• Yes → Stickiness isn't enough. You Must use clips (or Magnetic Hoops) to prevent the hat from ripping off the stabilizer.
• No → Standard adhesion might hold, but why risk it? Clip it.

3) Are you producing more than a few beanies per week?

• Yes → This manual method will kill your profitability. Upgrade to Magnetic Hoops or a specialized Cap Station to reduce setup time from 5 minutes to 30 seconds.
• No → The video's manual method is efficient and low-cost for small batches.

Troubleshooting the Scary Stuff: Pin Hits, Clip Strikes, and Shifted Designs

Even when you do everything right, beanies punish small mistakes. Here is your Panic Guide.

The Upgrade Path: From Hobbyist to Production Line

If you’re doing occasional holiday gifts, the video’s setup is perfect: low cost, fast to learn, and reliable.

But if you are taking orders, the bottleneck becomes hooping time.

• Scenario trigger: “My hands are tired and hooping/clipping is slowing me down.”
  • Judgment standard: If hooping takes longer than the actual stitching, you have a workflow problem.
  • Tool Upgrade: Magnetic Hoops eliminate the need for sticky paper peeling and binder clips. You just "Snap and Go."
• Scenario trigger: “I want to scale beyond a few beanies.”
  • Judgment standard: If you start running 50+ hat orders.
  • Machine Upgrade: You need reliability. A workhorse like the SEWTECH multi-needle series, paired with industrial magnetic frames, turns a "craft project" into a "manufacturing run."

If you’re already collecting different ricoma embroidery hoops for various jobs, think in terms of ROI: the best hoop is the one that minimizes setup time and eliminates textile damage.

Operation Checklist (The "Finish Clean" Habits)

• Trim Check: After stitch-out, clean jump threads carefully before removing the beanie from the frame (easier to see under the machine light).
• Removal: Gently peel the beanie off the sticky stabilizer. Don't yank, or you might distort the hot stitches.
• Topping Removal: Tear away the large chunks of topping. Use a damp paper towel or a quick steam to dissolve the tiny remnants in the letters.
• Documentation: If the placement was perfect, take a photo or measure the distance from the rim. Save this note for the next repeat order.


Final Result: A Clean Santa/Reindeer Beanie

Tracy finishes with a merged Santa/reindeer design, showing how flexible embroidery can be when your holding method is stable.

If you take only one lesson from this project, make it this: on knit beanies, stability is earned before you ever press Start. The inside-out orientation, the drum-tight sticky stabilizer, smart clip choice, and the slow trace are what keep the job clean. Whether you’re making one gift or running a profitable batch on a ricoma embroidery machine, respect the physics of the fabric, and the machine will do the rest.

FAQ

• Q: On a Ricoma MT-1501 multi-needle embroidery machine, how do I prevent stitching a knit beanie shut during cuff embroidery?
  A: Turn the beanie inside out and force the beanie body to hang underneath the machine arm/bed before you press Start.
  • Turn: Flip the beanie inside out so the cuff lays flat and the hat body naturally drops downward.
  • Pull: After loading the frame, reach under the bed and pull the beanie body down so nothing is draped across the stitch field.
  • Fold: Fold/tuck excess knit backward away from the needle bar so it cannot creep forward during stitching.
  • Success check: During Slow Trace, the hat body stays fully below the arm and never rises into the needle path.
  • If it still fails… Stop immediately and re-stage the bulk farther back; re-run Slow Trace before stitching.
• Q: When using an 8-in-1 clamp frame with sticky-back stabilizer for beanie embroidery, what is the correct “tightness” standard to prevent shifting?
  A: Apply the sticky stabilizer so it feels drum-tight—taut with a slight bounce, not saggy or bubbled.
  • Set: Place the frame flat on a table before peeling the paper backing.
  • Peel: Expose adhesive cleanly (scoring the paper with a pin helps keep the sheet flat).
  • Press: Firmly press stabilizer onto the frame edges/rails, then trim excess so you create a flat adhesive “window.”
  • Success check: Tap the stabilizer— it should feel taut like a drum skin with no wrinkles or air pockets.
  • If it still fails… Refresh tackiness (a light mist of spray adhesive may help) and reapply a fresh section of stabilizer.
• Q: On a Ricoma MT-1501 beanie setup, how do I stop the trace box from hitting straight pins used for placement markers?
  A: Always run Slow Trace first, then jog the design position until the traced perimeter clears both pins.
  • Place: Use pins as left/right “no-go borders” so the design must land between them.
  • Trace: Use Slow Trace (not fast border check) on the first run to spot collisions early.
  • Jog: Move the design down (or away) on the control panel and trace again until clearance is safe.
  • Success check: The traced perimeter clears each pin by at least 5 mm without any “near hits.”
  • If it still fails… Remove and reposition the pins farther from the design boundary and re-trace.
• Q: On an 8-in-1 clamp frame for beanies, what binder clip setup prevents an embroidery head strike on a multi-needle machine?
  A: Use small, low-profile binder clips on the side rails only, and fold/remove long metal handles so nothing can swing into the sewing field.
  • Clip: Clamp left and right beanie sides to the frame rails, not on top/bottom travel paths.
  • Flatten: Fold clip handles flat against the clip body or remove them if detachable.
  • Verify: Run Slow Trace while watching clip clearance along the full bounding box travel.
  • Success check: Slow Trace completes with clear space between the needle path and every clip/handle.
  • If it still fails… Swap to smaller clips or use tape/low-profile holding methods away from the needle drop zone.
• Q: For knit beanie embroidery on a Ricoma MT-1501, when should water-soluble topping be used and how should it be secured?
  A: Use water-soluble topping on knit beanies to prevent stitch sinkage, then clip it so it cannot slide or lift during stitch-out.
  • Lay: Place topping over the stitch area flat—do not stretch it tight.
  • Secure: Use quilting clips attached to existing side clips so topping cannot flutter.
  • Monitor: Watch for topping lift that could snag the presser foot as the machine runs.
  • Success check: Satin columns and small text sit crisp on top of the knit instead of looking “sunken.”
  • If it still fails… Re-clip closer to the design zone and confirm the topping stayed flat for the full run.
• Q: On a Ricoma MT-1501, what is a safe starting stitch speed for thick knit beanie embroidery to reduce clip vibration and shifting?
  A: Start around 500–600 SPM for safety on thick beanies, then increase only if the beanie stays stable.
  • Set: Begin at 500–600 SPM for the first run to reduce vibration and “clip walk.”
  • Watch: Monitor three predictors—beanie body creep, clips walking inward, and topping lifting.
  • Adjust: Increase to 700–800 SPM only after stable results are repeatable.
  • Success check: The beanie body remains tucked back and the clips do not migrate during stitching.
  • If it still fails… Slow back down and re-stage bulk behind the arm; confirm the frame is fully seated before retrying.
• Q: When should a magnetic embroidery hoop upgrade be considered for beanie production, and what magnetic hoop safety rules apply?
  A: Consider magnetic hoops when clipping and sticky setups are slowing production or causing hoop-burn problems, but follow strict pinch and medical safety rules.
  • Decide: Upgrade when hooping/clipping takes longer than stitching or hands are fatigued from daily setups.
  • Use: Choose magnets to “sandwich” fabric without ring-stretch tension to reduce hoop burn and speed loading.
  • Protect: Keep fingers clear—powerful magnets can pinch severely; do not use magnetic hoops if a pacemaker is present.
  • Success check: Loading becomes fast and repeatable with stable holding and no shiny hoop marks on knit.
  • If it still fails… Step back to the sticky + clips method for very bulky seams and verify Slow Trace clearance before production runs.
