Run a Happy Embroidery Machine Like a Pro: Control Panel Shortcuts, F-Position Saves, and Safer Starts

Master the "Cockpit": The Commercial Operator’s Playbook for Happy Embroidery Machines

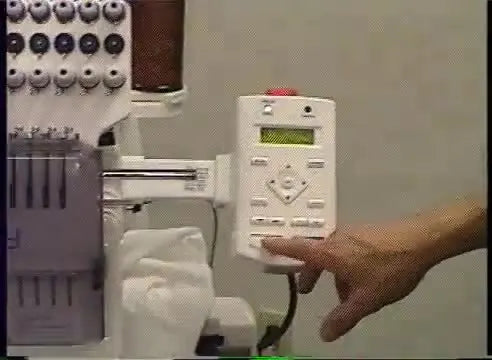

When a Happy commercial machine is sitting in front of you, the control panel can feel like a cockpit—especially the first time you’re trying to load a file, match colors, and hit START without the fear of a bird's nest or a broken needle.

Here’s the reality: Machine embroidery is 80% preparation and 20% button-pushing.

The Happy workflow is consistent. Once you learn the “menu rhythm” (Pattern → Needle → Convert → F-Position → Start/Stop), you stop guessing. You stop praying the machine won't eat the shirt. You start producing professional results.

Calm the Panic: What the Happy Embroidery Machine Control Panel Is Really Doing (and What It’s Not)

A lot of new operators assume the control panel is satisfying a complex computer code. It’s not. The design is already stitched out as data; the panel is mainly helping you select, map, position, and recover.

If you’re running a happy embroidery machine, your biggest early wins don't come from memorizing the manual, but from mastering these four actions:

1. Selection: Choosing the correct stored pattern (so you don’t stitch yesterday’s test file on today's jacket).
2. Mapping: Telling the machine that "Color #1" in the design equals "Needle #5" on the head.
3. tracing: The non-negotiable safety check to ensure the needle doesn't slam into the plastic hoop.
4. Recovery: Using F-Position + STOP to fix thread breaks without ruining the garment.

The Veteran Mindset: Treat the panel like a pilot's pre-flight checklist. Do not improvise. Do not "try buttons until it works." That is how you break parts.

The “Hidden” Prep Before You Touch MENU: Thread Tree Logic, Backing Choice, and a 30-Second Machine Check

The video starts once the design is already in the machine. In real shops, the mistakes happen before you ever press MENU. If your physical setup is bad, no amount of digital setting will save you.

Quick reality check on materials

The tutorial uses white woven fabric with backing. That’s a forgiving combo. In the real world, you are likely stitching stretchy knits, thick caps, or slippery performance wear.

The Golden Formula: Stable Fabric + Correct Backing + Drum-Tight Hooping = Clean Embroidery.

Sensory Check: When you hoop your fabric, tap it with your finger. It should sound like a drum—a dull thump. If it ripples or feels loose, re-hoop it immediately. Loose fabric causes "flagging" (bouncing), which leads to bird's nests.

Prep Checklist (Do this BEFORE touching the screen)

• Needle Check: Run your fingernail down the needle. If you feel a burr or snag, change it. A $0.50 needle can ruin a $50 jacket.
• Thread Path: Look at the thread tree. Are lines crossed? Is the thread caught on a guide?
• Bobbin Case: Remove the bobbin case and blow it out. Even a speck of lint can throw off tension.
• Hidden Consumables: Ensure you have temporary spray adhesive or needles suitable for your fabric (e.g., Ballpoint for knits, Sharp for wovens).

Warning: Safety First. Keep fingers, scissors, and magnetic tools away from the needle area and pantograph travel zone. A commercial head moves at 800+ stitches per minute. It does not stop for fingers. Treat every START like the machine moves instantly.

Pick the Right Pattern Fast: Using MENU → Pattern to Select, Confirm, or Delete Designs

On the Happy panel, the workflow is linear.

• Action: Press MENU → Pattern → Select.
• Verify: Scroll through stored designs. Look for the preview (e.g., “Smiling” or “I-Test”).
• Commit: Press ENTER to select, then OK to confirm.

The machine can hold 99 designs and up to 259,000 stitches in storage.

Pro tip (The Shop-Owner Version)

If you’re running production, file naming saves lives. "Test_File_1" tells you nothing three weeks later.

• Naming Rule: Use unique IDs (e.g., CUST_NAME_LOGO_v2).
• Hygiene: Use the Delete function in this menu regularly. A cluttered memory leads to selecting the wrong file when you are in a rush.

Make Colors Match Reality: Needle Menu Mapping (and the Star Stop for Applique)

This is the source of 90% of beginner frustration: "Why is it stitching red when the screen shows blue?" Answer: The machine doesn't see color; it only sees Needle Numbers. You must map them.

The Workflow:

1. Go to MENU → Needle.
2. Highlight the design step (e.g., Color Change #1).
3. Action: Press ENTER, scroll to the specific Needle Number (e.g., Needle 5) where your thread is actually loaded, and press ENTER again.


The Star (*) stop command (Applique / Puff Foam)

The tutorial highlights a power feature: adding a Star (*) next to a color step using the Right Arrow.

Use Cases:

• Applique: The machine stops so you can place the fabric.
• 3D Puff: The machine stops so you can lay down the foam.
• Thread Trimming: The machine stops if you need to manually trim jump stitches before a critical overlay.


Watch out (Common Operator Mistake)

Do not add Stars "just to be safe." Every stop breaks your production rhythm. Only use them when physical intervention is required.

Rotate Without Regret: Convert Menu Rotation in 90° Steps (and Why “P” Matters)

Sometimes the shirt is too small, or you need to hoop a bag sideways.

• Action: MENU → Convert.
• Rotate: Cycle through 90-degree increments.
• Check: Ensure the orientation parameter shows “P” (Standard Portrait) unless you intend to rotate.


The Golden Rule of Rotation: If you rotate, you must TRACE. Rotating a design changes its swing radius. If you rotate a wide design 90 degrees inside a narrow hoop, the needle will hit the frame. Trace every single time you change this setting.

The Lifesaver Feature: Happy F-Position to Jump to Stitch 1225 or to Color Change #2

F-Position (Forward Position) is your time machine. It allows you to recover from disaster.

Scenario: The thread broke, but the machine kept moving for 50 stitches.

• Action: MENU → F-Position.
• Recovery:
  • Micro: Enter the specific stitch number (e.g., 1225) to go back exactly to where the break occurred.
  • Macro: Select Change to jump to the beginning of a specific Color Block (e.g., start of Color #2).






Why this matters (Profitability)

If you can't recover a design, you trash the garment. In a commercial setting, "scrap rate" kills profit. Mastering F-Position means you can save almost any shirt that hasn't been physically torn by the needle.

The Reset You Only Use When You Must: Menu → Other → Setup → System + Speed

Sometimes, machines glitch. Static electricity or bad file data can freeze the panel. The video shows the "Hard Reboot":

• MENU → Other → Setup.
• Action: Press ENTER at System (Diagnostic check).
• Action: Press ENTER at Speed (Resets motor profiles).


Expert Note: Use this sparingly. If your machine freezes daily, it’s not a settings issue—it’s likely a dirty power issue (get a UPS) or a corrupted design file (re-digitize it).

Hard Keys That Actually Matter in Production: P.FOOT, T.CUT, Manual Color Change, and Position Recall

These physical keys are your tactile control center.

1. Moving the Pantograph (Frame)

Use arrow keys to center your hoop.

• Muscle Memory Shortcut: Held the frame in a weird spot? Press and hold MENU + Position to snap back to the design's origin.


2. Presser Foot Control (P.FOOT)

Lowers the foot. Use this to check clearance over thick seams or pockets before you start stitching.

3. Manual Trim (T.CUT)

Forces a cut.

• Sensory: Listen for the sharp click-whirr of the knife. If the sound is dull or grinding, your knife assembly needs cleaning.


4. Color Change (Needle Select)

Manually rotates the head. Verification is key here—ensure the active needle lines up perfectly with the throat plate hole.

The Safe Start Ritual: Trace First, Then Stitch (and How to Skip Trace When Appropriate)

This is the step that separates amateurs from pros. Amateurs hit start and hope. Pros trace.

The Ritual:

1. Press START (without holding) to initiate the Trace.
2. Visual Check: Watch the presser foot. Does it come close to the plastic hoop edge? Does it dampen the fabric near a bulky seam?
3. Correction: If it’s too close, move the design or re-hoop.


When to skip trace (Holding START): Only skip the trace if you are doing run #2 on the exact same garment size with the exact same hoop placement. If anything changed, TRACE.

STOP Isn’t Just a Pause: How Happy Backs Up Stitches (and How to Back Up Further)

Mistakes happen. Your reaction speed matters.

• Tap STOP: Pauses the machine and backs up ~3-5 stitches automatically (to overlap and lock the new thread).
• Hold STOP: Backs up continuously.


Troubleshooting Logic: If you see a thread loop or a missed stitch, STOP immediately. Hold Stop to back up about 10 stitches into the "good" area. Restarting exactly where you stopped often leaves a gap.

Troubleshooting the Three Most Common “Oh No” Moments on a Happy Control Panel

When the machine stops, don't panic. Use this logic flow:

The Hooping Reality Nobody Mentions: Standard Happy Embroidery Machine Hoops vs Magnetic Options

The video shows a standard tubular hoop. These work, but friction-based hoops are the #1 cause of physical fatigue and production errors (hoop burn).

If you are using standard happy embroidery machine hoops, you face a bottleneck: adjusting the screw for every different fabric thickness takes time.

The Upgrade Path (When to Switch):

• The Symptom: You are doing production runs of 20+ items, and your wrists hurt. Or, you are struggling to hoop thick jackets.
• The Solution (Level 2): magnetic hoops for happy embroidery machine.
  • Why: They snap shut automatically adjusting to thickness. No screws. Faster loading.
  • Result: Zero "hoop burn" on delicate polyesters and 30% faster prep time.

Warning: Magnetic Hazard. Magnetic hoops use industrial-strength neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers and sensitive electronics.

A Simple Decision Tree: Fabric Type → Backing/Stabilizer Strategy (So Your Panel Settings Don’t Get Blamed)

Bad stabilizer looks like bad tension. Fix the foundation first.

1. Is the fabric stable (Denim, Canvas, Twill)?

• YES: Use Tearaway. It supports the stitches but removes cleanly.
• NO: Go to Step 2.

2. Is the fabric stretchy (T-shirts, Polos, Hoodies)?

• YES: You MUST use Cutaway.
  • Why: Knits stretch. If you create thousands of needle holes, the fabric will deform. Cutaway holds the structure forever.
• NO: Go to Step 3.

3. Is the fabric thick/textured (Towels, Fleece)?

• YES: Use Tearaway (Bottom) + Soluble Topping (Top).
  • Why: The topping prevents stitches from sinking into the pile.
  • Tip: Use magnetic embroidery hoops here to avoid crushing the towel texture with ring clamps.

The Upgrade Path That Actually Saves Time: Hooping Stations, Frames, and When Multi-Needle Productivity Pays Off

Once you master the panel, the machine isn't the slow part—you are.

If hooping for embroidery machine tasks are eating up 50% of your labor time, consider this upgrade hierarchy:

1. Level 1 (Technique): Use an embroidery hooping station. This simple jig ensures every shirt is hooped in the exact same spot, saving you from measuring each chest manually.
2. Level 2 (Tools): Adopt magnetic embroidery hoops. As mentioned, eliminating the "screw-tightening" step creates a massive speed boost on repeat orders.
3. Level 3 (Capacity): If you are consistently running orders over 50 pieces, single-head or single-needle limitations are costing you profit. This is the trigger point to investigate high-value multi-needle platforms like SEWTECH’s multi-needle machines, designed to bridge the gap between home hobbyist and industrial production at a lower entry cost than legacy brands.

Compatibility Note: When searching for happy embroidery frames or third-party magnetic options, always verify the arm width of your specific machine model to ensure a safe fit.

Operation Checklist (The Repeatable Workflow)

• Clean: Check bobbin area and thread path.
• Load: MENU → Pattern (Select correct file name).
• Map: MENU → Needle (Verify color-to-needle match).
• Prep: Hoop fabric "drum tight" with correct stabilizer.
• Orient: MENU → Convert (Check "P" or rotate 90° if needed).
• Trace: Press START (Visualize clearance).
• Go: Press START.
• Monitor: Listen for the rhythmic thump-thump of healthy stitching. Ideally, run between 650–800 SPM for best quality on most commercial heads.

Master these steps, and the cockpit becomes your comfort zone. Happy stitching.

FAQ

• Q: What should be checked on a Happy commercial embroidery machine before pressing MENU to prevent bird’s nests and thread breaks?
  A: Do a 30-second physical prep check first, because bad setup cannot be fixed by control panel settings.
  • Check: Replace the needle if a fingernail feels a burr or snag.
  • Check: Inspect the thread tree and thread path for crossed lines or a thread caught on a guide.
  • Clean: Remove the bobbin case and blow out lint (even a speck can affect tension).
  • Success check: Top thread pulls with smooth, consistent resistance (not free-spooling) and the bobbin area looks lint-free.
  • If it still fails… Re-thread the top thread completely and verify the thread is actually seated in the tension disks.
• Q: How can an operator verify “drum-tight hooping” on a Happy commercial embroidery machine to reduce flagging and nesting?
  A: Hoop the garment so the fabric is stable and tight, then re-hoop immediately if it ripples or feels loose.
  • Tap: Finger-tap the hooped fabric surface before stitching.
  • Re-hoop: Remove and re-hoop if the fabric shows waves or slack around the inner ring.
  • Match: Pair stable fabric with correct stabilizer choice before blaming tension or the control panel.
  • Success check: The fabric gives a dull “drum” thump and does not ripple when tapped.
  • If it still fails… Switch stabilizer strategy (for knits, move to cutaway) and trace again before running the design.
• Q: How do operators fix wrong thread colors on a Happy embroidery machine control panel using MENU → Needle mapping?
  A: Map each design color step to the actual needle number loaded on the machine, because the machine reads needle numbers—not color names.
  • Open: Go to MENU → Needle.
  • Assign: Highlight the color change step, press ENTER, select the correct Needle Number, then press ENTER again.
  • Limit: Add a Star (*) stop only when physical intervention is required (applique, puff foam, critical trimming).
  • Success check: The next stitch-out begins with the expected thread from the selected needle position.
  • If it still fails… Confirm the correct thread is physically loaded on that needle and re-check the thread path for a snag or mis-route.
• Q: When should an operator trace on a Happy commercial embroidery machine after using MENU → Convert rotation?
  A: Trace every time the design is rotated, because rotation changes the swing radius and can cause the needle to hit the hoop frame.
  • Rotate: Use MENU → Convert to rotate in 90° steps only as needed.
  • Verify: Confirm the orientation shows “P” (standard portrait) unless rotation is intentional.
  • Trace: Press START (tap, not hold) to run the trace path before stitching.
  • Success check: During trace, the presser foot clears the hoop edge and avoids bulky seams without coming dangerously close.
  • If it still fails… Reposition the design or re-hoop with a more suitable hoop size before attempting to stitch.
• Q: How can a Happy embroidery machine operator use F-Position to recover from a thread break without scrapping a garment?
  A: Use MENU → F-Position to jump back to the correct stitch number or the start of a color block, then restart cleanly.
  • Go: Open MENU → F-Position.
  • Recover (micro): Enter the stitch number (example shown: 1225) to return to the break point.
  • Recover (macro): Use Change to jump to the beginning of a specific color change block.
  • Success check: After restarting, stitches overlap smoothly with no visible gap where the break occurred.
  • If it still fails… Tap STOP quickly on the next run to back up a few stitches, then re-start from a “good” area.
• Q: What is the safest way to operate START/STOP on a Happy commercial embroidery machine to prevent needle strikes and finger injuries?
  A: Treat every START like instant movement and keep hands/tools out of the needle and pantograph travel zone.
  • Trace: Use START (tap) for trace when anything changed (hoop, garment size, rotation, placement).
  • Clear: Remove scissors, fingers, and any magnetic tools from the stitching area before pressing START.
  • React: If a loop, miss, or snag appears, press STOP immediately; hold STOP to back up further if needed.
  • Success check: The machine runs with steady, rhythmic stitching and no sudden fabric pull, frame contact, or operator “near-misses.”
  • If it still fails… Re-hoop and re-trace; do not “test buttons” or improvise around moving parts.
• Q: When should operators switch from standard Happy tubular hoops to magnetic hoops for Happy commercial embroidery machines, and what magnetic hoop safety rules matter most?
  A: Switch when screw-based hooping becomes the bottleneck or causes hoop burn, but handle magnetic hoops as a pinch and medical-device hazard.
  • Diagnose: Upgrade if runs are 20+ items, wrists hurt, hoop burn appears on delicate fabric, or thick jackets are hard to clamp consistently.
  • Upgrade: Use magnetic hoops to auto-adjust to thickness and reduce screw-tightening time (often improving prep speed).
  • Protect: Keep fingers clear when closing; magnets can pinch severely.
  • Success check: Hooping is faster and repeatable, with no hoop burn marks and consistent fabric hold across varying thickness.
  • If it still fails… Stop using the magnetic hoop near pacemakers or sensitive electronics and verify the frame fit/arm clearance for the specific Happy machine model before continuing.
