Video reference: “Stitch Delight - Stitch on Scuba Fabric Brother Innovis 5x5 inch design” by StitchDelightTV
A crisp border, a sculpted swirl, and that signature quilted texture—this 5x5 inch block shows how beautifully a Brother Innovis can stitch on scuba knit. Here’s a complete walkthrough of the process, with layering and sequencing spelled out so your stitches land cleanly and your texture really pops.
What you’ll learn
- How to layer cutaway stabilizer, thin quilters batting, and scuba knit for a textured quilting-style block.
- The stitching flow: border first, then small circles and curves, and finally the central swirl.
- Visual checks at each stage so you can validate progress and fix issues early.
- Comment-verified tips for quilting a “sandwich” and floating layers with spray adhesive.
Primer: What this project achieves and when to use it This project yields a clean, textured 5x5 inch quilting-style block on scuba knit using a Brother Innovis. The design—referred to as a “Stitch Delight” quilting-style motif—combines defined borders, small circular accents, dense curving fills, and a swirling centerpiece. The result is a raised, dimensional look with consistent stitch definition.
What is scuba fabric and why use it? Scuba is a double-knit (typically polyester/spandex) with a smooth face and slight structure that can showcase crisp stitch outlines. When layered over thin quilters batting, it produces an embossed, quilted effect that reads especially well in curving motifs and borders.
Understanding the “Stitch Delight” quilting-style pattern The design progresses in a logical sequence: border foundation, small circular elements and flowing lines, a dense central swirl, and then final outline passes to tie everything together. You’ll see these stages emerge clearly as you stitch.
Quick check - Expect a clean initial border, followed by visible fill development, and then a pronounced central swirl before final frame stitches complete the block.
Prep: Materials, files, and workspace Materials and tools (as used/shown)
- Machine: Brother Innovis (5x5 inch hooping area used in this project).
- Fabric: Scuba knit.
- Stabilizer: Cutaway stabilizer.
- Batting: Thin quilters batting.
- Adhesive: Temporary spray (used between layers for floating).
- Thread: Solid (white in the stitch-out shown throughout).
- File: Digitized “Stitch Delight” quilting-style design sized for 5x5 inches.
Workspace and file readiness
- Work in a well-lit area to see stitch formation clearly.
- Load the 5x5 inch design to match your hoop selection on the machine.
- Thread the machine and prepare a full bobbin.
From the comments
- Quilting sandwich? Confirmed workable for this design style; a related set of files is suggested for sandwich-style quilting.
- Layering recipe: Hooped cutaway; float thin quilters batting and scuba knit on top; secure with temporary spray between layers.
Watch out
- If the wrong hoop size is selected, the needle path may approach the hoop boundary. Confirm the 5x5 inch selection before stitching.
Prep checklist
- Scuba knit, thin quilters batting, and cutaway stabilizer are on hand.
- 5x5 inch “Stitch Delight” file is loaded.
- Brother Innovis is threaded; bobbin checked.
- Temporary spray adhesive ready.
Setup: Hooping and layering for scuba Hooping
- Hoop cutaway stabilizer securely. The stabilizer should be smooth and drum-tight in the hoop.
Floating and spray
- Float thin quilters batting over the hooped stabilizer.
- Float scuba knit on top of the batting.
- Use light, even temporary spray between the stabilizer and batting, and between batting and scuba knit, to keep layers unified without distortion.
Why this order matters
- Hooping cutaway provides a firm base.
- Floating thin batting creates the quilted loft.
- Floating scuba controls stretch while preserving the knit’s surface quality.
Pro tip
- Commenters report this stack-up “stitched flawlessly” when assembled with light spray and floated layers.
Decision point: Project type
- If building a single block: Use the layering above and stitch as shown.
- If quilting a sandwich: The design style can be used on a sandwich; choose files intended for sandwich-style quilting when assembling multiple layers.
Setup checklist
- Cutaway stabilizer hooped firmly.
- Thin batting floated; scuba knit floated on top.
- Temporary spray applied lightly between layers.
- Hoop attached; machine recognizes the 5x5 inch hoop.
Operation: The stitching flow from border to swirl Here’s how the stitch-out unfolds on the Brother Innovis, with visual checkpoints for each stage.
1) Initial border stitching - Start the machine. The design begins by laying down a clean border and early interior curves.
Expected result: A defined frame and initial contours stitched cleanly, with material staying flat.
Quick check - The border should look even with consistent tension; no puckering at the edges.
2) Developing inner patterns and details - The machine introduces small circular motifs and flowing lines, building texture toward the center.
Expected result: Corners begin to show a mix of circles and curves, and the interior starts to feel more filled and dimensional.
Watch out - If layers shift, circles can look oval. Ensure your spray bond is secure before starting this stage.
3) Completing the main swirl - The central swirling motif forms with dense, curving fills; this creates the focal texture of the block.
Expected result: A sculpted swirl with visibly distinct lines and smooth fill transitions.
Pro tip - Dense curves benefit from a stable base—your hooped cutaway and lightly bonded layers are doing that work for you.
4) Final outlines and completion - The machine returns to the outer boundary and adds finishing lines to unify the composition.
Expected result: Edge passes tie the entire block together; stitch density looks balanced across the design.
5) Inspection of the finished block - Stop and remove the hoop. Examine the texture, density, and line continuity from a few angles.

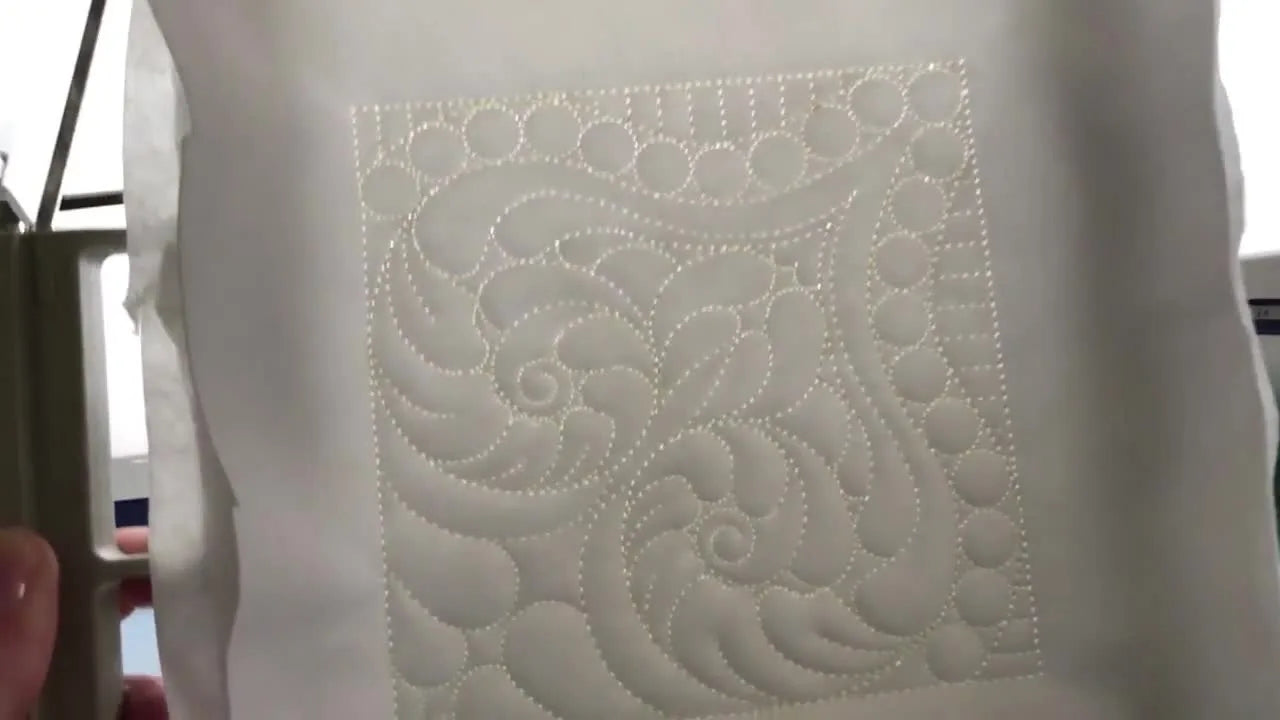

Expected result: The fully stitched 5x5 inch design displays clean borders, crisp circular details, and a raised swirl center.
Operation checklist
- Border clean and even.
- Circles round, not oval.
- Central swirl dense but smooth.
- Final outline connects edges without gaps.
Quality checks: Verify as you go Stage checks
- After border: Lines should be straight/true with no fabric creep.
- After circles/curves: Motifs should be symmetrical; if not, reassess layer adhesion.
- After central swirl: Texture should look uniform with no thread nests.
- Final pass: Borders should meet cleanly at corners; the frame should appear continuous.
Quick check
- From a slight angle, the block should show an even embossed effect, especially in the swirl.
Results and handoff: Remove, inspect, and plan your next steps Once stitching stops automatically, unhoop and evaluate:
- Surface: Scuba knit should be smooth with raised texture from the batting.
- Edges: Borders align and meet cleanly.
- Overall: The design reads as a cohesive quilted block in 5x5 inches.
From the comments
- A viewer stitched multiple blocks using scrap cutaway, thin quilt batting, and a light stretch knit top; they reported a clean stitch-out in short time.
- The design name cue is “Stitch Delight,” consistent with the project showcase.
If you’re assembling multiple blocks
- Keep your layering consistent block-to-block so textures match when joined.
Troubleshooting and recovery Symptom: Circles look slightly oval
- Likely cause: Layer shift.
- Fix: Refloat layers with light, even spray; ensure good contact before resuming.
Symptom: Border looks slightly wavy
- Likely cause: Base not taut.
- Fix: Re-hoop cutaway stabilizer drum-tight; re-float batting and scuba.
Symptom: Dense swirl appears uneven
- Likely cause: Inconsistent support under dense fills.
- Fix: Confirm stabilizer is fully supported by the hoop ring and layers are well bonded.
Quick tests to isolate issues
- Test a small corner motif first to confirm your layer bonding.
- Examine back side for thread loops; address before resuming the main motif.
From the comments: Quick Q&A
- Can I quilt a real sandwich with this design? Yes—the creator confirms this file style can work on a sandwich, and points to a related set made for sandwich-style quilting.
- What stabilizer and batting? Use cutaway stabilizer with thin quilters batting, and float scuba knit on top; secure layers with temporary spray.
- What needle type? Not specified in the showcase; choose based on your own materials and testing.
- Is the exact Innovis model specified? Only “Brother Innovis” is shown; the specific model isn’t stated in the showcase.
- What is scuba fabric? A double-knit with a smooth face and slight structure that pairs well with thin batting for a quilted effect.
