Stop “Blah” Embroidery: Add Diamond & Heart Texture Fills in mySewnet / Premier+2 (Without Ruining the Stitch-Out)

From Flat to Fabulous: Master Texture Fills in mySewnet & Premier+2 (A Production-Ready Guide)

If you’ve ever opened a purchased embroidery file and thought, “That’s… fine, but it looks a bit flat,” you are experiencing the difference between basic digitizing and design artistry. Brenda’s workflow in mySewnet (and Premier+2) is one of the fastest ways to turn a basic, flat fill into something that looks intentionally designed—without redrawing the artwork from scratch.

However, adding texture introduces physical variables. Textured fills add stitch density, which puts more stress on your fabric. As an embroidery educator, I see many beginners succeed on the screen but fail at the machine because they didn't account for the "physics" of the texture.

This guide will walk you through the software steps while keeping your machine reality in mind.

The “Blah Design” Moment: Why Texture Matters

Brenda starts with a design that looks clean but plain—“just straight stitching and no texture.” Her fix is simple: go into Digitizing and change the fill.

Why this matters for your final product:

1. Light Reflection: A flat fill is uniform. A textured fill introduces varied stitch angles. When light hits a textured chef's hat, it looks richer and deeper.
2. Forgiveness: A flat fill acts like a spotlight on fabric imperfections. If your tension is slightly off, or the fabric ripples, a flat fill shows everything. A textured “diamond” or “quilted” fill breaks up the surface, hiding minor flaws.
3. Dimension: It separates foreground from background, helping elements (like the chef's hat) pop.


Step 1: Enter the Digitizing Workspace

Do not try to edit this in the main layout screen. You must enter the specific "Digitizing" module.

1. Go to the Create tab in the top ribbon.
2. Click the Digitizing button.
3. Visual Check: A separate digitizing window will pop up over your main interface.

Why this fails for beginners: Many users stay in the standard editor, click on fills, and get frustrated when "Properties" doesn't show the pattern options. You must be in the Digitizing window.

Step 2: The "Big Hoop" Canvas

In the ExpressDesign Wizard, Brenda chooses:

• Start a new design with no picture
• Select Hoop: 360mm x 260mm Designer Imperial Hoop

Expert Note: She chooses a massive hoop for screen visibility, not because the design requires it. It gives you a large, white canvas to work on.

**Prep Checklist: Pre-Flight Safety**

Before you import your file, ensure you are ready:

• Correct Window: Are you definitely in the Digitizing module popup?
• Backup Strategy: Have you saved a copy of the original file? (e.g., ChefDesign_ORIGINAL.vp3)
• Visual Comfort: Did you select a large hoop (200mm+) so you aren't squinting at the screen?
• Fabric Reality: Are you planning to stitch this on a T-shirt or a towel? (Textured fills require stronger stabilization than flat fills).

Step 3: Import and Ungroup

Brenda imports the existing design:

1. Go to the Home tab.
2. Click Insert Embroidery.
3. Select the file: “OHMyCS Baked with Love 52221 6x10”.




Crucial Step: The Ungroup When the design loads, it is a single "block." You cannot edit the hat without editing the heart.

1. Look at the Film Strip on the left.
2. Right-click the design group.
3. Choose Ungroup.

Sensory Check: You should see the Film Strip expand, revealing a long list of individual components (Section 1, Section 2, etc.) rather than one single icon.

Warning: Accidental Edits
Once ungrouped, every single satin line and fill is independent. Be careful not to click and drag small outlines by mistake. If you accidentally move a piece, immediately press Ctrl+Z (Undo).

Step 4: Applying the "Diamond" Texture (The Hat)

Now we apply the specific texture settings.

1. Scroll the Film Strip to find the hat. Use the visual preview. It is Section 16, Pattern Fill.
2. Verify Selection: Click it once. Look at the workspace—is the box surrounding only the hat?

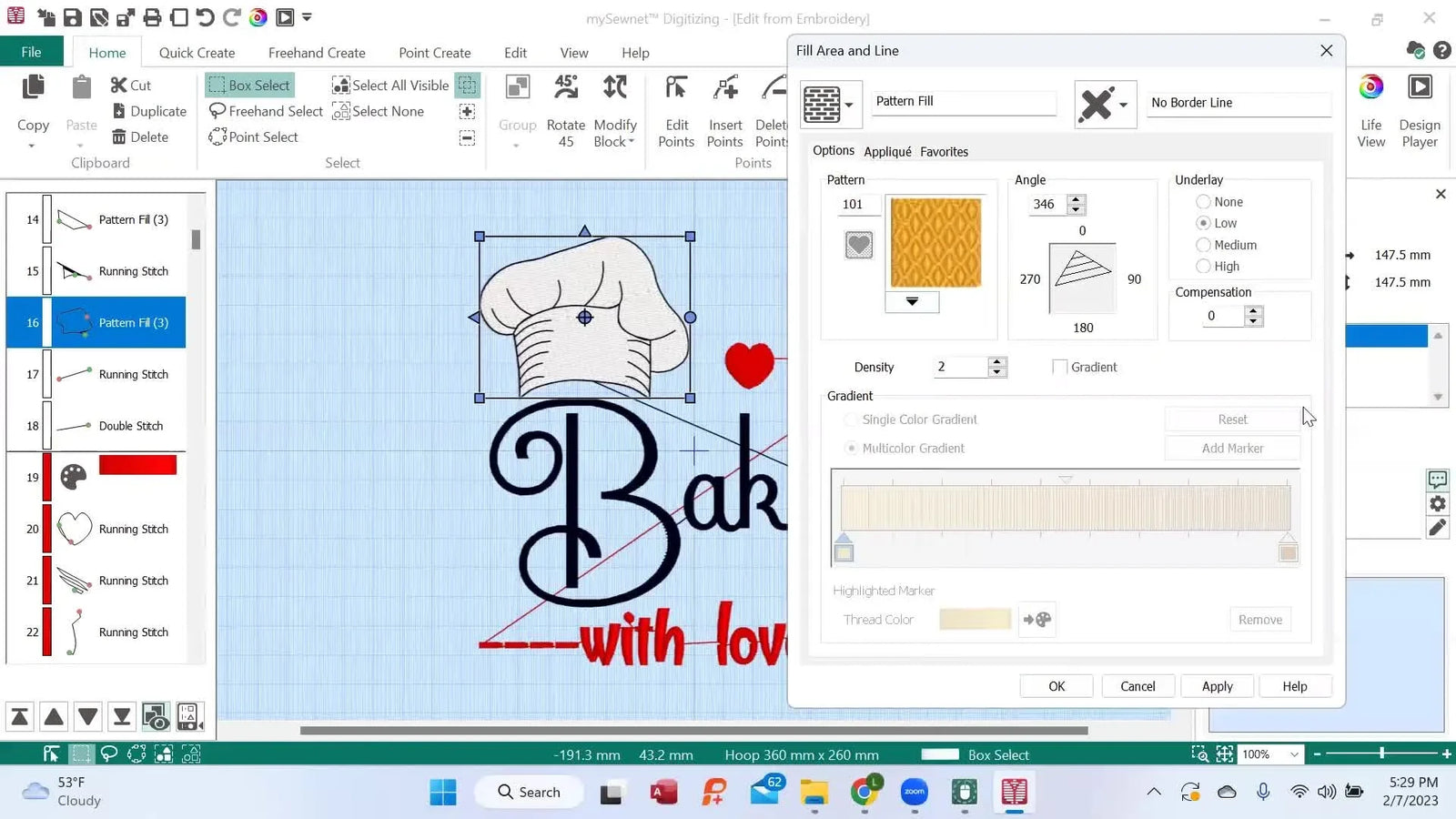

3. Right-click → Properties.
4. Open the pattern dropdown menu.
5. Category: Universal (usually where geometrics live).
6. Pattern: Select Diamonds (or a similar geometric quilt pattern).
7. Click Apply.






The Visual Result: The hat changes from a flat white "sheet" to a quilted texture.

Step 5: Applying the "Heart" Texture

Now, Brenda targets the heart. This demonstrates how scale affects quality.

1. Scroll to the heart element: Section 51, Pattern Fill.
2. Right-click → Properties.
3. Category: Hearts.
4. Pick a heart texture.
5. Click Apply and OK.




The "Scale" Reality Check

Brenda notes that the first attempt doesn't look right. This is normal.

• The Issue: If the pattern inside the fill is too large, you only see fragments of the shape. It looks messy, not intentional.
• The Fix: Go back to Properties. Choose a denser pattern (smaller repeats, often numbered higher in the list).

Expert Rule of Thumb: A pattern needs to repeat at least 3 to 4 times vertically and horizontally within the shape to be recognizable by the human eye.

Step 6: Critical Production Adjustments (The Physics of Stitched Texture)

Here is where we move from software theory to physical reality. Adding texture increases the stitch count and the pull force on the fabric. A flat fill might have 4,000 stitches; a textured fill might have 5,500.

1. Speed Management

Textured fills often involve many small, multi-directional needle penetrations.

• Standard Speed: 800-1000 SPM (Stitches Per Minute).
• Texture Safe Zone: Drop your speed to 600-700 SPM.
• Auditory Check: Listen to your machine. If it sounds like a rhythmic "thump-thump," you are good. If it sounds like a frantic "rat-a-tat-tat" or machine gun fire, slow down.

2. Stabilization Strategy

Texture creates drag. If you stitch a heavy texture on a flimsy T-shirt with only tearaway stabilizer, you will get "puckering" (where the fabric wrinkles around the embroidery).

Decision Tree: Fabric vs. Stabilizer for Textured Fills

• Scenario A: Non-Stretch Woven (Denim, Canvas)
  • Risk: Low.
  • Stabilizer: Medium Tearaway or Cutaway.
• Scenario B: Stretchy Knits (T-Shirts, Polos)
  • Risk: High (Distortion).
  • Stabilizer: Must use Mesh Cutaway. (No exceptions for textured fills).
  • Action: Consider using Spray Adhesive (like 505) to bond the fabric to the stabilizer to prevent shifting.
• Scenario C: High Lofty (Towels, Fleece)
  • Risk: Texture sinks and disappears.
  • Stabilizer: Cutaway on back + Water Soluble Topping (Solvy) on top.
  • Why: The specific water-soluble topping prevents the detailed texture stitches from sinking into the loops of the towel.

3. Hooping Mechanics

Textured fills are unforgiving of "hoop burn" (the white ring left on fabric) or loose hooping.

• Tactile Check: The fabric in the hoop should feel like a skin on a drum. Taut, but not stretched to distortion.
• Hoop Burn Solution: If you struggle to hoop thick items without leaving marks (or if your wrists hurt from tightening the screw), this is a "Trigger Moment" to upgrade your tools. Many professionals switch to magnetic embroidery hoops because they automatically adjust to fabric thickness, eliminating the need to force the inner ring and reducing hoop burn.

Warning: Magnetic Safety
Modern magnetic hoops use strong Neodymium magnets.
* Pinch Hazard: Watch your fingers when snapping them together.
* Medical: Keep them away from pacemakers.
* Electronics: Do not place them directly on laptops or near credit cards.

Setup Checklist (Before You Stitch)

Ensure your physical setup creates a safe environment for your complex new file.

• Topping Applied? If fabric is fuzzy, use a water-soluble topper.
• Needle Check: Use a fresh 75/11 needle. A dull needle combined with dense texture causes thread shredding.
• Hoop Tension: Is the fabric "drum-tight"? (Or are you using a magnetic frame for auto-tension?)
• Speed Limit: Have you lowered the machine speed to ~600 SPM for the first run?
• Consumables: Has the bobbin area been cleaned? Lint buildup + complex fills = birdnesting.

Troubleshooting: When Texture Goes Wrong

Moving to Production

If you are stitching this design once for a gift, standard hoops are fine. However, if you plan to stitch this logo on 50 shirts for a client, consistency is key.

When to upgrade your tools:

1. Hooping Station: If you can't get the design straight on every shirt, look into a hooping station for machine embroidery to standardize placement.
2. Magnetic frames: If you are wasting time scrubbing "hoop burn" marks off dark shirts, magnetic frames pay for themselves by eliminating that step.
3. Machine Capacity: If you find yourself babysitting one machine for hours changing thread colors, this is the sign your business has outgrown a single-needle setup. A multi-needle machine (like the SEWTECH series) allows you to set up 10+ colors at once and walk away, dramatically increasing your profit per hour.

Texture is a powerful tool. Use the software to design it, but trust your physical setup to deliver it. Happy stitching!

FAQ

• Q: In mySewnet Digitizing (or Premier+2 Digitizing), why does the Properties panel not show texture pattern options for a fill?
  A: Open the separate Digitizing module window first, because pattern fills are edited there—not in the main layout screen.
  • Click Create → Digitizing and confirm a separate Digitizing popup window opens.
  • Select the target fill object again, then right-click → Properties to find the pattern dropdown.
  • Re-check that the selection box surrounds only the intended shape (not the whole design).
  • Success check: The Properties dialog shows a pattern category list (for example “Universal”) and a selectable pattern like “Diamonds.”
  • If it still fails: The design may still be grouped—ungroup the imported design in the Film Strip and try again.
• Q: In mySewnet Digitizing, why does “Insert Embroidery” load the whole design as one block and prevent editing the chef hat fill separately?
  A: Ungroup the imported embroidery in the Film Strip so each section becomes editable.
  • Go to the Film Strip on the left, right-click the design group, and choose Ungroup.
  • Scroll the Film Strip and click the specific component (for example the hat section) before opening Properties.
  • Use Ctrl+Z immediately if any small outline gets accidentally moved after ungrouping.
  • Success check: The Film Strip expands into many individual sections (Section 1, Section 2, etc.) instead of one single icon.
  • If it still fails: Re-import the file and repeat Ungroup before attempting any edits.
• Q: In mySewnet Digitizing, why does a heart texture fill look messy or “cropped” inside a small heart shape after applying a pattern?
  A: Switch to a denser (smaller-repeat) heart pattern so the texture repeats enough times inside the shape.
  • Open the heart object Properties and change to a tighter pattern option (often higher-numbered in the list).
  • Aim for a pattern that repeats at least 3–4 times vertically and horizontally within the heart shape.
  • Apply the change and visually re-check the preview before saving.
  • Success check: The heart texture reads clearly as a repeating pattern, not partial fragments.
  • If it still fails: Choose a different pattern family with smaller geometry that fits small areas more cleanly.
• Q: When stitching textured pattern fills on knit T-shirts or polos, what stabilizer setup prevents puckering on the embroidery machine?
  A: Use mesh cutaway stabilizer for stretchy knits, and bond fabric to stabilizer if shifting is likely—textured fills need stronger support.
  • Choose Mesh Cutaway on the back for T-shirts/polos (a safe starting point for textured fills).
  • Add light spray adhesive to keep the knit from creeping during stitching.
  • Hoop with firm, even tension so the fabric is taut without being stretched out of shape.
  • Success check: The fabric lies flat around the design with no ripples after stitching.
  • If it still fails: Slow the machine down and re-check hoop tension, because extra pull from texture can amplify movement.
• Q: What machine speed is a safe starting point for dense textured fills to reduce thread breaks and rough running sounds?
  A: Drop speed to about 600–700 SPM for the first run because textured fills add many small direction changes and friction.
  • Reduce speed from typical 800–1000 SPM down to 600–700 SPM before starting the textured areas.
  • Install a fresh 75/11 needle to reduce shredding and heat/friction in dense stitching.
  • Clean the bobbin area to remove lint before running complex fills.
  • Success check: The machine sounds like a steady rhythmic “thump-thump,” not frantic “rat-a-tat-tat.”
  • If it still fails: Re-thread the machine and verify the thread path is clear before increasing speed again.
• Q: What is the correct hooping tension standard for textured pattern fills, and how can hoop burn be reduced during hooping?
  A: Hoop so the fabric feels drum-tight (taut, not stretched), and consider magnetic hoops if hoop burn or over-tightening is a repeat problem.
  • Tighten hooping until the fabric feels like a skin on a drum—firm and even, without distortion.
  • Avoid forcing thick items into a standard hoop ring if it leaves white rings or marks.
  • Use a magnetic embroidery hoop if consistent hoop burn or wrist strain happens during repeated hooping (many users find magnetic tensioning more forgiving).
  • Success check: The fabric stays stable during stitching and does not show a prominent hoop ring after unhooping.
  • If it still fails: Re-check stabilizer choice and reduce speed, because texture can pull fabric even when hooping feels tight.
• Q: What magnetic hoop safety rules should embroidery operators follow when using strong neodymium magnetic embroidery hoops?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from medical devices and sensitive electronics.
  • Keep fingers clear when snapping magnetic sections together to avoid pinching.
  • Keep magnetic hoops away from pacemakers and follow medical guidance.
  • Do not place magnetic hoops directly on laptops or near credit cards/sensitive electronics.
  • Success check: The hoop closes securely without sudden snapping onto fingers, and handling feels controlled.
  • If it still fails: Stop and reposition slowly—do not “force-close” magnets; control alignment first.
