Stop Re-Hooping Caps: How to Stitch Front + Both Sides in One 270° Run (Without Puckers or Guesswork)

If you’ve ever embroidered a clean front logo on a cap… then immediately regretted offering side embroidery because it meant re-hooping (and re-centering) all over again, you’re not alone.

In the industry, we call this the "Re-Hooping Bottleneck." It kills profit margins because every time you un-hoop, you lose 5–10 minutes and risk misalignment.

In the Ricoma demo video, Willie shows a production-minded workflow: digitize the front + left + right placements as one file, hoop the cap once, and let a 270° cap driver rotate the cap so the machine stitches all three locations in a single run. Done right, it saves massive time. But done wrong, it breaks needles.

Here is your "White Paper" guide to mastering the 270° cap rotation safely.

The “One-Run” Cap Job: Using a 270° Cap Driver to Stitch Front + Sides Without Re-Hooping

The mechanics here are simple but unforgiving. A standard cap frame rotates about 180° (ear-to-ear). A "Wide Angle" or 270° system rotates significantly further, allowing the needle to access the side panels without hitting the steep curve of the brim.

The Hardware Reality Check: The whole trick only works if your machine can physically rotate far enough. In the video, the MT-1502 is used. Willie explicitly calls out that not every machine can do this wide-angle cap rotation.

For example, the EM-1010 generally does not have the high-torque 270° rotation feature needed for this specific "one-pass" workflow. That difference matters because it changes your workflow from “one hooping” to “multiple hoopings.”

If you are currently evaluating ricoma embroidery machines or similar multi-needle equipment, checking the specific rotation range (270° vs. standard) is critical before purchasing if you plan on selling "side-logo" packages.

Pro tip from the floor: Rotate your cap driver by hand (with the machine off). If it stops physically before reaching the side panel area, do not force it via software. You cannot cheat physics.

The “Hidden” Prep Pros Do First: Cap Station, Stabilizer Strategy, and a Reality Check on Fit

Before you touch the digitizing software, you must perform a physical audit. 80% of cap failures happen here, not on the screen.

1. The Physical Setup

Confirm your cap station (the heavy gauge used for hooping) and the cap driver (the part on the machine) are a matched set. A loose cap driver allows the cap to vibrate, causing needle breaks.

• Sensory Check: When you lock the cap driver onto the machine, you should hear a solid structural clunk or click. Try to wiggle it. If it wobbles more than 1-2mm, tighten the installation screws.

2. The Stabilizer Strategy (Material Science)

Willie uses tear-away stabilizer cut into long horizontal strips, and he doubles it up.

• Why Tear-Away? It provides rigidity for the structured cap front but tears away cleanly from side panels where you don't want bulk.
• Why Strips? You need stabilizer that spans from the left ear, across the front, to the right ear.
• The Recipe: Use 2 layers of medium-weight (approx. 1.8oz - 2.0oz) tear-away.

3. The "Usable Field" Check

A lot of frustration comes from one moment: “I made the 270 mm x 90 mm hoop, but my front + side design doesn’t fit on screen.”

• The Fix: If you are building a cap workflow using professional hooping stations, you must measure the physical distance from the center seam to the side panel. That measurement is your hard limit.

Prep Checklist (Do this before digitizing)

• Hardware: Confirm machine supports wide-angle (270°) rotation.
• Stabilizer: Cut tear-away strips (approx 4" x 14" / 10cm x 36cm) – enough for 2 layers per cap.
• Cap Type: Select structured caps (like the Otto caps in the video) for your first attempt. Unstructured caps require more complex clamping.
• Consumables: Have binder clips (medium size), puff foam (3mm), and a lighter/heat gun ready.


Chroma Digitizing That Actually Lines Up: Building a 270 mm x 90 mm Hoop and Placing Side Logos by Measurement

Willie’s digitizing setup is straightforward. He creates a custom hoop preset in Chroma.

The Parameters:

• Width: 270 mm (Total arc length)
• Height: 90 mm (Safe vertical height)
• Origin: Center

The Secret Sauce: Measuring, Not Eyeballing He does not guess where the side logo goes.

1. Action: With a flexible measuring tape, measure from the center seam of the physical cap to the center of the side panel. Let's say it is 90mm.
2. Digitizing: In Chroma, use the ruler tool to place the side logo exactly 90mm from the center origin.


Comment pain point: “270 mm isn’t wide enough—should it be 360 mm?”

In the comments, a user asked if they could expand the width to 360mm.

Expert Answer: NO.
The software limit exists to protect the machine. 270mm is already pushing the physical limit of the Pantograph arm movement. If you force it to 360mm, the frame will crash into the machine arm.

Sensory Warning: If you hear a grinding noise during a trace, hit STOP immediately. You are hitting a physical limit.

If you are operating a ricoma mt 1501 embroidery machine, always respect the factory preset limits (usually around 270-290mm max width for caps).

Data Verification: Ricoma confirmed the design in the video is:

• Center Design: 2.7 inches diameter.
• Total Length (Left to Right): 11.2 inches.

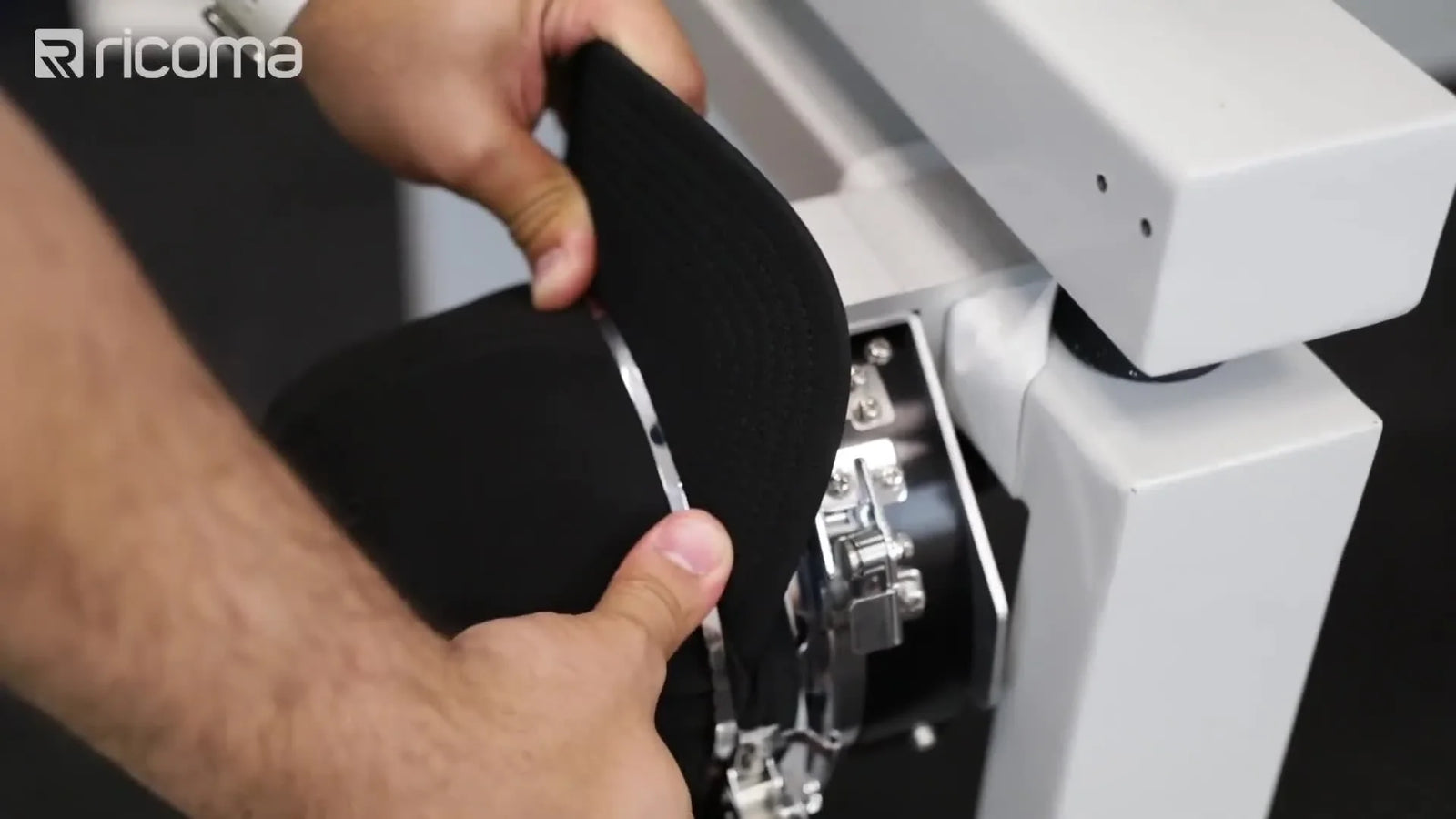

The Cap Hooping Ritual on a Cap Station: Sweatband Out, Brim on the Line, Teeth on the Seam

This is the part that defines the quality of your stitch. If the cap is loose, the registration will slip.

Step-by-Step Sequence:

1. Layer Up: Place two strips of stabilizer under the cap driver plate.
2. Sweatband Logic: Pull the sweatband completely out. Do not sew through it unless you want a bulky, uncomfortable cap.
3. The Anchor Point: Slide the cap onto the driver. Align the red mark (or center gap) of the driver with the cap's center seam.
4. Brim Placement: The brim must sit right up against the metal registration line, but never over it.
5. The "Teeth": Position the strap so the toothed latch bites into the seam where the brim meets the crown. This is the strongest part of the cap.


The “Shift” Trap (And the Physics Fix)

Willie calls out a real-world issue: when you lock the buckle, the torque pulls the cap to the right.

• The Fix: Pull the cap slightly to the left (about 2-3mm) before locking the buckle. The locking action will pull it back to the precise center.
• Sensory Check: Tap the front of the cap like a drum. It should sound taut. If the fabric ripples, unlock and re-hoop.

Warning: Physical Hazard
Cap stations operate with high tension. Keep fingers clear of the buckle snap-point. The metal teeth can puncture skin if the strap slips.

The Binder-Clip Hack That Stops Side-Panel Flagging (The Real Reason This Video Works)

Side panels are notorious for "flagging" (bouncing up and down with the needle), which causes birdnests and broken needles.

Willie’s Field-Tested Method:

1. Load the hoop onto the machine.
2. Manually rotate the driver to the far left.
3. Action: Smooth the side panel flat against the radius of the plate.
4. The Hack: Use binder clips to clip the bottom of the stabilizer and cap material to the frame posts or wires.
5. Repeat on the right side.


Why this matters: You cannot use hoop tension alone for side panels because the cap creates a "bridge." The binder clips act as a third hand, keeping the material stable.

Tools of the Trade Context: Reliable holding is everything. While binder clips work for caps, for standard flat garments, many shops are moving to magnetic embroidery hoops. These reduce "hoop burn" (pressure marks/creases) by using magnetic force rather than mechanical friction. If your production expands beyond caps, consider these tools to reduce material damage.

Warning: Machine Safety
Ensure the binder clips are positioned low enough so they do not strike the presser foot or needle bar during rotation. performing a "Trace" is mandatory to verify clearance.

Setup on the Machine: Trace First, Then Run at 800 SPM (And Don’t Ignore Weird Sounds)

The Golden Rule of Caps: Never press Start without Tracing.

1. The Trace Test Press the Trace button (usually the icon with a square/hoop perimeter). watch the needle bar (Needle #1) travel around the design area.

• Visual Check: Does the presser foot clear the brim? Does it hit the binder clips?
• Auditory Check: Listen for any motor straining or metal-on-metal clicks.

2. Speed Settings (SPM) The video runs at 800 SPM.

• Beginner Sweet Spot: If this is your first time, or if you are using 3D Puff, slow down to 600-650 SPM. Speed causes vibration; vibration causes misalignment. 800 SPM is for when you have dialed in your tension perfectly.

If you navigate the market for a cap hoop for embroidery machine, ensure the attachment is rated for the speeds you intend to run.

Setup Checklist (Before you press Start)

• Cap Alignment: Brim is on the line, not over it.
• Sweatband: Fully pulled back/out.
• Stabilizer: Fully covers the entire stitch area (front + sides).
• Clips: Binder clips installed on sides to prevent flagging.
• Trace: Completed successfully with no collision sounds.


Operation: Running the File as One Continuous Design

Willie stitches the center, then the machine automatically rotates to the side elements because it is all one file.

The Speed Math: Hooping once vs. hooping 3 times saves roughly 7 minutes per cap.

• 100 Caps = 700 minutes saved = 11.6 hours of labor gained.

This efficiency makes the "Cap Station" workflow the industry standard. If you are serious about production, researching a dedicated hooping station for machine embroidery is the next logical step to ensure every cap is hooped identically.

Comment pain point: “How do I do only one side without losing center?”

If you try to stitch just a side logo later, you lose the center reference.

• The Fix: Always digitize from the Center Out. Even if you only stitch a side logo, hoop the cap centered. Your machine calculates the "Side" position based on the "Front Center."


Adding 3D Puff Mid-Run: Place the Foam Right Before That Color Change

3D Puff (Foam) requires specific timing. You don't hoop the foam; you float it.

The Protocol:

1. Program a "Stop" or "Color Change" in your design right before the 3D element.
2. When the machine stops, place the foam (usually 2mm or 3mm EVA foam) over the area.
3. Safety: Hold the foam corners gently away from the needle path until the first few tack-down stitches secure it. Then let go.

Density Data (Critical): Ricoma advises specific density settings for puff vs. flat:

• Standard Flat Stitch: ~0.40mm spacing (often called 0.4 density).
• 3D Puff Stitch: ~0.15mm - 0.20mm spacing (often called 0.15 density).
• Note on Video Data: The video mentions "0.1 density". In many software packages, this means 0.1mm spacing. This is very tight. For generic 3mm foam, 0.18mm - 0.20mm is a safer starting point to avoid cutting the foam like a perforated stamp.

If exploring accessories like ricoma embroidery hoops, ensure they provide the rigid tension required to slice through foam cleanly.

Finishing Like a Shop That Charges More: Tear Way, Peel Foam, Then Heat-Gun the Last 5%

The difference between "Homemade" and "Pro" is the finish.

The Clean-Up Sequence:

1. Un-hoop: Remove cap from driver.
2. Tear: Rip the stabilizer away. (Tear-away should remove easily).
3. Peel: Remove the large chunks of excess foam.
4. The Secret Weapon: Use a Heat Gun (or a lighter kept moving rapidly).
   • The Why: Heat shrinks the tiny "upholstery hair" bits of foam that stick out of the satin stitches.
   • Visual Target: The stitches will tighten slightly, and the fuzzy foam edges will vanish.


Decision Tree: Choosing Stabilizer + Workflow Based on Cap Type

Use this logic flow to determine your setup:

1) Does your machine have 270° cap rotation (ear-to-ear)?

• YES: Use the "One-Run" method (Front + Sides in one file).
• NO: You must hoop Front separately, then re-hoop for Sides.

2) Cap Structure Type:

• Structured (Buckram Front): Use Tear-Away stabilizer strips (2 layers).
• Unstructured (Dad Hat): Use Cut-Away stabilizer (float or hoop) to prevent distortion, AND use binder clips aggressively.

3) Are side panels flagging/bouncing?

• YES: Stop. Rotate driver. Smooth fabric. Apply binder clips. Resume.

Troubleshooting the Real-World Problems (Structured Repair)

The Upgrade Path: When Tools Pay for Themselves

If you are doing occasional caps, this workflow with binder clips is perfect. However, if caps are a daily bottleneck, consider your toolset:

1. Production Volume: If the specific 270° rotation limit of your current machine is costing you orders, a dedicated multi-needle machine (like the MT series in the video) is the solution for scale.
2. Hooping Efficiency: Caps require cap drivers. But for your other work (shirts, bags), traditional screw-hoops cause wrist strain and "hoop burn."
   • The Upgrade: A magnetic hooping station allows for faster, safer hooping of flat goods.
   • The Logic: Use the right tool for the job. Cap drivers for caps; Magnetic frames for flats.

Warning: Magnetic Safety
magnetic embroidery hoops use powerful Neodymium magnets. They can pinch fingers severely and disrupt pacemakers. Always slide them apart; never pry them.

Operation Checklist (End-of-Job QC)

• Center Alignment: Front logo is centered (check against seam).
• Level: Start point of Left side matches Start point of Right side.
• Cleanliness: All foam "fuzz" removed with heat gun.
• Interior: Stabilizer torn away cleanly; no scratchy edges left inside.

By following this "Physics First" approach—measuring, clamping, and respecting rotation limits—you turn the nightmare of side embroidery into your shop's most profitable upsell.

FAQ

• Q: How can a Ricoma MT-1502 wide-angle 270° cap driver stitch front + left + right cap logos in one run without re-hooping?
  A: Build one combined design file and let the 270° cap driver rotate the cap, but only after confirming the machine can physically rotate to the side panels.
  • Digitize front + left + right as a single file with a centered origin.
  • With the machine OFF, rotate the cap driver by hand to verify it can reach the side areas without binding.
  • Run a Trace on the machine before pressing Start to confirm brim/clip clearance.
  • Success check: The Trace completes with no grinding/clicking and the needle path clears the brim and any clips.
  • If it still fails: Stop and revert to separate hoopings for sides, because software cannot override a physical rotation limit.
• Q: Why does a Ricoma cap design not fit in a 270 mm × 90 mm Chroma hoop preset, and should the hoop width be increased to 360 mm?
  A: Do not increase the cap hoop width to 360 mm; 270 mm exists to prevent a frame crash and the real limit is the physical cap “usable field.”
  • Measure the physical distance from the cap center seam to the side-panel center and use that number for placement.
  • Accept that cap usable height is often less than the full 90 mm frame height due to cap curvature.
  • Trace the design after loading to confirm the pantograph travel stays within safe range.
  • Success check: Trace runs smoothly without strain and the design boundary never approaches a collision point.
  • If it still fails: Reduce overall design width/placement to stay within the physical cap curve instead of forcing a wider hoop.
• Q: What stabilizer setup is recommended for a Ricoma-style 270° cap rotation job using tear-away strips, and how should the strips be cut?
  A: Use two layers of medium-weight tear-away cut into long horizontal strips that span left ear to right ear.
  • Cut tear-away strips approximately 4" × 14" (10 cm × 36 cm) so the stabilizer covers front and both sides.
  • Stack 2 layers under the cap driver plate before mounting the cap.
  • Choose structured caps for the first attempts because they hold shape better during rotation.
  • Success check: The cap feels rigid and supported across the entire stitch zone, not just the front panel.
  • If it still fails: Re-check coverage length (it must span to the side panels) and verify the cap driver is mounted solidly with minimal wobble.
• Q: How can a cap shift to the right on a Ricoma cap station during buckle locking, and what is the fix to keep the front logo centered?
  A: Pre-compensate for buckle torque by pulling the cap slightly left before locking the buckle.
  • Align the cap center seam to the cap driver center mark/gap before tightening.
  • Pull the cap about 2–3 mm to the LEFT, then lock the buckle so torque pulls it back to center.
  • Tap the cap front to confirm tension before stitching.
  • Success check: The cap sounds taut “like a drum” and the center seam remains aligned after locking.
  • If it still fails: Unlock and re-hoop; slipping usually means the cap was not fully seated or tensioned evenly.
• Q: How do binder clips prevent side-panel flagging on a 270° cap driver embroidery run, and where should binder clips be placed for safety?
  A: Use binder clips as a third hand to hold side panels flat, but keep clips low to avoid presser-foot/needle-bar collisions.
  • Rotate the cap driver manually to the far left, smooth the side panel flat, then clip stabilizer + cap material to frame posts/wires.
  • Repeat the same clipping method on the right side after rotating to the far right.
  • Always perform a Trace after clipping to verify clearance during rotation.
  • Success check: Side fabric does not bounce during stitching and the Trace shows no contact with clips.
  • If it still fails: Reposition clips lower and re-smooth the panel; persistent needle breaks usually indicate flagging or a clearance issue.
• Q: What does a loud grinding noise during Trace mean on a Ricoma cap frame setup, and what should be done immediately?
  A: Hit STOP immediately; the cap frame is contacting a physical limit, often from excessive design width or incorrect cap frame installation.
  • Stop the machine and do not restart until the collision cause is identified.
  • Re-run Trace slowly after removing or repositioning any binder clips that could be in the strike path.
  • Confirm the design width respects typical factory cap limits (often around 270–290 mm max width for caps, depending on machine).
  • Success check: Trace completes with smooth motion and no motor strain or metal-on-metal sound.
  • If it still fails: Reinstall the cap driver/cap frame and reduce design width; do not force rotation through software.
• Q: What are the key safety risks when hooping caps on a high-tension cap station and using magnetic embroidery hoops in a production shop?
  A: Keep fingers away from buckle snap points on cap stations, and handle magnetic hoops by sliding (not prying) because magnets can pinch severely and affect pacemakers.
  • Keep hands clear when snapping/locking the cap station buckle; the metal teeth can slip and puncture skin.
  • Perform Trace every time to avoid needle/presser-foot contact with brim or clips, which can break needles.
  • Slide magnetic hoop pieces apart slowly; never pry them apart.
  • Success check: Hooping and removal can be done without sudden snaps, pinches, or unexpected movement.
  • If it still fails: Pause production and review the machine/hoop safety instructions; if anyone has a pacemaker, keep strong magnets away entirely.
