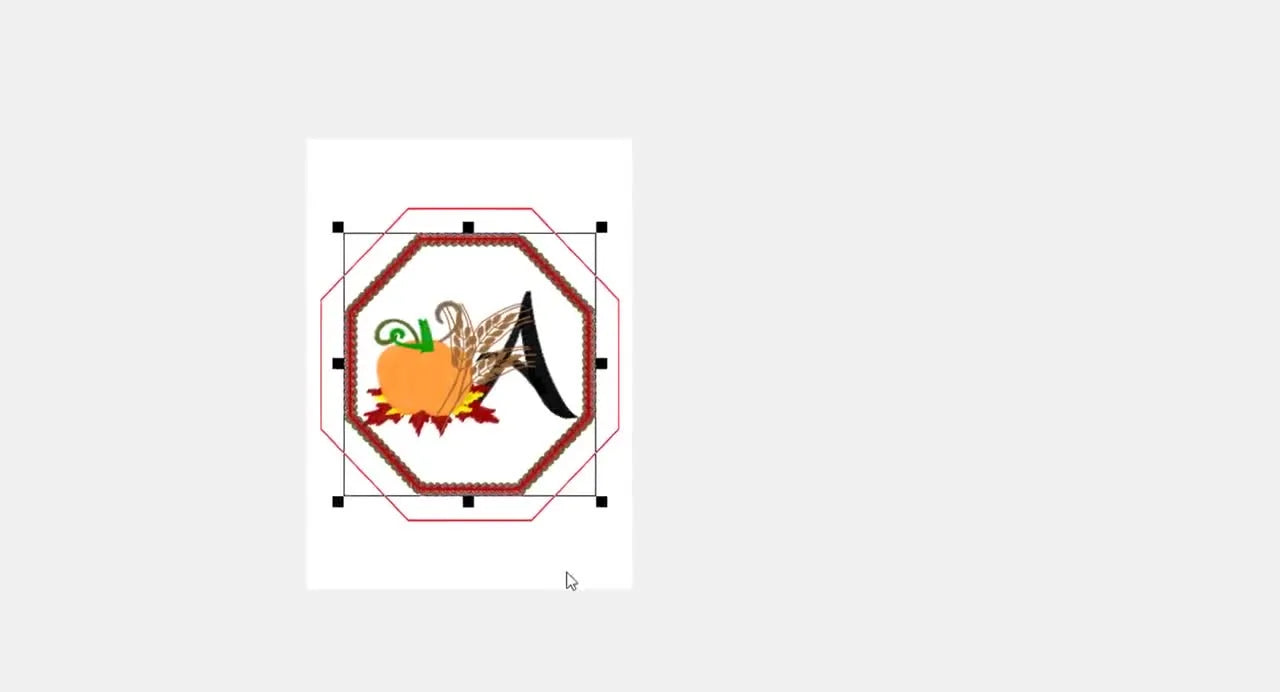

Turn a Free PES Stitch File into an ITH Mug Rug in Embird Studio (Without Ruining Density or Wasting Fabric)

If you have ever opened a "free design" and thought, "This stitches beautifully… but how do I turn it into an actual finished gift without sewing?" you are in the right place.

In this master class on Embird Studio, we will take a standard stitch file (in this case, a basic autumn pumpkin) and wrap a complete In-The-Hoop (ITH) mug rug project around it. No hand sewing required. No risky resizing that ruins stitch density. Just a clean, professional finish.

Calm the Panic: Why a PES Stitch File Shouldn’t Be Resized (and What to Do Instead in Embird Editor)

First, a rule of physics in the embroidery world: Stitch files are not object files.

Think of a stitch file (like a .PES or .DST) like a bitmap image. If you stretch it, you don't add more details; you just pull the existing points apart, creating gaps. If you shrink it, you cram points together, creating bulletproof density that snaps needles.

The "Pro Move": Leave the original design at its original size (100%). We will build the mug rug structure around it.

Your Action Plan in Embird Editor:

1. File > Open: Import your subject design (e.g., the pumpkin).
2. Clean House: Delete any existing borders or color blocks that don't belong in a mug rug.


Why this cleanup matters: Every extra border is "bulk." In ITH projects, bulk is the enemy of crisp corners. If you leave a dense satin border from the original design, your machine will struggle to glide over it when adding the final construction seams.

Prep Checklist (Pre-Flight):

• File Type Check: Confirm you are working with a stitch file (PES/DST/EXP).
• Sanitize: Remove unwanted outer borders in Editor.
• Project Goal: Is this a one-off gift (use tearaway) or a daily-use coaster (consider cutaway/thermal)?
• Needle Check: Install a fresh 75/11 or 90/14 needle depending on fabric thickness.

The One Shortcut That Changes Everything: “Edit Stitch File in Studio” (Shift+Ctrl+E)

Stop trying to force heavy edits in the basic Editor. We need the architectural power of Studio.

The Bridge Shortcut:

1. Select your design in Editor.
2. Go to Edit > Edit Stitch File in Studio.
3. Keyboard Shortcut: Shift + Ctrl + E.


This creates a "container" for your stitch file within the digitizing workspace. It allows you to add placement lines and tack-downs without corrupting the original stitch data of the pumpkin.

Give Yourself Room to Work: Choosing the Baby Lock/Brother 200x200 (8x8) Hoop Workspace

"Edge Anxiety" is the fear experienced when your design gets too close to the hoop's plastic limits. To design comfortably, we need space.

Set the Workspace:

1. Open Hoop Preferences.
2. Select Baby Lock / Brother 200x200 (approx. 8x8 inches).


Even if the final mug rug is only 5x7, designing in an 8x8 space prevents you from accidentally cramping the seam allowance.

Commercial Insight: If you are designing for production, the brother 8x8 embroidery hoop isn't just a size; it's a standard for creating mid-sized home décor items. However, standard hoops often cause "hoop burn" (friction marks) on delicate fabrics because you have to crank the screw tight to prevent slippage.

• The Fix: If you notice hoop burn or struggle to get even tension in a standard 8x8 hoop, this is a clear signal to evaluate your toolset. We will discuss magnetic options later, but for now, ensure your fabric is drum-tight—tapping it should produce a dull "thump."

Build the Mug Rug Shape Fast: Outline Tool → Polygon Octagon (Hold Shift)

Mug rugs need a shape. While squares are standard, octagons are superior for ITH beginners.

Why an Octagon? Geometry is your friend. A square has four 90-degree corners that are notoriously hard to poke out cleanly after turning (they often end up rounded or bulky). An octagon has obtuse angles (135 degrees), which turn right-side out effortlessly and lay flat.

The Workflow:

1. Select Outline Tool > Polygon.
2. Click the center of the hoop.
3. Hold SHIFT (this helps keep the aspect ratio perfect) and drag outward.
4. Right-click: To Elements to convert the vector into stitches.
5. Generate Stitches (Ctrl+G).


The “Placement Line First” Rule: Reorder the Object List So the Hoop Tells You Where to Lay Batting

In ITH embroidery, the machine is the boss. It needs to tell you where to put the fabric before you put it there.

Sequence It:

1. Select your new Octagon.
2. In the Object List, drag it to the very top (or use Insert Before).
3. Color it Blue (or any color distinct from your fabric).


The Logic: This first run stitches directly onto the stabilizer. It is your "map."

Critical Hooping Strategy: This placement line reveals if your hooping is crooked. Proper hooping for embroidery machine success depends on neutral tension.

• Visual Check: Is the stabilizer warping?
• Tactile Check: Is it equally taut in X and Y directions?

If your stabilizer is loose, the placement line will be an octagon, but the final border will be a squashed oval.

Warning: Safety First! When running placement lines or floating fabric, keep your fingers well outside the hoop area. A 1000 SPM needle does not respect dexterity. Use tweezers to hold fabric in place if necessary.

Make a Tack-Down That Actually Holds: Copy/Paste + Color Change + Backward Path

Once you lay your batting and fabric over the placement line, you need to lock it down. A single run of stitching is rarely enough for puffy batting—it pushes the fabric like a snowplow.

The "Clamp" Technique:

1. Copy & Paste your octagon.
2. Change Color (e.g., to Red). This forces the machine to stop so you can lay the fabric.
3. Select "Backward Path" in parameters.


Why Backward Path? This tells the machine to stitch the shape forward, and then immediately reverse and stitch it backward over the same line.

• Result: A double-reinforced line that acts like a clamp.
• Benefit: Prevents the fabric from shifting when the dense decorative border comes next.

The “Hidden” Prep Nobody Mentions: Stabilizer + Batting + Fabric Choices That Turn Cleanly

An ITH project is a sandwich. If your ingredients are wrong, the result is lumpy.

The "Hidden Consumables" You Need:

• Temporary Spray Adhesive (e.g., 505): Essential for holding batting to stabilizer.
• Curved Snips: For trimming batting close to the stitches.
• Paper Tape: To tape down loose edges during stitching.

Decision Tree: Stabilizer & Batting Matrix

Use this logic to prevent puckering before you press start.

1. What is your Top Fabric?

• Quilting Cotton / Canvas: Strong, stable.
  • Path A: Use Tearaway Stabilizer + Cotton Batting (Low Loft).
• Knit / Jersey / Stretchy: Unstable.
  • Path B: Use Cutaway Stabilizer + Fusible Interfacing on the fabric back. Do not skirt this.

2. How thick is your Batting?

• Standard Cotton Batting:
  • Setting: Standard speed (700-800 SPM).
• High-Loft (Puffy) Poly Batting:
  • Setting: Reduce speed to 500-600 SPM.
  • Reason: High speeds compress puffy batting aggressively, causing the foot to drag and distort the shape.

A hooping station for embroidery can also assist here to ensure your stabilizer is perfectly squared before you even load the machine.

Make It Look Expensive: Resize Inward and Add a Rope Border (Rope 1, Width 5.0 mm)

Now we frame the art. A thin satin stitch looks cheap; a Rope Border looks like custom home décor.

The "Expensive" Look:

1. Copy/Paste the octagon one more time.
2. Resize Smaller: Shrink it slightly so it sits inside the tack-down line.
3. Parameters: Select Border > Rope 1.
4. Width: Set to 5.0 mm.


Center It: Use Ctrl + Alt + C to ensure the pumpkin and the border are mathematically centered.

The Production Reality: Rope borders are stitch-heavy (high stitch count). This creates significant "pull" on the fabric. If your fabric slips even 1mm, the border will be wavy.

• Observation: If you see gaps between your rope border and the fabric, your hoop tension failed.
• Solution: This is where efficient machine embroidery hoops—specifically magnetic ones—shine. They clamp the entire perimeter evenly, preventing the "pull in" effect common with screw-tightened hoops.

The Envelope Backing That Confuses Everyone: How You Turn the Mug Rug Even Though the Final Run Is Closed

"Wait, if we stitch it closed, how do I turn it?" We use the Envelope Method. We do not leave a gap in the stitching; we create a gap in the fabric.

The Geometry of the Envelope:

1. Take two pieces of backing fabric.
2. Fold them in half (wrong sides together) and press nicely.
3. Place Piece A covering the bottom 2/3 of the design (fold towards the center).
4. Place Piece B covering the top 2/3 of the design (fold towards the center).
5. Crucial: They must overlap by about 2-3 inches in the middle.

When the machine stitches the final lap, it sews over everything. You turn the project through the overlap in the middle.

The Seam That Disappears: Inset the Final Closing Line and Switch to Triple Stitch

The final seam has one job: hold the project together without being seen.

The Strategy:

1. Duplicate the Octagon one last time.
2. Resize Inward: Make it 1-2mm smaller than the Rope Border.
3. Stitch Type: Select Triple Stitch (Bean Stitch).




Why Inset? If the construction seam sits exactly on top of the Rope Border, you might see white bobbin thread peeking out on the finished edge. By moving it inward (inset), the decorative border rolls slightly to the back, hiding the construction mechanics perfectly.

Why Triple Stitch? A single straight stitch will snap when you aggressively turn the stiff mug rug right-side out. A Triple Stitch has the tensile strength to survive the turning process.

The Real-World Stitch-Out Order (So You Don’t Lose Your Place at the Machine)

Print this out. This is your flight plan.

Setup Checklist:

• Machine Speed: Set to 600-700 SPM (safer for layers).
• Bobbin: Full bobbin (running out during a border is tragic).
• Stop Commands: Ensure your machine is set to stop for color changes.

Execution Sequence:

1. Hoop Stabilizer.
2. Stitch Placement Line (Blue).
3. STOP. Spray batting with adhesive; float batting and top fabric.
4. Stitch Tack-Down (Red).
5. STOP. Remove hoop (do not unhoop!). Trim excess batting close to stitching carefully. Returns to machine.
6. Stitch Central Design (The Pumpkin).
7. Stitch Decorative Rope Border.
8. STOP. Place Backing Fabrics (Folded and Overlapped). Tape edges down.
9. Stitch Final Construction Seam (Triple Stitch).

Trim, Tear, Turn: The Finishing Moves That Keep You From Cutting Your Own Stitches

The project isn't done when the machine stops.

1. Unhoop.
2. Tear Away the stabilizer carefully. Listen for the clean "rip"—if it stretches, you used the wrong stabilizer.
3. Trim the perimeter fabric. Leave a 1/4 inch seam allowance.
   • Warning: Do not cut closer than 1/4 inch, or the fabric will fray inside.
4. Clip Corners: Snip the tiny triangles off the corners (without cutting the thread) to reduce bulk.
5. Turn: Reach through the envelope back and pull right-side out.
6. Poke: Use a chopstick or point-turner to push the octagon points out.

Save It the Right Way: EOF First, Then Compile Back to Editor for PES/DST

The Golden Rule of File Management:

1. Save as .EOF (Embird Object File) inside Studio. This saves the "ingredients"—the raw shapes you can resize later.
2. Compile and Put into Embird Editor. This bakes the cake and exports the .PES/.DST file for your machine.


When Hooping Becomes the Bottleneck: Upgrade Paths That Actually Save Time

If you make one mug rug, a standard hoop is fine. If you plan to make 50 for a craft fair, the standard hoop screw will destroy your wrists and your efficiency.

The Production Bottleneck: ITH projects require frequent "floating" of layers. Standard hoops require you to un-hoop and re-hoop perfectly. This is slow.

The Solution Hierarchy:

• Level 1 (Technique): Use spray adhesive to "float" everything on top of hooped stabilizer.
• Level 2 (Speed Upgrade): magnetic embroidery hoop.
  • Why: You simply lift the magnets, slide the stabilizer in, and snap them down. It takes 10 seconds vs. 2 minutes.
  • Benefit: No "hoop burn" rings on your fabric.
• Level 3 (System Upgrade):
  • For Brother users, magnetic embroidery hoops for brother are specifically calibrated to fit the attachment arms of V-series, NQ-series, and Luminaire machines.
  • For smaller items like coasters, a brother 5x7 magnetic hoop removes the need to wrestle with oversized frames for small tasks.

Warning: Magnet Safety. Magnetic hoops use strong Neodymium magnets.
* Pinch Hazard: They snap together with force. Keep fingers clear.
* Medical: Keep away from pacemakers.
* Electronics: Keep away from credit cards and screens.

Quick Troubleshooting: The Two Problems That Ruin Mug Rugs

If things go wrong, check this table first. Do not panic; diagnose.

Operation Checklist (The Final 30 Seconds)

Before you walk away from the machine, verify the state of your project:

• Placement Line: Stitched and clearly visible?
• Coverage: Do Batting/Top Fabric fully cover the blue line by at least 1/2 inch?
• Tack-Down: Is it holding the layers firm?
• Parameter Check: Rope Border Width = 5.0mm.
• Backing: Are the two envelope pieces overlapping correctly?
• Clearance: Is there enough room to the edge of the hoop so the foot doesn't hit the frame during the final wide border?

By following Sue's logic and respecting the physics of the machine, you transform a digital file magnetic embroidery hoop users love into a tangible, professional product. Happy stitching!

FAQ

• Q: In Embird Studio, why should a PES or DST stitch file not be resized when converting a free design into an ITH mug rug?
  A: Do not resize PES/DST stitch files; keep the design at 100% and build the ITH mug rug structure around it to avoid gaps or needle-breaking density.
  • Open the original stitch file in Embird Editor and leave the size unchanged.
  • Delete any unwanted borders/color blocks that add bulk before adding ITH construction seams.
  • Use Studio to add placement/tack-down/borders without altering the original stitch data.
  • Success check: the central design stitches with normal coverage (no “see-through” gaps and no overly thick, pounding stitches).
  • If it still fails: re-check that the file is a stitch file (PES/DST/EXP) and that no resizing was applied during import or editing.
• Q: In Embird, what does “Edit Stitch File in Studio (Shift+Ctrl+E)” do when making an ITH mug rug from a stitch file?
  A: Use “Edit Stitch File in Studio (Shift+Ctrl+E)” to create a Studio workspace container so placement lines and tack-downs can be added without corrupting the original stitch file.
  • Select the design in Embird Editor, then run Edit > Edit Stitch File in Studio (Shift+Ctrl+E).
  • Add the mug rug construction (placement line, tack-down, borders) as new elements around the original stitches.
  • Keep the pumpkin (or subject) stitch data intact while you reorder objects for correct stitch-out order.
  • Success check: the original design stitches exactly as before, while the new placement/tack-down steps appear as separate color stops.
  • If it still fails: avoid doing heavy construction edits in basic Editor and confirm you are working inside Studio for the added steps.
• Q: For hooping for embroidery machine ITH mug rugs, how can fabric/stabilizer tension be judged before the decorative rope border stitches?
  A: Hoop stabilizer with neutral, even tension and let the placement line diagnose crooked or loose hooping before adding any layers.
  • Stitch the placement line first directly on hooped stabilizer (before batting/fabric).
  • Check for warping in the stabilizer and re-hoop if the shape looks skewed.
  • Tap the hooped material to confirm it is “drum-tight” (a dull thump is a good sign).
  • Success check: the stitched placement octagon looks even (not squashed into an oval) and the stabilizer is equally taut in X and Y.
  • If it still fails: slow down and re-hoop; uneven tension will amplify into wavy borders later.
• Q: In ITH mug rug embroidery, how can a tack-down be made strong enough to stop batting and fabric from shifting during a heavy rope border?
  A: Use the copy/paste “clamp” tack-down with a color change and Backward Path so the same line stitches forward and backward for a double hold.
  • Copy/paste the placement octagon and change its color to force a stop so fabric can be placed.
  • Enable Backward Path so the machine immediately stitches back over the same line.
  • Use temporary spray adhesive to keep batting aligned to stabilizer before the tack-down runs.
  • Success check: after tack-down, the fabric cannot be nudged out of position with light fingertip pressure at the edges.
  • If it still fails: reduce speed for thick/high-loft layers and confirm the tack-down runs before the dense decorative border.
• Q: For ITH mug rug layers, what stabilizer and batting choices help prevent puckering and make turning clean, especially on knit fabric?
  A: Match stabilizer to fabric stability and control loft—tearaway works for stable cottons, while knits need cutaway plus fusible support to prevent distortion.
  • Choose tearaway + low-loft cotton batting for quilting cotton/canvas projects.
  • Choose cutaway stabilizer + fusible interfacing on the fabric back for knits/jersey/stretchy fabrics.
  • Slow the machine to about 500–600 SPM for high-loft puffy batting to reduce foot drag and distortion.
  • Success check: after stitching, the shape stays flat with no ripples and the edges turn right-side out without bulky, lumpy corners.
  • If it still fails: switch to a more supportive stabilizer path (especially on stretchy tops) and trim batting close to stitching before finishing seams.
• Q: During ITH mug rug placement-line stitching at high speed (600–1000 SPM), what needle-area safety practices prevent finger injuries?
  A: Keep hands well outside the hoop path during placement/floating steps and use tools (like tweezers) instead of fingers near a moving needle.
  • Stop the machine for color changes before placing batting and fabric layers.
  • Hold fabric with tweezers if alignment is needed near the needle area.
  • Tape loose edges down instead of trying to pinch them in place while stitching.
  • Success check: hands never cross into the hoop’s stitch field while the needle is moving.
  • If it still fails: slow down and rely on stop commands for every placement step so adjustments happen only when the needle is fully stopped.
• Q: When frequent ITH floating makes hooping the bottleneck, how should a user choose between technique fixes, magnetic embroidery hoop upgrades, and multi-needle production upgrades?
  A: Start with technique, then upgrade the hoop, then upgrade the system—use this ladder when speed and consistency become the limiting factor.
  • Level 1 (Technique): float layers on hooped stabilizer using temporary spray adhesive and a strong tack-down strategy.
  • Level 2 (Tool): move to a magnetic embroidery hoop when screw-tight hooping causes slowdowns, uneven tension, or hoop-burn marks on delicate fabrics.
  • Level 3 (System): consider a multi-needle workflow when you need repeatable output and faster color-heavy production runs (a common next step for craft-fair volume).
  • Success check: hooping/floating time drops noticeably and borders stitch without waviness caused by fabric slip.
  • If it still fails: review whether the issue is actually stabilizer choice or stitch order (placement → tack-down → design → border → backing → final seam) before changing equipment.
