Bernina B 700 USB Designs + Maxi Hoop: The Exact Order That Prevents “Why Won’t It Sew?” Panic

If you have ever stood before your Bernina B 700, loaded a file, pressed the green button, and been greeted by absolute silence—or worse, the grinding sound of a hoop collision—you are not just experiencing a technical error. You are experiencing the "sequence gap."

Machine embroidery is not merely art; it is a discipline of physics and sequence. The B 700 is a precise Swiss instrument. It operates on a rigid logic chain: Input → Recognition → Physical Calibration → Execution. When you, the human operator, skip a micro-step (usually synchronization), you break that chain. The machine doesn't know you are in a rush; it only knows its motors aren't zeroed.

As an educator who has guided thousands of operators from "terrified novice" to "production manager," I can tell you that 90% of early failures are not mechanical—they are procedural.

This industry-grade guide reconstructs the workflow shown in the tutorial video, but upgrades it with the sensory cues and safety protocols used in professional embroidery shops. We will turn your anxiety into muscle memory.

Load a Design from the Bernina B 700 USB Screen (and Avoid the “Wrong Folder” Trap)

The interface of the B 700 is clean, but it creates a common cognitive trap: the "Silent Filter." The machine separates internal memory from external storage at the root level. If you do not explicitly toggle the source, your file effectively does not exist.

The Professional Workflow:

1. Physical Connection: Insert your USB stick into the side port.
   • Sensory Check: Do not jam it in. Slide it gently until you feel a firm seating. Wait 3-5 seconds. You create a digital handshake; give the processor time to mount the volume.
2. Visual Targeting: Look at the top-right corner of the touch screen.
3. The Toggle Action: Tap the USB stick icon.
   • Critical Distinction: If the Machine icon is highlighted, you are looking at the machine's hard drive. No amount of scrolling will find your file.
4. File Selection: Once the grid populates, select your design.

The "Ghost File" Safety Check: If your machine sees the stick but not the files, check your computer habits. Mac users often leave hidden system files (starting with ._) that confuse machines. Always format your stick to FAT32 (for sticks under 32GB) and keep your file nomenclature simple (e.g., Logo_v1.exp rather than Logo Final Final Copy (1).exp).

Pro Tip (Service Bureau Standard): If you are managing a library of designs, stop using "Miscellaneous" folders. Organize by client or date. When you are searching for hooping for embroidery machine tutorials, you often see messy file habits. Don't replicate them. Clean data entry prevents the "where is my file" panic that kills 10 minutes of your production hour.

Prep Checklist (Do this BEFORE you touch the screen)

Before you even wake the machine up, ensure your "Pre-Flight" status is green.

• Data Integrity: USB stick inserted; file name verified on your computer first.
• Consumable Audit:
  • Needle: Is it fresh? Use a 75/11 sharp for wovens or a ballpoint for knits. Run your fingernail down the tip—if it snags, trash it.
  • Bobbin: Is it full? A B 700 Jumbo Bobbin lasts a long time, but running out mid-design is a rhythm killer.
  • Scissors: Are your snips within arm's reach?
• Physical Assets: Correct hoop (Maxi) is on the table, not attached.
• Material Prep: Fabric and stabilizer are cut 2 inches larger than the hoop on all sides.


Match the Hoop Setting to the Real Hoop: Switching ClampM to Maxi (400×210) Before You Sew

This is the most dangerous mismatch in embroidery: Digital Truth vs. Physical Truth.

The machine assumes you are using the hoop selected on the screen. If the screen says ClampM (a small clamp frame) but you attach a Maxi (giant oval hoop), the machine will happily drive the needle bar straight into the hard plastic frame of your hoop. This is a $300 mistake.

The Re-Calibration Sequence:

1. Open the Hoop Menu: Tap the hoop icon on the left sidebar.
2. Select the Physical Reality: Change the selection from the default ClampM to Maxi.
3. Verify the Visuals: The video shows the Maxi hoop appearing as a large oval icon with a white outline.
4. Confirm Dimensions: Verify the text reads 400×210.
5. Exit: Close the menu to lock in the choice.




Why this matters (The "Phantom Limits"): The machine sets its "soft limits" (software boundaries) based on this selection. If you select a hoop that is too small, the machine will refuse to embroider the edges of your design. If you select one that is too big, it may allow the needle to travel into a zone where the physical frame actually sits.

Strategic Sourcing Tip: When you are shopping for embroidery machine hoops, buy based on your 80% use case. A common error is buying the biggest hoop possible for everything. A massive hoop holds fabric less securely than a small one (think of a drum skin—the larger the drum, the harder it is to keep tight). If you mostly do left-chest logos, use a 145x255 or 100x100 hoop to maximize stability.

Decision Tree: Fabric → Stabilizer Choice (Fast, Practical)

Stabilization is the foundation of quality. Without it, fabric distorts. Use this logic tree to make decisions in under 30 seconds.

• Scenario A: The "Stretchy" Test (Knits/Sportswear)
  • Test: Pull the fabric. Does it stretch?
  • Rx: Cut-away Stabilizer (Medium Weight, ~2.5oz).
  • The Why: Stitches add mass. If you use tear-away, the perforation breaks the stabilizer, and the fabric relaxes, ruining the design shape.
• Scenario B: The "Stable" Test (Cotton/Canvas/Denim)
  • Test: Fabric has zero give when pulled.
  • Rx: Tear-away Stabilizer. Two layers if the design is dense (>10,000 stitches).
• Scenario C: The "Texture" Test (Towels/Fleece/Velvet)
  • Test: Does the fabric have a "pile" or fluff?
  • Rx: Bottom: Tear-away or Cut-away. Top: Water Soluble Topping (Solvy).
  • The Why: The topping keeps the stitches sitting on top of the loops rather than sinking into them.
• Scenario D: The "Ghost" Test (Sheer/Organza)
  • Rx: Water Soluble Stabilizer (Wash-away). No backing remains after the wash.

Hidden Consumable Alert: Always keep a can of temporary adhesive spray (like 505) and a water-soluble marking pen in your kit. These are the unsung heroes of positioning.

The tutorial uses a white woven + white stabilizer setup—the "lab condition" ideal for learning.

Let the Bernina B 700 “Wiggle” First: The Synchronization Step That Prevents Hoop Interference

This is the psychological hurdle. You want to attach the hoop immediately. Don't.

The B 700 uses stepper motors that need to verify their "home" position relative to the X/Y axes. This requires physical movement.

The Ritual:

1. Initiate Sewing Mode: Tap the needle icon.
2. Observe the Request: The screen prompts you to synchronize.
3. Clear the Deck: Ensure the embroidery arm is empty.
4. Confirm: Press the green checkmark.
5. The "Wiggle": Watch the embroidery arm. It will slide left/right and front/back quickly.
   • Sensory Anchor: Listen for a smooth mechanical hum. A grinding noise here means the arm is blocked.

The video mandate is absolute:

Do this BEFORE attaching the hoop.

The Physics of the Crash: If a heavy hoop is attached during this calibration wiggle, two things happen:

1. Inertia: The extra mass throws off the motor's calculation of "home," resulting in a design that stitches off-center.
2. Collision: The arm may swing to a limit where the hoop hits the machine body.

Production Reality Check: In a commercial environment, time is money. However, standard hooping is physically demanding. The repetitive "pinch, adjust, screw, tighten" motion is a leading cause of Carpal Tunnel Syndrome in our industry.

This is where technology serves physiology. Professional shops migrate to magnetic embroidery hoops not just for speed, but for health. A magnetic hoop snaps the fabric between two rings using magnetic force—no screwing, no wrist torque. If you plan to run production for more than 2 hours a day, consider this an ergonomic necessity.

Attach the Bernina Maxi Hoop Only When the Screen Shows Red Arrows (and Keep It Perfectly Level)

The machine has calibrated. It knows where it is. Now it invites you to join the process.

The Attachment Protocol:

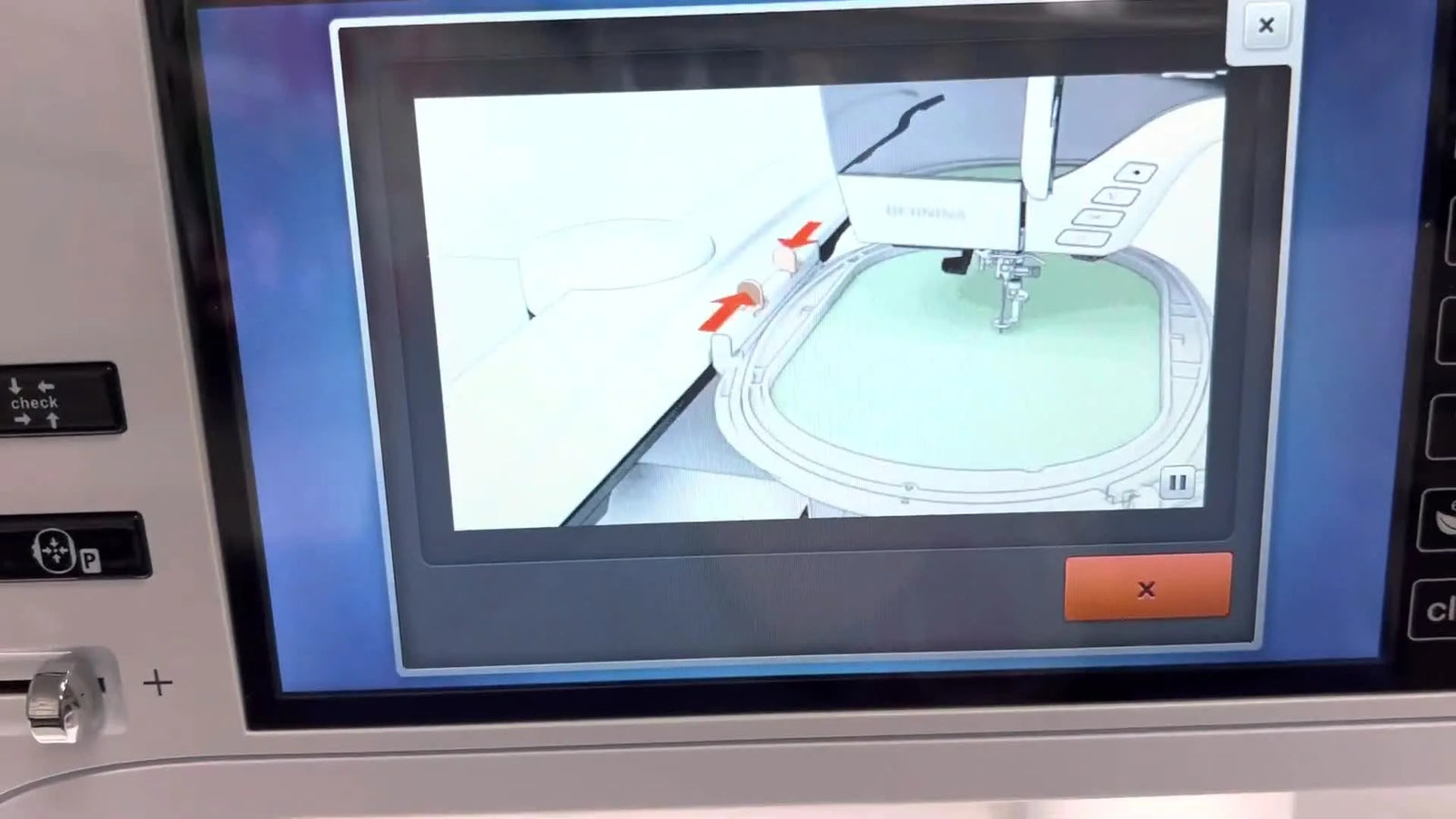

1. Wait for the Signal: The screen displays a graphic with red arrows pointing to the connector. This is your "Green Light."
2. The Approach: Slide the Maxi hoop under the raised presser foot.
   • Safe Zone: Keep your fingers on the outside of the hoop frame.
3. The Connection: Locate the grey release lever on the hoop connector. Squeeze it.
4. The Engagement: Slide the connector onto the embroidery arm pins.
   • Sensory Anchor: You must feel a distinct, sharp CLICK. If it feels "mushy" or soft, it is not locked.
5. The Level Check: The hoop must enter perfectly parallel to the sewing bed. If you angle it up (pop wheelie style), you risk bending the connector pins.






Warning: Mechanical Safety:
Never place your hands inside the hoop area while the machine is on. If the sensor triggers an accidental movement, the needle bar moves with enough force to puncture fingernails and bone.

Warning: Magnetic Safety:
If you upgrade to magnetic hoops, handle them with extreme care. The clamping force is industrial-grade. Keep them away from pacemakers, and never let two magnets slam together without a barrier layer—they can pinch skin severely.

The "Hoop Burn" Problem: Standard hoops rely on friction. To hold fabric tight, you must clamp extremely hard, often leaving a permanent "ring" or "burn" marks on delicate velvets or performance wear. This is the primary trigger for exploring a bernina magnetic hoop. Because magnetic hoops use downward pressure rather than friction/distortion, they eliminate hoop burn completely. If you are ruining expensive garments with hoop marks, the tool is the problem, not your technique.

Confirm the “Move to First Stitch” Prompt on the Bernina B 700 Before You Start

We are almost there. The machine now asks permission to move to the starting line.

1. Read the Prompt: "Move to First Stitch?"
2. Scan the Area: Is a coffee mug behind the arm? Is the fabric draped so it won't catch?
3. Execute: Tap OK.
4. The Slide: The hoop will travel to the coordinate (0,0) or start point of the design.




Quality Control Checkpoint: Look at the needle position relative to your center marks. Is it aligned? The video notes that the first action is a placement line. Use this cheap stitch to verify your angle. If the placement line is crooked, cancel the job. It is better to unpick 50 stitches than to ruin a jacket.

For those seeking absolute consistency, a hooping station for embroidery machine is the industry standard solution. A hooping station allows you to align the garment perfectly on a grid board before the hoop touches it, guaranteeing that every left-chest logo lands in the exact same spot, shirt after shirt.

Setup Checklist (Right before you press Start)

• Hoop Logic: Screen setting matches physical hoop (Maxi).
• Calibration: Synchronization "wiggle" completed without hoop attached.
• Physical Lock: Hoop connector clicked in audibly; hoop is level.
• Clearance: Needle area clear; presser foot height is appropriate for fabric thickness.
• Thread Path: Top thread is threaded correctly through the tension discs and needle eye.

The “One Thousand Two” Rule: Starting the Bernina B 700 with a 2-Second Green Button Hold

You press the button. Nothing happens. You press it harder. Nothing.

This is a debounce safety feature, not a bug. The B 700 requires a deliberate confirmation to start a high-speed motor.

The Start Technique:

1. Locate: The green button is flashing.
2. Press and Hold: Depress the button firmly.
3. Count: Mentally say "One-Mississippi, Two-Mississippi."
4. Release: Let go. The machine will engage.




Operating Speed Advice: While the B 700 can stitch at 1000 stitches per minute (SPM), speed kills quality on complex designs.

• Beginner Sweet Spot: 600-700 SPM.
• Why: At slower speeds, friction is lower, thread tension is more stable, and you have more reaction time if a thread shreds. Only go to Max Speed on simple, low-density fills.

The Efficiency Paradox: Beginners think faster stitching makes them productive. Professionals know that faster hooping makes them productive. If you spend 5 minutes hooping a shirt and 5 minutes stitching it, your machine is idle 50% of the time. Accessories like magnetic hoops for bernina embroidery machines drastically cut the prep time. If you can hoop in 30 seconds instead of 5 minutes, you have just doubled your daily output without increasing stitch speed.

Operation Checklist (The First 30 Seconds)

• Start-Up: Button held for 2 full seconds; motor engages.
• Visual Tracking: Watch the first 100 stitches. Is the bobbin thread pulling to the top? (Top tension too tight/Bobbin too loose). Is the top thread loopy? (Top tension too loose).
• Auditory Check: Listen for the "Tick-Tick-Tick" of a happy sew. A loud "Thump-Thump" means the needle is dull or hitting a hard spot.
• Safety: Hands kept 6 inches away from the moving hoop.

Quick Troubleshooting: Two Bernina B 700 Problems This Video Quietly Solves

Troubleshoot logically. Always check the Physical Path first (Thread, Needle, Hoop), then the User Error (Sequence), and finally the Machine (Software).

The Smart Upgrade Conversation: When a Better Hoop (or a Multi-Needle) Pays for Itself

Embroidery is a journey from "Making it work" to "Making it profitable."

If you are a hobbyist enjoying the craft on weekends, the standard B 700 kit is fantastic. Master the checklists above, and you will have years of joy.

However, if you are running a small business, you will eventually hit a wall. The wall usually looks like this:

1. Sore Wrists: From repetitive clamping.
2. Hoop Marks: Ruining velvet or tech-fleece customers bring you.
3. Color Change Lag: Standing by the machine to change thread 12 times for one logo.

The Upgrade Ladder (Problem → Solution):

• Level 1: The "Quality & Comfort" Upgrade
  • Trigger: You hate hooping thick items, or you are getting "hoop burn."
  • Solution: Magnetic Hoops (e.g., Sewtech Magnetic Frames). They slide in, snap shut magnetically, and hold thick towels or delicate silks without bruising the fabric. This is the single highest ROI accessory for a single-needle machine.
• Level 2: The "Volume" Upgrade
  • Trigger: You have an order for 50 polo shirts with a 3-color logo.
  • Solution: Multi-Needle Machine (e.g., Sewtech 15-Needle Systems). A single-needle machine like the B 700 requires you to manually change thread for every color. A multi-needle machine holds all 15 colors at once and stitches automatically while you prep the next hoop. This is not just a faster machine; it is a business model shift.

Final Word: The machine is binary; it is either right or wrong. You are the variable. Take only one lesson from this guide: Respect the Sequence.

1. Select Hoop.
2. Synchronize (Wiggle).
3. Attach.
4. Sew.

Master this rhythm, and the green button will never scare you again.

FAQ

• Q: Why does a Bernina B 700 USB design file not show up even when the USB stick is inserted?
  A: Switch the file source to the USB icon and use a simple FAT32 setup, because the Bernina B 700 can “hide” files when the wrong source or confusing filenames are used.
  • Tap the USB stick icon (top-right) to change from machine memory to external storage.
  • Wait 3–5 seconds after inserting the USB stick to let the machine mount it.
  • Format the USB stick to FAT32 (commonly for sticks under 32GB) and rename files simply (example: Logo_v1.exp).
  • Success check: The design grid populates and the expected filenames appear after tapping the USB icon.
  • If it still fails: Re-check the USB on a computer for hidden “._” files (often from Mac) and re-copy only the actual design files.
• Q: What prep checklist prevents early failures on a Bernina B 700 before loading a design and hoop?
  A: Do a fast “pre-flight” check of needle, bobbin, hoop, and cut size before touching the screen—most Bernina B 700 failures are procedural, not mechanical.
  • Confirm a fresh needle (75/11 sharp for wovens; ballpoint for knits) and replace if the tip snags a fingernail.
  • Verify the bobbin has enough thread to finish the job and keep snips within reach.
  • Stage the correct hoop on the table (not attached) and cut fabric + stabilizer at least 2 inches larger than the hoop on all sides.
  • Success check: Everything needed is within arm’s reach and no “mid-design stop” is caused by an empty bobbin or dull needle.
  • If it still fails: Re-thread the top path carefully through the tension discs and needle eye before starting.
• Q: How do you prevent Bernina B 700 hoop collisions caused by a mismatch between the ClampM setting and the Maxi 400×210 hoop?
  A: Match the Bernina B 700 on-screen hoop selection to the physical hoop (Maxi 400×210) before attaching, because the machine moves based on the selected hoop limits.
  • Open the hoop menu and change the selection from ClampM to Maxi.
  • Verify the Maxi icon shows as a large oval with a white outline and the size text reads 400×210.
  • Close the menu to lock in the hoop selection before sewing mode.
  • Success check: The correct hoop name and 400×210 dimensions are shown on-screen before any movement.
  • If it still fails: Stop immediately and re-check that the physical hoop is actually the Maxi hoop (not a different frame) and reselect in the hoop menu.
• Q: Why does the Bernina B 700 make a grinding noise or jerk at start-up when the hoop is attached, and how do you fix it?
  A: Remove the hoop and redo the Bernina B 700 synchronization “wiggle” with the arm empty—attaching the hoop too early can cause interference during calibration.
  • Cancel the sew-out and detach the hoop from the embroidery arm.
  • Tap the needle/sewing mode icon and confirm the synchronization prompt with the green checkmark.
  • Keep the embroidery arm completely clear until the wiggle finishes, then attach only when the red arrows appear.
  • Success check: The calibration movement sounds like a smooth hum (not grinding) and completes without jerking.
  • If it still fails: Check for any physical obstruction around the embroidery arm travel path before retrying.
• Q: How do you correctly attach a Bernina Maxi hoop to a Bernina B 700 so the hoop does not pop off during embroidery?
  A: Attach the Bernina Maxi hoop only when the screen shows red arrows, slide in level, and confirm a sharp “CLICK” so the connector is fully locked.
  • Wait for the red-arrow attachment graphic before connecting the hoop.
  • Squeeze the grey release lever, slide the connector onto the arm pins, and keep the hoop perfectly parallel to the sewing bed.
  • Push until a distinct click is felt and heard—avoid any “mushy” partial lock.
  • Success check: A crisp CLICK is heard/felt and the hoop sits level without wobble when gently tested.
  • If it still fails: Remove and reattach, focusing on keeping the hoop level to avoid bending or mis-seating the connector pins.
• Q: Why does a Bernina B 700 not start sewing even though the green button is flashing?
  A: Press and hold the Bernina B 700 green start button for about 2 seconds—this is a deliberate safety “debounce,” not a defect.
  • Press the flashing green button firmly and hold it while counting “one…two.”
  • Release after the full hold to let the motor engage.
  • Reduce speed to a beginner-safe range (often 600–700 SPM) to stabilize tension and reaction time.
  • Success check: The motor engages after the 2-second hold and the machine begins stitching normally.
  • If it still fails: Reconfirm the machine is in sewing mode and that prompts like “Move to First Stitch?” have been acknowledged.
• Q: What are the key safety rules for Bernina B 700 embroidery around the needle area and (if upgraded) magnetic embroidery hoops?
  A: Keep hands out of the hoop/needle zone while powered on, and handle magnetic hoops as industrial-strength tools to prevent pinch injuries and medical-device risk.
  • Keep hands at least several inches away from the moving hoop and never place fingers inside the hoop area when the machine is on.
  • Attach the hoop only when prompted and keep the hoop level to avoid sudden binding or unexpected movement.
  • If using magnetic hoops: Keep magnets away from pacemakers and prevent magnets from slamming together without a barrier layer.
  • Success check: No hands enter the active stitch field, and magnetic rings can be separated/closed without sudden snapping or pinching.
  • If it still fails: Power off before adjusting anything near the needle bar or hoop connection, then restart the correct sequence (select hoop → synchronize → attach → sew).
• Q: How do you choose between technique fixes, magnetic hoops, and a multi-needle machine when Bernina B 700 embroidery output is slow or garments get hoop burn?
  A: Use a stepped approach: first correct the Bernina B 700 sequence and hooping method, then consider magnetic hoops for hoop burn/ergonomics, and move to a multi-needle machine when color-change labor becomes the bottleneck.
  • Level 1 (Technique): Follow the strict order—select correct hoop → synchronize wiggle (no hoop) → attach on red arrows → confirm move to first stitch → start with a 2-second hold.
  • Level 2 (Tool): Choose magnetic hoops if hoop burn marks occur on delicate fabrics or repetitive clamping causes wrist pain; magnets clamp without friction distortion.
  • Level 3 (Capacity): Choose a multi-needle machine when frequent manual color changes (example: many-color logos) stop production flow.
  • Success check: Hoop marks disappear or reduce, hooping time drops significantly, and fewer stoppages occur from sequence errors.
  • If it still fails: Re-evaluate the workflow timing—often the biggest gain comes from faster, more consistent hooping rather than increasing stitch speed.
