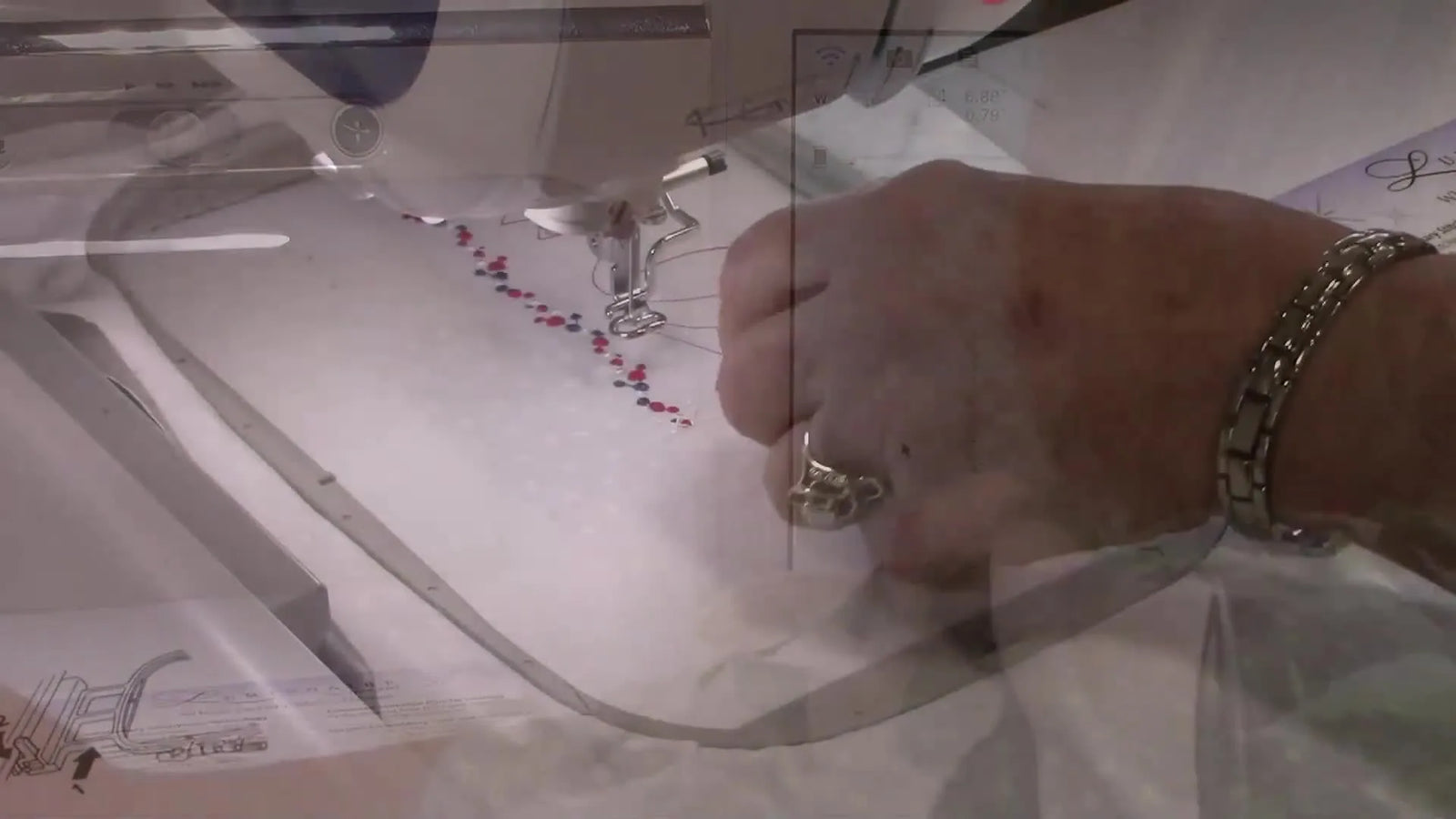

Brother Luminaire XP1 Border Function (Category 5): Seamless Continuous Borders Without Re-Hooping Panic

If you have ever attempted to stitch a continuous border on a quilt sashing or a dress hem, you know the specific type of anxiety that hits when the first hooping is finished. You stare at the fabric, knowing that if the next placement is off by even a millimeter, the entire project fails.

The Brother Luminaire XP1 offers a powerful solution: the Category 5 Border Function paired with its camera and projector ecosystem.

However, the manual often tells you what the buttons do, not how to stitch successfully without ruining expensive fabric. This white paper rebuilds the workflow from the perspective of a production shop. We will cover how to manage sticky stabilizers, how to "float" fabric to prevent hoop burn, and the specific decision criteria for when to upgrade your tools for commercial-level efficiency.

Category 5 Border Function on the Brother Luminaire XP1: Turn Tiny Motifs Into a True Continuous Border

To master this function, you must first shift your mindset. In the "Border Function" menu (Category 5), you aren't just stitching decorations; you are building a structural repeat.

The Workflow:

1. Select: Choose a motif (e.g., Design 07).
2. Edit: Rotate 90 degrees if necessary to align with your hoop's long axis.
3. Duplicate: Copy the design.
4. Align: Use the specialized alignment tools to stack them vertically or horizontally.

Crucial Insight: Do not rely on dragging the design with your finger on the screen. Fingers are imprecise. Use the arrow keys and "Align Center" buttons. A 0.5-degree slant might look straight on one repeat, but by the tenth repeat, your border will visually drift off the edge of the fabric.

Pro tip from the shop floor: When building repeats, trust the math, not your eyes. If the machine says the coordinates are aligned ($X=0.00$), they are aligned.

The 5x7 Reality Check: Load the Brother 5x7 Hoop So Your Margins Stop Surprising You

Before adding more complexity, you must delineate your physical constraints. Go to your settings and select the hoop size you actually intend to use. In this workflow, we use the standard 5" x 7" hoop.

Why this step matters:

1. Visualization: It forces the screen to display the true stitchable area, showing you exactly where the "danger zones" (clips) are.
2. Safety: It prevents the heartbreak of designing a perfect border that simply won't fit the arm of the machine.

When working with the brother 5x7 hoop, treat the selection screen as your primary safety interlock. Do not proceed until the screen matches the plastic frame in your hand.

Prep Checklist (Do this BEFORE touching the screen)

• Physical Hoop Check: Is the hoop size selected in settings identical to the one on your table?
• Bobbin Status: Do you have a full bobbin? (Running out of bobbin thread mid-border is a nightmare for alignment).
• Needle Freshness: Install a fresh needle (Size 75/11 or 90/14 depending on fabric). A dull needle creates drag, which shifts fabric.
• Consumables:
  • Sticky Stabilizer: Tear-away or Wash-away offering strong adhesion.
  • Temporary Spray Adhesive (505): For backup tackiness.
  • Isopropyl Alcohol: To clean the needle if gum builds up.

Reference Stitches on the Brother Luminaire XP1: The Bottom Center/Left/Right Trio That Saves Your Alignment

The "Reference Stitch" feature is not a design element; it is a navigation system. By toggling this function, the machine adds basting-style marks to your design file—specifically at the Bottom Center, Bottom Left, and Bottom Right.

Why you need all three:

• Center Mark: Controls your X/Y axis position.
• Left/Right Marks: Control your Rotation. If you only match the center point, your fabric could be tilted 3 degrees, and you wouldn't know until the border runs crooked.

Visualization Tip: The reference marks on the XP1 screen can be faint lines. Toggle the specific "Reference Stitch" icon on and off repeatedly. Watch for the "blink" on the screen to confirm their location.

Experience Note: If you are a beginner, this concept is abstract. Take a scrap piece of calico, hoop it, and stitch only the reference marks. Watch where they land. This empirical test builds the confidence needed for the real project.

Color-Sorting in Border Function: Why Your Stitch Order Looks Different Than You Expect

The Luminaire's software attempts to be helpful by "Color Sorting"—grouping identical colors to minimize thread changes.

The Trap: The machine might group the top element of your border and the bottom element together, stitching them simply because they are both blue. The Fix: You need to navigate the color timeline (the bar at the bottom of the screen) to identify exactly when the reference stitches occur. They will usually be a separate color step (often the last step).

Old-hand habit: Never press "Start" without watching the stitch simulator preview. Verify that the needle will start exactly where you expect.

The Floating Method With Sticky Stabilizer: Continuous Borders Without Re-Hooping the Fabric Every Time

"Floating" is the industry term for hooping only the stabilizer and sticking the fabric on top. This is essential for continuous borders because hooping the fabric itself repeatedly is slow and introduces distortion.

The Execution:

1. Hoop sticky stabilizer (paper side up).
2. Score the paper with a pin (don't cut the stabilizer) and peel it away to reveal the adhesive.
3. Stitch the first run (design + reference marks).
4. Remove the hoop, tear away the stabilizer from the stitched design, but leave the stabilizer on the hoop intact.
5. Position the fabric for the next run by aligning the stitched reference marks on your fabric with the new start points.

If you have been searching for a floating embroidery hoop workflow, this is the gold standard. It relies on chemical adhesion rather than mechanical friction.

Crucial Sensory Check: When you press the fabric onto the sticky stabilizer, rub it firmly with your palm. You should feel the fabric "lock" onto the adhesive. If it slides easily, the tack is too low—add a light mist of temporary spray adhesive.

Setup Checklist (Right before pressing fabric)

• Adhesion: Is the sticky surface actually sticky? (Dust and lint reduce tackiness functionality quickly).
• Slack: Is the stabilizer drum-tight? Flick it; it should sound like a drum, not a thud.
• Alignment: Have you matched the center reference mark first, followed by the side marks to ensure no rotation?
• Clearance: Is the excess fabric rolled or clipped out of the way so it doesn't get caught under the needle bar?

Warning: Hoop Burn & Fabric Damage.
Traditional plastic hoops require significant force to close, which can crush the pile of velvet, corduroy, or terry cloth. This damage is often permanent ("hoop burn"). If you are working with these fabrics, floating is mandatory, or you must upgrade to a magnetic frame system.

“Move to Center Top” on the Luminaire XP1: The Reset Button That Prevents Needle Displacement After Repositioning

Once you have physically stuck your fabric to the stabilizer, it is rarely perfect. You might be off by 1mm. Do not peel it up and try again—you will lose adhesion. Instead, adjust the machine.

The Feature: Use the "Move to Center Top" key. The Logic: This tells the machine, "I am starting a new segment; move the needle to the mathematical top-center of the design."

Now, use the arrow keys to jog the needle until it is directly over the center reference stitch of your previous embroidery. This calibrates the digital design to your physical reality.

Pro Tip: Lower the needle using the handwheel (on the right side of the machine) until the tip almost touches the fabric. This visual parallax check is far more accurate than looking from a distance.

Camera Scan Alignment on the Brother Luminaire XP1: Drag the Design Over the Real Fabric Background

The Luminaire's superpower is its camera.

1. Press the Camera icon.
2. The machine scans the hoop area.
3. The screen displays your actual fabric with the digital design overlaid on top.

You can now use your finger or stylus to drag the design until it fits perfect like a puzzle piece into the existing embroidery.

This feature is the specific reason many users invest in this machine. If you are learning how to use a sticky hoop for embroidery machine technique, the camera acts as your safety net, allowing you to visually verify that your "float" placement is correct.

Decision Tree: Fabric → Stabilizer Strategy for Floating Borders

Selecting the wrong combo will cause puckering or registration loss.

• Stable Woven (Quilting Cotton, Denim):
  • Base: Sticky Tear-away.
  • Added Support: None usually needed.
• Unstable Woven (Linen, Loose Weave):
  • Base: Sticky Tear-away.
  • Added Support: Light basting stitch (if machine allows) or extra spray adhesive.
• Knits (T-shirt material):
  • Base: Cutaway (Do not use tear-away; stitches will pull through). Use a spray adhesive to stick the knit to the cutaway.
  • Risk: High. Do not stretch the knit when sticking it down.
• High Pile (Terry Cloth, Velvet):
  • Base: Sticky Wash-away (to avoid picking stabilizer out of the back).
  • Topping: Water Soluble Topping (Solvy) is mandatory to prevent stitches sinking in.

Projector Alignment on the Brother Luminaire XP1: Use the Blue Projection to Fine-Tune the Start Point

The projector offers a live, real-time view directly on the fabric.

1. Turn on the Projector.
2. Set the color to Blue (or Red/White depending on fabric contrast).
3. Use the projector keys to nudge the virtual image until it lines up with the stitch end-point of your previous border.

Troubleshooting: Ensure you are using the Projector Move keys, not the Design Move keys, depending on which mode you are in. The goal is to align the start point of the new design with the end point of the old one.

The Fabric Thickness Sensor Gotcha: Why the Luminaire Camera Won’t Take a Picture

This is the most common point of failure for new XP1 owners. You press the camera button, and... nothing happens. Or you get an error.

The Cause: The "Fabric Thickness Check" sensor interferes with the camera scan function in certain modes. The Fix: Go to Settings -> Page 10 -> Fabric Thickness Check. Set it to OFF.

Do this immediately. It resolves 90% of "camera failure" reports.

Warning: Magnetic Safety for Upgraded Workflows
If you decide to upgrade to Magnetic Hoops (discussed below), be aware they use high-power neodymium magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear of the edge.
* Medical Devices: Keep at least 6 inches away from pacemakers.

Clean Jump-Stitch Tails: Use the Automatic Scissor Cutter While the Thread Is Still Long

In production environments, we don't trim manually if we can avoid it. The Trick: When the machine makes a jump stitch and leaves a long tail, press the Scissor (Cut) button before the thread gets stitched over or tangled. The Result: The machine pulls the tail to the back (underside) and cuts it short. This leaves the front face of your embroidery pristine.

Operation Checklist (The "In-Flight" Monitor)

• Needle Landing: Does the needle tip hover exactly over the center reference mark?
• Rotation Check: do the left/right reference marks align with the projector/grid?
• Speed Control: For complex borders, reduce speed to 600 SPM (Stitches Per Minute). High speed (1000+) increases vibration and the chance of fabric shifting on the sticky stabilizer.
• Adhesion Monitor: Watch the fabric edges. If they lift, pause immediately and press them back down or add tape.

The “Knife” Tool in Border Function: Split and Remove Rows Without Rebuilding the Whole Design

Sometimes, your calculation is slightly off, and the final repeat is too long for the fabric edge. The Solution: Use the "Knife" (Split) tool within Category 5.

1. Select the row of repeats.
2. Select the Knife icon.
3. Tap the connection point between repeats to separate them.
4. Delete the excess repeats.




Expert Note: When you delete a repeat, the machine re-calculates the center. You must re-check your alignment (Center/Left/Right) after any deletion.

Troubleshooting Continuous Borders on the Brother Luminaire XP1: Symptoms → Causes → Fixes

When Floating Stops Being Fun: A Practical Upgrade Path for Faster, Cleaner Repeats

Floating on sticky stabilizer is an excellent technique, but it has limits. If you are moving from hobbyist to semi-professional (production runs, commissioned quilts, bridal wear), the physical strain of precise floating can become a bottleneck.

Here is a diagnostic regarding when to upgrade your toolkit:

Scenario A: "I'm ruining delicate velvet/satin with markings."

• Diagnosis: The friction of standard hoops is incompatible with the fabric pile.
• The Fix: brother luminaire magnetic hoop systems. These use vertical magnetic force rather than horizontal friction. They hold fabric firmly without crushing the fibers, eliminating "hoop burn" completely.

Scenario B: "My wrists hurt from re-hooping 20 times a day."

• Diagnosis: Repetitive Strain Injury (RSI) risk from tightening hoop screws.
• The Fix: magnetic hoops for brother luminaire. You simply slide the fabric in and snap the magnets down. It significantly reduces cycle time and physical strain.

Scenario C: "I can't change threads fast enough for these multi-color borders."

• Diagnosis: Your single-needle machine is the throttle on your income.
• The Fix: SEWTECH Multi-Needle Machines. If you are doing borders with 3+ colors, a multi-needle machine changes threads automatically, allowing you to prep the next hoop while the machine works.

The One-Sentence Mental Model: Reference Stitches First, Then Let the Camera/Projector Confirm

Success with continuous borders boils down to this sequence: Anchor with Reference Stitches -> Speed up with Floating -> Verify with Camera.

Mastering this workflow on the Luminaire XP1 turns the machine from a confusing computer into a precise production tool. And if you find yourself fighting the physics of fabric too often, remember that tools like the floating embroidery hoop setup or magnetic upgrades exist to bridge the gap between your skill and the material's limitations.

FAQ

• Q: How do Brother Luminaire XP1 Category 5 Border Function repeats stop drifting crooked after 8–10 placements?
  A: Align repeats using the Brother Luminaire XP1 arrow keys and the Bottom Center/Left/Right reference stitches, not by finger-dragging.
  • Use Category 5 alignment tools (Align Center) and nudge with arrow keys until the screen shows aligned coordinates.
  • Turn ON Reference Stitches and match Bottom Center first, then match Bottom Left and Bottom Right to eliminate rotation.
  • Slow down for complex borders to about 600 SPM to reduce vibration that can shift floated fabric.
  • Success check: the needle tip hovers exactly over the previous Bottom Center mark, and the left/right marks line up without a visible tilt.
  • If it still fails… re-check that only Center alignment was not used alone; rotation errors usually show up as a gradual “walking” border.
• Q: What is the Brother Luminaire XP1 prep checklist before stitching a continuous border in a 5" x 7" hoop?
  A: Do a fast pre-flight check: correct hoop setting, full bobbin, fresh needle, and clean/ready sticky-stabilizer supplies.
  • Confirm the Brother Luminaire XP1 settings show the same 5" x 7" hoop that is physically on the table.
  • Load a full bobbin and install a fresh needle (75/11 or 90/14 depending on fabric, per the machine manual).
  • Prepare sticky stabilizer, temporary spray adhesive (as backup), and isopropyl alcohol for cleaning needle gum.
  • Success check: the on-screen stitchable area and clip “danger zones” match the real hoop, and the stabilizer in the hoop feels ready before the first stitch.
  • If it still fails… stop and re-do hoop selection first; many “mystery” placement problems start with the wrong hoop size selected.
• Q: How does the Brother Luminaire XP1 floating method with sticky stabilizer prevent hoop burn and save time on continuous borders?
  A: Hoop only sticky stabilizer and stick the fabric on top, so the fabric is not repeatedly clamped and distorted by a plastic hoop.
  • Hoop sticky stabilizer paper-side up, score the paper, and peel to expose adhesive.
  • Press fabric down firmly, then stitch the design plus reference marks; remove the hoop and tear stabilizer away from the stitched area while keeping the stabilizer intact in the hoop.
  • Reposition fabric by matching the previously stitched reference marks to the new start points; add a light mist of temporary spray adhesive if tack is low.
  • Success check: rubbing the fabric with your palm makes it feel “locked” to the adhesive and it does not slide easily.
  • If it still fails… dust/lint may have killed the tack; refresh with spray adhesive and ensure excess fabric is clipped/rolled so it cannot tug during stitching.
• Q: Why does the Brother Luminaire XP1 camera scan not work, and how do you fix the Fabric Thickness Check interference?
  A: Turn OFF Fabric Thickness Check in Brother Luminaire XP1 Settings (Page 10) to restore camera scan function in the affected modes.
  • Open Settings and navigate to Page 10.
  • Set Fabric Thickness Check to OFF, then retry the camera scan.
  • Confirm the hoop area is clear and the fabric is secured before scanning.
  • Success check: pressing the Camera icon produces a proper hoop-area image with the fabric background shown on-screen.
  • If it still fails… re-check that Fabric Thickness Check is truly OFF (it is the most common cause) and restart the scan sequence.
• Q: How do you stop gaps between repeats when using Brother Luminaire XP1 Border Function with sticky stabilizer floating?
  A: Treat gaps as fabric slip: increase adhesion and verify reference-mark alignment before stitching the next repeat.
  • Press the fabric down harder onto the sticky stabilizer and add a light mist of temporary spray adhesive if the surface feels less tacky.
  • Align Bottom Center reference mark first, then use Bottom Left/Bottom Right to correct rotation before starting.
  • Reduce speed (about 600 SPM) so the fabric is less likely to creep during the run.
  • Success check: the fabric edges stay flat (no lifting) during stitching, and the new repeat lands flush with no visible spacing.
  • If it still fails… pause immediately when an edge starts lifting, press it back down, and secure slack/excess fabric so it cannot pull against the hoop.
• Q: How do you prevent Brother Luminaire XP1 jump-stitch tails from showing on the front when stitching borders?
  A: Use the Brother Luminaire XP1 Scissor (Cut) button while the jump-stitch tail is still long so the machine pulls it to the back and trims it.
  • Watch for a jump stitch that leaves a long thread tail.
  • Press Scissor (Cut) before the tail gets stitched over or tangled.
  • Continue stitching only after the tail is controlled.
  • Success check: the front of the embroidery stays clean with no long tails laying across the border.
  • If it still fails… slow down and monitor more closely; if tails are already trapped, stop and trim manually before they get locked in.
• Q: What safety rules should be followed when upgrading continuous-border work to magnetic embroidery hoops for Brother Luminaire XP1?
  A: Treat magnetic embroidery hoops as high-force clamping tools: prevent pinch injuries and keep magnets away from medical devices.
  • Keep fingers away from the hoop edge as magnets snap together quickly.
  • Keep magnetic hoops at least 6 inches away from pacemakers or similar medical devices.
  • Place the hoop down on a stable surface before separating or closing it to control the snap.
  • Success check: the hoop closes without finger contact near the joining edge and the fabric is held firmly without crushing.
  • If it still fails… stop using the hoop until handling is controlled; pinch hazards are immediate and not worth “getting used to” mid-project.
• Q: When does Brother Luminaire XP1 floating on sticky stabilizer stop being efficient, and what is the practical upgrade path for production-level borders?
  A: Upgrade when the pain point is consistent damage, strain, or throughput limits: optimize technique first, then consider magnetic hoops, then consider a multi-needle machine for multi-color volume.
  • Level 1 (Technique): refine reference-stitch alignment, adhesion checks, and slower speed to reduce placement loss.
  • Level 2 (Tool): move to magnetic hoops when plastic hoops cause hoop burn on high-pile/delicate fabrics or when re-hooping causes wrist strain.
  • Level 3 (Capacity): move to a multi-needle machine when single-needle thread changes become the bottleneck for 3+ color borders.
  • Success check: cycle time drops (less re-hooping/less rework) and borders stitch consistently without fabric marks or repeat gaps.
  • If it still fails… document the dominant failure mode (hoop burn vs. slipping vs. thread-change downtime) and address that specific constraint first.
