Brother My Design Snap: Easy, Precise Embroidery Placement (Step‑by‑Step)

Video reference: “My Design Snap Embroidery Easy Mode” by GUR sewing

If you’ve ever worried about stitching off-center or over an existing motif, this workflow solves it. Use your phone to scan a hooped fabric background, then place and rotate your design on the machine with pin-point accuracy.

What you’ll learn

• How to prepare a design on the Brother machine before scanning

• Which hoops work for background capture (and why registration marks matter)

• The correct way to scan your hooped fabric with My Design Snap

• How to move, nudge, and rotate a design directly over the scanned fabric

• Final checks and fixes before you press Embroidery

H2: Primer: What My Design Snap Easy Mode Does (and When to Use It) My Design Snap Easy Mode lets you capture a real image of your hooped fabric on a mobile device and send that image to a compatible Brother machine (shown here with a Stellairé). The machine then displays your selected embroidery design on top of that photo, so you can place, fine-tune, and rotate the design until it’s exactly where you want it. This is ideal for stitching around existing embroidery, matching a fabric print, or centering on a specific area.

Why it works: the app recognizes special registration marks on supported hoops. Once the machine has the background image, any movement you make while positioning the design is shown relative to the scanned fabric—eliminating guesswork. If you’re used to general accessories like an embroidery magnetic hoop, remember that Easy Mode still requires hoops with registration marks for the scan feature to function.

Quick check

• Can you see your design preview on the machine screen?

• Do you understand that the app requires hoops with registration marks for background capture?

• Is your fabric already hooped (not floating) for the scan?

H2: Prep: What you need before you start Gather the following before launching the app:

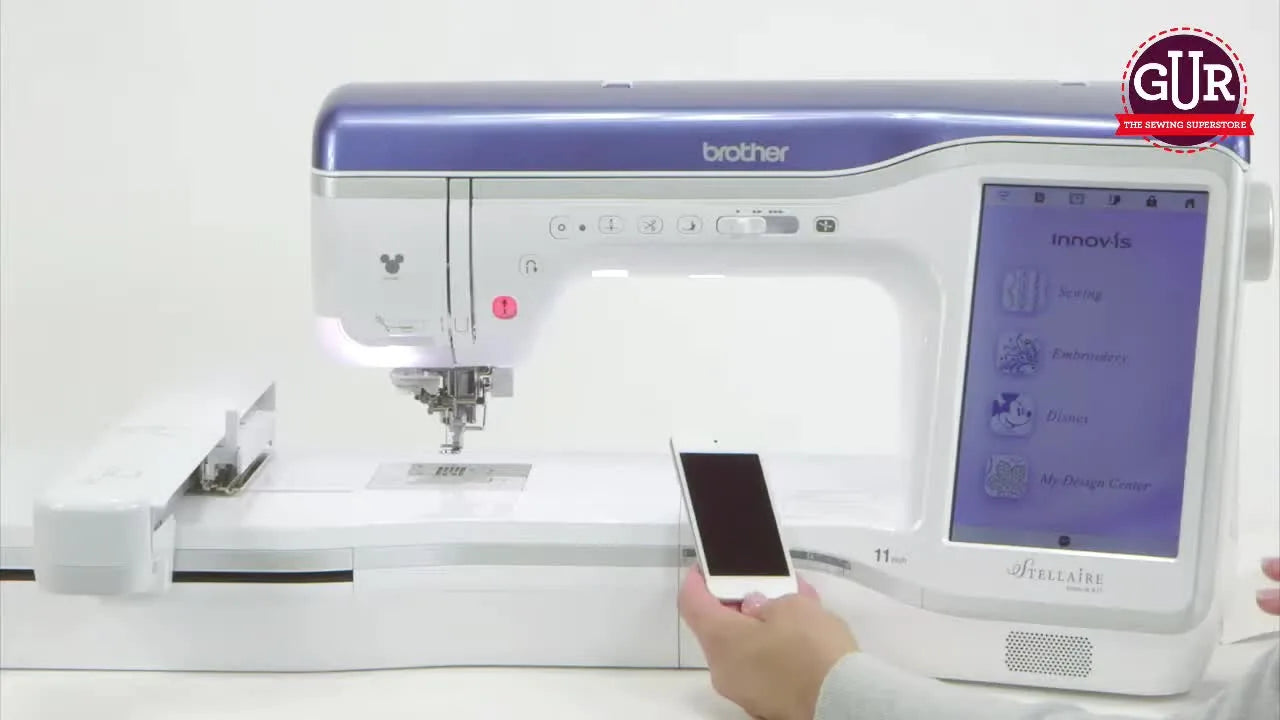

• Brother embroidery machine compatible with My Design Snap. The demo uses a Brother Innov-is Stellairé.

• Mobile device with the My Design Snap app installed.

• Embroidery hoop that has registration marks. The app depends on those marks to align the background image. The presenter notes that certain hoop sets come with this capability.

• Fabric hooped securely.

• Selected embroidery design ready to load on the machine.

Watch out

• Using hoops without registration marks will prevent the app from aligning the scan. Even if you own accessories categorized as magnetic hoops for embroidery, they do not replace the requirement for the marked hoops used by the app.

Pro tip

• If you routinely hoop many items, a dedicated station can help you hoop square and tension-balanced before scanning. Tools marketed as a hoop master embroidery hooping station are used off-machine during hooping; still, you must switch to the correct registration-marked hoop for the Snap capture.

Prep checklist

• Fabric is hooped snugly and flat

• Hoop shows registration marks

• My Design Snap is installed on your device

• Machine and device are powered on

H2: Setup: Configure the machine, hoop, and app Select and load your design on the machine first. In this demo:

• From the machine home screen, tap Embroidery.

• Choose sub-category 1, design 10 (a dragonfly). The screen shows size and color breakdown.

• Tap Set, then Embroidery to confirm the design is ready to position.

Why this order matters: loading the design before scanning ensures it appears immediately on the scanned background image for instant placement. If you add more designs later, you can still return to the layout screen.

Machine safety reminder: the carriage will move during initialization later. Keep hands and items clear.

Setup checklist

• Design is visible on the machine screen with size/colors

• Hoop with registration marks is chosen for the project

• You’re ready to transition to the app on your device

H2: Operation: Scan, send, and place your design H3: 1) Prepare the app and hoop for capture

• Open My Design Snap on your device.

• Choose “Snap Capture with frame for pattern positioning” (top option).

• Confirm the prompt to hold your device flat to the hoop.

• Double-check: the fabric is hooped in a frame that shows registration marks.

Expect this: the app will look for the hoop by using those marks and show a live alignment outline on your screen.

Watch out

• Hoops without registration marks won’t work for this capture. Some readers use third-party frames such as a dime snap hoop for general stitching; however, Easy Mode’s scan relies on the manufacturer’s registration-marked hoops.

H3: 2) Capture and send the background

• Hold your device flat over the hooped fabric.

• Start a little lower and move up slowly so the app can find and superimpose the hoop outline.

• When prompted, hold steady for the countdown (3-2-1), then check the capture.

• Tap Send to the machine in the app; wait for the machine to confirm receipt; tap OK on the machine.

Quick check

• The machine displays a message confirming an image was sent from the mobile app. Tap OK to update.

H3: 3) Attach the hoop and initialize

• Attach the same hoop you photographed to the machine’s embroidery unit.

• Tap OK on prompts about the attached frame and carriage movement.

• Keep your hands and tools clear as the carriage moves.

Outcome: the scanned fabric image is now on the machine screen with your selected design overlaid.

Watch out

• Keep fingers, fabric tails, and accessories out of the carriage path while the machine moves.

H3: 4) Place the design exactly where you want it

• Touch and drag the design for broad movements.

• For precision, tap Layout > Move to use the directional arrows for tiny nudges.

• In Layout, choose Rotate to angle the design so it follows your fabric motif or preferred orientation.

• Tap OK when satisfied.

Why two movement methods: dragging is fast for big repositioning; arrows make controlled micro-adjustments so you don’t overshoot.

Pro tip

• Blend both methods: drag close to target, then switch to arrows for fine positioning.

Outcome expectation

• Your design sits exactly where intended on the scanned background, fully inside the hoop boundary, with the angle you chose.

Operation checklist

• Background image visible beneath your design

• Design fits within the hooped area (no edges clipped)

• Placement and rotation look correct relative to fabric

• You’ve tapped OK to confirm layout

H2: Quality checks at each milestone 1) After design load (before scanning)

• The correct design appears with size and color breakdown.

• You can navigate to Embroidery and layout options.

2) After capture and send

• The machine confirms the image was sent.

• The attached hoop matches the one photographed.

3) During placement

• The design moves and rotates smoothly.

• The background scan helps you avoid stitching over existing motifs.

4) Before embroidery

• Nothing extends outside the stitchable area.

• You’ve previewed with and without the background image.

Quick check

• Toggle background off and on to compare the design on a clean screen versus the real fabric image. The placement should look intentional in both views. If the preview looks off only when the background is on, revisit alignment and nudge as needed.

H2: Results & handoff: Toggle views, add designs, and proceed With the placement dialed in, you can:

• Toggle the background: a simple on/off control lets you preview the design alone or over the fabric image. Use this to sanity-check centering and angle on a clean grid-free view.

• Add more designs: Return > Add gives you access to the machine’s design catalog or My Design Center if you plan layered or multi-motif arrangements.

• Proceed to stitching: once satisfied, go to Embroidery to stitch. In this demo, the focus is on setup and placement; the stitching process itself isn’t shown, but your machine will follow its standard embroidery sequence.

Pro tip

• Use the background toggle as a final pass: off to evaluate spacing and silhouette, on to confirm the relationship to fabric prints or existing embroidery.

Note on accessories

• This Easy Mode process is built around the registration-marked hoops the app can recognize. If you also keep other accessories for general projects—like items listed under brother stellaire hoops or more generic categories such as magnetic hoops for brother—reserve them for scenarios where scanning isn’t required, or confirm they include the required marks for the app to align. The capture step won’t proceed without those marks.

H2: Troubleshooting & recovery Symptom: The app can’t find the hoop outline or the image looks skewed

• Likely cause: Device not held flat; hoop lacks registration marks; movement during the 3-2-1 hold; lighting is poor.

• Fix: Re-capture while keeping the device flat and steady; ensure you’re using a hoop with visible registration marks; improve lighting around the hoop.

Symptom: The machine doesn’t show “image was sent”

• Likely cause: The send didn’t complete.

• Fix: In the app, tap Send to the machine again; wait for the confirmation; then tap OK on the machine.

Symptom: The wrong hoop is attached after sending

• Likely cause: You captured one hoop but attached a different hoop.

• Fix: Attach the exact hoop used during capture; confirm prompts and proceed.

Symptom: Placement looks correct when background is off, but wrong when it’s on

• Likely cause: Minor misalignment or rotation error.

• Fix: Return to Layout; use Move arrow keys for tiny nudges; use Rotate for small angle corrections; verify boundaries again.

Symptom: Carriage moves unexpectedly and bumps into something

• Likely cause: Objects or hands in the carriage path during initialization prompts.

• Fix: Keep the area clear; acknowledge prompts only when safe; re-attach the hoop if it was disturbed.

Quick isolation tests

• Toggle background off/on: If the design looks good both ways, placement is solid.

• Make a tiny move with arrow keys: If nothing changes, ensure you’re in Layout > Move.

• Re-send the image: If the background looks wrong or outdated, capture again and send.

H2: Reference settings from the demo

• Design: dragonfly (machine catalog, sub-category 1, design 10)

• Displayed details: size 2.35" x 2.82" and a color breakdown

• Workflow highlights: Embroidery > select design > Set > Embroidery, then scan via app, OK prompts on machine, Layout for Move and Rotate, background toggle on/off

From the comments

• The video’s thread did not add additional tips or Q&A beyond what’s covered here.

A final note on hoop choices

• Many accessories exist for general machine embroidery, including categories like magnetic hoops for embroidery. Use them where appropriate for non-scanned projects, but remember: My Design Snap’s Easy Mode needs a hoop with registration marks to capture the background image. If your day-to-day kit includes broader accessory terms associated with a Brother embroidery machine, keep those for regular hooping tasks and switch to the marked hoop for scanning.

Optional workflow helpers

• After scanning and placement, you can always return to add or rearrange designs before stitching. If you manage multiple garments at once, off-machine hooping aids can keep your work consistent; just ensure you switch back to the registration-marked hoop for scanning. Some users categorize general accessories in terms like magnetic hoops for brother. That’s fine for non-scan jobs, but Easy Mode alignment depends on the hoop marks.

Recap

• Load design first on the machine

• Use a hoop with registration marks

• Open My Design Snap and choose Snap Capture with frame

• Hold device flat; capture; send; confirm on the machine

• Attach the same hoop; acknowledge prompts; keep clear of carriage movement

• Position by drag; refine with arrows; rotate if needed

• Toggle background; add designs; proceed to Embroidery

One more accessory reminder

• The scan feature is purpose-built around the marked hoops. While there are many hoop categories in the marketplace, such as magnetic hoops for brother variants for non-scan projects, keep this workflow’s requirement in mind whenever you depend on background capture for precise placement.
