Brother Persona PRS100: Do More With One—A Hands-On Guide

Unleash Your Creativity with the Brother Persona PRS100

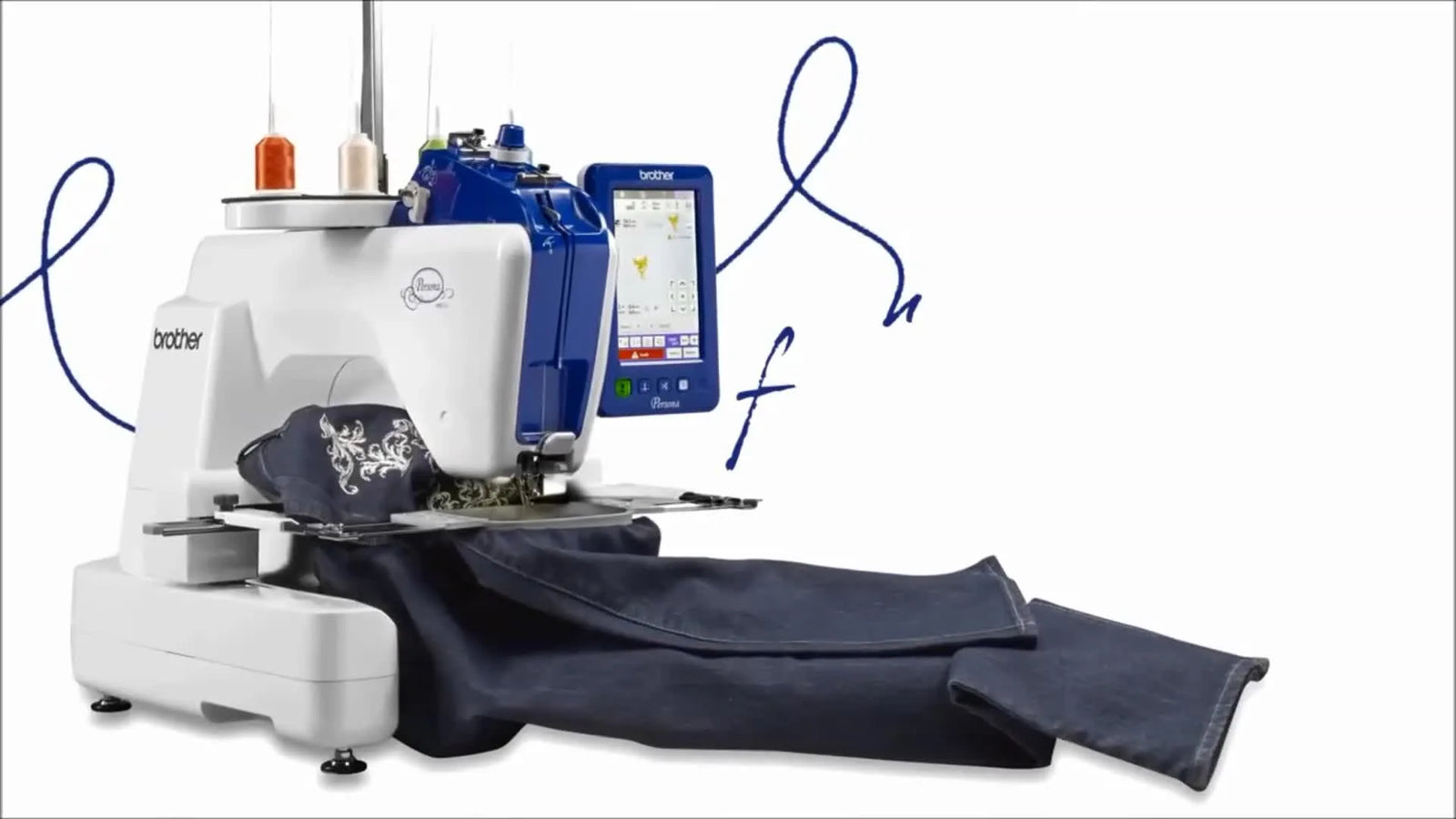

The Brother Persona PRS100 is a single-needle embroidery machine designed to do more with one: from large-format stitch areas (8x8 inches) to tiny, hard-to-reach placements. Its compact 18-inch-wide footprint fits most sewing rooms while still accommodating quilt blocks, jacket backs, pillows, children’s tees, and more.

What makes this model stand out is its free arm. Instead of spreading bulky items over a flat bed, the garment or bag body hangs freely below the hoop, minimizing drag and taming tangles. That single design choice unlocks sleeves, socks, sweatbands, and structured caps—with the same single-needle confidence you already have. brother embroidery machine

Pro tip

• The 8x8-inch hoop size is ideal for monograms on pillow fronts, left-chest art scaled up for jackets, and quilt blocks that deserve thread-texture focus.

Quick check

• If you can slide the hooped item around the free arm without rubbing or snagging, you’ve set yourself up for clean, distortion-free stitching.

Versatility Redefined: Embroidering Big and Small

Large-Scale Designs: 8x8 Inches and Beyond The PRS100 handles designs up to 8x8 inches, which opens the door to impactful pieces on tote panels, jacket backs, pillow fronts, and quilt blocks. Plan your hooping for a taut, drum-like surface; that firmness lets the needle work precisely across the entire field.

From the community: One thread in the comments cited a 20 cm x 20 cm frame size, which aligns with the 8x8-inch area shown here. That’s a helpful reference if you prefer metric when planning motifs. brother prs100 hoops

Precision for Small Items: Introducing Mini Frames When the canvas shrinks—baby clothing, sleeves, socks, or sweatbands—switch to the included mini frames. They reduce bulk in the hoop and give you the clearance needed to float tubular or small items smoothly around the free arm. You gain access without opening seams or forcing fabric around a flat bed.

Watch out

• Over-hooping tiny pieces can leave clamp marks. Hoop just tight enough for stability and let the free arm carry the weight.

Checklist — Big & small readiness

• Fabric hooped flat and firm (no ripples or slack).

• Hoop size chosen to closely frame the design.

• For small items, mini frames installed and the rest of the material draped off the free arm.

Mastering Difficult Items with Free Arm Technology

Seamless Embroidery on Bags and Tubular Garments The PRS100’s tubular free arm makes quick work of bags, golf shirts, and other items that used to be wrestling matches on a flatbed. By sliding only the target area onto the arm, the rest of the project hangs down freely. This keeps the stitch path clear and prevents fabric from creeping under the hoop.

Quick check

• Rotate the garment 360° around the arm before stitching; if anything snags, reposition now rather than pausing mid-run. hoop master embroidery hooping station

Personalizing Caps with Ease With the included cap frame, you can place logos and character art on structured caps. Secure the cap smoothly on the frame, align the center point, and use the DropLight positioning marker to verify the needle drop at your intended origin before pressing start.

Pro tip

• For cap art, center placement and brim clearance are everything. Preview on-screen and walk the perimeter virtually to ensure nothing falls off the sewing field.

Checklist — Free arm & caps

• Work area clears the free arm with no drag.

• Cap frame secured; cap tension smooth and even.

• DropLight marker centered on the intended start point.

Intuitive Control and Smart Editing Features

The Power of the 7-inch LCD Touch Screen A large, crisp 7-inch touch screen makes file selection, preview, and scaling straightforward. You can view the stitch map at size, step through tutorials right on the panel, and control operations via large, intuitive icons.

Efficiency Boosters: Color Sorting and Text Input Before stitching combined designs, enable color sorting to rearrange the sew order by thread color. This can cut down on thread changes dramatically, especially for layered layouts or when adding monograms to multi-element compositions. Multiple line text input and alignment tools help you set up titles, names, and stacked monograms directly on-screen. There’s also a one-touch monochrome option for turning a multi-color design into a single-thread statement.

From the comments

• A reader asked whether separate design software is required. The PRS100 includes built-in designs, fonts, and on-screen editing such as color sorting, multi-line text, and a monochrome conversion. External software wasn’t covered in the reference; the on-machine feature set already supports personalizing names, monograms, and combining built-in motifs.

Checklist — Screen setup

• Load or select the design and preview at final size.

• Use alignment tools to place text and elements.

• Apply color sorting if combining designs; consider monochrome if a single-color look is desired. best embroidery machine for beginners

Streamlined Workflow: From Threading to Finishing

Automated Setup: Needle Threading and Positioning Press the threading button to send the thread through the eye of the needle—no squinting required. Then engage the DropLight LED marker to project the precise needle-drop point on your fabric. This two-part sequence sets you up for fast, accurate starts and confident restarts if you need to re-hoop or re-align.

Pro tip

• Use the DropLight to trace corners of your design area by jogging the hoop—if the marker stays inside your intended perimeter, you’re ready to stitch.

Effortless Bobbin Management for Continuous Embroidery Access the vertical bobbin by simply opening the front of the free arm—no need to remove the hoop mid-job. Meanwhile, the side bobbin winder lets you wind a fresh bobbin while the machine continues stitching, so you can swap in the new one the moment you need it.

Fast and Easy Color Changes The easy threading system allows you to tie the new color to the current thread and pull it all the way through to the needle. This cuts downtime and keeps multicolor jobs moving.

Checklist — Workflow accelerators

• Needle threaded with one press; thread path confirmed.

• Start point verified with the DropLight marker.

• Fresh bobbin winding on the side winder while stitching continues.

• Next thread color tied-on and ready to pull through. snap hoop for brother prs100

A World of Designs at Your Fingertips

Extensive Built-in Collections and Monogramming Styles Explore a broad built-in library, including embroidery-like quilt patterns, 20 fonts, and 6 monogramming styles. It’s easy to add names, initials, or full phrases with multiple line text and alignment tools. For visual impact, preview on the touch screen and experiment with the one-touch monochrome button to unify a design in a single colorway.

Express Your Unique Personality Whether you gravitate toward vintage scripts, trendy letterforms, or floral alphabets, there’s a style that suits your project. Combine a large monogram with smaller supporting text, or turn a colorful logo into a monochrome tonal design for a refined look.

Quick check

• If the text baseline looks off, use on-screen alignment to center or right-justify lines before stitching. magnetic embroidery hoops for brother

Quality Checks

At each milestone, pause for a 10-second inspection. It saves minutes later.

• Hooping: Fabric should be drum-tight with no ripples; the garment moves freely around the free arm.

• Placement: The DropLight marker touches your intended origin; simulate a perimeter walk by moving the hoop edges.

• Preview: On-screen design fits within the chosen hoop, with no elements touching boundaries.

• Thread path: Needle threaded; thread seated in guides; tension path smooth.

• Bobbin: Adequate supply; winder preparing a fresh bobbin if needed.

• Color order: Color sorting applied for combined designs; next thread tied-on and ready.

Watch out

• If any part of the garment can slip under the hoop, stop and reposition now. The free arm helps, but vigilance prevents snags during stitching. mighty hoops for brother prs100

Results & Handoff

What “good” looks like

• Clean edge definition: Stitches lay flat with no fuzzing or bird-nesting.

• Registration: Layers align, especially after color sorting.

• Fabric integrity: No hoop burns on delicate areas; no stretching on knits.

• Cap curvature: Design clears the seam line; brim and crown remain undistorted.

Finishing flow

• Clip jump threads carefully.

• Remove stabilizer per its type.

• If needed, run a quick final press from the wrong side to smooth the surface.

From the comments on availability and price

• One commenter reported a retail price of 3999; actual pricing varies by dealer and promotions.

• Another thread mentioned sale announcements were forthcoming at the time of posting; check with authorized dealers for current offers. brother magnetic embroidery frame

Troubleshooting & Recovery

Symptom → likely cause → fix

• Fabric puckers after stitching → Hoop too loose or fabric tension inconsistent → Re-hoop with firm, even tension; verify free arm clearance so fabric hangs naturally.

• Misaligned start point → Origin not verified → Use the DropLight marker and on-screen preview; nudge the hoop to align the marker with your intended start and restart.

• Too many thread changes on a composite design → Colors not optimized → Apply color sorting before stitching; tie-on the next color to speed transitions.

• Interrupted run due to low bobbin → Didn’t prepare a spare → Wind a bobbin on the side winder while stitching, then swap in immediately.

Quick isolation tests

• Run a small test motif in a corner of your fabric to confirm tension and registration before a large 8x8 stitch-out.

• Jog the hoop to each design corner with the DropLight on; verify all points sit inside the sew field. magnetic embroidery hoop

Checklist — Rapid recovery

• Re-thread with the one-press threader if you see frays.

• Replace bobbin from the front without removing the hoop.

• Confirm origin with DropLight before resuming.

From the community

We’ve integrated top questions raised by viewers so you can work faster:

• Frame size? A commenter cited 20 cm x 20 cm; the machine supports an 8x8-inch area, which corresponds closely.

• Is design software required? The reference highlights built-in designs, on-screen editing, and text tools; external software wasn’t discussed.

• Sales or pricing? One viewer mentioned future sale announcements; another reported a retail price of 3999. Always confirm current pricing with an authorized dealer. hoopmaster

Primer (What & When)

What it achieves

• Professional embroidery on flat and tubular items using a single-needle machine.

• Confident placement with a positioning light and on-screen preview.

• Faster throughput via color sorting, rapid threading, and easy bobbin management.

When to use it

• Big, bold front panels up to 8x8 inches.

• Small placements on sleeves, socks, and sweatbands.

• Structured caps using the included cap frame.

Constraints to keep in mind

• Choose the right hoop: get as close to your design size as possible for stability.

- Keep bulk off the bed: let the free arm do the heavy lifting.

Prep

Tools and materials

• PRS100 embroidery machine with hoops (8x8 and mini frames).

• Cap frame (for hats).

• Thread and bobbins.

- Your fabric or garment (bags, shirts, caps, children’s clothing, pillows, quilt blocks).

Environment

• A stable surface with room around the free arm so bulky items can hang freely.

Preflight checks

• Confirm design dimensions fit your selected hoop.

• Check bobbin supply; start a fresh bobbin winding.

• Set the machine to display the design at final size and orientation. embroidery hoops magnetic

Prep checklist

• Hoops selected and ready (including mini frames for tight spots).

• Threads staged in expected color order.

• Bobbin winding underway; spare ready.

Setup

Configuration and rationale

• Choose hoop size: a closer-fitting hoop stabilizes fabric and improves registration.

• Load design and preview on the 7-inch touch screen to confirm scale and placement.

- Enable color sorting for combined designs to minimize thread changes.

Positioning

• Mount the hooped item on the free arm and verify there is no drag.

- Use the DropLight marker to confirm the origin and trace a corner path.

Threading - Use the one-press needle threading to finalize the path and minimize handling.

Setup checklist

• Design fits within the chosen hoop on-screen.

• Free arm clearance verified; garment rotates smoothly.

• Needle threaded; origin confirmed with the marker. dime snap hoop

Operation / Steps

1) Hoop and mount

• Hoop fabric firm and flat; for small or tubular items, switch to mini frames.

- Mount onto the free arm so the rest of the item hangs off the machine. Expected result: the hooped area can rotate freely without snagging.

2) Preview and align

• On the touch screen, verify scale and rotation; center the design or align to your target baseline.

- Use the DropLight to mark the needle drop; jog the hoop to trace corners if needed. Expected result: design sits safely inside boundaries.

3) Optimize color order - If you’re stitching multiple combined elements, apply color sorting to reduce color changes. Expected result: shorter run time with fewer thread swaps.

4) Thread quickly - Press the needle threader, then tie-on the next color to the current thread and pull through to stage future changes. Expected result: fast, clean transitions between colors.

5) Manage bobbins on the fly - Replace the vertical bobbin from the front without removing the hoop; wind spares on the side winder while the job runs. Expected result: continuous stitching with minimal downtime.

6) Stitch and monitor

• Start the job and watch the first few passes to confirm tension and pathing. Expected result: smooth stitches, clean edges, no dragging.

Operation checklist

• Firm hooping; correct hoop size for the design.

• DropLight placement confirmed; perimeter safe.

• Color sorting on (for composites); next colors tied-on.

• Side winder preparing the next bobbin. mighty hoops for brother
