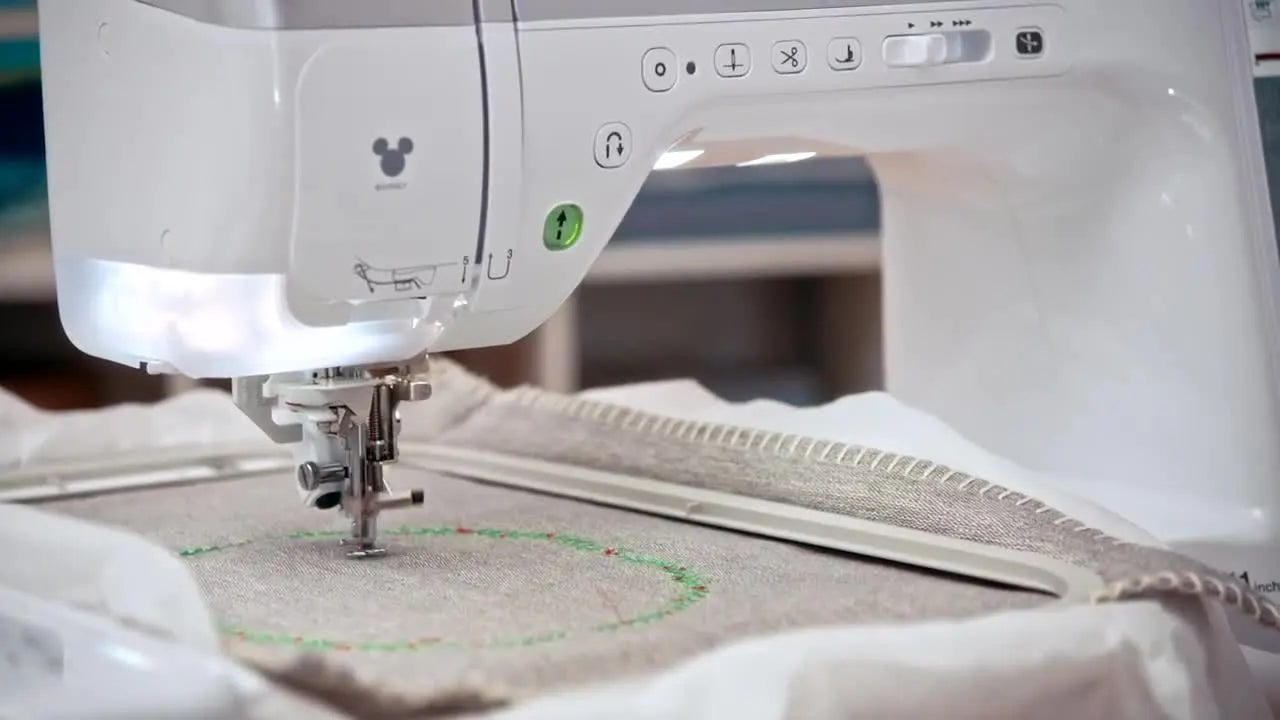

Brother Stellaire My Design Snap & Embroidery Features Overview

Master Precision: A Beginner's Guide to My Design Snap & Embroidery Positioning

(Top embed module: This article is based on the video “Brother Stellaire My Design Snap & Embroidery Features Overview” from the Brother Sews channel, but is written as a comprehensive, step-by-step technical guide for beginners.)

If you have ever hooped a shirt three times and still missed the exact center for a logo, or ruined a project because the design was slightly tilted, you know the pain of "eyeballing it." The Brother Stellaire’s My Design Snap workflow is engineered to solve this mechanical frustration digitally.

This guide walks you through the technical steps to position designs with millimeter precision, convert hand-drawn art into machine data, and use background scanning to stitch over specific prints. Whether you are using a standard hoop or upgrading to professional magnetic systems, these principles apply.

What you’ll learn

• Physics of Placement: How to use the Snowman Marker to auto-rotate designs without manually fighting the fabric.
• Auto-Digitizing: Converting clean line art and illustrations into stitch data (and the limitations of doing so).
• Background Scanning: Aligning embroidery relative to seams, stripes, or existing patterns.
• On-Screen Engineering: Customizing density, fonts, and fills directly on the machine interface.
• Troubleshooting: How to recover when the camera fails to scan or the fabric shifts.

1. Precise Design Positioning with My Design Snap

Primer: The problem with "close enough"

In commercial embroidery, placement is everything. A logo on a left chest must sit usually 7–9 inches down from the shoulder seam and centered between the placket and side seam. Achieving this by manually twisting fabric in a hoop is difficult and often leads to "hoop burn" (permanent ring marks) or puckering.

The Brother Stellaire solves this by using optical recognition. It looks for a specific sticker—the Snowman Marker—placed on your fabric. It then mathematically calculates the rotation and offset needed to make the design land exactly on that sticker, regardless of how crooked the fabric is hooped.

Step-by-Step: Using the Snowman Marker

1. Mark Your Target: Lay your garment flat on a table. Measure and mark your desired center point with a removable fabric pen or chalk.
2. Apply the Sticker: Place the Snowman Marker sticker exactly on your crosshair mark. Ensure the sticker is flat; wrinkles in the sticker can cause scanning errors.
3. Hooping: Hoop your fabric. The fabric should be "drum taut"—you should be able to tap it and hear a thud, but it should not be stretched so tight that the fibers distort.

   Pro tip

   The Snowman Marker does not need to be in the dead center of the hoop. It just needs to be fully visible within the sewing field.

Crucial Self-Check: Look closely at the sticker. Is it covered by a fold of fabric? Is it too close to the plastic edge of the hoop? The camera needs a clear "buffer zone" around the sticker to recognize it.

Safety Warning: When the machine moves to check the sticker, the carriage travels fast. Keep hands, loose sleeves, and jewelry away from the needle bar and hoop area. Always stop the machine completely before reaching in to remove the sticker.

Wireless Transfer: Mobile to Machine

1. Launch the App: Open My Design Snap on your customized tablet or mobile device. Select Advanced Mode.
2. The "Helicopter" View: Hold your device parallel to the floor, directly above the hoop. The app will guide you to frame the entire hoop.
3. Capture & Send: The app stitches the image data and sends it over Wi-Fi to the machine.
4. Auto-Adjustment: On the Stellaire screen, select the transferred image. The machine will instantly rotate and shift your chosen embroidery design to align with the Snowman sticker.

Compatibility Note: This guide focuses on the Stellaire Innov-is XJ1/XE1 series logic. However, the principles of optical alignment apply across modern high-end machines. Always verify your specific model's manual for camera range capabilities.

Verification: The LED Pointer Check

Trust, but verify. Before the needle drops, you must confirm the machine's calculation matches physical reality.

1. Engage LED Pointer: The machine has a built-in "droplight" or LED pointer that shows exactly where the needle will penetrate.
2. Jog to Center: Use the directional arrows on the touchscreen to move the hoop until the red LED dot sits precisely on the dot of the Snowman Marker.
3. Remove the Sticker: This is the most common novice error. Peel the sticker off now. If you stitch over it, you will have a difficult time picking gummy paper out of your embroidery stats.

Prep Checklist: Positioning

• Fabric is hooped taut (neutral tension) without stretching the grain.
• Snowman Marker is flat and unobstructed by seams/folds.
• Mobile device held parallel to the hoop (not angled) during scan.
• Sticker removed immediately after verification.

2. Turning Art into Stitches (Auto-Digitizing)

Primer: Line Art vs. Illustration Scan

Not all images are scan-ready. The machine's processor looks for high contrast.

• Line Art Scan: Best for black Sharpie drawings on white paper. Converts lines into running stitches or satin stitches.
• Illustration Scan: Best for solid blocks of color (clipart style). Converts shapes into fill stitches (tatami).

Note: This feature is not designed to "copy" existing embroidery from another dress. It is designed to digitize flat artwork.

Workflow: Digitizing Simple Line Art

1. Artwork Prep: Draw your design (e.g., a llama) using a thick black marker on clean white paper. Avoid pencil sketches or shading; the specialized camera interprets "shades" as messy data.
2. Scan: Hoop the paper (or place it on the scanning mat if applicable). Capture it via the My Design Snap app.
3. Conversion: In My Design Center, import the image. The machine will trace the detected center lines.
4. Refinement: Use the eraser tool on the screen to remove "noise" (specks or accidental lines).

Technical Insight: If your converted lines look jagged, increase the smoothing setting in the machine (if available) or simplify the drawing. Continuous fluid lines digitize much better than short, sketchy strokes.

Workflow: Converting Colored Illustrations

1. Hoop the Art: Secure the colored drawing. Ensure lighting is even—shadows across the paper will be interpreted as dark-colored stitch areas.
2. Process: Send to the machine. The software will group similar pixel colors into "vector-like" regions.
3. Assign Stitches: You can now tell the machine: "Make the red area a fill stitch" and "Make the blue outline a satin stitch."

The "Hidden" Success Factors: Consumables

The digital file is only 50% of the equation. The physical setup determines if the run works:

• Needles: Use a 75/11 Embroidery needle for standard wovens. Switch to a Ballpoint 75/11 for knits (t-shirts) to avoid cutting fibers.
• Threads: 40wt Polyester is the industry standard for durability and sheen.
• Stabilizer (Crucial):
  • Tear-away: For stable fabrics (denim, canvas, paper art).
  • Cut-away: Mandatory for anything that stretches (sweatshirts, performance wear).
• Hooping Stability: Paper and stiff art materials can slip in standard plastic hoops. Using reliable magnetic embroidery hoops can firmly sandwich paper or delicate media without the "screw-tightening" distortion, keeping your source artwork flat for the scan.

Prep Checklist: Digitizing

• Artwork is high-contrast (dark ink on white background).
• Lighting for the scan is even (no hand shadows).
• Stabilizer matches the fabric type (Remember: "If you wear it, don't tear it"—use cut-away).
• Needle is fresh and sharp (change needles every 8–10 hours of stitching).

3. Mastering Placement with Background Scanning

Primer: Why background scanning matters

Imagine embroidering a name on a striped shirt. If the text isn't perfectly parallel to the stripe, it looks terrible. Background scanning puts a live image of your fabric on the screen so you can align the digital design to the physical reality.

Workflow: Hooping for Scans

1. Rough Hoop: Place your fabric in the hoop. It doesn't need to be perfectly straight (that's the point of this feature), but it must be flat.
2. App Capture: Open My Design Snap in Easy Mode. Take the photo.
3. On-Screen Alignment: The machine's LCD now displays your fabric.

Technical Tip: If the background image looks fuzzy on the screen, your camera lens might be smudged, or you moved during the photo. A sharp background image is critical for precise alignment.

Aligning Designs on Prints

1. Import Design: Load your embroidery file (e.g., a butterfly).
2. Drag and Drop: Use your finger or stylus to drag the design directly onto the specific flower or stripe you want to embellish.
3. Rotation: Rotate the design 1° at a time until it runs parallel to the fabric pattern.

Decision Tree: Choosing the Right Positioning Aid

The thinner the fabric, the harder it is to keep stable during this process.

• Scenario A: Standard Cotton/Quilting Cotton.
  • Solution: Iron-on stabilizer + Standard hoop.
• Scenario B: Thick Towels or Jackets.
  • Solution: These are hard to force into plastic rings. A magnetic hoop for brother stellaire allows you to "snap" the heavy fabric in place without wrestling the inner ring, ensuring the background scan stays accurate because the fabric isn't popping out.
• Scenario C: Repeatable Production (10 shirts).
  • Solution: Use a dedicated embroidery hooping station. This mechanical jig ensures every shirt is loaded in the exact same spot, reducing the need to re-scan the background for every single unit.

Warning: Magnetic accessories use powerful neodymium magnets. Keep them away from pacemakers and computerized machine screens. Always slide the magnets apart to separate them—do not try to pry them straight up, as this can pinch fingers.

4. Advanced On-Screen Editing & Typography

Primer: Editing without a PC

Modern machines like the Stellaire encompass a mini-computer. You can adjust "Tracking" (space between letters) and "Leading" (space between lines) directly on the screen.

Customizing Lettering

1. Type & Font: Select a font. Technical Rule of Thumb: avoid resizing built-in fonts up or down by more than 20%. Beyond that, the stitch density may not recalculate correctly (too sparse or too bulletproof).
2. Letter Edit: You can select a single letter (like the "S" in a monogram) and make it larger or a different color than the rest of the text.

Common Pitfall: Making text too small. Standard embroidery thread (40wt) generally cannot handle text smaller than 5–6mm in height accurately. The vowels (a, e, o) will close up. If you need 3mm text, you require specific 60wt thread and a smaller needle (65/9).

Color Shuffling

If you are bad at picking colors, use the Color Shuffle feature. You tell the machine "I want a blue theme," and it generates 5–6 combinations using the thread palette you selected (e.g., Brother, Madeira, Robinson-Anton).

5. Exploring My Design Center: Custom Quilting

Primer: Shapes and Stippling

You can turn your embroidery machine into a quilter. The machine can generate Stippling (random meandering stitches) or geometric fills inside any closed shape.

Workflow: Creating a Quilt Block

1. Select Shape: Choose a square or hexagon from the library.
2. Apply Fill: Select a decorative fill (e.g., cross-hatch).
3. Set Density:
   • Default is usually 100%.
   • For batting/quilting, lighter density (80–90%) often keeps the quilt soft.
   • For stiff patches, higher density adds rigidity.

Placement Tip: When quilting block-by-block, consistency is vital. A hooping station for brother embroidery machine is highly recommended here to ensure every square is hooped at the exact same grain line, so your quilt blocks align perfectly when sewn together.

6. Troubleshooting & Recovery (The "Must-Read" Section)

Even with advanced tech, physics happens. Here is how to troubleshoot common failures.

Symptom 1: The design is off-center by 3-5mm.

• Cause: The hoop was bumped after the scan was taken, or the photo was taken at an angle (parallax error).

• Hardware Check: If your hoop inner ring feels loose, the fabric might be slipping. Consider upgrading to tighter-tolerance brother stellaire hoops to eliminate "hoop creep."

Symptom 2: "Birdnesting" (Thread tangle under the plate).

• Cause: This is almost always an upper-threading error, not a bobbin error. The top thread missed the tension discs.

Symptom 3: Fabric puckering around dense fills.

• Cause: The stabilizer is too light for the stitch count.

• Alternative: For bulky items (jackets) that push back against standard hoops, a brother embroidery machine large hoop in a magnetic style can hold the heavy material flatter than a friction hoop can.

Symptom 4: Scanner does not recognize the Snowman Marker.

• Cause: Contrast or lighting.

Results & Next Steps

By mastering the Snowman Marker and Background Scanning, you move from "hoping it works" to "knowing it fits." The Brother Stellaire workflow reduces the anxiety of ruining expensive garments.

Summary of Success:

1. Hoop Taut: Foundation is key.
2. Scan Straight: Inputs determine outputs.
3. Verify First: Use the LED pointer.
4. Stabilize Right: Match backing to fabric stretch.

As you advance, you may find that handling large production runs or extremely thick items (like horse blankets or heavy canvas bags) becomes tiresome on a single-needle flatbed machine. Professional embroiderers often graduate to multi-needle machines (like those from SEWTECH) which offer free-arms for easier tubular embroidery. Additionally, using a dedicated magnetic embroidery frame on your current machine can bridge the gap, offering industrial-style holding power for your home studio projects.

Embroidery is a journey of precision. Use the tools properly, respect the materials, and the results will follow.
