From Paper Sketch to a 10 5/8" Stitch File: My Design Center Scanning & Auto-Digitizing on the Brother Luminaire (Without the Usual Headaches)

Precision Digitizing on the Brother Luminaire: From Line Art to "Production-Ready" Stippling

If you’ve ever stared at a beautiful hand sketch and thought, “I know my machine can stitch this… why does it always turn into a wobbly, puckered mess?”—you’re not alone. The Brother Luminaire’s My Design Center is one of the fastest ways to go from paper to stitches, but the real difference between a fun demo and a clean stitch-out is what you do before you press Scan.

It comes down to three variables: Boundary Control, Density Management, and Hooping Physics.

In this industry-grade guide, we are decoding the workflow for the Brother Luminaire Innov-is XP1/XP2 (applicable to XP3 logic). We will take a raw black line drawing, digitalize it, tighten the stippling from a loose 0.120 to a professional 0.080, and prepare a 10.52" x 10.52" design that runs for 63 minutes.

1. The "Clear the Runway" Safety Check

When you tap into My Design Center, the Luminaire asks you to confirm it’s okay for the embroidery unit to move. That moment can feel jumpy the first time—especially if your hands are resting near the carriage.

Warning: Mechanical Safety
The embroidery unit and carriage will move immediately when you confirm the prompt. Keep fingers, magnetic tools, scissors, and loose sleeves at least 6 inches away from the moving arm until the machine finishes its homing sequence.

This is normal behavior: the machine is positioning the scanning system so the built-in camera can capture the mat accurately. Treat it like a CNC machine—hands off, let it park itself, then proceed.

2. The ROI Calculation: Prep Like a Pro, Not a Hobbyist

The video shows the scanning mat loading “just like a regular embroidery hoop,” but experienced operators know that the quality of your scan dictates the quality of your stitch.

The "Garbage In, Garbage Out" Rule: My Design Center reads contrast.

• Fuzzy lines? The machine creates jagged satin stitches.
• Smudged paper? The machine reads artifacts as embroidery data.

The Hooping Strategy: A 10 5/8" x 10 5/8" field is massive. Large fields amplify physical errors. If you use a standard screw hoop, you must ensure the tension is "drum-tight" evenly across all 360 degrees. This is often where operators fail—tightening the screw pulls the fabric into an oval, causing the final square design to stitch out vividly distorted.

This is the exact scenario where professionals switch to a brother luminaire magnetic hoop. Unlike screw hoops that rely on friction and hand strength, magnetic hoops clamp straight down, preventing "hoop burn" (the shiny ring mark) and maintaining even tension without distorting the fabric grain—critical for large geometric designs.

Phase 1: Prep Checklist

• Source Material: Ensure line art is high-contrast (black ink on white paper).
• Hidden Consumable Check: Have a fresh stylus ready (fingers are too blunt for precise cropping).
• Lens Check: Wipe the scanner glass/camera lens with a microfiber cloth; dust creates digital noise.
• Hooping Plan: If using a magnetic frame, clear your table of other metal tools to prevent accidental snapping.


3. Sensory Loading: The "Click" Means Go

Larissa places the line art under the plastic sheet of the scanning mat, lays it flat, then slides the mat onto the embroidery arm.

Sensory Anchor (Auditory/Tactile): You are listening for a sharp "Click."

• Slide the mat frame onto the carriage arm.
• Do not stop when you feel resistance. Push firmly until you hear the mechanical lock engage.
• Test: Give it a gentle tug back. If it slides, it wasn't seated. If it holds, you are safe to scan.

If you are doing volume production (e.g., scanning 50 student drawings), setting up a dedicated hooping station for machine embroidery ensures your mat and subsequent fabric hooping happen at an ergonomic height, saving your back and wrists.

4. Selecting the Right Algorithm: "Line Design"

On-screen, you will see scan options. Your choice here tells the machine's processor what to ignore.

• Image Scan: Creates a background photo (for manual tracing).
• Illustration Design: Tries to capture color blocks (messy for line art).
• Line Design (The Correct Choice): Optimized for high-contrast edges. It converts lines to vectors and ignores white space.


5. Crop Constraints: Red Handles are Your Friend

After scanning, use the red arrow crop handles to pull the boundaries inward.

Why this matters: Cropping isn't just aesthetic; it reduces processing load. By removing the "white noise" at the edges of the paper, you prevent the machine from accidentally digitizing a shadow or a paper crease at the edge of the scan mat.

6. The Contract with Reality: Setting the 10 5/8" Boundary

Larissa opens the Shapes menu, selects the hoop icon, and locks in 10 5/8" x 10 5/8". A red guideline box appears.

The Golden Rule of Digitizing:

• Screen Reality: The design fits in the red box.
• Physical Reality: Your plastic hoop inner dimension.

If your design touches the red line on screen, you have zero margin for error in the physical hoop. If you hoop crookedly by even 2 degrees, your needle will hit the frame.

When shopping for a new hoop for brother embroidery machine, always look for the "actual sewing field" specification. A "10x10" hoop often has a usable safety zone slightly smaller than the physical interlock.

7. The "Paint Bucket" Phase: Filling Regions

Larissa selects the fill tool (Paint Bucket), chooses a decorative floral swirl, selects a color, and taps the center star.

Operational Flow:

1. Select Fill Type (Stipple, Crosshatch, Pattern).
2. Select Color (Visual aid only).
3. Tap the enclosed region.

Pro Tip: Don't judge the density yet. Just get the regions filled. We adjust the "feel" later.

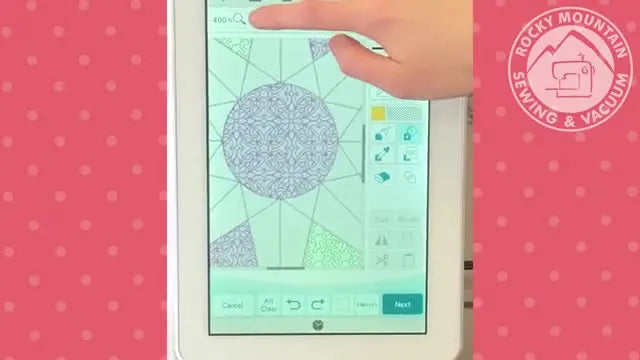

8. Navigating the Interface: The 200% Zoom Rule

Larissa demonstrates the most common frustration: "Fat-Finger Error" (tapping a line instead of a region).

The Protocol:

• Error: You tap the star, but the background turns purple.
• Immediate Action: Press Undo (Back Arrow). Do not try to "fix it" by filling it white again—that adds a layer of stitches. Undo removes the data.
• Prevention: Use the Zoom tool. Set it to 200%.
  • 100%: Too far to be precise.
  • 800%: Too close to see context.
  • 200-400%: The sweet spot for human fingers.


9. Stitch Theory: Balancing Fabric Stress

Larissa assigns different stitch types to different areas. This is not just artistic; it's structural.

• Stippling (Green): Low stress. Good for filling space without making the fabric stiff as a board.
• Satin Stitch (Yellow): High stress. Pulls fabric inward.
• Crosshatch (Pink): Medium/High stress. Adds significant thread weight.

The "Quilt Block" Challenge: If you are stitching this on a quilt sandwich (batting + top), heavy cross-hatching can flatten the batting entirely. This creates a distortion where the block starts square but ends up like a diamond.

This behavior drives many quilters to switch to magnetic hoops for brother luminaire. Because the magnets clamp the entire sandwich firmly without the "tug-and-screw" distortion of traditional hoops, the block stays square even under the stress of 30,000 stitches.

10. The Professional Tweak: Global Density Adjustment

Larissa previews the design and notes the stippling looks "loose."

• Default: 0.120 inch spacing (approx 3mm).
• Adjustment: She links the regions and lowers it to 0.080 inch (approx 2mm).

The Trade-off (The "Sweet Spot"):

• 0.120" (Loose): Soft drape, faster stitch out, batting stays lofty.
• 0.080" (Tight): Professional "dense" look, stiff hand-feel, flattens batting.
• Warning: Going below 0.060" on standard cotton without heavy stabilizer can result in the fabric being perforated (cut) by the needle.


11. Final Conversion & Risk Assessment

She hits "Set." The machine converts the vector data to embroidery data.

• Size: 10.52" x 10.52"
• Stitches: 30,663
• Time: 63 minutes

The "63-Minute" Reality Check: A 63-minute run is a marathon for your fabric. Stabilizer loosens over time. Thread tension fluctuates. If your hoop holding power is weak, the design will shift by minute 45, ruining the outline registration.

For run times over 45 minutes, a heavy-duty magnetic embroidery hoop is a safety net. The continuous magnetic force doesn't "relax" like a plastic screw hoop might under the vibration of 30,000 stitch impacts.

12. Setup Strategy: The Physics of "Not Ruining It"

You have refined the digital file. Now you must manage the physical world.

Decision Tree: Stabilizer & Hoop Strategy

• Scenario A: Quilt Cotton (Single Layer)
  • Stabilizer: Medium Cutaway (2.5oz). Tearaway is risky for 30k stitches.
  • Hoop: Magnetic or Screw (Must be drum-tight).
• Scenario B: Quilt Sandwich (Top + Batting + Backing)
  • Stabilizer: Often none needed (Batting acts as stabilizer), or a light tearaway.
  • Hoop: Magnetic Hoop Recommended. (Screw hoops struggle to close over thick seams).
• Scenario C: T-Shirt / Knit
  • Stabilizer: No-Show Mesh Cutaway (Fusible preferred).
  • Hoop: Magnetic (To avoid stretching the knit while hooping).

Warning: Magnetic Hoop Safety
Pinch Hazard: High-quality magnetic hoops use industrial-strength magnets (often holding 5-10kg of force).
* Do not place fingers between the top and bottom frames.
* Slide the magnets apart; do not try to pry them open.
* Pacemaker Warning: Keep these magnets away from any implanted medical devices.

Phase 2: Setup Checklist

• Bobbin: Do you have a full bobbin? (30k stitches usually consumes 1.5 standard bobbins).
• Needle: Insert a fresh needle. (Size 75/11 Sharp for cotton; 75/11 Ballpoint for knits).
• Registration: Trace the design area on the screen to ensure the needle won't hit the frame.

13. Troubleshooting: The "Why Did It Fail?" Matrix

If things go wrong, use this logic flow (Low Cost -> High Cost fixes).

14. The Upgrade Path: Moving from Hobby to Production

If you find yourself spending more time fighting the hoop than stitching, or if you are searching for how to use magnetic embroidery hoop videos because your hands hurt from tightening screws, it is time to upgrade your infrastructure.

When to upgrade tools:

1. The "Hoop Burn" Problem: If you spend 20 minutes ironing out creases after embroidering, a Magnetic Hoop solves this immediately.
2. The "Volume" Problem: If you are doing 50 patches or blocks, a system like the hoopmaster (or compatible stations) combined with magnetic frames reduces hooping time from 2 minutes to 15 seconds per piece.
3. The "Thread Change" Problem: A design with 5 color changes takes 63 minutes on a Luminaire. On a SEWTECH multi-needle machine, you set it up once, and it runs automatically, freeing you to hoop the next item.

Phase 3: Operation Checklist

• Observation: Watch the first 500 stitches. If the fabric ripples, STOP immediately.
• Sound Check: Listen for the rhythmic thump-thump. A clattering sound means a needle is dull or thread path is blocked.
• Mid-Game Check: At 50% completion, check that excess fabric isn't bunching under the needle.

By mastering the Scan, Crop, and Density settings in My Design Center, you unlock the full potential of your Luminaire. By pairing that digital skill with the right physical tools—stable hoops and correct stabilizers—you turn "wobbly experiments" into professional embroidery.

FAQ

• Q: What safety steps are required when starting Brother Luminaire My Design Center and confirming the embroidery unit movement prompt?
  A: Keep hands and tools well clear because the Brother Luminaire embroidery unit and carriage can move immediately after confirmation.
  • Move fingers, scissors, magnetic tools, and loose sleeves at least 6 inches away before tapping the prompt.
  • Let the machine finish the homing/positioning sequence before touching the arm or mat.
  • Treat the motion like CNC behavior: hands off until it parks.
  • Success check: The carriage finishes its movement and comes to rest with nothing contacting the arm or mat.
  • If it still feels unsafe: Power off and re-check the area around the carriage for snag hazards before restarting.
• Q: How can Brother Luminaire users confirm the scanning mat is fully seated on the carriage before scanning in My Design Center?
  A: Push the Brother Luminaire scanning mat in until the lock engages—do not stop at first resistance.
  • Slide the mat onto the carriage arm and push firmly until a sharp “click” is heard.
  • Tug the mat gently backward to test the lock.
  • Re-seat the mat if it slides or feels loose.
  • Success check: The mat holds position during the tug test and does not slide.
  • If it still fails: Remove the mat and try again slowly, ensuring nothing is blocking the latch area.
• Q: Why does Brother Luminaire My Design Center fail to recognize a scan of line art, and how can contrast and mat seating fix it?
  A: Most Brother Luminaire scan failures come from low-contrast artwork or a mat that is not locked in place.
  • Retrace the drawing with a thicker black marker on clean white paper to increase contrast.
  • Wipe the scanner glass/camera area with a microfiber cloth to remove dust that creates digital noise.
  • Re-mount the scanning mat and confirm the audible “click” lock.
  • Success check: The scan captures clean, continuous dark lines without extra speckles at the edges.
  • If it still fails: Re-scan after cropping tighter to remove paper shadows/creases near the boundary.
• Q: How do Brother Luminaire users fix “Cannot Select Region” in My Design Center when filling areas with the Paint Bucket?
  A: Zoom in and use a stylus—this is a common Brother Luminaire “fat-finger” issue when regions are small.
  • Tap Zoom and set the view to about 200% (200–400% is typically the most controllable range).
  • Use a stylus instead of a finger for precise tapping.
  • Press Undo immediately if the wrong area fills; do not “paint it white,” which can add stitch layers.
  • Success check: The intended enclosed region fills cleanly without the background changing color.
  • If it still fails: Re-check that the region is fully enclosed by the scanned line (gaps in the outline can prevent region selection).
• Q: How tight should fabric be in a Brother Luminaire 10 5/8" x 10 5/8" hoop to prevent puckering and design distortion on large squares?
  A: Fabric must be evenly drum-tight all the way around, because large Brother Luminaire fields amplify small hooping errors.
  • Tighten and smooth evenly around 360°, not just near the screw, to avoid pulling the fabric into an oval.
  • Re-hoop if the fabric grain looks skewed or the “square” area looks stretched.
  • Consider a magnetic hoop if repeated screw-hoop tightening keeps distorting the fabric.
  • Success check: The fabric “sounds like a drum” when tapped and the grain stays straight (no ovaling).
  • If it still fails: Switch to a cutaway stabilizer for high-stitch designs and re-check hoop alignment before stitching.
• Q: What global stippling density settings on Brother Luminaire My Design Center help move from a loose look to a more professional fill without damaging cotton?
  A: A practical Brother Luminaire adjustment is tightening stippling from 0.120" to 0.080", while avoiding overly tight spacing that can perforate fabric.
  • Link the fill regions and reduce spacing from 0.120" (looser) to 0.080" (denser) to improve coverage.
  • Keep in mind tighter fills increase stiffness and can flatten batting in quilted projects.
  • Avoid pushing below 0.060" on standard cotton unless heavy stabilizing is used.
  • Success check: The preview and stitch-out show even coverage without needle “cutting”/perforation or excessive stiffness for the project.
  • If it still fails: Back off density (return closer to 0.120") and strengthen stabilization before trying tighter settings again.
• Q: What magnetic embroidery hoop safety rules should Brother Luminaire users follow to prevent pinched fingers and medical device risks?
  A: Treat magnetic hoops as high-force clamps—handle magnets by sliding, keep fingers out of the closing gap, and keep magnets away from implanted medical devices.
  • Slide magnets apart to open; do not pry them upward where they can snap shut.
  • Keep fingertips completely clear between the top and bottom frames during placement.
  • Keep magnetic hoops away from pacemakers or other implanted medical devices.
  • Success check: The hoop closes without any sudden snap onto fingers, and the fabric is clamped evenly without struggle.
  • If it still feels hard to control: Clear nearby metal tools from the table and slow down the closing motion to maintain control.
