From SVG to a Clean Full-Front Sweatshirt Stitch-Out: Kerning, Pathing, Trims, and the “Oops-Proof” Digitizing Habits Pros Use

Here is the comprehensive guide, re-engineered for clarity, safety, and production-level reliability.

The Full-Front Sweatshirt Guide: From Digital Panic to Production Perfection

When you sit down to digitize a full-front sweatshirt design—something spanning 280mm across the chest—the software can feel like a trap. It will happily let you design something that looks pristine on your monitor, right up until the moment you press "Start" on your machine. That’s when the reality of physics kicks in: the registration drifts, the fleece swallows your satin stitches, and that tiny spacing error you ignored becomes a glaring gap on the final garment.

This guide rebuilds the workflow from the video into a production-ready standard operating procedure (SOP). We aren’t just converting images to stitches; we are engineering a file that survives the hostile environment of thick, stretchy sweatshirt fabric.

1. Calm the Panic: Embracing the "Fussy" Nature of Large Designs

A full-front novelty design (sized here to 280 mm wide) is the ultimate stress test for any embroiderer. It requires a large hoop—typically a 300x200mm or larger field—and zero tolerance for shifting fabric.

If you feel overwhelmed, that is a healthy reaction. It means you respect the complexity. The trick to conquering this is to stop thinking like a graphic designer and start thinking like a structural engineer. You aren't just drawing lines; you are programming the machine's movement, speed, and tension.

The Golden Rule of Fabrics:

• Monitors lie. They show flat, perfect surfaces.
• Fabric moves. Sweatshirts stretch, compress, and pull.


2. The "Hidden" Foundation: Recipes, Safety Nets, and Size

Before you touch a single node or stitch type, you must secure your foundation. In the video, the presenter uses Embroidery Legacy Software, but these principles apply whether you use Hatch, Wilcom, or others.

Step-by-Step Foundation Setup:

1. Import & Immediate Sizing: Import your SVG artwork and immediately lock the size to 280 mm width. Do not design small and scale up later; stitch densities do not always scale linearly.
2. Enable "Autopilot" Safety: Ensure Auto Tie-in and Auto Tie-off are active. On a design with hundreds of letters, forgetting one manual tie-off can cause the entire design to unravel in the wash.
3. The "Recipe" Switch (Crucial): Change the software’s Auto Fabric setting from "Standard" or "Cotton" to Sweatshirt/Fleece.

Why this matters: Changing the recipe isn't cosmetic. It instructs the software to:

• Increase Pull Compensation: It overstitches edges (usually by 0.3mm - 0.4mm) to account for the fabric shrinking inward.
• Beef up Underlay: It adds a grid or double-zigzag underlay to mash down the fleece nap, creating a stable foundation for the top stitches to sit on. Without this, your stitches will sink into the fabric like a heavy boot in fresh snow.


Phase 1 Checklist: Preparation

• Hoop Check: Confirm your machine has a hoop large enough (300x200mm+) for a 280mm design.
• Scale Lock: Design width is set to final dimension (280mm).
• Fabric Receipt: Set to "Sweatshirt" or "Heavy Knit" to activate heavy underlay.
• Consumables Check: Do you have Water Soluble Topping (Solvy)? You will need this to keep thin outlines from disappearing into the fleece.
• Object Breakdown: Artwork is broken apart so single letters can be manipulated.

Warning: Mechanical Safety. During test sew-outs, keep hands strictly outside the hoop area. A moving pantograph has enough torque to crush fingers against the frame, and a 1000 SPM needle is invisible to the eye. Never reach in to trim a thread while the machine is running.

3. Kerning for Needles: The Art of the "Stitch Gap"

In graphic design, kerning is about visual flow. In embroidery, kerning is about clearance. The video demonstrates manually dragging letters (E, F, Y, W) to create a visible gap of roughly 1.0–1.5 mm.

The Physics of the Gap: When a satin column stitches, it pulls the fabric together, effectively widening the column slightly. If you place letters 0.5mm apart on screen, they will touch on the sweatshirt, creating a messy "blob" where the outlines overlap.

The Sensory Check: Zoom in to 100% scale (1:1). If the gap feels "too wide" to your eye—like you could slide a credit card comfortably between the letters—it is probably correct for a sweatshirt.

The Hooping Factor: Even perfect digital kerning fails if the fabric slips in the hoop. Traditional screw-tightened hoops often struggle to hold thick sweatshirt hems evenly, leading to "flagging" (bouncing fabric) which ruins registration. This is a primary scenario where professionals switch to magnetic embroidery hoops. These tools clamp thick materials without requiring aggressive hand force, reducing the "hoop burn" rings that ruin delicate fleece and keeping the fabric tension consistent so your kerning gap remains true.

4. Stitch Conversion: Impact vs. Readability

To manage stitch count and texture, the video adopts a smart "Split Personality" strategy:

1. First Letter of First Word: Convert to Motif Fill (a textured, open fill).
2. Everything Else: Convert to Satin Outlines.

The Speed Trick: Select the first letter of every word (Hold Ctrl/Cmd + Click) and convert them as a batch.

Optimizing the Motif Fill

• Setting: Reduce pattern size from 5mm to 4mm.
• Why: A standard 5mm motif can look "gappy" on lofty fabric, revealing too much shirt color. Shrinking it to 4mm tightens the woven appearance without creating a bulletproof stiff patch.


Optimizing the Satin Outline

• Width: The presenter tests 1.2mm and settles on 1.0mm.
• Risk Analysis: A 1.0mm satin column is very narrow for a sweatshirt. It risks getting lost in the pile.
• The Fix: This absolute necessitates the use of a water-soluble topping (like Solvy) on top of the fabric. The topping holds the nap down so the thin 1.0mm satin sits proudly on top.

5. Pathing Logic: Managing Your Starts and Stops

This section distinguishes the amateurs from the pros. We use the Reshape/Edit Path tool to move the entry (Green) and exit (Red) points of each letter.

The Logic of Movement:

• Continuous Flow: If two objects are practically touching (or joined by a running stitch), move the Stop of Object A next to the Start of Object B.
• Forced Trim: If moving from the "P" to the "S", place the Stop and Start far apart to force the machine to cut the thread.




Why "Auto-Trim" Isn't Enough: Software auto-trim is aggressive and often leaves messy tails. By manually controlling these nodes, you prevent the machine from dragging a long "jump stitch" across your pristine fabric, which could snag or drag the lettering out of alignment.

Precise pathing relies on the fabric staying perfectly still. If you are struggling with alignment across a 280mm span, look into hooping stations. A station allows you to lock the hoop in place and pull the garment over it with consistent tension every time, ensuring that the coordinate system in your software matches the reality on your table.

6. Sequencing: The "Local Sewing" Rule

Never sew all the fills first, then all the outlines. That is a recipe for disaster on a sweatshirt. By the time the machine returns to outline the first letter, the fabric will have shifted, and the outline will likely miss the fill entirely (a gap).

The Correct Sequence:

1. Letter 1 Fill
2. Letter 1 Outline
3. Letter 2 Fill
4. Letter 2 Outline


Efficiency Upgrade: On a single-needle machine, this sequence is annoying because of constant color changes. This frustration is often the "trigger point" where hobbyists realize they need to upgrade to a Multi-Needle machine. If you plan to sell these sweatshirts, a 15-needle machine (like those from SEWTECH/Ricoma/etc.) handles these color swaps automatically, turning a 2-hour babysitting job into a 45-minute autonomous run.

Terms like machine embroidery hooping station are often searched alongside multi-needle upgrades because scaling up production requires both speed (machines) and consistency (hooping).

7. The Flame Inside the "O": Texture Control

For the flame graphic, standard Tatami fill is too flat, and standard Satin is too long (floppy loose stitches).

• Solution: Satin Fill + Random Auto Split.
• Result: The "Auto Split" forces needle penetrations in the middle of the satin column, creating a carved, organic texture that mimics a flickering flame while keeping thread runs short and snag-free.


8. Outline Selection: Satin vs. Bean

The presenter tests a "Bean Stitch" (triple running stitch) but rejects it for a 1.0mm Satin.

• Bean Stitch: Sinks into fleece. Great for vintage looks, bad for visibility.
• Satin Stitch: Sits on top of the fleece (with underlay). Offers a bold, retail-finish look.




Pro Tip: If you choose Satin, verify your Density. Standard density (0.40mm) is usually fine, but for 1.0mm width, you might tighten it slightly to 0.38mm for better coverage.

9. Manual Trims: The "Scissors" Command

Don't be afraid to insert manual Trim commands in the sequence.

• Where: Between distinct words (e.g., between "PSYCHOTIC" and "STATE").
• Why: Even if the jump is short, a travel stitch across the open chest gap looks sloppy and is hard to trim by hand without nipping the fabric.


Phase 2 Checklist: Setup & Export

• Density Check: Satin columns are set to ~0.38-0.40mm density.
• Travel Check: Run the "Slow Redraw" simulator. Look for long black lines (travel stitches). Add trims if they cross open fabric.
• Extension: Save the master working file (JDX/EMB) before saving the machine file (DST/PES).
• Speed Limit: For the first test run, cap your machine speed at 600-700 SPM. High speeds on heavy fleece can cause needle deflection.

10. The Reality Check: Spelling & Repair

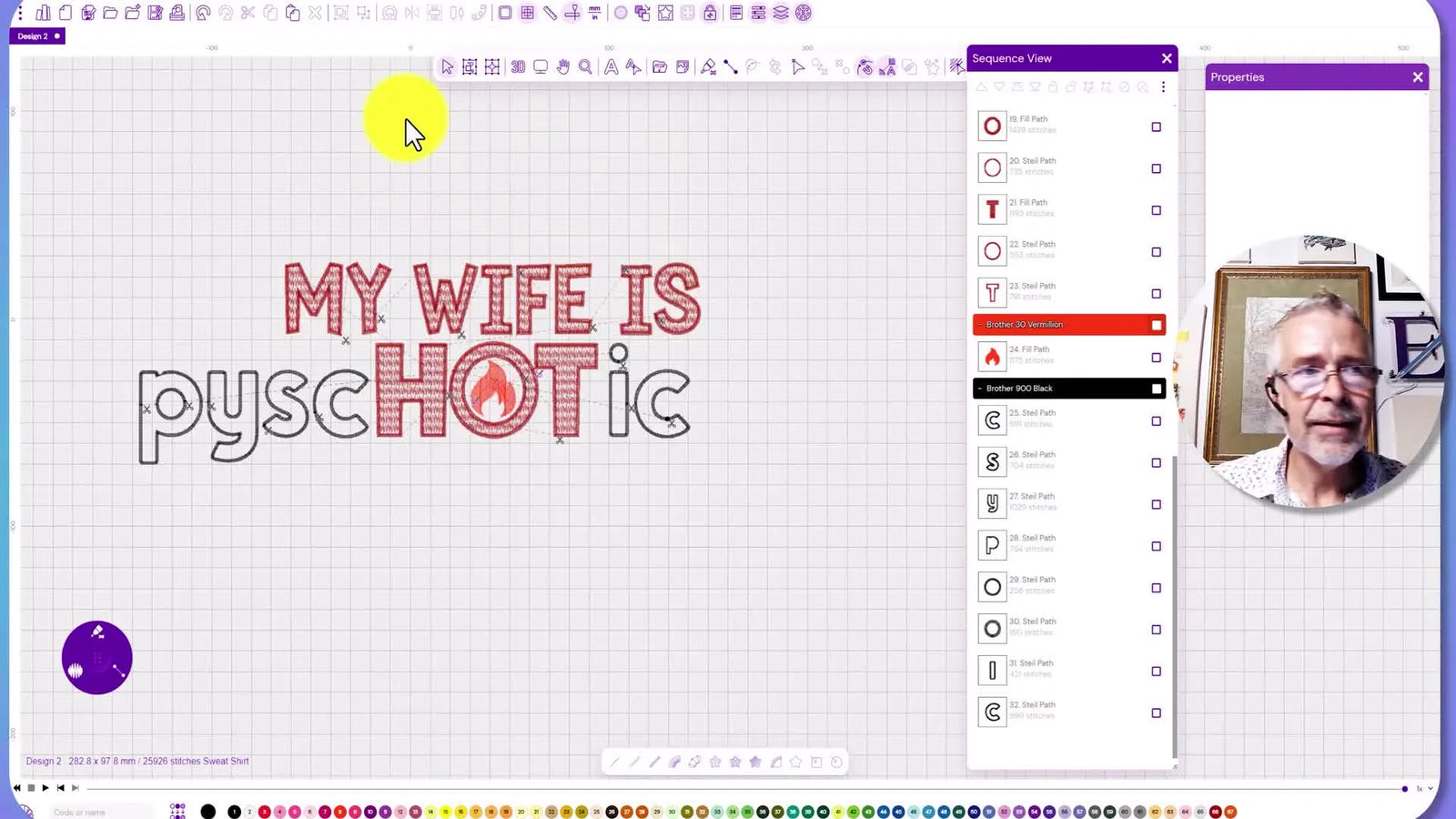

The video finishes with a classic "Oops": The design says "PYSCHOTIC" instead of "PSYCHOTIC."

The Repair Protocol:

1. Don't Panic: Open the native (JDX) file.
2. Guides: Drag a horizontal ruler guide to mark the baseline.
3. Swap: Select the "S" and "Y" groups (fill + outline together) and swap them.
4. Resequence: Ensure the Sequence window reflects the new order (S stitches before Y).






Phase 3 Checklist: Pre-Flight Operation

• Spelling Check: Read the design backwards to catch typos.
• Needle Freshness: Install a fresh 75/11 Ballpoint needle (Ballpoint avoids cutting the knit fibers of the sweatshirt).
• Bobbin Check: Ensure you have a full bobbin. Running out mid-letter on a full-front design causes visible seams.
• Topping Applied: Lay down your water-soluble topping.
• Trace: Run the design trace on the machine to ensure the 280mm width doesn't hit the hoop arms.

11. Stabilizer & Hooping Decision Tree

Your digitizing is only as good as your stabilization. Use this logic tree to make safe decisions.

Decision Tree: Fabric → Stabilizer Strategy

• Scenario A: Heavyweight Sweatshirt (Fuzzy inside)
  • Backing: 2 layers of No-Show Mesh (Poly Mesh) OR 1 layer of Medium Cutaway. Never use Tearaway on full-front wearable designs.
  • Topping: 1 layer Water Soluble (Solvy).
  • Hooping: High Risk of Hoop Burn. If using standard hoops, wrap the inner ring with grip tape. Ideally, use magnetic embroidery frame systems to hold without crushing.
• Scenario B: Performance Hoodie (Slippery/Stretchy)
  • Backing: 1 layer Heavy Cutaway (adhered with temporary spray adhesive).
  • Hooping: Must be tight like a drum skin. Tap it—it should sound like a dull thud, not loose fabric.
• Scenario C: Production Run (50+ items)
  • Workflow: You need a template system.
  • Tools: A hoopmaster hooping station ensures the design is exactly 3 inches from the collar on every single shirt, eliminating the "did I center this?" anxiety.

Warning: Magnet Hazard. If you upgrade to magnetic hoops, handle them with extreme care. The magnets are industrial-strength and can pinch skin severely. Keep them away from pacemakers and implanted medical devices.

12. The Upgrade Path: When to Scale

If you mastered this tutorial but find the process physically painful or too slow for your order volume, it is likely a hardware bottleneck, not a skill issue.

Troubleshooter's Upgrade Guide:

Summary

Digitizing a full-front sweatshirt design is about controlling chaos. By using the "Sweatshirt Recipe," spacing your letters with a 1.0mm gap, sequencing locally, and using the right stabilizers, you turn a risky project into a repeatable product.

Always save your native files, always check your spelling, and never underestimate the power of a fresh needle and a good hoop. Happy stitching!

FAQ

• Q: For a 280mm full-front sweatshirt design in Hatch Embroidery or Wilcom, what stabilizer and topping combination prevents satin outlines from sinking into fleece?
  A: Use a cutaway-based backing plus water-soluble topping to keep the 1.0mm satin outlines visible on lofty sweatshirt fabric.
  • Apply backing: Use 2 layers of No-Show Mesh (Poly Mesh) OR 1 layer of Medium Cutaway for a heavyweight fuzzy sweatshirt; avoid tearaway for full-front wearables.
  • Add topping: Lay 1 layer of water-soluble topping (Solvy) on top before stitching thin outlines.
  • Run a test at reduced speed: Cap the first sew-out at 600–700 SPM to reduce needle deflection on heavy fleece.
  • Success check: Thin satin lines look crisp and raised on the surface (not “disappearing” into the nap).
  • If it still fails: Switch the software fabric setting to “Sweatshirt/Fleece” to increase underlay and pull compensation, then re-test.
• Q: In Embroidery Legacy, Hatch, or Wilcom digitizing, how large should the letter gap (kerning) be for satin outlines on a sweatshirt so letters don’t blob together?
  A: Start with a visible 1.0–1.5 mm stitch gap between letters for sweatshirt fleece to prevent outlines from merging.
  • Zoom to true size: View at 100% (1:1) and judge spacing at actual scale.
  • Manually adjust letters: Drag problem letters (like E/F/Y/W shapes) until the gap looks “too wide” on screen.
  • Stabilize before blaming kerning: Hoop securely so the fabric cannot shift across a 280mm span.
  • Success check: After stitching, outlines stay separated with a clean channel of fabric between letters.
  • If it still fails: Improve hoop hold (reduce slip/flagging) before changing spacing again.
• Q: For a full-front 280mm sweatshirt design, how should the stitch sequence be ordered to prevent fill/outline mis-registration on stretchy fleece?
  A: Sew “locally”: stitch each letter’s fill and its outline back-to-back before moving to the next letter.
  • Reorder objects: Set Letter 1 Fill → Letter 1 Outline → Letter 2 Fill → Letter 2 Outline (repeat).
  • Simulate first: Use the stitch player/slow redraw to confirm the machine returns to outlines immediately.
  • Add trims where needed: Insert manual trims between distinct words to avoid travel stitches across open chest areas.
  • Success check: Outlines land exactly on the fill edges with no visible offset gaps.
  • If it still fails: Slow the first run to 600–700 SPM and re-check hoop security to reduce shifting.
• Q: In Embroidery Legacy, Hatch, or Wilcom, how do you control jump stitches and messy thread tails on large sweatshirt lettering when auto-trim is not clean?
  A: Manually set entry/exit points and add trims so the machine does not drag long travel stitches across the fabric.
  • Edit pathing: Move the Stop (exit) of Object A close to the Start (entry) of Object B when objects are meant to flow.
  • Force a cut: Place Stop and Start far apart when moving between non-adjacent letters/areas so the machine trims instead of traveling.
  • Insert manual trims: Add trims between separate words to avoid visible cross-chest travel stitches.
  • Success check: Minimal visible travel lines and no long, loose tails on the garment face.
  • If it still fails: Re-run slow redraw and keep adding trims anywhere travel stitches cross open fabric.
• Q: What is the safest way to test-sew a full-front sweatshirt design on a multi-needle embroidery machine to avoid finger injury near the hoop and pantograph?
  A: Keep hands completely outside the hoop area during stitching and never reach in to trim threads while the machine is running.
  • Stop first: Pause/stop the machine before any trimming, adjustments, or clearing threads.
  • Trace before sewing: Run a full design trace to ensure the 280mm sew field will not strike hoop arms.
  • Reduce speed for testing: Start at 600–700 SPM on thick fleece to keep motion controlled.
  • Success check: No contact between design path and hoop hardware, and no need to “rescue” threads mid-run.
  • If it still fails: Reposition the design or switch to a larger hoop field (300×200mm+ was the baseline in the setup).
• Q: What magnet safety rules should be followed when using magnetic embroidery hoops or magnetic embroidery frames for thick sweatshirts?
  A: Treat magnetic hoops as pinch hazards and keep them away from implanted medical devices.
  • Handle deliberately: Separate and install magnets slowly to avoid sudden snapping that can pinch skin.
  • Keep clear of medical devices: Do not use near pacemakers or implanted devices; follow medical guidance and the hoop manufacturer’s warnings.
  • Store safely: Keep magnets secured so they cannot slam together during transport or storage.
  • Success check: No pinched fingers during hooping and the hoop seats smoothly without “snapping” unexpectedly.
  • If it still fails: Switch to standard hoops for that operator/workstation and revisit handling technique before trying magnetic hoops again.
• Q: For full-front sweatshirt embroidery production, when should a user choose technique optimization vs upgrading to magnetic hoops vs upgrading to a SEWTECH multi-needle machine?
  A: Use a step-up approach: fix the process first, upgrade hooping next if fabric slips/hoop burn persists, and upgrade the machine when thread changes and run time become the real bottleneck.
  • Level 1 (technique): Enable auto tie-in/tie-off, use the “Sweatshirt/Fleece” fabric setting, sew locally (fill then outline), and cap test speed at 600–700 SPM.
  • Level 2 (tool): If wrists hurt hooping thick seams or hoop burn marks keep happening, switch to magnetic hoops to clamp without over-tightening.
  • Level 3 (capacity): If constant color changes on a single-needle machine make jobs unprofitable, move to a multi-needle machine (e.g., a SEWTECH 15-needle) for automated color swaps.
  • Success check: Designs register cleanly across the 280mm span without frequent babysitting or re-hooping.
  • If it still fails: Add a hooping station for consistent placement and tension, then re-test with the same digitized file.
