Manual Machine Embroidery: Stitch a Gradient Butterfly (Step‑by‑Step)

Mastering Manual Machine Embroidery: The Gradient Butterfly

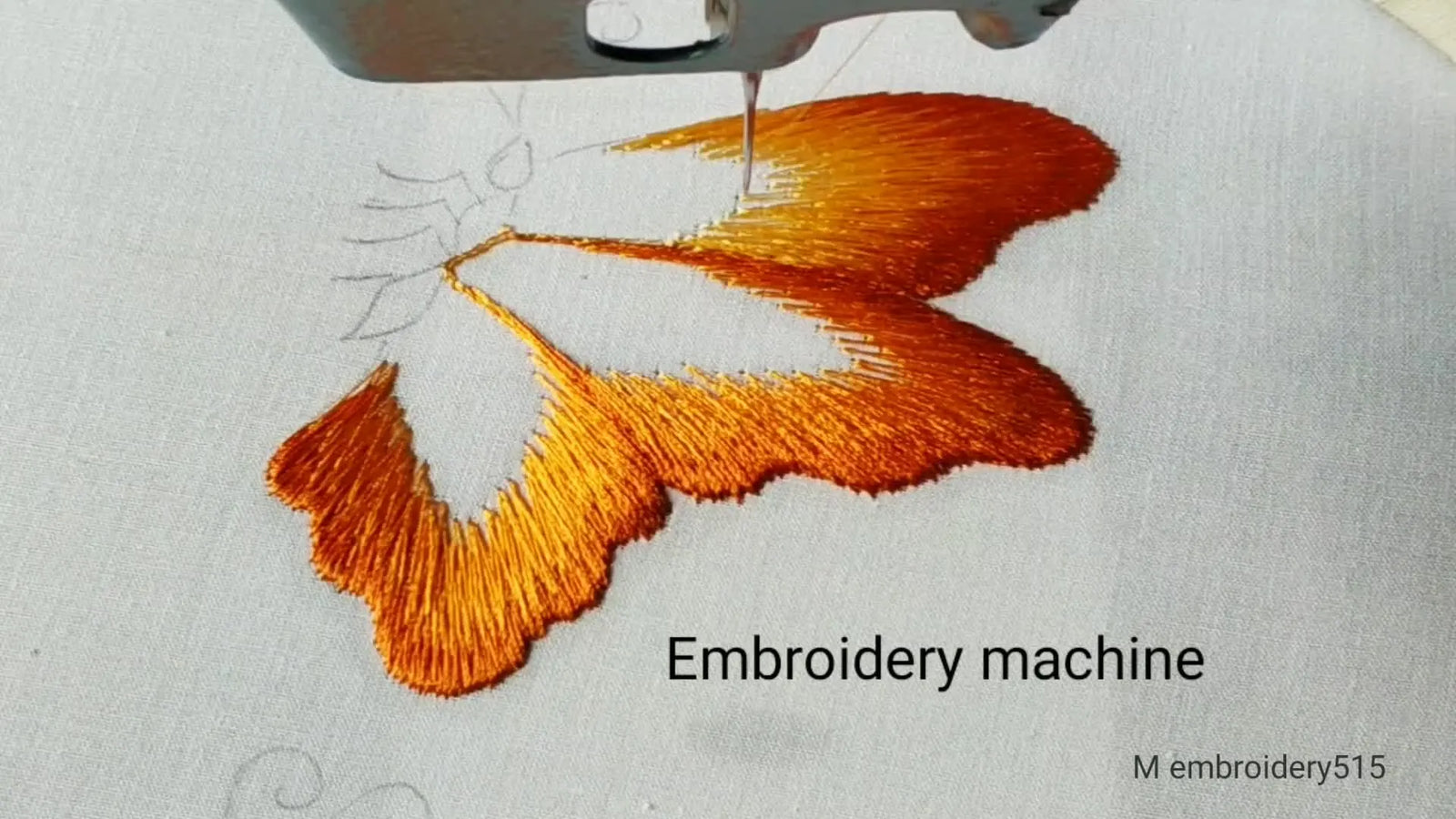

Manual machine embroidery relies on you guiding the hooped fabric under the needle while controlling the stitch path and density. In this project, you’ll stitch a butterfly with a five-color gradient on the wings, then add the body, legs, and antennae for definition.

From the community: the featured setup is an industrial zigzag SINGER 20U, worked manually (not a computerized program). Expect a learning curve—one commenter noted training for about three months to achieve confident control over curves and blends.

Why a gradient butterfly?

• It trains your eye to manage transitions from dark to light.

• It encourages consistent filling and stitch direction for clean blends.

• It rewards patience with a striking, gallery-worthy result.

Pro tip: If you plan to make multiples (as in the orange, yellow, and blue versions), keep the same five-shade order in each color family so the technique scales predictably. hoop master embroidery hooping station

Gathering Your Tools & Materials

Essential equipment: machine, hoop, fabric

• Manual/industrial zigzag machine: SINGER 20U (as confirmed in comments)

• Embroidery hoop mounted to the machine

• White fabric (as shown) secured firmly in the hoop

• Hand-drawn butterfly outline on the fabric to guide stitching

Thread and needle

• Thread: Rayon (per creator’s comments)

• Needle: SINGER number 12 (per creator’s comments)

Color plan (five shades)

• Shade 1: Darkest (e.g., reddish-brown in the orange butterfly)

• Shade 2: Dark orange (neighboring the darkest)

• Shade 3: Orange-yellow (mid-light)

• Shade 4: Gold (lightest wing shade)

• Shade 5: Lighter gold/beige for body/antennae (or reuse Color 4 for legs)

Watch out: Wrinkling after unhooping can come from a slack hoop or uneven density. Keep the fabric taut before you start, and aim for uniform filling across each section.

Quick check: Can you trace the entire butterfly outline on your fabric without lifting your marking pen? If yes, your outlines will be easier to follow under the needle. embroidery hoops magnetic

Checklist — Prep

• SINGER 20U or equivalent manual zigzag machine available

• Hooped white fabric; butterfly outline drawn

• Five coordinated thread shades in one color family

• Rayon thread loaded; needle #12 inserted

• Work light positioned; test scrap nearby

Step-by-Step: Embroidering Your Butterfly Wings

You’ll build the gradient from dark to light: Color 1 lays the base; Colors 2–3 handle the transition; Color 4 completes the light edge.

Laying the Foundation: Outline and Darkest Shade

1) Outline with Color 1

• Goal: Establish the wing edges and the top-outer fill area.

- Method: Follow your hand-drawn outline carefully. Keep movement smooth to avoid angles.

2) Fill the top-outer wing section (Color 1)

• Use short, dense passes in a consistent direction.

- Continue until the area is solid and even.

Quick check

• Edges look smooth; no wobbles off the pencil line.

• Fill is dense with no fabric peeking through.

If-then

• If density looks patchy → Re-stitch sparsest areas with short, overlapping passes.

• If you overshoot the outline → Trim stray threads and course-correct in the next line of stitches.

Watch out: Running too fast can create choppy curves. Slow hands yield smoother edges.

Seamless Blending: Introducing Mid-Tones

3) Add Color 2 (dark orange)

• Overlap lightly into the edge of Color 1.

• Maintain the same stitch direction through the transition to prevent a visible seam.

- Expand the fill through the mid-upper wing.

4) Add Color 3 (orange-yellow)

• Again, overlap into Color 2 at the boundary.

- Keep density consistent; avoid thin patches that will show after unhooping.

Quick check

• The transition band between Color 1→2 and 2→3 looks melted, not striped.

• Direction of travel stays aligned across colors.

Fixes that work

• If the blend is harsh → Stitch back and forth across the color boundary with lighter pressure to soften the join.

- If there are gaps → Fill missed spots with short passes matching the main stitch direction.

Pro tip: Do both wings in mirrored fashion, repeating the exact order and overlaps at each transition for symmetry. magnetic hoops for embroidery

Brightening Up: The Final Color Layer

5) Finish wings with Color 4 (gold)

• Fill remaining wing areas, overlapping into Color 3 along the boundary.

- Nudge stitches into corners and edges until coverage is complete.

Outcome to expect

• A continuous gradient from darkest near the top-outer wing to lightest at the tips/lower sections.

- No exposed fabric; density feels even to the touch.

Checklist — Wings done right

• Smooth gradient 1→2→3→4 with no harsh lines

• Uniform fill; no thin patches or bunching

• Edges clean and on-pattern

Adding Life: The Body and Antennae Details

With the wings complete, the butterfly comes to life through line work.

Body and legs: Color 5 (lighter gold/beige)

• Outline the body with steady, short passes; keep curves smooth.

- Add small leg lines with minimal pressure to avoid thread breaks.

Antennae: delicate curves

• Stitch the antennae as graceful arcs and match their length for symmetry.

- Slow down to prevent jagged lines; reduce speed if your thread tends to snap.

Quick check: Are both antennae matched in length and curve? Are body edges crisp with no fuzzy wobble?

Pro tip: If your legs appear heavy, shorten your passes and lighten your pressure to keep them fine and lively. dime snap hoop

Checklist — Detailing

• Body outline smooth and centered

• Legs light, evenly spaced, and proportional

• Antennae symmetrical and clean

Exploring Color Variations for Your Butterflies

The same five-step gradient maps beautifully across palettes. In the demonstration, three versions appear: orange, yellow-green, and blue/teal.

Orange gradient breakdown - Threads labeled 1–5 for the orange butterfly are shown together with the finished piece for reference.

Yellow & green spectrum

• Another finished butterfly shows a lighter, sunny range (threads 1–5 displayed). magnetic hoop for brother stellaire

Deep blue and teal shades - A third butterfly proves the technique works in cool tones; spools 1–5 show the sequence.

Pro tip: For any palette, pick five shades in the same family from dark to light. Keep order consistent across both wings.

Quality Checks: What “Good” Looks Like

Edges

• Outlines follow the drawn butterfly exactly, no flat spots on curves.

Coverage

• Each wing section feels uniformly dense; no pinholes of background fabric.

Blends

• Color boundaries look “melted.” If a line is visible, add a soft overlap pass across the join.

Fine detail

• Body edges are crisp; legs are short and light; antennae are smooth, matched arcs.

Quick check: Compare both wings—do color widths and transitions mirror each other? Adjust any mismatch with a gentle corrective pass.

Results & Handoff

Your finish should resemble the side-by-side gallery: three butterflies with distinct palettes (orange, yellow-green, blue/teal), each worked with five labeled threads.

Finishing considerations

• Keep the hoop on until the piece cools if you warmed the fabric with a task light.

• To tame minor rippling, light pressing on the wrong side through a pressing cloth can help.

From the comments: To improve thread flow with rayon, the creator notes applying a small amount of kerosene to the thread; keep in mind safe handling for any solvent you choose to use.

Troubleshooting & Recovery

Symptom → likely cause → fix

1) Wrinkling after unhooping

• Cause: Fabric wasn’t taut enough or density is uneven across sections.

• Fix: Re-hoop with firmer tension and even out any thin areas with light fill passes. Gentle pressing can help relax ripples.

2) Harsh lines between colors

• Cause: Minimal overlap or changing stitch direction at the boundary.

• Fix: Add a few feathered passes straddling the boundary; match stitch direction.

3) Patchy coverage

• Cause: Rushing or wide spacing on passes.

• Fix: Re-fill sparse spots with short, parallel stitches until solid.

4) Thread breaking on antennae or legs

• Cause: Speed too high for delicate lines.

• Fix: Slow down; keep passes short and aligned; ensure needle #12 is fresh.

5) Stitches wander off the outline

• Cause: Sudden hand movements or poor visibility.

• Fix: Improve task lighting; reduce speed; take shorter segments around tight curves.

Decision points

• If your palette’s mid-tones are too close together → Expand the contrast between Colors 2 and 3 to help the gradient read from a distance.

• If your fabric shows through the lightest area → Add another light pass with Color 4 across only that section.

Pro tip: Keep a swatch with your exact five threads taped and numbered 1–5. It speeds setup when you reproduce the design later. magnetic embroidery hoop

Primer: What & When (recap)

• Best for: Intermediate stitchers comfortable guiding fabric manually.

• Time investment: Control takes practice—one user reported about three months of training to gain reliable results.

• Machine: Industrial zigzag SINGER 20U (as shared by the creator).

• Materials: White fabric, rayon threads in five shades, needle #12.

From the community

Common questions answered

• What machine is used? An industrial zigzag SINGER 20U (manual operation).

• Is it straight stitch? No—zigzag capability is used.

• Which thread type? Rayon.

• Needle size? SINGER 12.

• Any tips for tension and puckering? Keep hoop tension firm and density even; gentle pressing can help. The creator also mentions applying a small amount of kerosene to assist thread flow with rayon.

Final gallery cue: The orange, yellow-green, and blue butterflies each use five numbered spools (1–5) to define the gradient sequence, making replication straightforward.

Checklist — Operation (quick glance)

• Color 1: outline + dense base

• Color 2: overlap + expand

• Color 3: overlap + unify mid-tones

• Color 4: complete fill + polish edges

• Color 5: body, legs, antennae (or use Color 4 for legs)

Pro tip: Consistency wins. Match stitch direction through transitions, and your gradient will read as one continuous glow. mighty hoop 11x13
